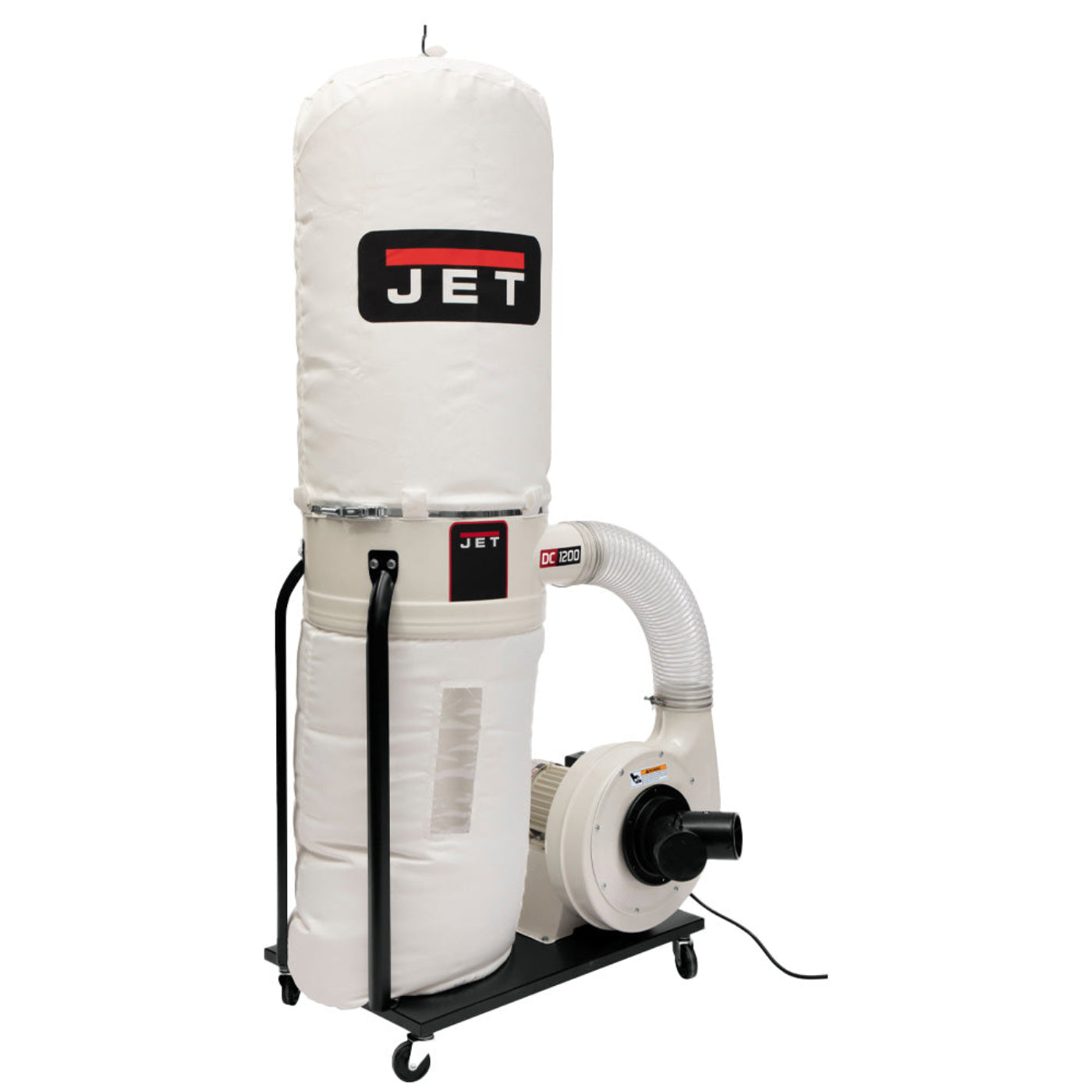

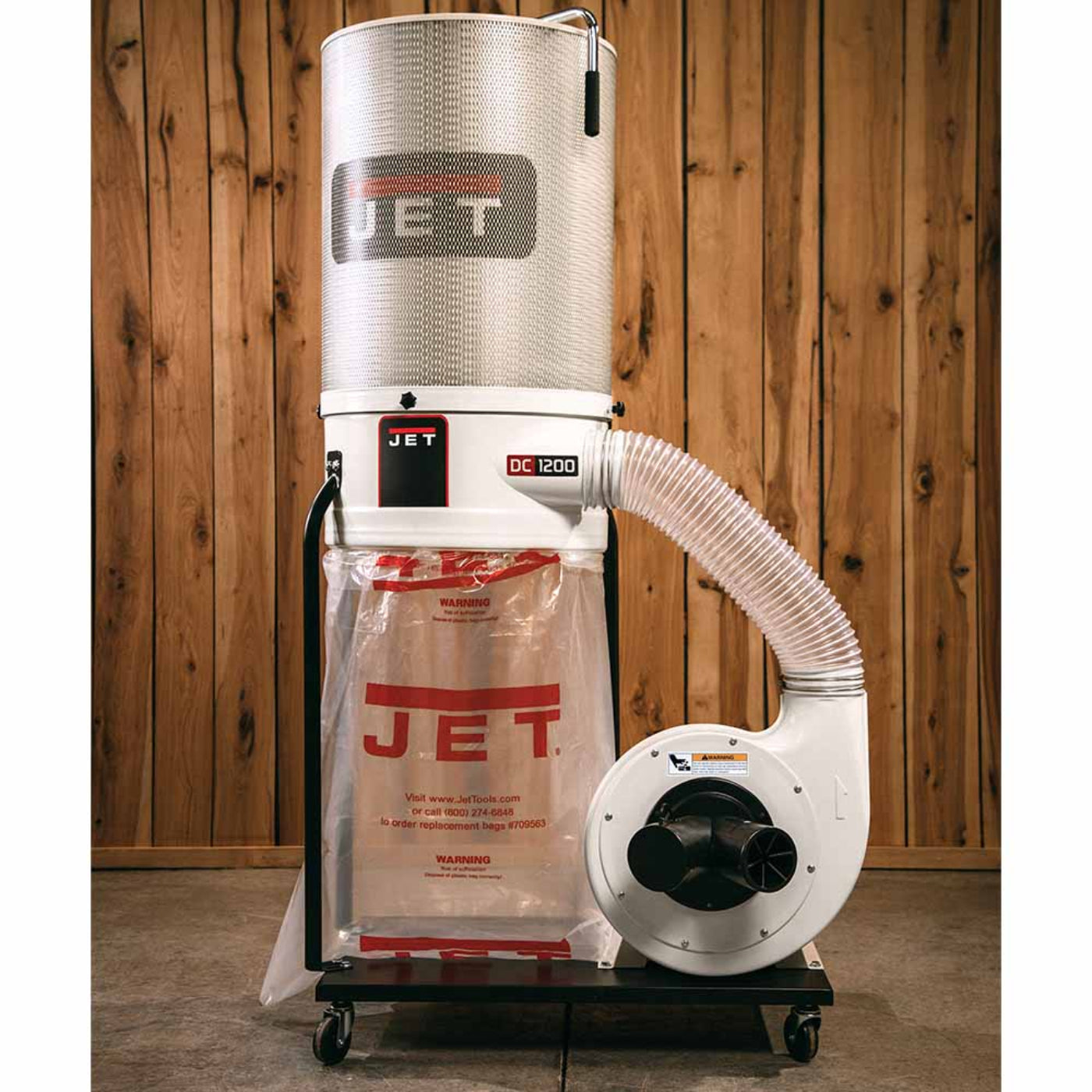

JET 30-Micron Bag Filter Kit DC-1200VX-BK1 Dust Collector 2hp, 1PH, 230V - JT9-710701K
The JET DC-1200VX features the exclusive Vortex Cone which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The high air velocity (CFM) stands up to any competitive specifications, and the industrial controls are designed for years of durable use. Collection bags have a snap ring for fast installation and removal. Casters offer maneuverability within the shop.
JET warrants every product they sell against manufacturer's defects. All JET Woodworking Machinery carry a 5-Year Warranty from date of purchase. Woodworking products with a 5-Year Warranty that are used for commercial or industrial purposes default to a 2-Year Warranty. Warranties are subject to JET's terms and conditions.
Features
- Eliminates premature filter clogging for sustained performance
- High air velocity (CFM) design stands up to any competitive specifications
- Includes four casters for maneuverability and total portability
- Industrial controls designed for years of trouble-free use
- Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
- Quick-connect collection bags with elastic band for fast, easy installation and removal
- Single-stage design for economical and quiet operation
- Vortex Cone improves chip separation and collector bag packing efficiency
Specifications
| 1-Hose Connection Diameter |
6" |
| 2-Hoses Connection Diameter |
4" |
| Air Flow @ 4" |
1,200 CFM |
| Velocity @ 4" |
13,745 FPM |
| Bag Diameter |
20" |
| Collection Bag Capacity |
5-3/10 Cu. Ft. |
| Collection Bag Length |
29" |
| Efficiency |
30 Micron |
| Impeller Diameter |
12" |
| Impeller Material |
Steel |
| Motor Power |
2 HP |
| Motor Amps |
8 A |
| Motor Voltage / Prewired Voltage |
230 V |
| Sound Rating |
80 – 85 dB |
| Static Pressure |
11-1/2 Wc |
| Dimensions (L × W × H) |
37" × 28" × 79" |
| Net Weight |
127 lbs |
What our Experts Think
Q&A
Q1: What is this product?
A: A 30-micron bag filter kit designed for the JET DC-1200VX Dust Collector, improving dust collection efficiency and workshop cleanliness.
Q2: What motor specification does it support?
A: Compatible with the DC-1200VX dust collector, which features a 2 HP, single-phase (1PH), 230V motor.
Q3: What does the 30-micron filter do?
A: Captures larger dust and debris particles while maintaining airflow for effective dust collection.
Q4: Is it suitable for professional use?
A: Yes, ideal for woodworking shops, metalworking, and professional environments requiring reliable dust control.
Q5: Does it include all necessary components?
A: Yes, the kit includes the bag filter, sealing components, and installation hardware.
Q6: Does it fit existing DC-1200VX units?
A: Yes, it is specifically designed for seamless compatibility with JET DC-1200VX dust collectors.
Q7: What are the benefits of using this kit?
A: Enhances dust collection efficiency, prolongs dust collector life, reduces cleanup, and keeps the workspace safer.
Q8: Is installation easy?
A: Yes, it comes with all components and instructions for straightforward installation
Maintenance Tips
-
Empty the Collection Bag: Regularly remove and empty dust to maintain optimal airflow and collector efficiency.
-
Clean the 30-Micron Filter: Shake, vacuum, or wash the bag filter as recommended to prevent clogging and ensure effective dust capture.
-
Inspect Hoses and Connections: Check for cracks, leaks, or loose fittings; repair or replace as needed.
-
Check Motor and Fan: Ensure the 2hp motor runs smoothly and the fan blades are unobstructed.
-
Electrical Safety: Verify the 230V power supply is stable and cords are in good condition before operation.
-
Store Properly: Keep the dust collector in a dry, clean area to prolong filter and motor life
