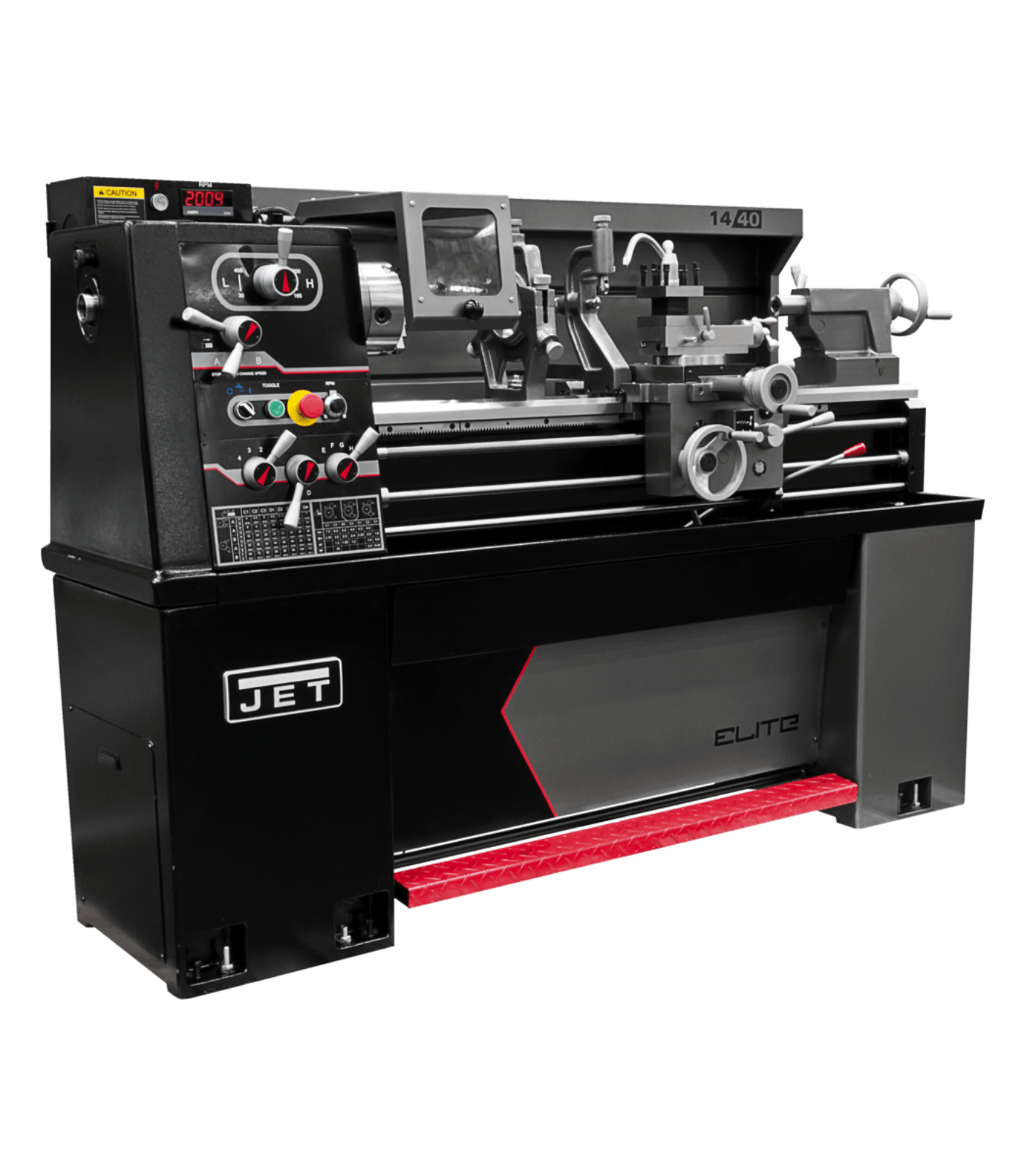

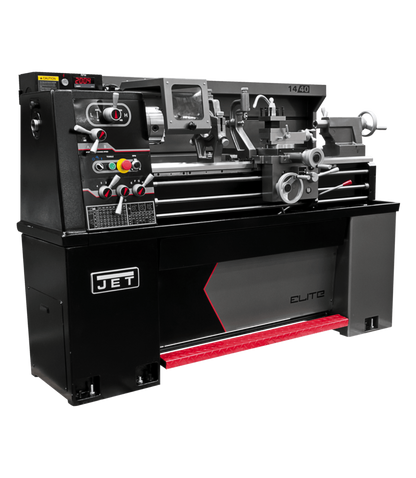

JET Elite
1 Review
Only left!
Free Delivary
Limited Stocks
Quantity
Couldn't load pickup availability
$0.00 USD
$0.00 USD
$0.00 USD

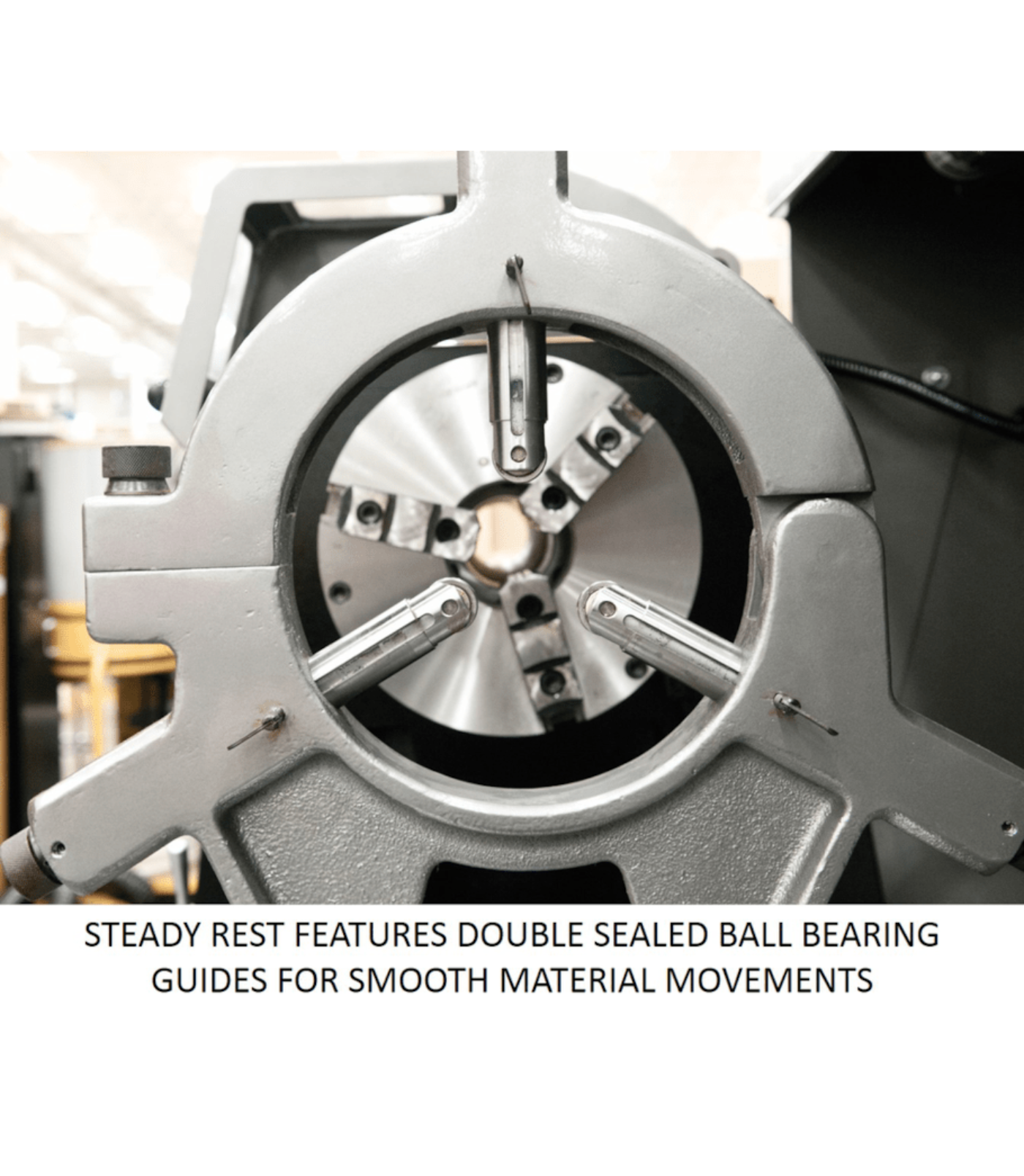

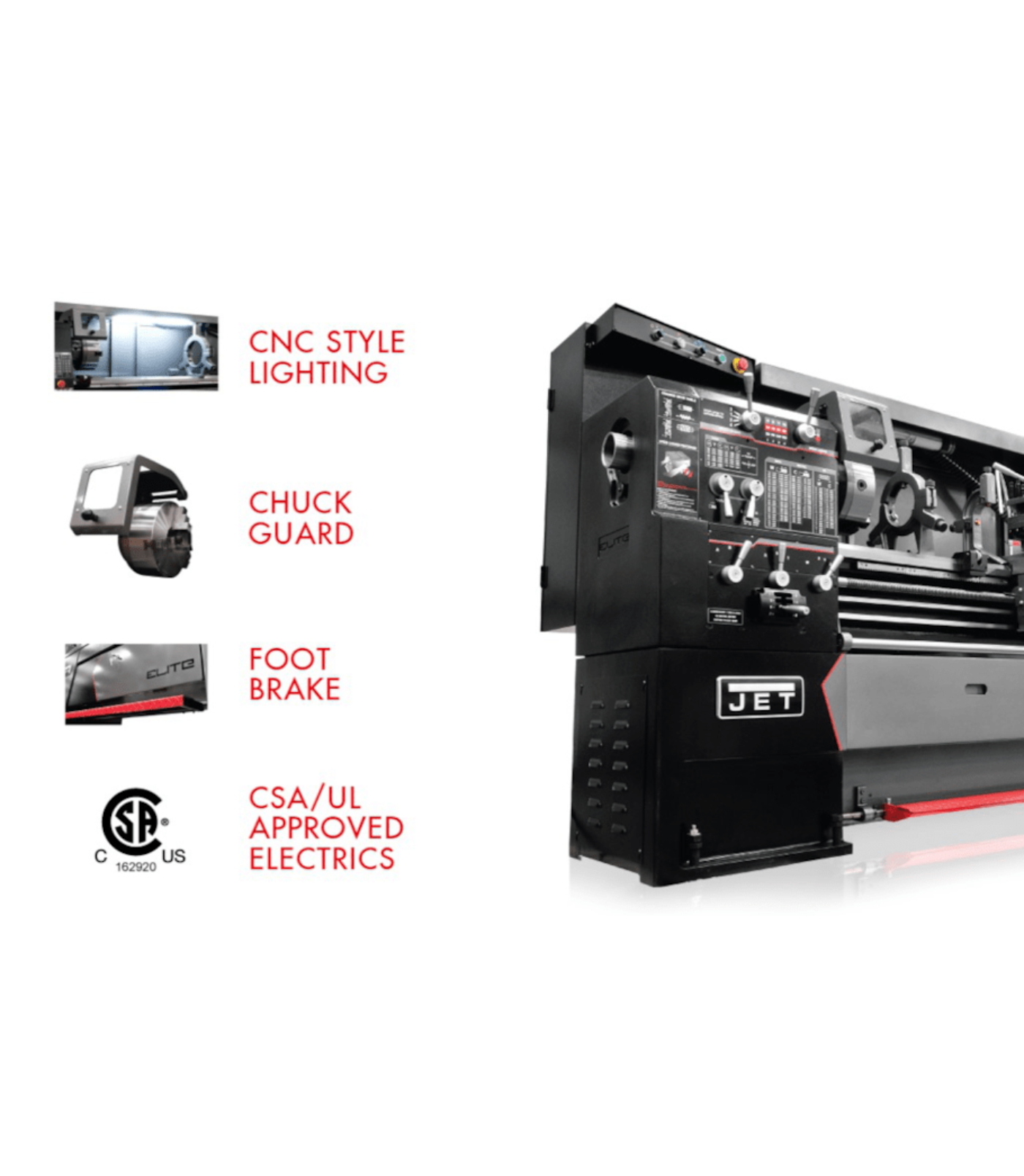

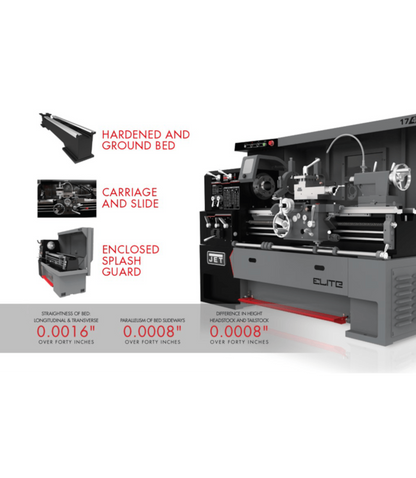

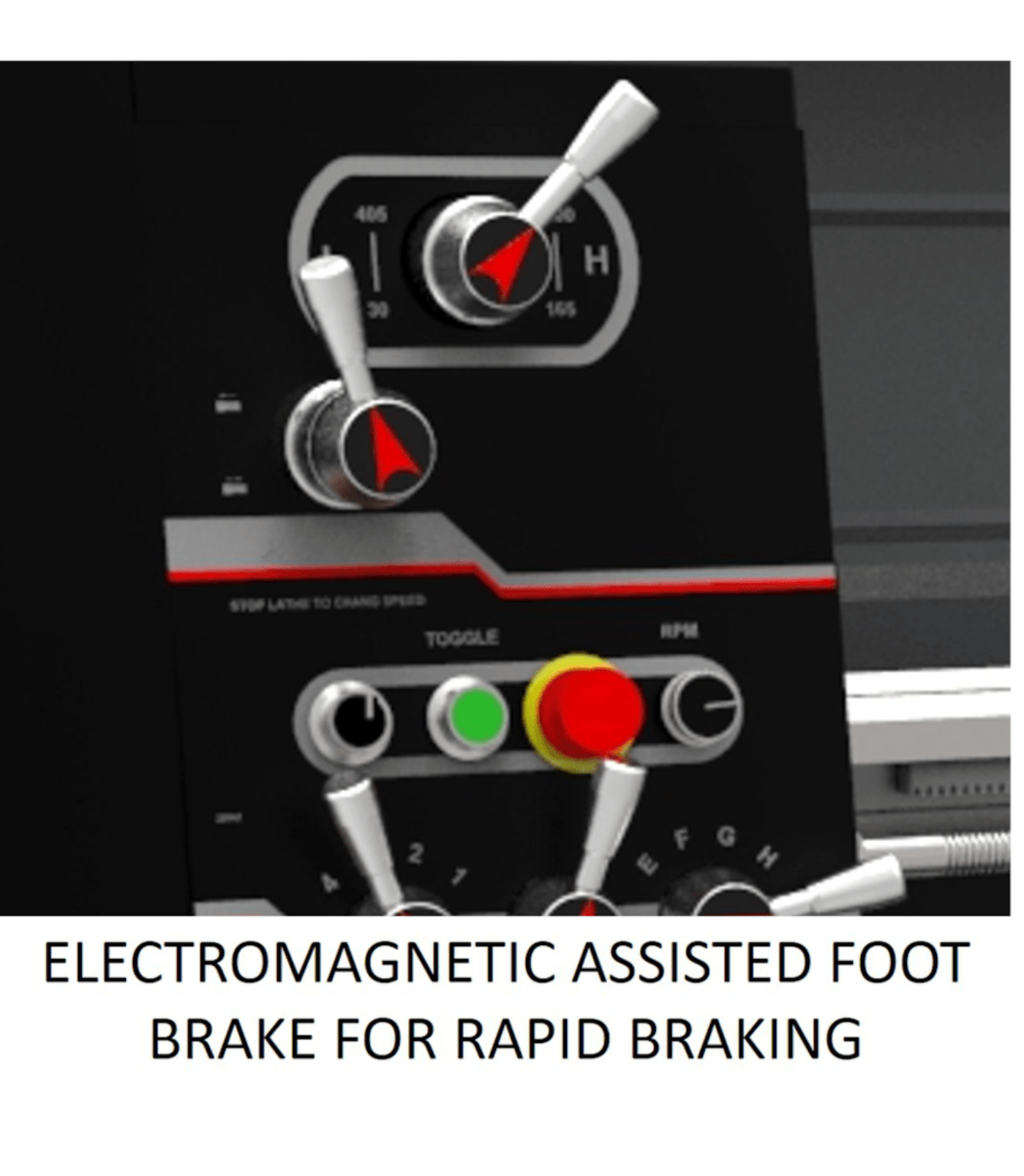

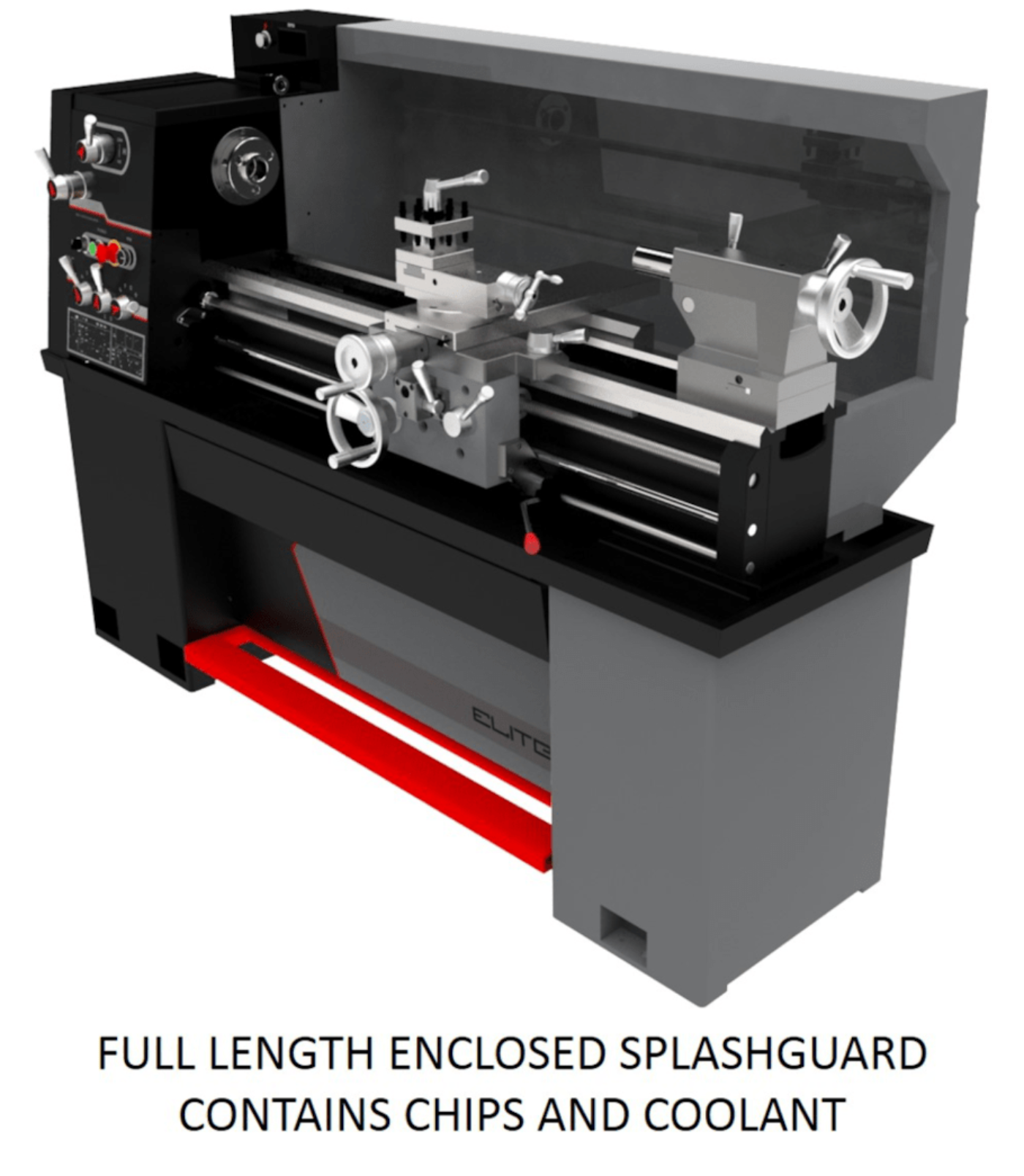

Compact, powerful, perfection. Elite EVS lathes pack large features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring certified Meehanite® castings, an electro-magnetic brake, three jaw chuck, ball bearing-mounted steady and follow rests, and CNC Style Lighting with enclosed splash guard, these lathes are truly Elite! CSA/CUS Certified.
| Size | 14 x 40 |
|---|---|
| Style (Type) | ELITE EVS |
| Swing Over Bed | 14 in. |
| Swing Over Cross Slide | 8-5/8 in. |
| Swing Through Gap | 20 in. |
| Length of Gap | 9 in. |
| Spindle Bore | 1-1/2 in. |
| Spindle Mount | D1-4 |
| Weight | 1,653 lbs. |
| Amperage Draw @ 230V 3Ph | 9 A |
| Spindle Taper with Sleeve | MT5 |
| Range of Spindle Speeds | 0 – 2,200 RPM |
| Number of Longitudinal & Cross Feed Rates | 80 |
| Range of Longitudinal Feeds (IPR) | 0.0012 – 0.0294 |
| Range of Cross Feeds (IPR) | 0.0003 – 0.01 |
| Number of Inch Threads | 40 |
| Range of Inch Threads (TPI) | 4 – 112 |
| Number of Metric Threads | 22 |
| Range of Metric Threads (mm) | 0.45 – 7.5 |
| Compound Slide Travel | 4 in. |
| Cross Slide Travel | 7 in. |
| Motor | 3 HP, 230V, 3Ph |
| Tailstock Spindle Travel | 5 in. |
| Taper in Tailstock Spindle | MT3 |
| Steady Rest Capacity | 1/4 – 2-3/4 in. |
| Width of Bed | 8-1/2 in. |

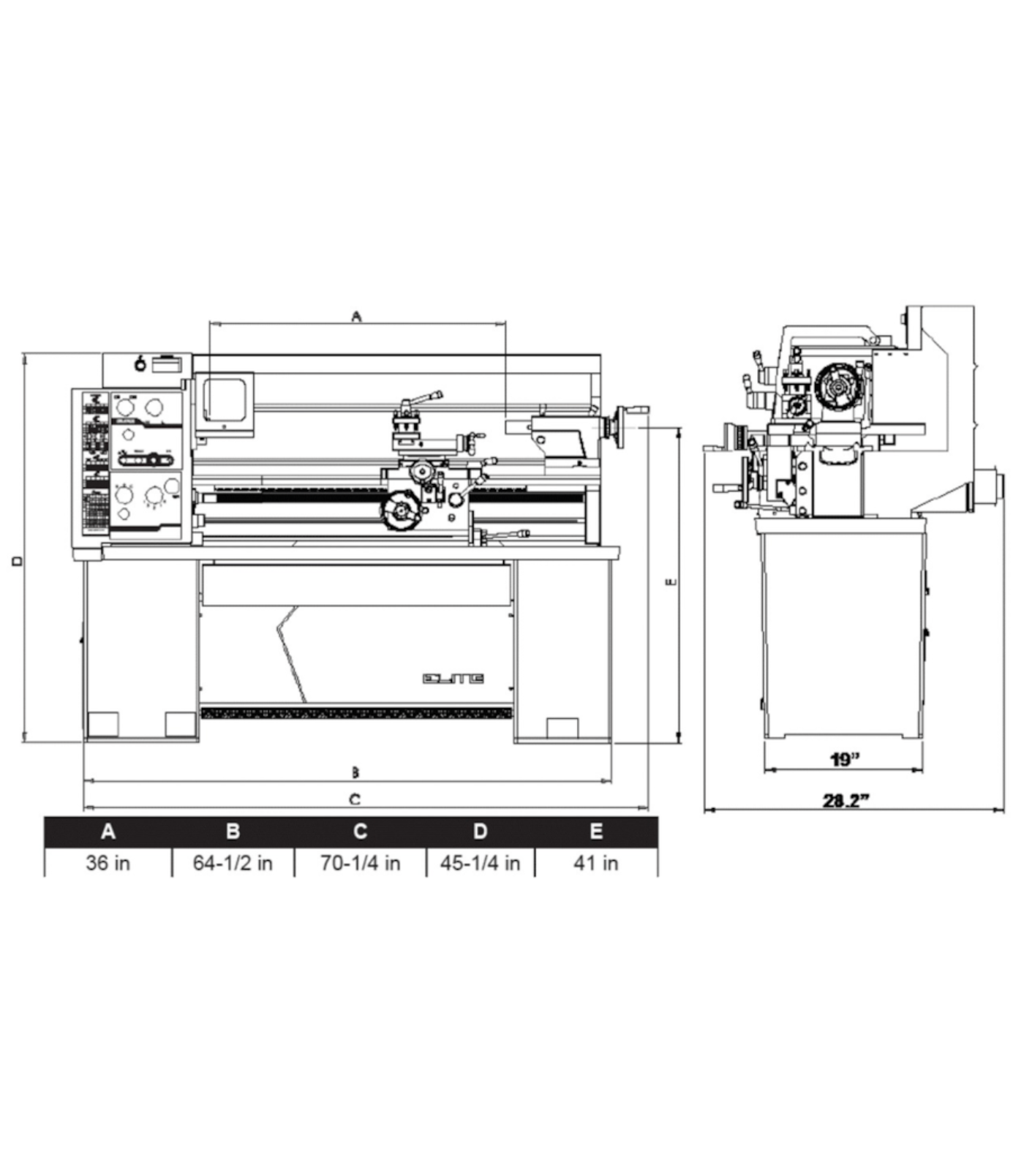

| Overall Dimensions (L x W x H) | 77 x 30 x 58 in. |
| Drive | EVS |
Built for precision turning with a 14" swing and 40" distance between centers, ideal for a wide range of applications.
Variable speed control (40–2,000 RPM) ensures smooth performance across different materials.
Heavy-duty construction provides stability and reduces vibration for accurate machining.
Digital readout improves efficiency and reduces setup time.
Designed for professional machinists who need reliability, power, and consistent results.
Q: What type of lathe is the JET Elite E-1440VS?
A: It’s a 14x40 electronic variable speed (EVS) metalworking lathe designed for precision and durability.
Q: What is the swing over bed capacity?
A: The lathe provides a 14-inch swing over bed with a 40-inch distance between centers.
Q: How is the speed controlled?
A: It features electronic variable speed control with digital readout for accurate adjustments.
Q: What material is this lathe best suited for?
A: Ideal for machining a wide range of metals with high accuracy and smooth performance.
Q: Where is it commonly used?
A: Perfect for machine shops, tool rooms, and industrial manufacturing environments.
Keep the lathe clean by wiping down surfaces after each use to prevent debris buildup.
Regularly lubricate moving parts and follow the lubrication schedule in the manual.
Check belts, gears, and drive components frequently for wear or misalignment.
Inspect and tighten all fasteners and tool post connections as needed.
Clean chips from the bed, carriage, and lead screw to ensure smooth operation.
Verify electrical connections and cooling fans remain free of dust.
Schedule professional servicing periodically to maintain precision and longevity.
