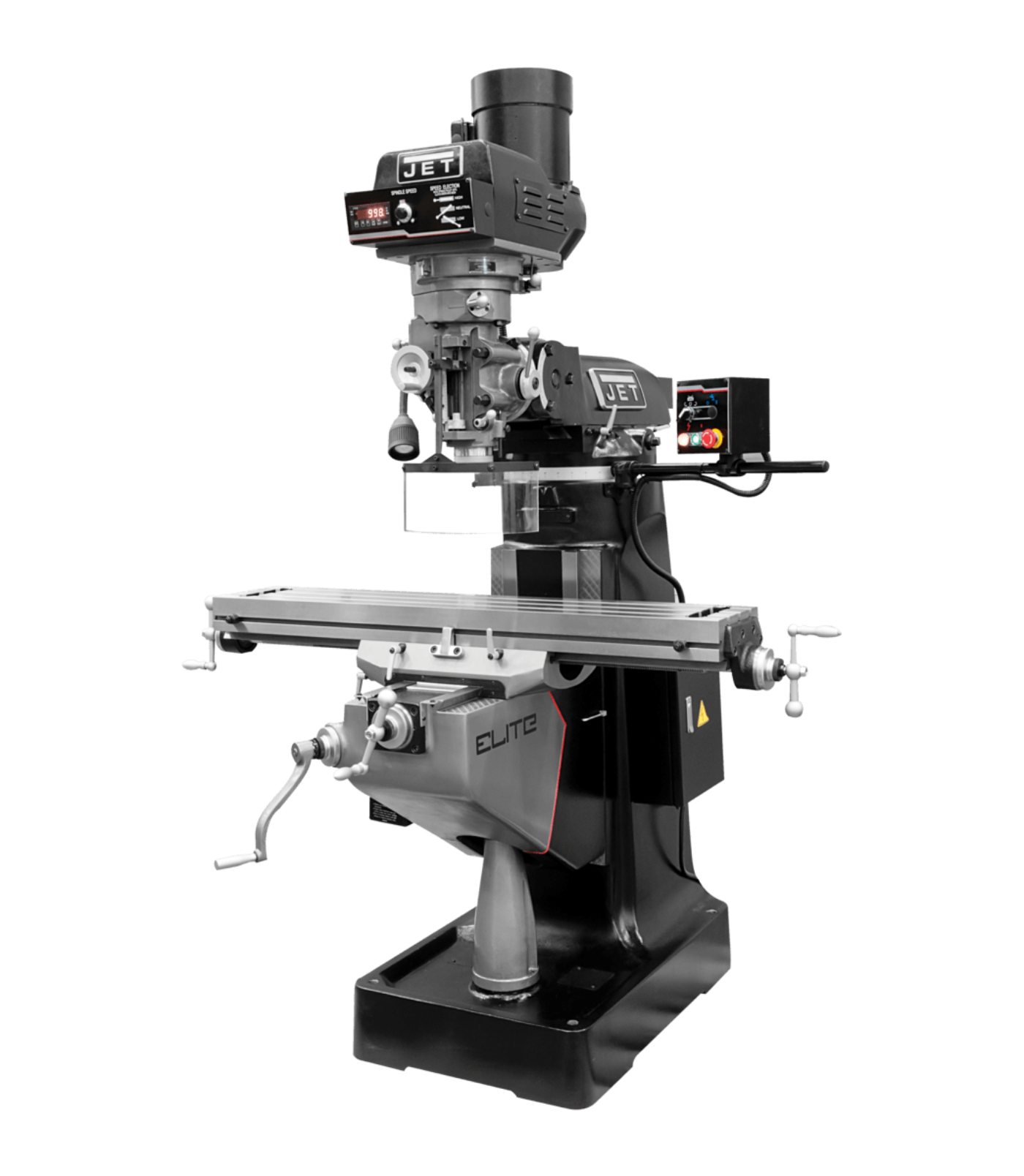

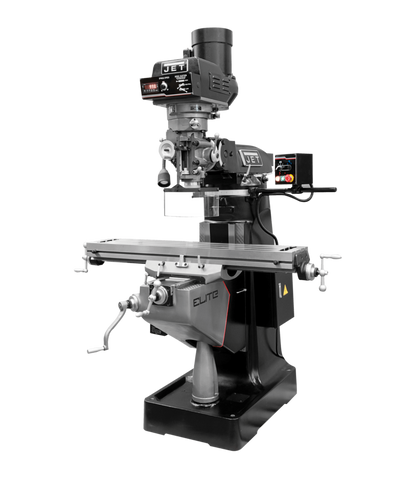

JET Elite ETM-949 Mill with 3-Axis ACU-RITE 203 (Quill) DRO and X-Axis JET Powerfeed - JT9-894117

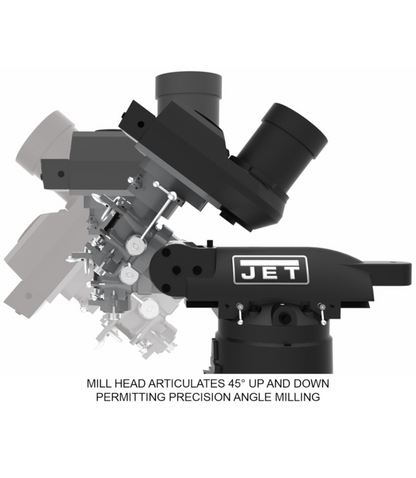

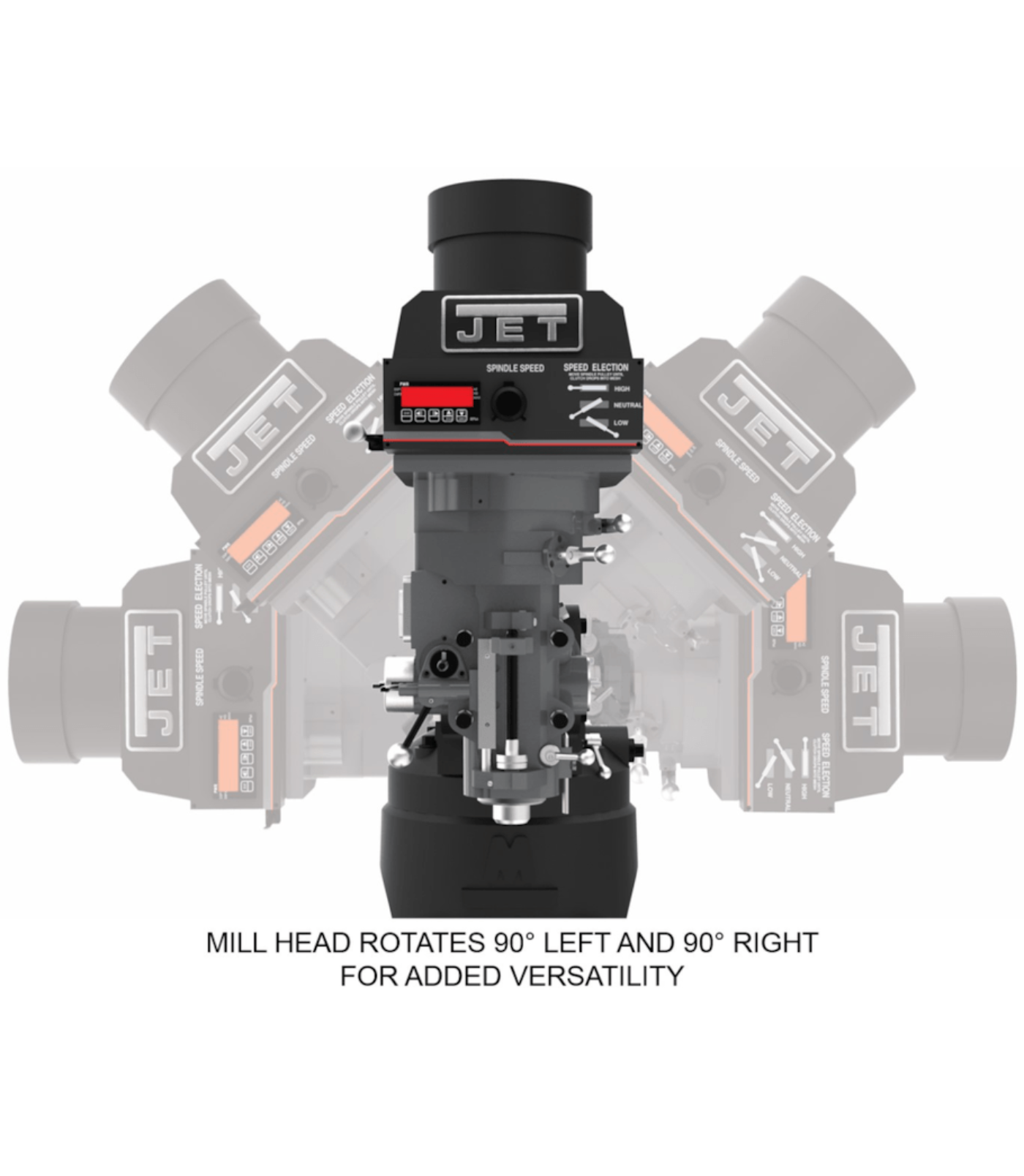

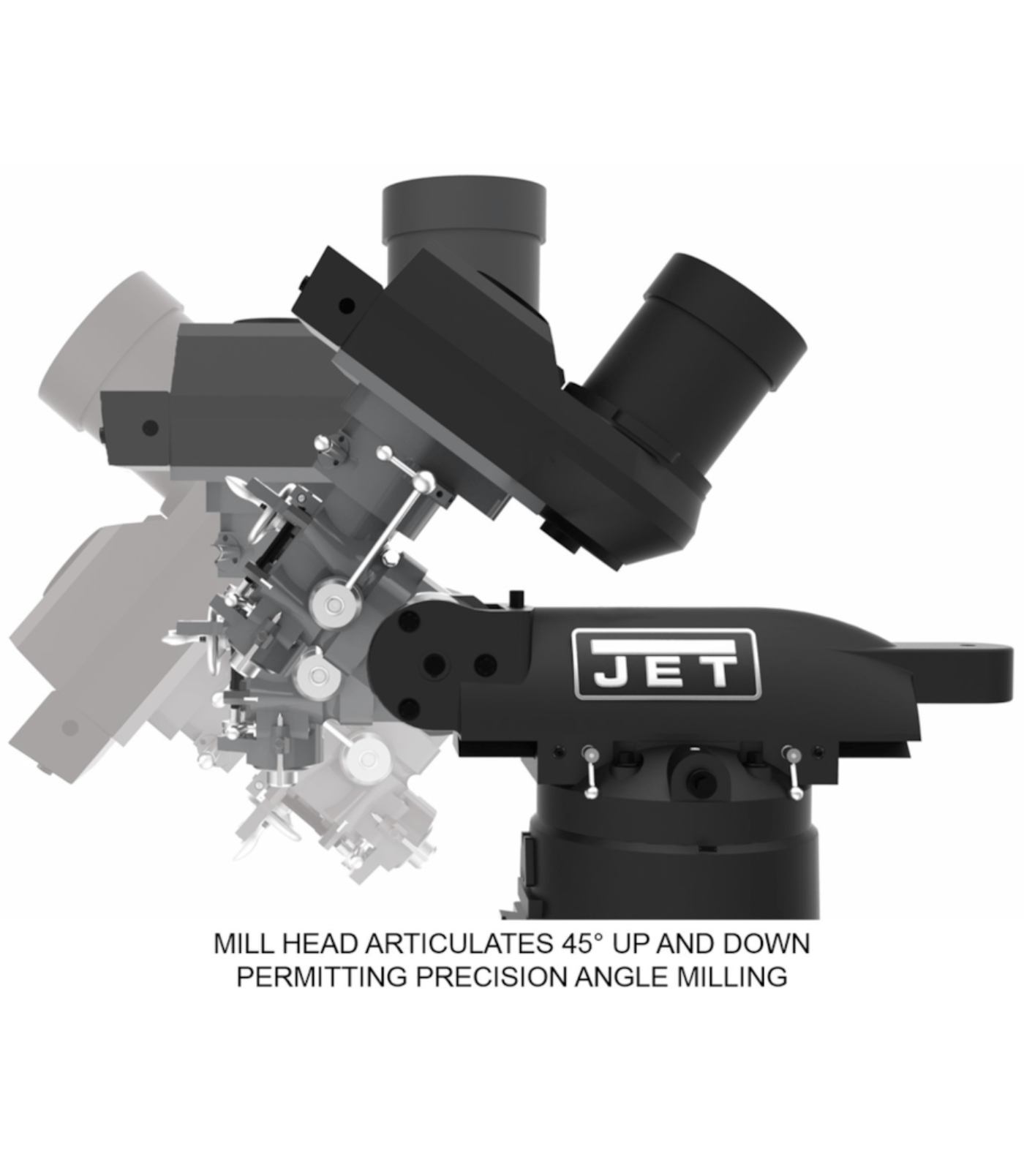

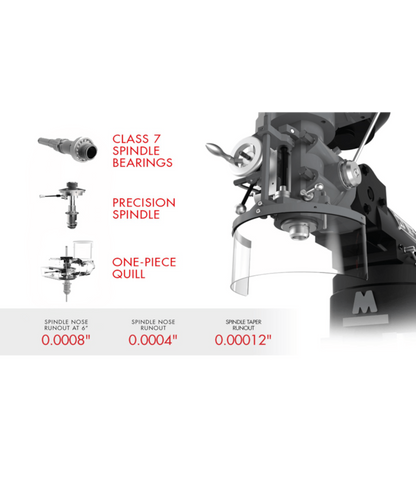

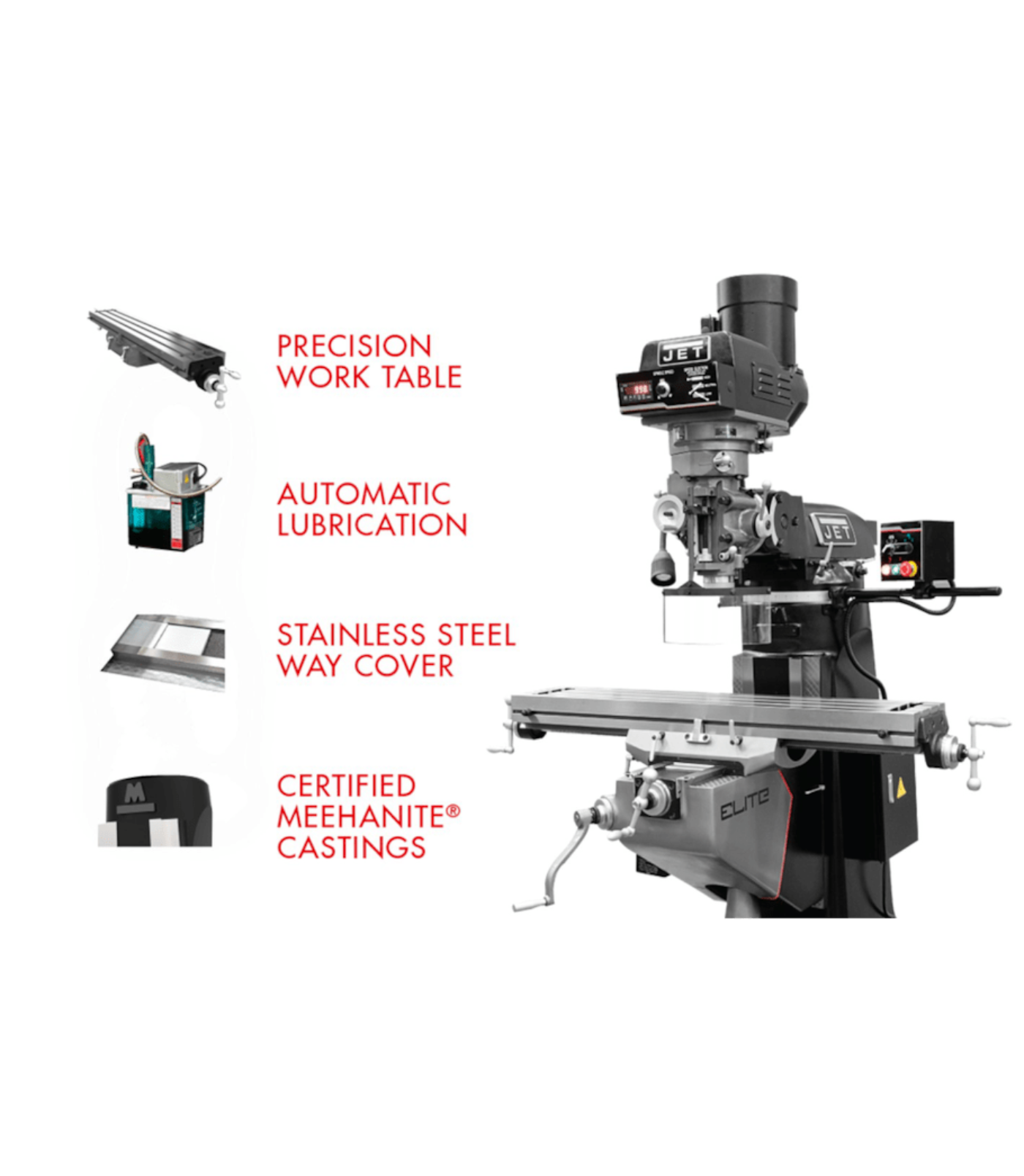

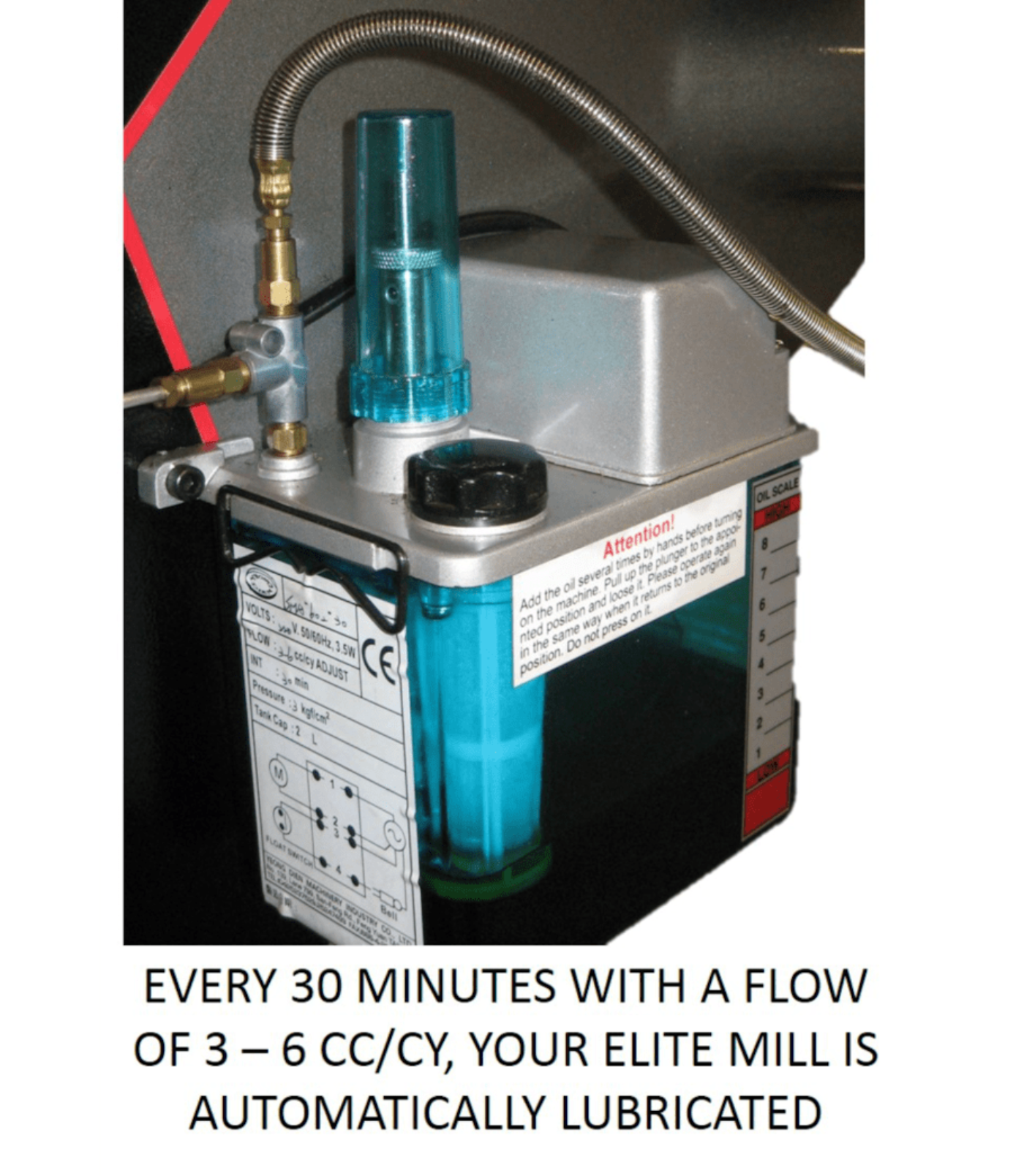

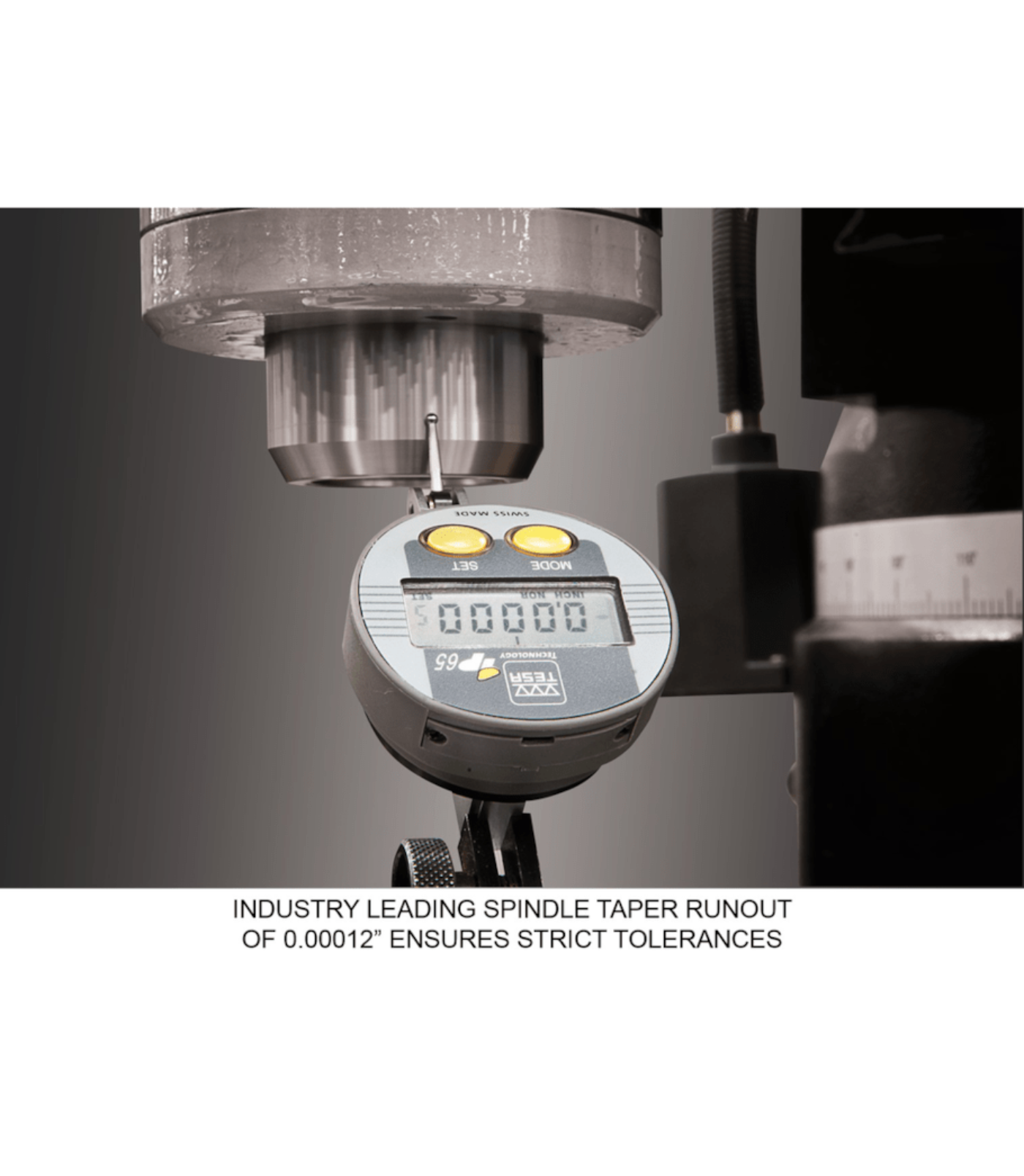

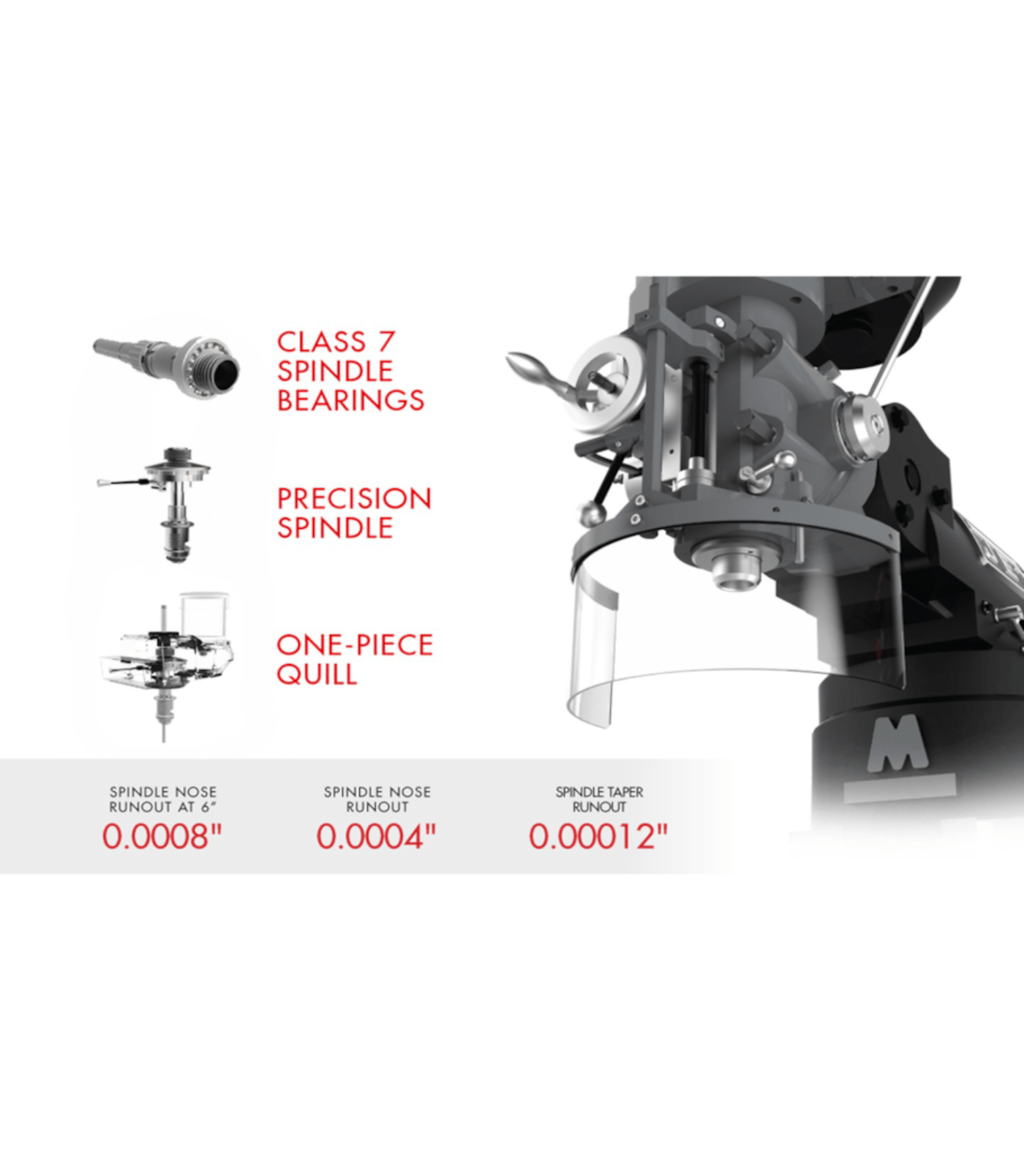

Elite offers world class mills fully loaded with features. With Certified Meehanite® castings, an electronic spindle brake that prevents accidental startups, and a hardened and ground table, this mill provides reliability and durability for milling a diverse variety of materials. Our patented vari-disc key provides up to 10 times the wear resistance than aluminum or brass keys. The fully hardened Chromium Molybdenum spindle meets strict tolerance requirements and utilizes class 7210 (P4, ABEC-7) precision angular bearings for the industry-leading spindle taper runout of 0.00012". The Y- and Z-axis ways are hand scraped to a minimum of 16 points per square inch for greater oil retention and smooth movements. Additionally, every 30 minutes, your Elite mill is automatically lubricated with a flow of 3 to 6 cc/cy. For operator safety, all Elite Mills are CSA/CUS Certified and come with a spindle safety guard.
Features
- Ball bearing support of the motor shaft ensures proper loading, support, and alignment for quiet, accurate operation at any speed
- Heat treated and polished lead screws are supported by thrust bearings ensuring smooth, incremental movements of the table under load
- Seamless, one-piece, steel quill is induction hardened and chromed for increased strength and precision ground for greater accuracy
- Stainless steel Y-Axis way cover provides extra years of protection over the standard sheet metal cover

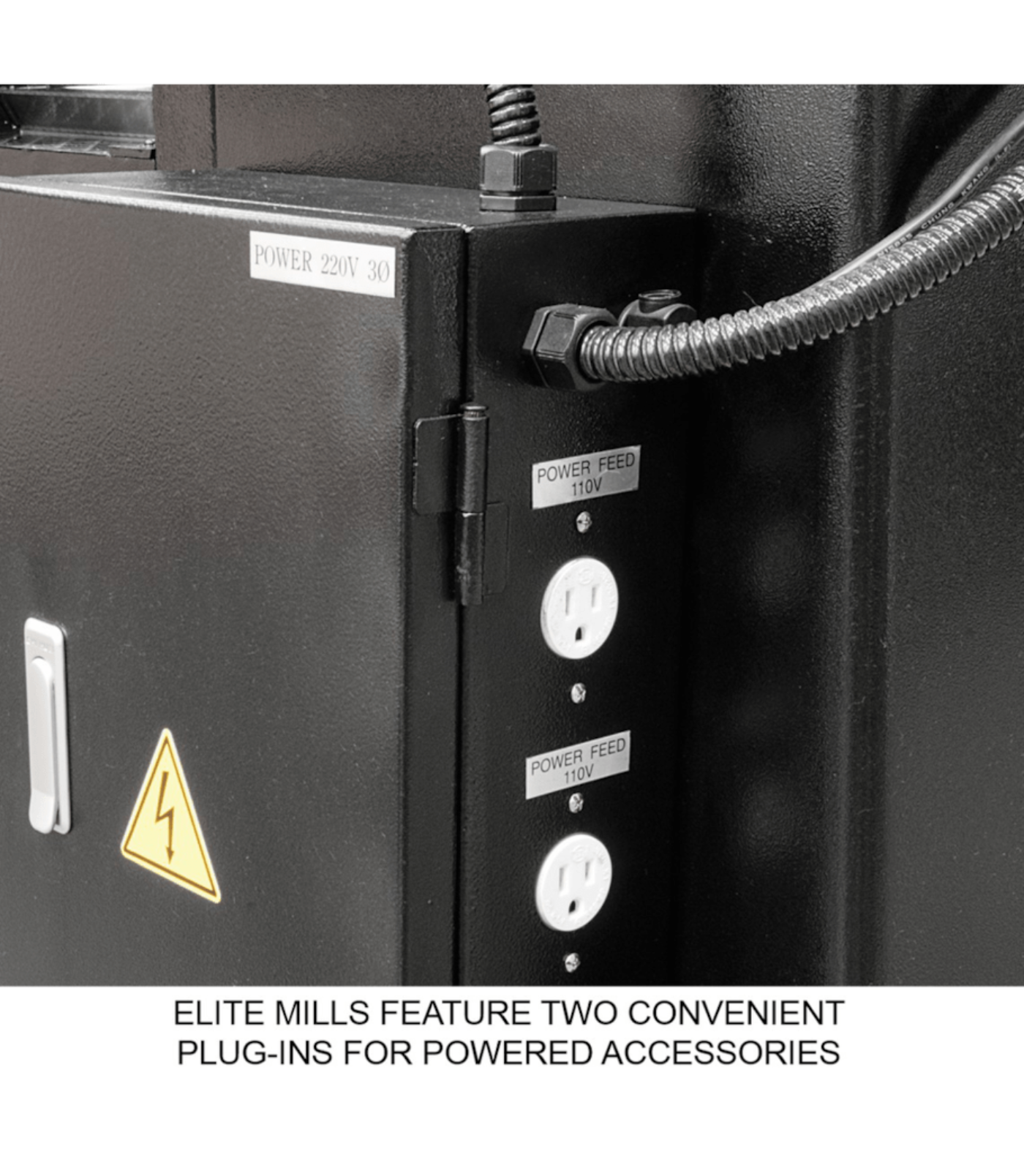

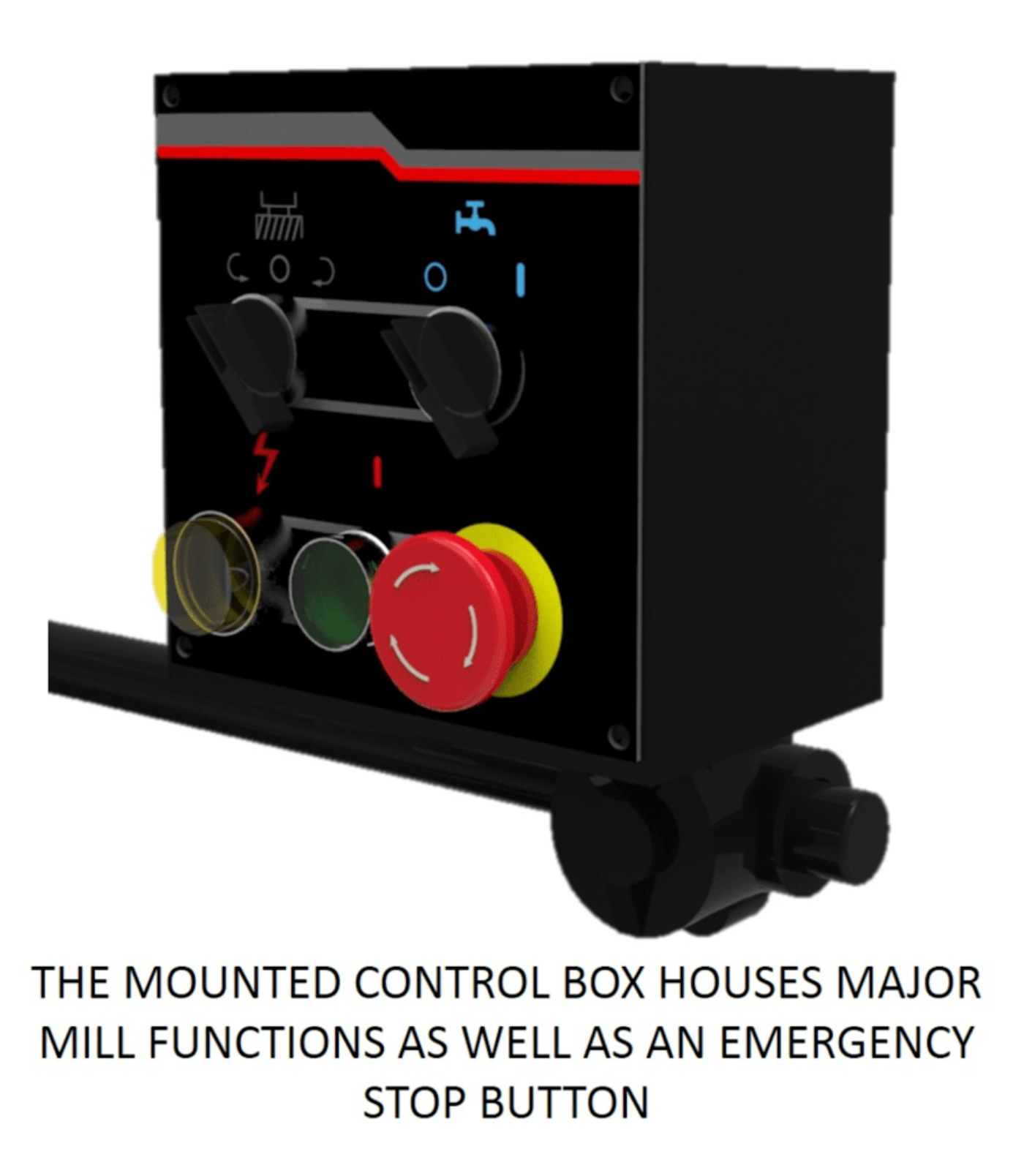

- The mounted control box houses major mill functions as well as an emergency stop button

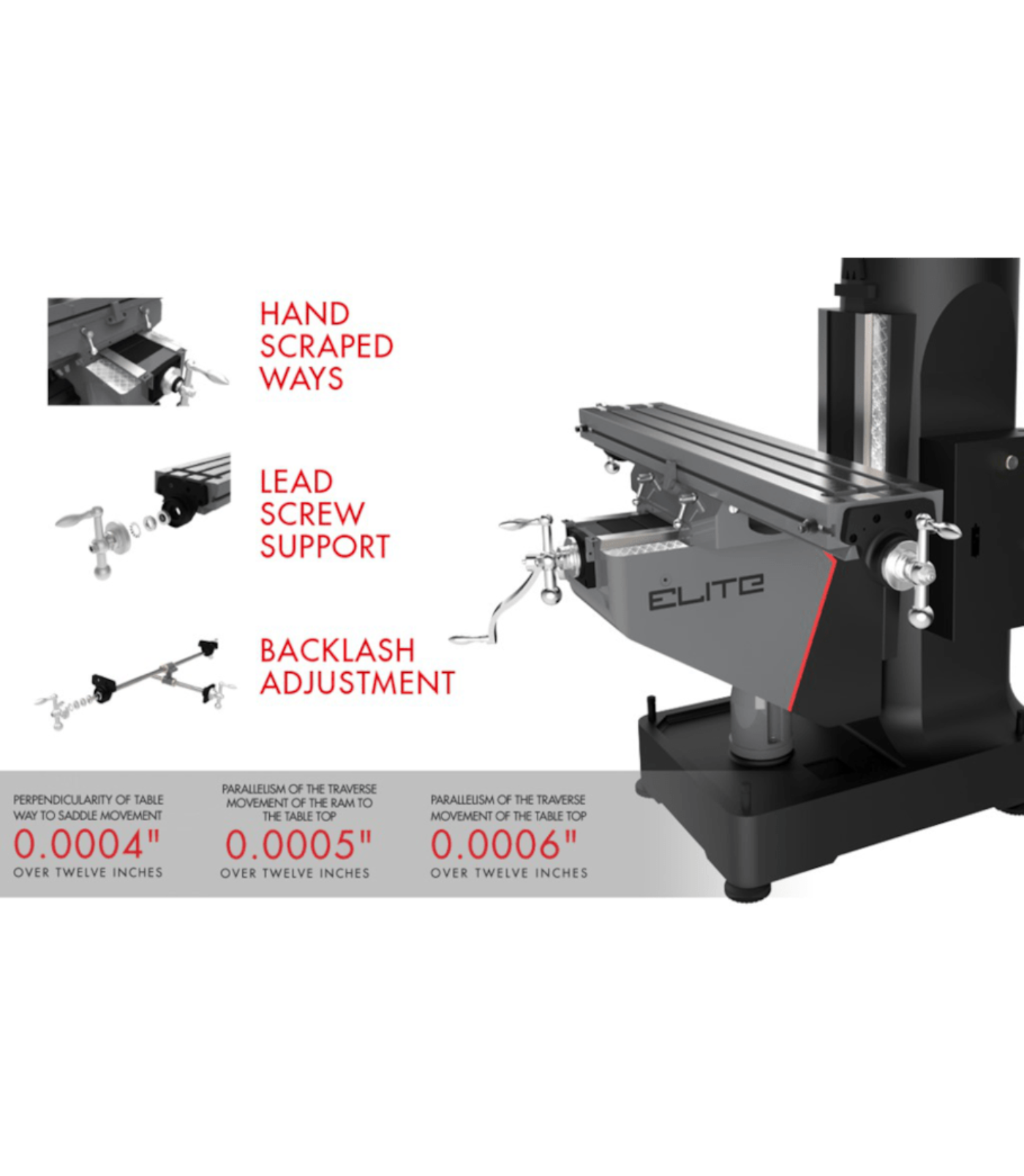

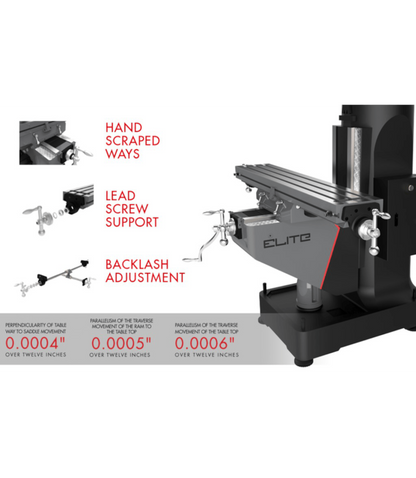

- The table and saddle backlash is controlled by an advanced double nut design that eliminates end-play for precisely controlled lateral movements

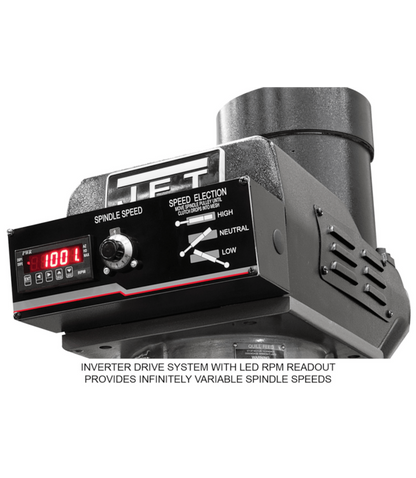

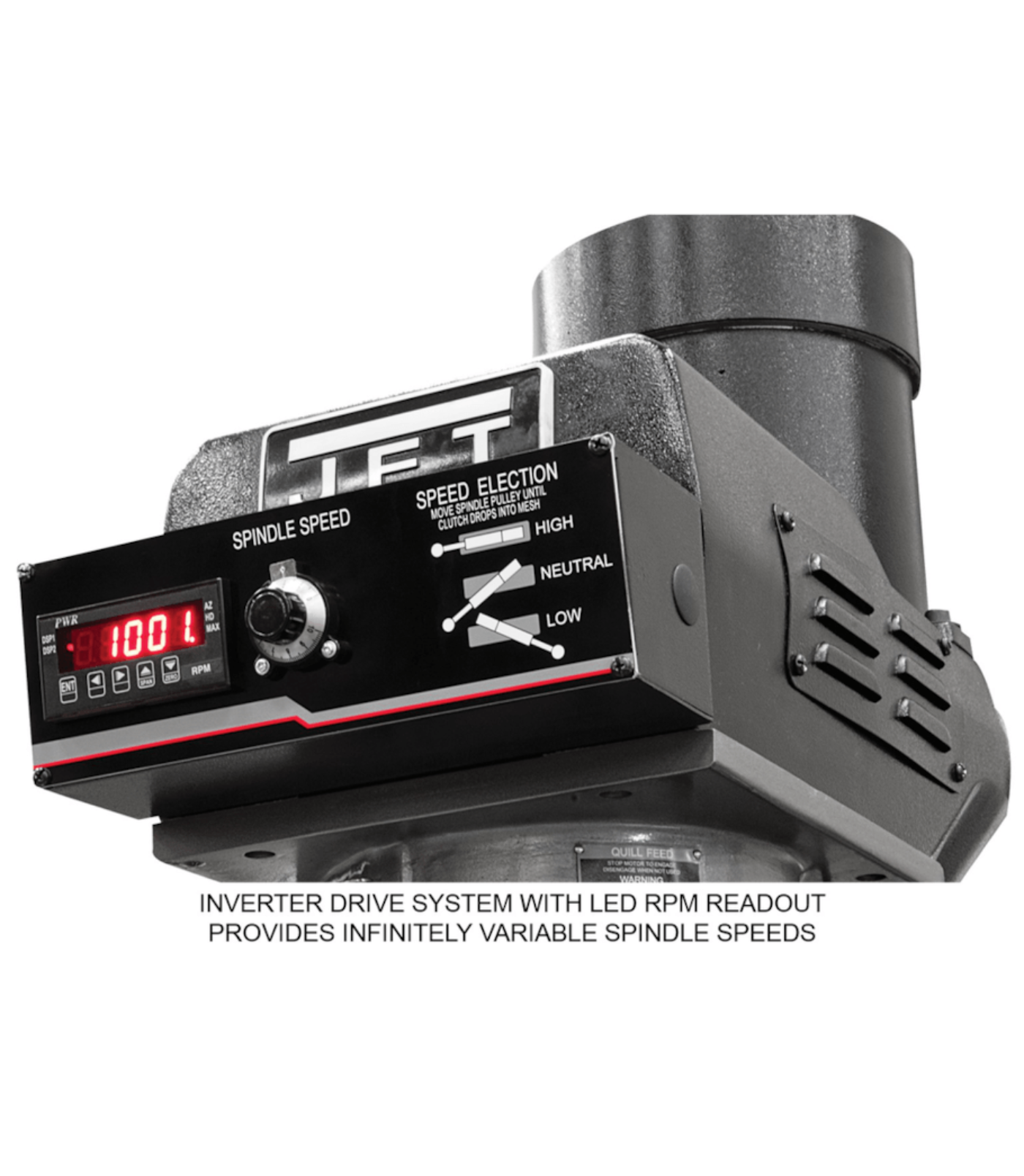

- Variable speed pulleys are ground and multiplane dynamically balanced, reducing vibration and ensuring smooth speed transitions
Specifications
| Style (Type) |
Variable Speed |
| Table Size (L x W) |
9 x 49 in. |
| Work Table Weight Capacity |
550 lbs. |
| Spindle Travel |
5 in. |
| Spindle Taper |
R-8 |
| Collet Capacity |
1/8 – 7/8 in. |
| Quill Diameter |
3-3/8 in. |
| Quill Down Feed Rates (IPR) |
0.0015 – 0.003 – 0.006 |
| Max Distance Spindle to Table |
18-3/4 in. |
| Distance Spindle to Column (Max.) |
21-2/5 in. |
| Range of Spindle Speeds |
60 – 5,000 RPM |
| Table Longitudinal Travel |
36 in. |
| Table Cross Travel |
12 in. |
| T-Slot Centers |
2-1/2 in. |
| Travel of Knee |
16 in. |
| Travel of Ram |
14 in. |
| Motor |
3 HP, 230V, 3Ph |
| Amperage Draw @ 230V 3Ph |
18 A |
| Weight |
2,300 lbs. |

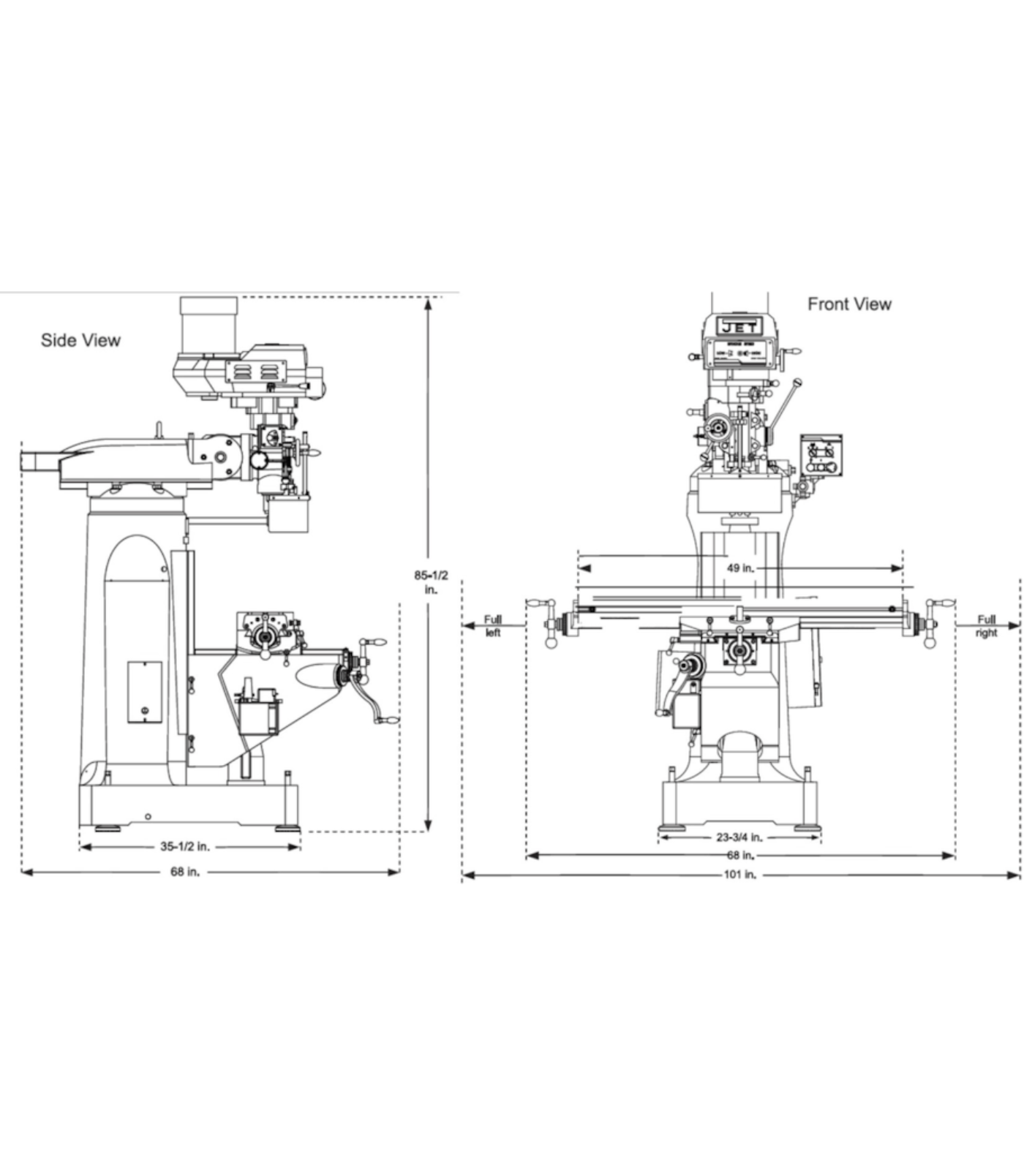

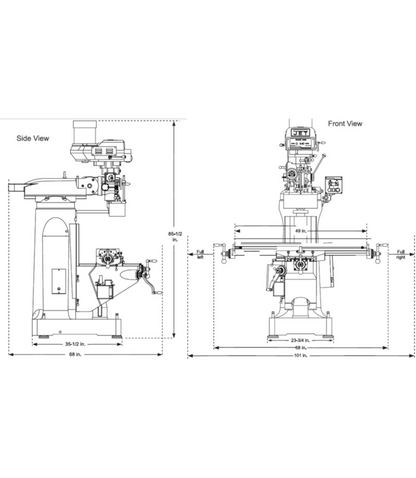

| Overall Dimensions (L x W x H) |
68 x 63 x 84 in. |
What our Experts Think
-
3-axis milling with X, Y, Z control provides full versatility for precise machining.
-
ACU-RITE 203 quill DRO delivers accurate digital readouts for enhanced precision.
-
X-axis JET Powerfeed ensures smooth, consistent automatic feed for reliable cuts.
-
Variable speed spindle adapts to different materials and milling operations.
-
Sturdy cast-iron construction minimizes vibration, offering stability, accuracy, and long-term durability.
Q&A
Q: What type of mill is the JET Elite ETM-949?
A: It’s a 9x49 electronic milling machine (ETM) with a 3-axis ACU-RITE 203 DRO for quill measurement and X-axis JET powerfeed.
Q: What does the 3-axis ACU-RITE 203 (Quill) DRO provide?
A: It delivers precise, real-time measurements for X, Y, and Z axes, enhancing accuracy and repeatability during milling operations.
Q: What is the function of the X-axis JET powerfeed?
A: It provides smooth, automatic feed along the X-axis, improving precision, surface finish, and efficiency.
Q: What is the milling capacity?
A: The mill offers 9-inch width travel and 49-inch longitudinal travel, ideal for medium to large workpieces.
Q: Where is this mill best used?
A: Perfect for machine shops, prototyping, and production environments requiring reliable, high-precision milling.
Maintenance Tips
-
Clean table, spindle, and quill surfaces after each use to remove chips and coolant residue.
-
Lubricate slides, bearings, lead screws, and quill per the manufacturer’s recommended schedule.
-
Keep ACU-RITE 203 DRO scales and sensors free from dust and debris for accurate readings.
-
Inspect X-axis JET Powerfeed and other axis movements regularly to ensure smooth, precise operation.
-
Check belts, gears, and drive components for wear, proper tension, and alignment.
-
Tighten fasteners, tool holders, and attachments to maintain rigidity and machining precision.
-
Verify spindle and quill alignment for precise milling operations.
-
Schedule routine professional servicing to extend machine life and maintain peak performance.
