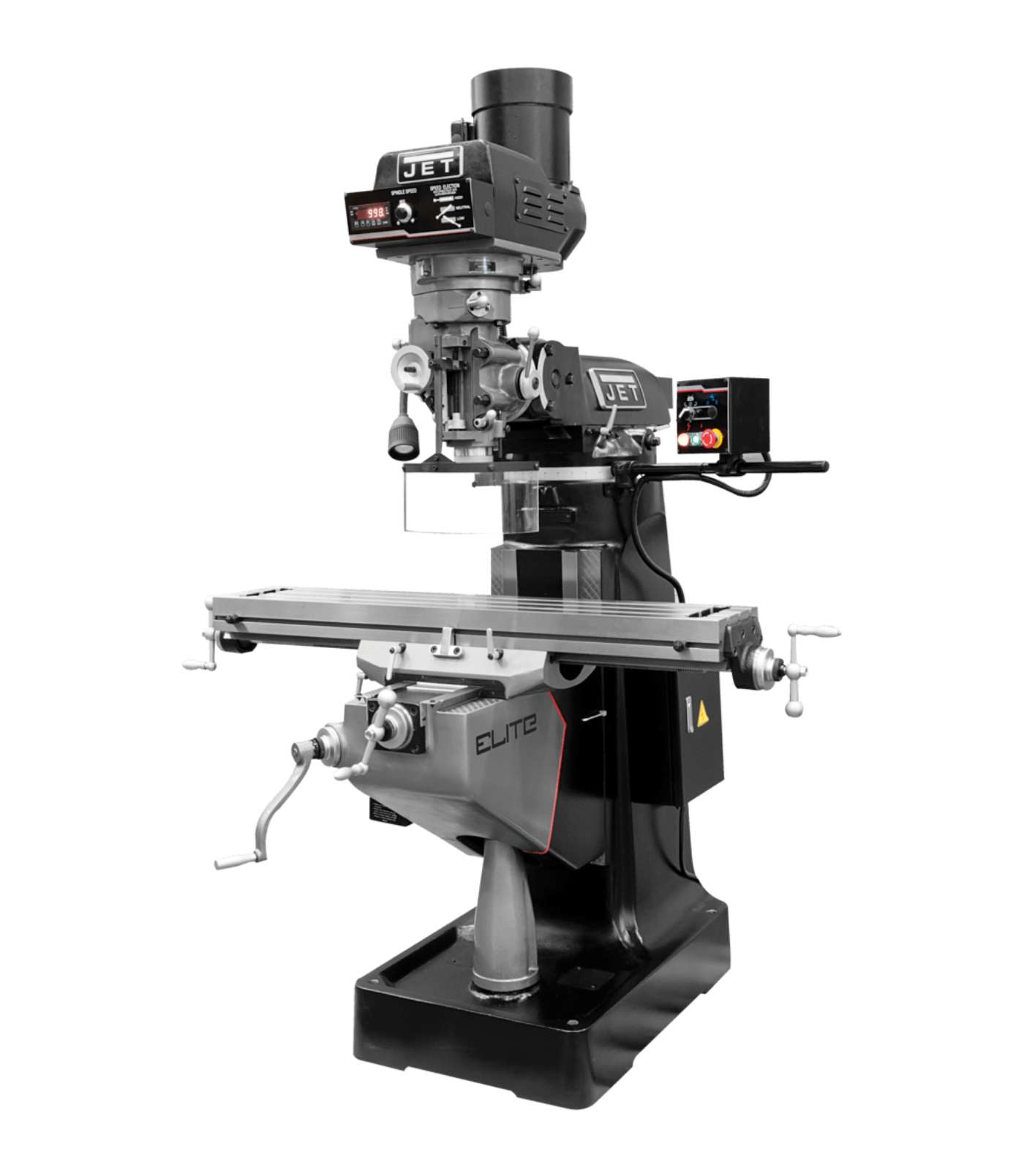

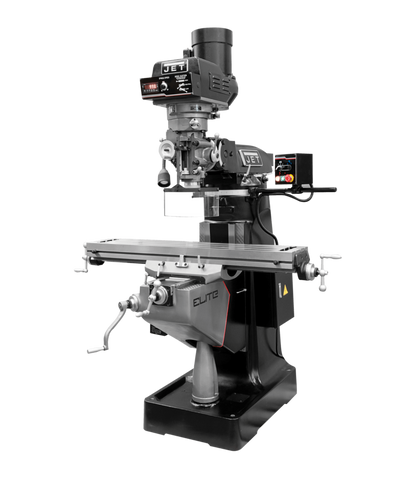

JET Elite ETM-949 Mill with X-Axis JET Powerfeed - JT9-894100

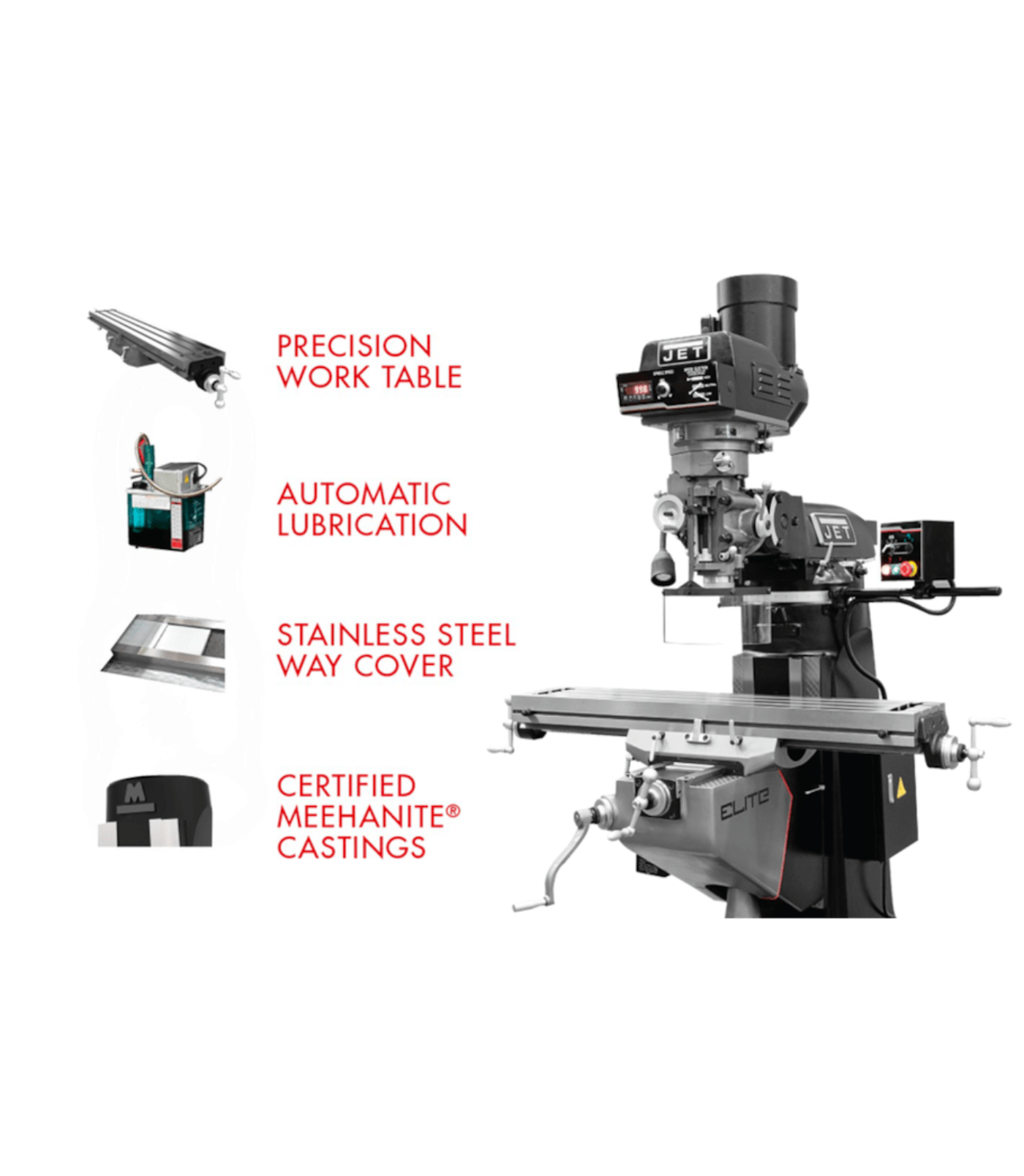

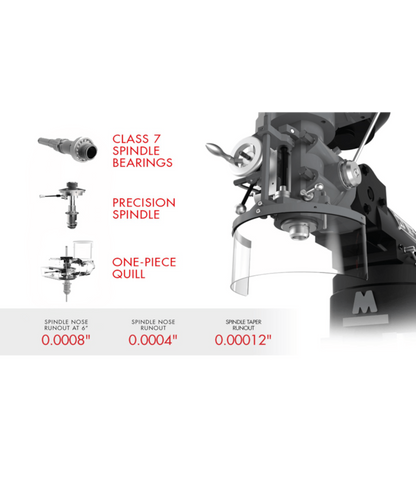

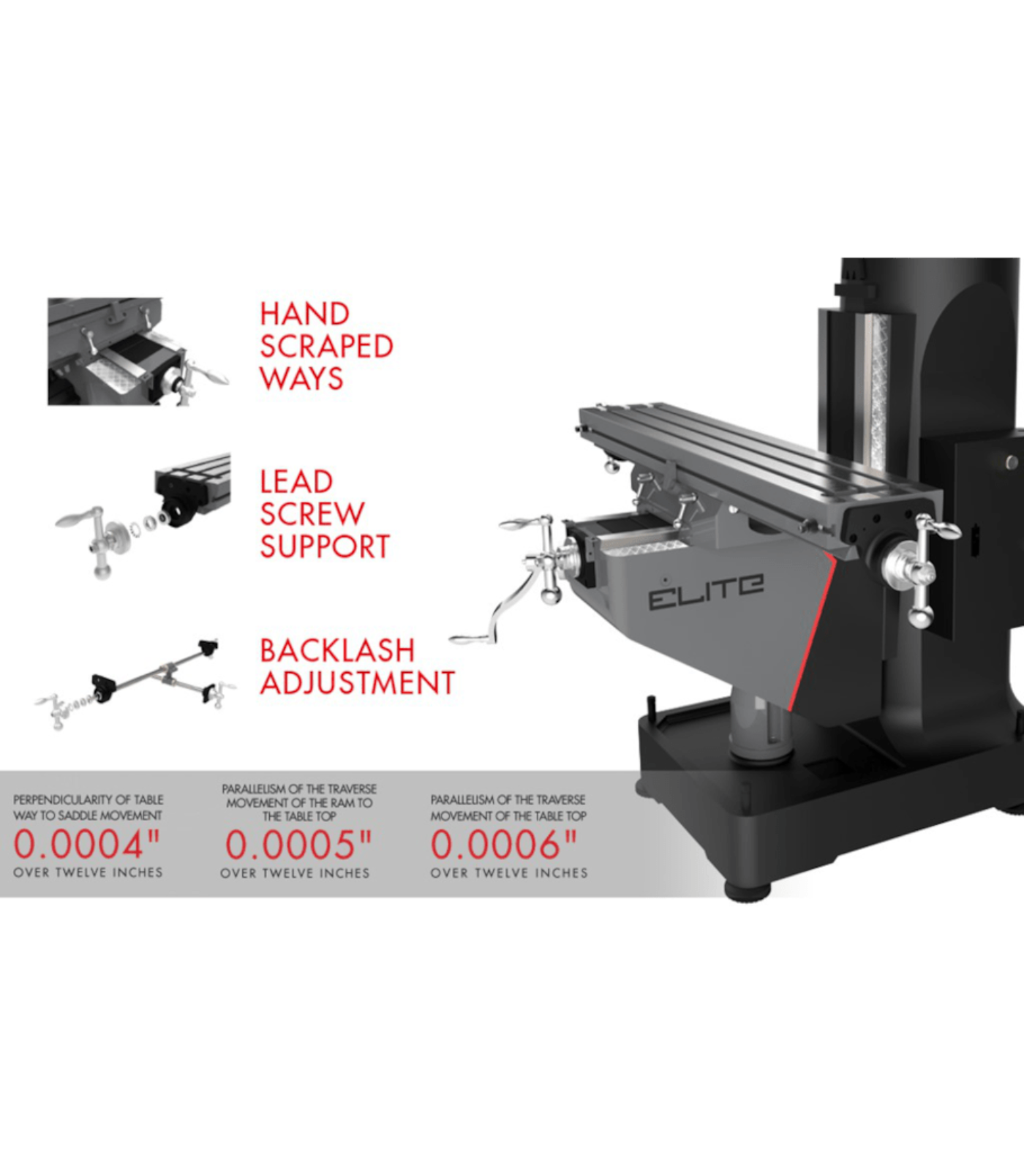

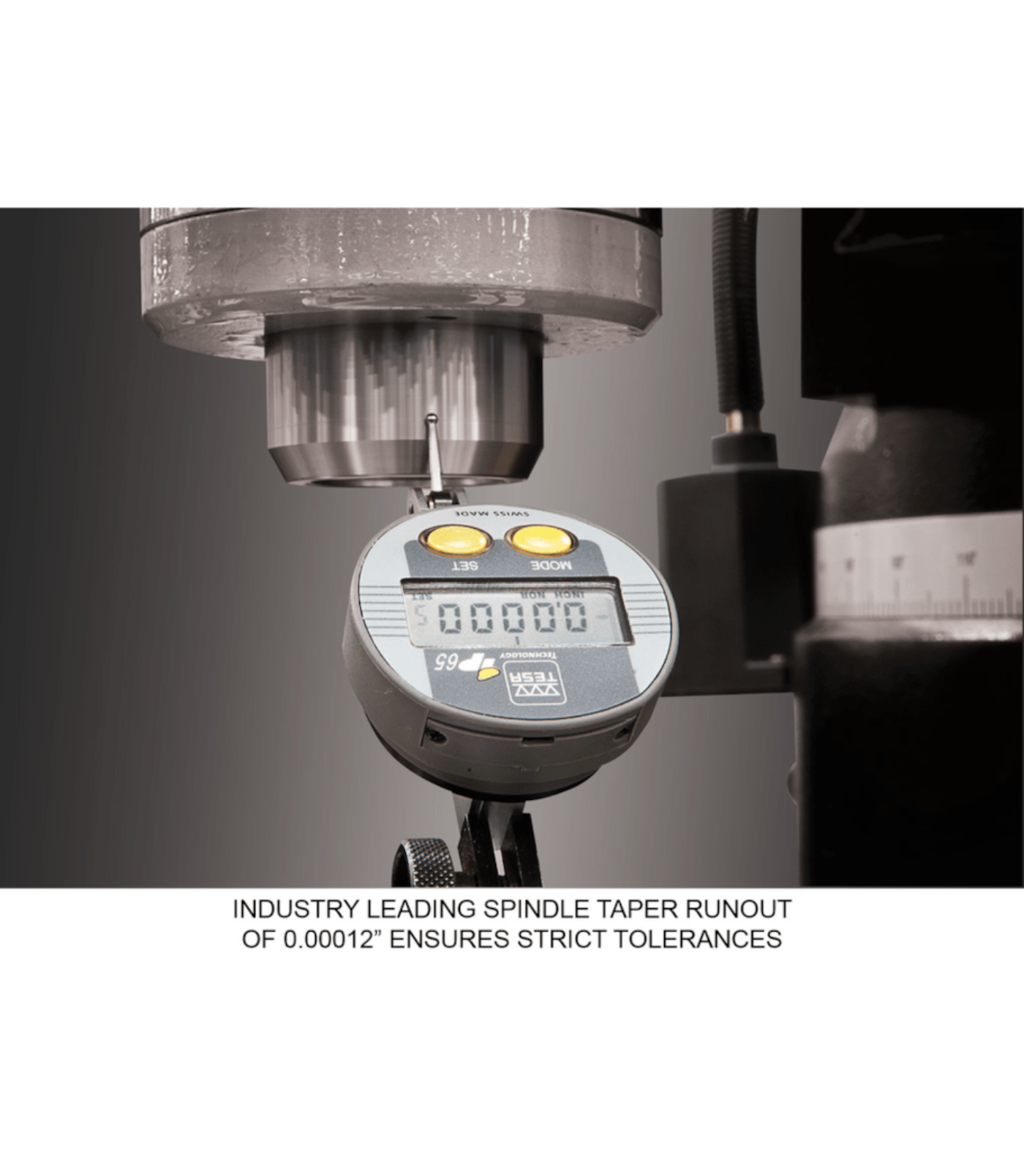

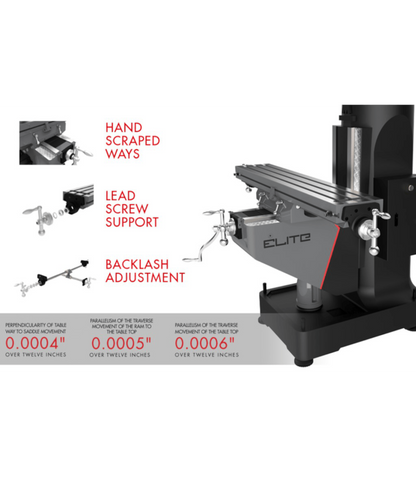

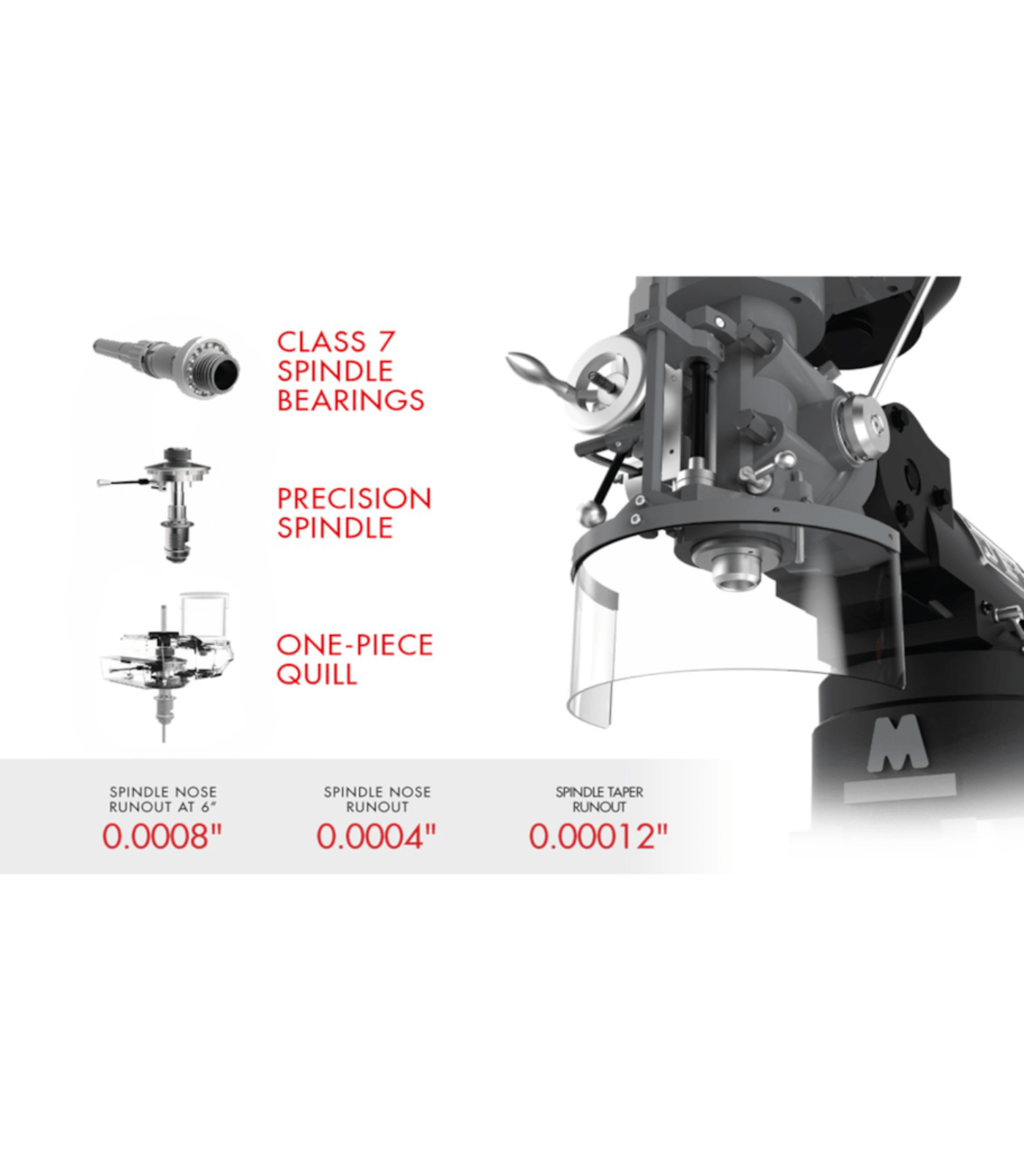

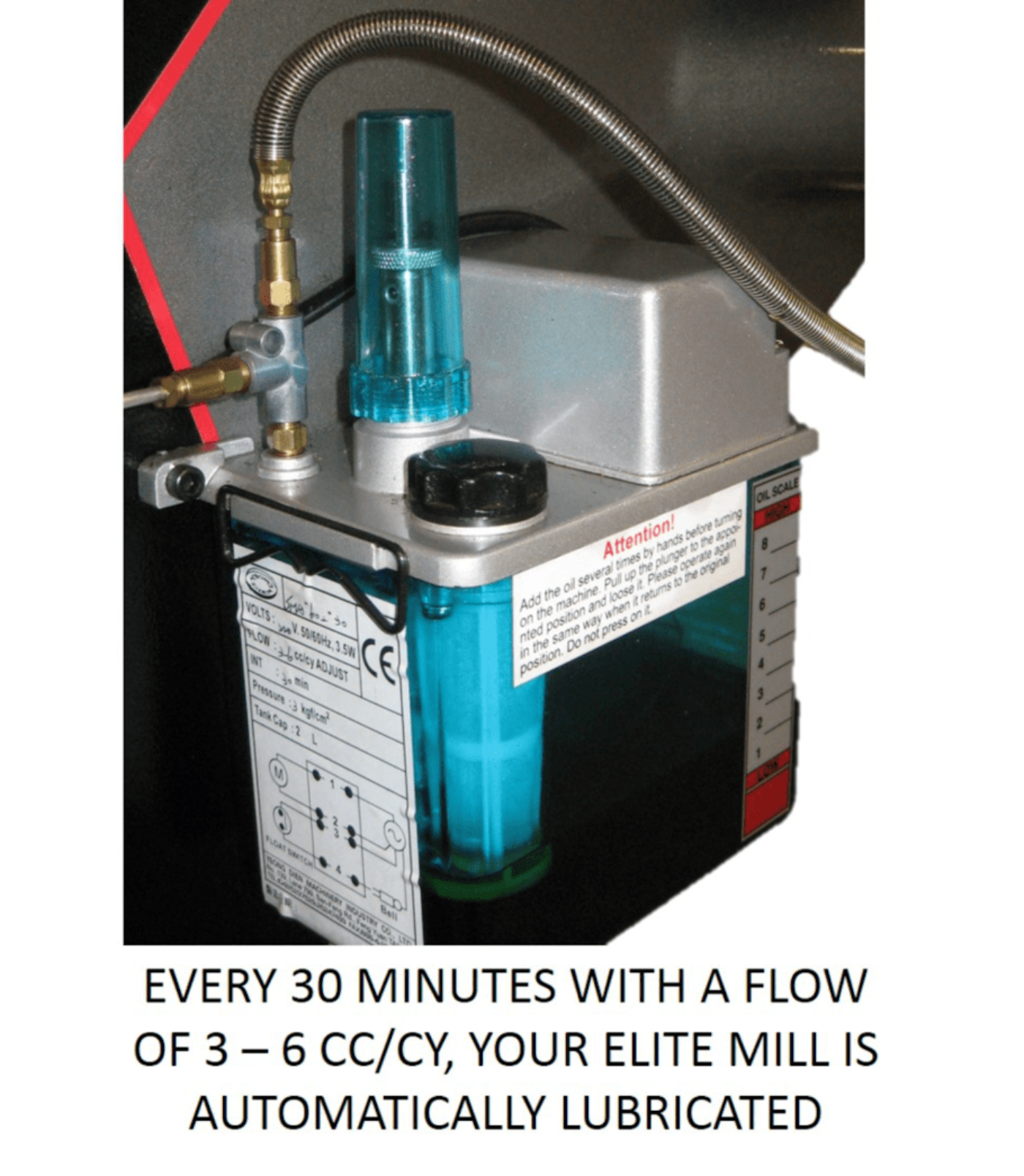

Elite offers world class mills fully loaded with features. With Certified Meehanite® castings, an electronic spindle brake that prevents accidental startups, and a hardened and ground table, this mill provides reliability and durability for milling a diverse variety of materials. Our patented vari-disc key provides up to 10 times the wear resistance than aluminum or brass keys. The fully hardened Chromium Molybdenum spindle meets strict tolerance requirements and utilizes class 7210 (P4, ABEC-7) precision angular bearings for the industry-leading spindle taper runout of 0.00012". The Y- and Z-axis ways are hand scraped to a minimum of 16 points per square inch for greater oil retention and smooth movements. Additionally, every 30 minutes, your Elite mill is automatically lubricated with a flow of 3 to 6 cc/cy. For operator safety, all Elite Mills are CSA/CUS Certified and come with a spindle safety guard.
Features
- Ball bearing support of the motor shaft ensures proper loading, support, and alignment for quiet, accurate operation at any speed
- Heat treated and polished lead screws are supported by thrust bearings ensuring smooth, incremental movements of the table under load
- Seamless, one-piece, steel quill is induction hardened and chromed for increased strength and precision ground for greater accuracy
- Stainless steel Y-Axis way cover provides extra years of protection over the standard sheet metal cover

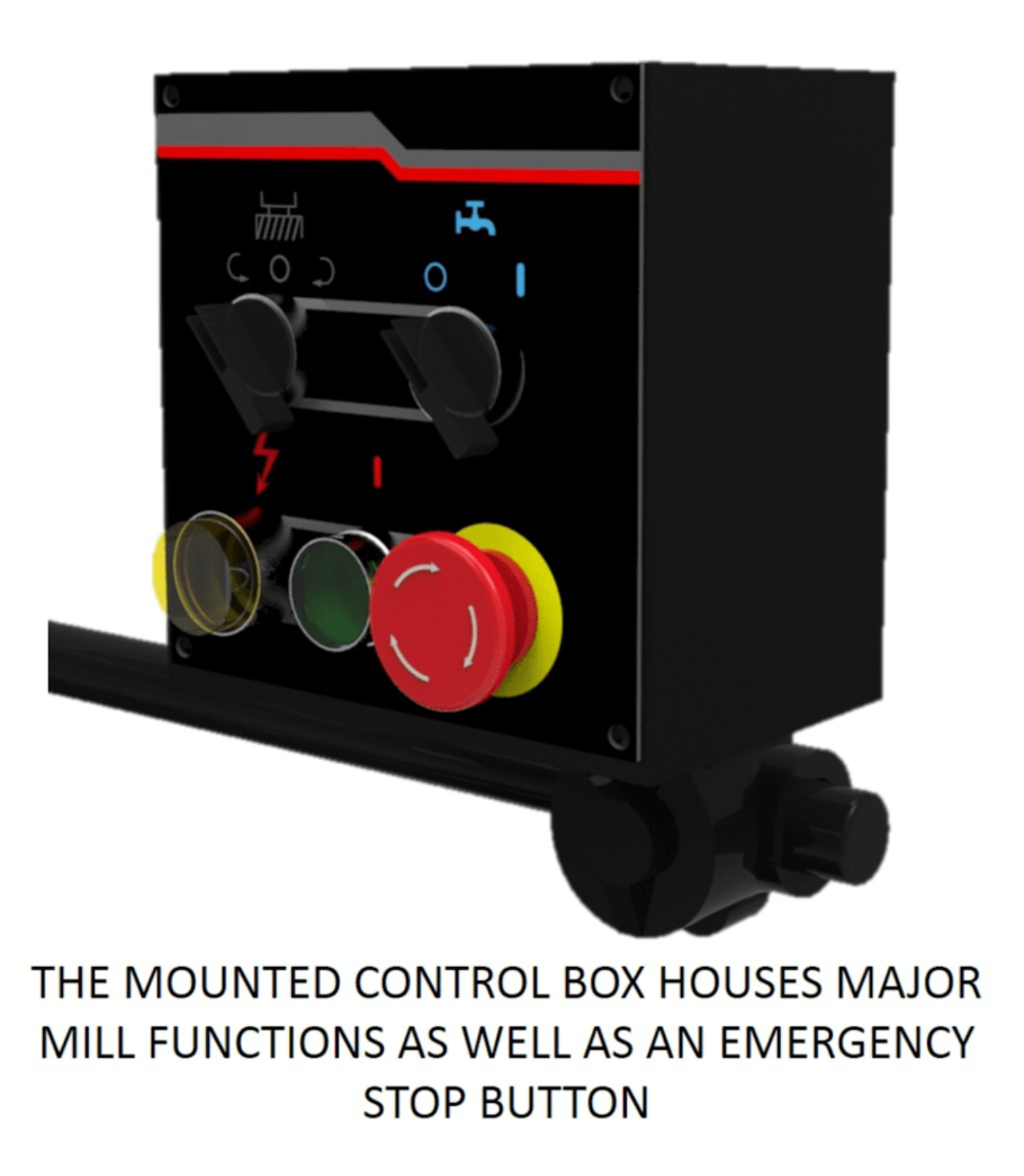

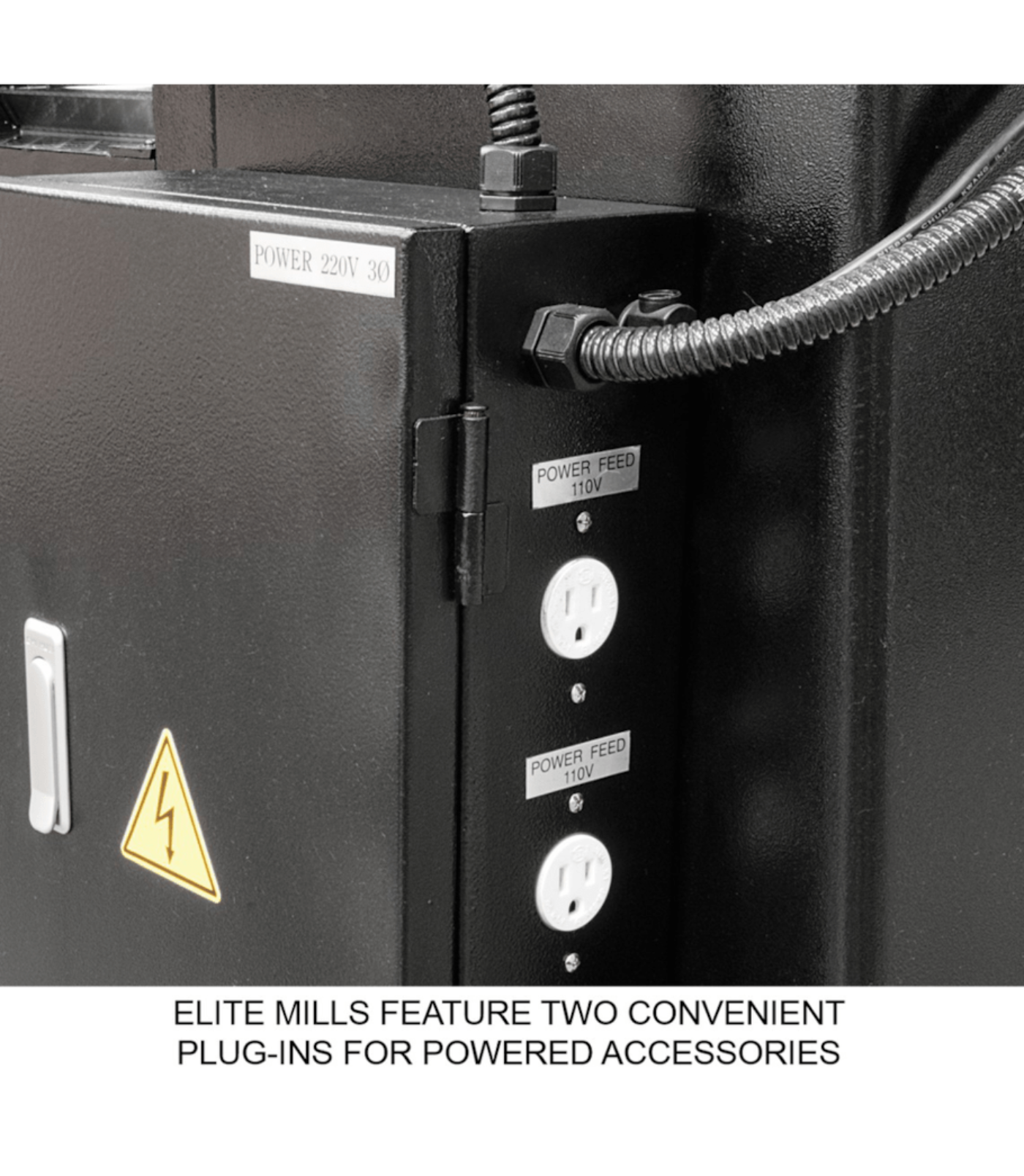

- The mounted control box houses major mill functions as well as an emergency stop button
- The table and saddle backlash is controlled by an advanced double nut design that eliminates end-play for precisely controlled lateral movements

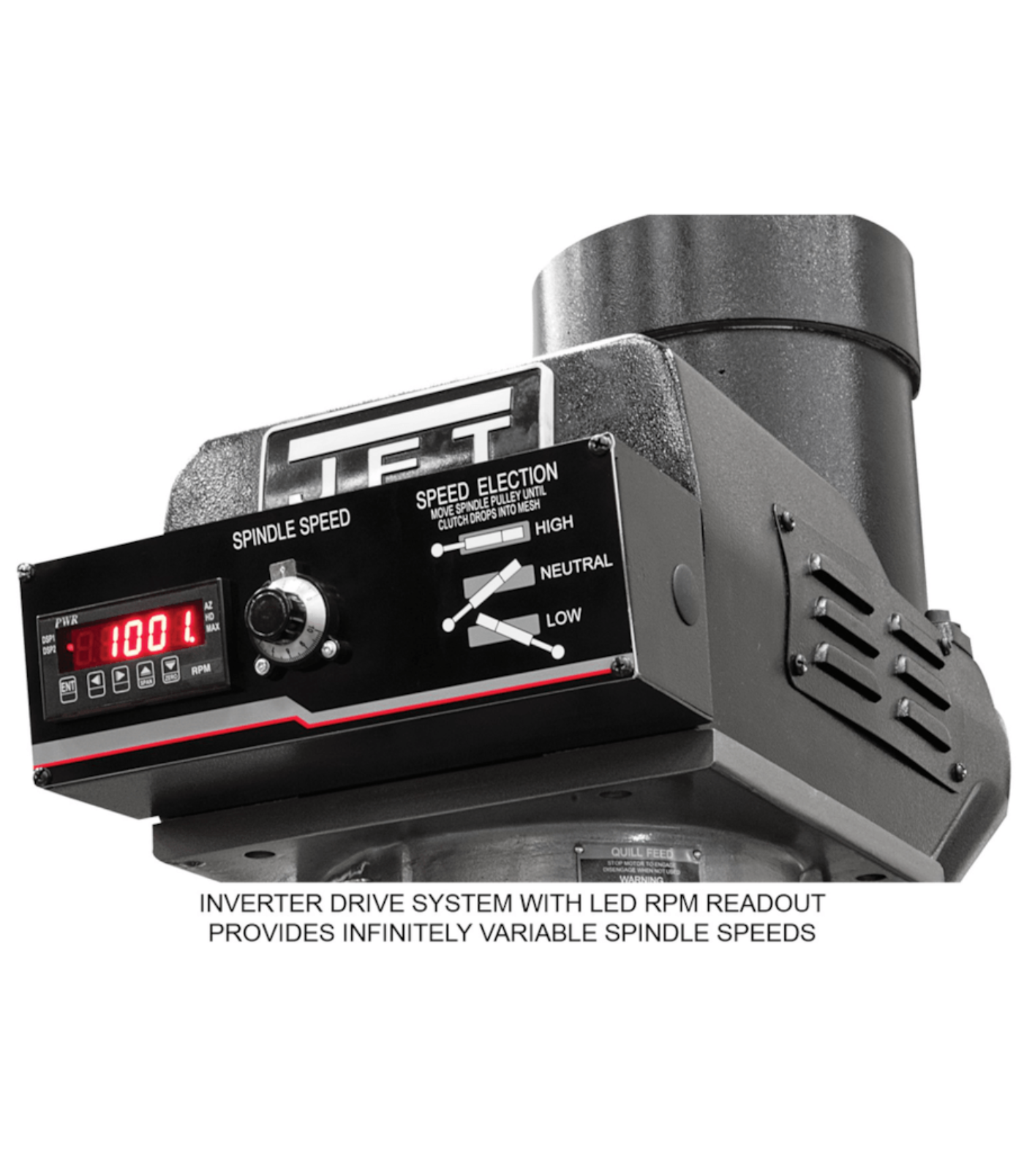

- Variable speed pulleys are ground and multiplane dynamically balanced, reducing vibration and ensuring smooth speed transitions
Specifications
| Style (Type) |
Variable Speed |
| Table Size (L x W) |
9 x 49 in. |
| Work Table Weight Capacity |
550 lbs. |
| Spindle Travel |
5 in. |
| Spindle Taper |
R-8 |
| Collet Capacity |
1/8 – 7/8 in. |
| Quill Diameter |
3-3/8 in. |
| Quill Down Feed Rates (IPR) |
0.0015 – 0.003 – 0.006 |
| Max Distance Spindle to Table |
18-3/4 in. |
| Distance Spindle to Column (Max.) |
21-2/5 in. |

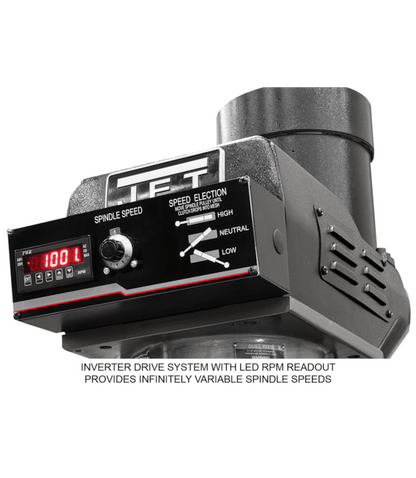

| Range of Spindle Speeds |
60 – 5,000 RPM |
| Table Longitudinal Travel |
36 in. |
| Table Cross Travel |
12 in. |
| T-Slot Centers |
2-1/2 in. |
| Travel of Knee |
16 in. |
| Travel of Ram |
14 in. |
| Motor |
3 HP, 230V, 3Ph |
| Amperage Draw @ 230V 3Ph |
18 A |
| Weight |
2,300 lbs. |

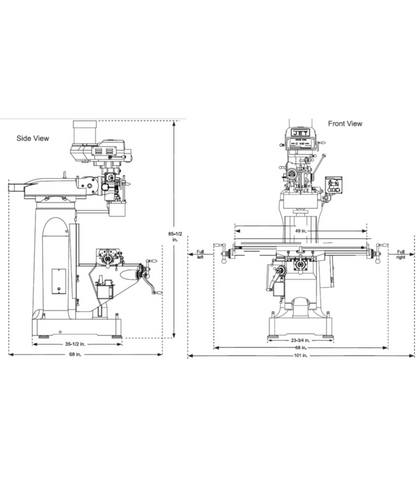

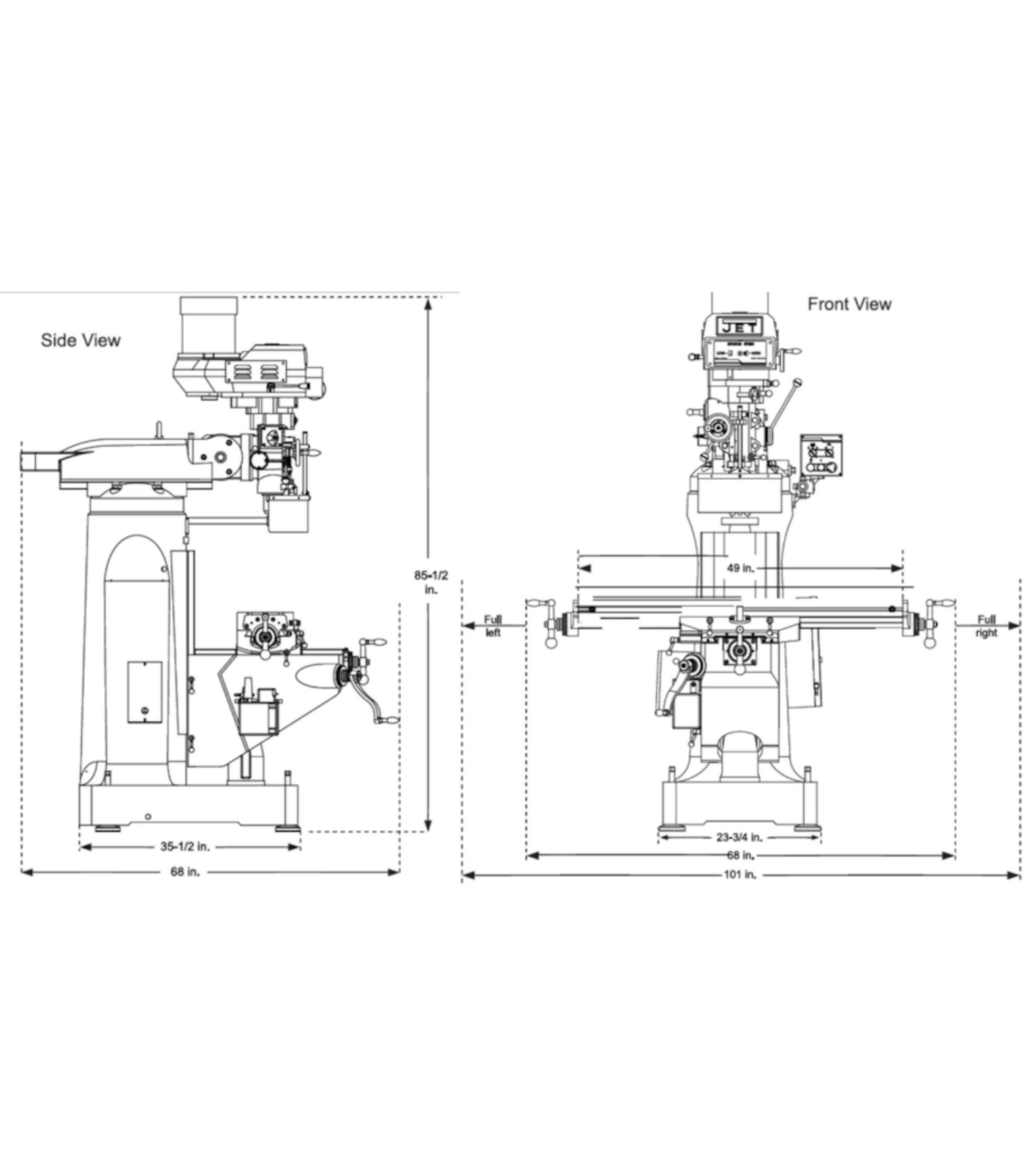

| Overall Dimensions (L x W x H) |
68 x 63 x 84 in. |
What our Experts Think
-
Precision Engineering – Rigid construction ensures accurate milling with minimal vibration.
-
X-Axis Powerfeed Advantage – Improves efficiency and consistency, reducing operator fatigue.
-
Heavy-Duty Build – Cast iron frame and hardened ways provide long-term durability.
-
Versatile Performance – Handles demanding jobs in metalworking shops, toolrooms, and manufacturing.
-
User Convenience – Ergonomic controls and smooth table movement enhance productivity.
-
Best For – Professionals requiring a reliable, high-capacity milling machine for precision applications.
Q&A
Q: What is the JET Elite ETM-949 Mill with X-Axis JET Powerfeed?
A: It’s a heavy-duty vertical milling machine designed for precision machining with added X-Axis powerfeed for efficiency.
Q: What makes this mill reliable?
A: It features a rigid Meehanite cast iron body, precision-ground table, and high-quality spindle for long-lasting accuracy.
Q: How does the X-Axis Powerfeed help productivity?
A: It provides consistent table movement, improving surface finishes and reducing operator fatigue.
Q: What industries use the JET Elite ETM-949?
A: Ideal for metalworking shops, fabrication, tool rooms, and manufacturing environments needing precision milling.
Q: Does it come with safety and convenience features?
A: Yes, it includes spindle safety guards, wide travel capacity, and an easy-to-use control panel for operator protection and efficiency.
Maintenance Tips
-
Lubricate slides, ways, and leadscrews daily with approved oil.
-
Inspect belts, gears, and powerfeed components regularly.
-
Drain and replace spindle and gearbox oil as scheduled.
-
Keep gibs adjusted for precision.
-
Remove chips and debris after each use.
