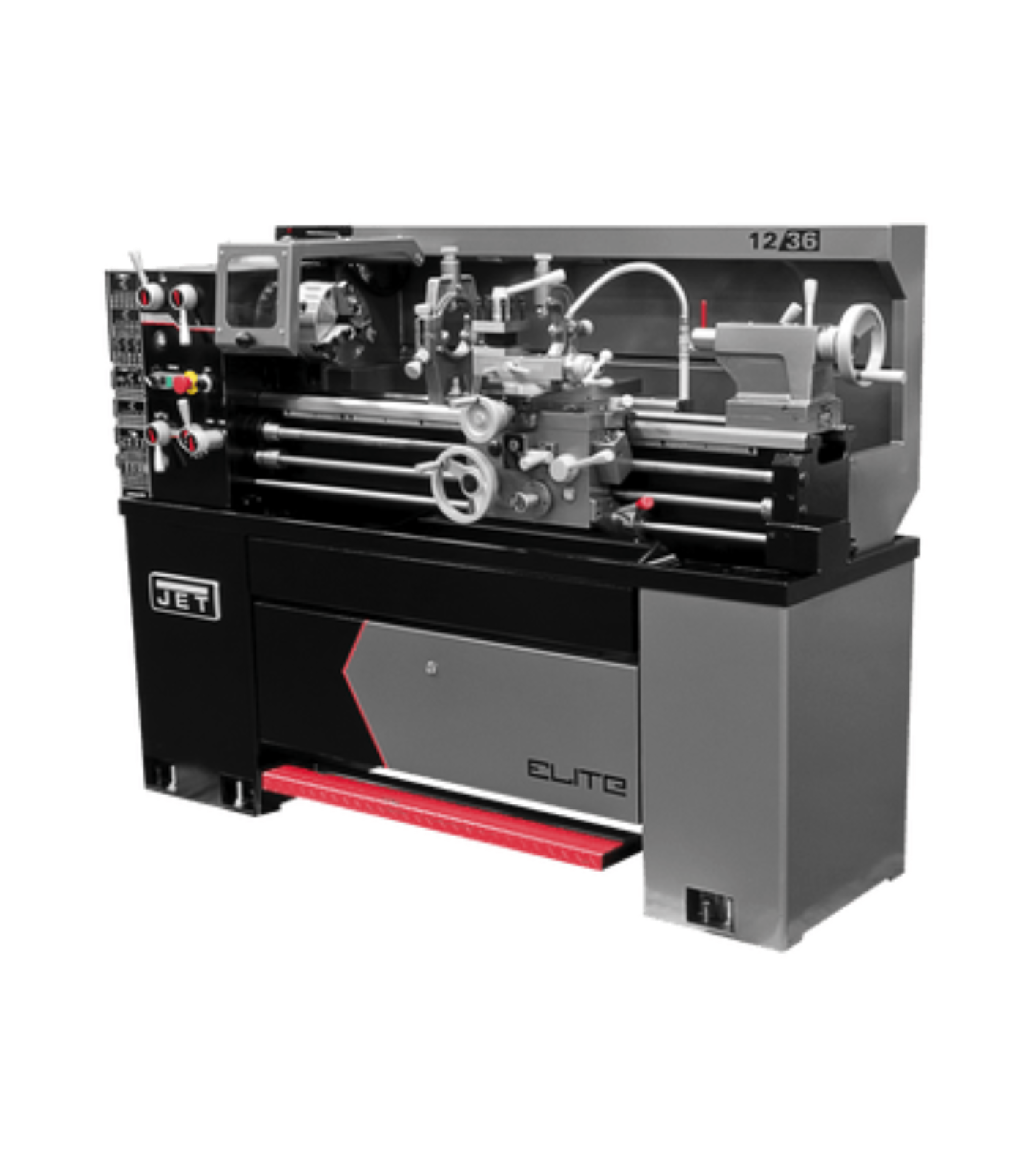

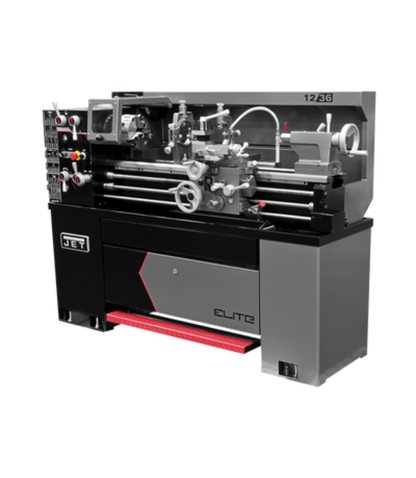

JET Elite Lathe E-1236VS with ACU-RITE 203 CSS DRO - JET-892307
Compact, powerful, perfection. Elite EVS lathes pack large features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring certified Meehanite® castings, an electro-magnetic brake, three jaw chuck, ball bearing-mounted steady and follow rests, and CNC Style Lighting with enclosed splash guard, these lathes are truly Elite! CSA/CUS Certified.
Features
- 4-Position Carriage Stop
- Chuck guards are standard equipment on all ELITE lathes for increased safety
- Front facing chip pan allows easy chip removal from the front of the machine
- Hardened and ground gears in headstock reduce vibration and deflection
- Integrated locking tool cabinet in stand on 12" Lathe
- Inverter drive system provides infinitely variable spindle speeds
- LED RPM readout allows for precise turning speeds
- Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
Specifications
| Size |
12 x 36 |
| Style (Type) |
ELITE EVS |
| Swing Over Bed (In.) |
12 |
| Swing Over Cross Slide (In.) |
7-5/16 |
| Swing Through Gap (In.) |
17-1/2 |
| Length of Gap (In.) |
9-1/2 |
| Spindle Bore (In.) |
1-9/16 |
| Spindle Mount |
D1-4 |
| Weight (Lbs.) |
1212 |
| Amperage Draw @ 230V 1Ph |
27 |
| Amperage Draw @ 230V 3Ph |
19 |
| Spindle Taper with Sleeve |
MT-5 |
| Range of Spindle Speeds (RPM) |
0 – 2,000 |
| Number of Longitudinal and Cross Feed Rates |
50 |
| Range of Longitudinal Feeds (IPR) |
0.0016 – 0.046 |
| Range of Cross Feeds (IPR) |
0.0005 – 0.015 |
| Number of Inch Threads |
34 |
| Range of Inch Threads (TPI) |
2 – 56 |
| Number of Metric Threads |
33 |
| Range of Metric Threads |
0.5 – 12 |
| Max Tool Size (In.) |
1/2 x 1/2 |
| Compound Slide Travel (In.) |
3-1/2 |
| Motor (HP) |
2 HP, 230V, 1 or 3 Ph |
| Tailstock Spindle Travel (In.) |
4 |
| Taper in Tailstock Spindle |
MT-3 |
| Steady Rest Capacity (In.) |
1/4 – 2-1/2 |
| Width of Bed (In.) |
7-1/2 |
| Overall Dimensions (L x W x H) (In.) |
71 x 30 x 60 |
| Drive |
EVS |
What our Experts Think
-
High Precision Control: Variable speed lathe paired with ACU-RITE 203 CSS DRO ensures accurate, repeatable results.
-
Advanced Efficiency: Constant Surface Speed (CSS) feature optimizes turning performance.
-
Heavy-Duty Stability: Rugged cast-iron construction minimizes vibration for smoother cuts.
-
Operator-Friendly: Digital readout and ergonomic controls simplify complex machining tasks.
-
Professional Reliability: Built for machine shops requiring precision, consistency, and long-term durability.
Q&A
Q: What is the JET Elite E-1236VS Lathe?
A: A precision-engineered variable speed metal lathe featuring the ACU-RITE 203 CSS digital readout for enhanced accuracy and constant surface speed control.
Q: What makes it unique?
A: Its electronic variable speed drive, precision-ground bedways, DRO with CSS functionality, and durable construction provide accuracy and efficiency for professional machining.
Q: Where can it be used?
A: Perfect for machine shops, tool rooms, fabrication facilities, and industrial environments.
Q: What style of work does it suit?
A: Precision turning, threading, facing, boring, and taper cutting on metals and alloys.
Q: What materials is it made from?
A: Heavy-duty cast iron base with hardened, ground components for durability and vibration resistance.
Maintenance Tips
-
Remove chips and debris from bedways, carriage, and leadscrews after every use.
-
Lubricate gears, bearings, and sliding parts per manufacturer’s recommendations.
-
Keep ACU-RITE CSS DRO sensors and display clean for accurate speed control and readouts.
-
Inspect belts, gibs, and fasteners regularly for wear and secure adjustment.
-
Cover the lathe when not in use to protect from dust and shop contaminants.
