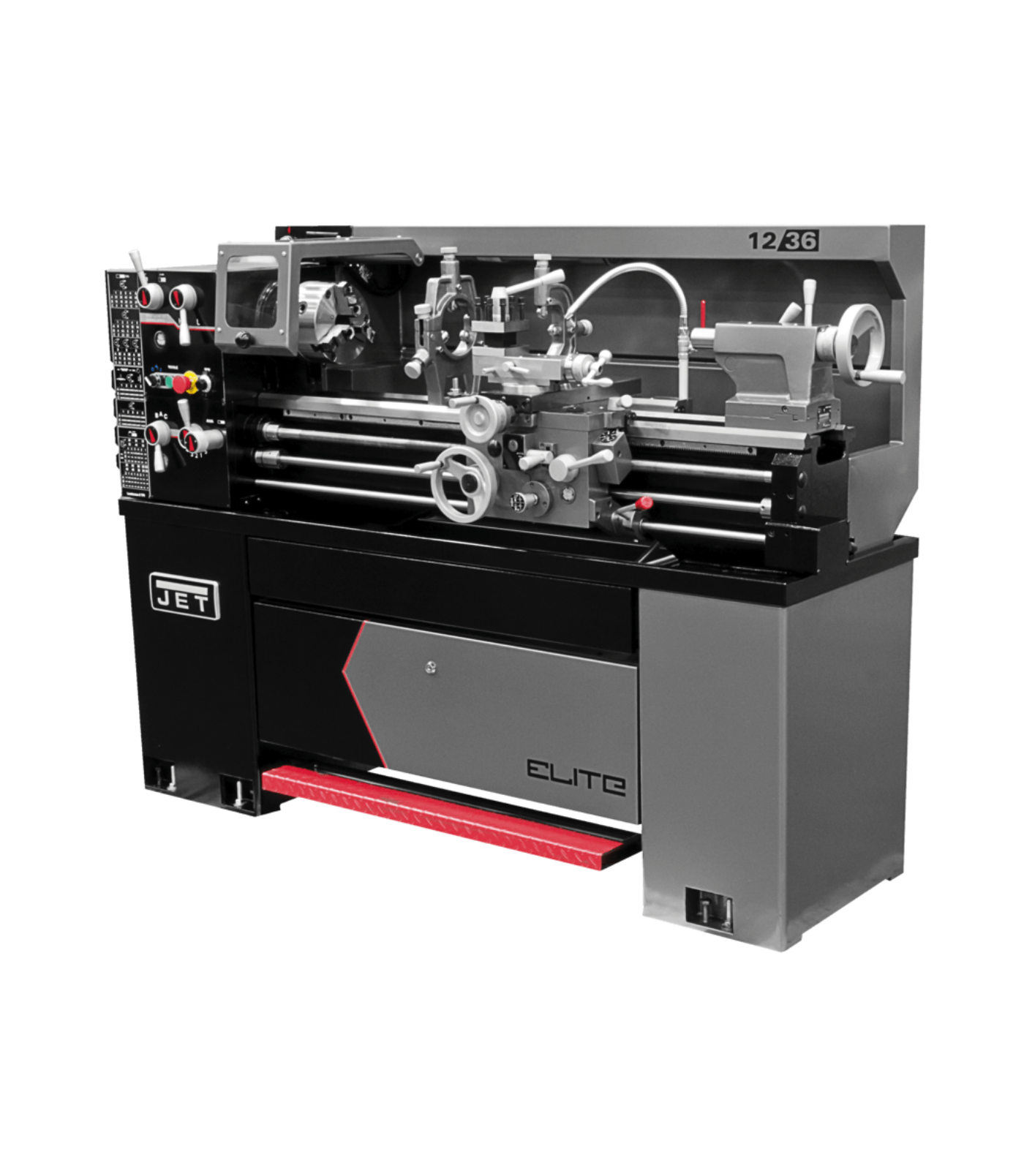

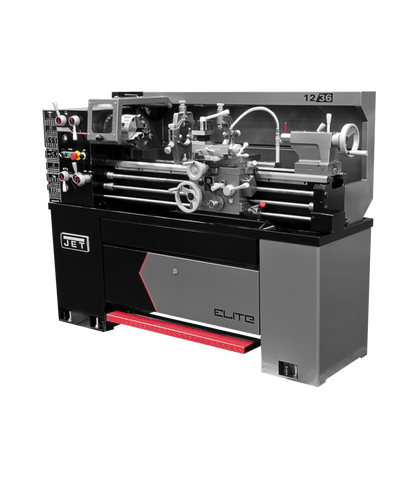

JET Elite Lathe E-1236VS with ACU-RITE 203 DRO with Taper Attachment and Collet Closer - JT9-892306
Compact, powerful, perfection. Elite EVS lathes pack large features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring certified Meehanite® castings, an electro-magnetic brake, three jaw chuck, ball bearing-mounted steady and follow rests, and CNC Style Lighting with enclosed splash guard, these lathes are truly Elite! CSA/CUS Certified.
Features
- 4-Position Carriage Stop
- Chuck guards are standard equipment on all ELITE lathes for increased safety
- Front facing chip pan allows easy chip removal from the front of the machine
- Hardened and ground gears in headstock reduce vibration and deflection
- Integrated locking tool cabinet in stand on 12" Lathe
- Inverter drive system provides infinitely variable spindle speeds
- LED RPM readout allows for precise turning speeds
- Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
Specifications
| Size |
12 x 36 |
| Style (Type) |
ELITE EVS |
| Swing Over Bed (In.) |
12 |
| Swing Over Cross Slide (In.) |
7-5/16 |
| Swing Through Gap (In.) |
17-1/2 |
| Length of Gap (In.) |
9-1/2 |
| Spindle Bore (In.) |
1-9/16 |
| Spindle Mount |
D1-4 |
| Weight (Lbs.) |
1212 |
| Amperage Draw @ 230V 1Ph |
27 |
| Amperage Draw @ 230V 3Ph |
19 |
| Spindle Taper with Sleeve |
MT-5 |
| Range of Spindle Speeds (RPM) |
0 – 2,000 |
| Number of Longitudinal and Cross Feed Rates |
50 |
| Range of Longitudinal Feeds (IPR) |
0.0016 – 0.046 |
| Range of Cross Feeds (IPR) |
0.0005 – 0.015 |
| Number of Inch Threads |
34 |
| Range of Inch Threads (TPI) |
2 – 56 |
| Number of Metric Threads |
33 |
| Range of Metric Threads |
0.5 – 12 |
| Max Tool Size (In.) |
1/2 x 1/2 |
| Compound Slide Travel (In.) |
3-1/2 |
| Motor (HP) |
2 HP, 230V, 1 or 3 Ph |
| Tailstock Spindle Travel (In.) |
4 |
| Taper in Tailstock Spindle |
MT-3 |
| Steady Rest Capacity (In.) |
1/4 – 2-1/2 |
| Width of Bed (In.) |
7-1/2 |
| Overall Dimensions (L x W x H) (In.) |
71 x 30 x 60 |
| Drive |
EVS |
What our Experts Think
-
12" swing and 36" center distance make it ideal for compact precision turning projects.
-
ACU-RITE 203 DRO delivers accurate digital readouts for reliable machining.
-
Taper attachment allows precise taper cutting with minimal setup.
-
Collet closer ensures fast, secure workholding for improved workflow.
-
Durable cast-iron construction minimizes vibration, providing stability, accuracy, and long-lasting performance.
Q&A
Q: What type of lathe is the JET Elite E-1236VS?
A: It’s a 12x36 electronic variable speed (EVS) precision lathe designed for accurate and versatile metalworking.
Q: What does the ACU-RITE 203 DRO provide?
A: The digital readout ensures precise measurements, improved setup efficiency, and accurate machining results.
Q: What is the function of the taper attachment?
A: It allows precise taper cutting without adjusting the compound rest, ideal for advanced turning operations.
Q: What is the benefit of the collet closer?
A: It enables fast, secure, and precise workpiece clamping for improved workflow and consistency.
Q: What is the swing over bed and center distance?
A: This lathe has a 12-inch swing over bed and a 36-inch distance between centers.
Q: Where is this lathe best used?
A: Ideal for machine shops, tool rooms, and industrial facilities requiring precision and efficiency.
Maintenance Tips
-
Clean bedways, carriage, and tooling areas after each use to remove chips and debris.
-
Lubricate gears, bearings, and sliding components per the manufacturer’s recommended schedule.
-
Keep ACU-RITE 203 DRO scales and sensors free of dust for precise readings.
-
Inspect and maintain the taper attachment regularly to ensure smooth, accurate operation.
-
Check the collet closer for proper clamping and service as needed.
-
Examine belts, feed screws, and gibs for wear; adjust tension and alignment as required.
-
Tighten tool post, tailstock, and all fasteners to maintain rigidity and machining accuracy.
-
Schedule routine professional servicing to extend machine life and maintain performance.
