| Size |
12 x 36 |
| Style (Type) |
ELITE EVS |
| Swing Over Bed (In.) |
12 |
| Swing Over Cross Slide (In.) |
7-5/16 |
| Swing Through Gap (In.) |
17-1/2 |
| Length of Gap (In.) |
9-1/2 |
| Spindle Bore (In.) |
1-9/16 |
| Spindle Mount |
D1-4 |
| Weight (Lbs.) |
1212 |
| Amperage Draw @ 230V 1Ph |
27 |
| Amperage Draw @ 230V 3Ph |
19 |
| Spindle Taper with Sleeve |
MT-5 |
| Range of Spindle Speeds (RPM) |
0 – 2,000 |
| Number of Longitudinal and Cross Feed Rates |
50 |
| Range of Longitudinal Feeds (IPR) |
0.0016 – 0.046 |
| Range of Cross Feeds (IPR) |
0.0005 – 0.015 |
| Number of Inch Threads |
34 |
| Range of Inch Threads (TPI) |
2 – 56 |
| Number of Metric Threads |
33 |
| Range of Metric Threads |
0.5 – 12 |
| Max Tool Size (In.) |
1/2 x 1/2 |
| Compound Slide Travel (In.) |
3-1/2 |
| Motor (HP) |
2 HP, 230V, 1 or 3 Ph |
| Tailstock Spindle Travel (In.) |
4 |
| Taper in Tailstock Spindle |
MT-3 |
| Steady Rest Capacity (In.) |
1/4 – 2-1/2 |
| Width of Bed (In.) |
7-1/2 |
| Overall Dimensions (L x W x H) (In.) |
71 x 30 x 60 |
| Drive |
EVS |
What our Experts Think
-
Variable Speed Precision – Smooth speed adjustments provide accurate, consistent machining results.
-
ACU-RITE 303 CSS DRO – Digital readout with Constant Surface Speed ensures precise measurements and efficient operation.
-
Collet Closer Included – Enhances workholding capability for repetitive and high-precision machining tasks.
-
Heavy-Duty Construction – Cast-iron base and headstock provide stability, minimize vibration, and extend machine life.
-
Versatile Applications – Perfect for threading, turning, and general-purpose metalworking.
-
Industrial Reliability – Built for continuous operation in machine shops, fabrication facilities, and training programs.
Q&A

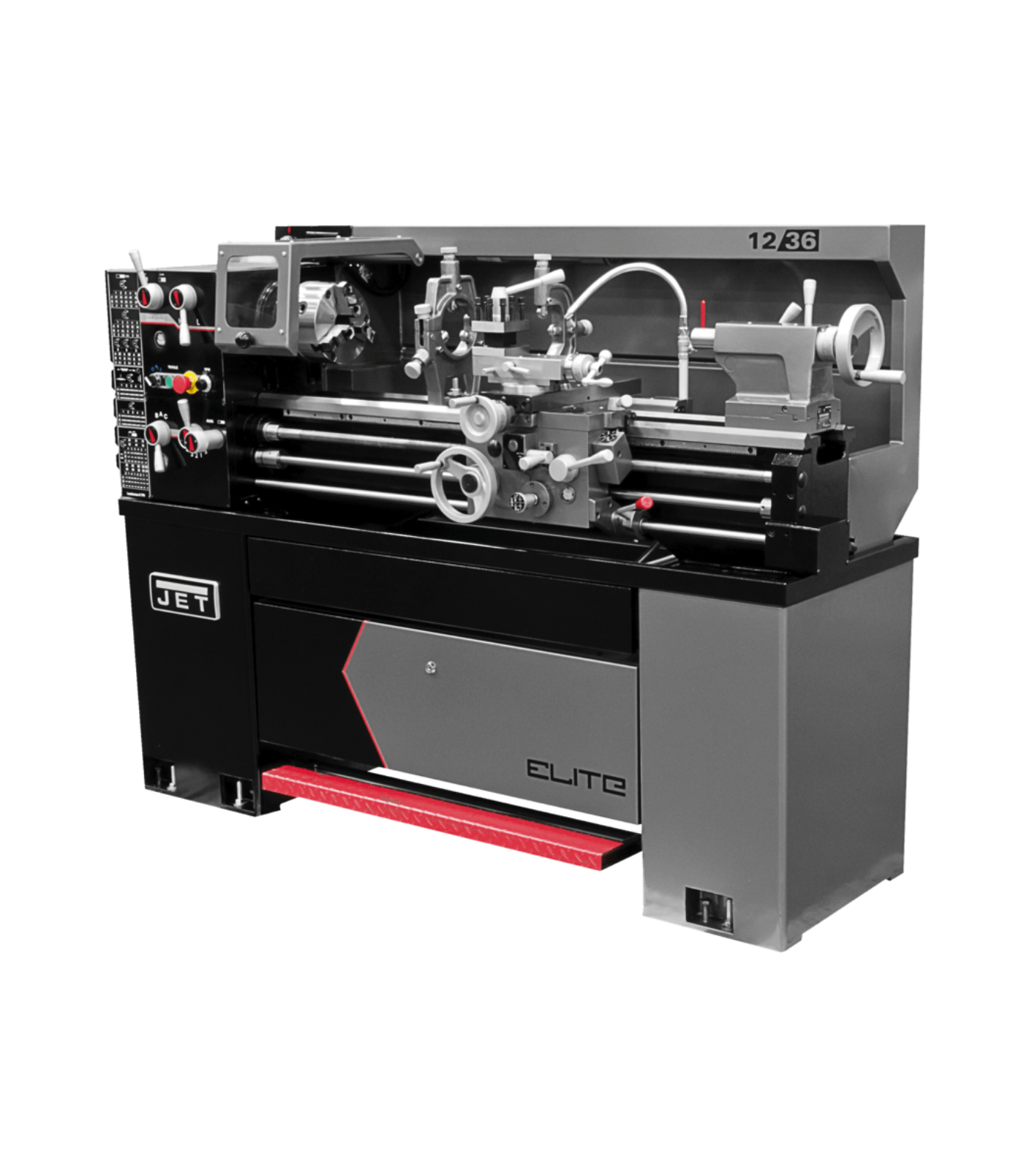

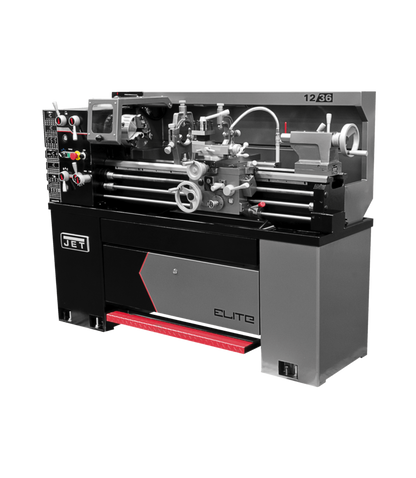

Q: What is the JET Elite E-1236VS Lathe?
A: A 12" x 36" variable speed precision lathe equipped with an ACU-RITE 303 CSS digital readout and collet closer for accurate, efficient machining.
Q: What makes this lathe unique?
A: It combines variable speed control, a CSS DRO for constant surface speed, and a collet closer for fast, secure workholding.
Q: What materials can it machine?
A: Suitable for steel, aluminum, brass, and other metals in professional and industrial shops.
Q: Why is the ACU-RITE 303 CSS DRO important?
A: It automatically adjusts spindle speed to maintain optimal cutting conditions, improving surface finish and tool life.
Q: What is the benefit of the collet closer?
A: Allows quick and secure clamping of smaller workpieces, reducing setup time and enhancing precision.
Q: What size capacity does it have?
A: 12" swing over bed and 36" distance between centers.
Q: Where is it best used?
A: Ideal for toolrooms, machine shops, prototyping, and maintenance departments.
Q: How does it improve efficiency?
A: The CSS DRO, collet closer, and variable speed drive reduce setup time, maintain cutting accuracy, and streamline workflow.
Maintenance Tips
-
Clean bedways, carriage, and tooling after each use to prevent chip buildup
-
Lubricate gears, bearings, and all moving parts per manufacturer’s schedule
-
Inspect belts, gears, and spindle components regularly for wear or misalignment
-
Keep collet closer mechanism clean, lightly oiled, and properly adjusted
-
Maintain DRO display and electrical connections free of dust and moisture
-
Check alignment and calibration periodically to ensure precision machining
-
Schedule annual professional servicing to ensure long-term reliability and performance
