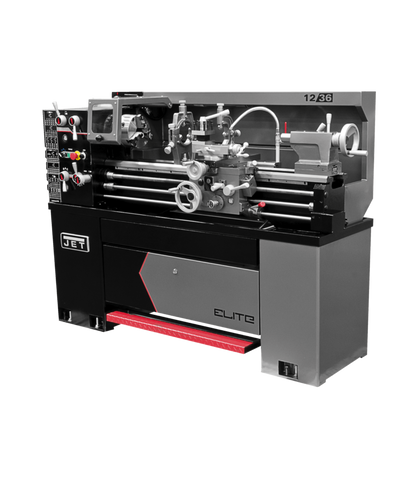

JET Elite Lathe E-1236VS with ACU-RITE 303 DRO with Collet Closer - JT9-892313
Compact, powerful, perfection. Elite EVS lathes pack large features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring certified Meehanite® castings, an electro-magnetic brake, three jaw chuck, ball bearing-mounted steady and follow rests, and CNC Style Lighting with enclosed splash guard, these lathes are truly Elite! CSA/CUS Certified.
Features
- 4-Position Carriage Stop
- Chuck guards are standard equipment on all ELITE lathes for increased safety
- Front facing chip pan allows easy chip removal from the front of the machine
- Hardened and ground gears in headstock reduce vibration and deflection
- Integrated locking tool cabinet in stand on 12" Lathe
- Inverter drive system provides infinitely variable spindle speeds
- LED RPM readout allows for precise turning speeds
- Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
Specifications
| Size |
12 x 36 |
| Style (Type) |
ELITE EVS |
| Swing Over Bed (In.) |
12 |
| Swing Over Cross Slide (In.) |
7-5/16 |
| Swing Through Gap (In.) |
17-1/2 |
| Length of Gap (In.) |
9-1/2 |
| Spindle Bore (In.) |
1-9/16 |
| Spindle Mount |
D1-4 |
| Weight (Lbs.) |
1212 |
| Amperage Draw @ 230V 1Ph |
27 |
| Amperage Draw @ 230V 3Ph |
19 |
| Spindle Taper with Sleeve |
MT-5 |
| Range of Spindle Speeds (RPM) |
0 – 2,000 |
| Number of Longitudinal and Cross Feed Rates |
50 |
| Range of Longitudinal Feeds (IPR) |
0.0016 – 0.046 |
| Range of Cross Feeds (IPR) |
0.0005 – 0.015 |
| Number of Inch Threads |
34 |
| Range of Inch Threads (TPI) |
2 – 56 |
| Number of Metric Threads |
33 |
| Range of Metric Threads |
0.5 – 12 |
| Max Tool Size (In.) |
1/2 x 1/2 |
| Compound Slide Travel (In.) |
3-1/2 |
| Motor (HP) |
2 HP, 230V, 1 or 3 Ph |
| Tailstock Spindle Travel (In.) |
4 |
| Taper in Tailstock Spindle |
MT-3 |
| Steady Rest Capacity (In.) |
1/4 – 2-1/2 |
| Width of Bed (In.) |
7-1/2 |
| Overall Dimensions (L x W x H) (In.) |
71 x 30 x 60 |
| Drive |
EVS |
What our Experts Think
-
Precision Accuracy: Variable speed lathe with ACU-RITE 303 DRO ensures repeatable, high-quality results.
-
Boosted Productivity: Collet closer provides fast, secure workholding for efficient operations.
-
Heavy-Duty Stability: Cast-iron construction minimizes vibration and extends machine life.
-
User-Friendly Features: DRO system and ergonomic controls simplify complex machining tasks.
-
Professional Reliability: Built for industrial shops and machinists demanding precision and durability.
Q&A
Q: What is the JET Elite E-1236VS Lathe?
A: A precision-engineered variable speed lathe equipped with the ACU-RITE 303 digital readout and collet closer for efficient machining.
Q: What makes it unique?
A: Its electronic variable speed control, precision-ground bedways, DRO for accurate digital measurement, and collet closer for quick, secure workholding ensure productivity and accuracy.
Q: Where can it be used?
A: Ideal for machine shops, tool rooms, fabrication facilities, and industrial applications.
Q: What style of work does it suit?
A: Precision turning, threading, facing, boring, and taper cutting on metals and alloys.
Q: What materials is it made from?
A: Heavy-duty cast iron construction with hardened and ground components for durability and vibration-free performance.
Maintenance Tips
-
Clear chips and debris from bedways, carriage, and leadscrews after each use.
-
Lubricate gears, bearings, and sliding parts per manufacturer’s maintenance schedule.
-
Keep ACU-RITE 303 DRO sensors and display clean for precise readouts.
-
Inspect collet closer regularly to ensure smooth, accurate clamping.
-
Check belts, gibs, and fasteners for wear; cover lathe when idle to prevent dust buildup.
