| Size |
12 x 36 |
| Style (Type) |
ELITE EVS |
| Swing Over Bed (In.) |
12 |
| Swing Over Cross Slide (In.) |
7-5/16 |
| Swing Through Gap (In.) |
17-1/2 |
| Length of Gap (In.) |
9-1/2 |
| Spindle Bore (In.) |
1-9/16 |
| Spindle Mount |
D1-4 |
| Weight (Lbs.) |
1212 |
| Amperage Draw @ 230V 1Ph |
27 |
| Amperage Draw @ 230V 3Ph |
19 |
| Spindle Taper with Sleeve |
MT-5 |
| Range of Spindle Speeds (RPM) |
0 – 2,000 |
| Number of Longitudinal and Cross Feed Rates |
50 |
| Range of Longitudinal Feeds (IPR) |
0.0016 – 0.046 |
| Range of Cross Feeds (IPR) |
0.0005 – 0.015 |
| Number of Inch Threads |
34 |
| Range of Inch Threads (TPI) |
2 – 56 |
| Number of Metric Threads |
33 |
| Range of Metric Threads |
0.5 – 12 |
| Max Tool Size (In.) |
1/2 x 1/2 |
| Compound Slide Travel (In.) |
3-1/2 |
| Motor (HP) |
2 HP, 230V, 1 or 3 Ph |
| Tailstock Spindle Travel (In.) |
4 |
| Taper in Tailstock Spindle |
MT-3 |
| Steady Rest Capacity (In.) |
1/4 – 2-1/2 |
| Width of Bed (In.) |
7-1/2 |
| Overall Dimensions (L x W x H) (In.) |
71 x 30 x 60 |
| Drive |
EVS |
What our Experts Think
-
Variable Speed Control: Delivers precision turning for a wide range of materials.
-
Collet Closer Included: Ensures secure, accurate workholding for smaller diameter parts.
-
Rigid Cast-Iron Bed: Provides stability, reduces vibration, and improves machining accuracy.
-
User-Friendly Operation: Digital RPM readout and ergonomic controls simplify setup and use.
-
Industrial Reliability: Perfect for machine shops, toolrooms, and professional metalworking applications.
Q&A

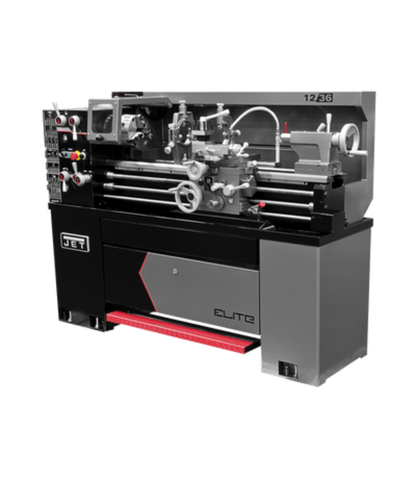

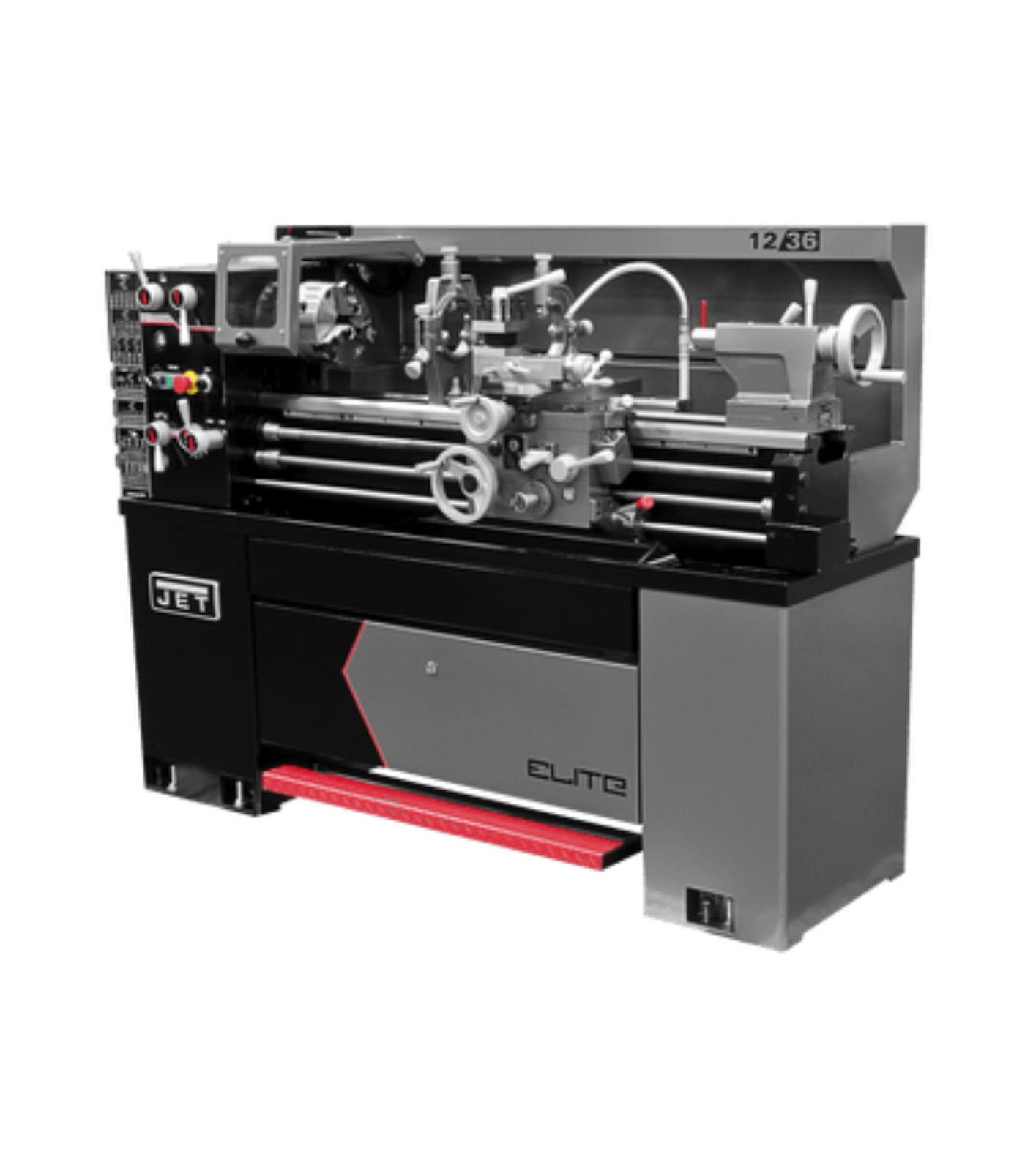

Q: What is the JET Elite E-1236VS lathe?
A: It’s a high-precision 12" x 36" variable-speed lathe designed for versatility in turning, threading, facing, and boring operations.
Q: What does the collet closer add to this machine?
A: The included collet closer enables quick, secure, and repeatable workholding, perfect for high-precision and production applications.
Q: What is the spindle bore size?
A: The E-1236VS features a 1.57" spindle bore, allowing it to handle medium-diameter stock with ease.
Q: How does the variable-speed drive help?
A: The electronic variable-speed drive offers smooth speed changes and optimal control for different materials and cutting operations.
Q: How durable is the bed and ways?
A: The bed is hardened and precision-ground, ensuring long-lasting accuracy and rigidity.
Q: What kind of motor powers the E-1236VS?
A: A heavy-duty industrial motor provides reliable torque and consistent performance under load.
Q: Who is this lathe best suited for?
A: Ideal for machine shops, educational facilities, tool rooms, and repair operations requiring precision and flexibility.
Q: Does this lathe include threading capability?
A: Yes, it supports both inch and metric threading for maximum versatility.
Maintenance Tips
-
Clean machine surfaces daily to remove chips, oil, and debris.
-
Lubricate gears, bearings, and sliding components per manufacturer guidelines.
-
Inspect collet closer, belts, and chuck regularly for wear and alignment.
-
Check electrical connections and safety controls to ensure reliable operation.
-
Schedule routine professional servicing to maintain accuracy and extend machine life.
