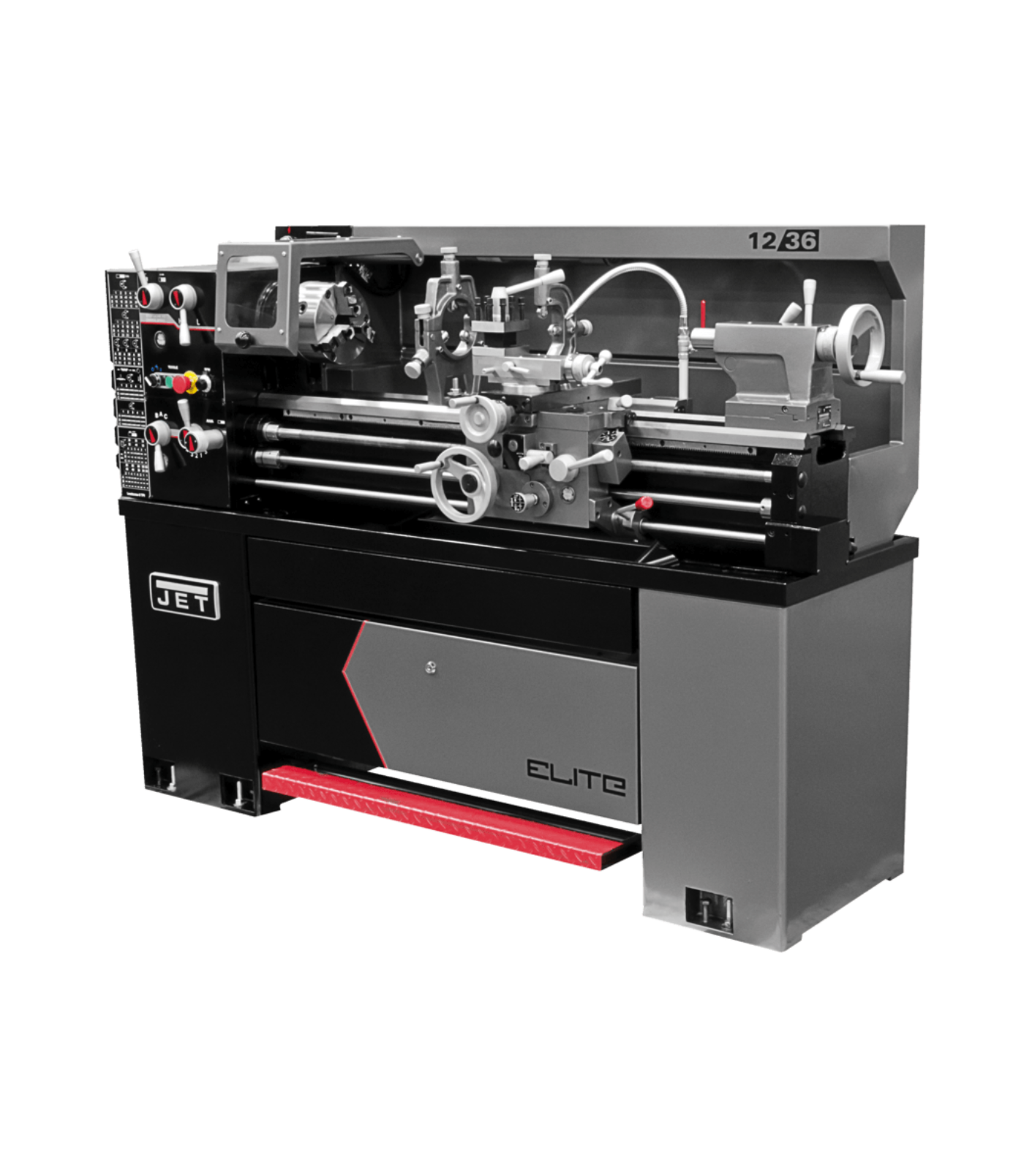

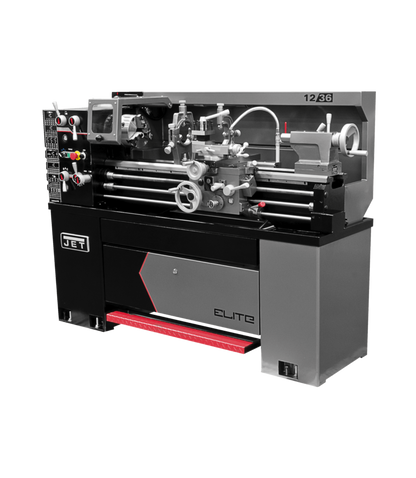

JET Elite
1 Review
Only left!
Free Delivary
Limited Stocks
Quantity
Couldn't load pickup availability
$0.00 USD
$0.00 USD
$0.00 USD
Compact, powerful, perfection. Elite EVS lathes pack large features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring certified Meehanite® castings, an electro-magnetic brake, three jaw chuck, ball bearing-mounted steady and follow rests, and CNC Style Lighting with enclosed splash guard, these lathes are truly Elite! CSA/CUS Certified.
| Size | 12 x 36 |
|---|---|
| Style (Type) | ELITE EVS |
| Swing Over Bed (In.) | 12 |
| Swing Over Cross Slide (In.) | 7-5/16 |
| Swing Through Gap (In.) | 17-1/2 |
| Length of Gap (In.) | 9-1/2 |
| Spindle Bore (In.) | 1-9/16 |
| Spindle Mount | D1-4 |
| Weight (Lbs.) | 1212 |
| Amperage Draw @ 230V 1Ph | 27 |
| Amperage Draw @ 230V 3Ph | 19 |
| Spindle Taper with Sleeve | MT-5 |
| Range of Spindle Speeds (RPM) | 0 – 2,000 |
| Number of Longitudinal and Cross Feed Rates | 50 |
| Range of Longitudinal Feeds (IPR) | 0.0016 – 0.046 |
| Range of Cross Feeds (IPR) | 0.0005 – 0.015 |
| Number of Inch Threads | 34 |
| Range of Inch Threads (TPI) | 2 – 56 |
| Number of Metric Threads | 33 |
| Range of Metric Threads | 0.5 – 12 |
| Max Tool Size (In.) | 1/2 x 1/2 |
| Compound Slide Travel (In.) | 3-1/2 |
| Motor (HP) | 2 HP, 230V, 1 or 3 Ph |
| Tailstock Spindle Travel (In.) | 4 |
| Taper in Tailstock Spindle | MT-3 |
| Steady Rest Capacity (In.) | 1/4 – 2-1/2 |
| Width of Bed (In.) | 7-1/2 |
| Overall Dimensions (L x W x H) (In.) | 71 x 30 x 60 |
| Drive | EVS |
12" swing and 36" center distance make it well-suited for compact precision work.
Newall DP700 DRO delivers clear, reliable digital readouts for accuracy and efficiency.
Collet closer enables quick, secure workholding for faster setups.
Variable speed range (40–2,000 RPM) provides versatility across materials.
Cast-iron construction minimizes vibration, ensuring consistent, high-quality results
Q: What type of lathe is the JET Elite E-1236VS?
A: It’s a 12x36 electronic variable speed (EVS) precision lathe designed for accurate metalworking.
Q: What does the Newall DP700 DRO provide?
A: The digital readout delivers precise, reliable measurements with a clear, user-friendly display.
Q: What is the benefit of the collet closer?
A: It allows fast, secure, and precise clamping of workpieces, improving machining efficiency.
Q: What is the swing over bed and center distance?
A: This lathe provides a 12-inch swing over bed and a 36-inch distance between centers.
Q: Where is this lathe best used?
A: Perfect for machine shops, tool rooms, and maintenance facilities requiring accuracy and productivity.
Wipe bedways, carriage, and tool areas after each use to prevent chip buildup.
Lubricate gears, bearings, and sliding parts according to the service schedule.
Keep Newall DP700 DRO scales and sensors clean for accurate measurement.
Inspect and maintain the collet closer regularly for smooth, secure clamping.
Check belts, feed screws, and alignment for wear and proper tension.
Tighten tool post, tailstock, and all fasteners to maintain machining precision.
Keep electrical components and cooling fans free of dust and debris.
Schedule routine professional servicing to extend accuracy and machine lifespan.
