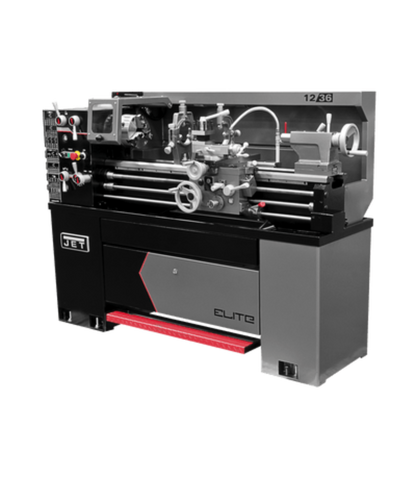

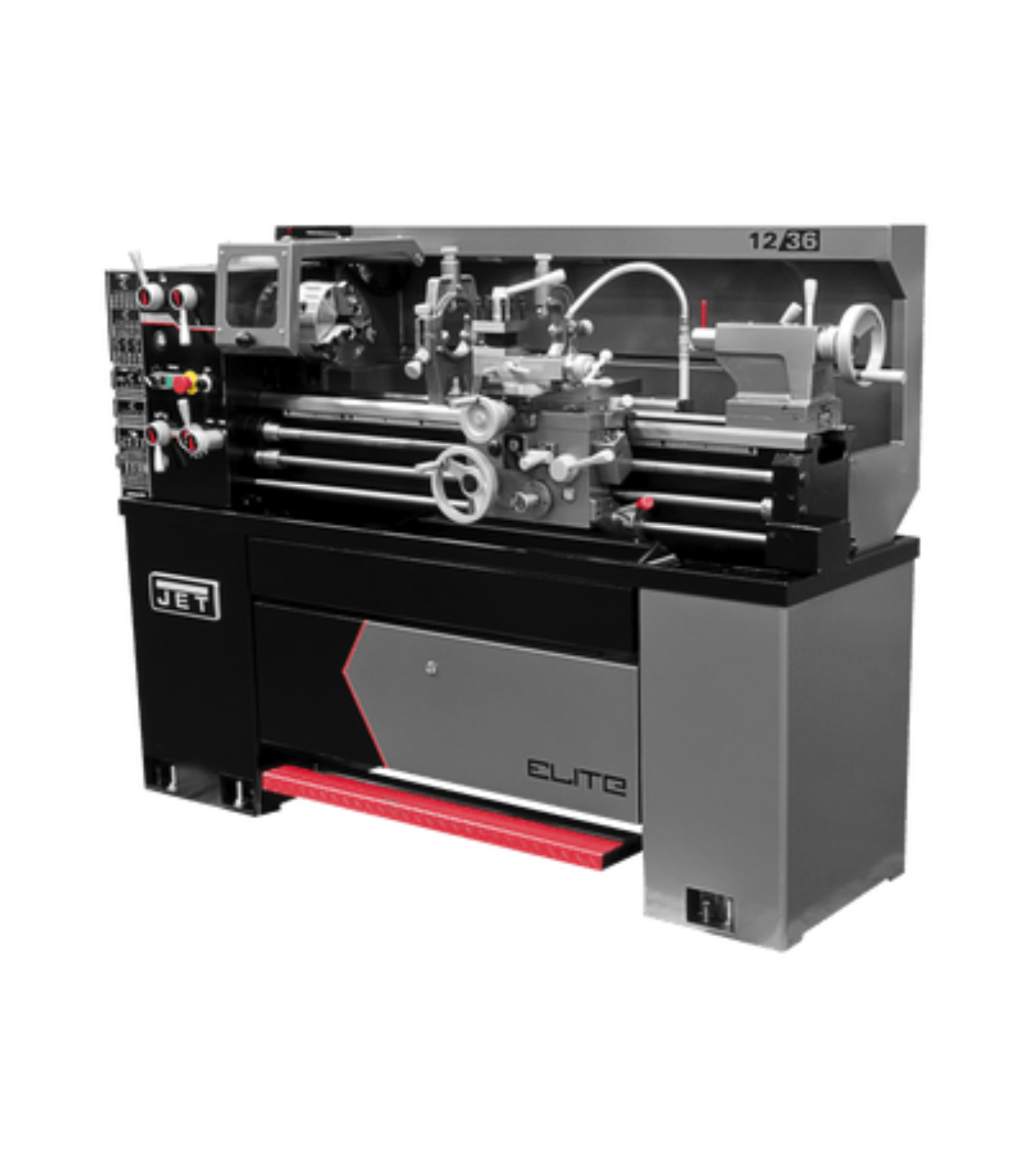

JET Elite Lathe E-1236VS with Newall DP700 DRO with Taper Attachment - JT9-892320
Compact, powerful, perfection. Elite EVS lathes pack large features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring certified Meehanite® castings, an electro-magnetic brake, three jaw chuck, ball bearing-mounted steady and follow rests, and CNC Style Lighting with enclosed splash guard, these lathes are truly Elite! CSA/CUS Certified.
Features
- 4-Position Carriage Stop
- Chuck guards are standard equipment on all ELITE lathes for increased safety
- Front facing chip pan allows easy chip removal from the front of the machine

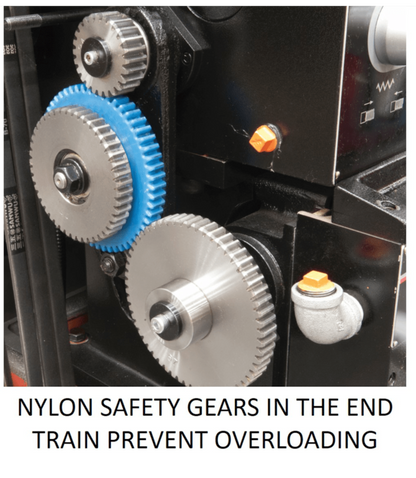

- Hardened and ground gears in headstock reduce vibration and deflection
- Integrated locking tool cabinet in stand on 12" Lathe
- Inverter drive system provides infinitely variable spindle speeds
- LED RPM readout allows for precise turning speeds
- Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
Specifications
| Size |
12 x 36 |
| Style (Type) |
ELITE EVS |
| Swing Over Bed (In.) |
12 |
| Swing Over Cross Slide (In.) |
7-5/16 |
| Swing Through Gap (In.) |
17-1/2 |
| Length of Gap (In.) |
9-1/2 |
| Spindle Bore (In.) |
1-9/16 |
| Spindle Mount |
D1-4 |
| Weight (Lbs.) |
1212 |
| Amperage Draw @ 230V 1Ph |
27 |
| Amperage Draw @ 230V 3Ph |
19 |
| Spindle Taper with Sleeve |
MT-5 |
| Range of Spindle Speeds (RPM) |
0 – 2,000 |
| Number of Longitudinal and Cross Feed Rates |
50 |
| Range of Longitudinal Feeds (IPR) |
0.0016 – 0.046 |
| Range of Cross Feeds (IPR) |
0.0005 – 0.015 |
| Number of Inch Threads |
34 |
| Range of Inch Threads (TPI) |
2 – 56 |
| Number of Metric Threads |
33 |
| Range of Metric Threads |
0.5 – 12 |
| Max Tool Size (In.) |
1/2 x 1/2 |
| Compound Slide Travel (In.) |
3-1/2 |
| Motor (HP) |
2 HP, 230V, 1 or 3 Ph |
| Tailstock Spindle Travel (In.) |
4 |
| Taper in Tailstock Spindle |
MT-3 |
| Steady Rest Capacity (In.) |
1/4 – 2-1/2 |
| Width of Bed (In.) |
7-1/2 |
| Overall Dimensions (L x W x H) (In.) |
71 x 30 x 60 |
| Drive |
EVS |
What our Experts Think
-
12" swing and 36" center distance make it ideal for small to mid-size precision work.
-
Newall DP700 DRO provides clear, reliable readouts for enhanced machining accuracy.
-
Taper attachment enables efficient, precise taper cutting without complex adjustments.
-
Variable speed range (40–2,000 RPM) offers flexibility across materials and applications.
-
Durable cast-iron construction reduces vibration, ensuring smooth, consistent performance.
Q&A
Q: What type of lathe is the JET Elite E-1236VS?
A: It’s a 12x36 electronic variable speed (EVS) lathe designed for precision turning and metalworking.
Q: What does the Newall DP700 DRO provide?
A: The digital readout delivers highly accurate, reliable measurements with an easy-to-read display.
Q: What is the function of the taper attachment?
A: It enables accurate taper cutting without the need to adjust the compound rest.
Q: What is the swing over bed and center distance?
A: This model features a 12-inch swing over bed with a 36-inch distance between centers.
Q: Where is this lathe best used?
A: Perfect for machine shops, tool rooms, and maintenance facilities requiring precision and efficiency.
Maintenance Tips
-
Clean bedways, carriage, and tooling areas after every use to prevent chip buildup.
-
Lubricate gears, bearings, and sliding components per the recommended schedule.
-
Keep Newall DP700 DRO scales and sensors dust-free for precise readings.
-
Inspect and maintain the taper attachment to ensure smooth, accurate cuts.
-
Check drive belts, feed screws, and alignment regularly for wear and tension.
-
Tighten tool post, tailstock, and all fasteners to maintain machining accuracy.
-
Keep electrical components and cooling fans clean and unobstructed.
-
Arrange professional servicing periodically to extend the life and accuracy of the lathe.
