| Size |
12 x 36 |
| Style (Type) |
ELITE EVS |
| Swing Over Bed (In.) |
12 |
| Swing Over Cross Slide (In.) |
7-5/16 |
| Swing Through Gap (In.) |
17-1/2 |
| Length of Gap (In.) |
9-1/2 |
| Spindle Bore (In.) |
1-9/16 |
| Spindle Mount |
D1-4 |
| Weight (Lbs.) |
1212 |
| Amperage Draw @ 230V 1Ph |
27 |
| Amperage Draw @ 230V 3Ph |
19 |
| Spindle Taper with Sleeve |
MT-5 |
| Range of Spindle Speeds (RPM) |
0 – 2,000 |
| Number of Longitudinal and Cross Feed Rates |
50 |
| Range of Longitudinal Feeds (IPR) |
0.0016 – 0.046 |
| Range of Cross Feeds (IPR) |
0.0005 – 0.015 |
| Number of Inch Threads |
34 |
| Range of Inch Threads (TPI) |
2 – 56 |
| Number of Metric Threads |
33 |
| Range of Metric Threads |
0.5 – 12 |
| Max Tool Size (In.) |
1/2 x 1/2 |
| Compound Slide Travel (In.) |
3-1/2 |
| Motor (HP) |
2 HP, 230V, 1 or 3 Ph |
| Tailstock Spindle Travel (In.) |
4 |
| Taper in Tailstock Spindle |
MT-3 |
| Steady Rest Capacity (In.) |
1/4 – 2-1/2 |
| Width of Bed (In.) |
7-1/2 |
| Overall Dimensions (L x W x H) (In.) |
71 x 30 x 60 |
| Drive |
EVS |
What our Experts Think
-
Variable Speed Control – Provides smooth, precise operation for accurate machining results.
-
Taper Attachment Included – Expands capabilities, allowing easy cutting of precision tapers.
-
Durable Build – Heavy-duty cast-iron base and headstock ensure stability and long-lasting performance.
-
Versatile Applications – Ideal for threading, turning, and general-purpose metalworking.
-
Operator-Friendly – Simplified controls reduce setup time and boost efficiency.
-
Professional-Grade Reliability – Perfect for machine shops, fabrication facilities, and training environments.
Q&A

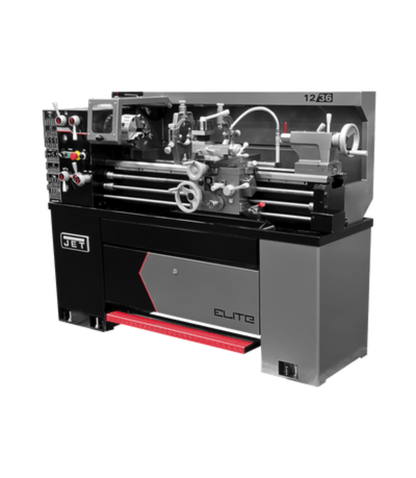

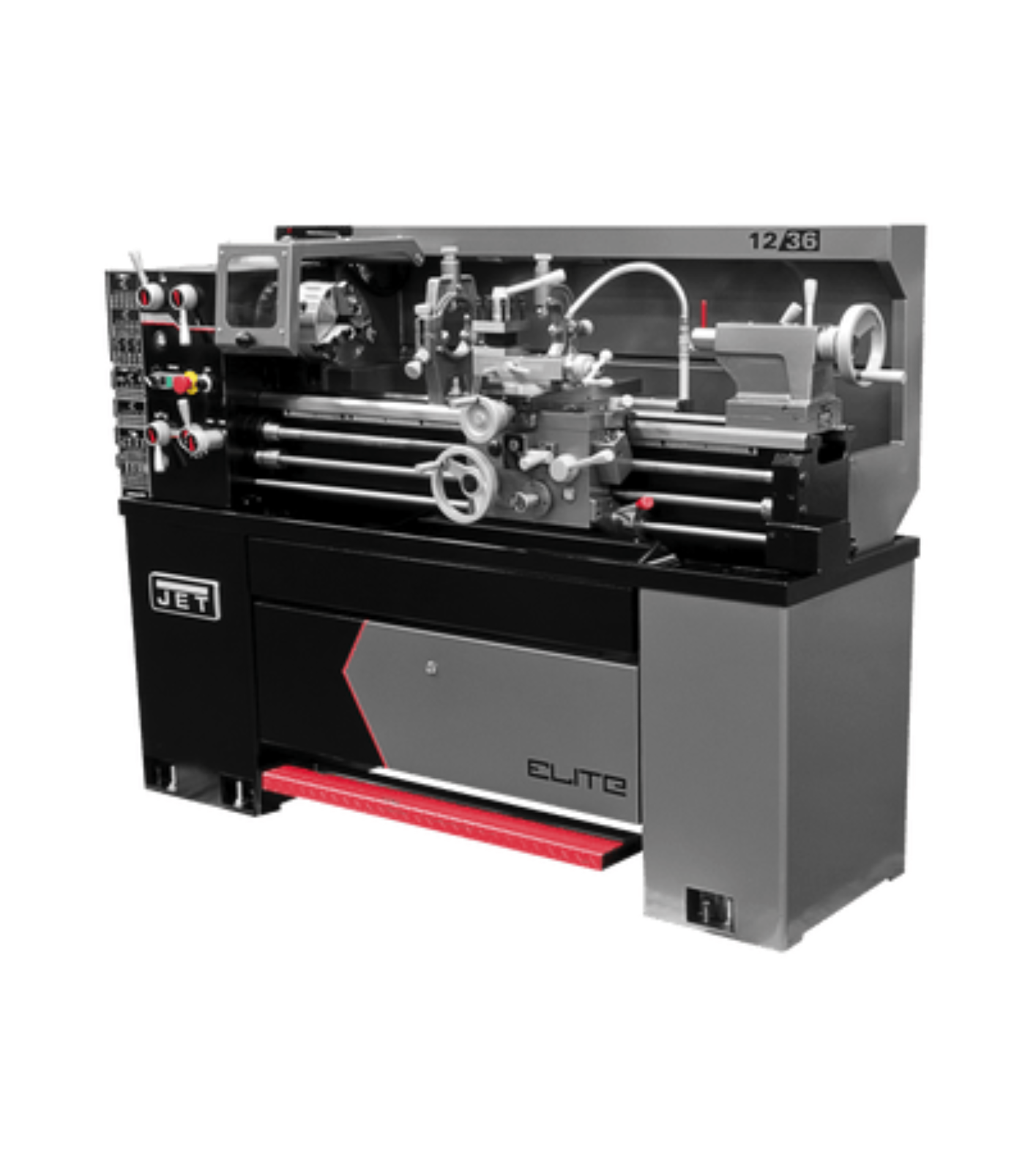

Q: What is the JET Elite E-1236VS Lathe?
A: A 12" x 36" variable speed precision lathe with a taper attachment, designed for accurate and versatile metalworking.
Q: What makes this lathe unique?
A: It combines smooth variable speed control with a factory-installed taper attachment for machining precision tapers with ease.
Q: What materials can it handle?
A: Suitable for machining steel, aluminum, brass, and other metals in both professional and industrial shops.
Q: Why is the taper attachment important?
A: It allows operators to cut accurate, repeatable tapers without offsetting the tailstock.
Q: What size capacity does it have?
A: 12" swing over bed and 36" distance between centers.
Q: Where is it best used?
A: Perfect for toolrooms, maintenance shops, small production facilities, and prototyping.
Q: How does it improve efficiency?
A: The variable speed drive and taper attachment save setup time, expand machining capability, and ensure consistent accuracy.
Maintenance Tips
-
Clean lathe bed, carriage, and tooling after each use to remove chips and debris
-
Lubricate moving parts, gears, and bearings per the manufacturer’s schedule
-
Inspect belts, gears, and spindle components regularly for wear or alignment issues
-
Keep taper attachment and slide surfaces clean and lightly oiled to prevent sticking
-
Check electrical controls and wiring for dust and secure connections
-
Schedule annual professional servicing to ensure accuracy and long-term performance
