| Size |
12 x 36 |
| Style (Type) |
ELITE EVS |
| Swing Over Bed (In.) |
12 |
| Swing Over Cross Slide (In.) |
7-5/16 |
| Swing Through Gap (In.) |
17-1/2 |
| Length of Gap (In.) |
9-1/2 |
| Spindle Bore (In.) |
1-9/16 |
| Spindle Mount |
D1-4 |
| Weight (Lbs.) |
1212 |
| Amperage Draw @ 230V 1Ph |
27 |
| Amperage Draw @ 230V 3Ph |
19 |
| Spindle Taper with Sleeve |
MT-5 |
| Range of Spindle Speeds (RPM) |
0 – 2,000 |
| Number of Longitudinal and Cross Feed Rates |
50 |
| Range of Longitudinal Feeds (IPR) |
0.0016 – 0.046 |
| Range of Cross Feeds (IPR) |
0.0005 – 0.015 |

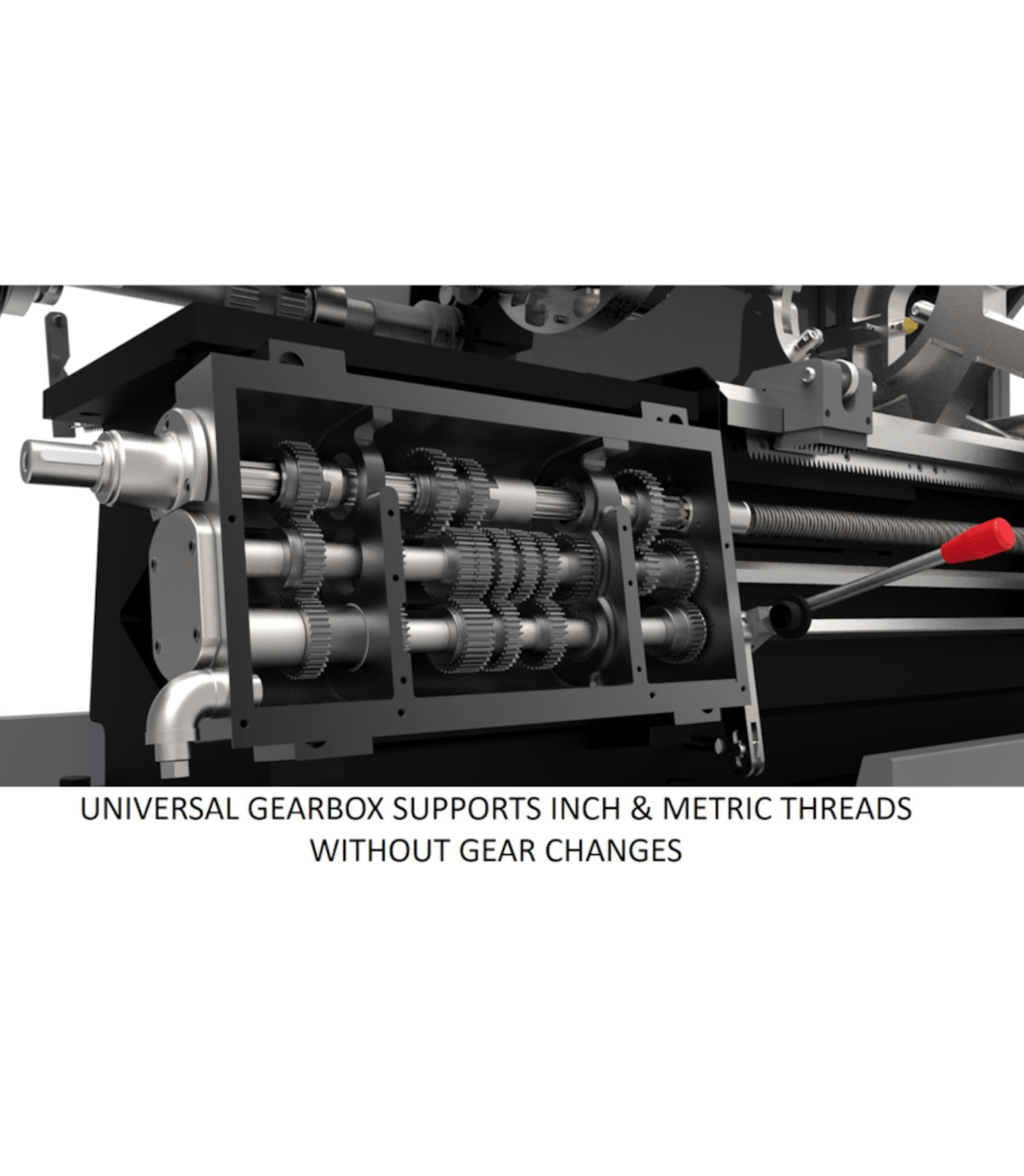

| Number of Inch Threads |
34 |
| Range of Inch Threads (TPI) |
2 – 56 |
| Number of Metric Threads |
33 |
| Range of Metric Threads |
0.5 – 12 |
| Max Tool Size (In.) |
1/2 x 1/2 |
| Compound Slide Travel (In.) |
3-1/2 |
| Motor (HP) |
2 HP, 230V, 1 or 3 Ph |
| Tailstock Spindle Travel (In.) |
4 |
| Taper in Tailstock Spindle |
MT-3 |
| Steady Rest Capacity (In.) |
1/4 – 2-1/2 |
| Width of Bed (In.) |
7-1/2 |

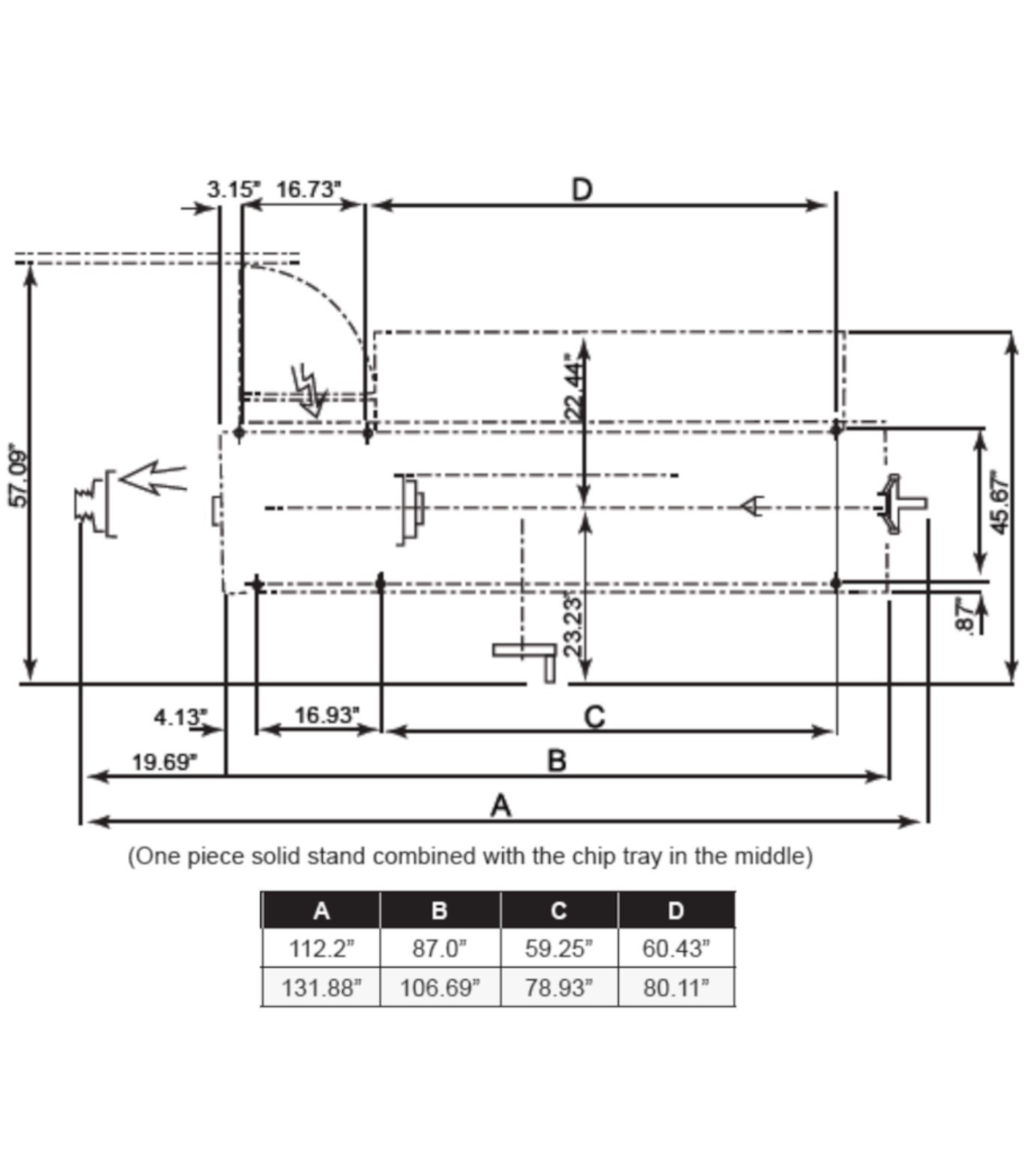

| Overall Dimensions (L x W x H) (In.) |
71 x 30 x 60 |
| Drive |
EVS |
What our Experts Think
-
Variable Speed Control – Delivers smooth, precise machining for consistent results.
-
Taper Attachment – Enables accurate taper cutting, expanding machining versatility.
-
Collet Closer – Provides secure, efficient workholding for repetitive precision jobs.
-
Durable Construction – Heavy-duty cast-iron base and headstock ensure stability and longevity.
-
Versatile Applications – Perfect for threading, turning, and general metalworking tasks.
-
Professional Reliability – Built for continuous operation in machine shops, fabrication facilities, and training programs.
Q&A

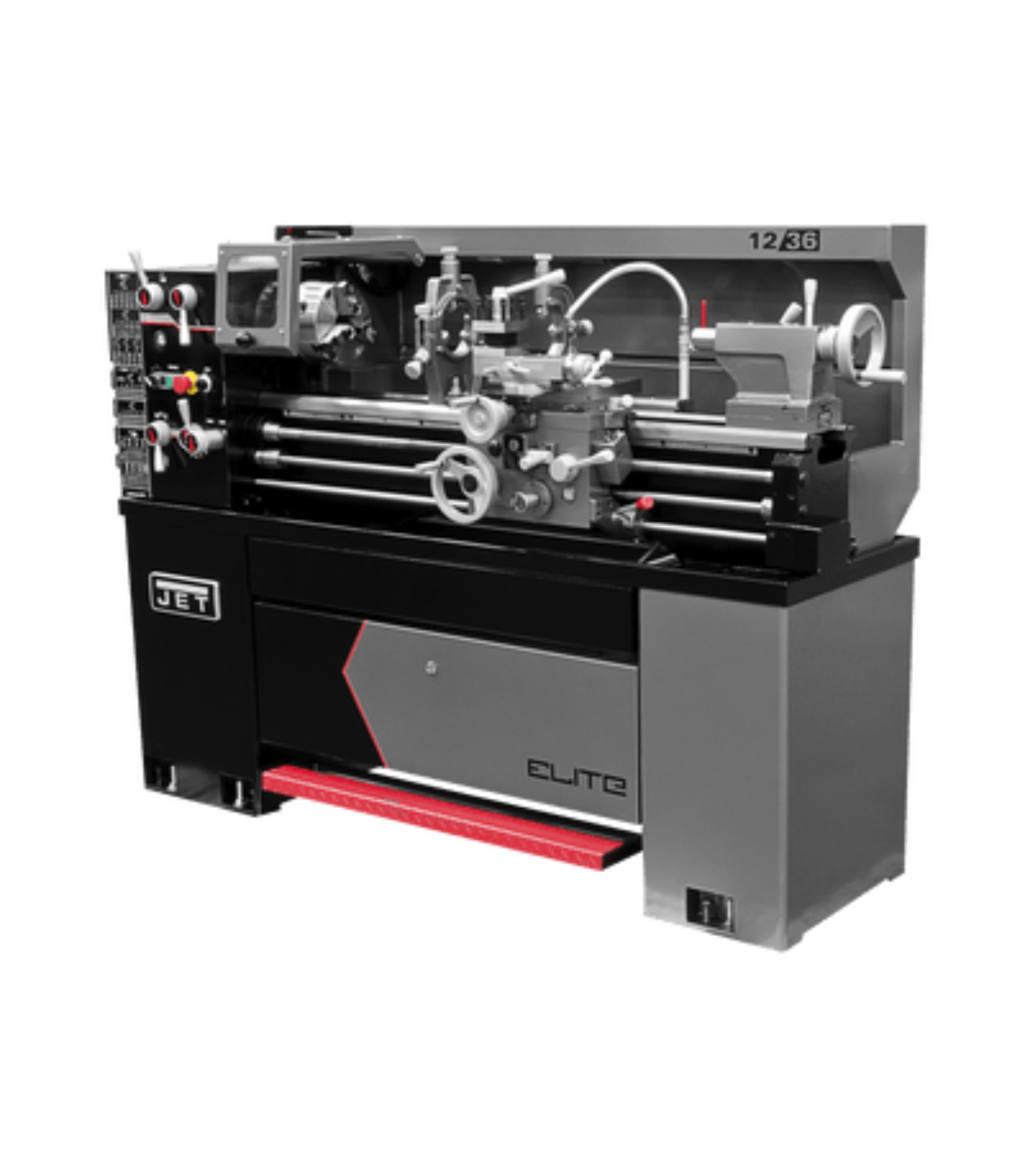

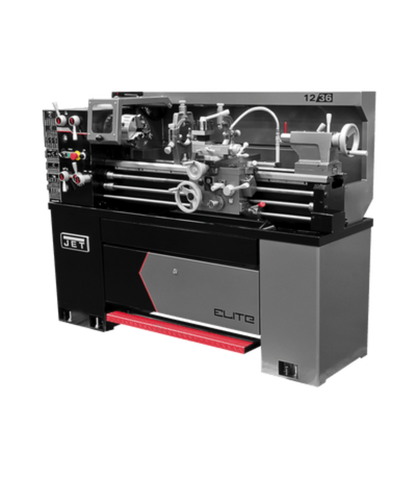

Q: What is the JET Elite E-1236VS Lathe?
A: A 12" x 36" variable speed precision lathe with a taper attachment and collet closer, designed for versatility and accuracy in metalworking.
Q: What makes this lathe unique?
A: It offers smooth variable speed control, precision taper cutting, and fast, secure workholding with the included collet closer.
Q: What materials can it machine?
A: Suitable for steel, aluminum, brass, and other metals in toolrooms and professional shops.
Q: Why is the taper attachment important?
A: It allows operators to cut accurate, repeatable tapers without offsetting the tailstock.
Q: What is the benefit of the collet closer?
A: It provides quick clamping of smaller workpieces, reducing setup time and improving accuracy.
Q: What size capacity does it have?
A: 12" swing over bed and 36" distance between centers.
Q: Where is it best used?
A: Perfect for prototyping, small production runs, toolrooms, and maintenance departments.
Q: How does it improve efficiency?
A: The variable speed drive, taper attachment, and collet closer combine to expand machining capability, reduce downtime, and enhance precision.
Maintenance Tips
-
Clean lathe bed, carriage, and tooling after each use to remove chips and debris
-

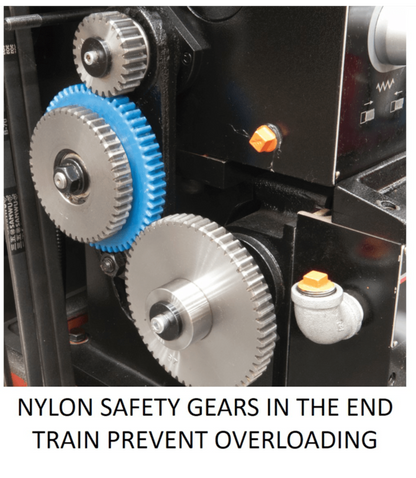

Lubricate gears, bearings, and moving parts per the manufacturer’s schedule
-
Inspect belts, gears, and spindle components regularly for wear or misalignment
-
Keep taper attachment and sliding surfaces clean and lightly oiled for smooth movement
-
Maintain collet closer mechanism clean and lubricated to ensure proper function
-
Check DRO/electrical components (if equipped) for dust and secure connections
-
Schedule annual professional servicing to preserve accuracy and long-term performance
