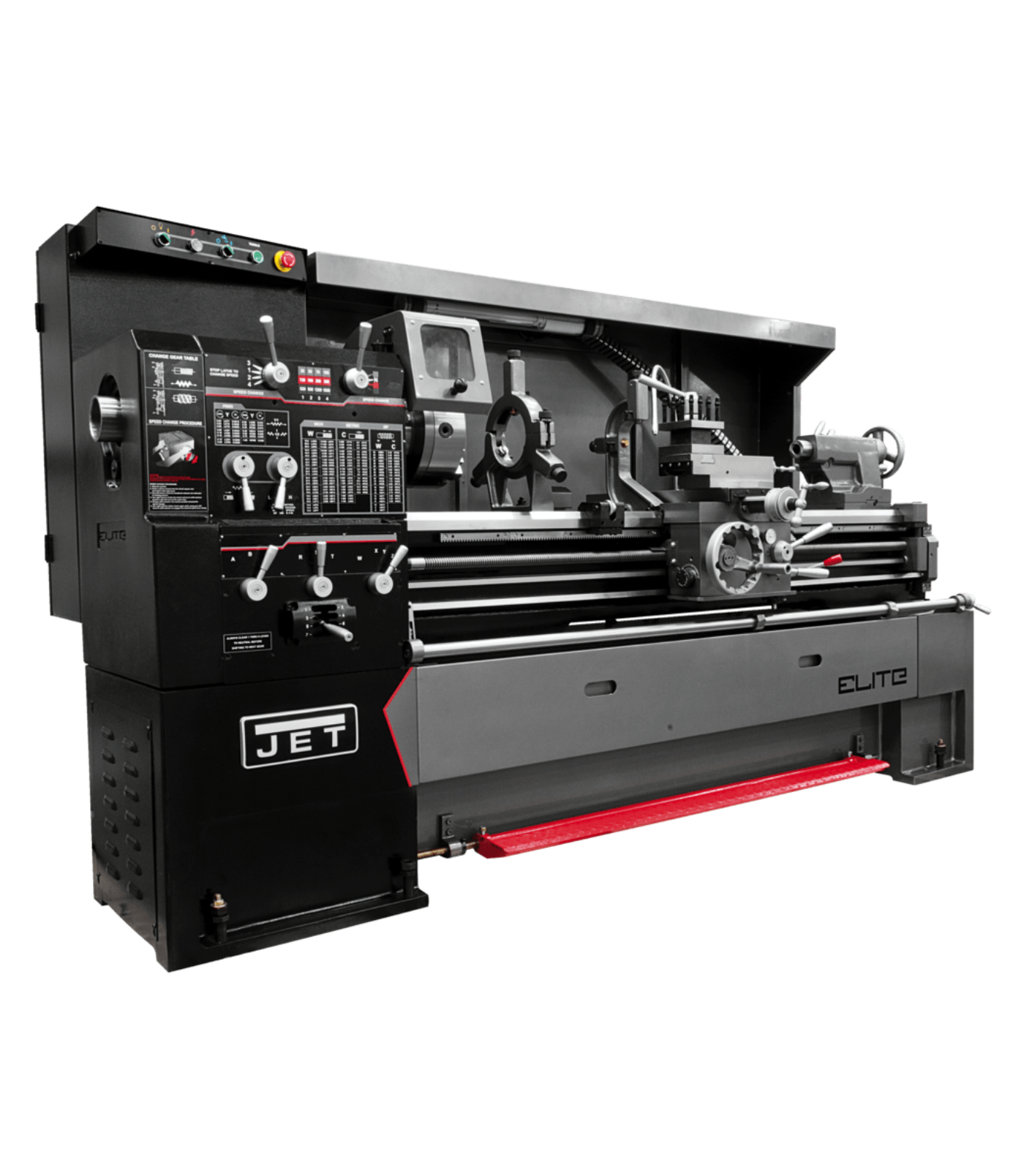

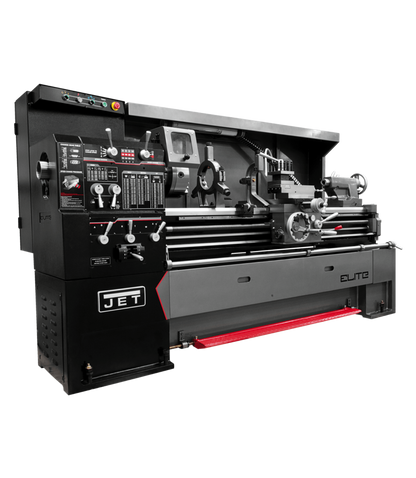

JET Elite Lathe EGH-1740 with ACU-RITE 303 DRO with Taper Attachment and Collet Closer - JT9-892510
Dependable, reliable, quality. Combining the durability and strength of Meehanite® castings with precision engineering, Elite Geared Head Lathes turn out high quality components turn after turn. Fully lit with CNC style lighting, the enclosed full-length splash guard is expertly designed to contain all chips and coolant. Hardened and ground bedways and gears help reduce vibration, deflection, and provide accurate longitudinal movements. Designed with a universal gearbox to allow for a wide range of threading without gear changes, and Turcite-B coatings between the bed and carriage to provide smooth and accurate movement, these machines provide the perfect blend of performance and reliability you can come to expect from JET Elite.
Features
- 4-Position Carriage Stop
- Anti-Float design eliminates backlash in the cross slide
- Enclosed coolant system contains excess coolant for increased safety
- Front facing chip pan allows easy chip removal from the front of the machine

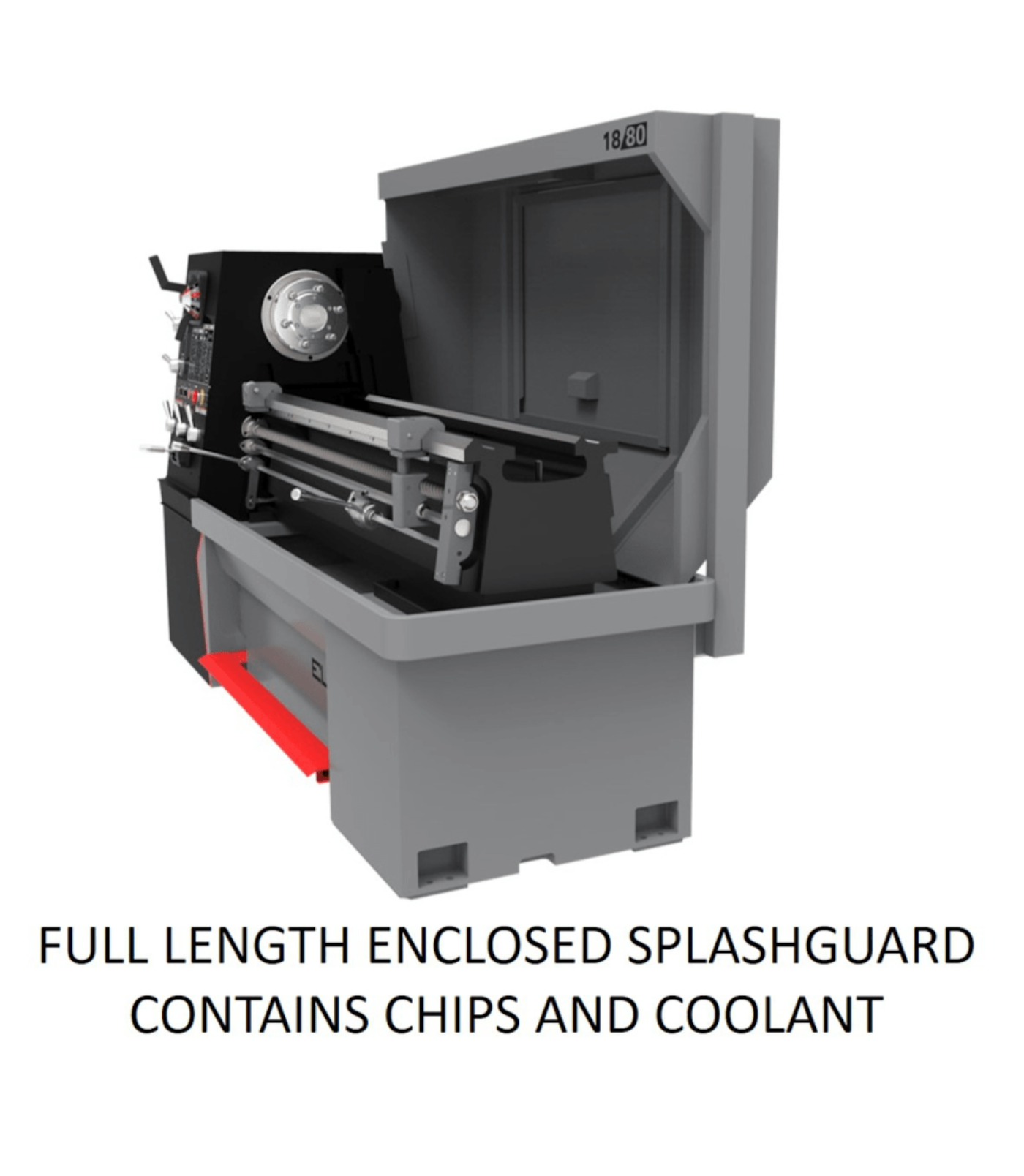

- Full Length Splash Guard

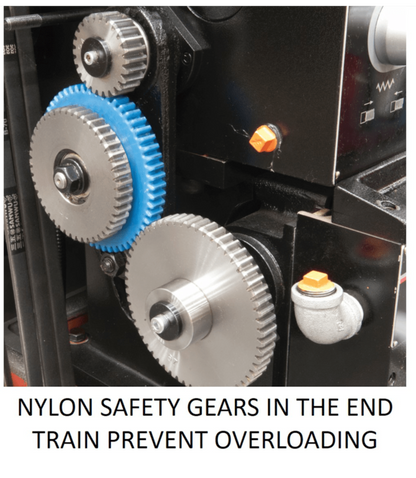

- Nylon safety gears in the end train prevent overloading, increasing safety
- One-Shot lubrication in the carriage reduces maintenance
- Shear pin in the lead screw disengages the feed when overloaded, preventing damage to the apron and headstock
- Steady rests feature ball bearing guides for smooth material movements
Specifications
| Size |
17 x 40 |
| Style (Type) |
Engine |
| Swing Over Bed (In.) |
17 |
| Swing Over Cross Slide (In.) |
11 |
| Swing in Gap (In.) |
7-2/3 |
| Spindle Bore (In.) |
3-1/8 |
| Spindle Mount |
D1-6 |
| Spindle Taper with Sleeve |
MT-5 |
| Number of Spindle Speeds |
12 |
| Range of Spindle Speeds (RPM) |
36 – 1,800 |
| Range of Longitudinal Feeds (IPR) |
0.0015 – 0.04 |
| Range of Cross Feeds (IPR) |
0.00075 – 0.02 |
| Number of Inch Threads |
45 |
| Range of Inch Threads (TPI) |
2 – 72 |
| Diametrial Pitch Threads Number |
21 |
| Modular Pitch Threads Number |
18 |
| Number of Metric Threads |
39 |
| Range of Metric Threads |
0.2 – 14 |
| Max Tool Size (In.) |
1 x 1 |
| Compound Slide Travel (In.) |
6-2/7 |
| Tailstock Spindle Travel (In.) |
5 |
| Steady Rest Capacity (In.) |
3/8 – 6-3/4 |
| Width of Bed (In.) |
12 |
| Weight (Lbs.) |
3,747 |
| Amperage Draw @ 230V 3Ph |
22 |
| Amperage Draw @ 460V 3Ph |
11 |
| Overall Dimensions (L x W x H) |
94 x 44 x 68 in. |
| Drive |
Geared Head |
What our Experts Think
-
High Precision Gear-Head Lathe: ACU-RITE 303 DRO ensures accurate, repeatable machining results.
-
Expanded Capability: Taper attachment and collet closer provide versatility and fast, secure workholding.
-
Heavy-Duty Construction: Cast-iron frame reduces vibration and enhances long-term stability.
-
Operator-Friendly: Digital readout and ergonomic controls streamline complex machining tasks.
-
Professional Reliability: Built for industrial shops needing precision, durability, and efficient performance.
Q&A
Q: What is the JET Elite EGH-1740 Lathe?
A: A heavy-duty gear head lathe equipped with the ACU-RITE 303 digital readout, taper attachment, and collet closer for precision and versatile machining.
Q: What makes it unique?
A: Its rigid gear head drive, precision-ground bedways, advanced DRO, taper attachment for angled cuts, and collet closer for secure workholding deliver top-level accuracy and efficiency.
Q: Where can it be used?
A: Ideal for machine shops, fabrication facilities, tool rooms, and industrial production environments.
Q: What style of work does it suit?
A: High-precision turning, threading, facing, boring, and taper cutting on metals and alloys.
Q: What materials is it made from?
A: Durable cast iron frame with hardened and ground components for long-lasting stability and vibration-free performance.
Maintenance Tips
-
Clean chips and debris from bedways, carriage, and leadscrews after each use.
-
Lubricate gears, bearings, and sliding parts according to manufacturer’s schedule.
-
Keep ACU-RITE 303 DRO sensors and display clean for precise readouts.
-
Inspect taper attachment and collet closer regularly for smooth, accurate operation.
-
Check belts, gibs, and fasteners for wear; cover the lathe when idle to prevent dust buildup.
