| Size |
17 x 40 |
| Style (Type) |
Engine |
| Swing Over Bed (In.) |
17 |
| Swing Over Cross Slide (In.) |
11 |
| Swing in Gap (In.) |
7-2/3 |
| Spindle Bore (In.) |
3-1/8 |
| Spindle Mount |
D1-6 |
| Spindle Taper with Sleeve |
MT-5 |
| Number of Spindle Speeds |
12 |
| Range of Spindle Speeds (RPM) |
36 – 1,800 |
| Range of Longitudinal Feeds (IPR) |
0.0015 – 0.04 |
| Range of Cross Feeds (IPR) |
0.00075 – 0.02 |
| Number of Inch Threads |
45 |
| Range of Inch Threads (TPI) |
2 – 72 |
| Diametrial Pitch Threads Number |
21 |
| Modular Pitch Threads Number |
18 |
| Number of Metric Threads |
39 |
| Range of Metric Threads |
0.2 – 14 |
| Max Tool Size (In.) |
1 x 1 |
| Compound Slide Travel (In.) |
6-2/7 |
| Tailstock Spindle Travel (In.) |
5 |
| Steady Rest Capacity (In.) |
3/8 – 6-3/4 |
| Width of Bed (In.) |
12 |
| Weight (Lbs.) |
3,747 |
| Amperage Draw @ 230V 3Ph |
22 |
| Amperage Draw @ 460V 3Ph |
11 |
| Overall Dimensions (L x W x H) |
94 x 44 x 68 in. |
| Drive |
Geared Head |
What our Experts Think
-
Powerful Gear-Head Drive: Provides consistent torque and smooth operation for heavy-duty turning.
-
Collet Closer Included: Enhances workholding precision for small-diameter parts.
-
Rigid Cast-Iron Bed: Ensures durability, stability, and reduced vibration for accurate machining.
-
User-Friendly Features: Easy-access controls and quick-change gear system improve efficiency.
-
Built for Professionals: Ideal for toolrooms, machine shops, and industrial metalworking applications.
Q&A

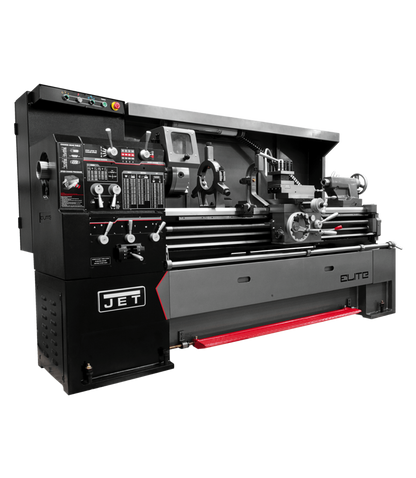

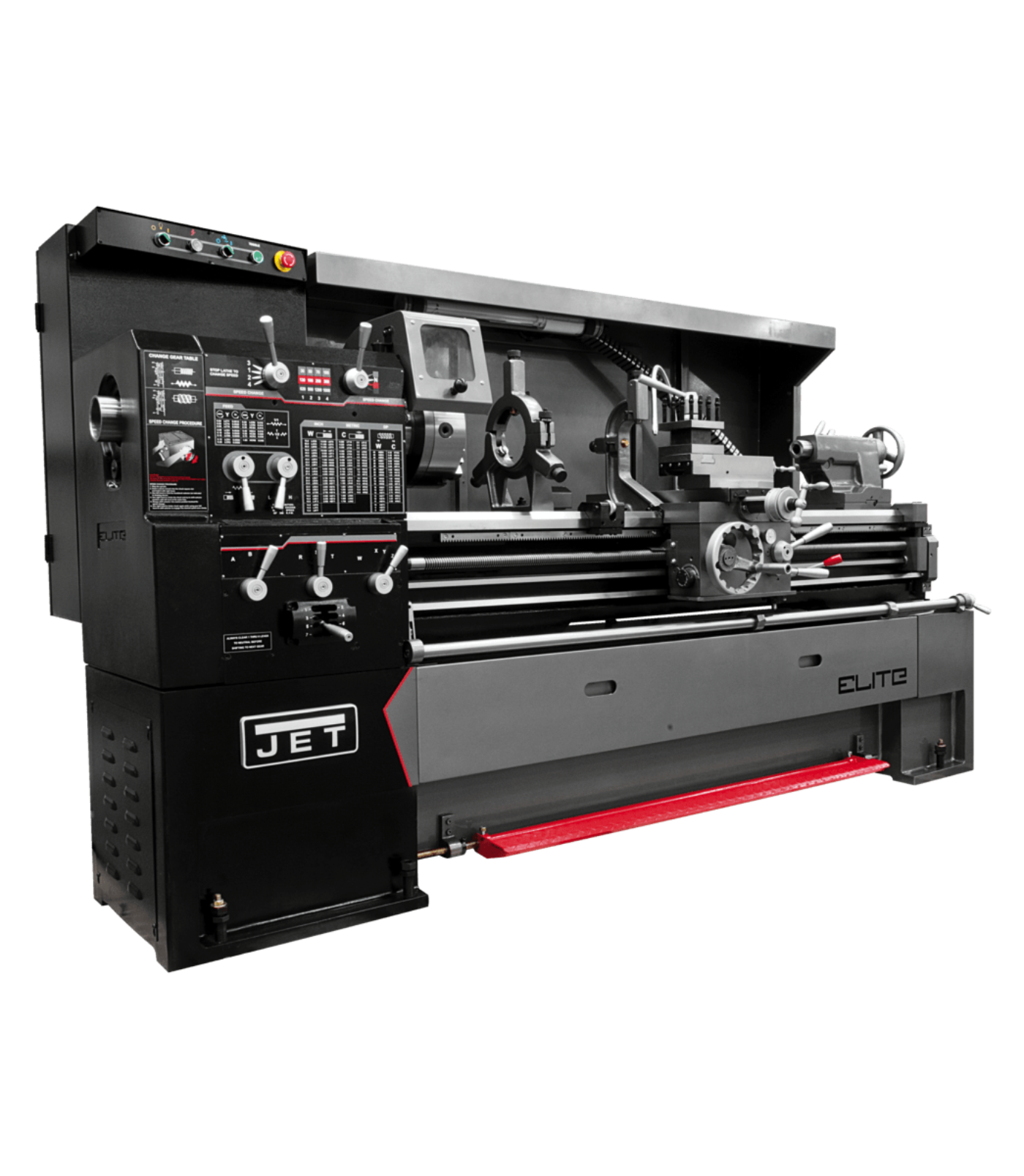

Q: What is the JET Elite EGH-1740 lathe?
A: A high-precision geared head engine lathe with a 17" swing and 40" between centers, designed for heavy-duty metalworking and precision machining.
Q: What does the included collet closer provide?
A: The lever-style collet closer allows for quick and secure workholding, improving efficiency and accuracy during repetitive turning operations.
Q: What type of headstock does it feature?
A: A precision-geared headstock for consistent power transfer, excellent torque, and reliable cutting performance.
Q: What is the spindle bore size?
A: It comes with a large 3-1/8" spindle bore to accommodate larger workpieces.
Q: What is the bed construction?
A: Precision-ground, hardened bedways for long-term accuracy and durability.
Q: What motor powers the lathe?
A: A heavy-duty, high-torque motor engineered for industrial-grade machining tasks.
Q: What types of materials can it machine?
A: Suitable for steel, stainless steel, aluminum, brass, and other machinable metals.
Q: Where is the EGH-1740 best used?
A: Ideal for fabrication shops, production facilities, tool rooms, and advanced training environments.
Q: Does it meet safety standards?
A: Yes, it is CSA/ETL certified for industrial safety and quality.
Maintenance Tips
-
Clean machine surfaces daily to remove chips, oil, and debris.
-
Lubricate gears, bearings, and sliding parts regularly as specified in the manual.
-
Inspect collet closer, belts, and chuck for proper function and wear.
-
Check electrical connections and safety controls to ensure safe operation.
-
Schedule periodic professional servicing to maintain accuracy and extend machine life.
