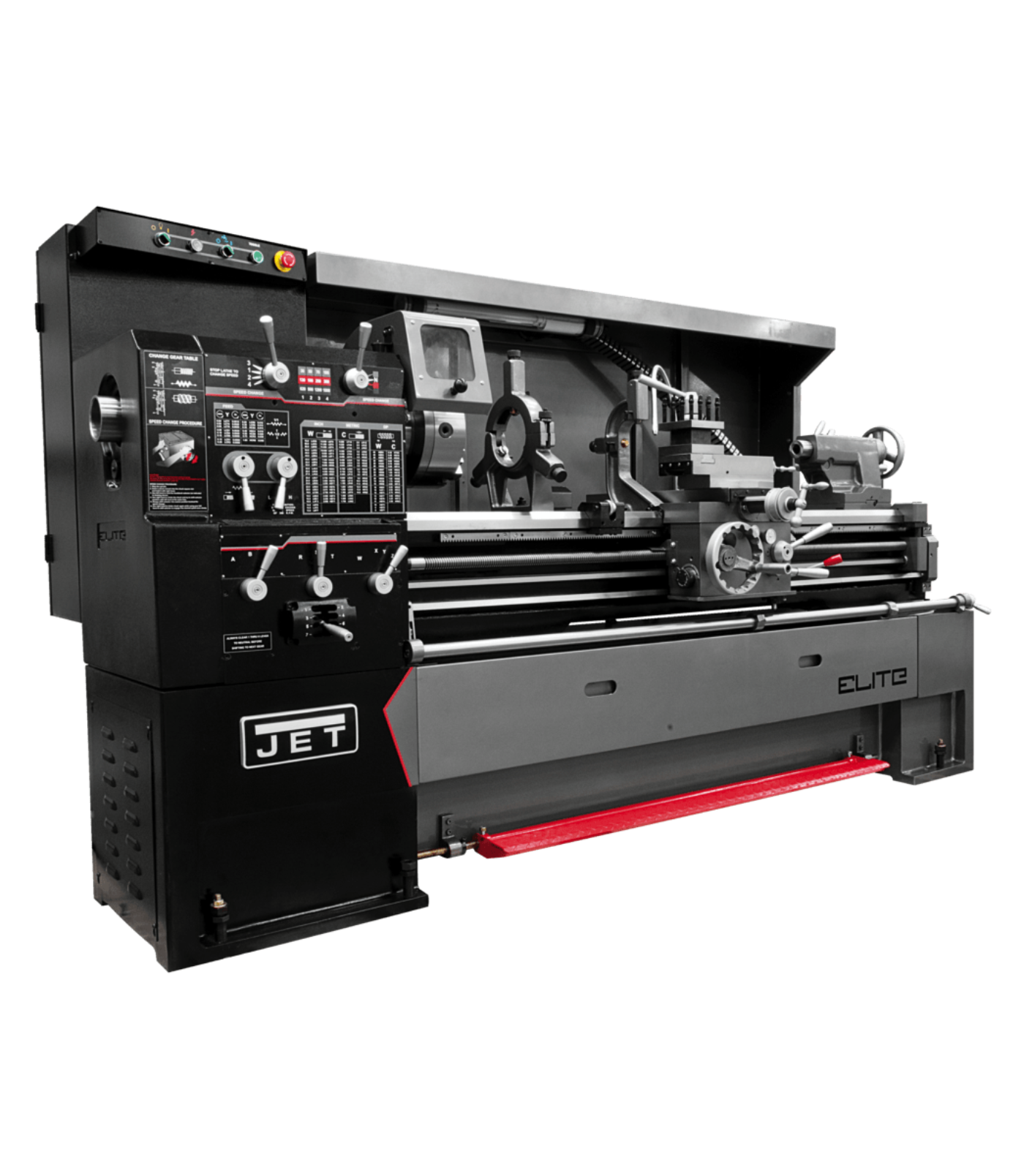

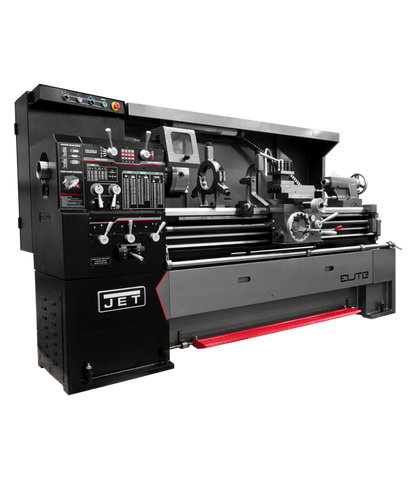

JET Elite Lathe EGH-1740 with Newall DP700 DRO with Collet Closer - JT9-892513
Dependable, reliable, quality. Combining the durability and strength of Meehanite® castings with precision engineering, Elite Geared Head Lathes turn out high quality components turn after turn. Fully lit with CNC style lighting, the enclosed full-length splash guard is expertly designed to contain all chips and coolant. Hardened and ground bedways and gears help reduce vibration, deflection, and provide accurate longitudinal movements. Designed with a universal gearbox to allow for a wide range of threading without gear changes, and Turcite-B coatings between the bed and carriage to provide smooth and accurate movement, these machines provide the perfect blend of performance and reliability you can come to expect from JET Elite.
Features
- 4-Position Carriage Stop
- Anti-Float design eliminates backlash in the cross slide
- Enclosed coolant system contains excess coolant for increased safety
- Front facing chip pan allows easy chip removal from the front of the machine

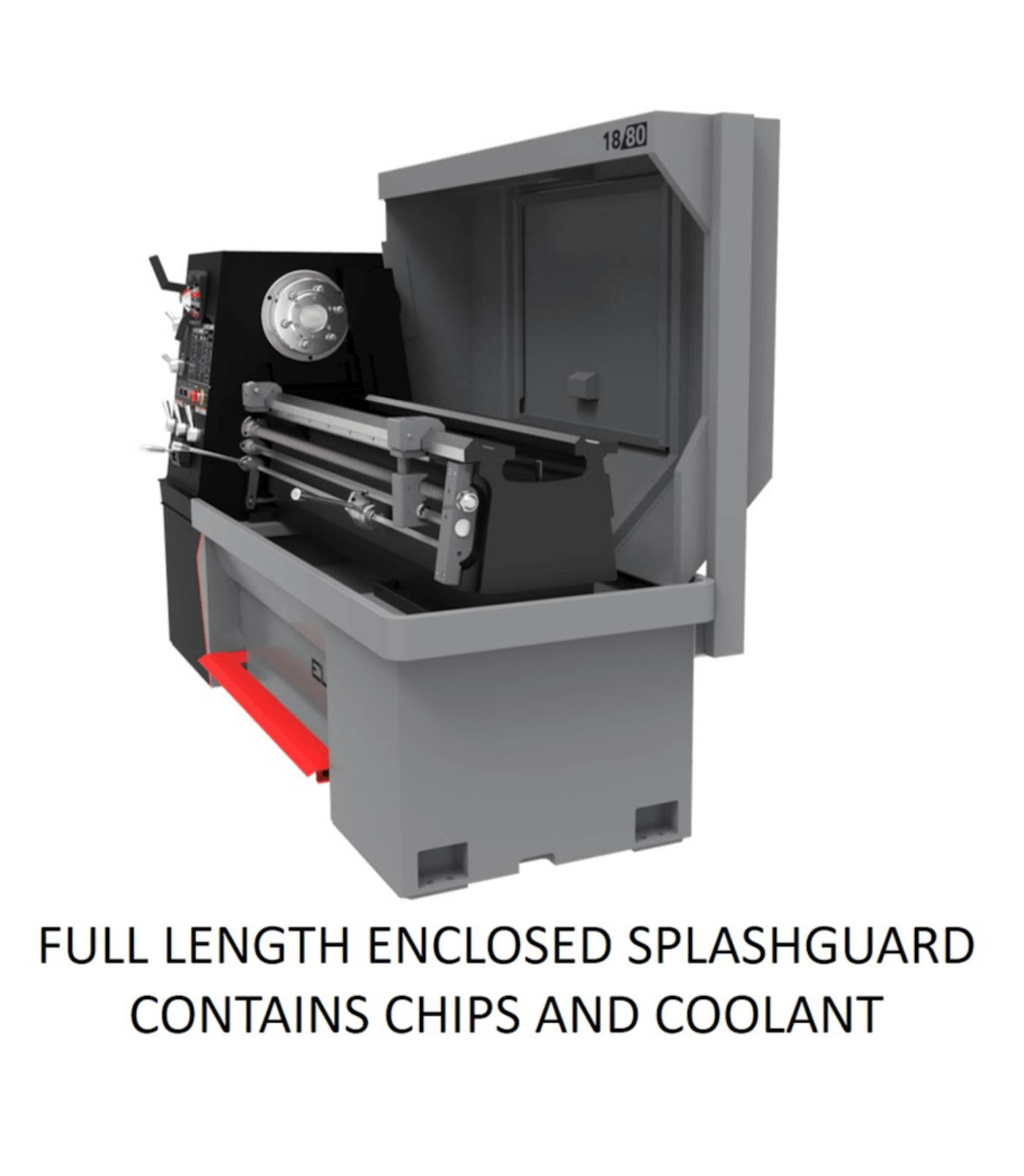

- Full Length Splash Guard

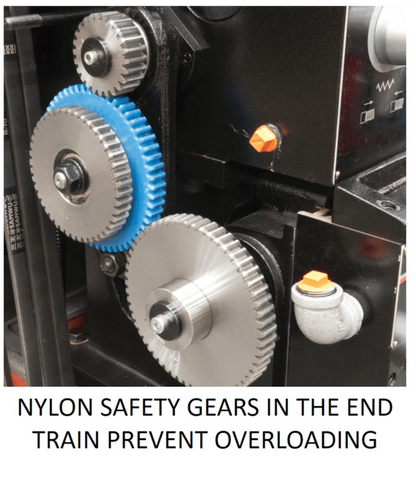

- Nylon safety gears in the end train prevent overloading, increasing safety
- One-Shot lubrication in the carriage reduces maintenance
- Shear pin in the lead screw disengages the feed when overloaded, preventing damage to the apron and headstock
- Steady rests feature ball bearing guides for smooth material movements
Specifications
| Size |
17 x 40 |
| Style (Type) |
Engine |
| Swing Over Bed (In.) |
17 |
| Swing Over Cross Slide (In.) |
11 |
| Swing in Gap (In.) |
7-2/3 |
| Spindle Bore (In.) |
3-1/8 |
| Spindle Mount |
D1-6 |
| Spindle Taper with Sleeve |
MT-5 |
| Number of Spindle Speeds |
12 |
| Range of Spindle Speeds (RPM) |
36 – 1,800 |
| Range of Longitudinal Feeds (IPR) |
0.0015 – 0.04 |
| Range of Cross Feeds (IPR) |
0.00075 – 0.02 |
| Number of Inch Threads |
45 |
| Range of Inch Threads (TPI) |
2 – 72 |
| Diametrial Pitch Threads Number |
21 |
| Modular Pitch Threads Number |
18 |
| Number of Metric Threads |
39 |
| Range of Metric Threads |
0.2 – 14 |
| Max Tool Size (In.) |
1 x 1 |
| Compound Slide Travel (In.) |
6-2/7 |
| Tailstock Spindle Travel (In.) |
5 |
| Steady Rest Capacity (In.) |
3/8 – 6-3/4 |
| Width of Bed (In.) |
12 |
| Weight (Lbs.) |
3,747 |
| Amperage Draw @ 230V 3Ph |
22 |
| Amperage Draw @ 460V 3Ph |
11 |
| Overall Dimensions (L x W x H) |
94 x 44 x 68 in. |
| Drive |
Geared Head |
What our Experts Think
-
17" swing and 40" center distance handle larger, heavy-duty turning applications.
-
Newall DP700 DRO provides dependable, accurate digital readouts for precision machining.
-
Collet closer allows fast, secure workholding to boost productivity.
-
Hardened, ground gears and rigid cast-iron build ensure durability and stability.
-
Excellent choice for professional shops needing power, accuracy, and efficiency.
Q&A
Q: What type of lathe is the JET Elite EGH-1740?
A: It’s a 17x40 gear head engine lathe built for heavy-duty, precision metalworking.
Q: What does the Newall DP700 DRO provide?
A: The digital readout ensures reliable, high-accuracy measurements with a user-friendly display.
Q: What is the benefit of the collet closer?
A: It allows quick, secure, and precise clamping of workpieces for improved efficiency and accuracy.
Q: What is the swing and center distance?
A: This lathe offers a 17-inch swing over bed and a 40-inch distance between centers.
Q: Where is this lathe best suited?
A: Ideal for machine shops, tool rooms, and production environments needing precision and durability.
Maintenance Tips
-
Clean bedways, carriage, and tool areas after each use to remove chips and debris.
-
Lubricate gears, bearings, and sliding components according to the recommended schedule.
-
Keep Newall DP700 DRO scales and sensors free of dust for precise readings.
-
Inspect and maintain the collet closer regularly for smooth, reliable clamping.
-
Check belts, feed screws, and alignment for wear, tension, and accuracy.
-
Tighten tool post, tailstock, and all fasteners to ensure machining precision.
-
Keep cooling fans and electrical components dust-free and clear of obstructions.
-
Arrange professional servicing periodically to maintain accuracy and extend machine life.
