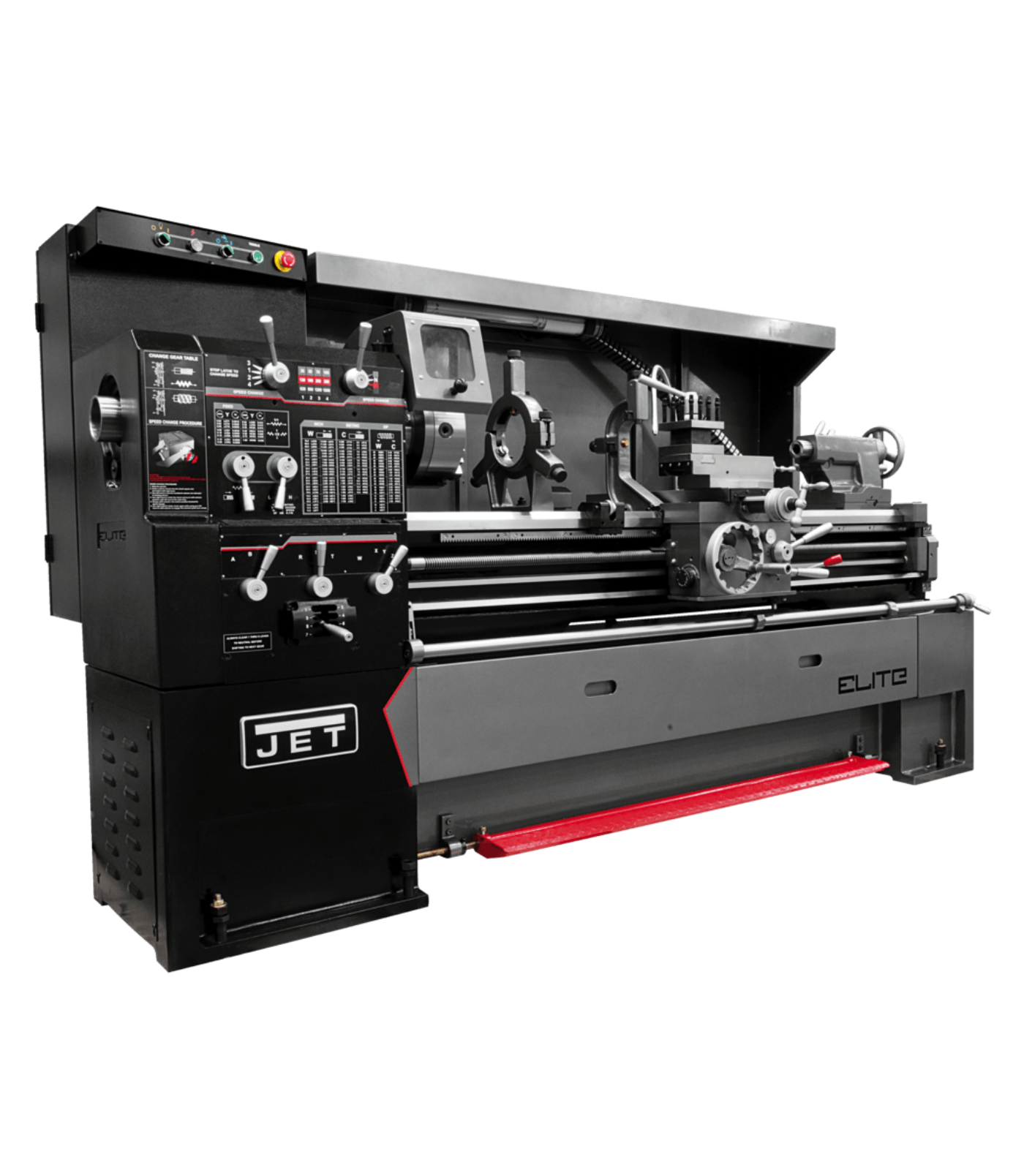

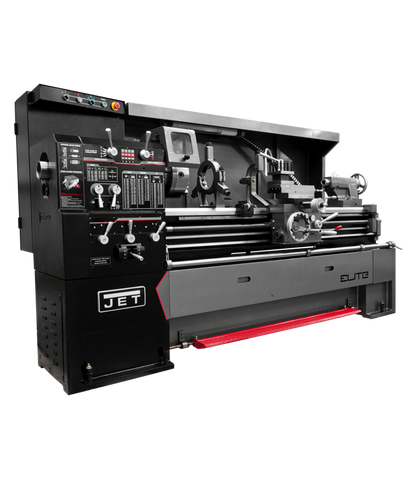

JET Elite Lathe EGH-1740 with Newall DP700 DRO with Taper Attachment - JT9-892512

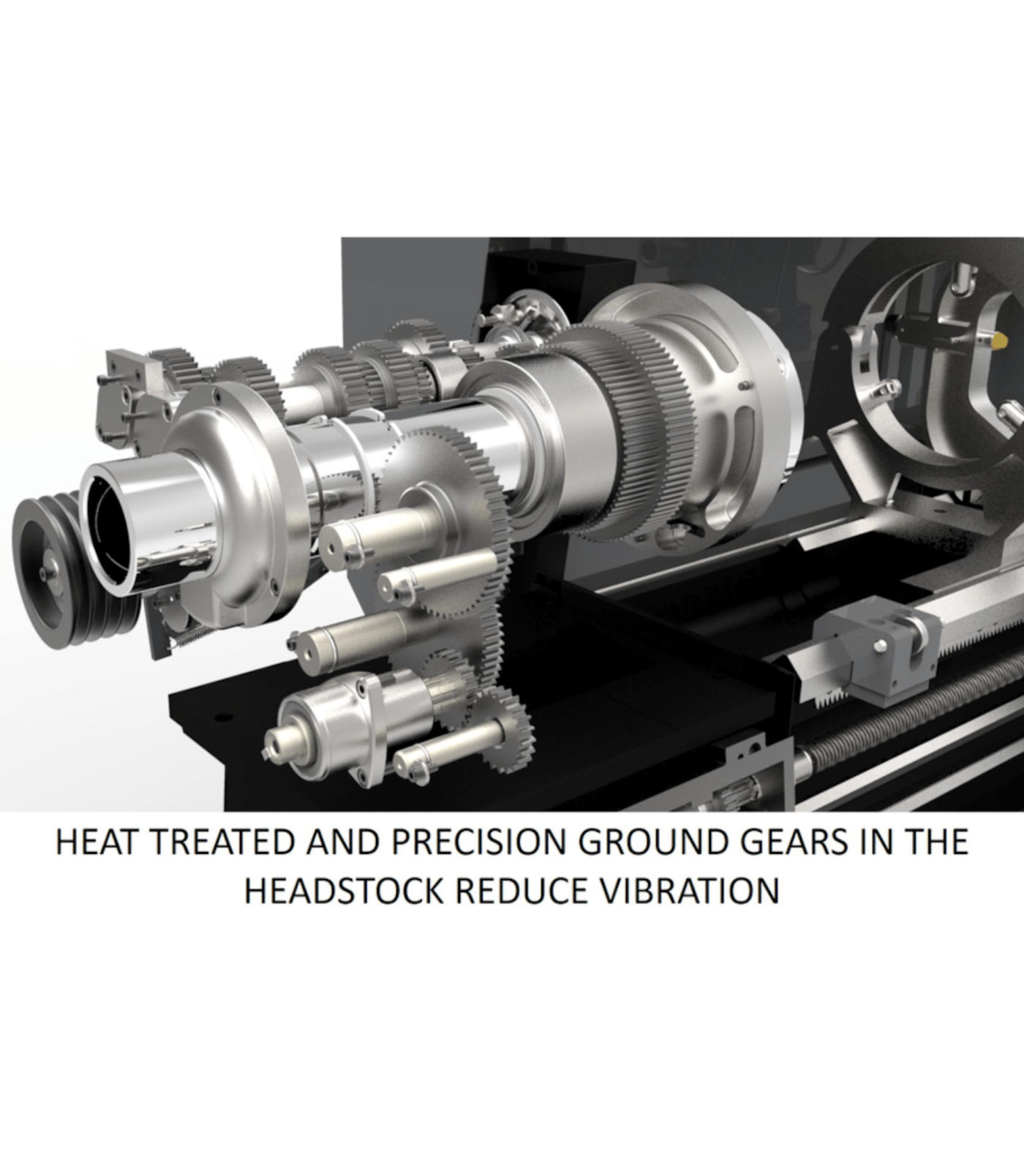

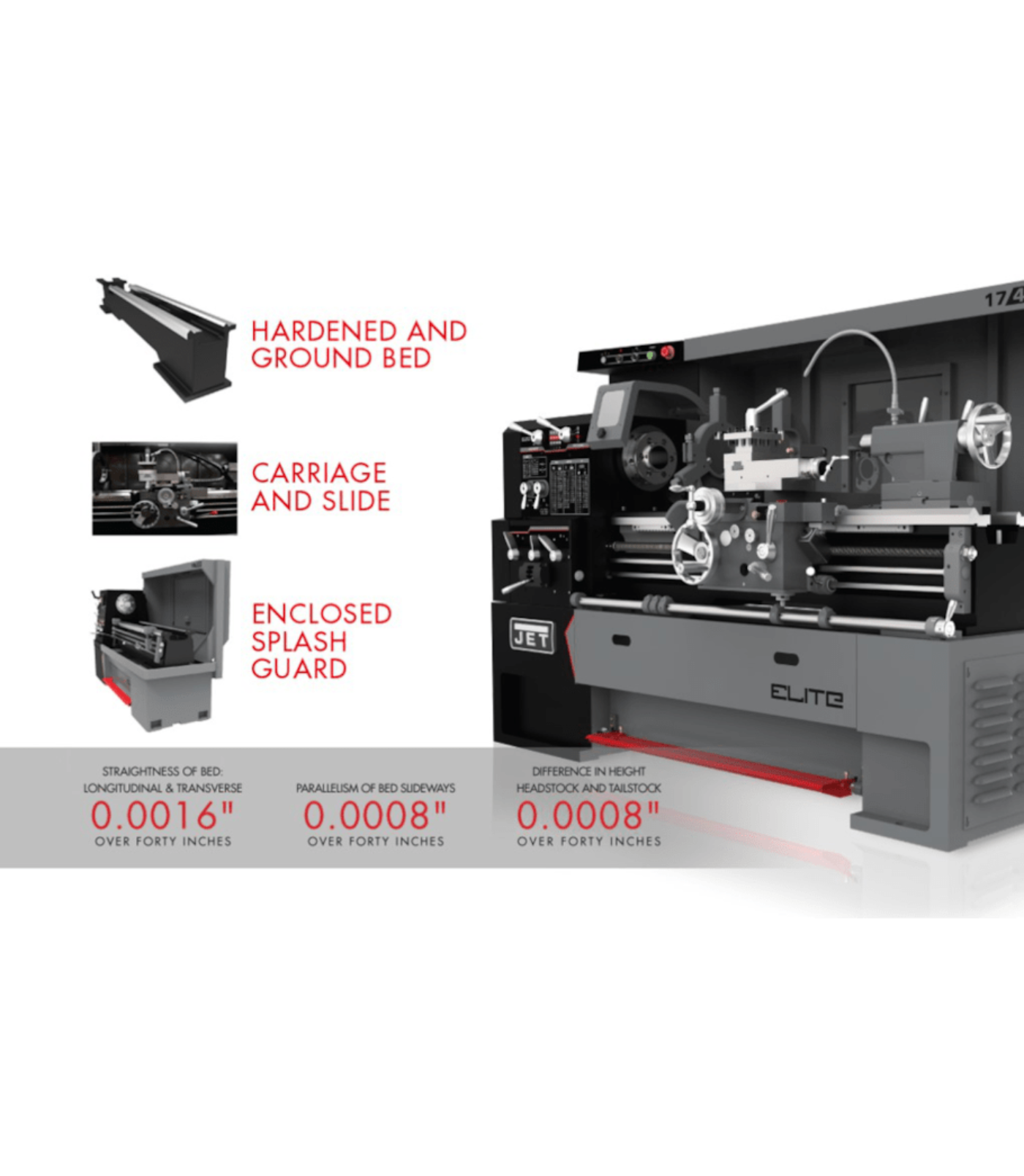

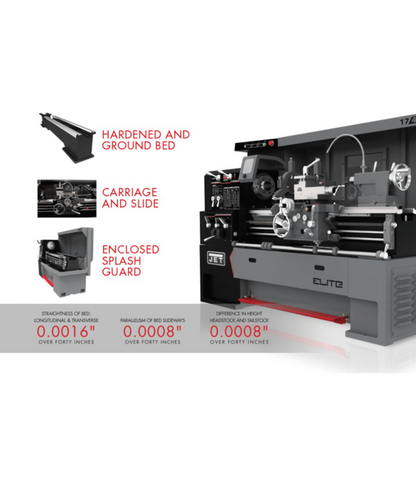

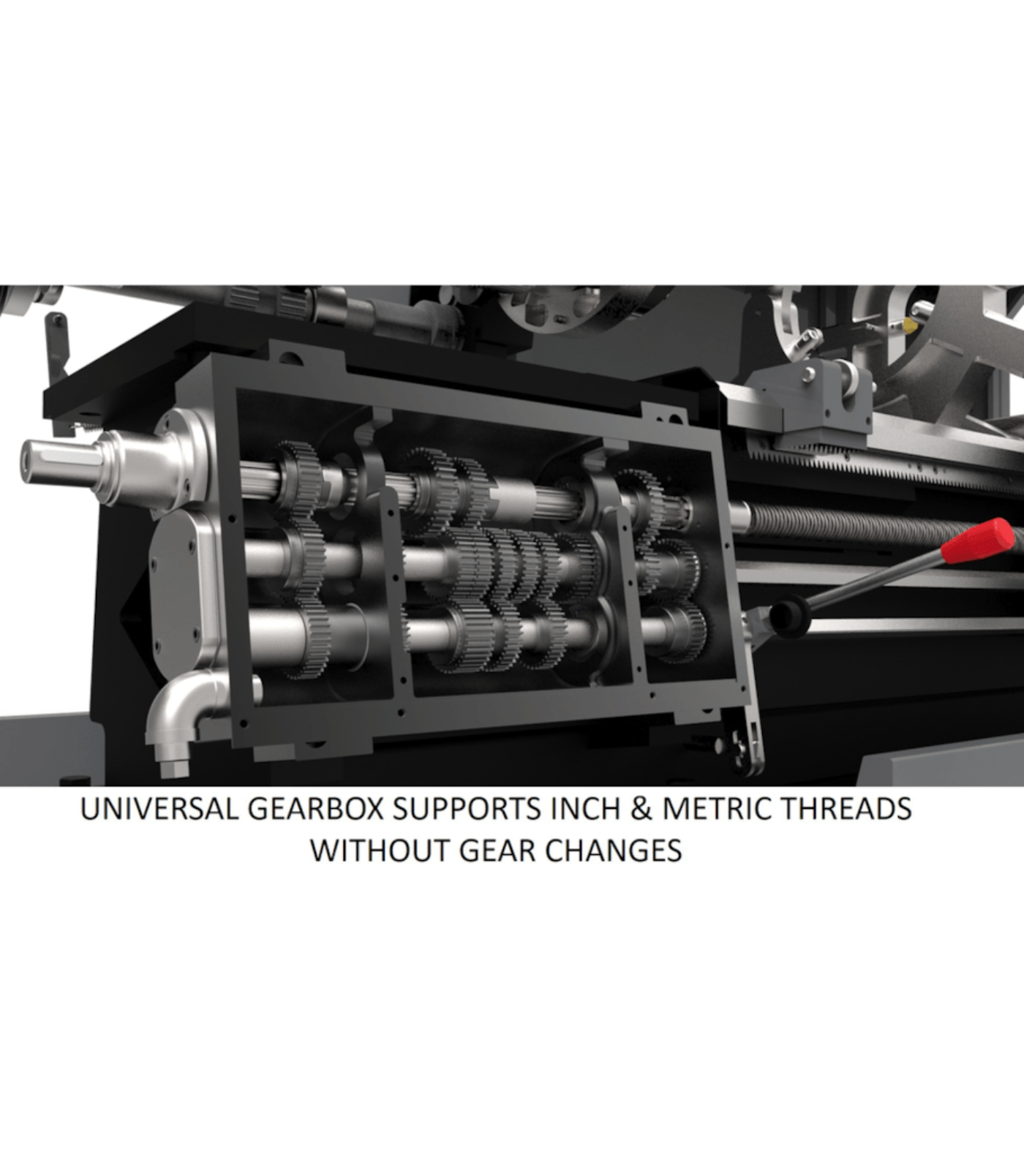

Dependable, reliable, quality. Combining the durability and strength of Meehanite® castings with precision engineering, Elite Geared Head Lathes turn out high quality components turn after turn. Fully lit with CNC style lighting, the enclosed full-length splash guard is expertly designed to contain all chips and coolant. Hardened and ground bedways and gears help reduce vibration, deflection, and provide accurate longitudinal movements. Designed with a universal gearbox to allow for a wide range of threading without gear changes, and Turcite-B coatings between the bed and carriage to provide smooth and accurate movement, these machines provide the perfect blend of performance and reliability you can come to expect from JET Elite.
Features
- 4-Position Carriage Stop

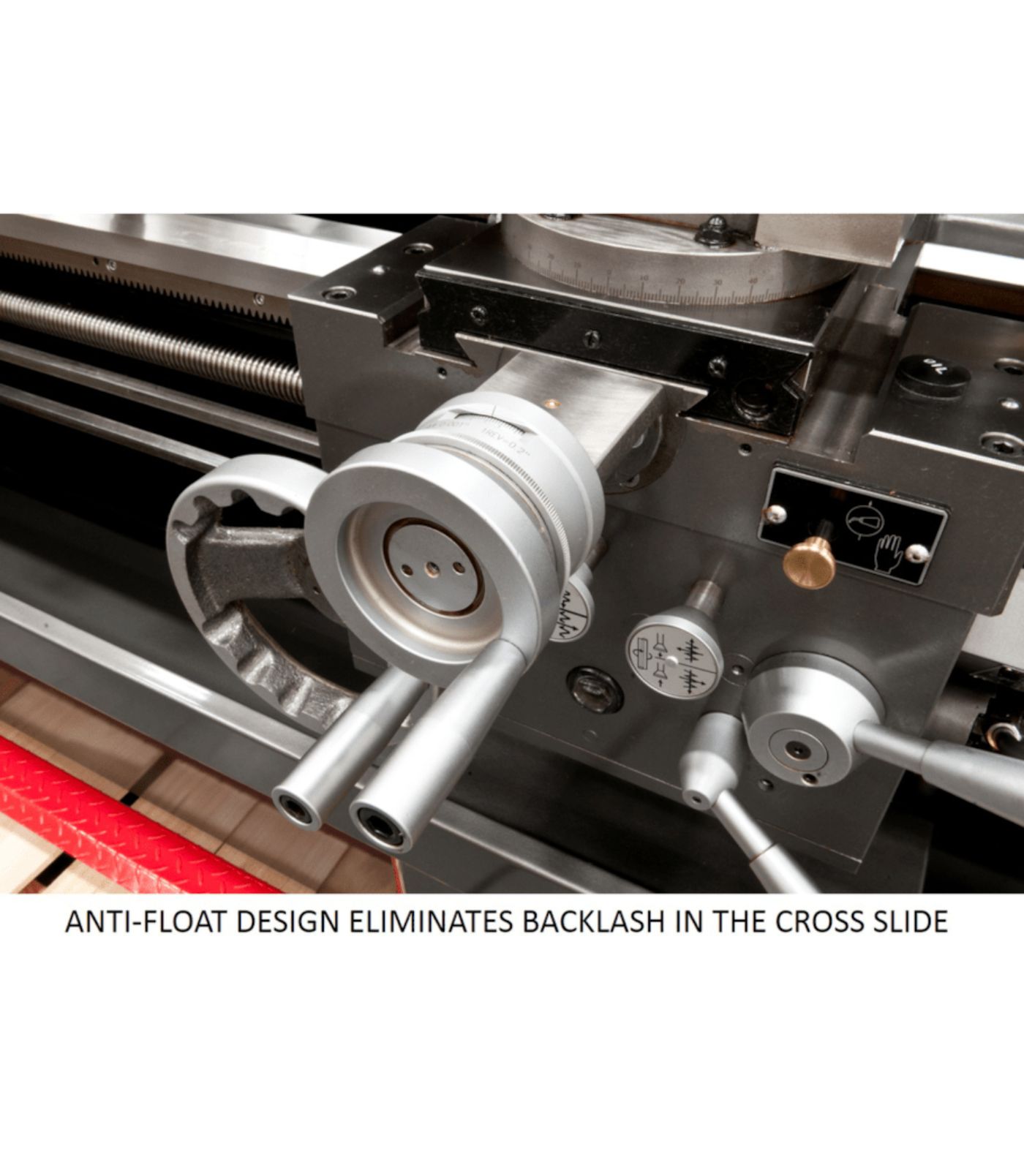

- Anti-Float design eliminates backlash in the cross slide

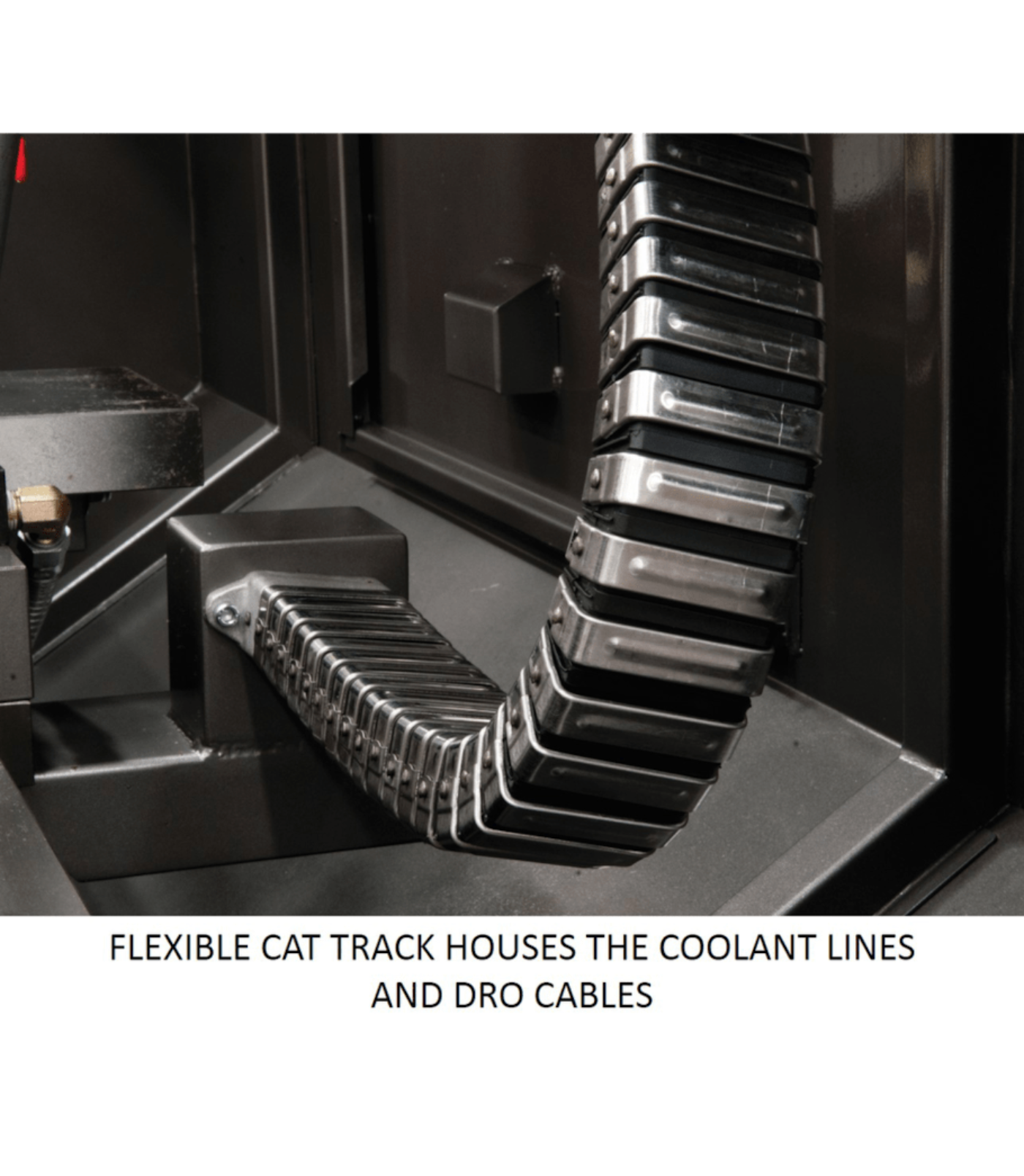

- Enclosed coolant system contains excess coolant for increased safety
- Front facing chip pan allows easy chip removal from the front of the machine

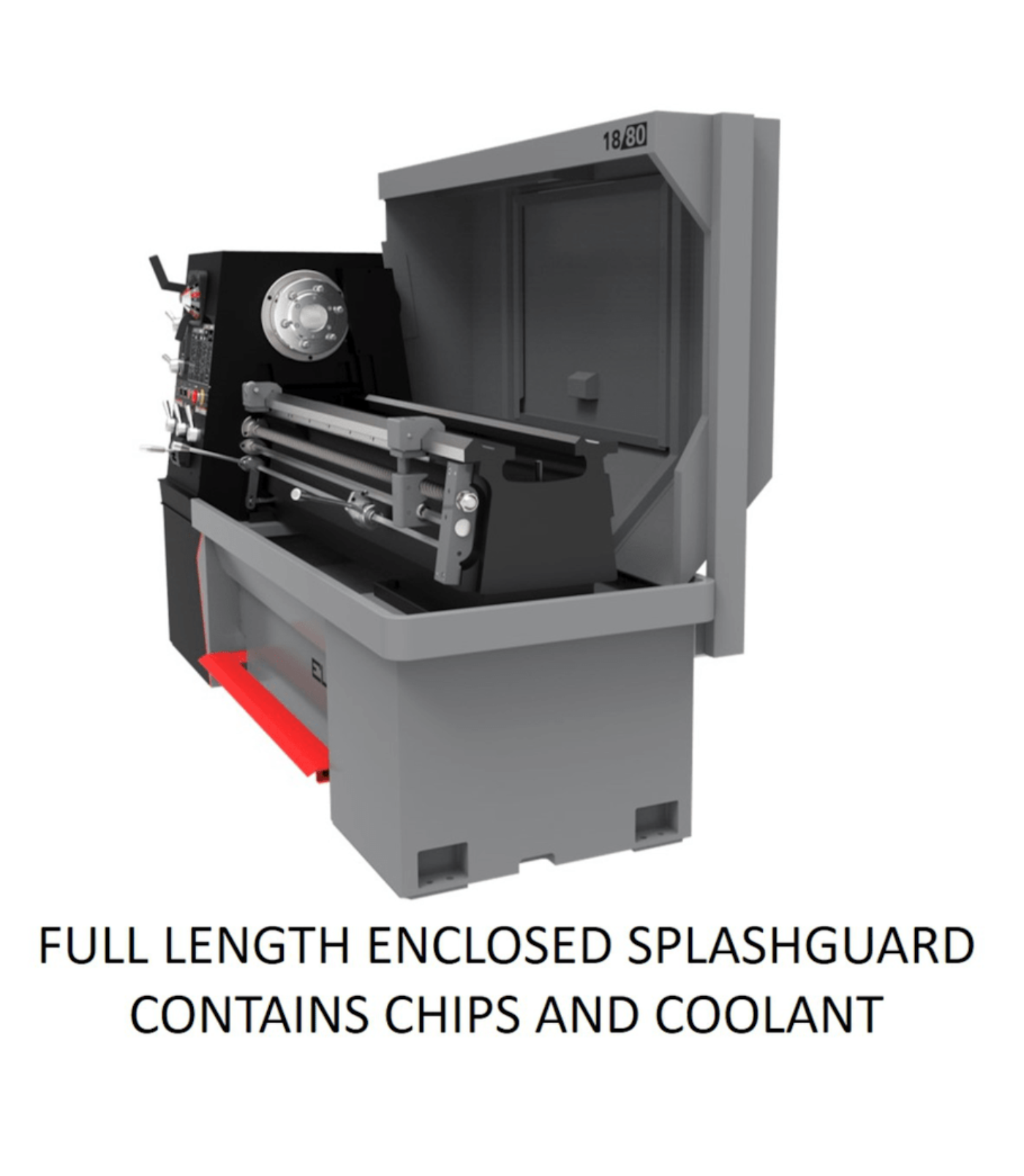

- Full Length Splash Guard

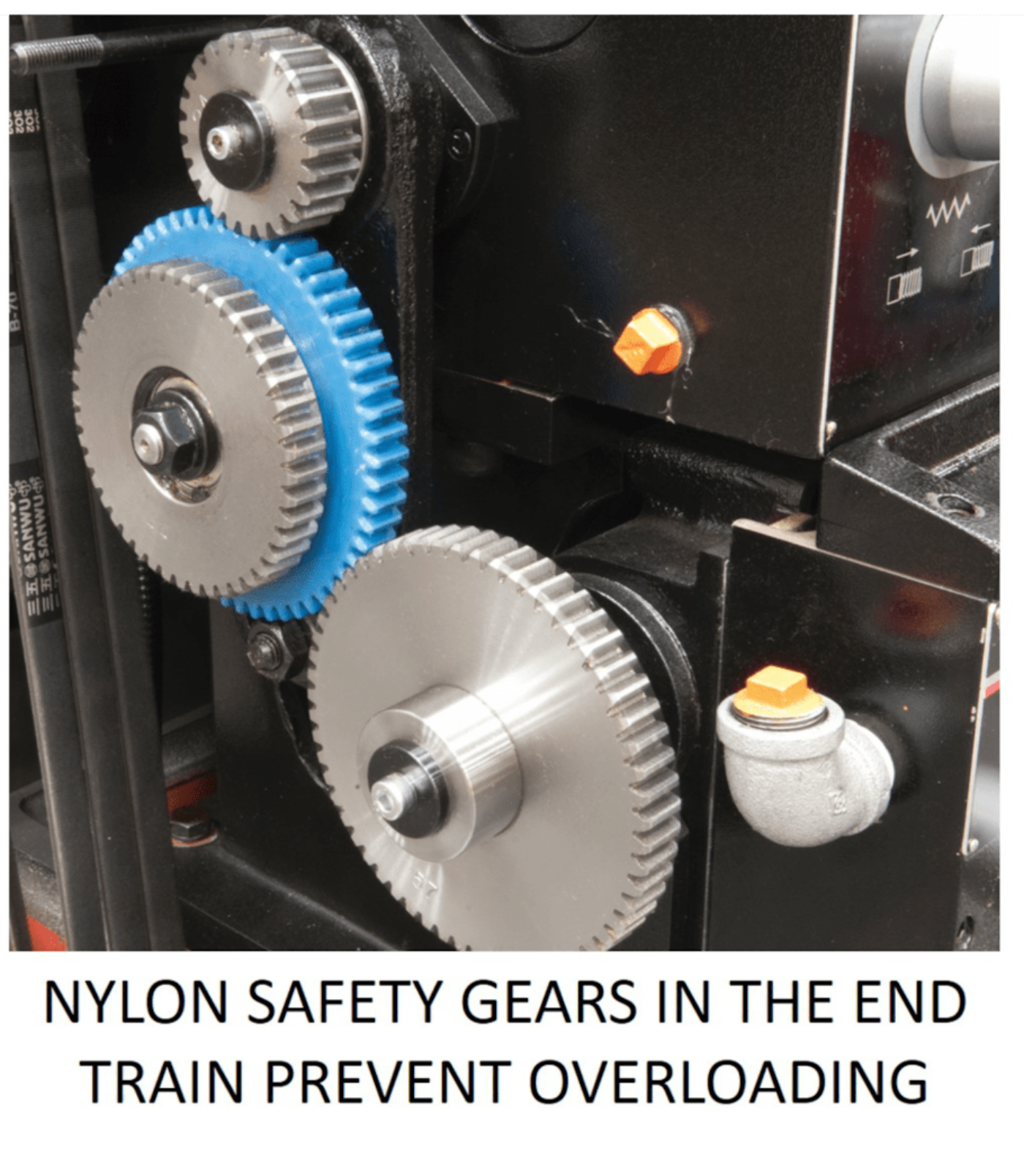

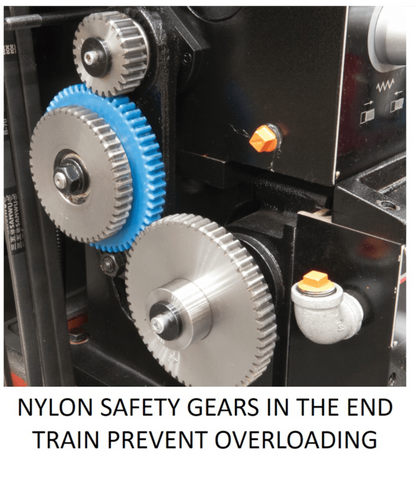

- Nylon safety gears in the end train prevent overloading, increasing safety
- One-Shot lubrication in the carriage reduces maintenance
- Shear pin in the lead screw disengages the feed when overloaded, preventing damage to the apron and headstock

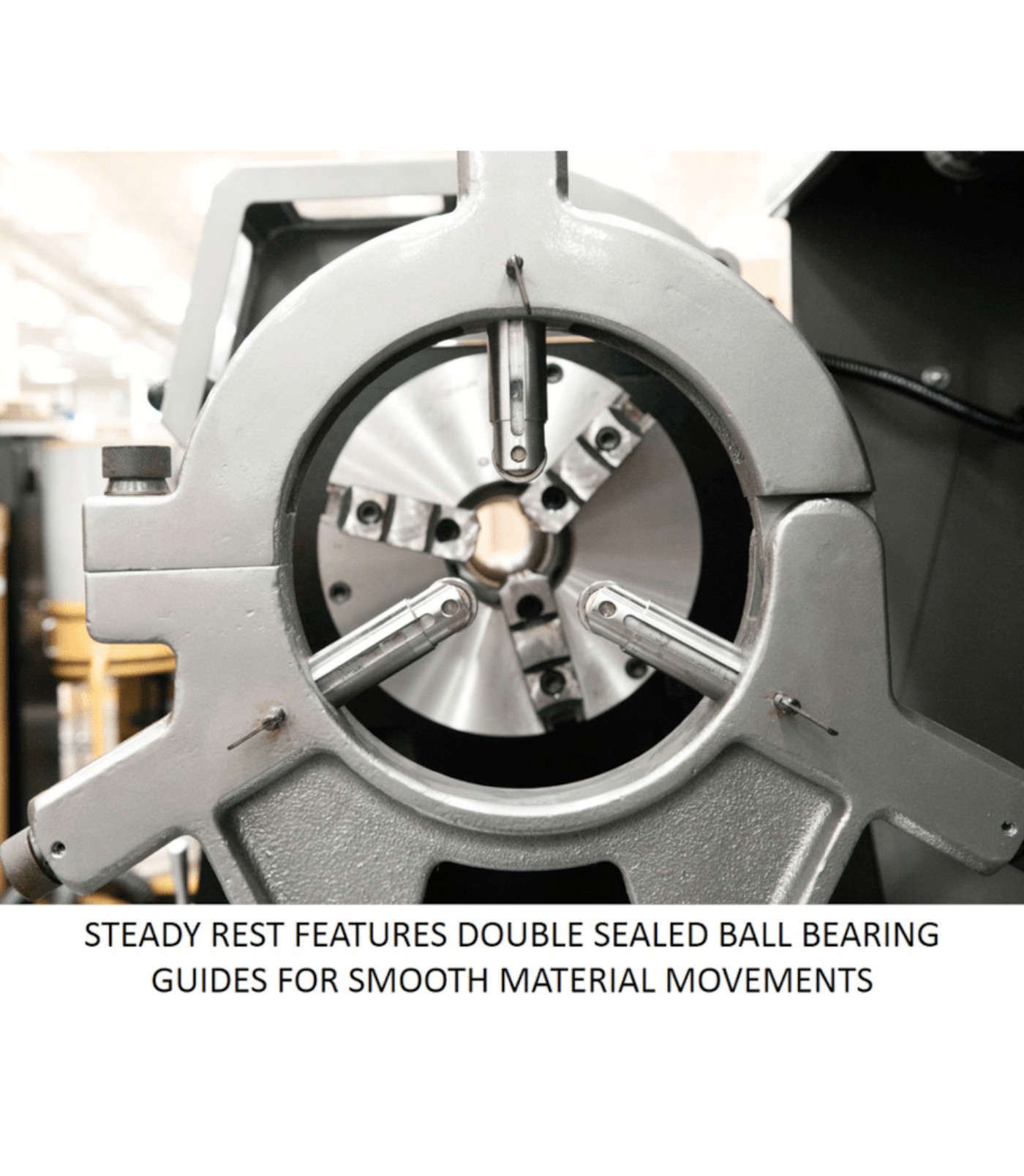

- Steady rests feature ball bearing guides for smooth material movements
Specifications
| Size |
17 x 40 |
| Style (Type) |
Engine |
| Swing Over Bed (In.) |
17 |
| Swing Over Cross Slide (In.) |
11 |
| Swing in Gap (In.) |
7-2/3 |
| Spindle Bore (In.) |

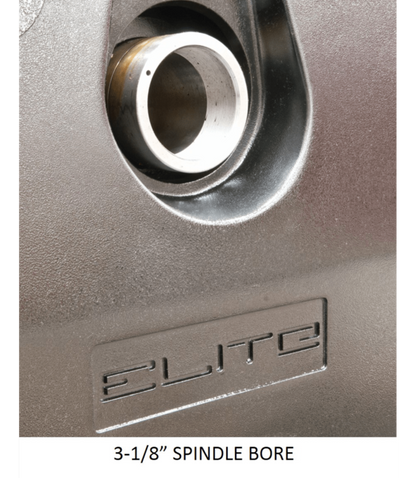

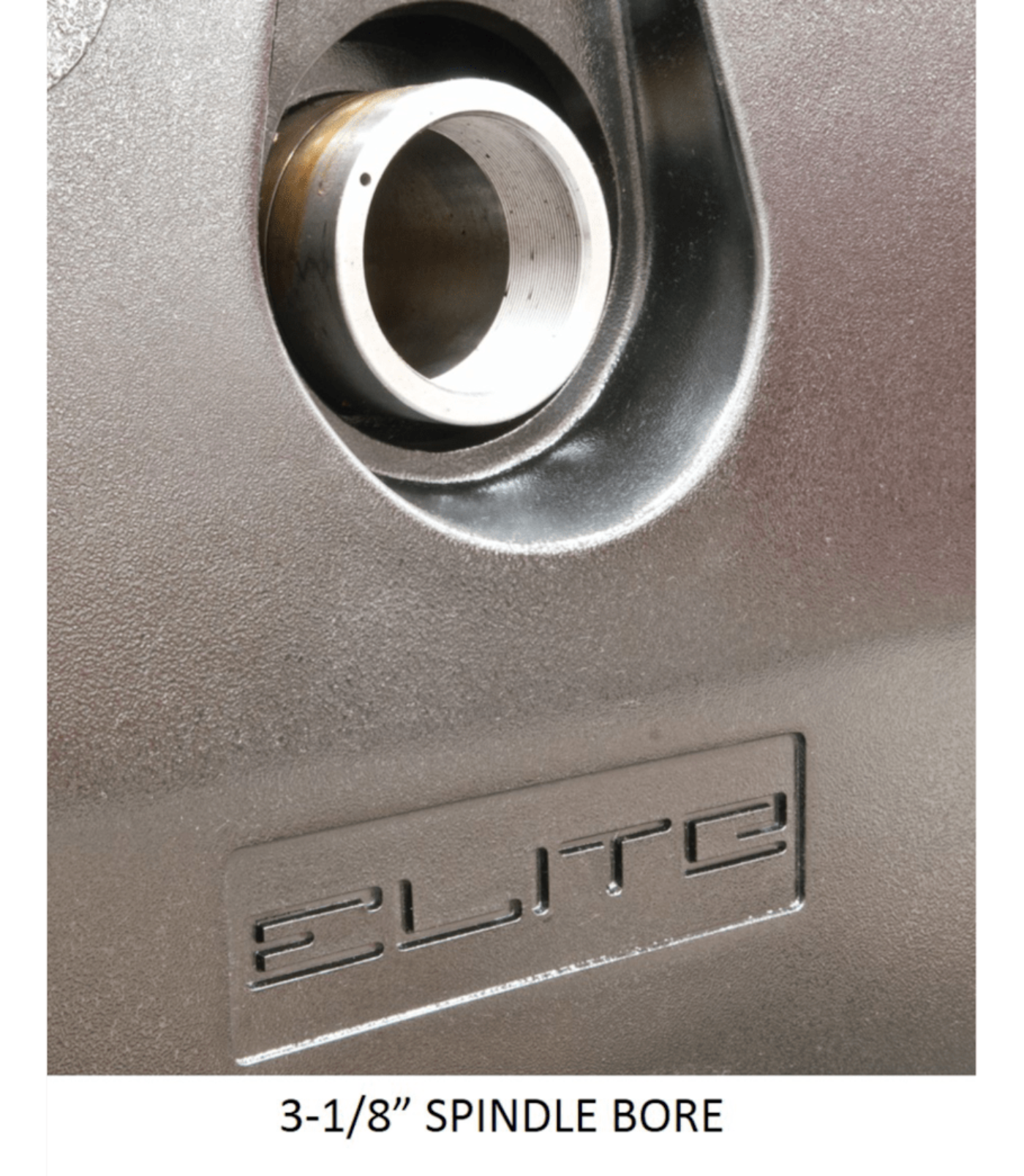

3-1/8 |
| Spindle Mount |
D1-6 |
| Spindle Taper with Sleeve |
MT-5 |
| Number of Spindle Speeds |
12 |
| Range of Spindle Speeds (RPM) |
36 – 1,800 |
| Range of Longitudinal Feeds (IPR) |
0.0015 – 0.04 |
| Range of Cross Feeds (IPR) |
0.00075 – 0.02 |
| Number of Inch Threads |
45 |
| Range of Inch Threads (TPI) |
2 – 72 |
| Diametrial Pitch Threads Number |
21 |
| Modular Pitch Threads Number |
18 |
| Number of Metric Threads |
39 |
| Range of Metric Threads |
0.2 – 14 |
| Max Tool Size (In.) |
1 x 1 |
| Compound Slide Travel (In.) |
6-2/7 |
| Tailstock Spindle Travel (In.) |
5 |
| Steady Rest Capacity (In.) |
3/8 – 6-3/4 |
| Width of Bed (In.) |
12 |
| Weight (Lbs.) |
3,747 |
| Amperage Draw @ 230V 3Ph |
22 |
| Amperage Draw @ 460V 3Ph |
11 |

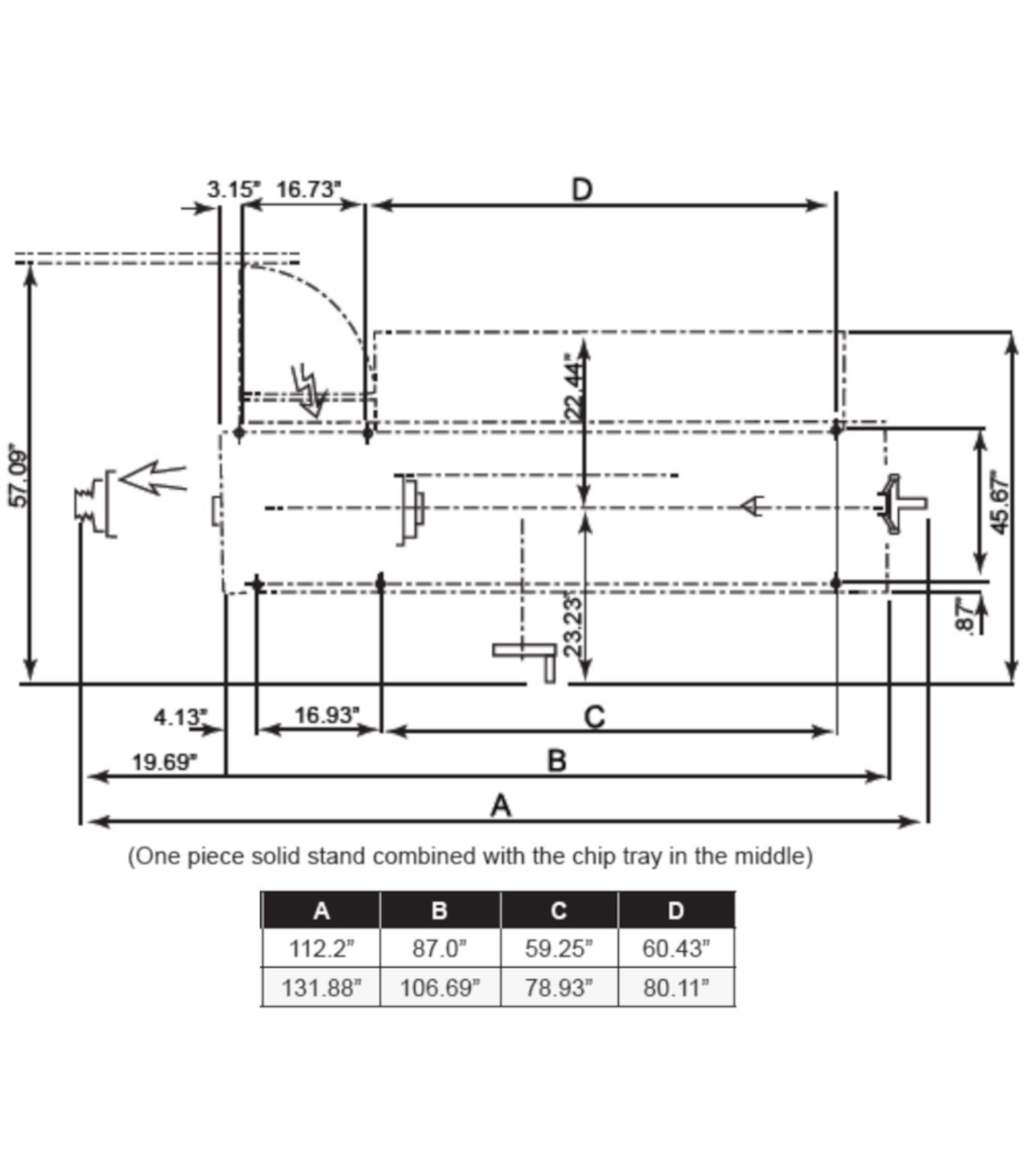

| Overall Dimensions (L x W x H) |
94 x 44 x 68 in. |
| Drive |
Geared Head |
What our Experts Think
-
High Precision: Gear-head lathe paired with Newall DP700 DRO ensures accurate, repeatable machining.
-
Enhanced Versatility: Taper attachment expands capabilities for complex turning applications.
-
Heavy-Duty Build: Rugged cast-iron construction provides stability and minimizes vibration.
-
Operator-Friendly: DRO system and ergonomic controls simplify setup and operation.
-
Industrial Reliability: Built for professional workshops requiring precision, durability, and consistent performance.
