| Size |
17 x 40 |
| Style (Type) |
Engine |
| Swing Over Bed (In.) |
17 |
| Swing Over Cross Slide (In.) |
11 |
| Swing in Gap (In.) |
7-2/3 |
| Spindle Bore (In.) |
3-1/8 |
| Spindle Mount |
D1-6 |
| Spindle Taper with Sleeve |
MT-5 |
| Number of Spindle Speeds |
12 |
| Range of Spindle Speeds (RPM) |
36 – 1,800 |
| Range of Longitudinal Feeds (IPR) |
0.0015 – 0.04 |
| Range of Cross Feeds (IPR) |
0.00075 – 0.02 |
| Number of Inch Threads |
45 |
| Range of Inch Threads (TPI) |
2 – 72 |
| Diametrial Pitch Threads Number |
21 |
| Modular Pitch Threads Number |
18 |
| Number of Metric Threads |
39 |
| Range of Metric Threads |
0.2 – 14 |
| Max Tool Size (In.) |
1 x 1 |
| Compound Slide Travel (In.) |
6-2/7 |
| Tailstock Spindle Travel (In.) |
5 |
| Steady Rest Capacity (In.) |
3/8 – 6-3/4 |
| Width of Bed (In.) |
12 |
| Weight (Lbs.) |
3,747 |
| Amperage Draw @ 230V 3Ph |
22 |
| Amperage Draw @ 460V 3Ph |
11 |
| Overall Dimensions (L x W x H) |
94 x 44 x 68 in. |
| Drive |
Geared Head |
What our Experts Think
-
High Precision: Gear-head lathe delivers consistent accuracy for demanding metalworking tasks.
-
Enhanced Versatility: Includes taper attachment for complex turning applications.
-
Heavy-Duty Construction: Rugged cast-iron build ensures stability and reduces vibration.
-
Operator-Friendly: Smooth controls and ergonomic layout support efficient workflow.
-
Industrial Performance: Designed for machine shops and professionals requiring reliability and power.
Q&A

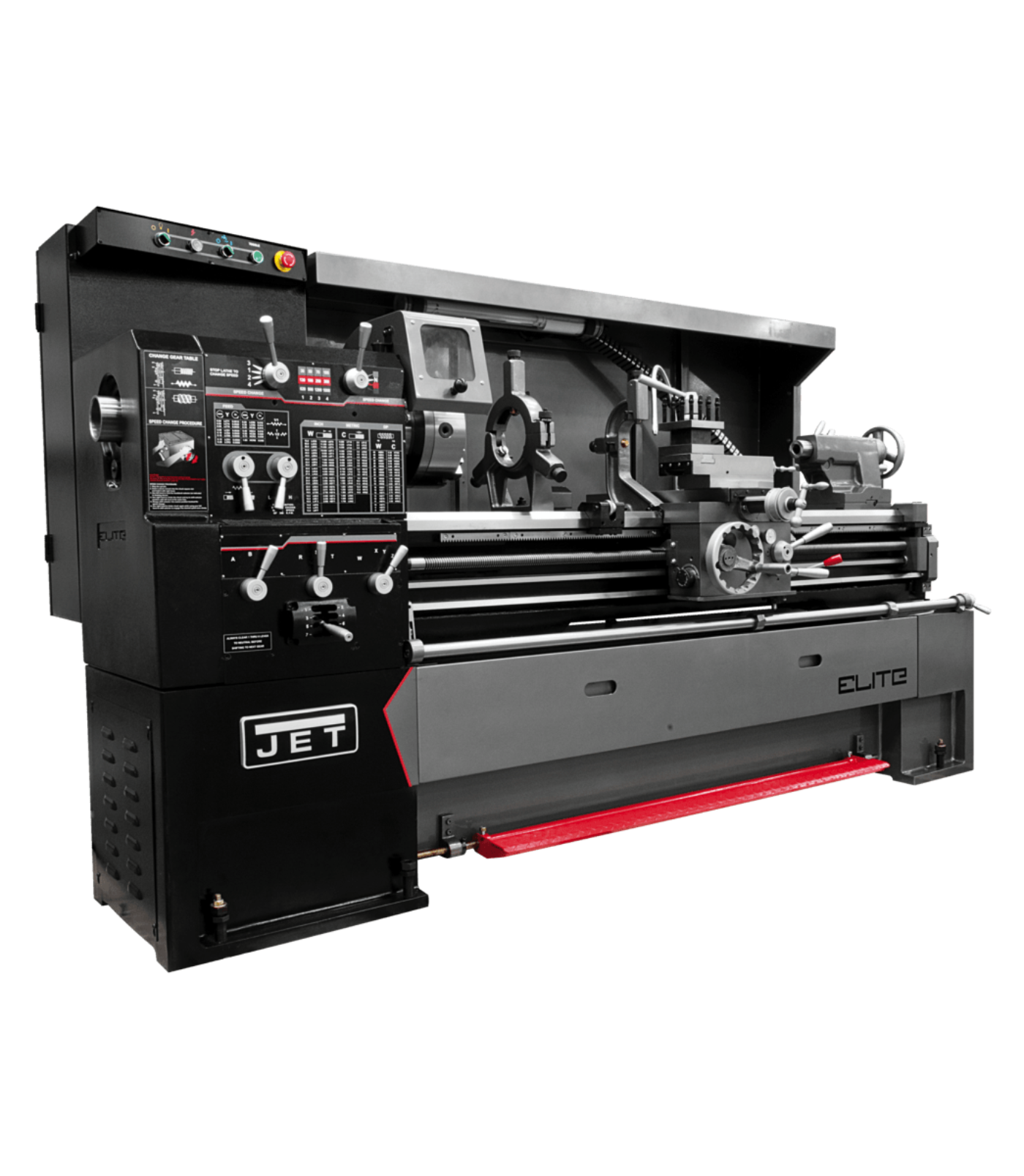

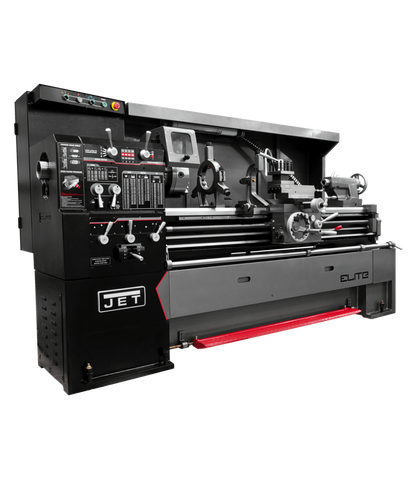

Q: What is the JET Elite EGH-1740 Lathe?
A: A heavy-duty gear head lathe designed for precision metalworking, equipped with a factory-installed taper attachment.
Q: What makes it unique?

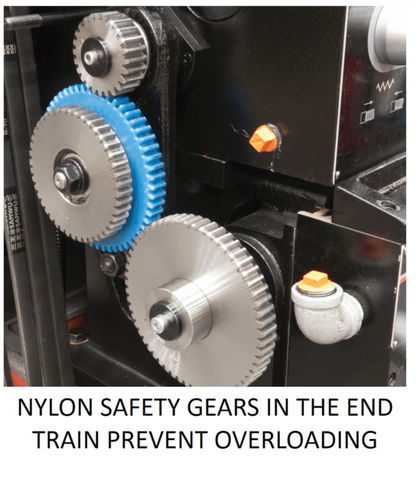

A: Its precision-ground bedways, hardened gears, and integrated taper attachment ensure accuracy, power, and versatility for machining.
Q: Where can it be used?
A: Perfect for machine shops, industrial fabrication, tool rooms, and production environments.
Q: What style of work does it suit?
A: High-precision turning, threading, facing, boring, and taper cutting on metals and alloys.
Q: What materials is it made from?
A: Rugged cast iron base with precision-engineered components for stability and long-lasting durability.
Q: What are its key features?
A: 17" swing, 40" center distance, gear head drive, D1-6 spindle mount, and taper attachment for accurate taper cuts.
Maintenance Tips
-
Clean the bedways, carriage, and leadscrews after each use to prevent wear.
-
Lubricate gears, bearings, and sliding components per manufacturer’s guidelines.
-
Inspect belts, gibs, and fasteners regularly for proper adjustment and safety.
-
Keep electrical panels dry and free from dust buildup.
-
Cover the lathe when idle to protect against shop debris and corrosion.
