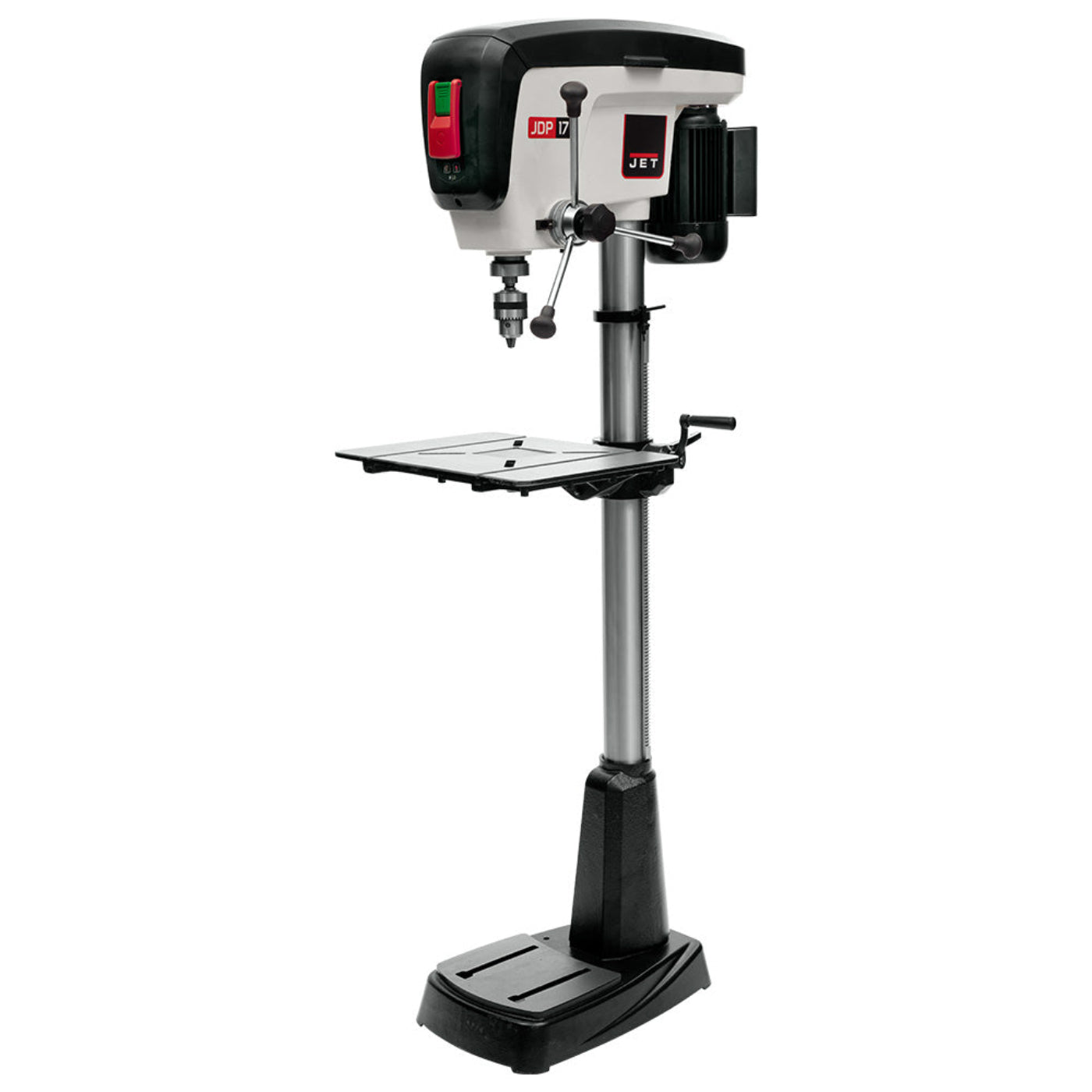

From a full 5" of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. The JET 17" Floor Drill Press also features a long-lasting, built-in LED work light to provide direct lighting while reducing shadows. A large 14" x 19" work table provides plenty of support with an edge designed for easy clamping.
JET warrants every product they sell against manufacturer's defects. All JET Woodworking Machinery carry a 5-Year Warranty from date of purchase. Woodworking products with a 5-Year Warranty that are used for commercial or industrial purposes default to a 2-Year Warranty. Warranties are subject to JET's terms and conditions.
Features

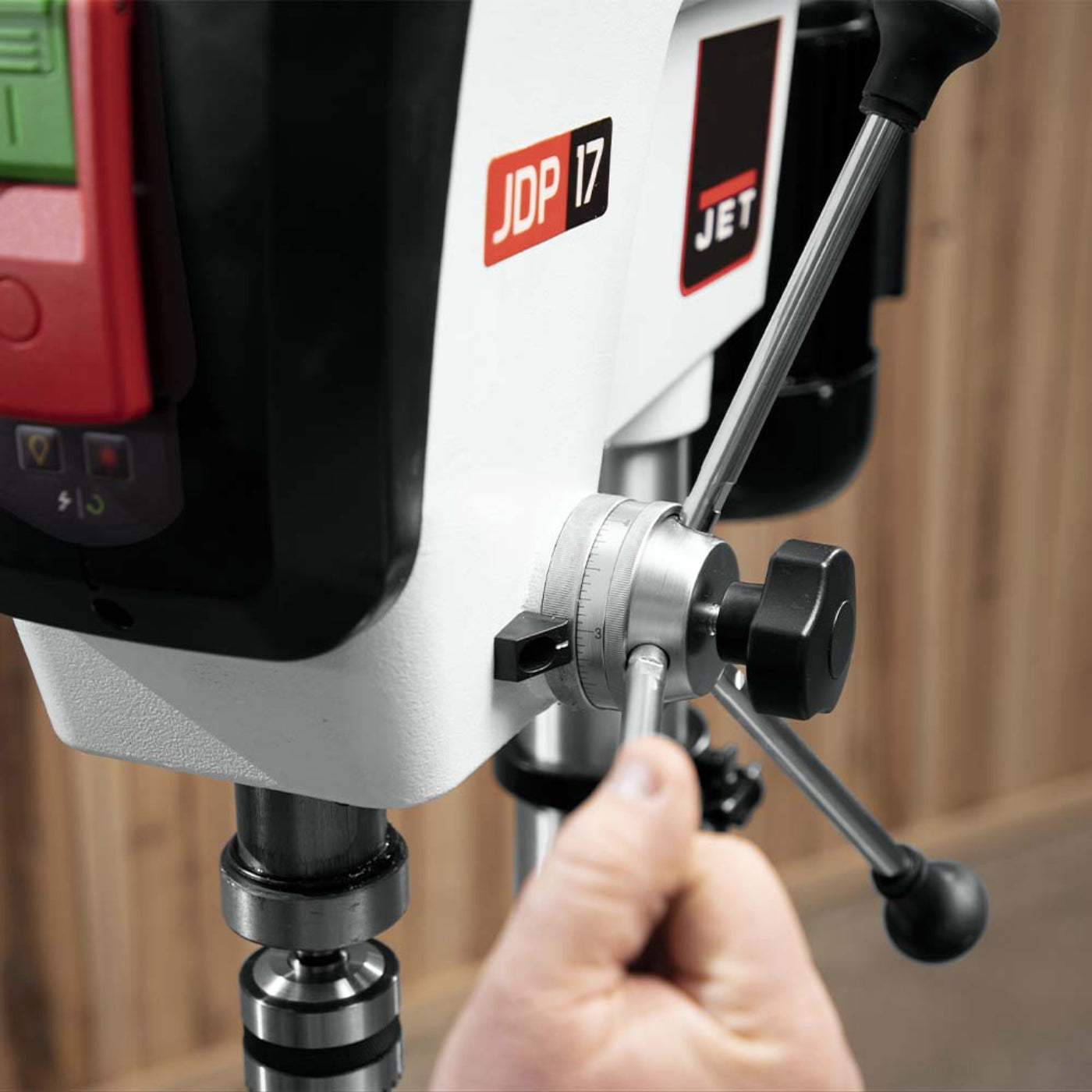

Integrated depth stop makes repetitive drilling quick and easy
Large cast iron base provides stability

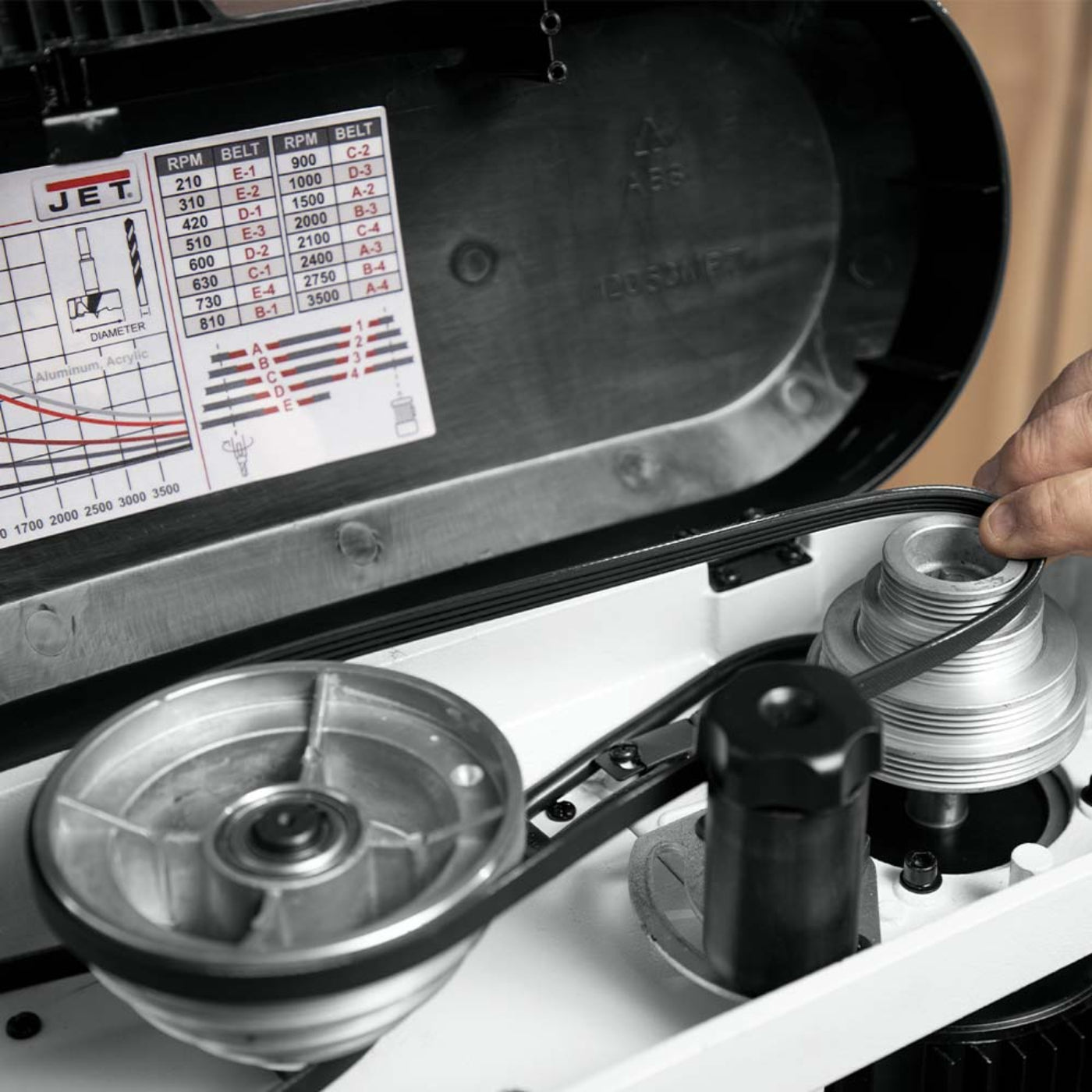

One-handed belt tensioning allows for rapid speed changes
Power switch features a safety key and large, paddle-style off button
Powered by an efficient 3/4HP, 1Ph, 115V TEFC motor and poly-v belt drive system

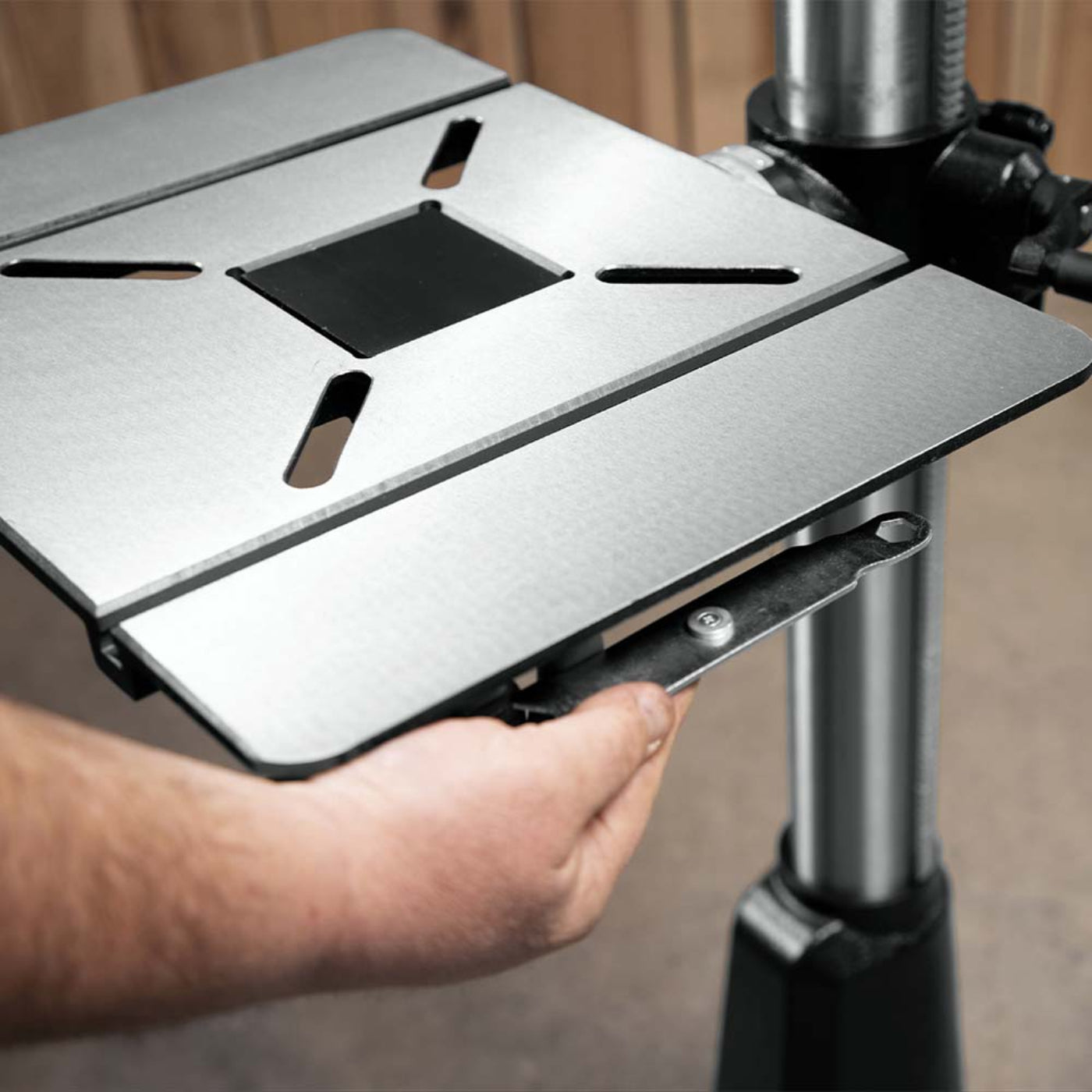

Replaceable MDF table insert

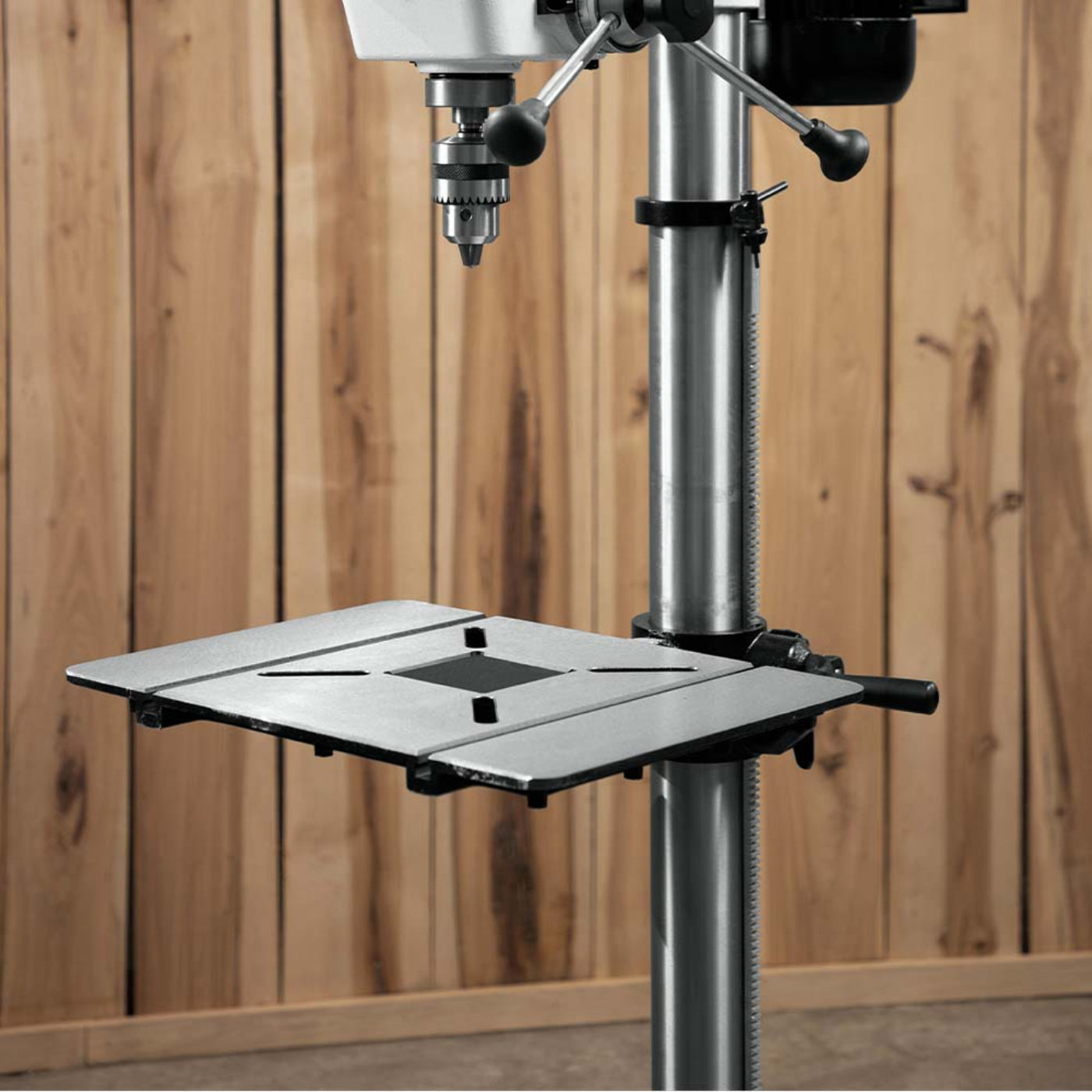

Table edge lip designed to make clamping easy
Specifications
Assembled Machine Dimensions (L x W x H): 28-1/2" x 19" x 65" Chuck Distance to Base: 42-7/8" Chuck Distance to Table: 25-7/8" Chuck Size: 5/8" Column Diameter: 3-5/32" Motor Power: 3/4hp Number of Spindle Speeds: 16 Recommended Circuit Size (Amps.): 15 Spindle Distance to Base: 46-1/2" Spindle Distance to Table (Max.): 30" Spindle Travel: 5" Style (Type): Floor standing Model Swing: 16-7/8" Table Size (LxW): 14" x 19" Weight: 187 lbs.
Video
What Our Experts Think
17" floor drill press delivers precise, stable drilling for a variety of materials.
Heavy-duty construction ensures long-term durability and reliability.
Adjustable table and depth settings provide versatile operation.
1-phase power design suitable for most workshops.
Ideal for both hobbyists and professional shops.
Q&A
Q: What is the maximum drilling capacity? A: Supports drilling up to 17" swing and a variety of material thicknesses.
Q: Can it handle metal and wood? A: Yes, designed for drilling wood, metal, and plastics.
Q: Is assembly required? A: Some assembly required; detailed instructions included.
Q: What’s included? A: Floor drill press, adjustable table, chuck, and user manual.
Maintenance Tips
Keep drill press clean and free of dust and debris.
Lubricate moving parts regularly to ensure smooth operation.
Inspect belts and pulleys for wear and replace if needed.
Check alignment and calibrate table periodically for accuracy.
Ensure the machine is mounted on a stable, level surface.
