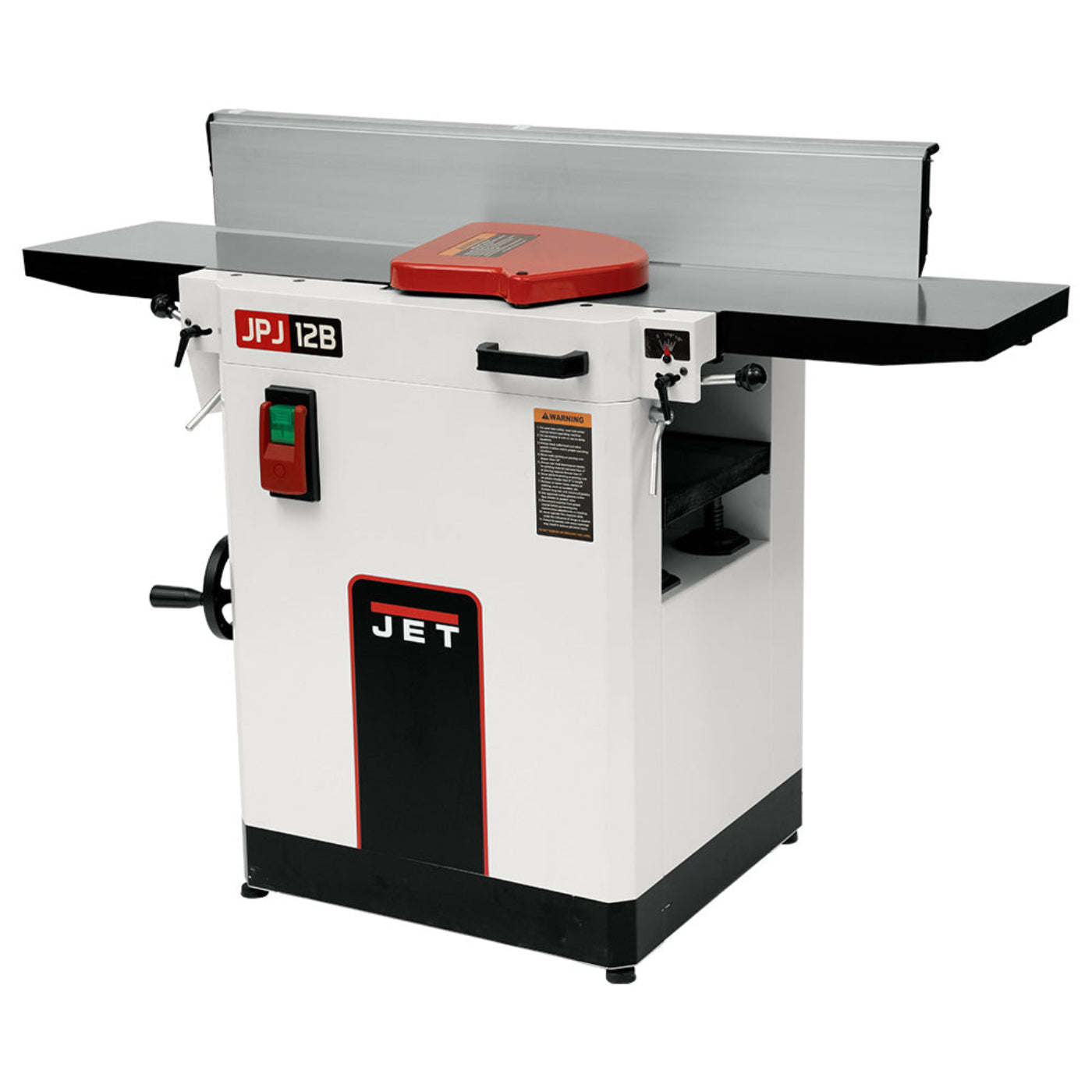

JET JPJ-12B 12" Straight Knife Jointer/Planer 3hp, 1PH, 230V - JT9-715100
You don't have to choose between buying a jointer or a planer. With the JPJ-12B, you can have both. This versatile machine features an extra-large aluminum extruded fence with centered controls for quick adjustments, a built-in dust chute capable of handling both planing and jointing operations, and a powerful 3-horsepower motor that can handle the toughest lumber.
A heavy-duty, fully welded steel base cabinet houses the motor and the planer table mechanism, while providing solid mounting for the associated controls and support for the jointer table and fence assemblies. Best of all, the fence can stay put when changing over functions.
JET warrants every product they sell against manufacturer's defects. All JET Woodworking Machinery carry a 5-Year Warranty from date of purchase. Woodworking products with a 5-Year Warranty that are used for commercial or industrial purposes default to a 2-Year Warranty. Warranties are subject to JET's terms and conditions.
Features

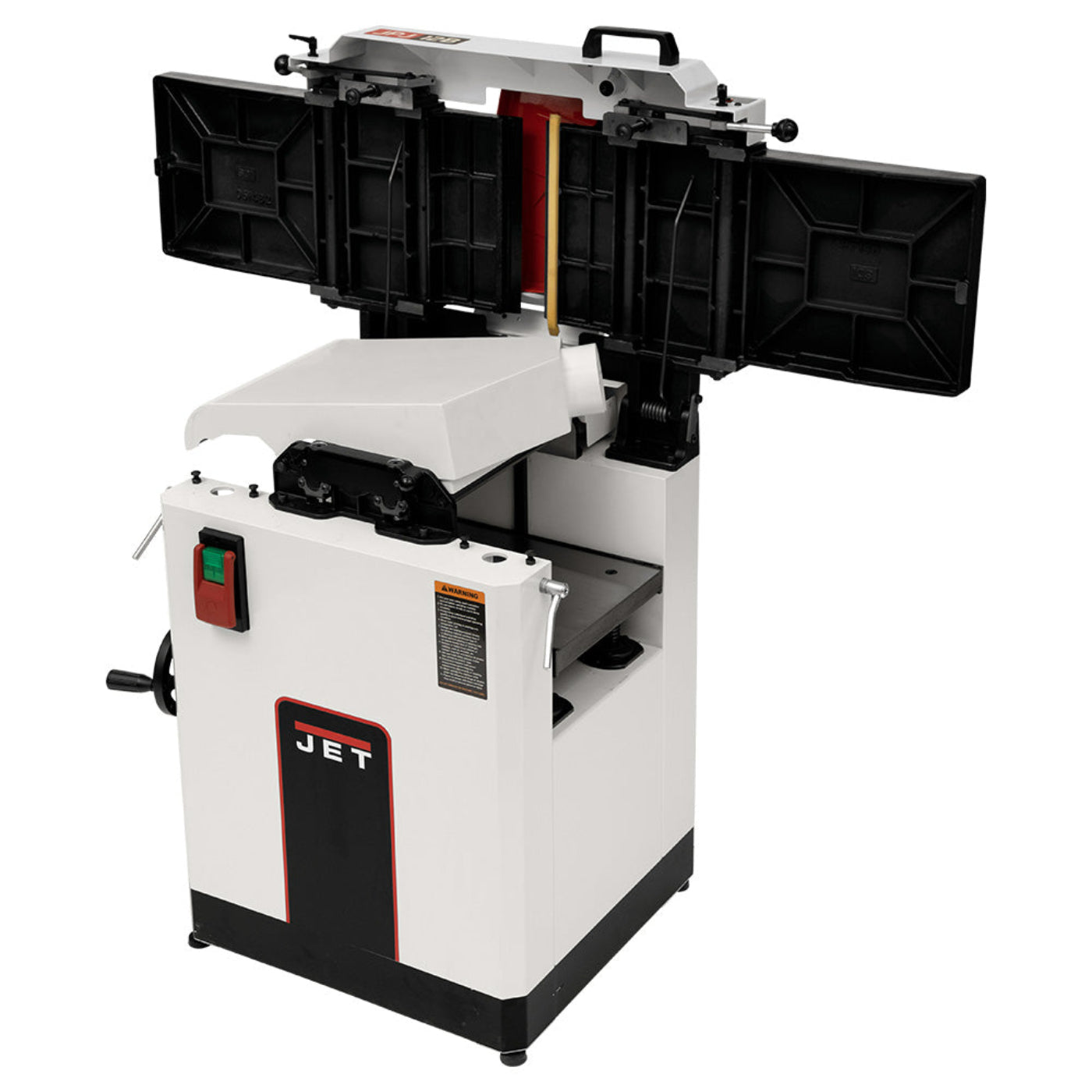

- Extremely quick changeover between jointing and planing functions. Fence does not need to be removed

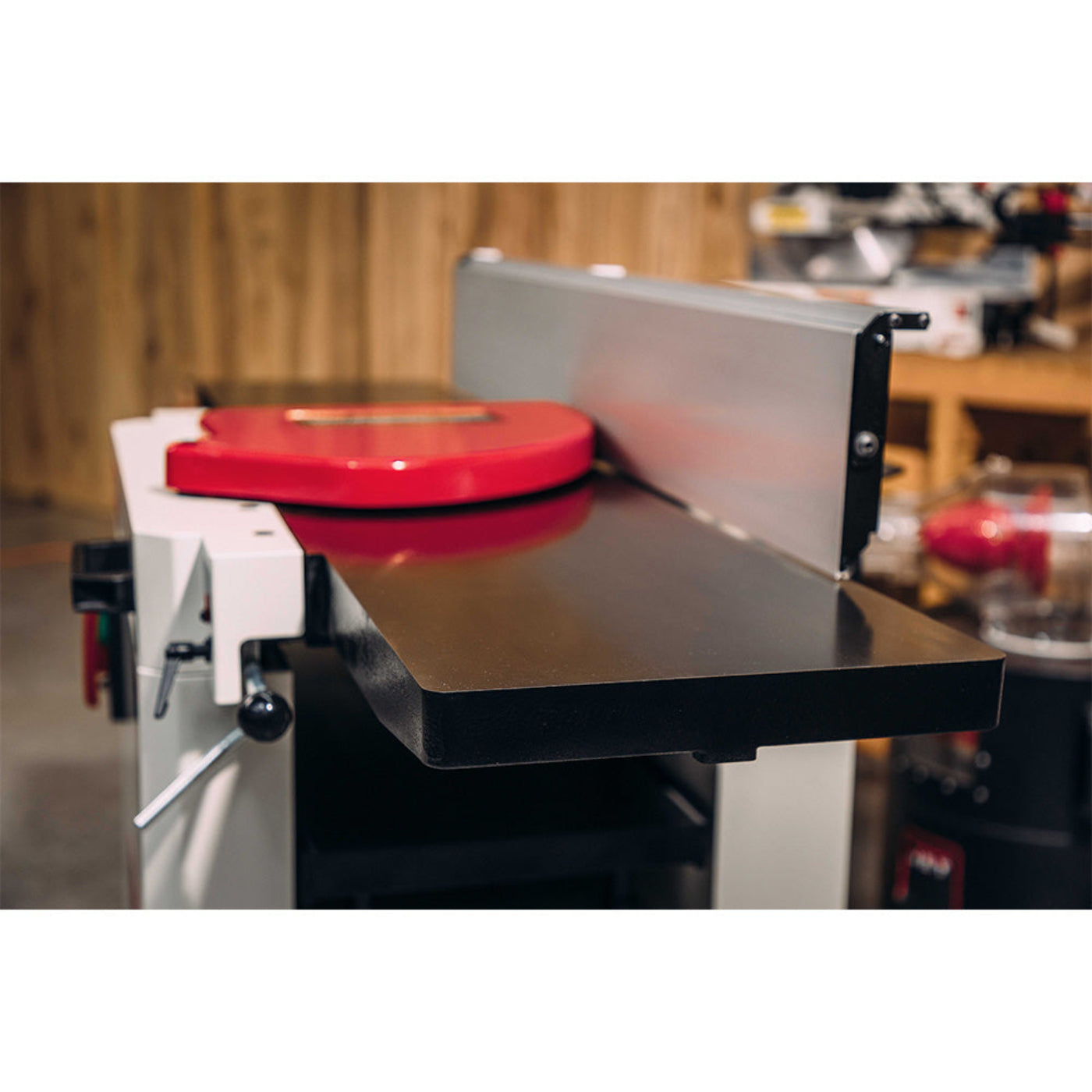

- Heavy-duty cast iron tables with a ground finish to ensure accuracy and flatness
- Heavy-duty, one-piece steel closed stand includes mounting tabs for increased stability
- Large handwheel for quick and precise adjustments of planer table

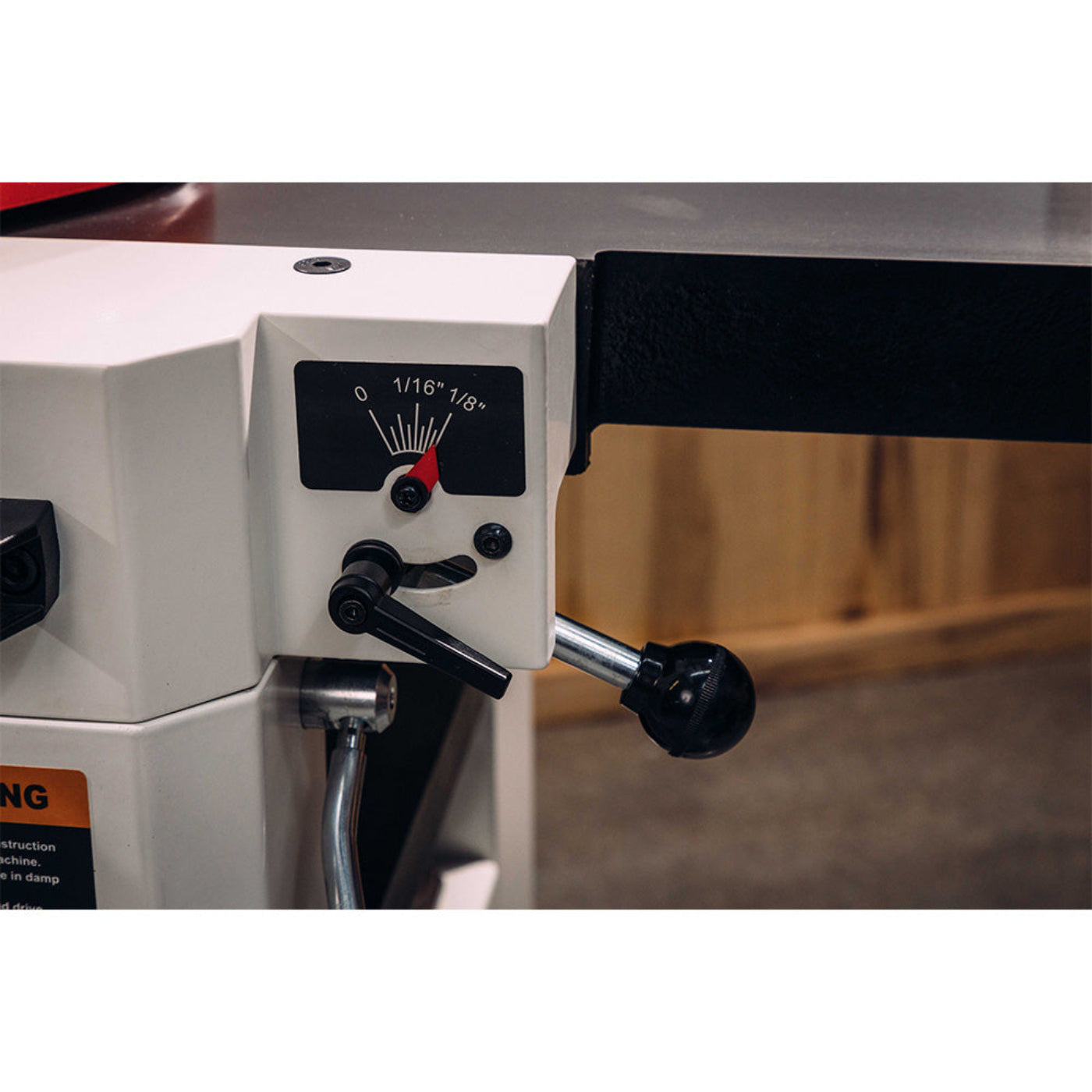

- Parallelogram design keeps the table close to the cutterhead for improved finish and allows for precise depth of cut adjustments

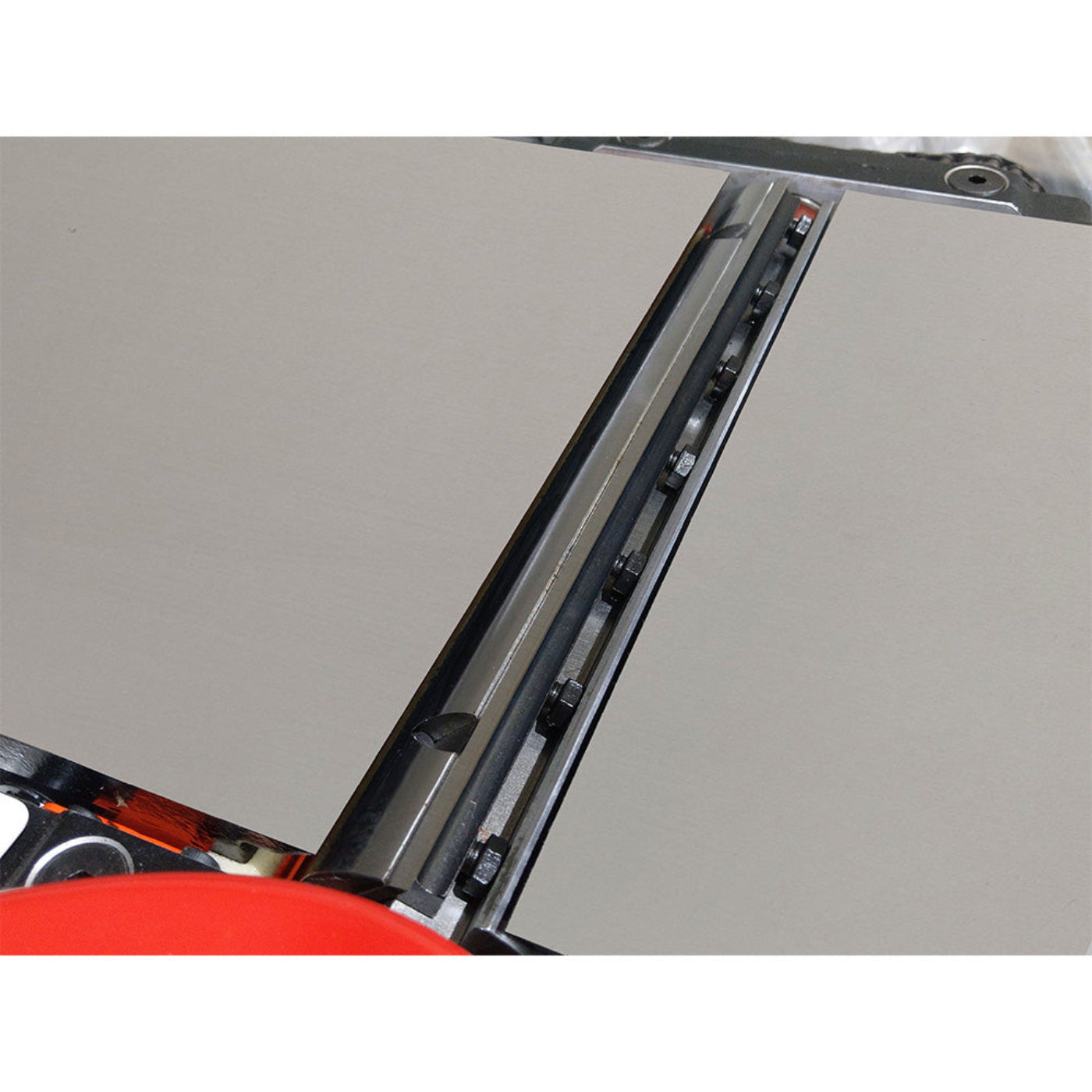

- (3) Precision-balanced high-speed steel knives ensure quality cuts
Specifications
| Max. Planing Thickness |
8-3/4" |
| Max. Planing Width |
12" |
| Min. Planing Length |
10" |
| Max. Depth of Cut |
5/32" |
| Feed Rate (FPM) |
2-speed, 16–26 FPM |
| Cutterhead Diameter |
2-3/4" |
| Cutterhead Speed |
5,300 RPM |
| Number of Knives |
3 |
| Type of Cutterhead |
Straight Knife |
| Standard Knife Size (L × W × T) |
12-3/16" × 11/16" × 1/8" |
| Cuts Per Minute |
15,900 |
| Planer Table Size (L × W) |
25" × 12-1/32" |
| Jointer Cutting Capacity (W × D) |
12" × 1/8" |
| Jointer Table Size (L × W) |
55" × 12-1/32" |
| Fence Size (L × H) |
43-1/4" × 5-7/8" |
| Fence Tilt |
90° to 45° R |
| Fence Positive Stops |
90° and 45° R |
| Motor Power |
3 HP |
| Motor Voltage / Prewired Voltage |
230V |
| Recommended Circuit Size |
30 Amps |
| Full Load Amps |
15 |
| Running Amps |
4.5 |
| Dust Collection Min. Required |
550 CFM |
| Dust Port Outside Diameter |
4" |
| Overall Dimensions (L × W × H) |
55-7/16" × 28-15/16" × 40" |
| Overall Height |
40" |
| Net Weight |
453 lbs. |
What our Experts Think
-
Versatile 2-in-1 Design: The JET JPJ-12B combines a 12" jointer and planer, allowing quick changeovers without removing the fence for efficient workflow.
-
Powerful Performance: Equipped with a 3 HP motor and straight knife cutterhead, it easily handles dense hardwoods with smooth, precise cuts.
-
Precision Engineering: Parallelogram table design ensures consistent cutterhead proximity, accurate depth adjustments, and superior finish quality.
-
Sturdy Build: Heavy-duty cast iron tables and a one-piece steel stand provide stability and reduce vibration during operation.
-
User-Friendly Operation: Large handwheel allows quick and precise planer table adjustments, making it ideal for both professionals and hobbyists.
-
Expert Verdict: A reliable, space-saving machine that delivers professional-grade results for woodworking projects of all sizes.
Q&A
Q1: What type of machine is this?
A: The JET JPJ-12B is a 12-inch straight knife jointer/planer, designed for precise woodworking tasks.
Q2: What is the motor specification?
A: Equipped with a powerful 3 HP motor, single-phase (1PH), 230V for high-efficiency operation.
Q3: What materials can it handle?
A: Ideal for hardwoods, softwoods, and other wood materials, delivering smooth and consistent cuts.
Q4: What are the key features?
A: Features straight knife cutterheads, adjustable fence, precision infeed/outfeed tables, and heavy-duty construction for stability and durability.
Q5: Is it suitable for professional use?
A: Yes, designed for professional workshops and serious woodworking enthusiasts needing accuracy and reliability.
Q6: What are the machine dimensions?
A: Compact industrial design, suitable for workshop environments (exact dimensions available in the product manual).
Q7: Does it come with safety features?
A: Yes, it includes protective guards, emergency stop controls, and dust collection ports for safe operation.
