JET JWS-35X3-1 Shaper 3hp, 1PH, 230V - JT9-708323

JET JWS-35X3-1 Shaper 3hp, 1PH, 230V - JT9-708323

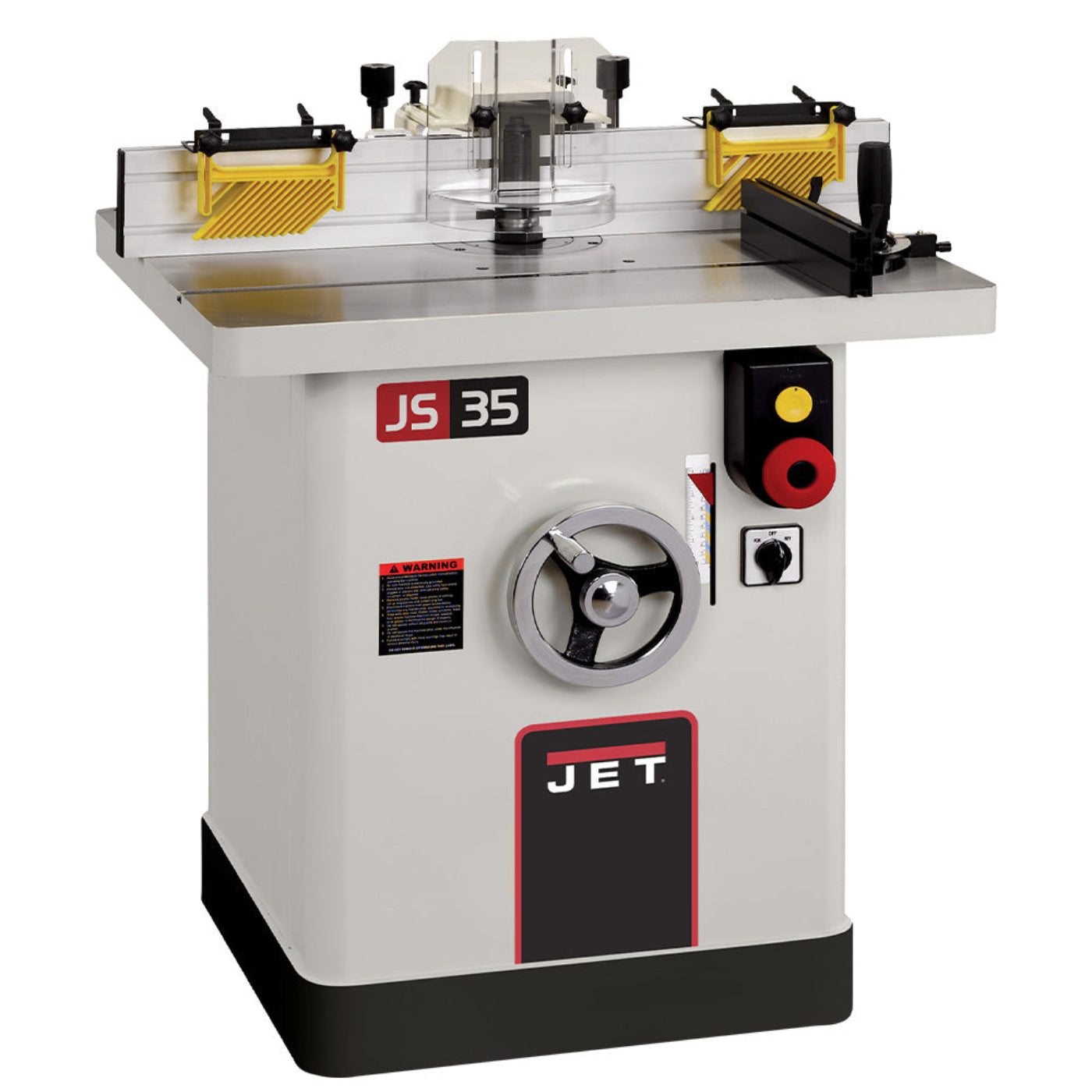

The JET JWS-35X Heavy-Duty Shaper brings the accuracy, durability, and power to handle tough jobs with the versatility you need. High quality materials and construction along with a user-friendly array of features makes the JET JWS-35X Heavy-Duty Shaper a high value addition to any shop.

The JET JWS-35X Shaper features a spacious 26-3/4" x 32-1/4" precision-ground cast iron table. Pre-drilled and tapped holes on the rear table corners are ready to mount most s on either side of the cutter. A full-sized 3/4" x 3/8" T-shaped miter slot on the table accepts the included miter gauge. This standard sized slot also accepts common aftermarket tooling and shop-made jigs.

The table has a 7-1/4"-diameter opening for compatibility with the largest of cutter sizes. Inserts are also included to reduce the table opening to 4-7/8" and 2-5/8". Mounted on the all steel base cabinet, the table surface is a comfortable 33-1/4" above the floor. A heavy-duty, screw-in starting pin threads into holes on the left and right of the cutter to help make many hand operations safer.

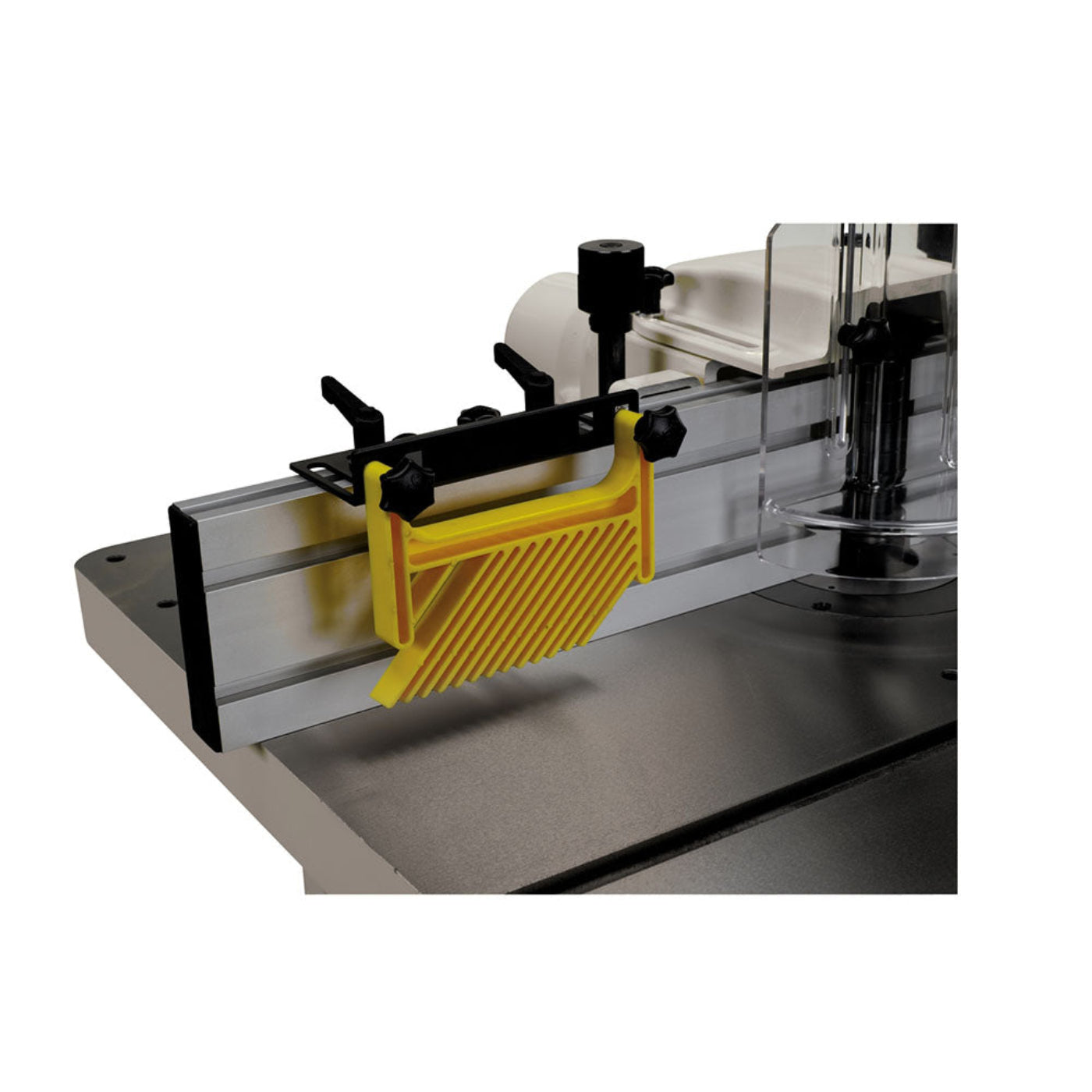

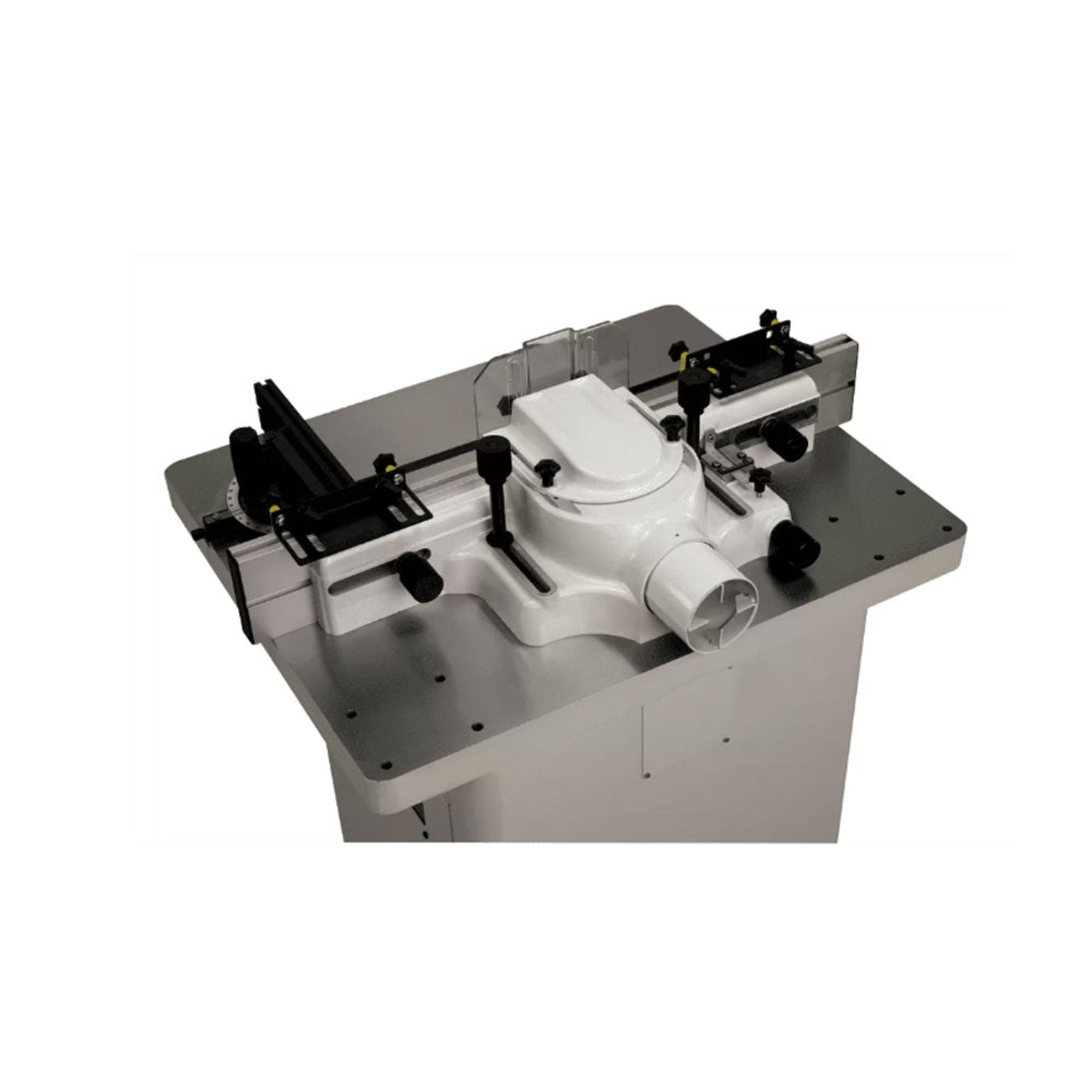

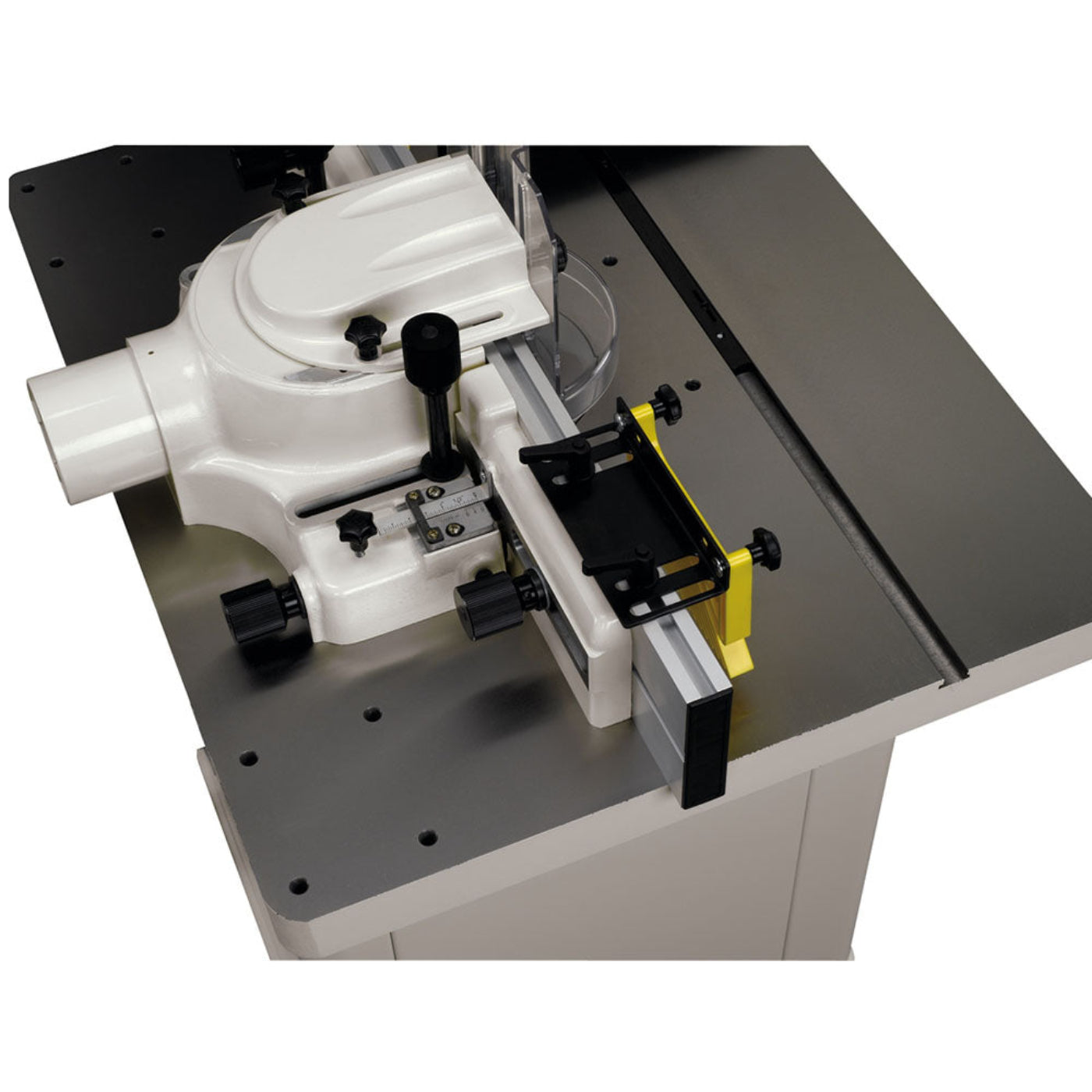

A large, solid fence system with fully adjustable left and right face halves gives you the stability and control for precision work. The fence faces are infinitely adjustable on their mounts and are each secured with a single finger-operated knob. Both extruded aluminum faces have grooves in them that make attaching wooden faces or the included feather boards easy and secure. The left fence half has a micro adjuster (front to back) for setting up ultra precise jointing operations. A gauge at its adjusting knob helps set the precise amount of offset desired for your jointing operation.

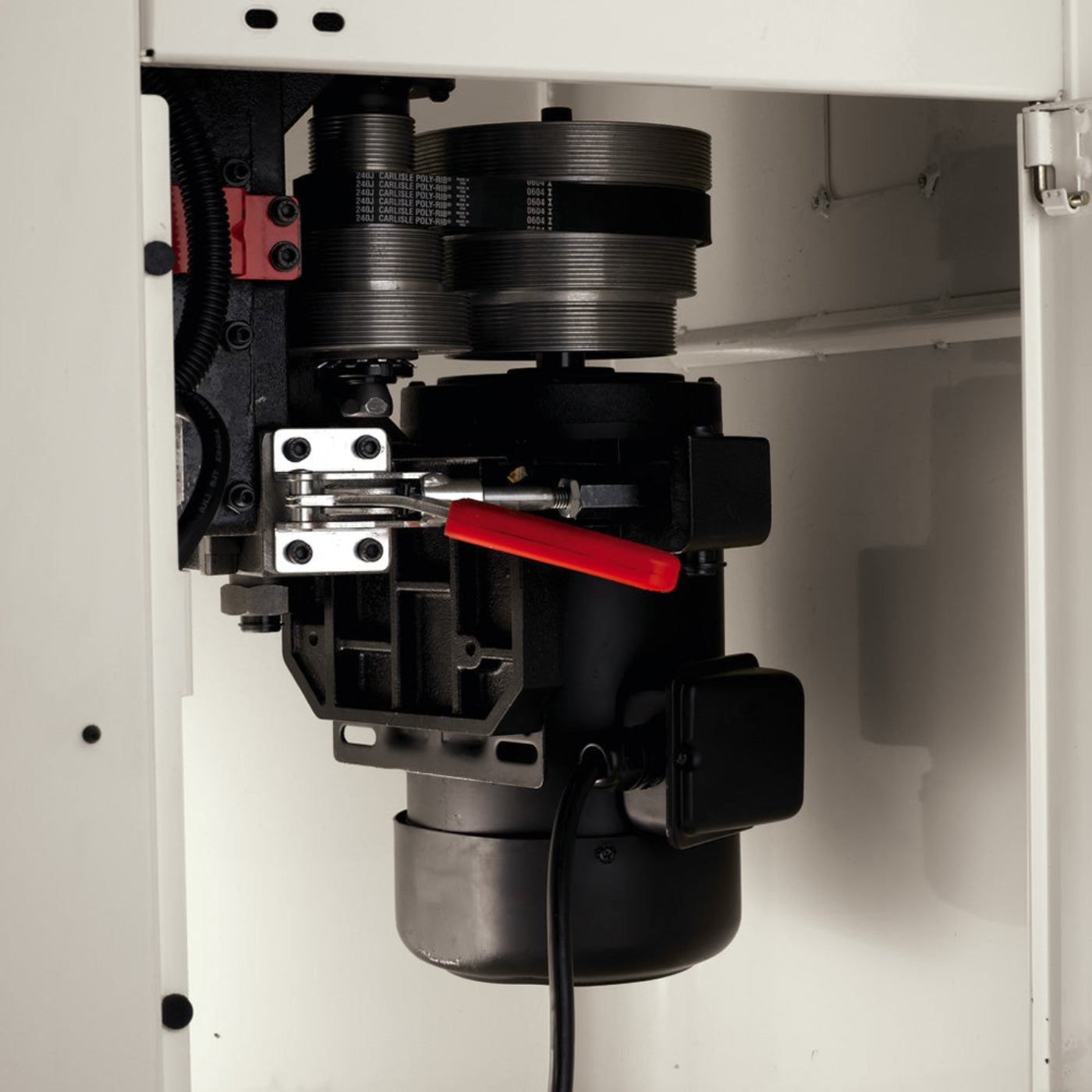

There are four spindle speeds on the JWS-35X: 4000, 6000, 8000, and 10,000RPM. The speeds are generated by a set of precisely machined stepped pulleys on the motor and spindle shaft. The shaper connects the pulleys with a Poly-V-belt, known for smooth power transmission, resistance to slipping and low heat buildup.

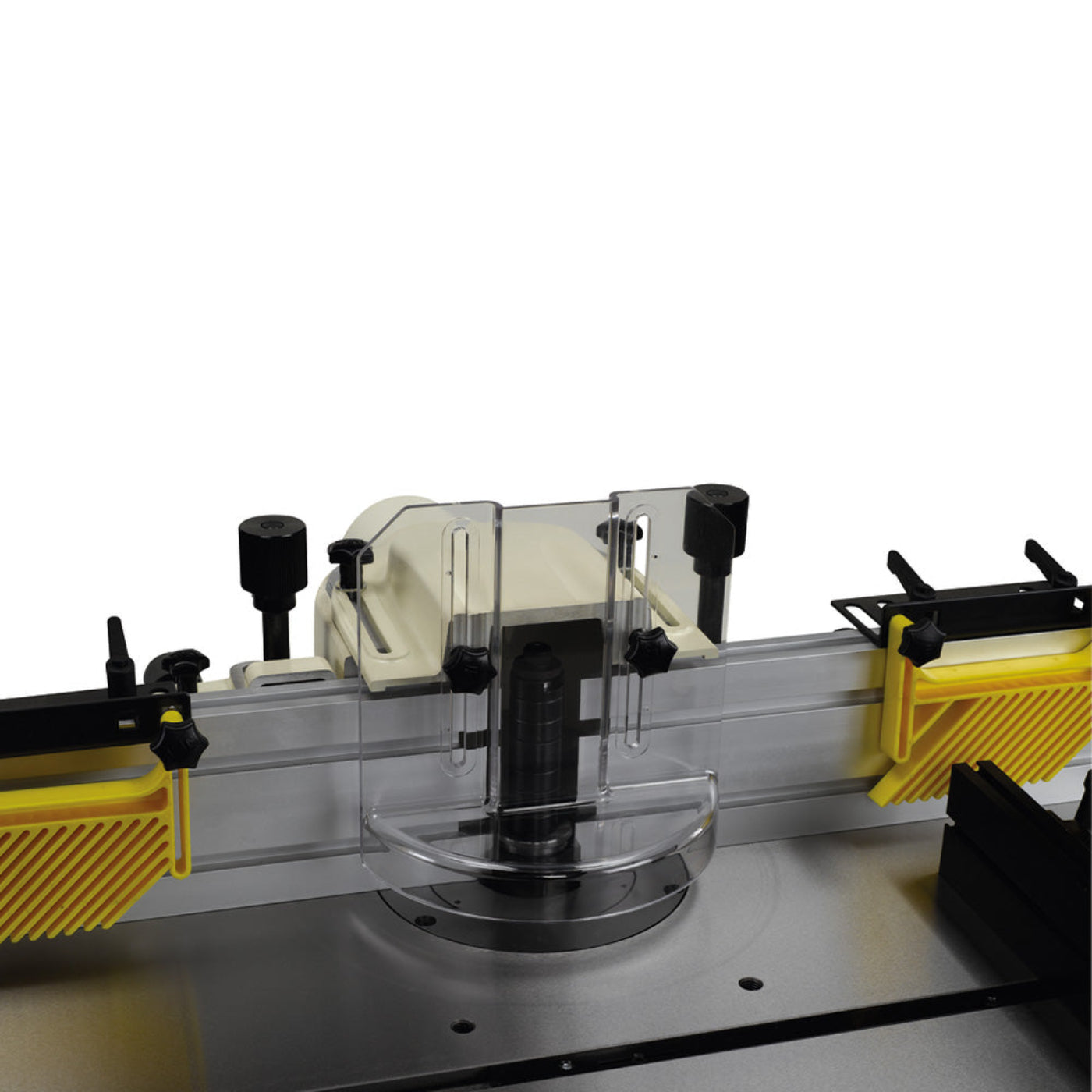

The JET JWS-35X comes with a 1-1/4" diameter, 4" tall (under the nut) spindle. The spindle is equipped with a full set of spacers so it can secure shaper cutters of virtually any thickness. The spindle mounts into a large, self-centering tapered seat and is locked in place by a large captured nut and a heavy steel drawbar for security. The spindle has a full 4" vertical travel to accommodate large and small cutters as well as using a portion of a cutters profile.

JET warrants every product they sell against manufacturers' defects. All JET Woodworking Machinery carry a 5-Year Warranty from date of purchase. Woodworking products with a 5-Year Warranty that are used for commercial or industrial purposes default to a 2-Year Warranty. Warranties are subject to JET's terms and conditions.

Features

• 4" Dust port built into fence for convenient hookup to any dust collection system
• Extra-large chrome handwheel is conveniently located for fast, easy, and accurate spindle height adjustments
• Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
• Four RPM speeds (4,000,/6,000/8,000/10,000) let you select the best speed and torque for different cutter diameters
• Large 26-3/4" x 32-1/4" precision-ground cast iron table provides a durable work area and is predrilled for power feeder
• Poly-V-belt transfers maximum power to the spindle
• Powerful 3HP, 1Ph motor with magnetic controls
• Reversible spindle speeds for diverse shaping jobs
• Starting Pins for irregular shaping
• V-belt transfers maximum power to the spindle

Specifications

What our Experts Think

• Industrial Power: 3HP motor handles heavy-duty shaping tasks with ease—ideal for demanding woodworking applications.

• Versatile Spindle Speeds: Multiple speed options (7,500 & 10,000 RPM) accommodate a wide range of cutter profiles and materials.

• Precision & Stability: Heavy cast iron table and base reduce vibration for accurate, consistent results.

• Large Table Surface: Generous workspace supports larger stock and complex shaping tasks.

• User-Focused Design: Fence system with micro-adjustments allows for fine-tuned control.

• Built to Last: Rugged, professional-grade construction ensures long-term durability.

• JET Reliability: Backed by strong support and a reputation for high-performance woodworking tools.

Q&A

Q: What is the JET JWS-35X3-1 Shaper used for?
A: It’s designed for precision edge profiling, molding, and joinery in professional woodworking.

Q: What motor powers the shaper?
A: A powerful 3 HP, single-phase, 230V motor delivers consistent performance for heavy-duty applications.

Q: What spindle speeds are available?
A: Offers two spindle speeds—7,500 and 10,000 RPM—for versatility across different cutter types and materials.

Q: What spindle size does it support?
A: Comes standard with a 3/4" spindle and accepts optional spindle sizes for added flexibility.

Q: Is the fence adjustable?
A: Yes, the precision-ground cast iron fence is independently adjustable for accurate setups.

Q: Is it built for professional use?
A: Absolutely—ideal for cabinet shops, furniture makers, and serious woodworking professionals.

Maintenance Tips

• Clean dust and debris from the table, spindle, and cutter area after each use to maintain performance and safety.

• Lubricate spindle bearings and elevation mechanisms monthly using recommended lubricants.

• Inspect and tighten belts, pulleys, and fasteners regularly to ensure vibration-free operation.

• Check cutter head alignment and spindle runout periodically for accurate shaping.

• Keep motor vents and switch area clear to prevent overheating and electrical issues.

• Use sharp, properly balanced cutter heads to reduce motor load and ensure clean cuts.

• Test emergency stop and power switch before each use to ensure they’re functioning correctly.

• Avoid overloading the shaper—match feed rate and material type to tool capacity.

• Store in a dry, dust-controlled environment to prevent rust and extend machine life.

• Ensure proper grounding and stable 230V power supply for safe operation
