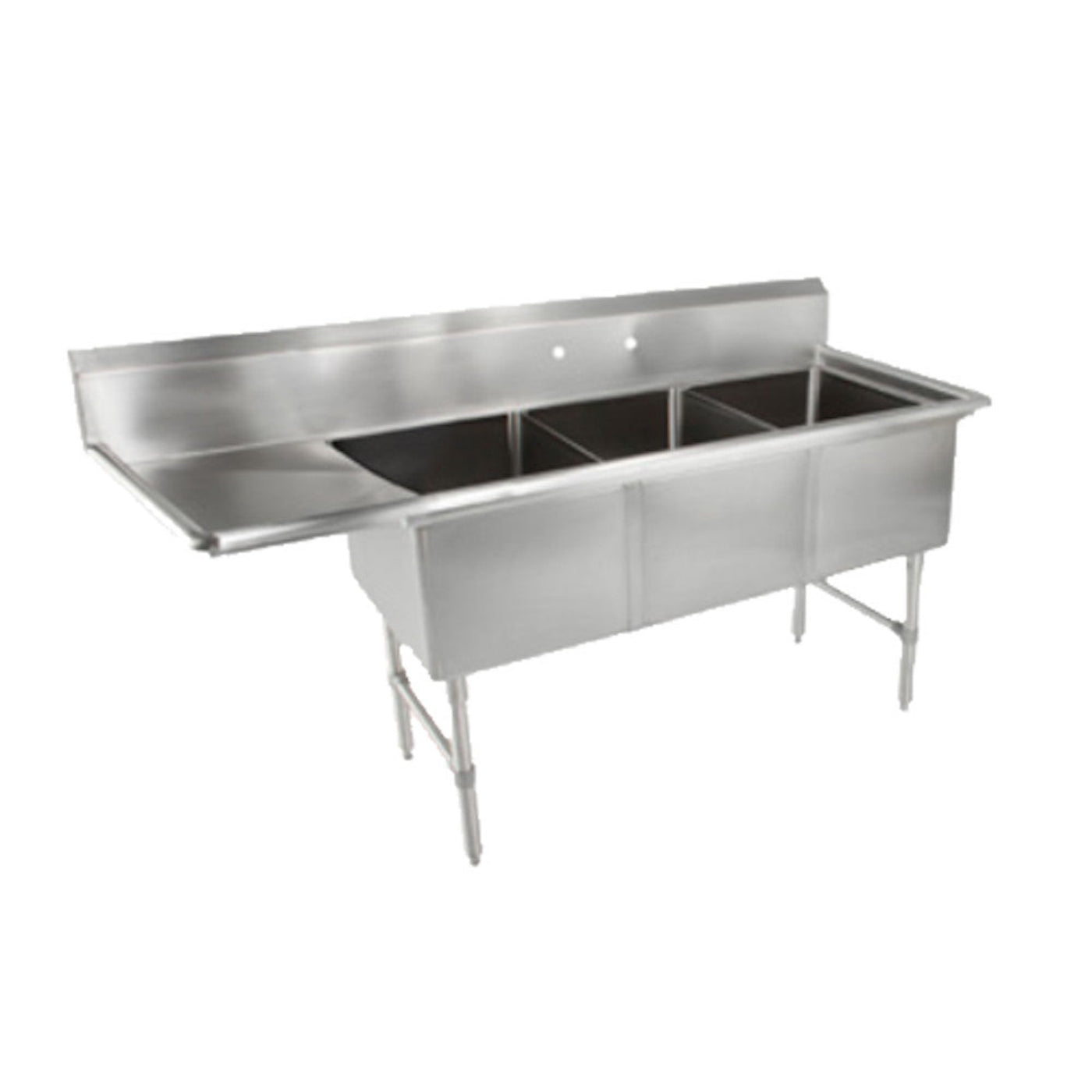

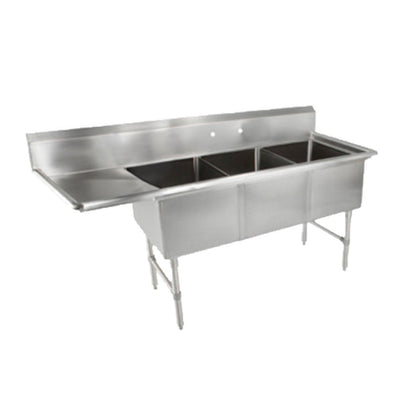

John Boos 3B184-1D18L Three-Compartment "B" Series Sink with 18" Left Drainboard - JB3B1841D18L
This John Boos 3B184-1D18L Sink is made to fit the needs of a variety of applications. Its sturdy stainless steel construction is durable, making it perfect for commercial or industrial environments. It has a 16 gauge stainless steel bowl and top. The top has been finished with a #4 satin polish. The bowl is 14" deep with coved corners at a 3/4" radius. The corners are coved on the exterior as well to provide a safe, clean, and polished edge. This 3B184-1D18L does not include a faucet but has 1-1/8" faucet holes in its 10" high boxed backsplash. It comes with an 18" left drainboard.
FeaturesÂ
- (3) 18" W x 18" front-to-back x 14" deep compartment
- (1) 18" left drainboard
- 16 gauge stainless steel bowl and top
- Type 300 stainless steel with #4 polish, satin finish
- 14" deep bowls
- All corners, both vertical and horizontal, coved at 3/4" radius
- Bottoms of bowls formed for drainage to 3-1/2" diameter die stamped opening
- Full length 10" high boxed backsplash
- 2" return to wall at 45-degree
- 1" turned down rear lip
- 1-1/8" faucet holes in backsplash
- All outside corners of assembly are bull-nosed to provide safe, clean, and polished edge
- Standard stainless steel legs are 1-5/8" in diameter
- Stainless steel sink tops are tig welded
- Exposed welds are polished to match adjacent surfaces
- Stainless steel frame is mig welded
- 1-1/4" Round O.D. stainless steel bracing
- Stainless steel gussets
- 1" adjustable bullet feet
Specifications
- Model: 3B184-1D18L
- Dimensions: 43" H x 76" W x 23.5" D
- Approximate Weight: 150 lbs.
- Certifications: NSF, CSA-Sanitation
What Our Experts Think
-
Commercial-grade three-compartment sink ideal for restaurants and catering kitchens.
-
18" left drainboard provides extra workspace for washing and drying.
-
Durable stainless steel construction ensures long-lasting performance.
-
Deep basins accommodate large pots, pans, and trays.
-
Meets NSF standards for commercial kitchen sanitation.
Q&A
Q: What are the sink compartments like?
A: Three deep basins for washing, rinsing, and sanitizing.
Q: Is it suitable for heavy-duty use?
A: Yes, built for frequent, high-volume commercial kitchen operations.
Q: Does it include a drainboard?
A: Yes, it comes with an 18-inch left drainboard for added workspace.
Maintenance Tips
-
Clean with mild soap and water daily to prevent residue buildup.
-
Avoid abrasive cleaners to protect the stainless steel finish.
-
Inspect drains and faucets periodically for leaks or blockages.
-
Schedule regular professional maintenance for long-term durability.
