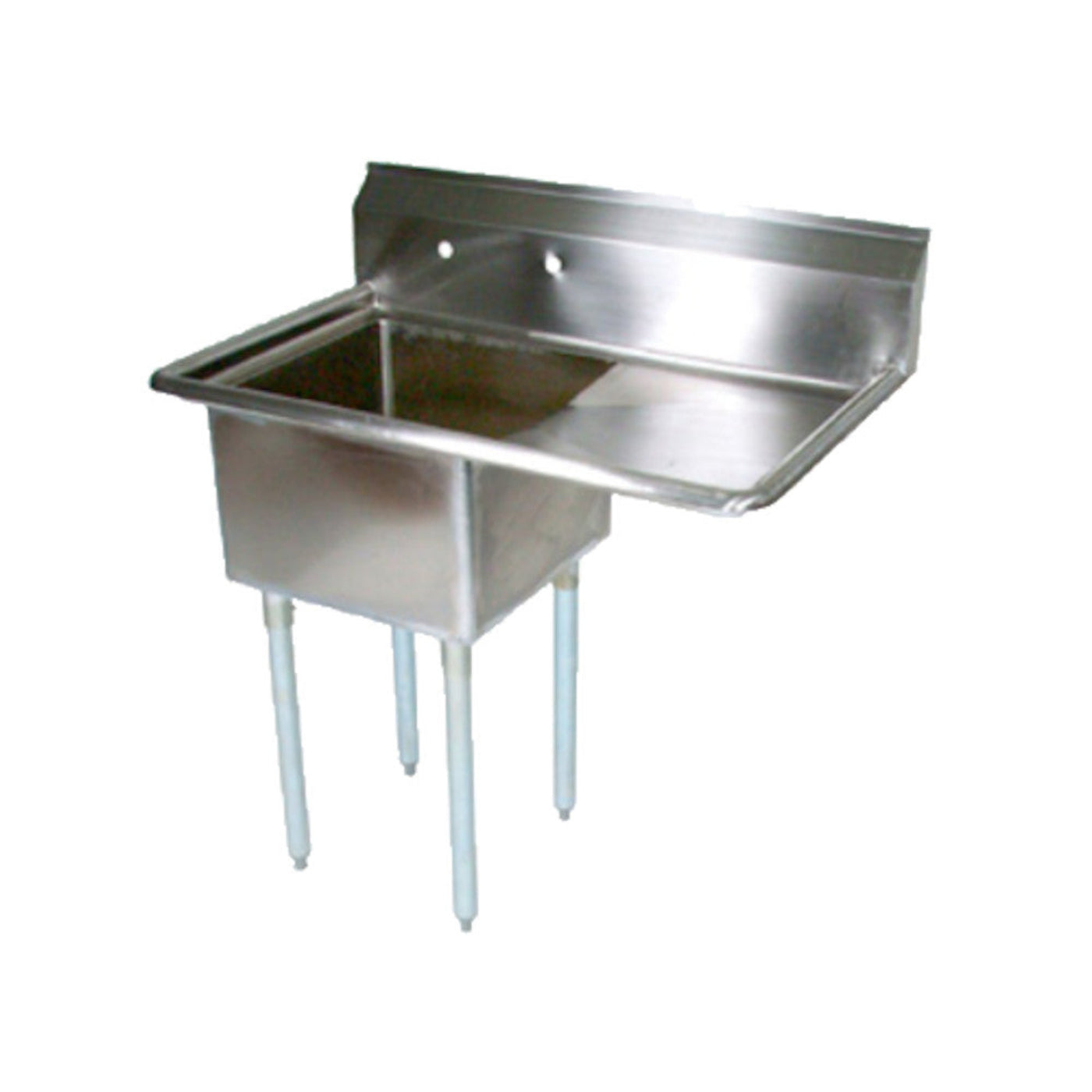

John Boos E1S8-1620-12R18 One-Compartment E-Series Sink, 18" Right Drainboard - JBE1S8162012R18
This John Boos E1S8-1620-12R18 E-Series Sink is durable, easy to use, and designed for commercial or industrial applications. It has a stainless and galvanized steel construction with an 18 gauge type 300 stainless steel bowl and top. Both the bowl and top have been polished with a #4 satin finish. The legs, base, and gussets are galvanized steel. The adjustable bullet feet are made of plastic. This E1S8-1620-12R18 E-Series Sink has a full length 10" high boxed backsplash. It has 1" faucet holes in the backsplash, but the faucet is not included. Faucet must be purchased separately.
Features
- (1) sink compartment
- (1) 18" right drainboard
- 18 gauge stainless steel
- Type 300 stainless steel with #4 polish, satin finish
- All corners, both vertical and horizontal, coved at 3/4" radius
- Bottoms of bowls formed for drainage to 3-1/2" diameter die stamped opening
- Full length 10" high boxed backsplash
- 2" return to wall at 45-degrees
- 1" tile edge
- 1" faucet holes in backsplash
- All outside corners of assembly are bull-nosed to provide safe, clean, and polished edge
- Standard galvanized legs are 1-5/8" in diameter
- Stainless steel sink tops are TIG welded
- Exposed welds are polished to match adjacent surfaces
- Galvanized steel base
- Material
- 18 gauge type 300 stainless steel top and bowls with #4 polish, satin finish
- 1-5/8" Round O.D. galvanized steel legs
- Galvanized steel guessets
- 1" plastic bullet feet
Specifications
- Model: E1S8-1620-12R18
- Compartment Dimensions: 16" W x 20" front-to-back x 12" deep
- Overall Dimensions: 43.75" H x 36.5" W x 25.5" D
- Approximate Weight: 47 lbs.
What Our Experts Think
-
One-compartment E-Series sink with 18" right drainboard for efficient dishwashing.
-
Heavy-duty stainless steel ensures strength and long-lasting performance.
-
Compact design is ideal for tight kitchen spaces.
-
Drainboard provides extra space for drying and organizing.
-
Perfect for restaurants, bars, and small commercial kitchens.
Q&A
Q: What are the sink dimensions?
A: Compartment size is 16" x 20" with a 12" depth and an 18" right drainboard.
Q: Is this sink durable for commercial use?
A: Yes, it’s built from stainless steel for heavy-duty kitchen demands.
Q: What is the benefit of the right-side drainboard?
A: It offers extra space for draining and drying dishes.
Maintenance Tips
-
Clean daily with mild soap and warm water.
-
Avoid harsh abrasives to protect stainless steel finish.
-
Dry thoroughly after cleaning to prevent water spots.
-
Inspect seams and legs regularly for stability.
