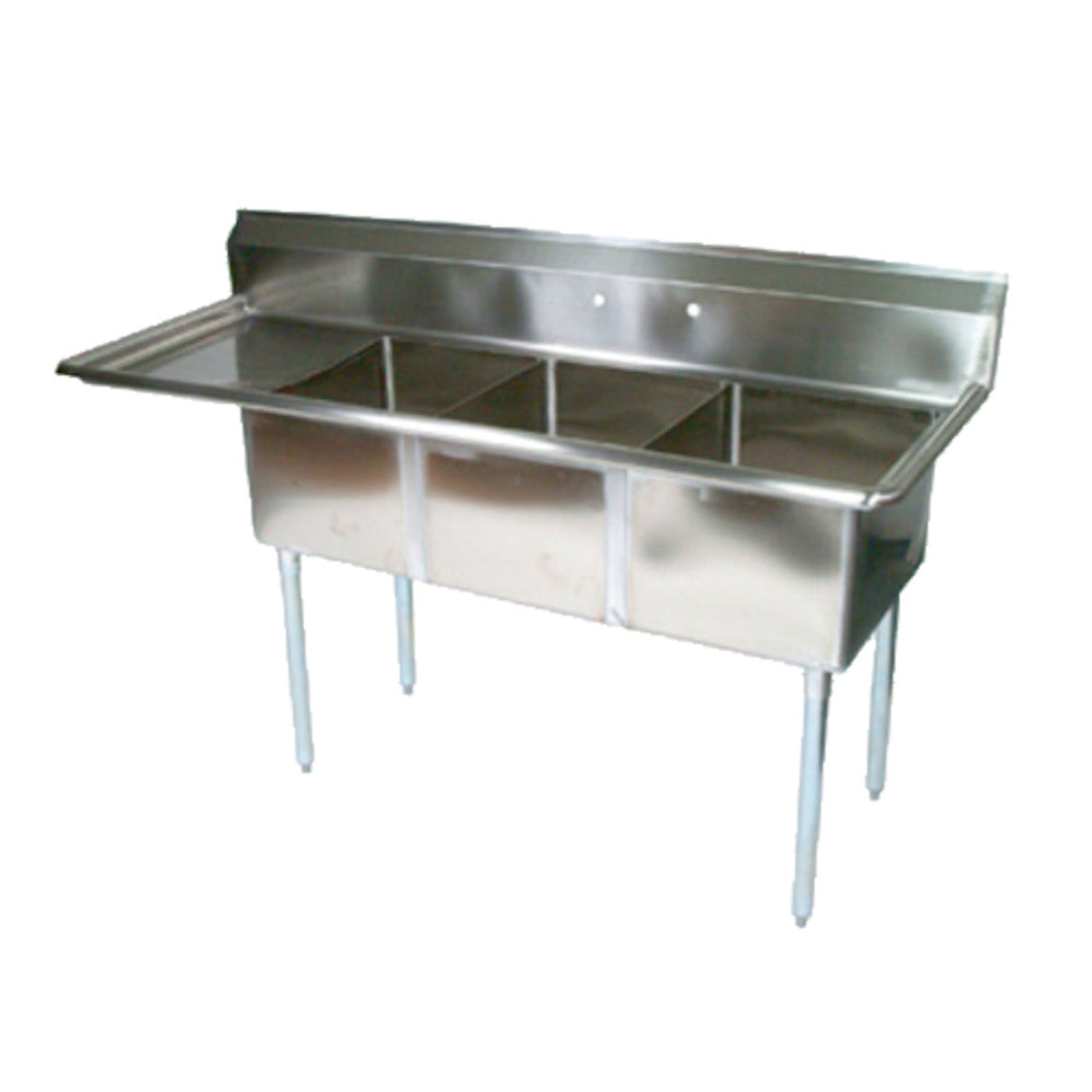

John Boos Three-Compartment E-Series Sink, 24" Left Drainboard - JBE3S8182414L24
This John Boos E3S8-1824-14L24 is a three-compartment E-Series Sink. Designed for commercial or industrial applications, it has been engineered for endurance and ease of use. It has three compartments sinks, each measuring 10" W x 14" front-to-back x 10" deep. The compartment bowls and sink are made of 18 gauge type 300 stainless steel. They have been finished with a #4 polish, satin finish. The Sink has a 10" high boxed backsplash running the entire length of its back. The backsplash has 1" faucet holes for a faucet to be added (The faucet is NOT included). This E3S8-1824-14L24 has galvanized steel gussets and legs. It has a 24" left drainboard.
Features
- (3) sink compartments
- (1) 24" left drainboard
- 18 gauge stainless steel
- Type 300 stainless steel with #4 polish, satin finish
- 14" deep bowls
- All corners, both vertical and horizontal, coved at 3/4" radius
- Bottoms of bowls formed for drainage to 3-1/2" diameter die stamped opening
- Full length 10" high boxed backsplash
- 2" return to wall at 45-degree
- 1" tile edge
- 1" faucet holes in backsplash
- All outside corners of assembly are bull-nosed to provide safe, clean, and polished edge
- Standard galvanized steel legs are 1-5/8" in diameter
- Stainless steel sink tops are TIG welded
- Exposed welds are polished to match adjacent surfaces
- Galvanized steel base
- Material
- 18 gauge type 300 stainless steel with #4 polish, satin finish bowls and top
- 1-5/8" Round O.D galvanized legs
- Galvanized steel gussets
- 1" adjustable plastic bullet feet
- NOTE: Faucet NOT included
- Model: E3S8-1824-14L24
- Compartment Dimensions: 18" W x 24" front-to-back x 14" deep
- Dimensions: 43.75" H x 80" W x 29.5" D
- Approximate Weight: 111 lbs.
What Our Experts Think
-
Three-compartment setup simplifies wash, rinse, and sanitize tasks.
-
24" left drainboard provides extra space for drying or staging.
-
Heavy-duty 18-gauge stainless steel ensures durability.
-
Large 14" deep bowls handle oversized pots, pans, and utensils.
-
Perfect for restaurants, cafeterias, and catering kitchens.
Q&A
Q: What are the dimensions of each bowl?
A: Each compartment measures 18" W x 18" D x 14" H.
Q: Is it NSF certified?
A: Yes, it meets NSF standards for commercial foodservice use.
Q: Are faucets included?
A: No, faucets and accessories must be purchased separately.
Maintenance Tips
-
Clean daily with warm water and mild soap; avoid harsh chemicals.
-
Rinse and dry thoroughly to prevent water spots and rust.
-
Use stainless steel cleaner occasionally for a polished finish.
-
Inspect and tighten plumbing connections regularly.
-
Avoid abrasive scrubbers to maintain surface integrity.
