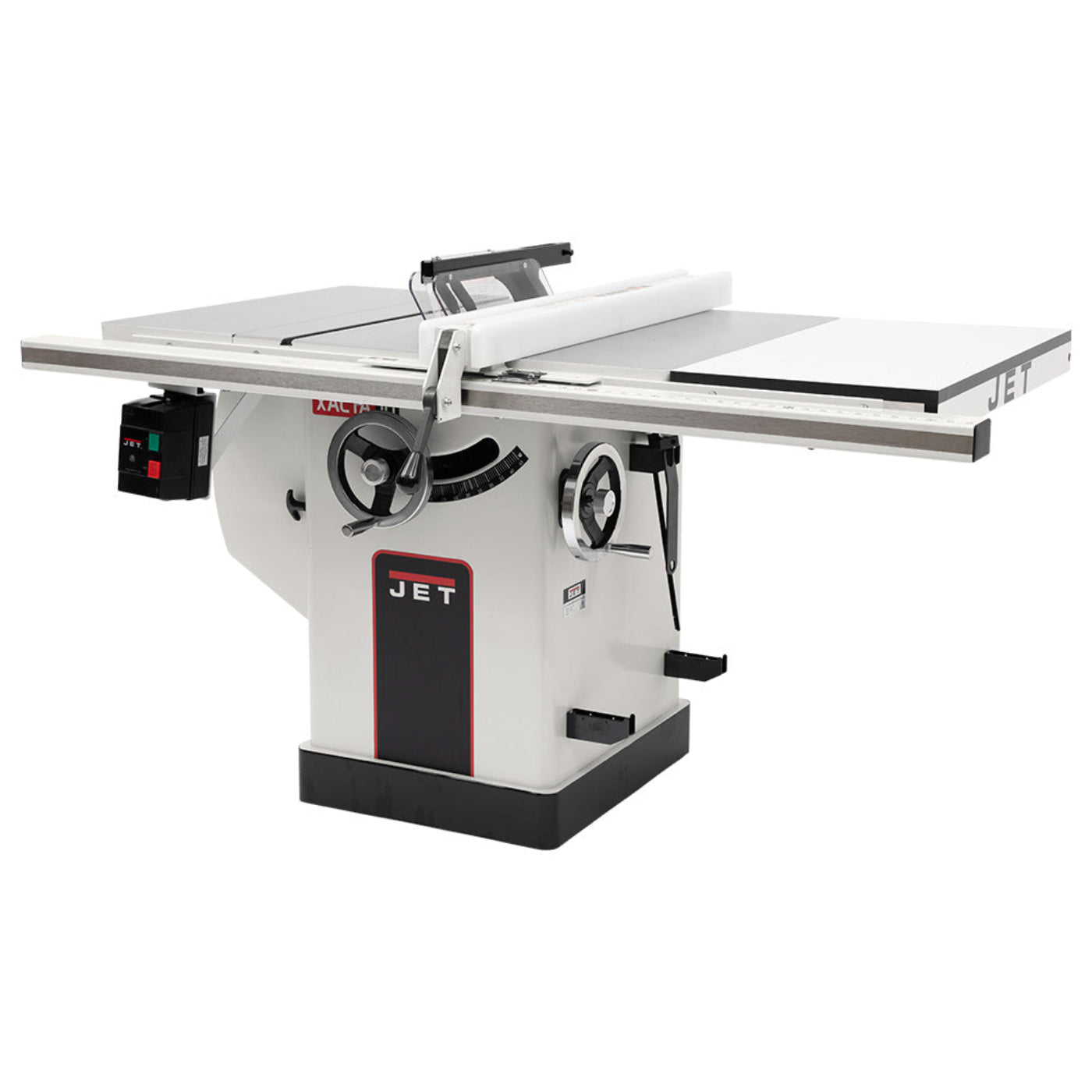

JET Deluxe XACTA Table Saw 30" Rip 3hp, 1-PH, 230V - JT9-708674PK

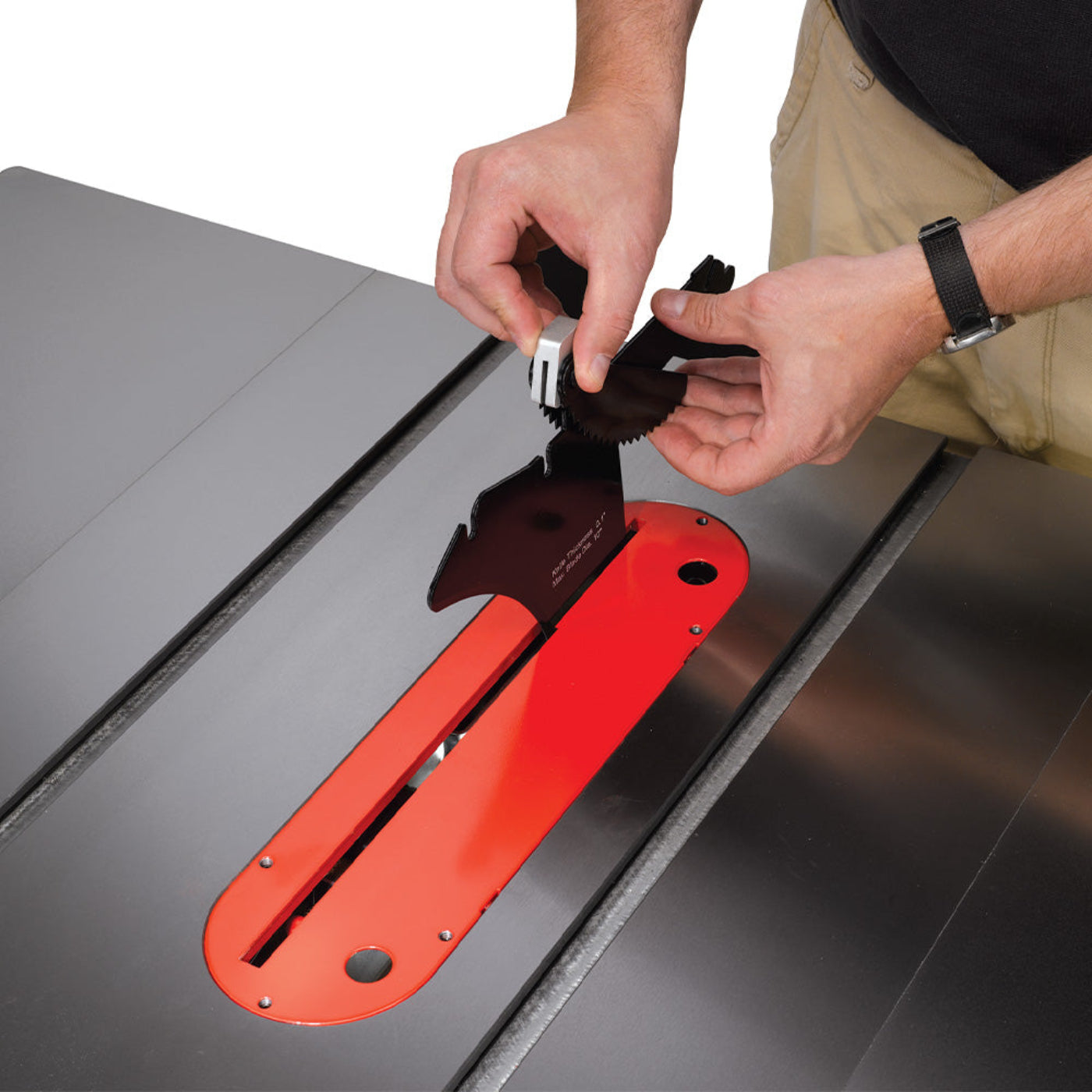

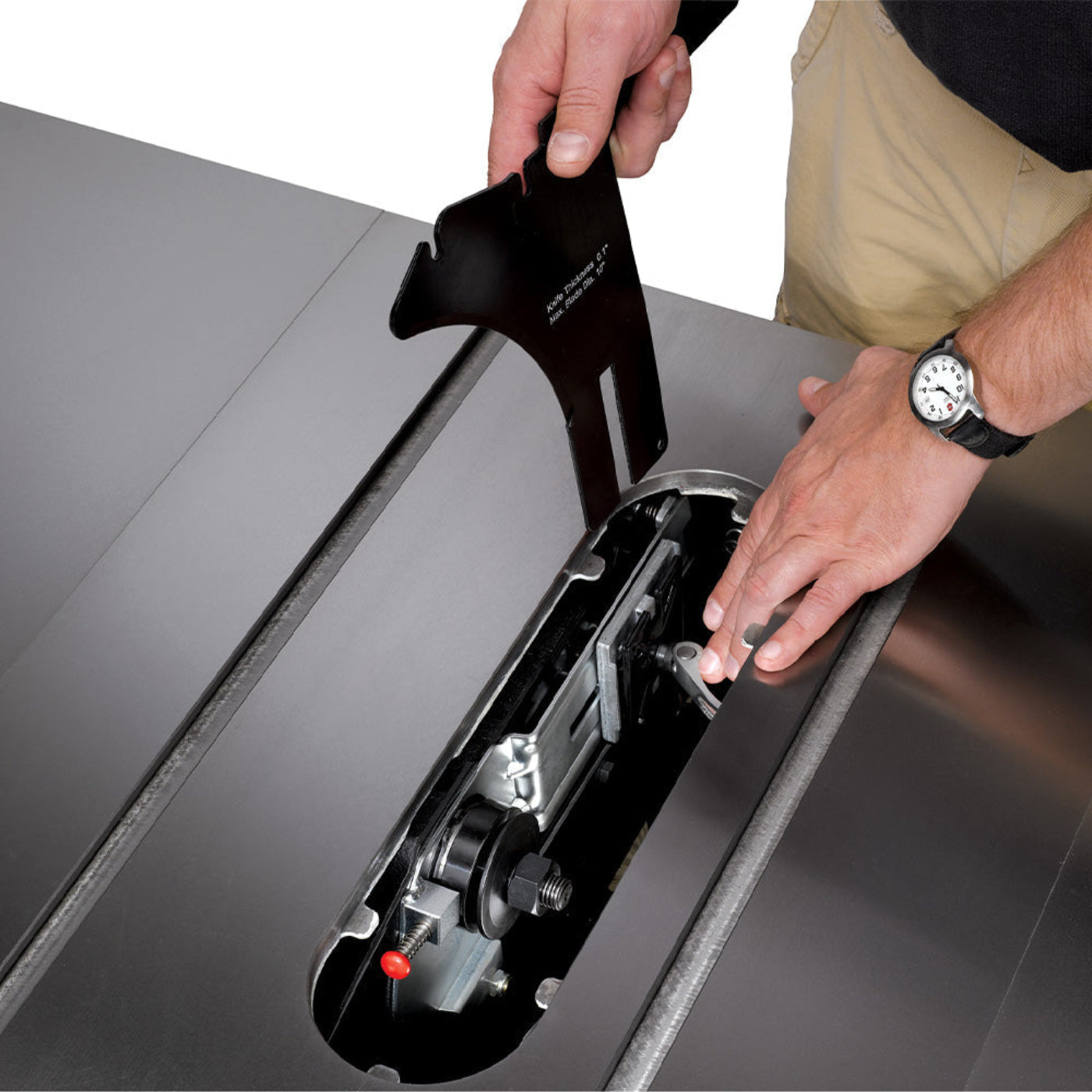

The JET Deluxe XACTA Saw features a quick-release riving knife and an integrated push button arbor lock that keeps the operator safe. Heavy-duty, chrome-plated handwheels provide smooth trunnion/arbor movement. The independent leaf safety guard protects the operator from the blade while cutting, even at a 45° tilt.
The Deluxe XACTA Saw offers an upgraded Poly-V belt drive system for smooth operation and optimal power transfer. A rail-mounted magnetic switch provides overload protection. The 26" x 30" wings and deeper table gives you even more cast iron to work on.
JET warrants every product they sell against manufacturer's defects. All JET Woodworking Machinery carry a 5-Year Warranty from date of purchase. Woodworking products with a 5-Year Warranty that are used for commercial or industrial purposes default to a 2-Year Warranty. Warranties are subject to JET's terms and conditions.
Features

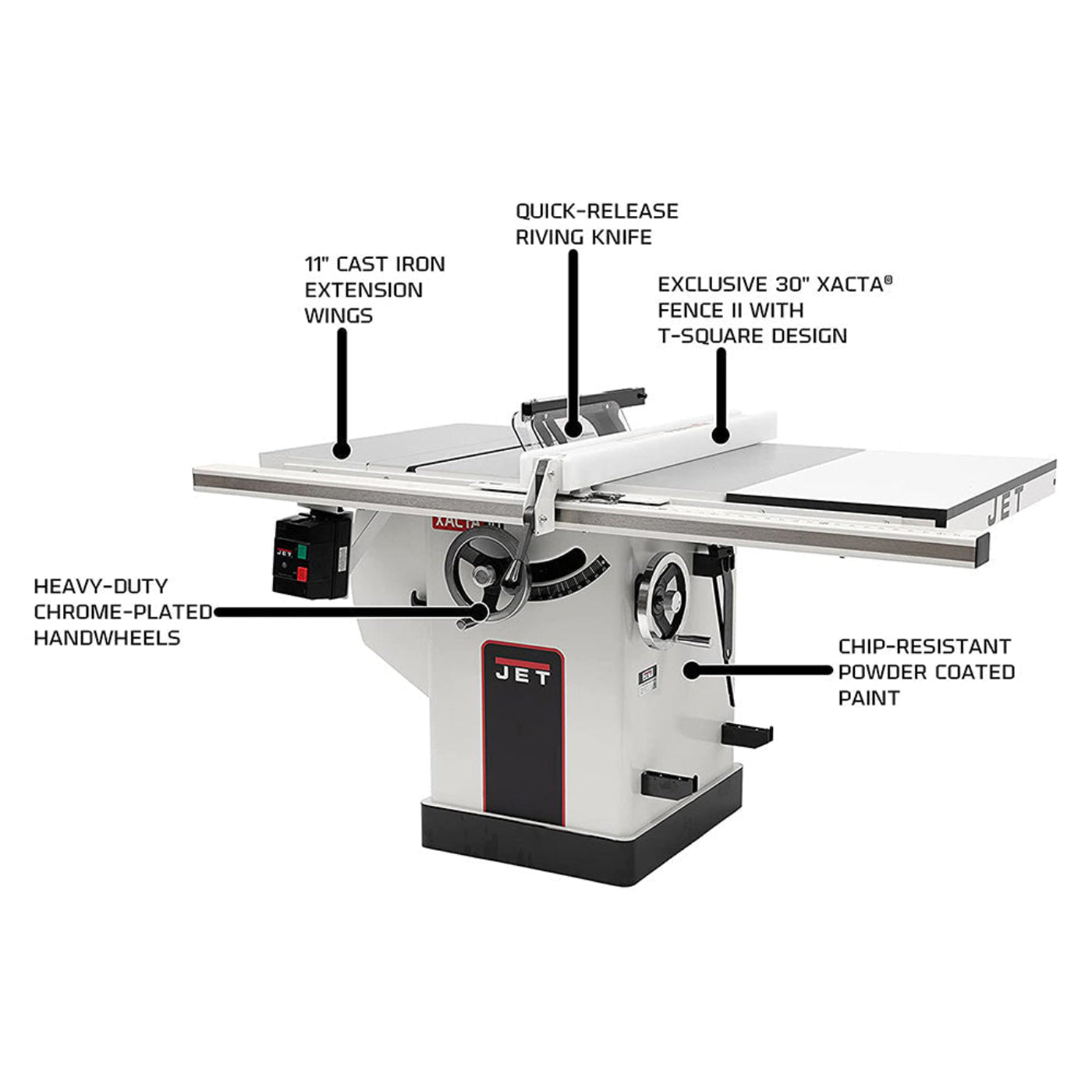

- Deluxe miter gauge with adjustable positive stops and large soft grip handles provides large crosscutting capacity and accurate miters
- Heavy-duty chrome plated handwheels contribute to smooth trunnion/arbor movement
- Hinged motor cover on cabinet gives quick access to the motor and belts

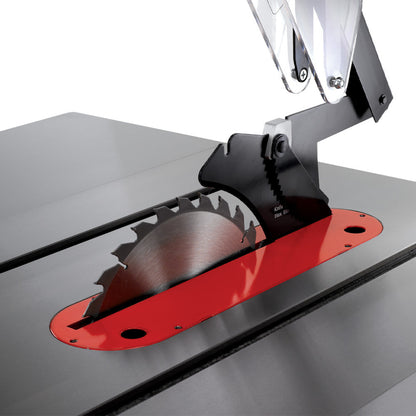

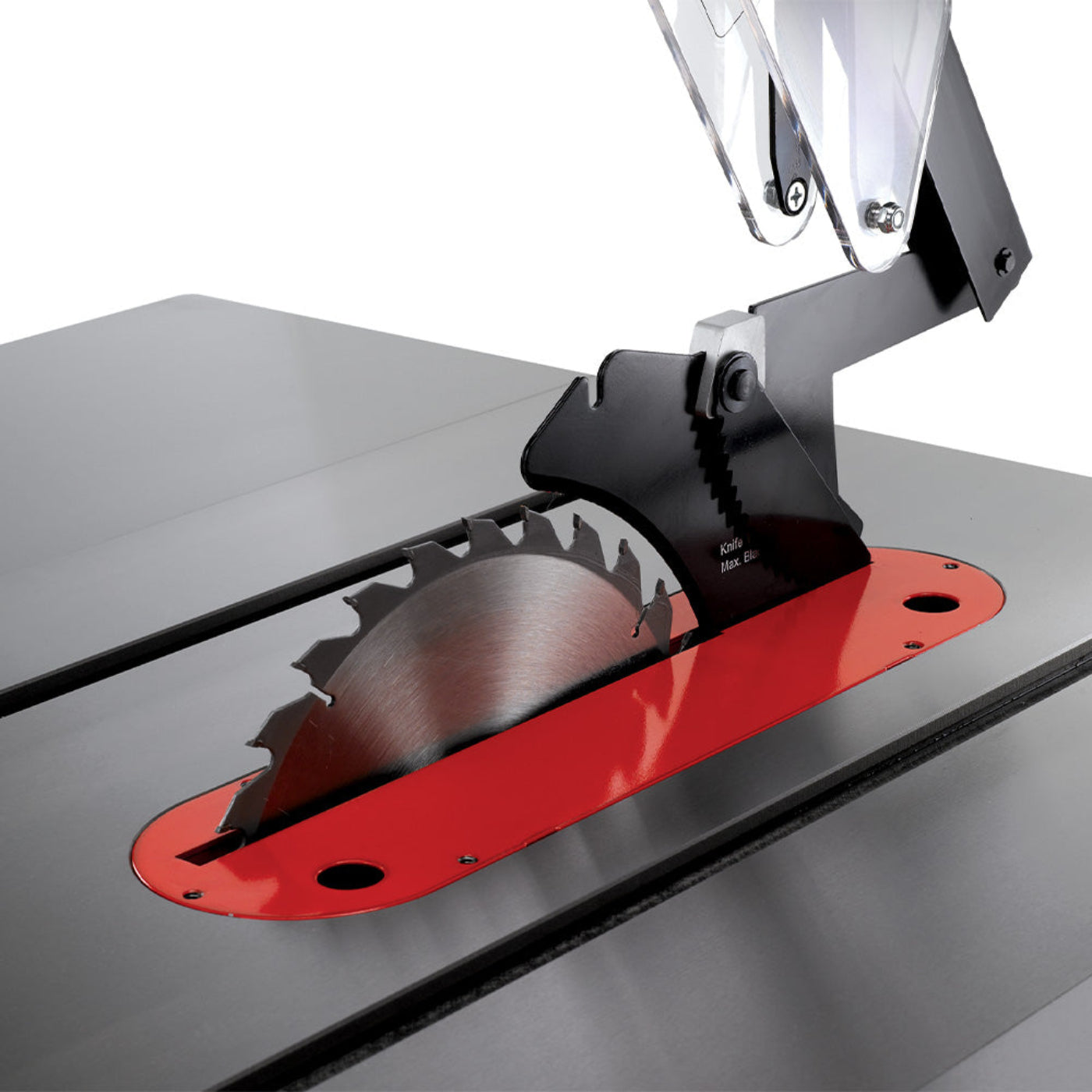

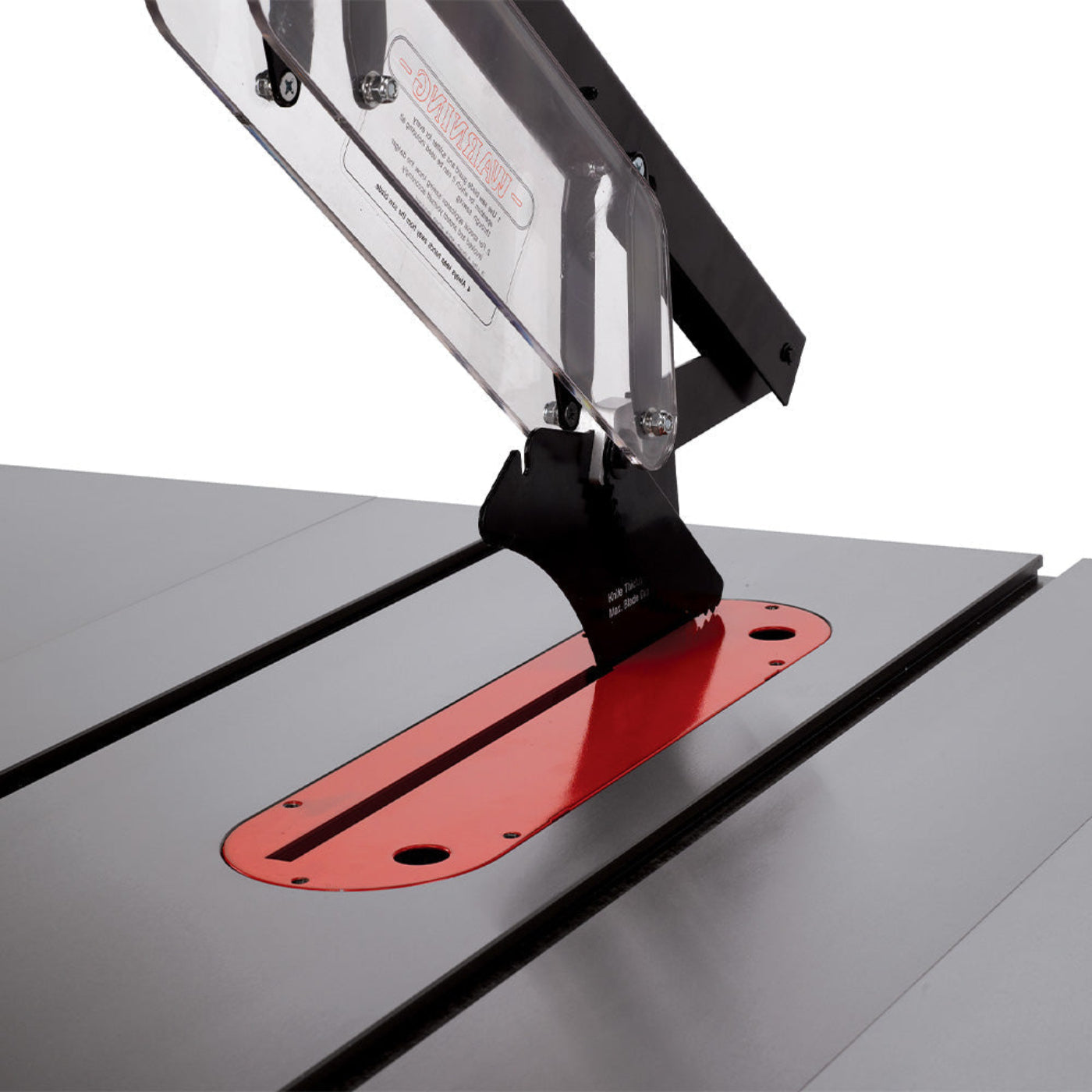

- Independent leaf safety guard protects operator from blade while cutting, even at 45° tilt
- Left and right cast iron extension wings
- Powder coated paint for a long-lasting, chip-resistant finish
- Precision ground high luster cast iron table tops with front edge bevel for hassle-free workpiece positioning
- Rail-mounted magnetic switch is easy to reach and provides overload protection
- Wide stance heavy-duty trunnion for stability and smooth blade positioning
Specifications
| - Blade Diameter |
10" |
| - Arbor Diameter |
5/8" |
| - Max. Depth of Cut (90°) |
3" |
| - Max. Thickness at 45° |
2-1/8" |
| - Max. Dado Width |
13/16" |
| - Max. Dado Diameter |
8" |
| Table & Dimensions |
|
| - Table Height |
34" |
| - Table Size (w/o Extension) |
29" x 20" |
| - Table Size (with Extension) |
29" x 42" |
| - Table in Front of Blade @ Max Cut |
10" |
| Dust Collection |
|
| - Dust Port Diameter |
4" |
| - Minimum CFM Required |
350 CFM |
| Motor & Power |
|
| - Motor Power |
3 HP |
| - Voltage |
230V (Single Phase) |
| Weight |
|
| - Net Weight |
330 lbs |
| - Gross Weight |
407 lbs |
What our Experts Think
-
Precision Cutting:
Experts highlight the 30" rip capacity and powerful 3 HP motor for smooth, accurate cuts on large materials.
-
Robust Build Quality:
Heavy-duty steel construction ensures long-lasting durability and vibration-free operation.
-
Advanced Safety Features:
Comes with riving knife and blade guard to protect users during intensive woodworking projects.
-
User Convenience:
Easy blade adjustments and a large work surface improve workflow and efficiency.
-
Ideal for Professionals:
Recommended for serious woodworkers and contractors needing reliable, high-performance cutting.
Q&A
Q: What are the key features of the JET Deluxe XACTA Table Saw?
A: It offers a 30" rip capacity, 3hp motor, single-phase 230V power, and precise cutting with XACTA technology.
Q: What type of projects is it best for?
A: Ideal for professional woodworking, cabinet making, and heavy-duty cutting tasks.
Q: How does the 3hp motor benefit users?
A: Provides powerful, consistent performance for cutting hardwoods and thick materials.
Q: What does the 30" rip capacity mean?
A: Allows cutting wide boards and large sheet goods with ease.
Q: Is this table saw suitable for single-phase power setups?
A: Yes, designed for 1-PH, 230V electrical systems common in many workshops.
Q: What is the XACTA technology?
A: Advanced precision system ensuring accurate, smooth cuts every time.
Maintenance Tips
-
Keep the blade sharp and clean for precise cuts and safety.
-
Regularly check and align the fence and miter gauge to ensure accuracy.
-
Clean sawdust and debris from the table, motor vents, and internal components to prevent buildup.
-
Lubricate moving parts, such as the arbor and trunnions, according to the manual.
-
Inspect and tighten belts, bolts, and fasteners to maintain stability.
-
Use proper blade guards and safety features at all times.
-
Disconnect power before any maintenance or blade changes.
