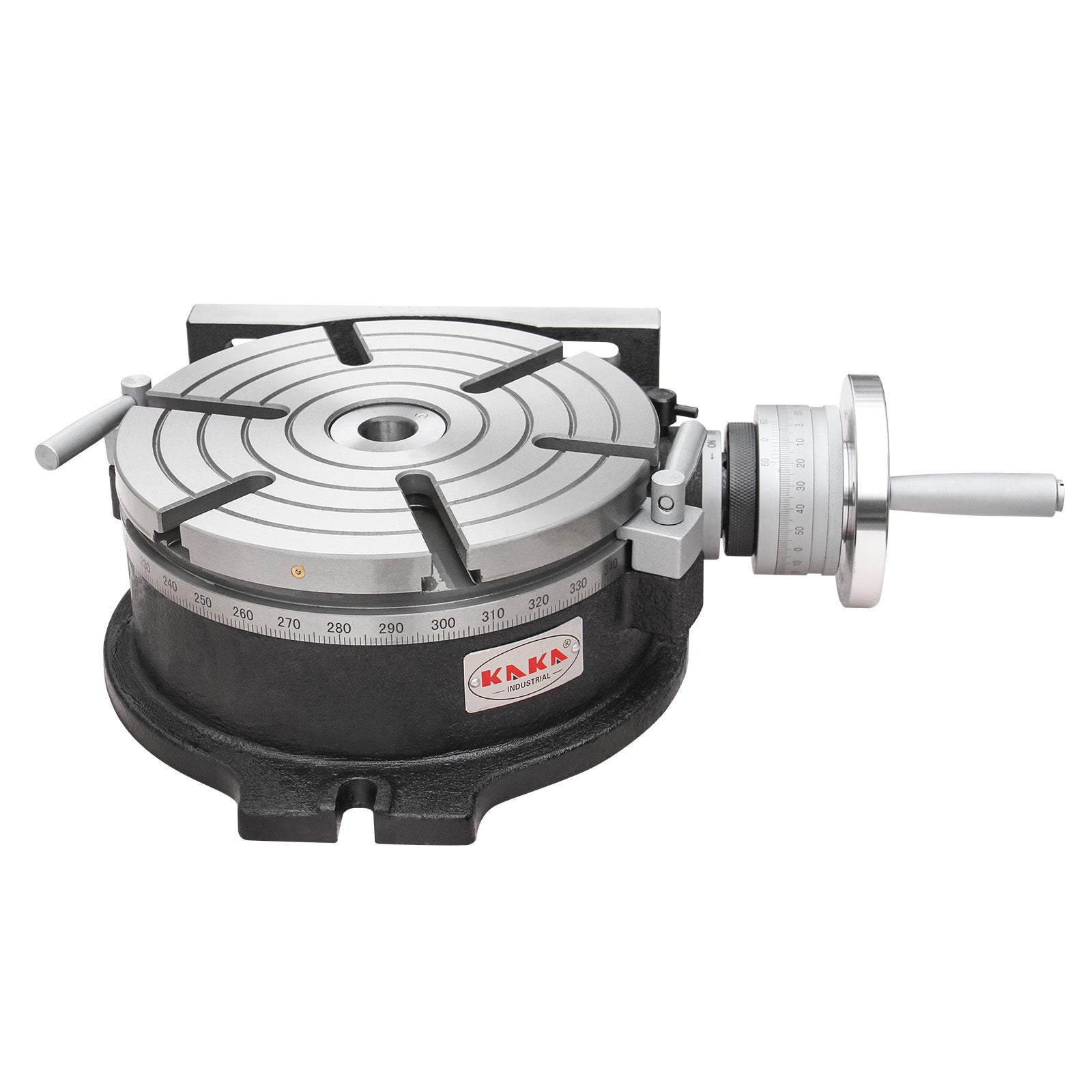

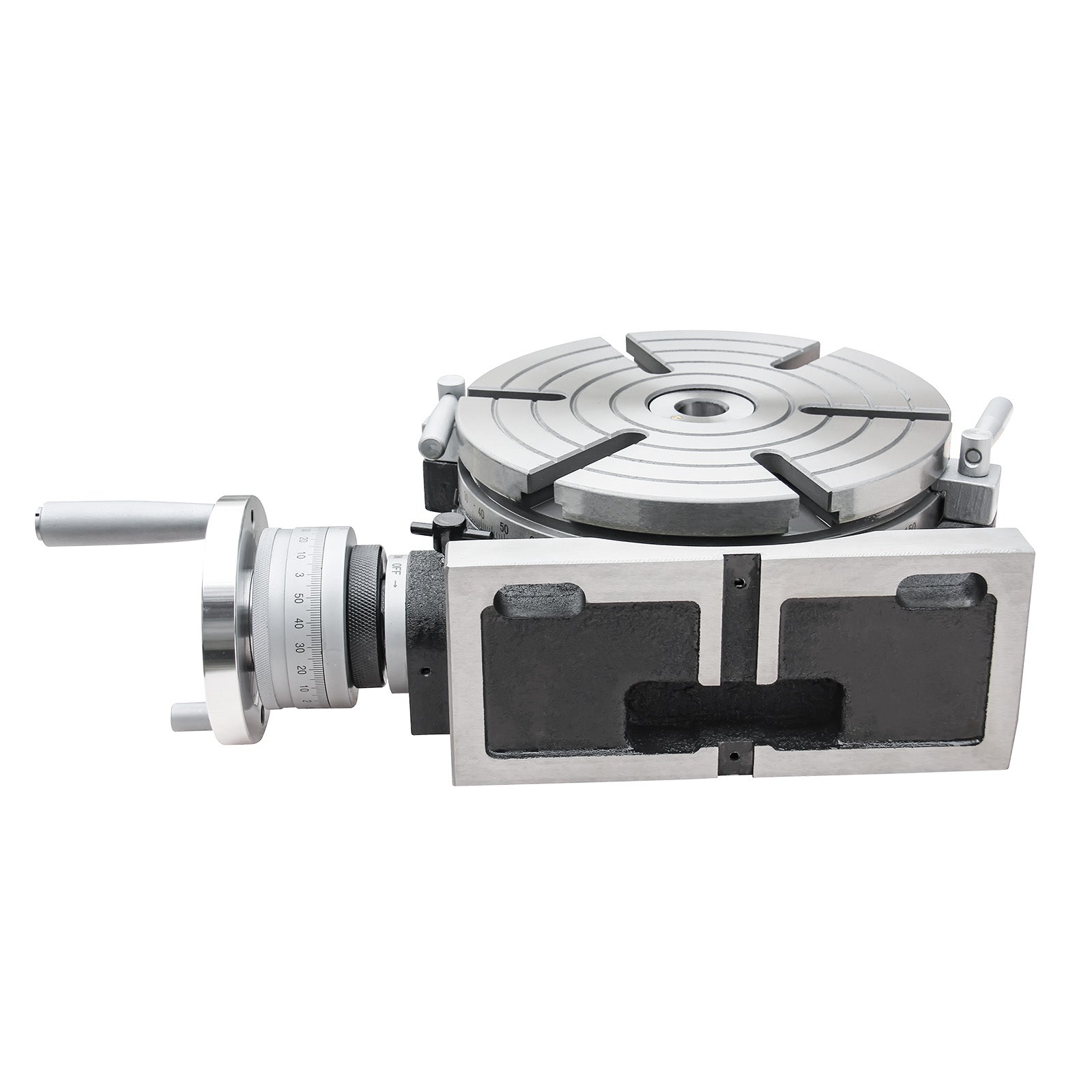

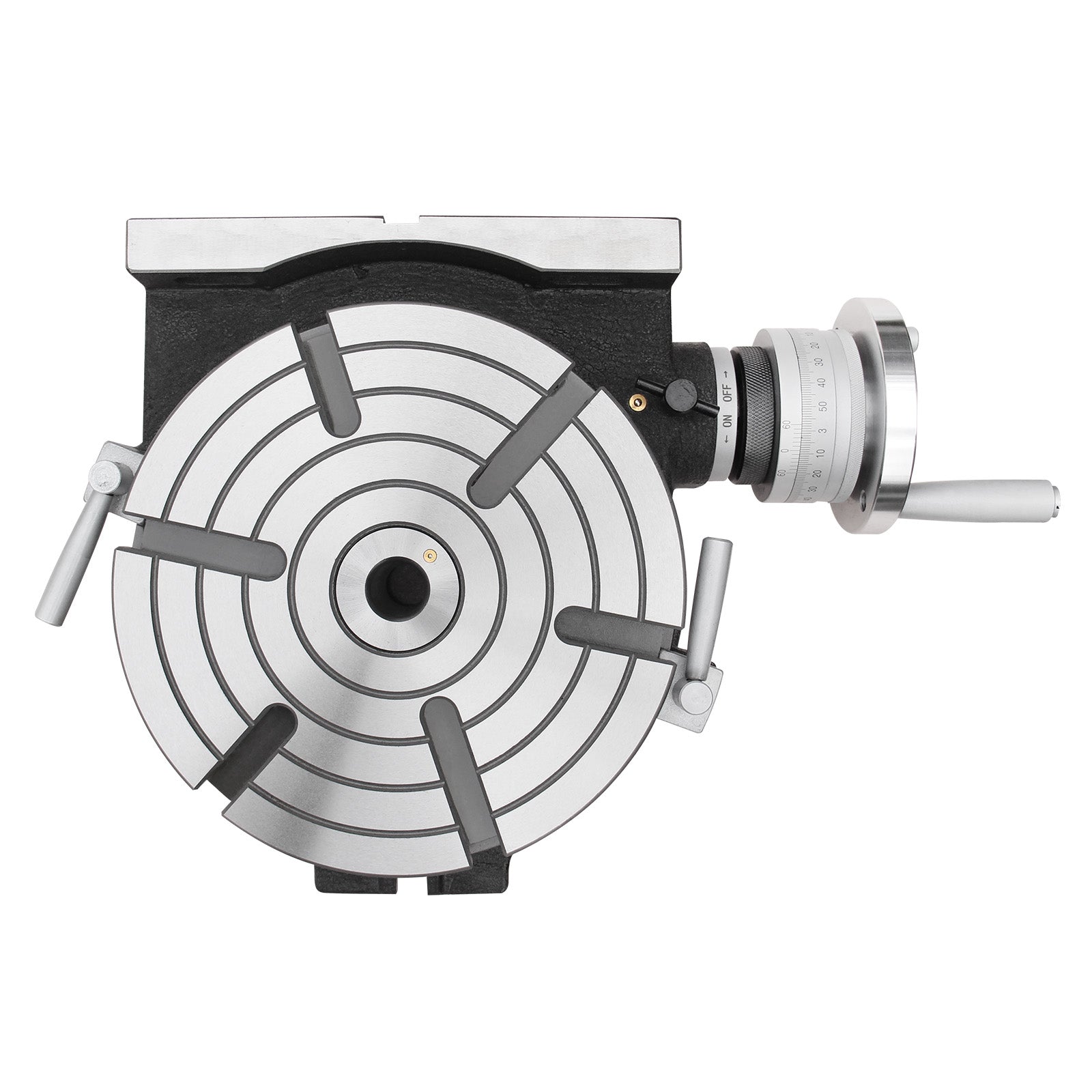

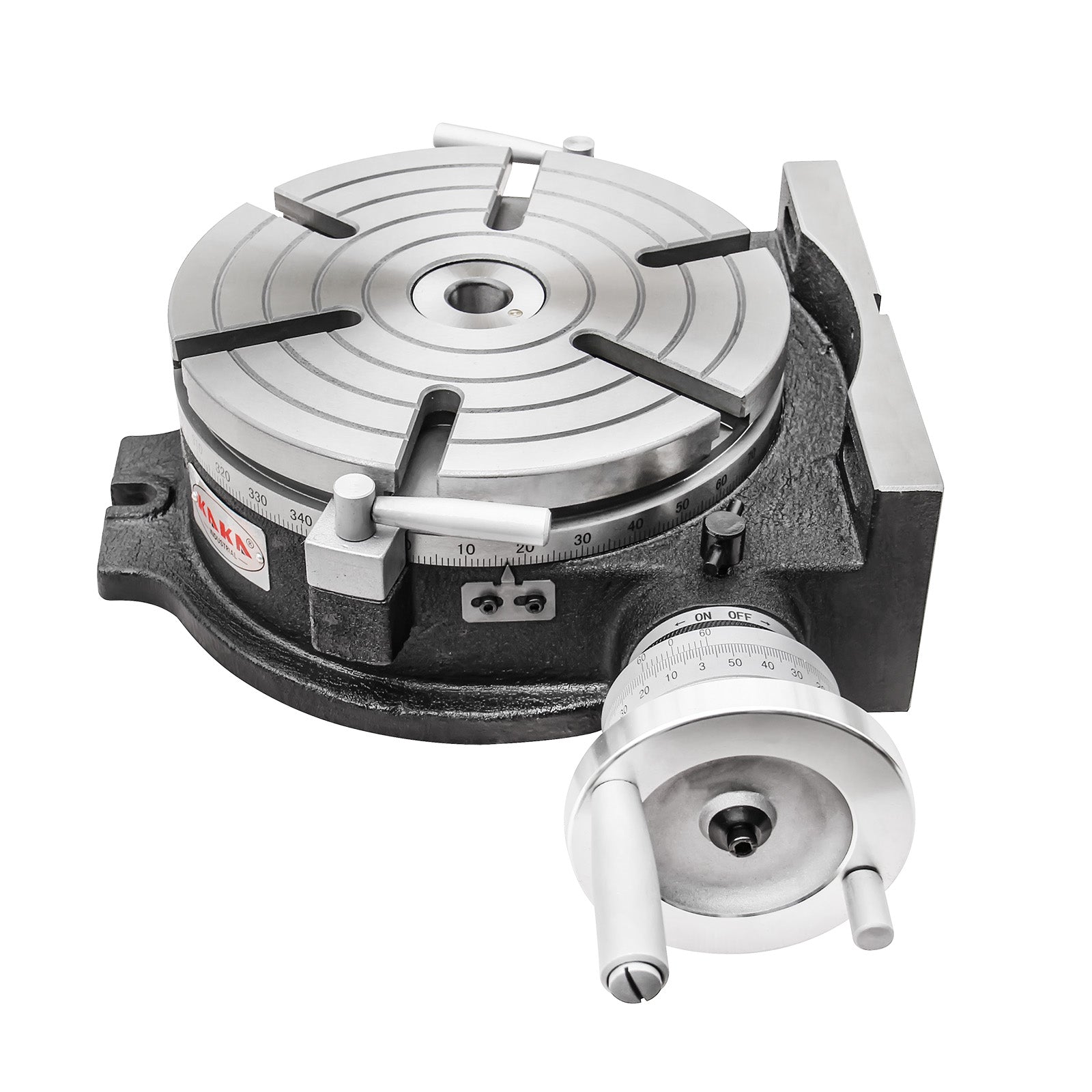

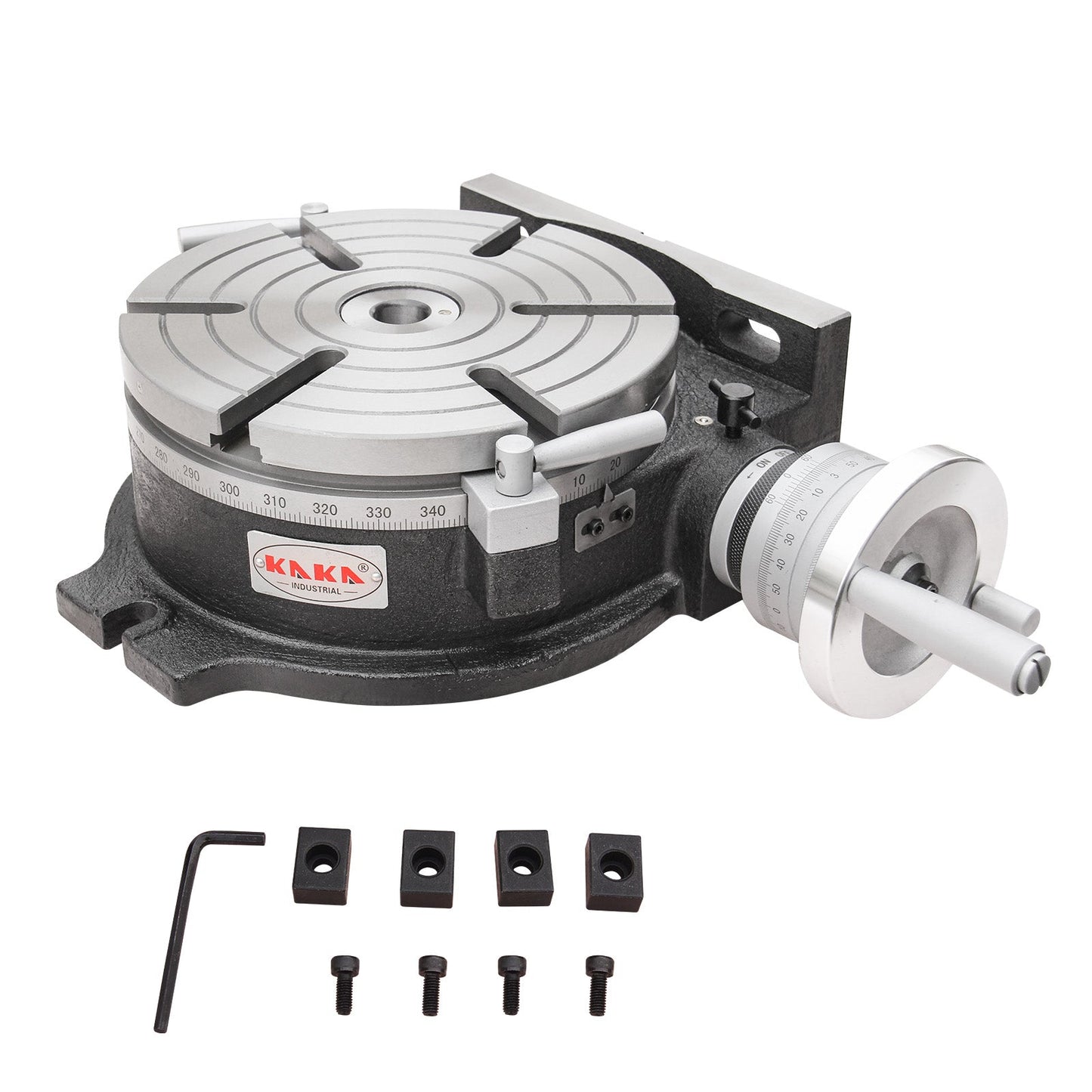

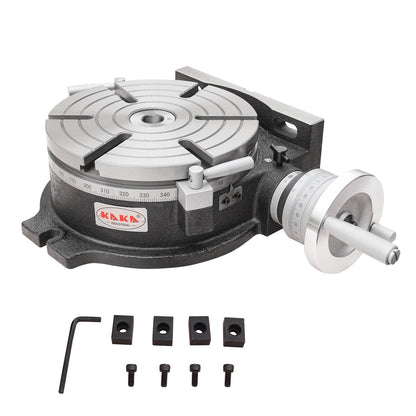

Kaka Industrial HV-10, 10" Horizontal Vertical Rotary Table TSL Vertical & Horizontal MT3 Center Sleeve Rotary Table 6 slot Precision Milling Table 360 Degrees Precision Rotary Table - 161110

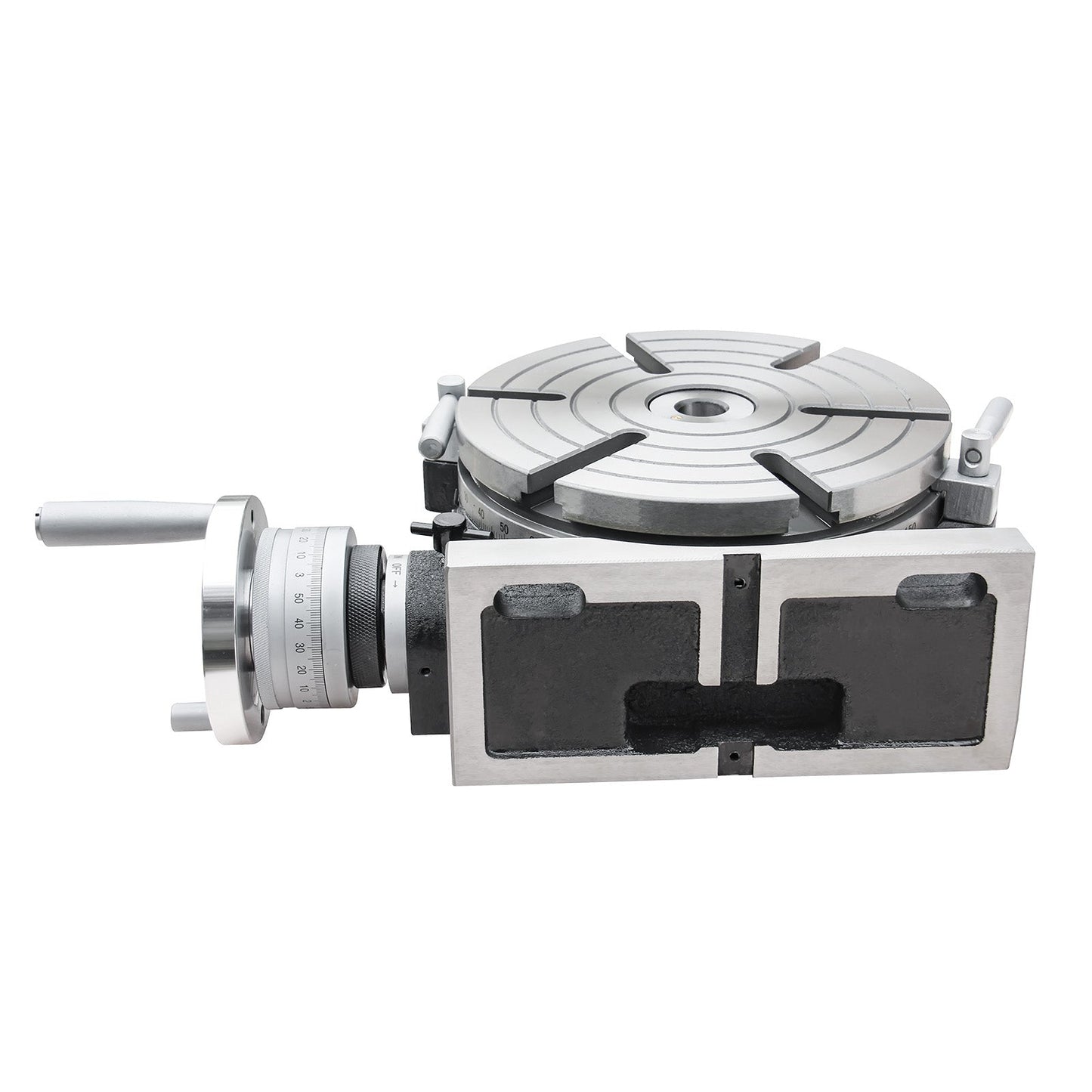

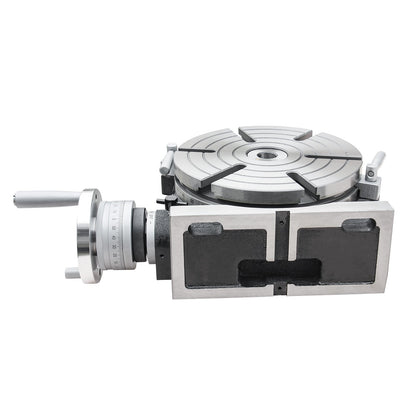

TSL vertical & horizontal rotary table is one of the main accessory of milling machine, it is used for index boring, milling, circle cutting, spot facing and boring hole etc on milling machine. With optional tailstock, the rotary table can be used on complex work for circle index boring and milling.

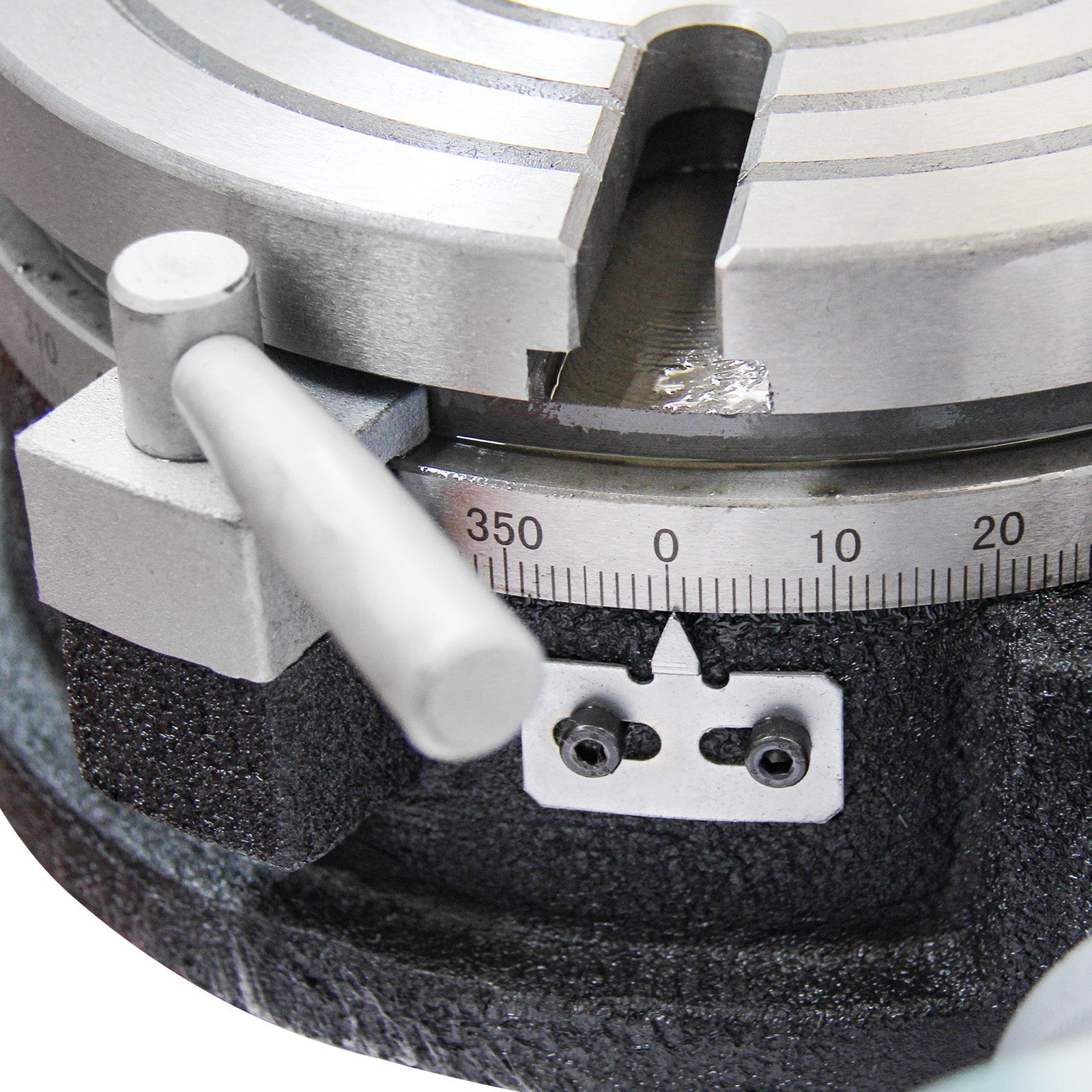

1.Rigid cast iron body.Dual positive-action lock
2.One rotation of handle equals 4 on collar

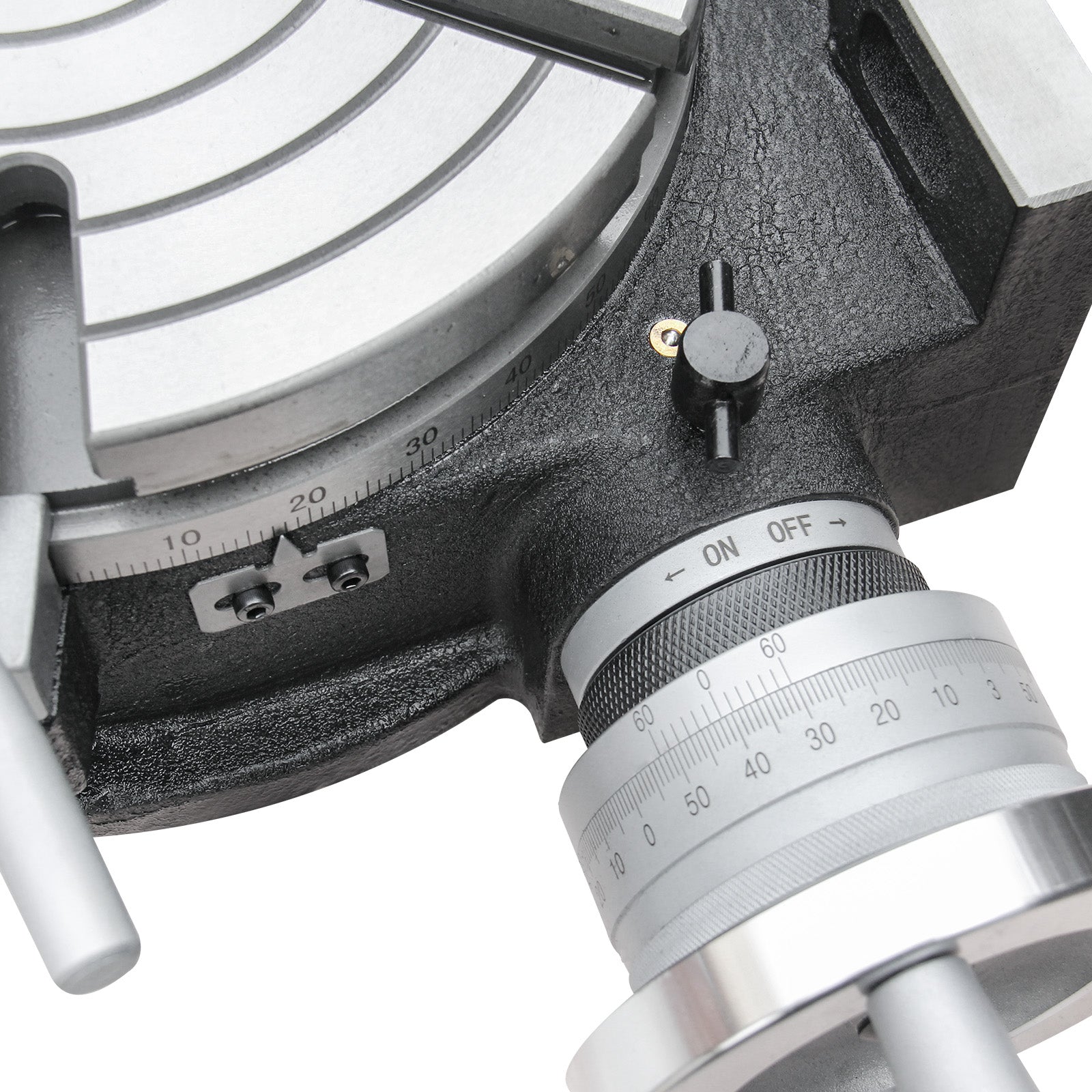

3.Min.10 second vernier reading
4.Gear ratio HV-4 1:72 HV6,HV-8,HV-10,HV-12 1:90
5.Harden and precision ground.Stain chrome dial
What Our Experts Think
-
The KAKA Industrial HV-10 Rotary Table (161110) is a 10-inch precision rotary table designed for both horizontal and vertical milling operations.
-
Features 360° smooth rotation and six T-slots for secure clamping of workpieces during machining.
-
Equipped with an MT3 center sleeve, ensuring accurate alignment and compatibility with standard milling machines.
-
The dual-position design allows versatile setups for drilling, milling, indexing, and complex machining tasks.
Q&A
Q: What is the table diameter?
A: The HV-10 has a 10-inch diameter, suitable for medium to large workpieces.

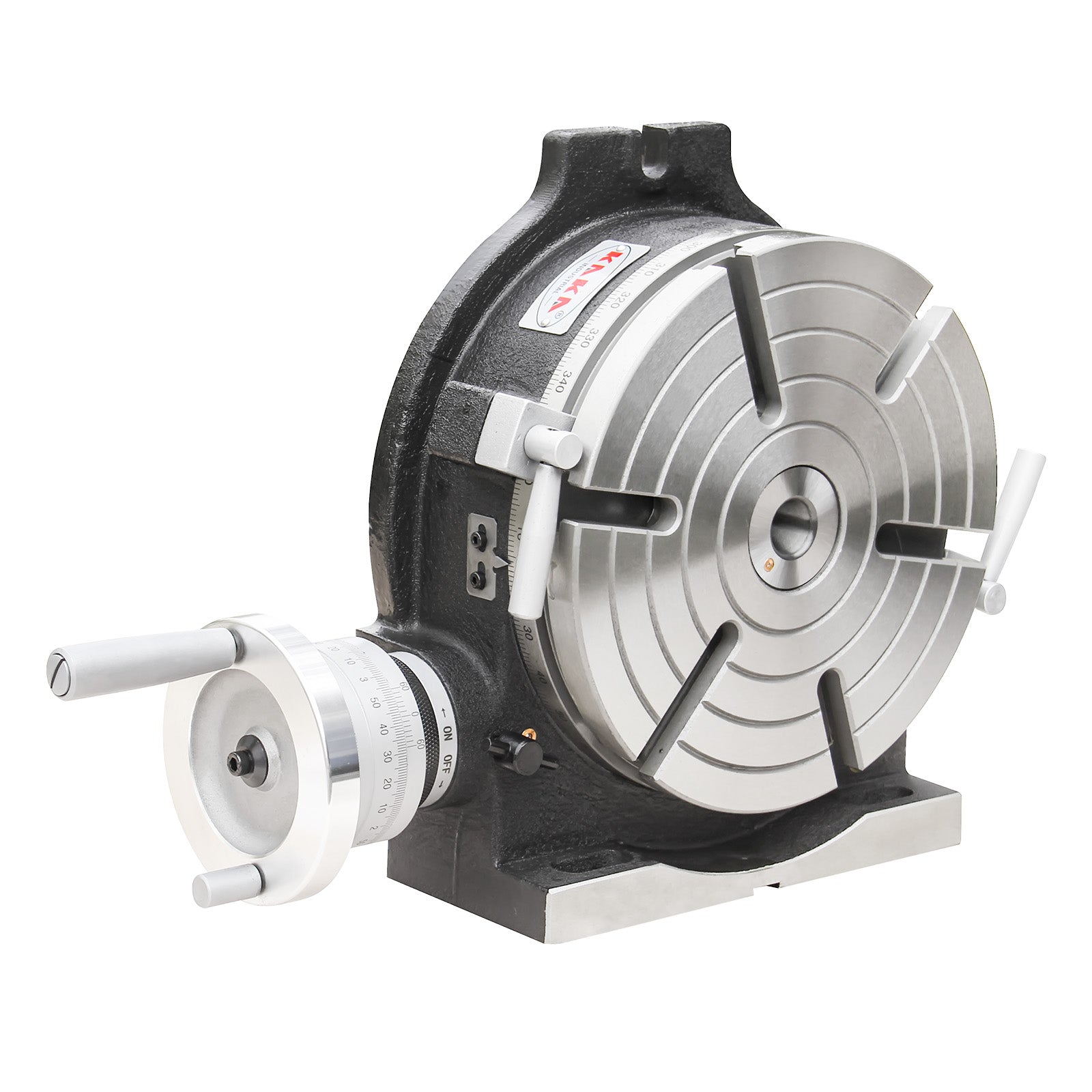

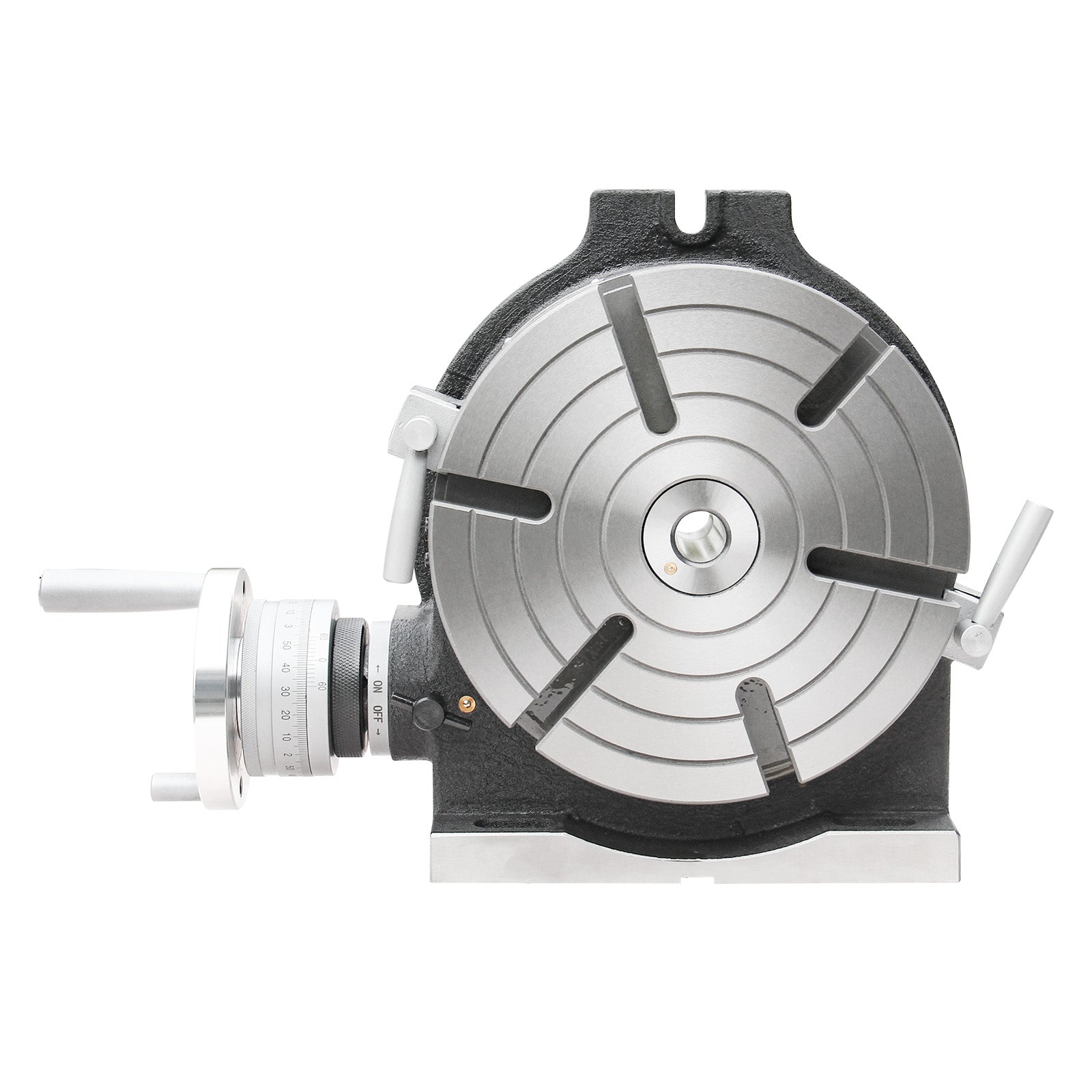

Q: Can it be mounted both horizontally and vertically?
A: Yes, it is designed for horizontal and vertical mounting, increasing versatility.

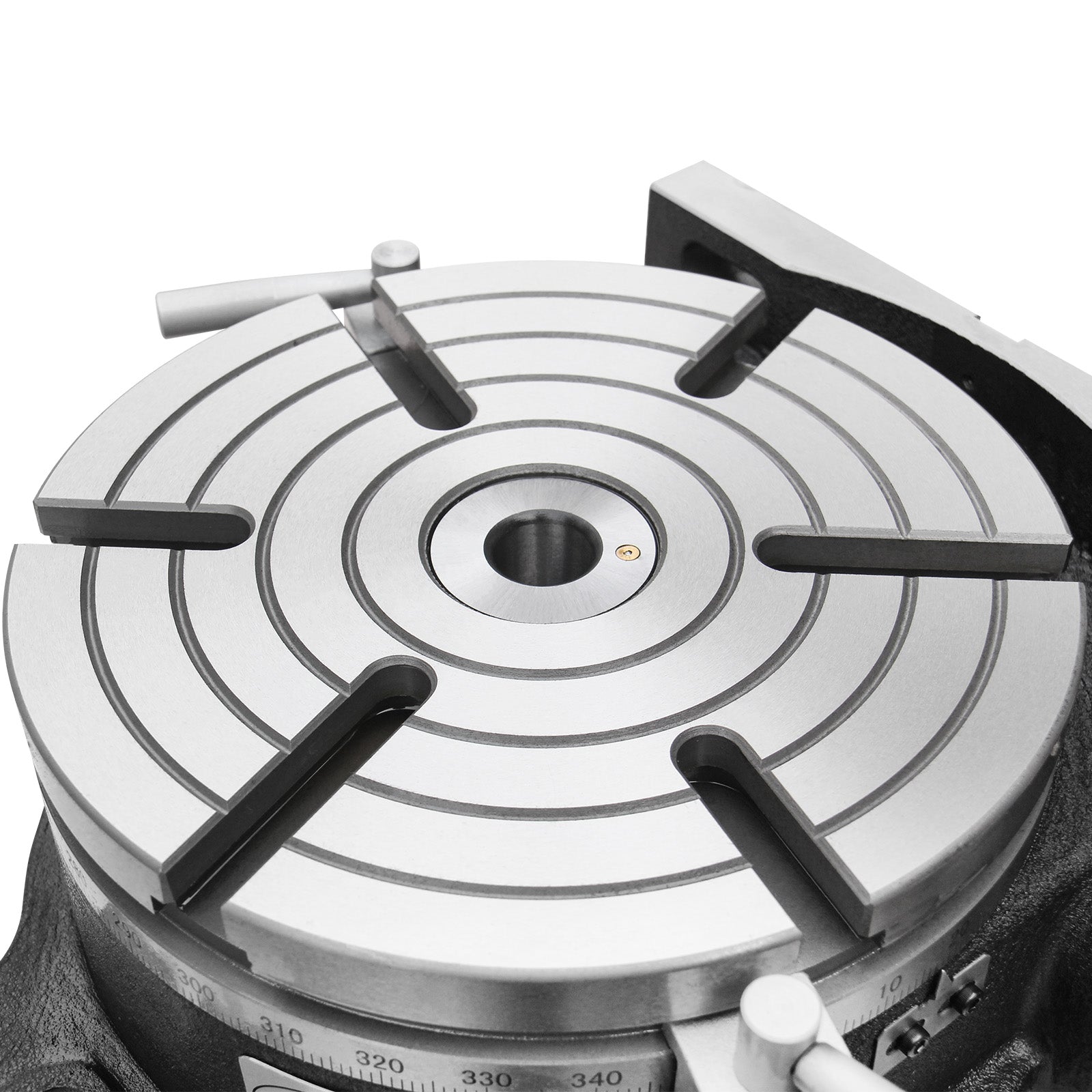

Q: How many T-slots does it have?
A: The table includes six precision-machined T-slots for stable workpiece clamping.
Q: What spindle taper does it use?
A: It uses an MT3 center sleeve for precise alignment and accessory compatibility.
Maintenance Tips
-
Clean T-slots and table surface after each use to prevent debris buildup.
-
Lubricate rotation gears and bearings periodically for smooth and accurate operation.
-
Check for play or backlash and adjust if necessary to maintain precision.
-
Store in a dry, protected environment to prevent rust and extend service life.
