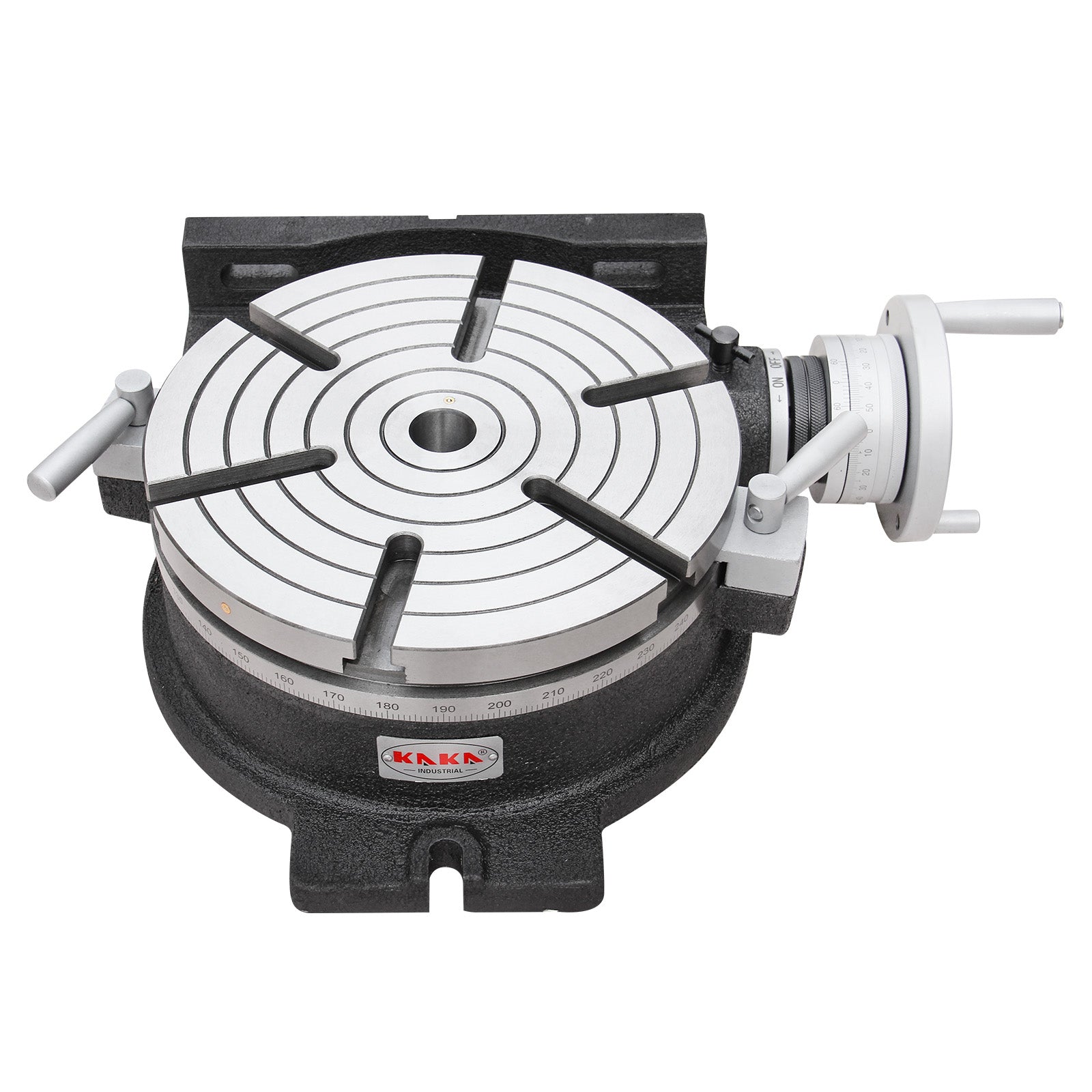

Kaka Industrial HV-12, 12" Horizontal Vertical Rotary Table TSL Vertical & Horizontal MT4 Center Sleeve Rotary Table 6 slot Precision Milling Table 360 Degrees Precision Rotary Table - 161112
TSL vertical & horizontal rotary table is one of the main accessory of milling machine, it is used for index boring, milling, circle cutting, spot facing and boring hole etc on milling machine. With optional tailstock, the rotary table can be used on complex work for circle index boring and milling.
1.Rigid cast iron body.Dual positive-action lock

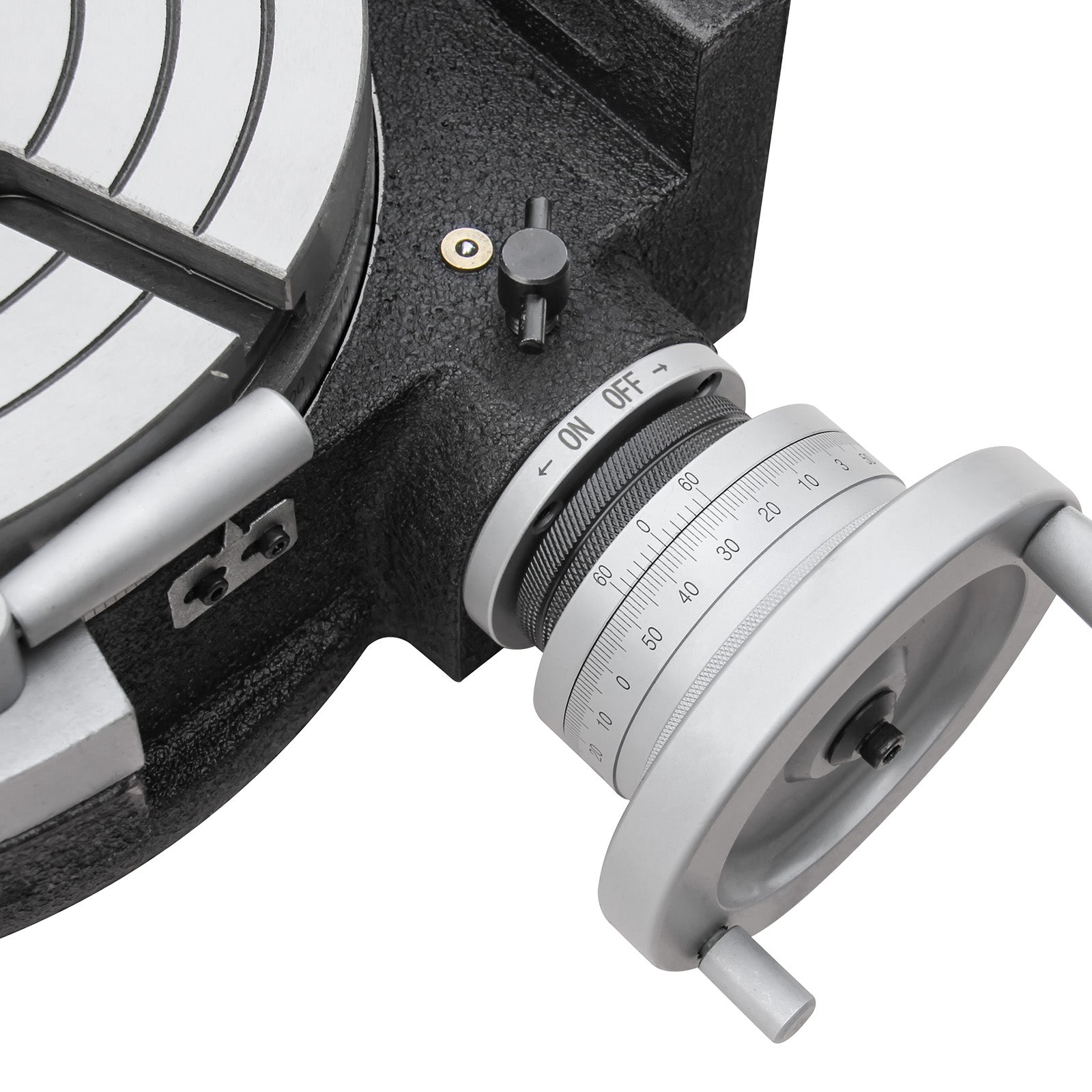

2.One rotation of handle equals 4 on collar

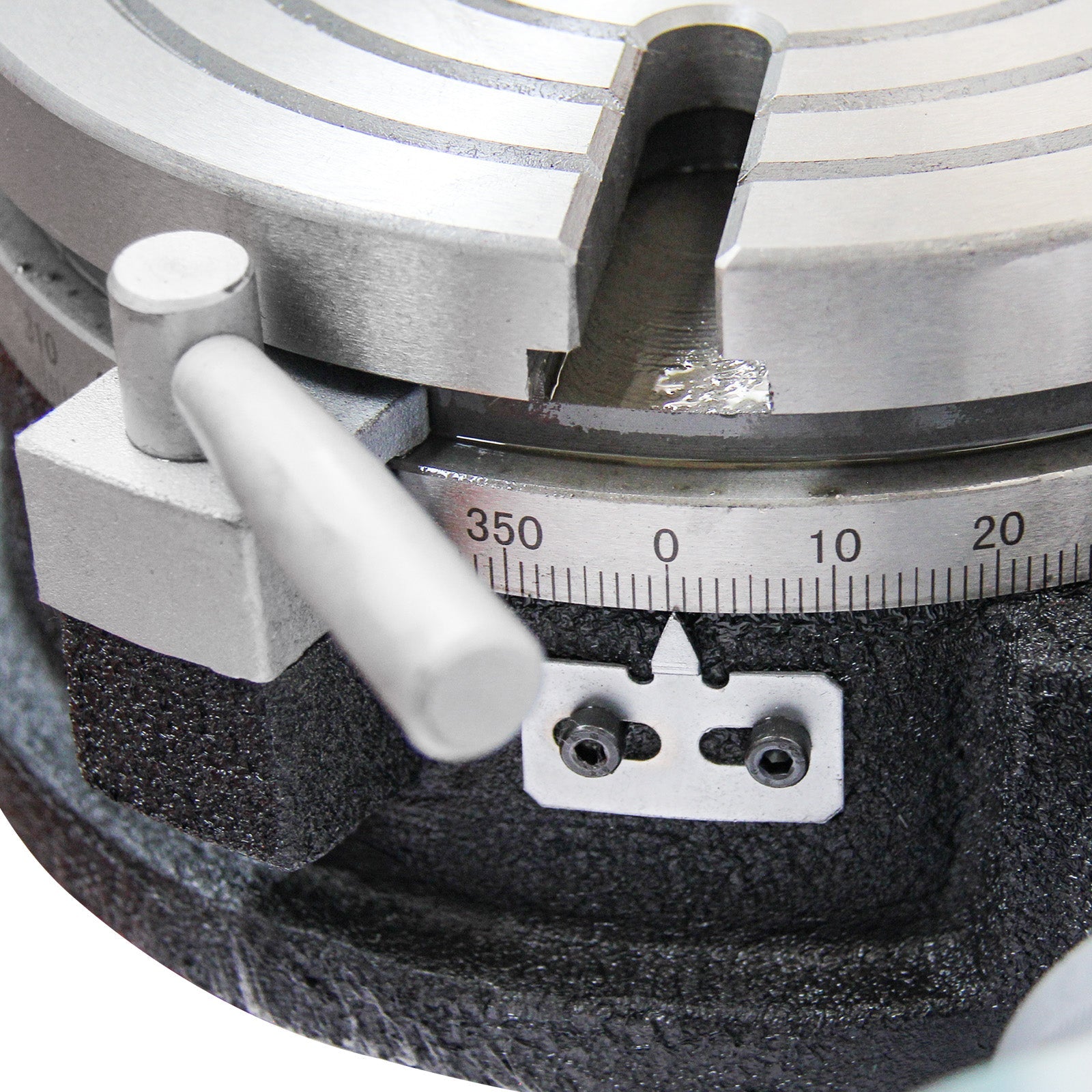

3.Min.10 second vernier reading
4.Gear ratio HV-4 1:72 HV6,HV-8,HV-10,HV-12 1:90
5.Harden and precision ground.Stain chrome dial
What Our Experts Think
-

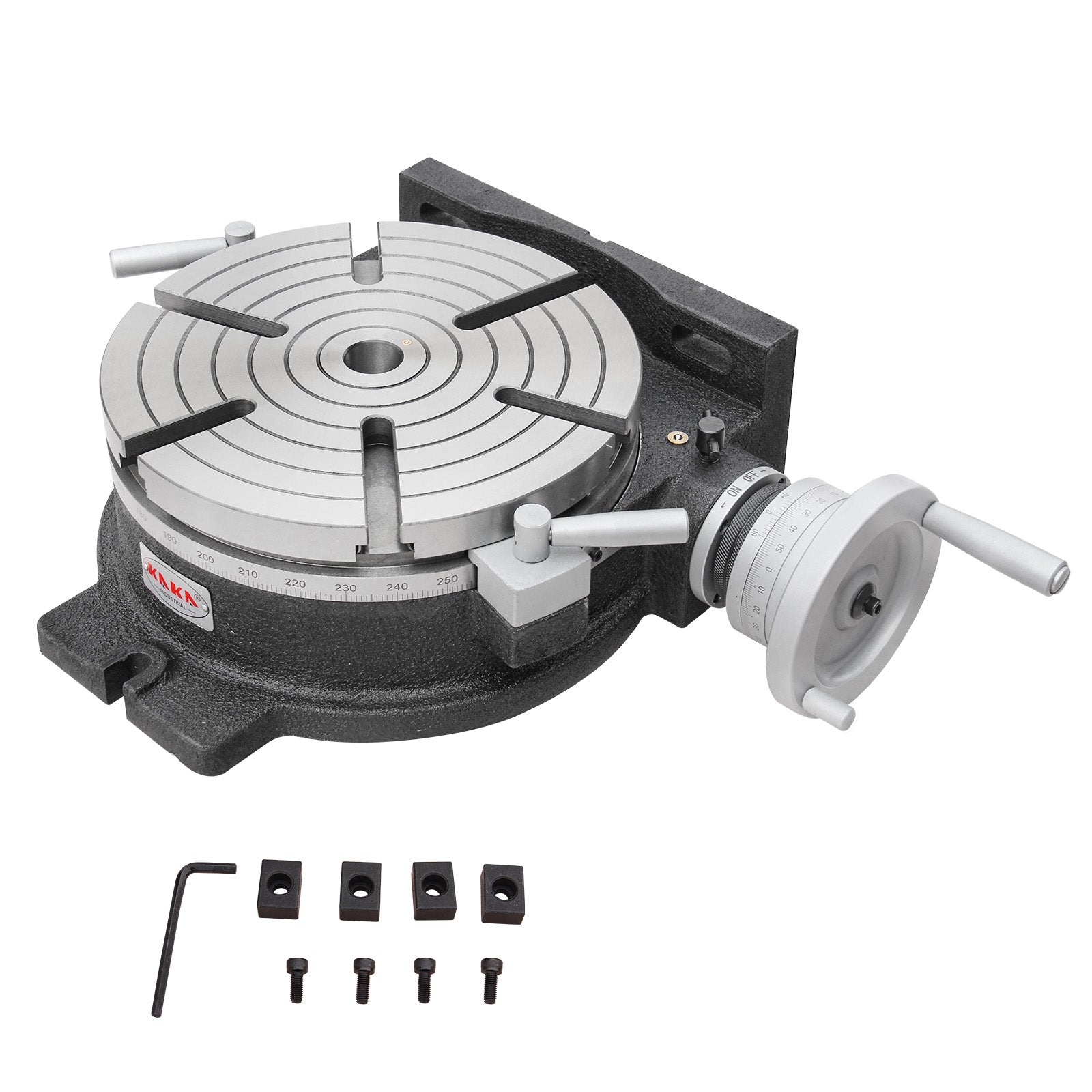

The KAKA Industrial HV-12 Rotary Table (161112) is a 12-inch precision rotary table designed for horizontal and vertical milling operations.
-
Features 360° smooth rotation with six T-slots for secure clamping of workpieces during drilling, milling, and indexing.
-
Equipped with an MT4 center sleeve, ensuring accurate alignment and compatibility with most milling machines.
-
Dual-position design allows flexible setups for complex machining tasks, increasing productivity and precision.
Q&A
Q: What is the table diameter?
A: The HV-12 has a 12-inch diameter, ideal for medium to larger workpieces.

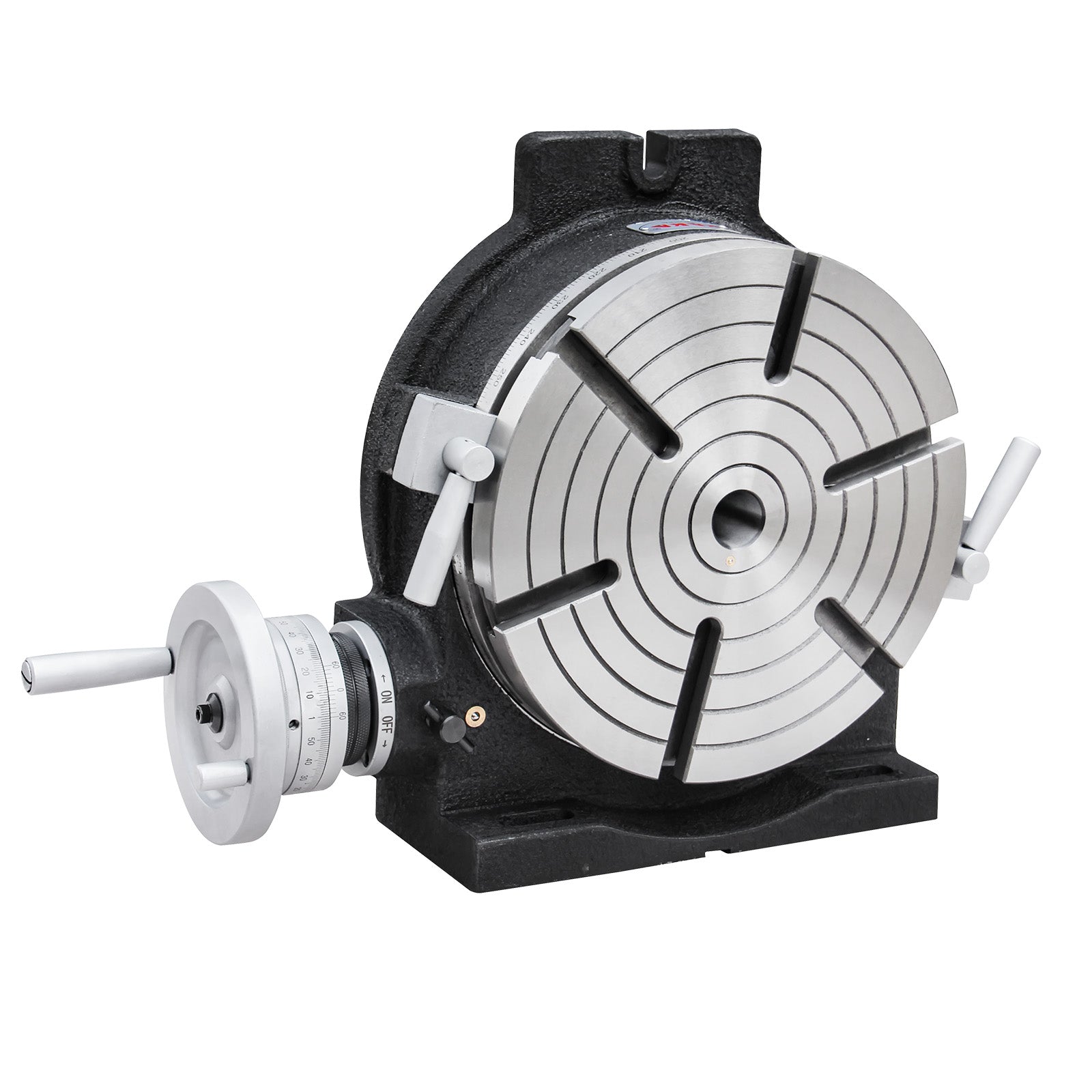

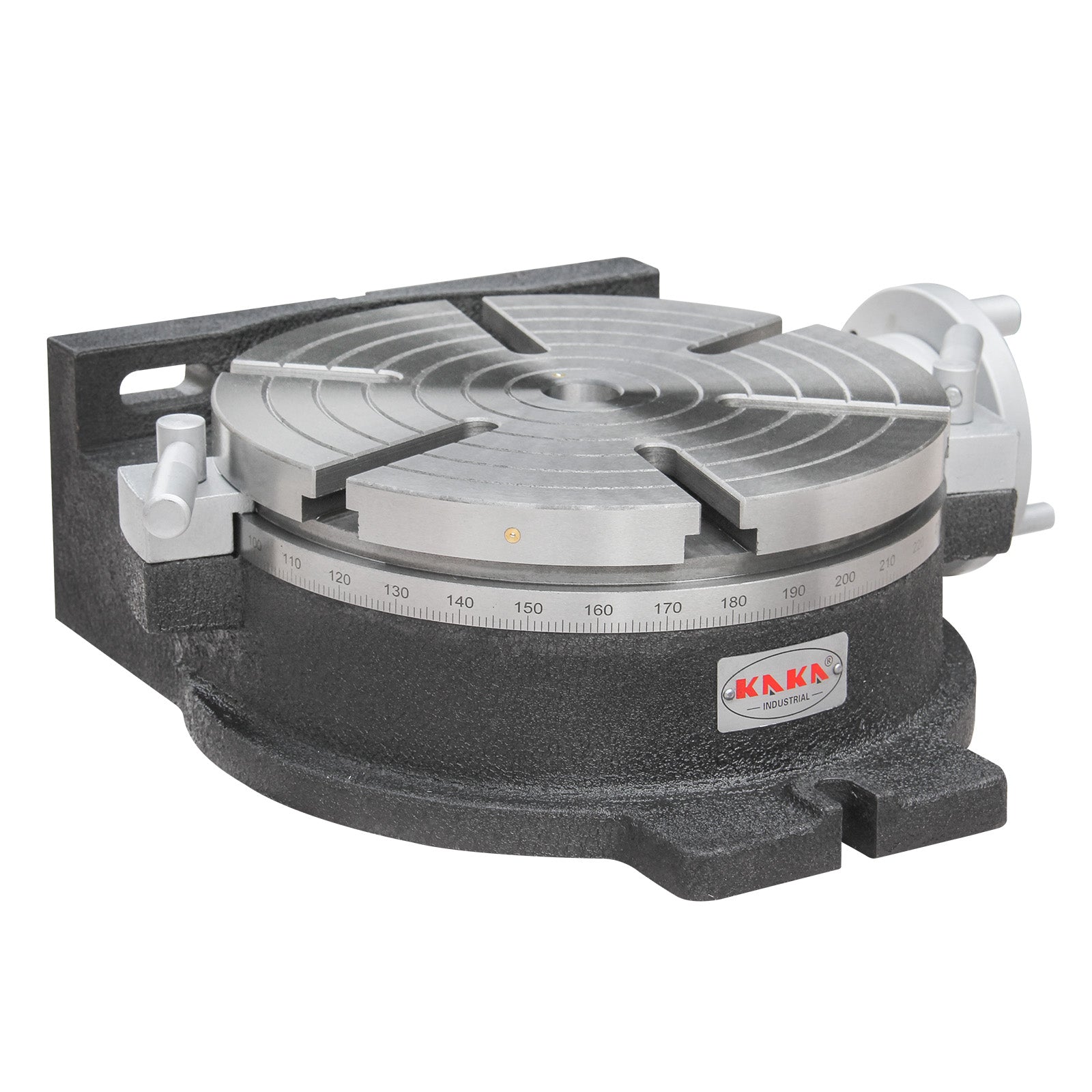

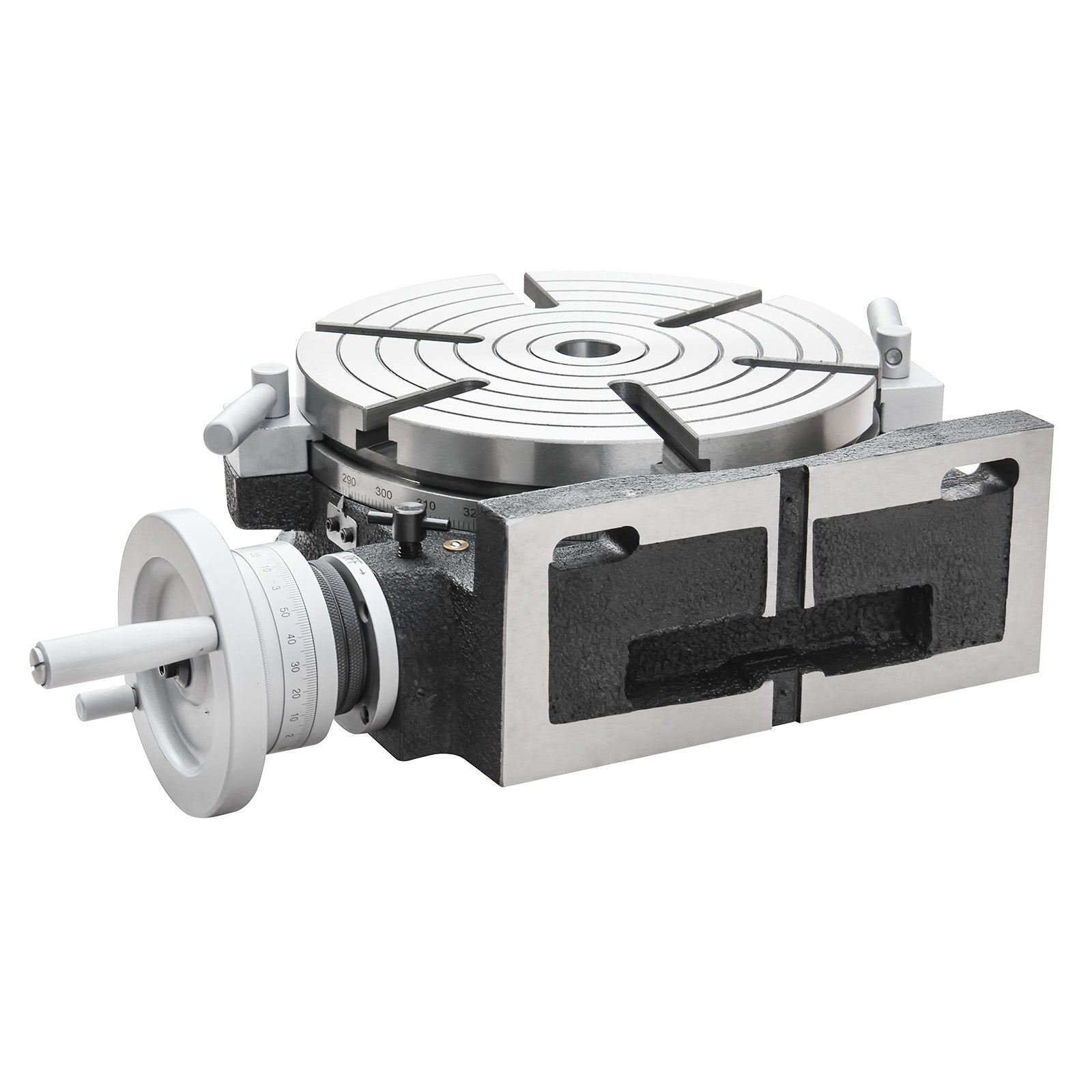

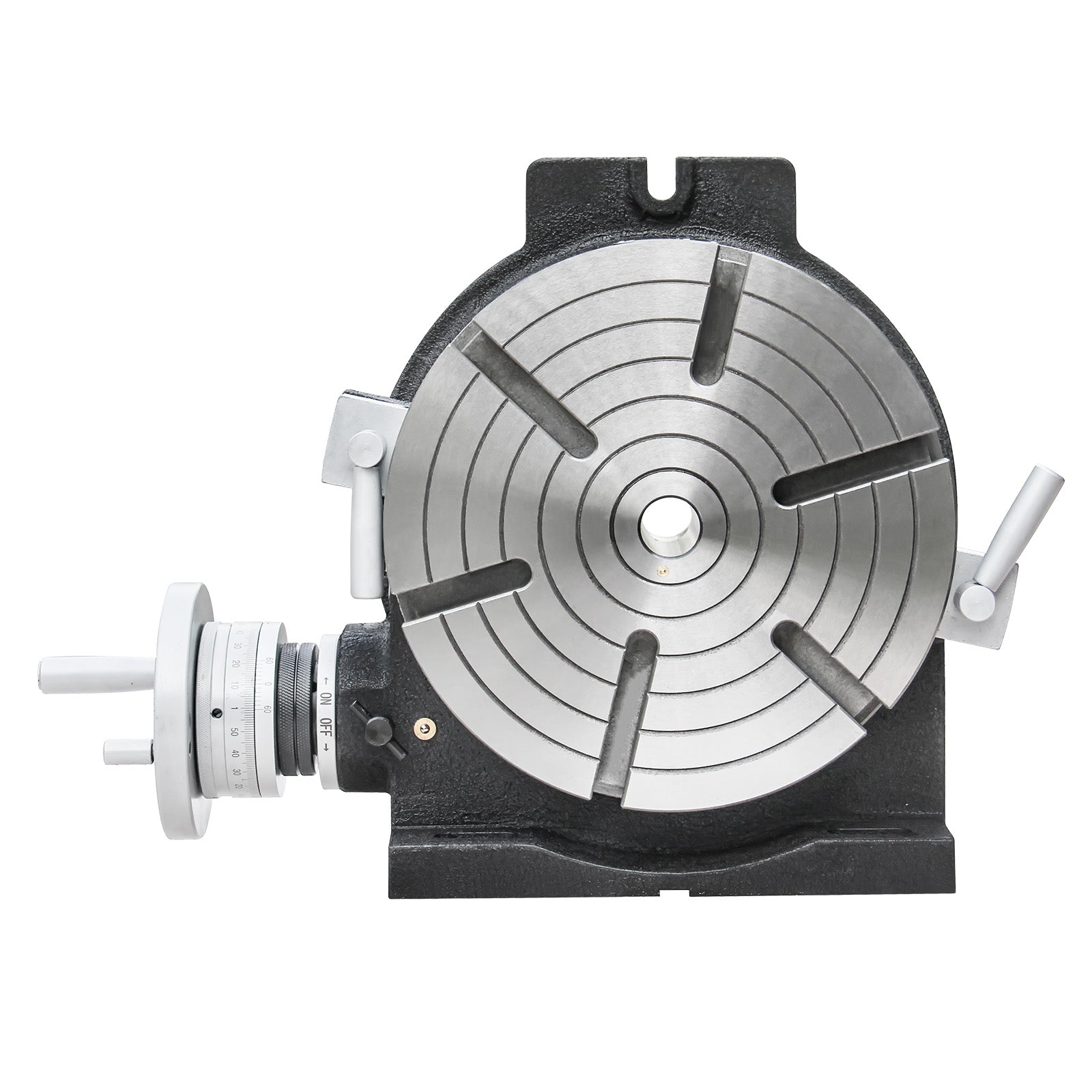

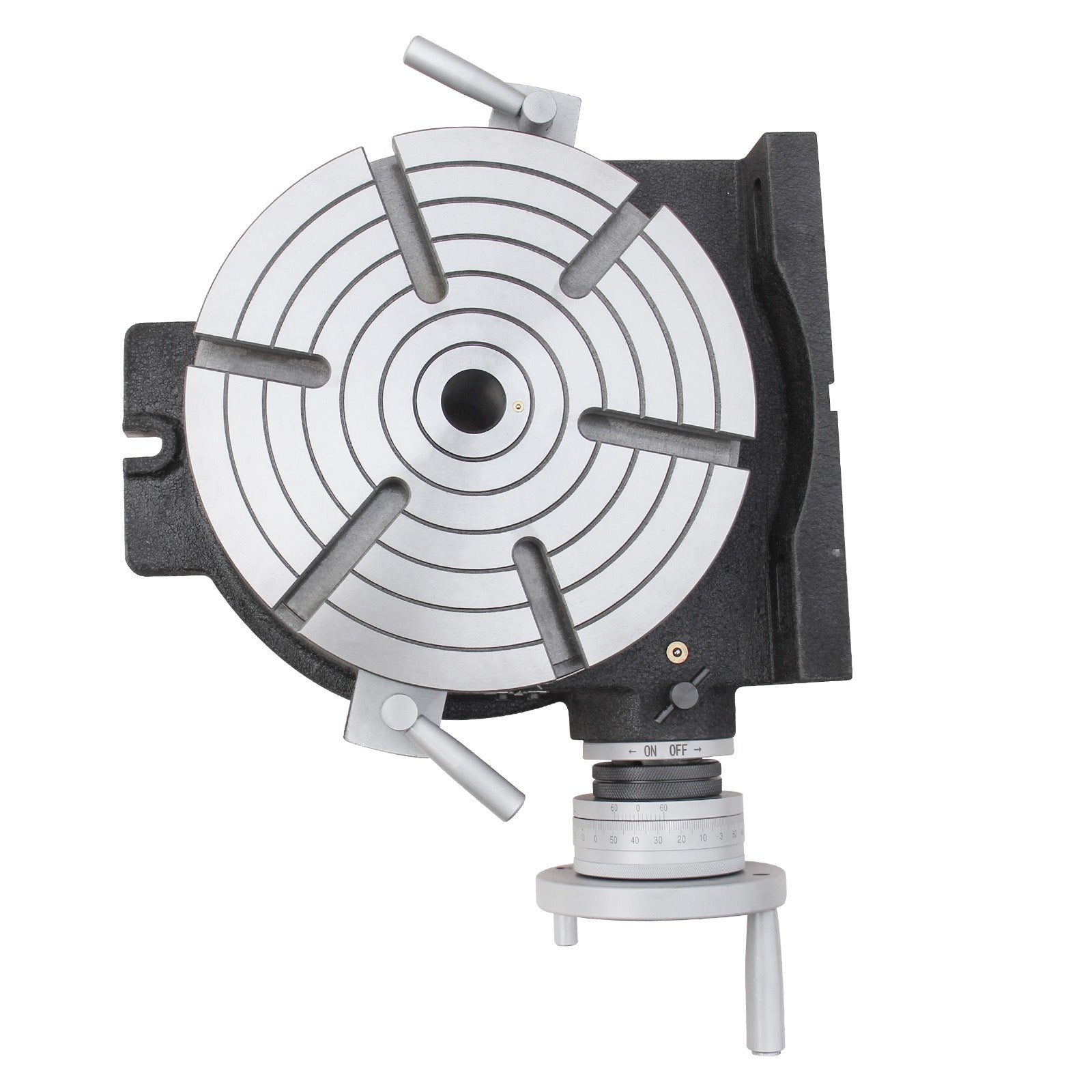

Q: Can it be mounted horizontally and vertically?
A: Yes, it supports both horizontal and vertical mounting for versatile machining.

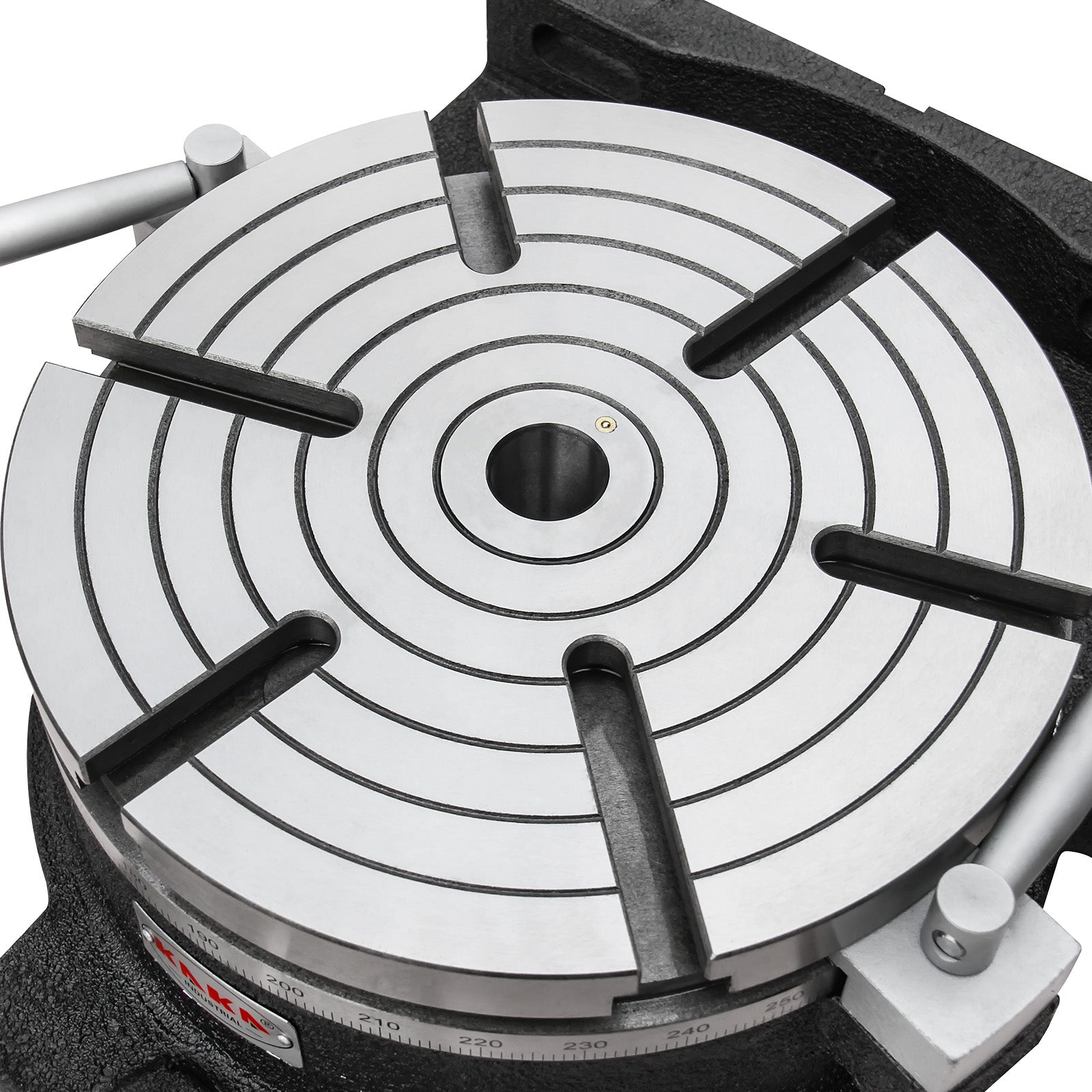

Q: How many T-slots are included?
A: The table includes six precision-machined T-slots for secure workpiece clamping.
Q: What spindle taper does it use?
A: Equipped with an MT4 center sleeve for accurate alignment and accessory compatibility.
Maintenance Tips
-
Clean the table surface and T-slots after each use to remove debris.
-
Lubricate rotation gears and bearings regularly to maintain smooth operation.
-
Check for play or backlash periodically to ensure machining accuracy.
-
Store in a dry environment to prevent rust and preserve precision.
