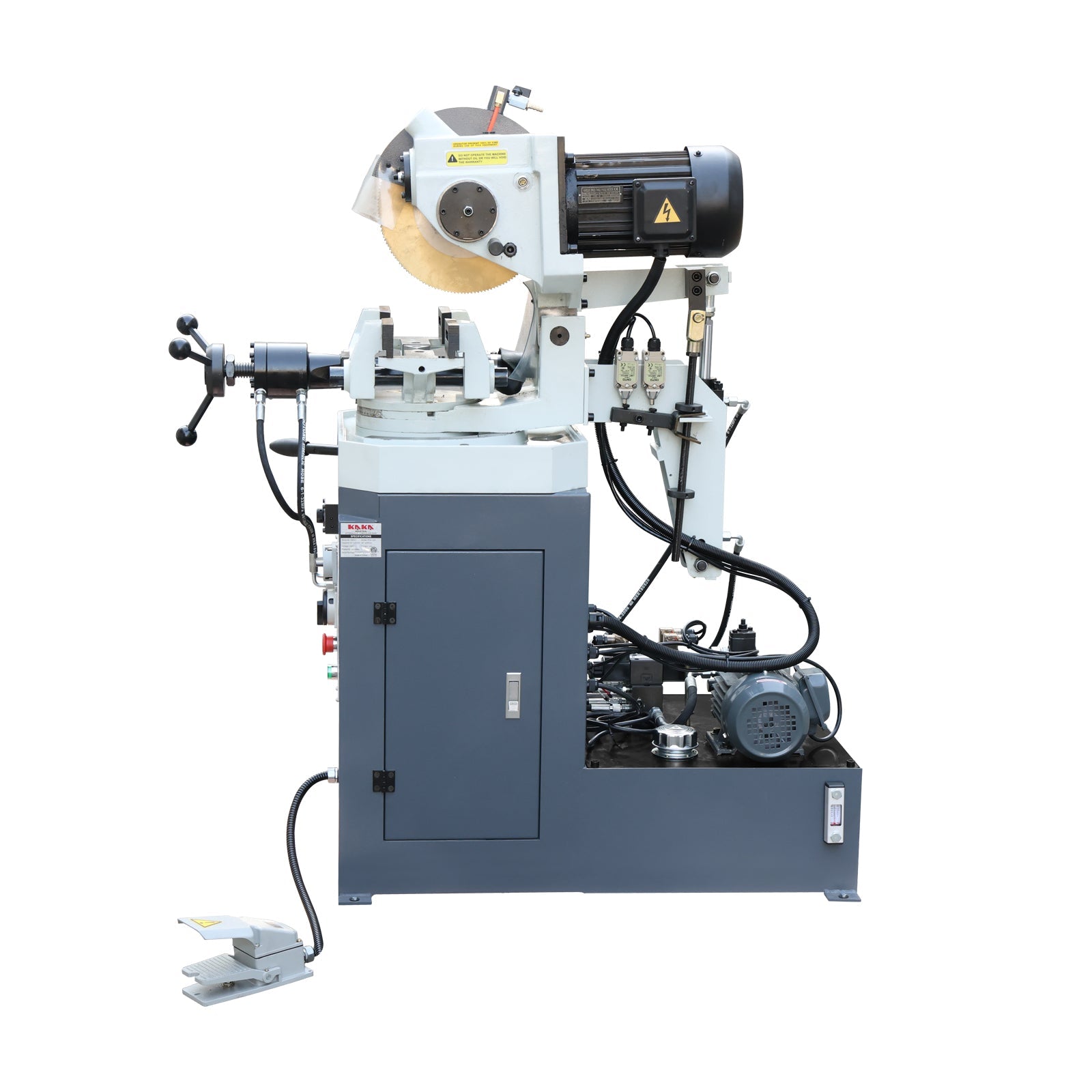

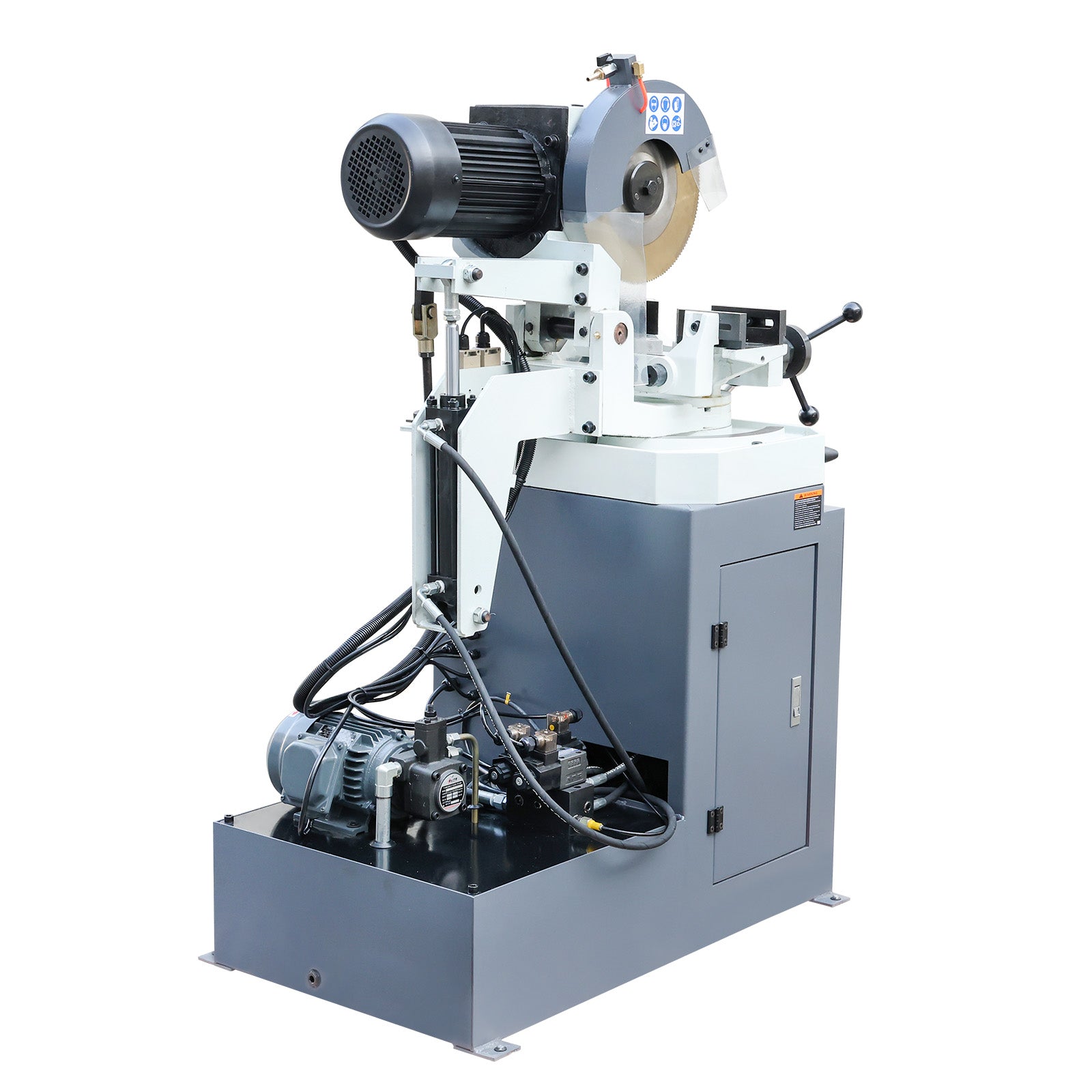

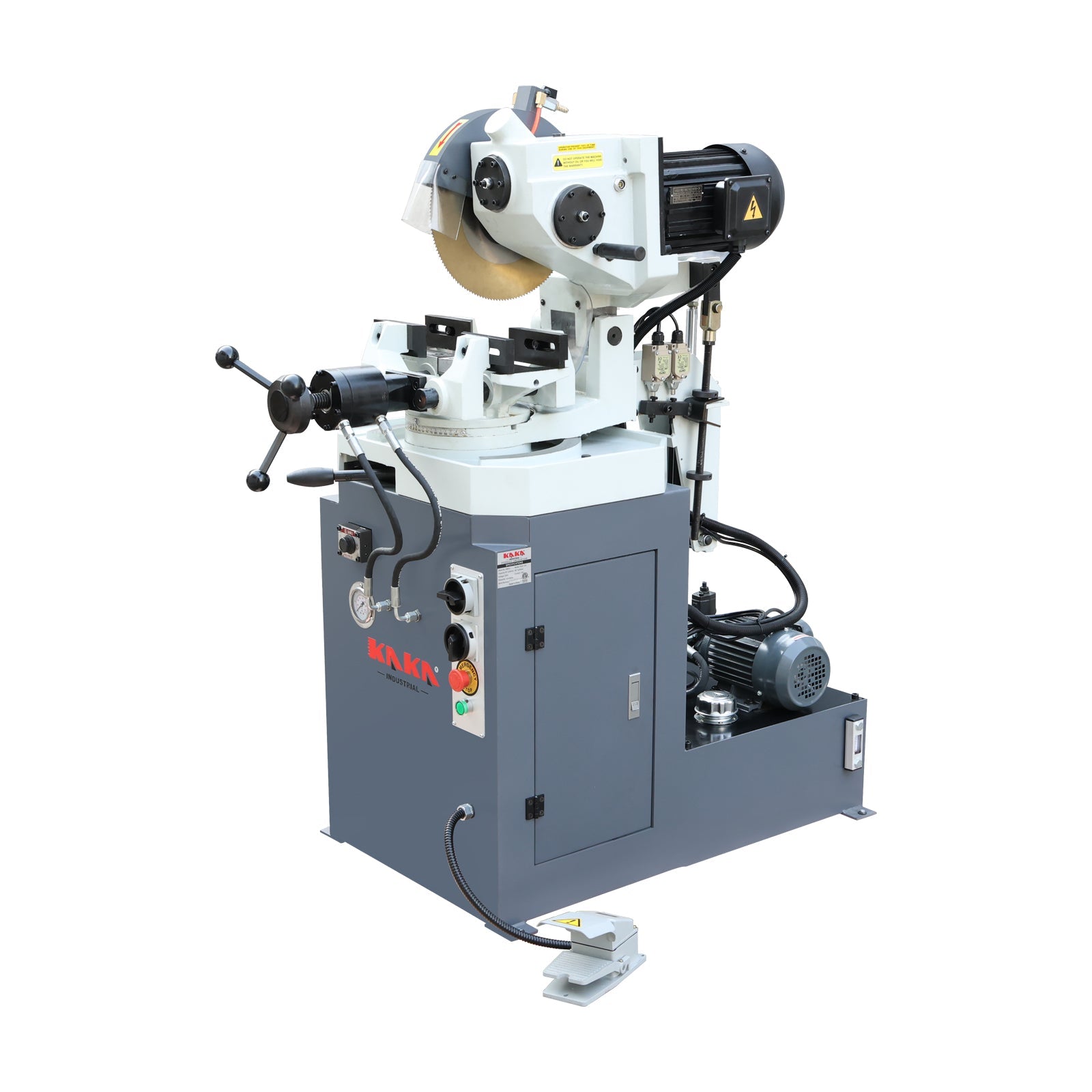

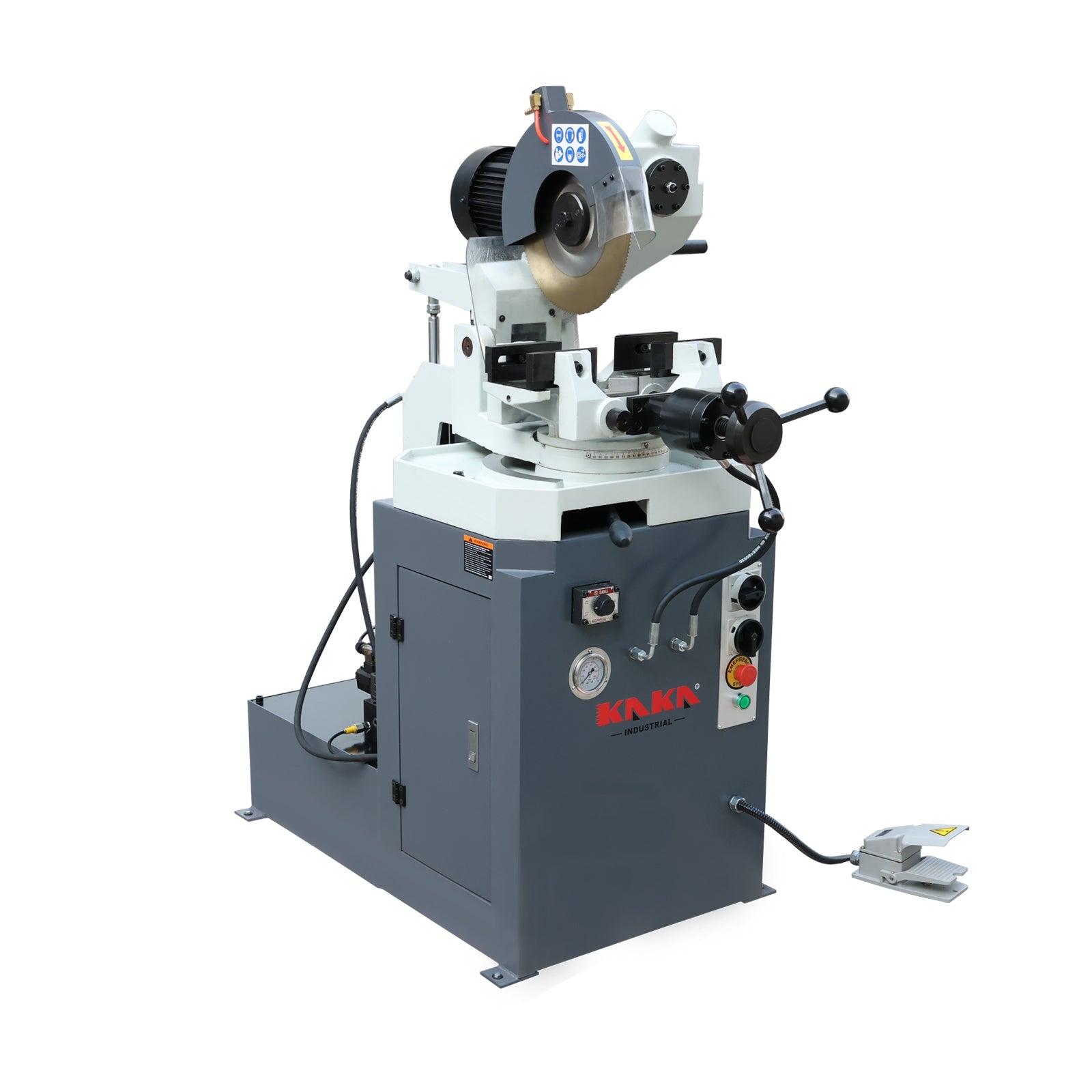

KAKA INDUSTRIAL Hydraulic Circular Cold Saw, 12.4 inch Semi-Automatic Metal Cutting Saw with Foot Pedal Control PDS-12H for Steel and Aluminum, Double Vise and Coolant System - 188031V230
The KAKA INDUSTRIAL PDS-12H Hydraulic Circular Cold Saw is engineered for professional metalworking shops, fabrication facilities, and industrial settings demanding precision and efficiency in cutting steel, aluminum, and stainless steel. This robust saw combines advanced hydraulic technology with user-centric features to deliver clean, accurate cuts while prioritizing operator safety and equipment durability.
KEY BENEFITS & SUPERIOR PERFORMANCE
- Efficient Cold Cutting Technology: The 12.5-inch blade and hydraulic system perform cold cuts, minimizing heat buildup and material distortion for superior finish on both ferrous and non-ferrous metals.

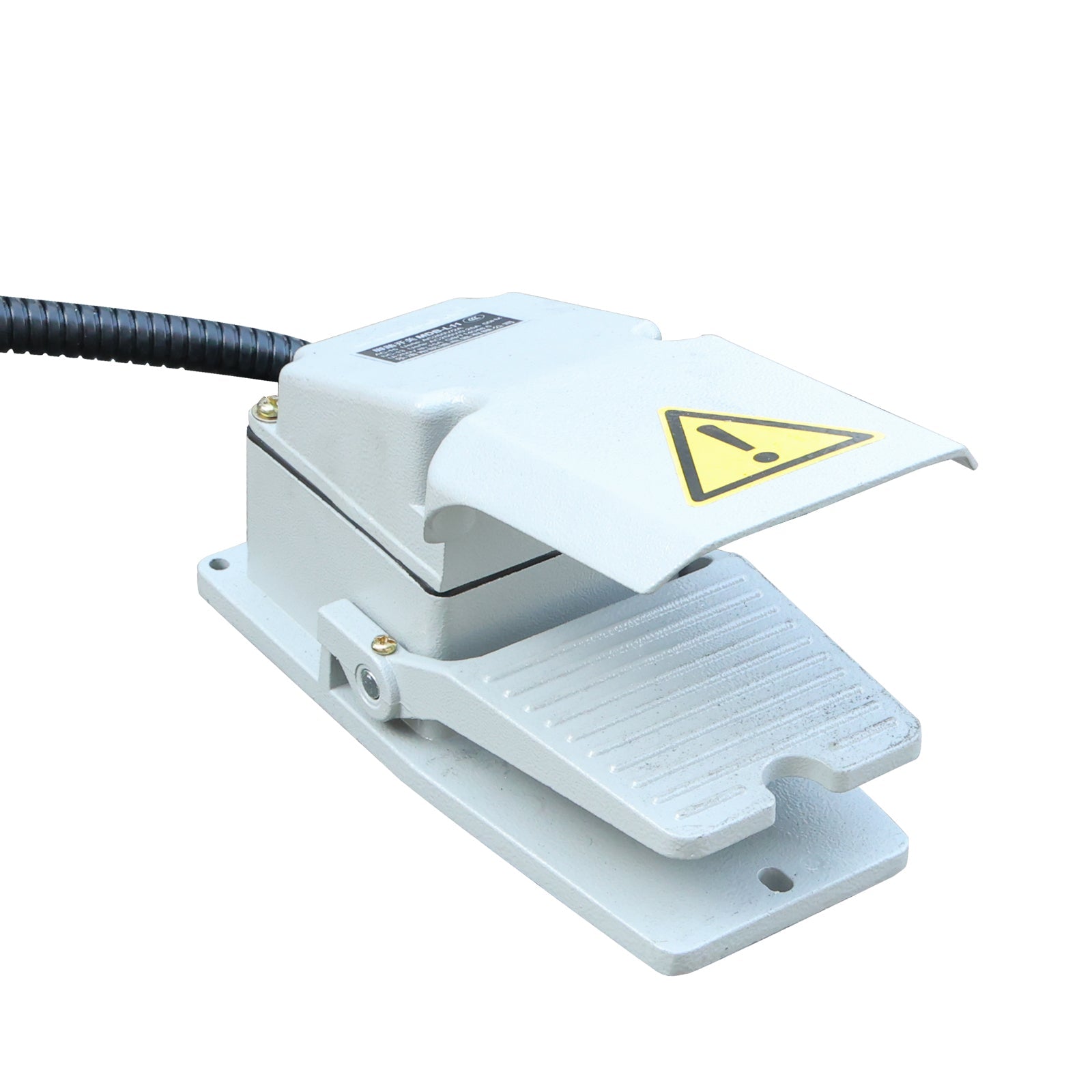

- Enhanced Productivity with Semi-Automatic Operation: The foot pedal control enables semi-automatic cutting, allowing operators to manage workpieces more efficiently and maintain a safer working environment.

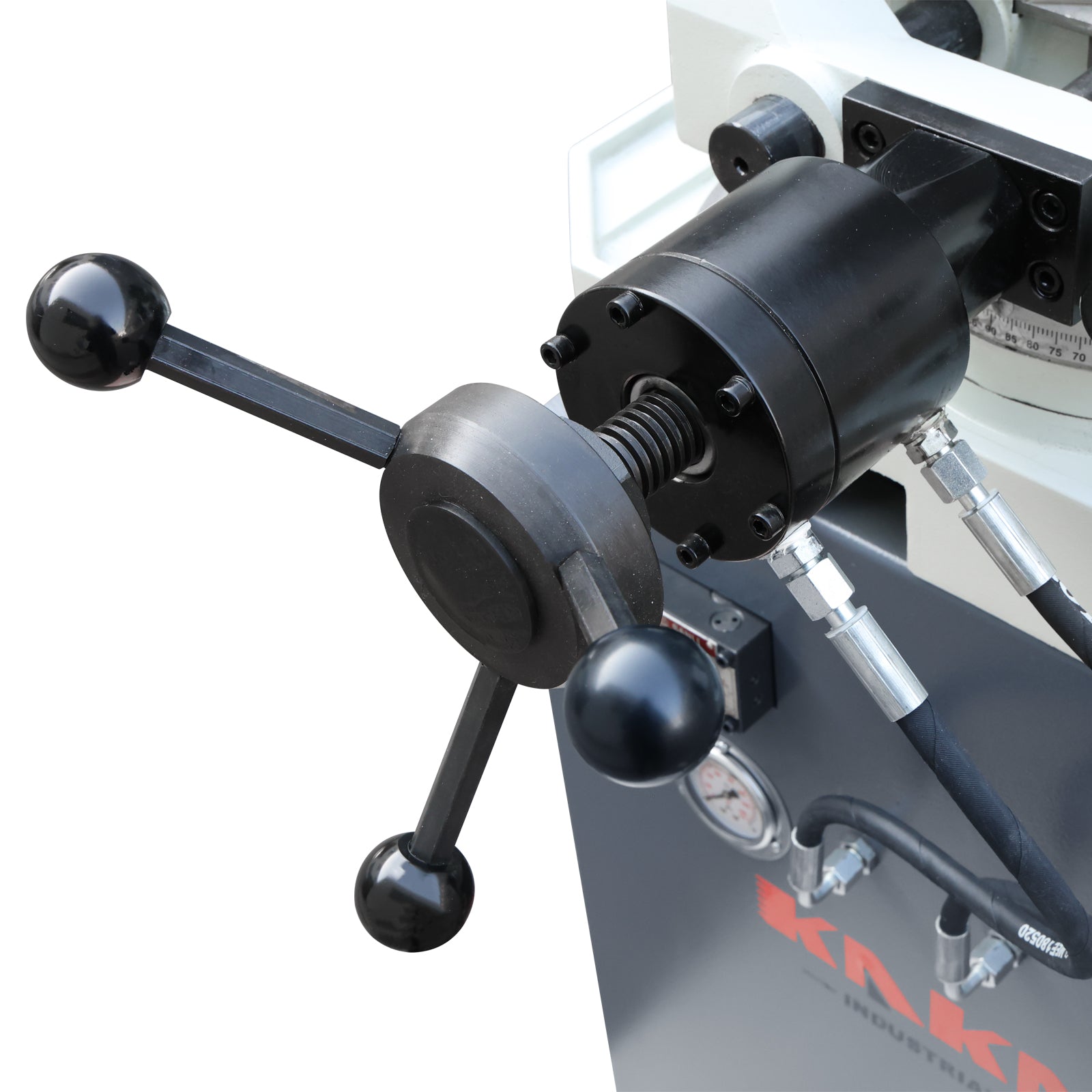

- Religious Precision and Stability: Hydraulic clamping and a double vise ensure workpieces are held securely, preventing slippage and ensuring consistent, accurate cuts every time, even at ±45° angles.
- Extended Tool Life with Coolant Integration: The built-in coolant system is crucial for dissipating heat and reducing blade wear, contributing to lower long-term operating costs and sustained cutting quality.
OPERATIONAL GUIDELINES & MAINTENANCE
- Blade Selection: For optimal results, use BW-tooth blades (tooth spacing ≤0.16”) for pipes and profiles, and HZ-tooth blades (tooth spacing >0.16”) for bars and thick-walled materials.
- Coolant Management: Mix coolant concentrate with water at a 1:20 ratio to ensure effective cooling and lubrication. Regularly check and clean the coolant system to prevent clogs.
- Routine Maintenance: Lubricate gearboxes every six months, check oil levels weekly, and inspect the machine daily using only original parts to ensure longevity and reliable performance.
TECHNICAL SPECIFICATIONS
Motor: 3/4 HP Dual-Speed (60/120 RPM)
Max Blade Diameter: 12.5 inches (315 mm)
Cutting Capacity (90°): Round: 3.54", Rectangular: 3.15"x3.15"
Cutting Capacity (45°): Round: 3.15", Rectangular: 2.36"x2.36"
Coolant Tank: 3.17 Gallons
Net Weight: 1014 lbs
Dimensions (WxDxH): 24.80" x 49.61" x 56.69"
What Our Experts Think
-
The KAKA Industrial PDS-12H Hydraulic Circular Cold Saw (188031V230) is a 12.4-inch semi-automatic metal cutting saw built for precision cutting of steel and aluminum.
-

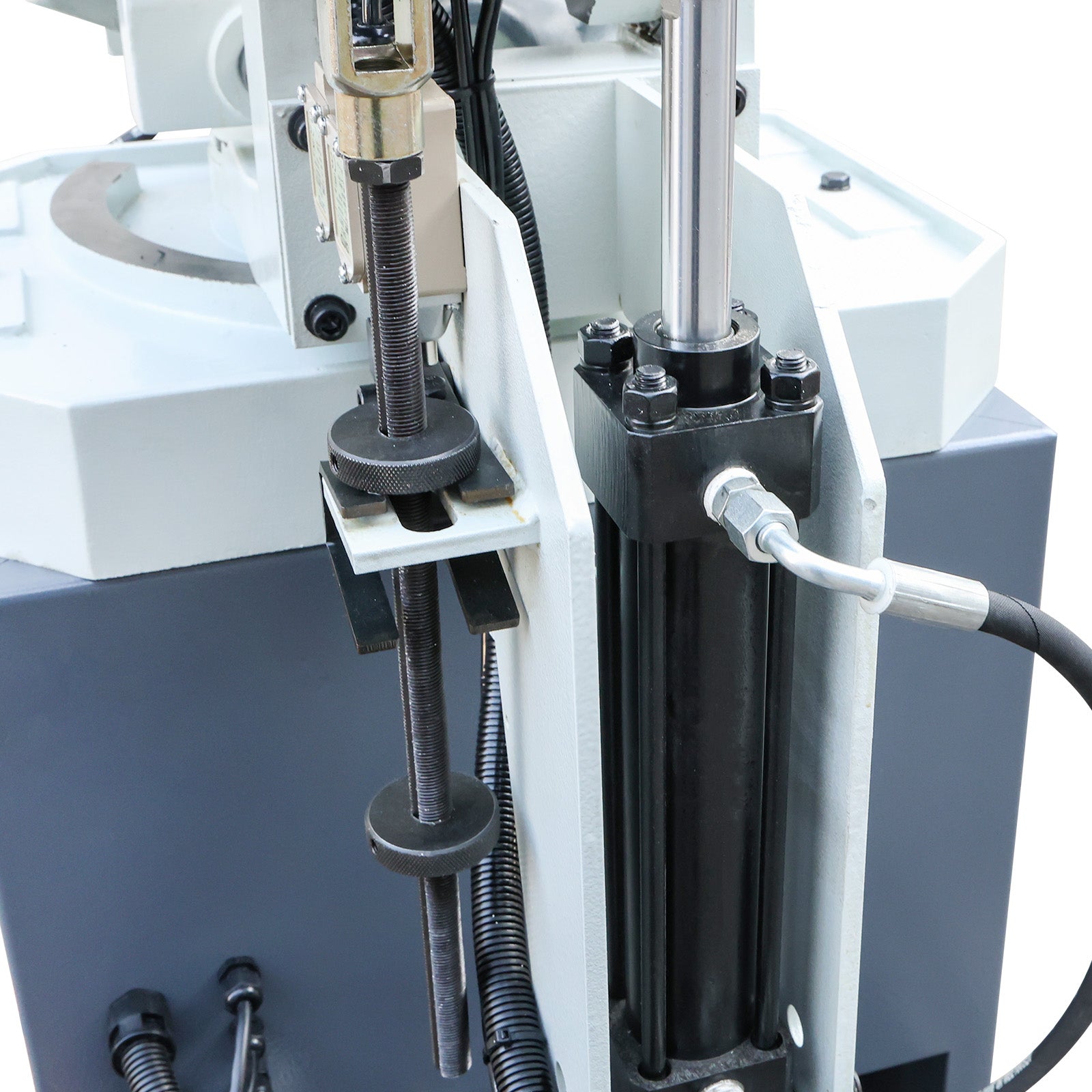

Features a hydraulic feed system and foot pedal control for smooth, controlled, and safe cutting.
-

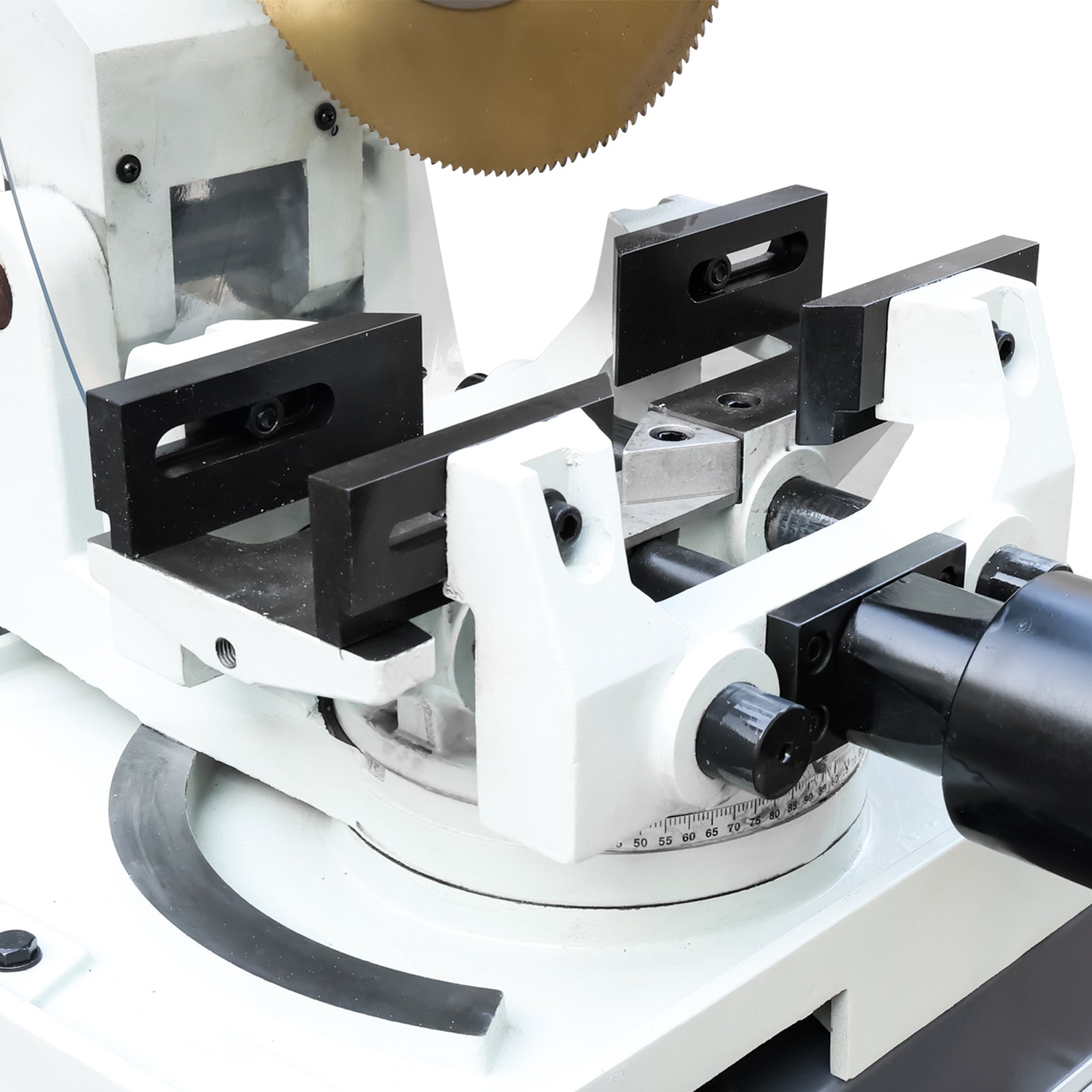

Equipped with a double vise for stable material clamping and an integrated coolant system to reduce heat and extend blade life.
-
Ideal for industrial workshops and fabrication shops requiring accurate, burr-free cuts with high efficiency.
Q&A
Q: What materials can it cut?
A: Designed for steel, aluminum, and similar metals.
Q: How is the cutting feed controlled?
A: Uses a hydraulic feed system operated via a foot pedal for hands-free precision.
Q: Does it include coolant?
A: Yes, the coolant system protects the blade and improves cutting quality.
Q: What clamping mechanism is used?
A: Features a double vise for secure, stable holding of the workpiece.
Maintenance Tips
-
Clean blade, vises, and work area after each use to remove metal debris.
-
Check and refill coolant regularly to prevent overheating.
-

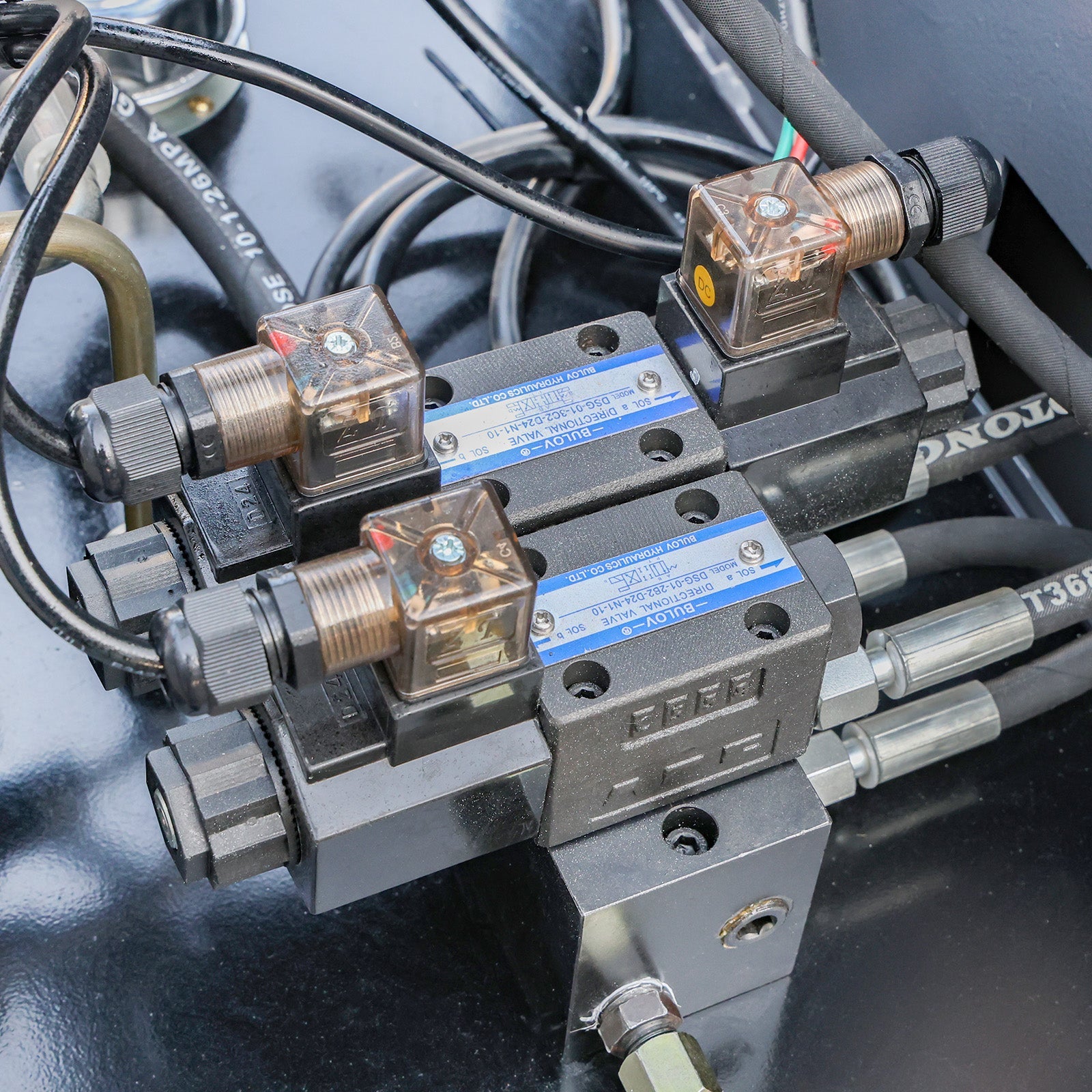

Inspect hydraulic system and foot pedal for proper operation.
-
Lubricate moving parts and pivot points to ensure smooth performance and extend machine life.
