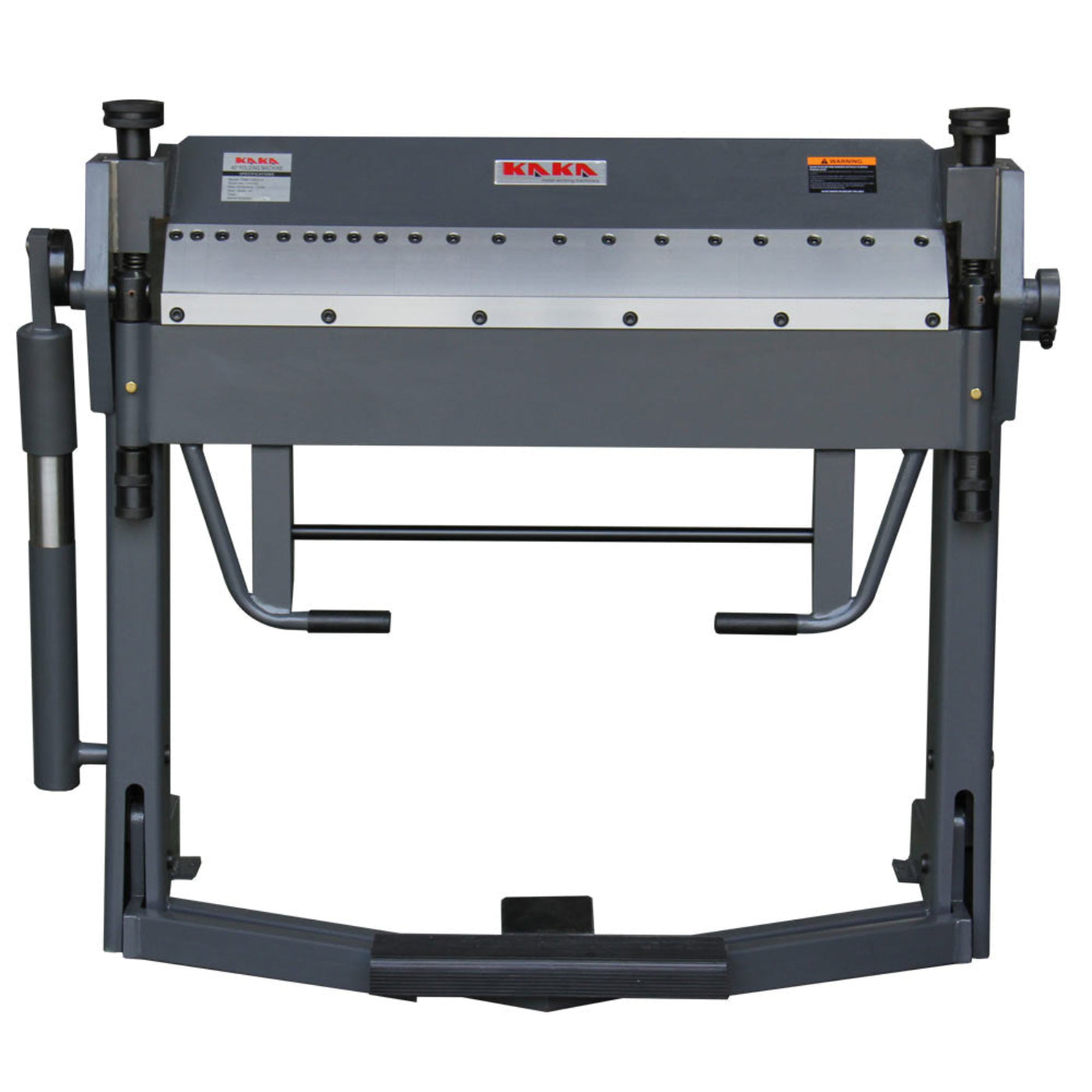

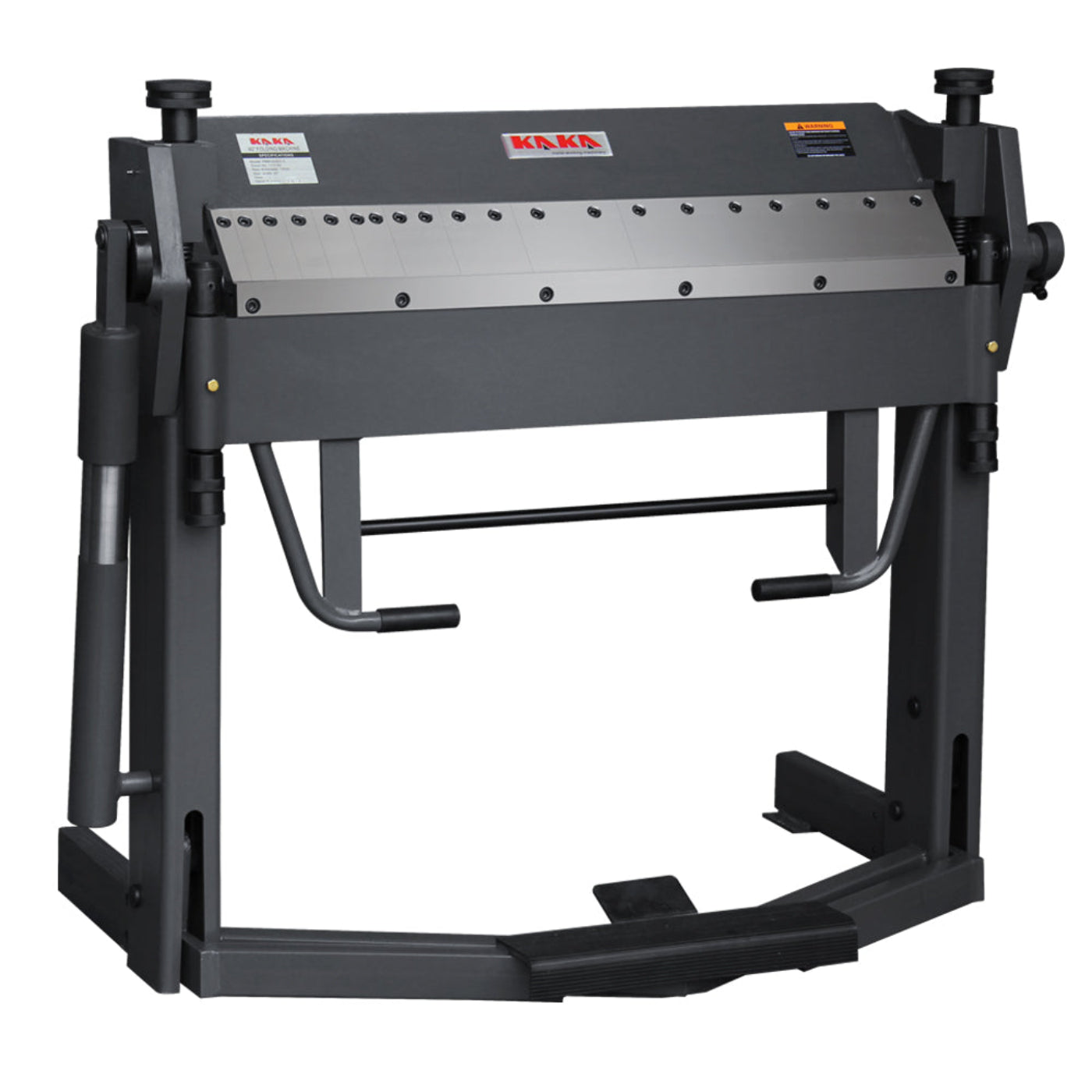

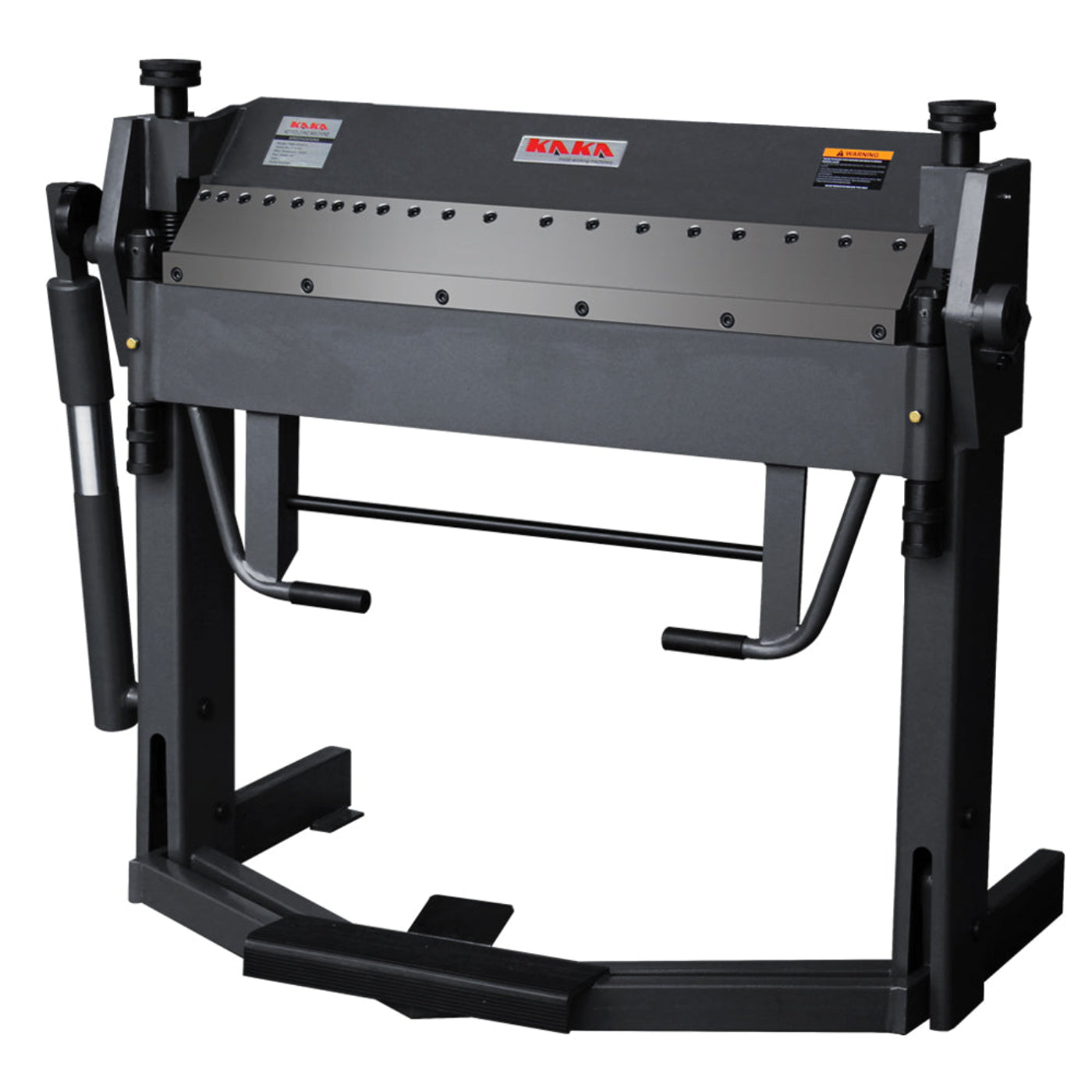

KAKA Industrial PBB-4012, 40-Inch Pan and Box Brake Foot Clamp, Max Clamping Bar Lift 1-7/8 Inch, Max Box Depth 2.5 Inch, Folding Angle 0-135 Degree,Nose Radius 1/32 Inch, Sheet Metal Folding Machine - 173150

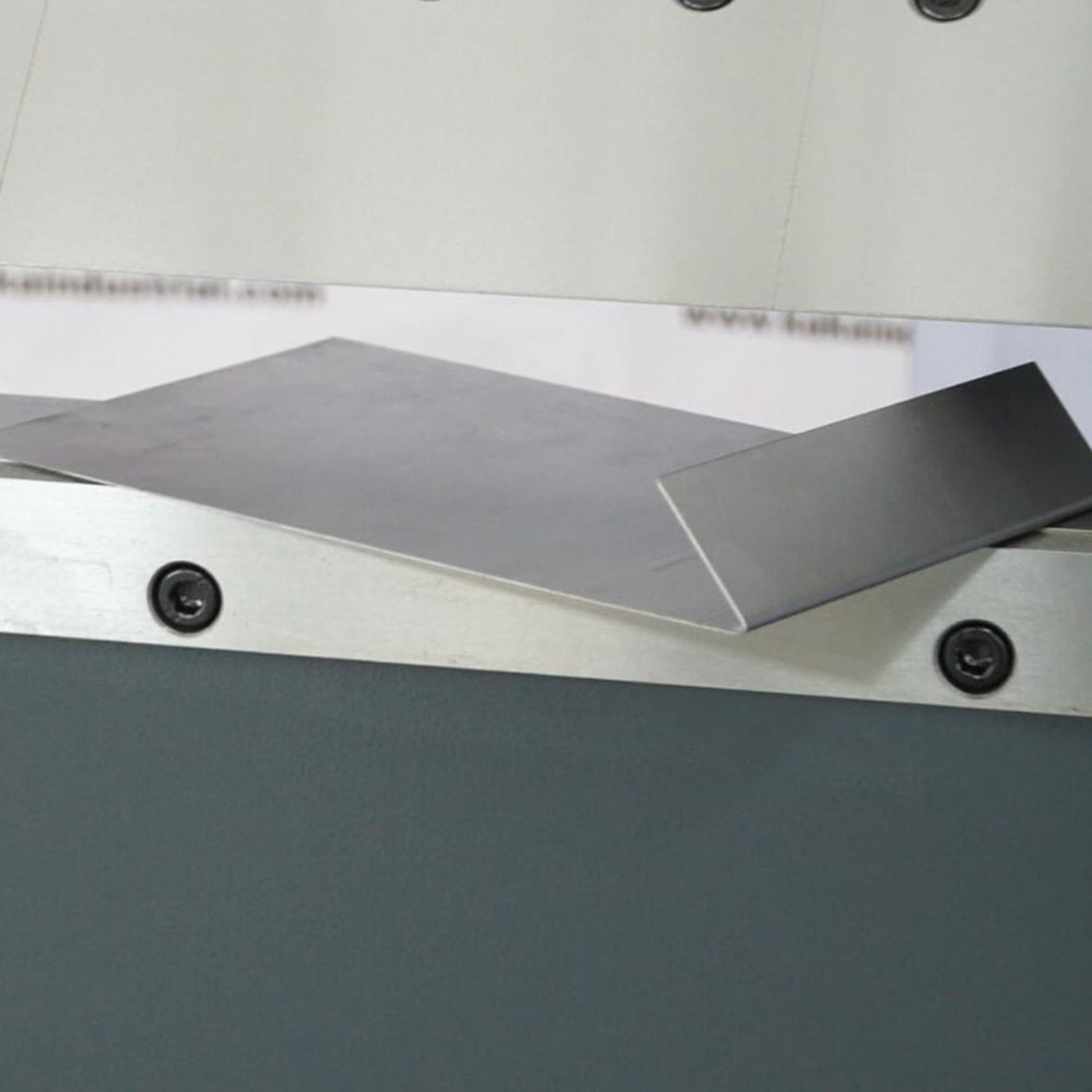

Precision Bending Capability: The PBB-4012 is designed to handle up to 12-gauge mild steel and provides a 40-inch bending width, making it ideal for creating boxes, pans, and custom metal parts with high accuracy. Whether you’re working with stainless steel, aluminum, or other metals, this machine ensures smooth and precise bends for complex projects.
Flexible Folding Angle: Offering a bending angle from 0° to 135°, the PBB-4012 provides a wide range of bending capabilities, making it suitable for a variety of applications.
Effortless Control and Adjustments: The folding machine's upper blades can be dismantled for use, and you can choose the blade combination according to the workpiece's characteristics. Blade gaps adjustment can be done by easily holding knobs.This adjustable flexibility allows you to easily create intricate bends in metal sheets.

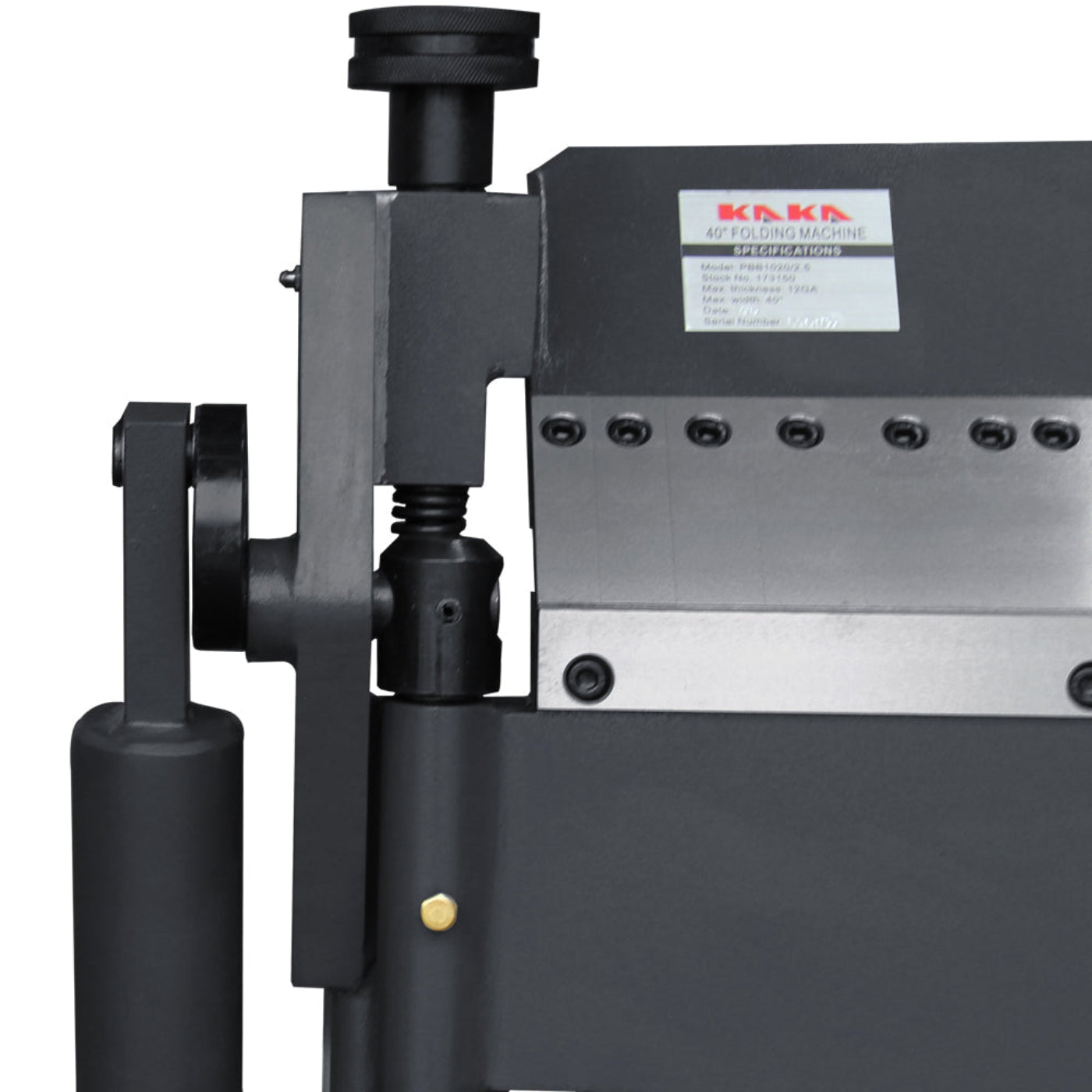

The integrated spring-loaded cylinder helps lift the bending beam, reducing operator effort and ensuring smooth, accurate bends.
Convenient Foot Pedal Control: The integrated foot pedal control allows for hands-free clamping, freeing your hands to position and adjust the metal sheet before bending.
Heavy-Duty Build & Durability: Constructed with a fully welded steel body, this machine provides robust support for heavy-duty work. The durable structure minimizes flex and deformation, ensuring reliable operation over the long term.
Optional Back Gauge: The PBB-4012 includes an optional back gauge that can be easily mounted using pre-drilled fixing points, ensuring precise positioning for repeatable bends and enhanced work efficiency in production runs.
Versatile Applications: Ideal for a wide variety of applications, the PBB-4012 is used in metalworking industries, fabrication shops, maintenance facilities, and even home workshops. From creating complex parts to simple bends, this machine adapts to all your bending needs with ease.
Specification
-
Model PBB-4012
-
Max. working length 40 in
-
Max. sheet thickness 12 Ga.
-
Max. clamping bar lift 1.9 in
-
Folding angle 0-135°
-
Packing size 58x25x52 in
-
N.W./G.W. 638/781 lbs
What Our Experts Think
-
The KAKA Industrial PBB-4012 Pan and Box Brake (173150) is a 40-inch sheet metal folding machine built for precision bending of boxes, pans, and custom sheet metal parts.
-
Features a foot-operated clamp with a maximum lift of 1-7/8 inches, allowing secure and efficient clamping during bends.
-
Capable of handling a maximum box depth of 2.5 inches and a folding angle from 0° to 135° for versatile fabrication tasks.
-
Includes a 1/32-inch nose radius, delivering clean, sharp bends with minimal deformation for professional results.
Q&A
Q: What is the maximum clamping lift?
A: The foot clamp provides a 1-7/8 inch maximum lift, securing material effectively during bending.
Q: What is the maximum box depth?
A: It can handle box depths up to 2.5 inches for a variety of sheet metal projects.
Q: What folding angles are supported?
A: Offers a 0° to 135° adjustable bending range, suitable for complex bends and pan forming.
Q: What is the nose radius?
A: Features a 1/32-inch nose radius to produce precise, professional bends.
Maintenance Tips
-
Clean clamp and bending surfaces after each use to remove metal debris.
-
Lubricate moving joints and foot pedal mechanism regularly for smooth operation.
-
Inspect bolts and alignment periodically to maintain bending accuracy.
-
Store in a dry area to prevent rust and prolong machine life.
