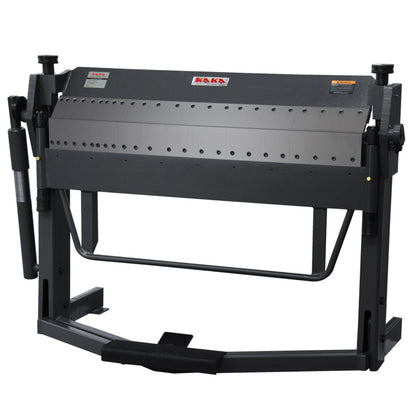

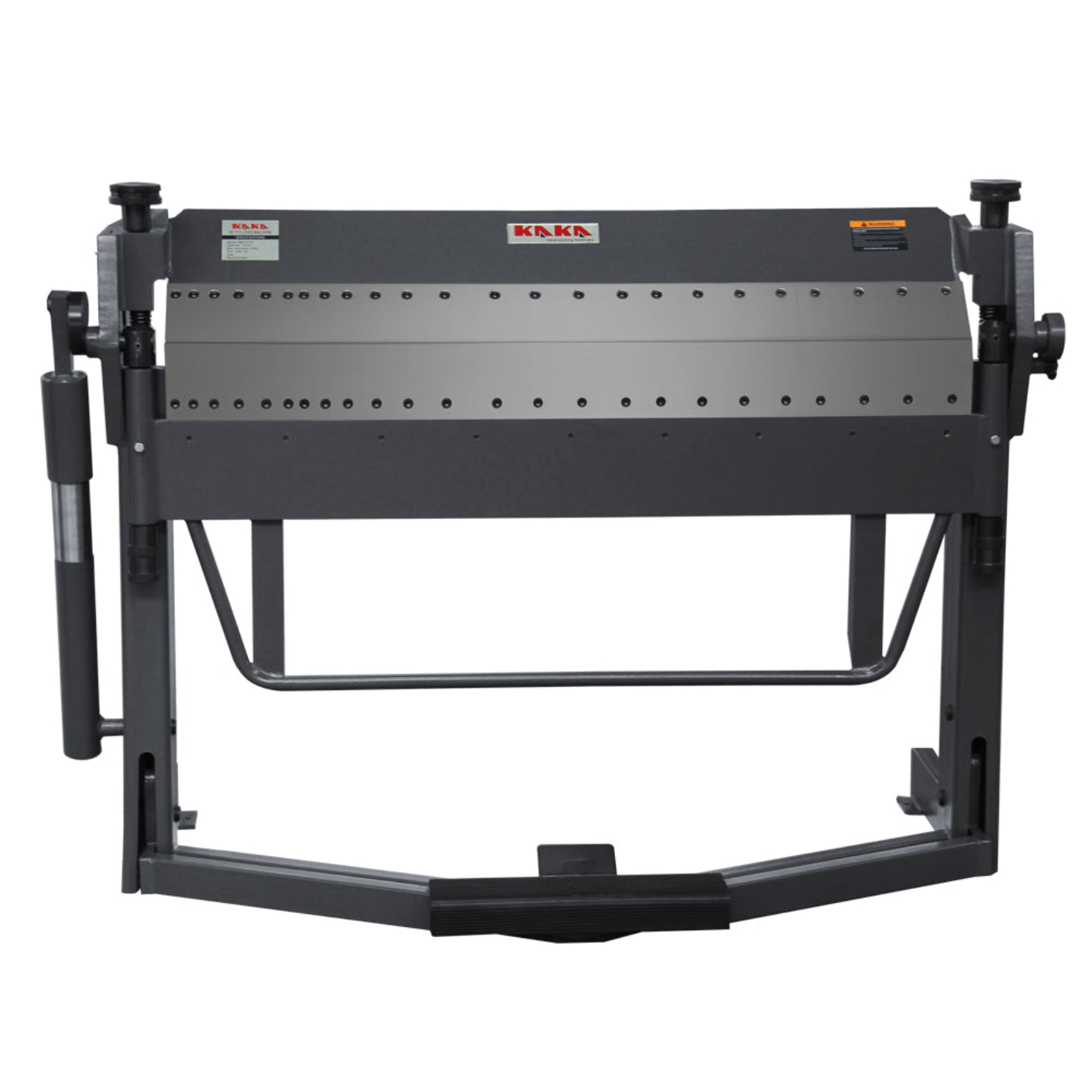

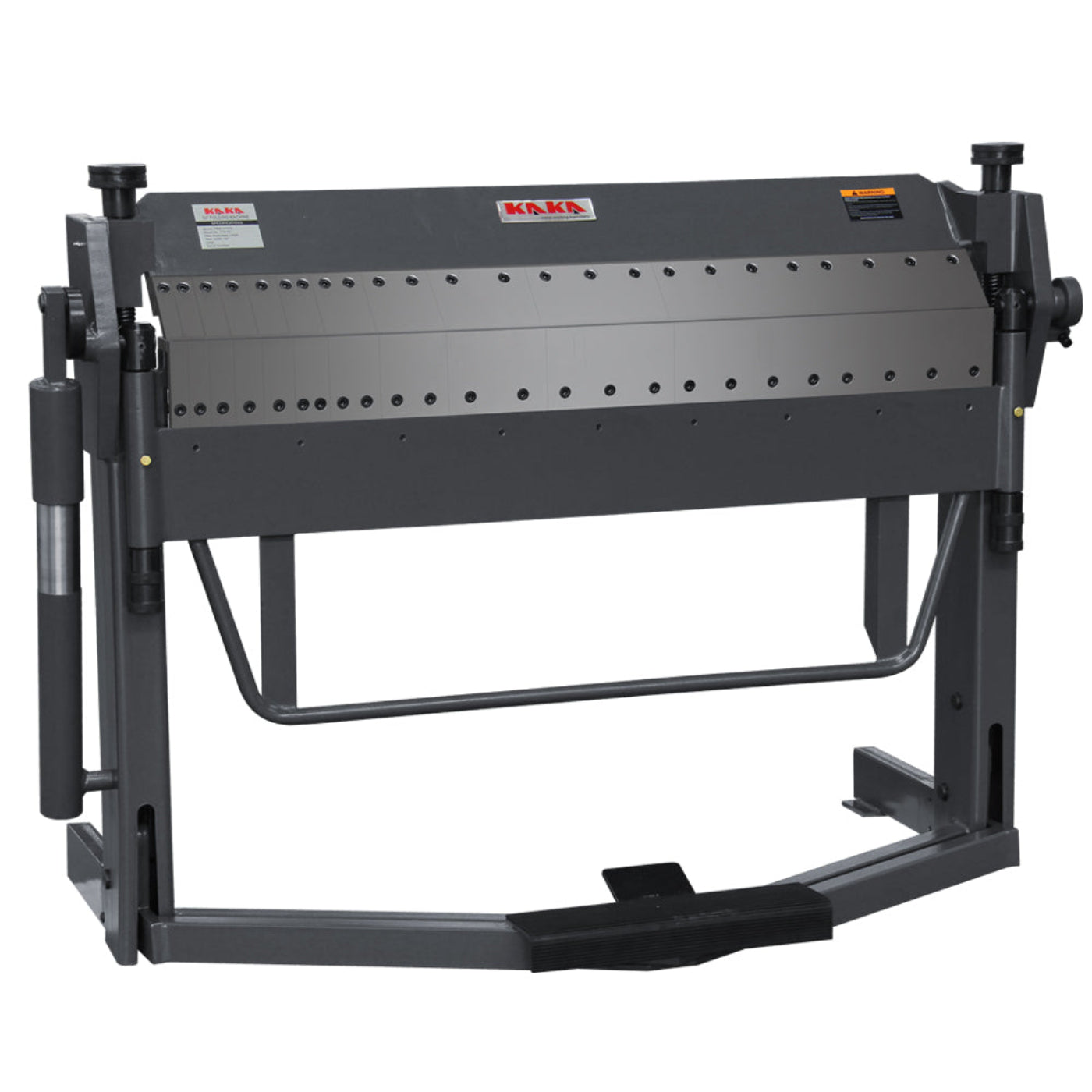

KAKA Industrial PBB-5014A, 50-Inch Pan and Box Brake Foot Clamp, Max Clamping Bar Lift 1.9 Inch, Max Box Depth 2 Inch, Folding Angle 0-135 Degree, Sheet Metal Folding Machine - 173162
About KAKA Industrial: A Company Delivers High Quality Products with Fast Shipment and Lowest Price Possible. We Always Fulfill What We Have Promised
-
Precision Bending Capability: The PBB-5014A is designed to handle up to 14-gauge mild steel and provides a 50-inch bending width, making it ideal for creating boxes, pans, and custom metal parts with high accuracy. Whether you’re working with stainless steel, aluminum, or other metals, this machine ensures smooth and precise bends for complex projects.
-
Flexible Folding Angle: Offering a bending angle from 0° to 135°, the sheet metal brake provides a wide range of bending capabilities, making it suitable for a variety of applications. The folding machine's upper and lower blades can be dismantled for use, and you can choose the blade combination according to the workpiece's characteristics. This adjustable flexibility allows you to easily create intricate bends in metal sheets.
-
Convenient Foot Pedal Control: The integrated foot pedal control allows for hands-free clamping, freeing your hands to position and adjust the metal sheet before bending. This feature increases your efficiency and makes operation more comfortable, especially during long working hours.
-
Heavy-Duty Build & Durability: Constructed with a fully welded steel body, this machine provides robust support for heavy-duty work. The durable structure minimizes flex and deformation, ensuring reliable operation over the long term, even in high-demand environments.
-
Optional Back Gauge & Quick Change System: The PBB-5014A includes an optional back gauge that can be easily mounted using pre-drilled fixing points, enhancing repeatability for production runs. Additionally, the machine features a quick-release system for the clamp beam segment, allowing for fast tool changes and improved productivity.
-
Versatile Applications: Ideal for a wide variety of applications, the box and pan brake is used in metalworking industries, fabrication shops, maintenance facilities, and even home workshops. From creating complex parts to simple bends, this machine adapts to all your bending needs with ease.
Specification
- With foot control. It is easy for operation and relax hands for adjusting the material.
- Compression spring for top counterbalance.
- Cam lock and rebound spring for bending beam counterbalance.
- Bow handle for bending beam rotation
- Adjustable bending angle stop with scale up to 135°.
- Segmented top beam tools.
- They have the function of air spring which can be installed inside the arm (optional).
- Item No.:173162
- Model: PBB-5014A
- Max. sheet thickness: 14 Ga.
- Max. clamping bar lift: 1.9 in
- Folding angle: 0-135°
- Packing size: 68x28x52 in
- N.W./G.W.: 814/990 lbs
What Our Experts Think
-
The KAKA Industrial PBB-5014A Pan and Box Brake (173162) is a 50-inch heavy-duty sheet metal brake ideal for bending boxes, pans, and custom sheet metal parts with precision.
-
Equipped with a foot-operated clamp offering a 1.9-inch maximum lift for secure and efficient clamping.
-
Handles a maximum box depth of 2 inches and provides a folding angle range of 0°–135° for versatile metal forming.
-
Constructed from robust steel, ensuring durability, stability, and professional-grade performance.
Q&A
Q: What is the clamping bar lift?
A: Maximum lift is 1.9 inches, securing material firmly during bends.
Q: What is the maximum box depth?
A: Can handle boxes up to 2 inches deep.
Q: What folding angles are supported?
A: Adjustable from 0° to 135° for a wide range of metal forming applications.
Q: Is it suitable for professional workshops?
A: Yes, its heavy-duty construction and large working length make it ideal for professional sheet metal fabrication.
Maintenance Tips
-
Clean clamping and bending surfaces after each use to prevent metal buildup.
-
Lubricate foot pedal mechanism and moving joints regularly for smooth operation.
-
Check alignment and fasteners periodically to maintain bending accuracy.
-
Store in a dry, protected area to prevent rust and extend machine lifespan.
