Katool Four Post Vehicle Lift 11,000lbs 4H110 - KT-4H110

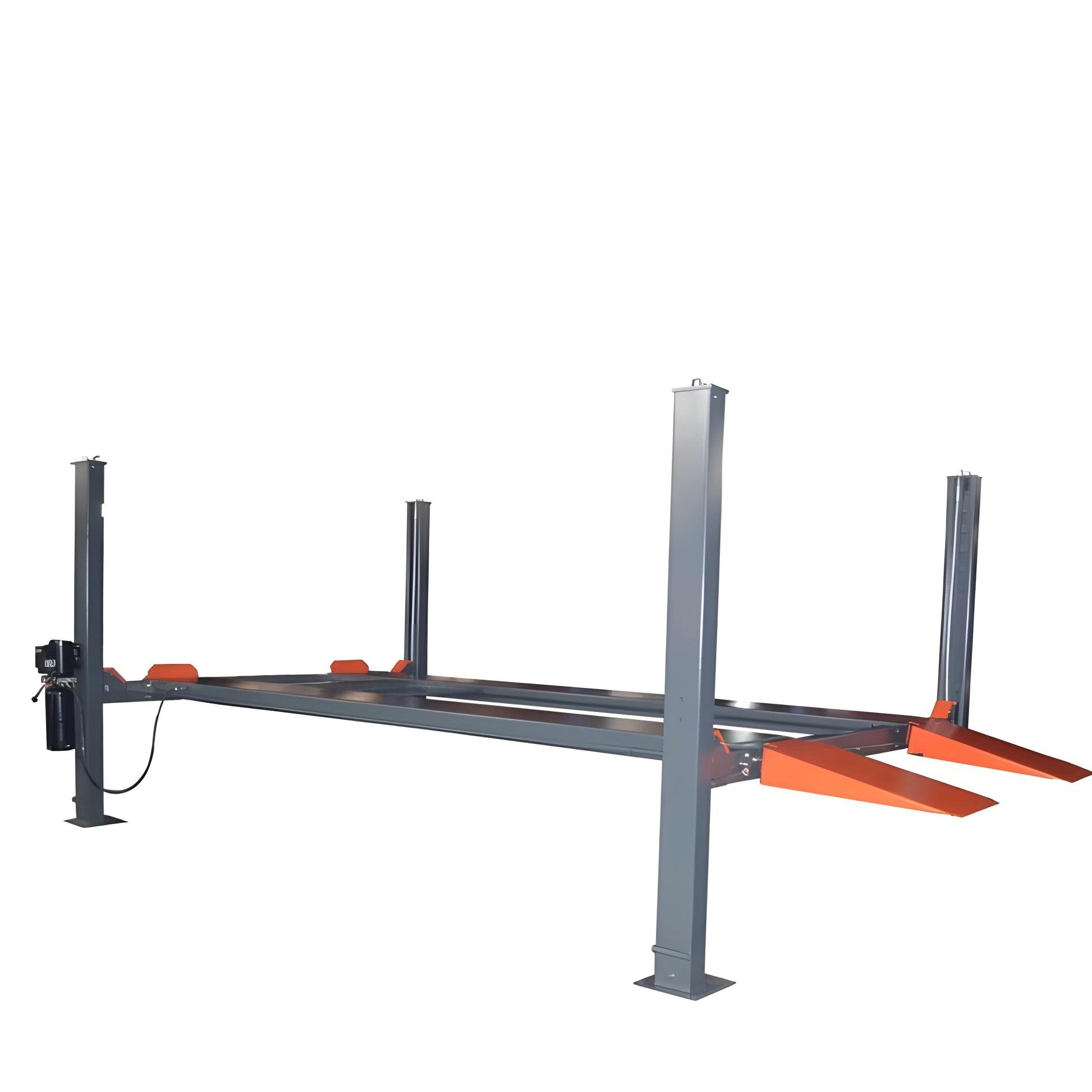

Boost Your Garage: The Katool 4H110 4-Post Lift (11,000 lbs)
Please inquire about freight costs
Safe & Secure Lifting:
-
11,000 lb Capacity: Easily handles a wide range of vehicles.
-
CE Certified & Exceeds Standards: Meets 115% dynamic and 150% static load capacity for enhanced safety.
-
Multiple Safety Locks: Features a single-point release with primary and secondary mechanical locks.
-
Adjustable Platforms & Ladders: Ensures secure positioning for different vehicle types.
-
Optional Mobility & Functionality: Add casters and rolling jacks for greater convenience (sold separately).
Features
-
11,000 lb Lifting Capacity: Ideal for cars, SUVs, and most light trucks.
-
CE Certified & Exceeds Standards: Meets 115% dynamic and 150% static load capacity for superior safety.
-

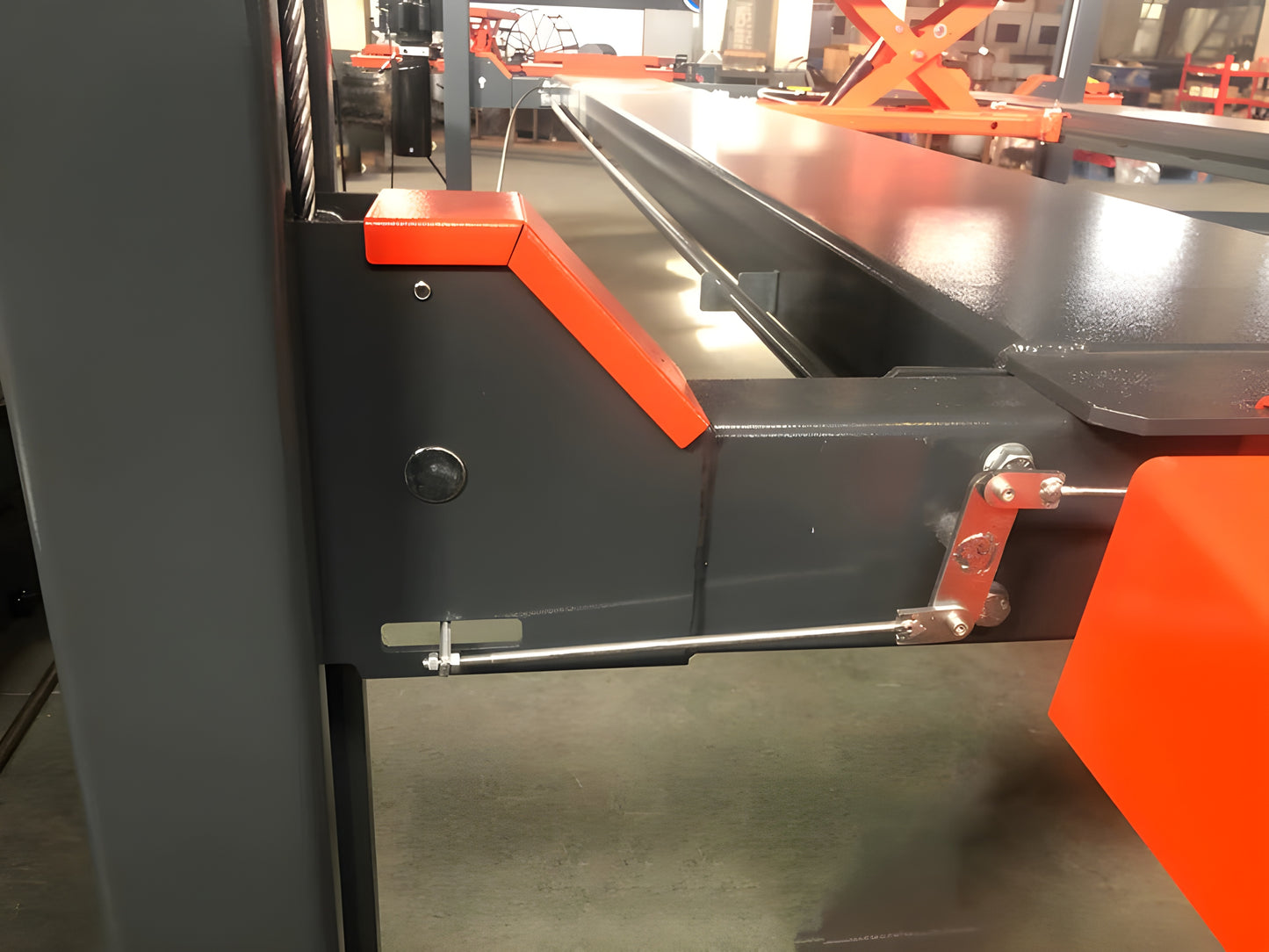

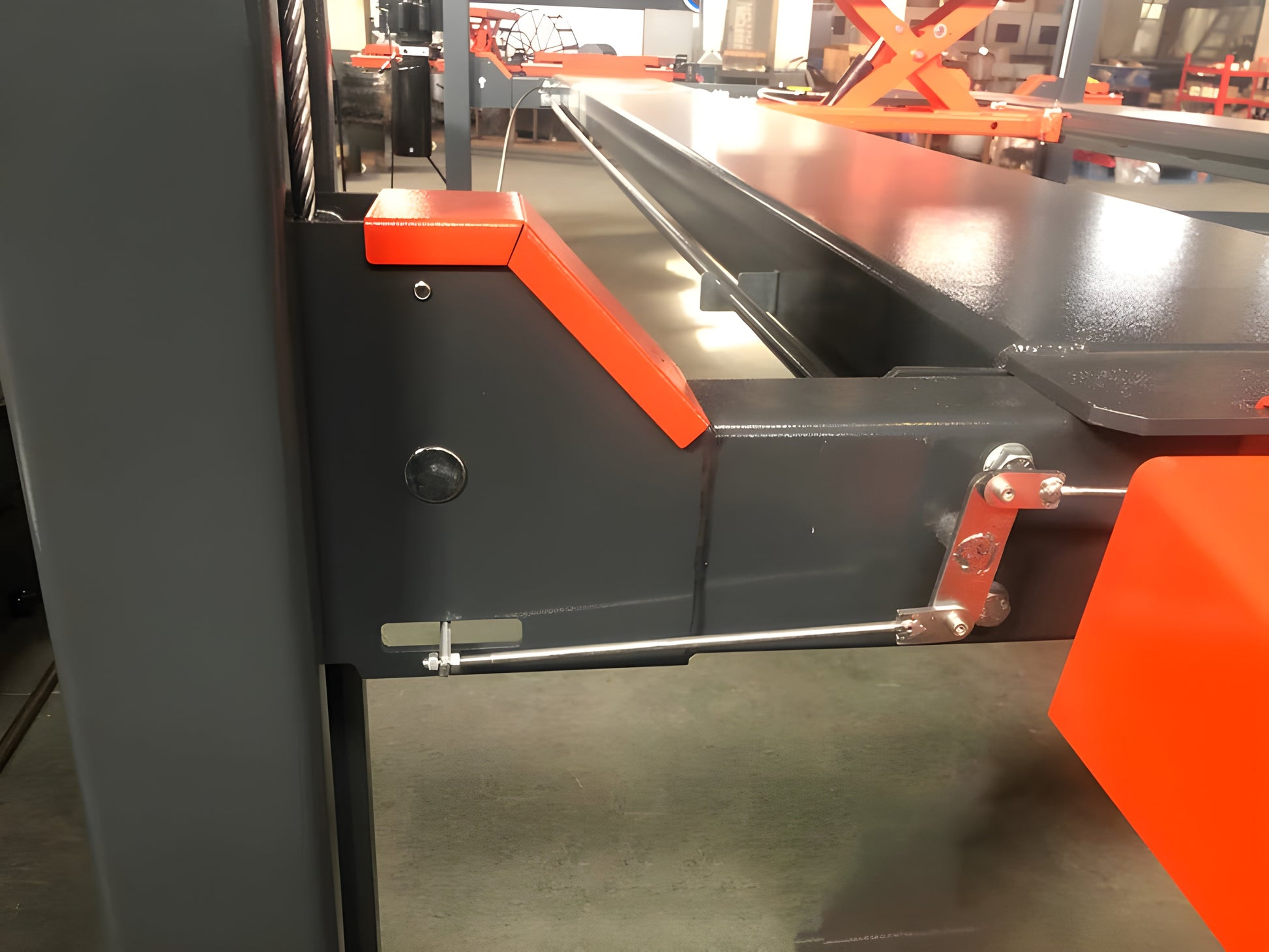

Easy-Release Safety System: Single-point release with secure primary & secondary mechanical locks.
-
Adjustable Platforms & Ladders: Accommodates various vehicle sizes for comfortable working positions.
-
Flexible Power Options: 110V or 220V operation for a wider range of use.
-

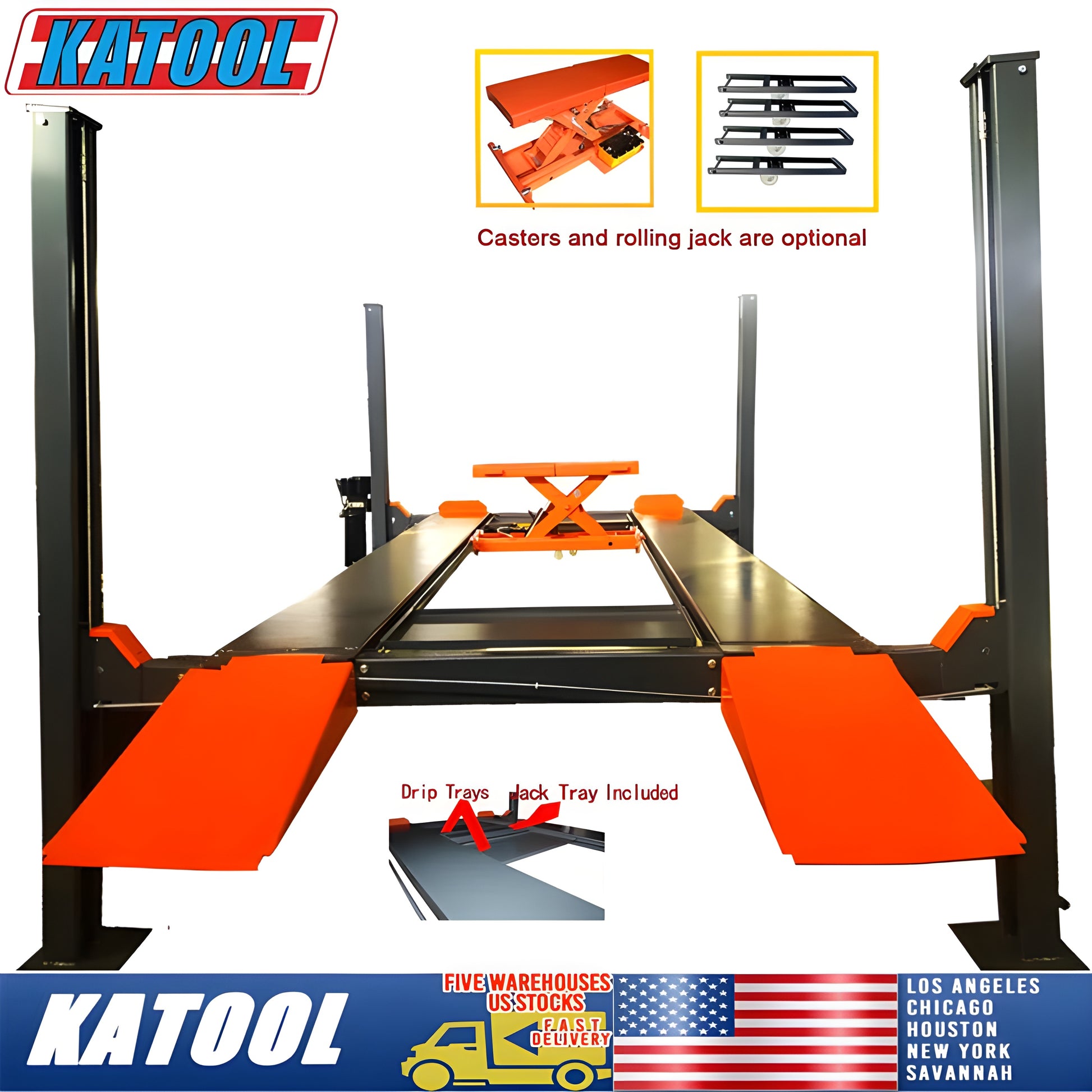

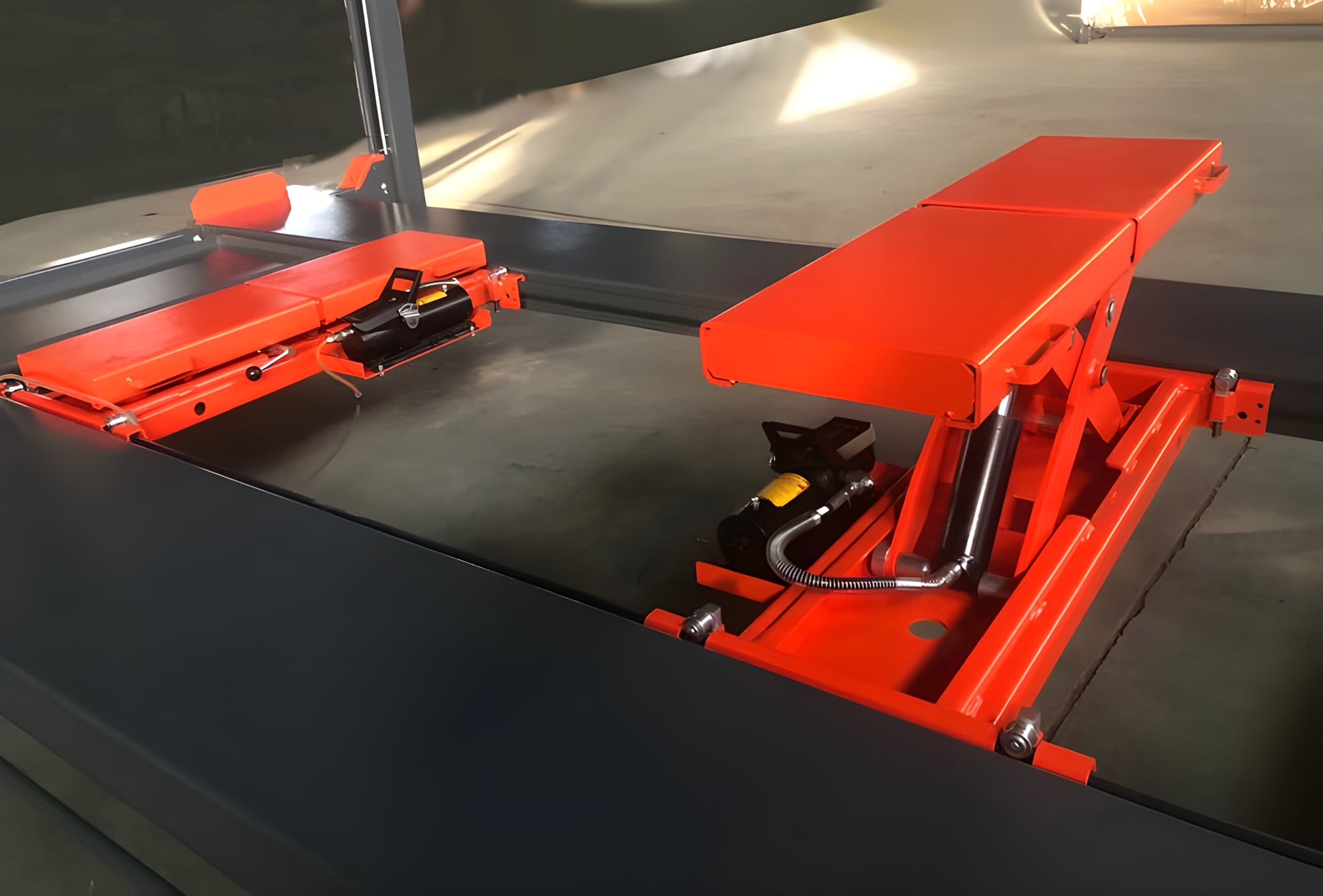

Optional Features: Add casters for mobility and rolling jacks for additional lifting functionality (sold separately).
-
Includes: Two drip trays and a jack tray for convenient workspace organization.
Specifications
-
Lifting Capacity: 11,000 lbs (4,990 kg)
-
Max Lifting Height: 84.25 in (2,140 mm)
-
Lifting Time: Up: 83 seconds, Down: 40 seconds
-
Height of Posts: 94.88 in (2,410 mm)
-
Overall Width: 126 in (3,200 mm)
-
Overall Length (with Ramps): 229.73 in (5,835 mm)
-
Inside Columns: 112.81 in (2,865 mm)
-
Min Runway Height: 6.2 in (157 mm)
-
Motor: 110VAC/60HZ/1PH
-
Net Weight: 2,116 lbs (960 kg)
Product Manual
User Manual
Video
What Our Experts Think
-
Heavy-duty four-post lift with 11,000 lbs lifting capacity
-
Ideal for professional garages and vehicle storage
-
Drive-on ramp design makes it easy to load and lift vehicles
-
Provides excellent stability and safety for long-term vehicle support
-
Built with reinforced steel construction for durability
-
Mechanical safety locks engage automatically at multiple height positions
-
Suitable for light trucks, SUVs, and standard passenger vehicles
Q&A
Q: What is the lifting capacity of the KT-4H110?
A: It can lift up to 11,000 lbs, handling most cars, SUVs, and light-duty trucks.
Q: Is this lift good for vehicle storage as well?
A: Yes, the four-post design makes it perfect for both servicing and long-term vehicle storage.
Q: Does it require floor anchoring?
A: Typically, four-post lifts are free-standing, but anchoring is recommended for added stability.
Q: Can it be used for wheel alignment?
A: Yes, with optional alignment accessories, it can be adapted for alignment services.
Q: Is professional installation required?
A: Yes, proper setup by a qualified technician ensures safe operation.
Maintenance Tips
-
Regularly check and maintain hydraulic fluid levels
-
Keep safety locks and cables lubricated and free of corrosion
-
Inspect ramps and lifting platforms for wear or damage
-
Tighten all bolts and anchor points periodically
-
Schedule annual professional inspections to ensure safe operation
