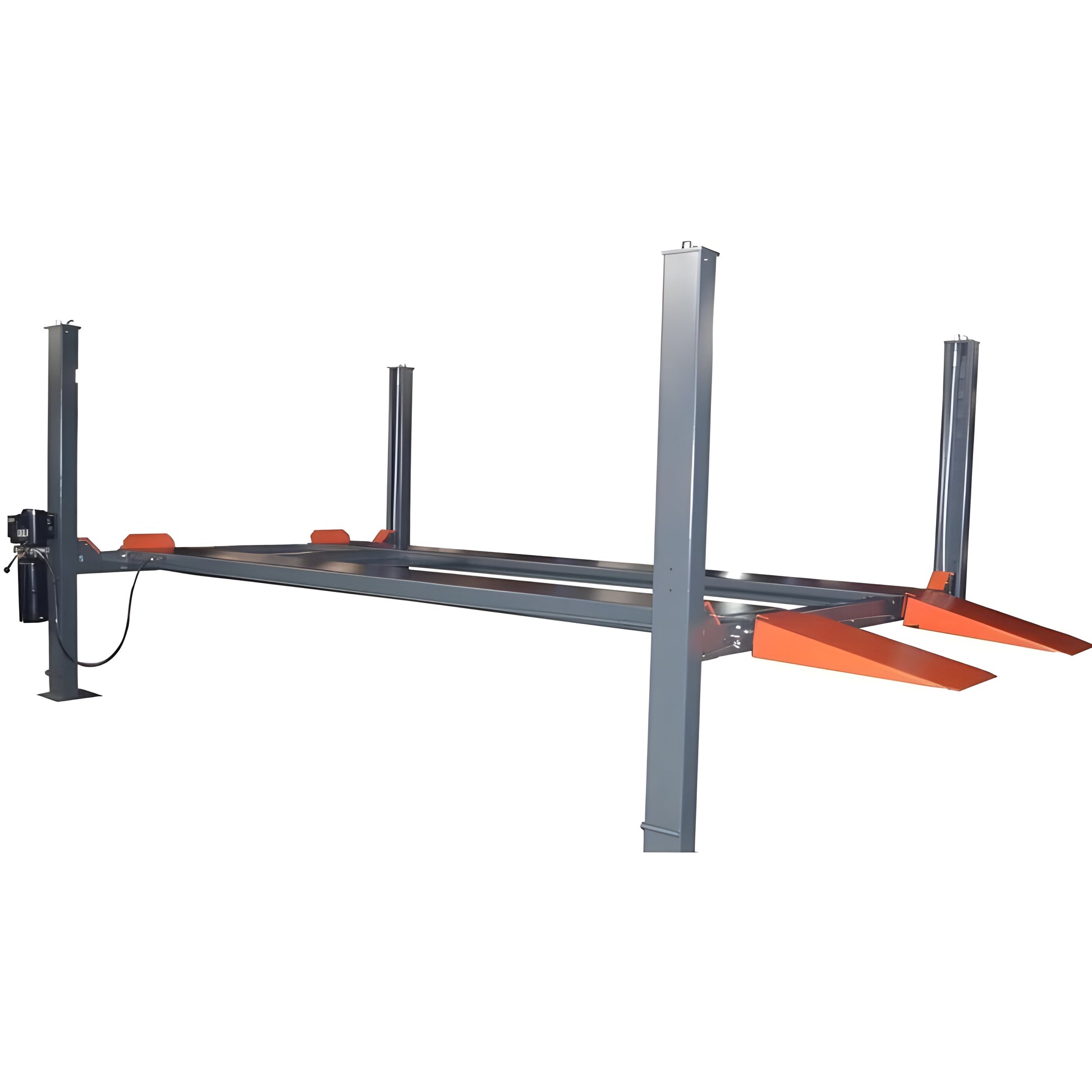

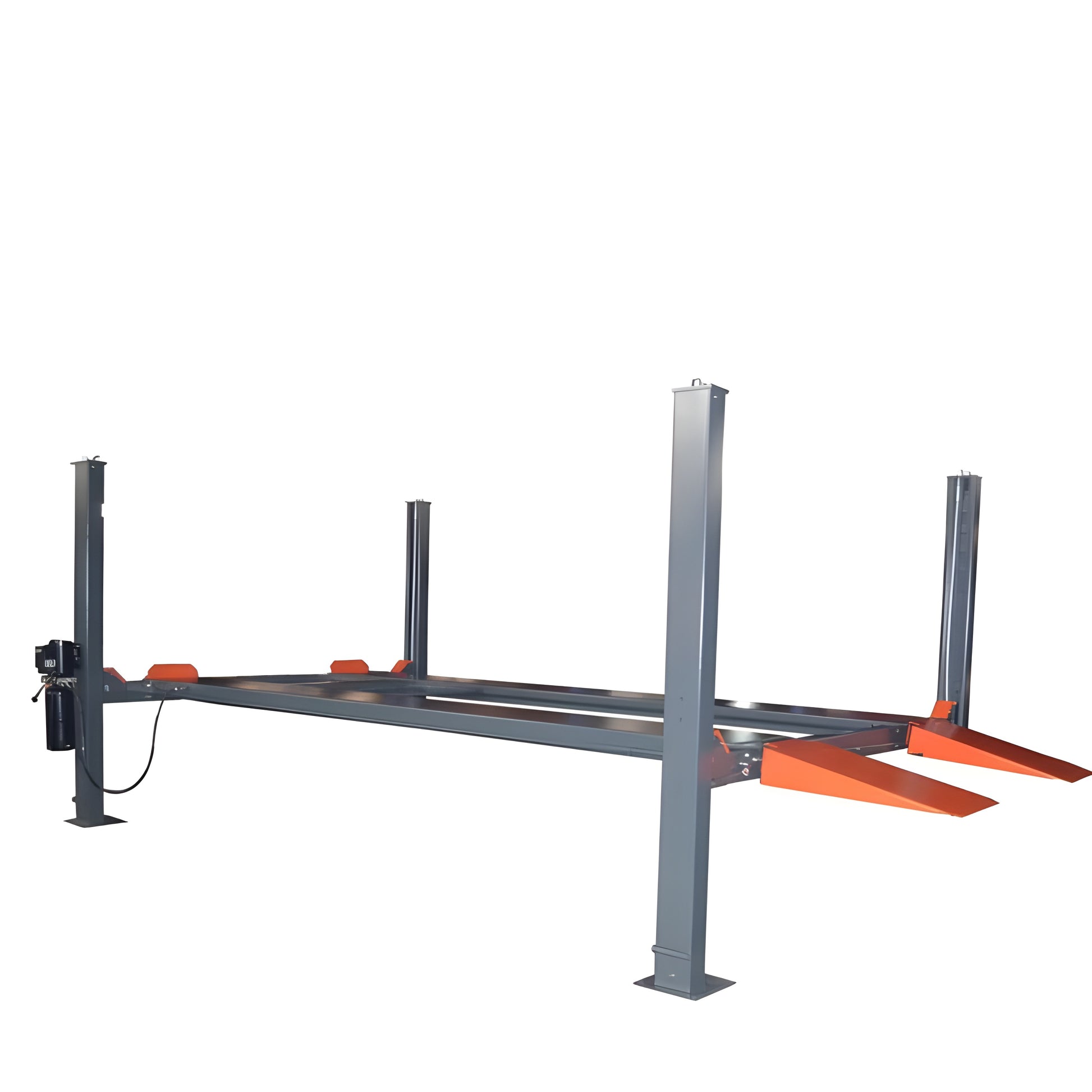

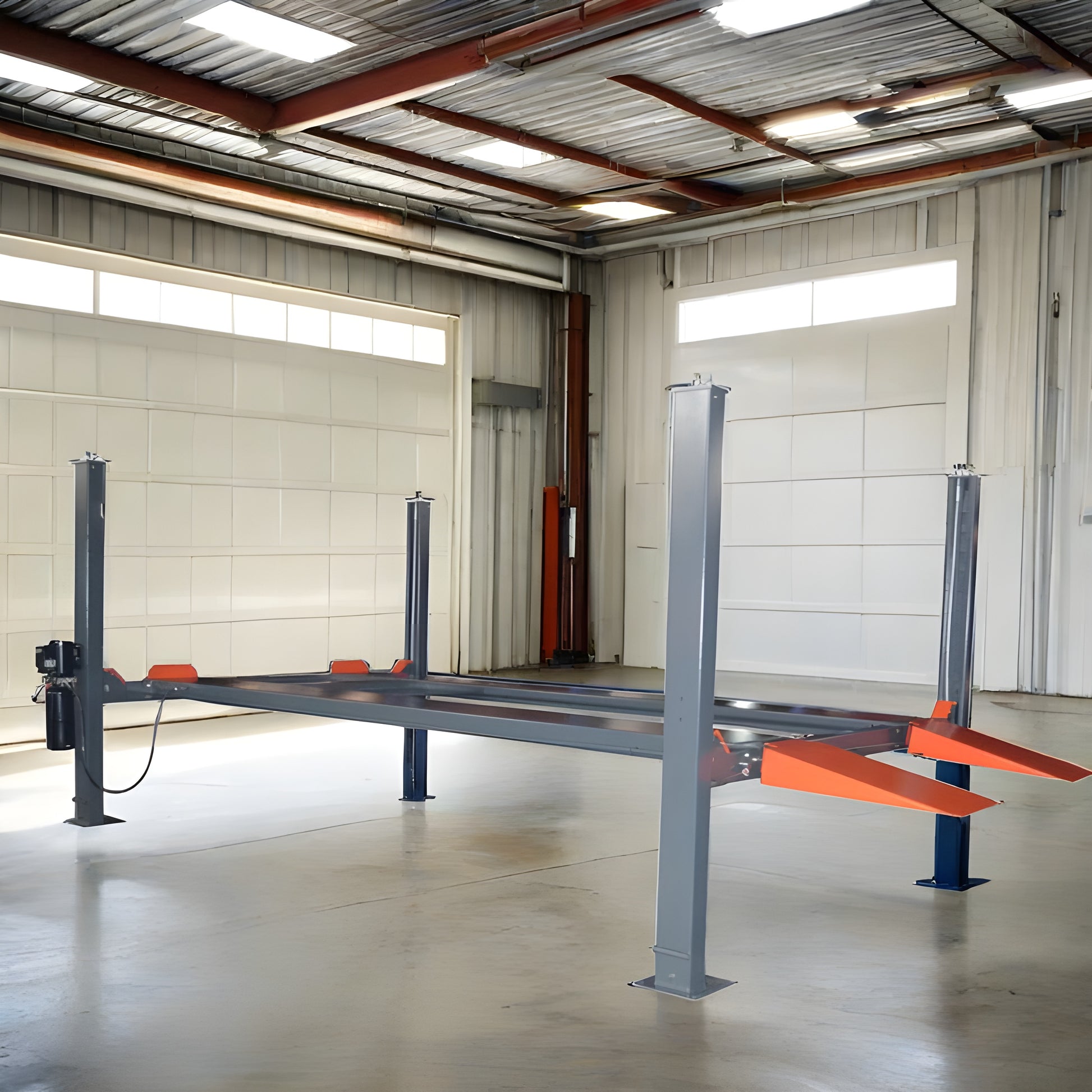

Katool Four Post Vehicle Lift 11,000lbs - KT-4H110
Please inquire about freight costs
Safe & Secure Lifting:
-
11,000 lb Capacity: Easily handles a wide range of vehicles.
-
CE Certified & Exceeds Standards: Meets 115% dynamic and 150% static load capacity for enhanced safety.
-
Multiple Safety Locks: Features a single-point release with primary and secondary mechanical locks.
-
Adjustable Platforms & Ladders: Ensures secure positioning for different vehicle types.
-
Optional Mobility & Functionality: Add casters and rolling jacks for greater convenience (sold separately).
Features
-
11,000 lb Lifting Capacity: Ideal for cars, SUVs, and most light trucks.
-
CE Certified & Exceeds Standards: Meets 115% dynamic and 150% static load capacity for superior safety.
-

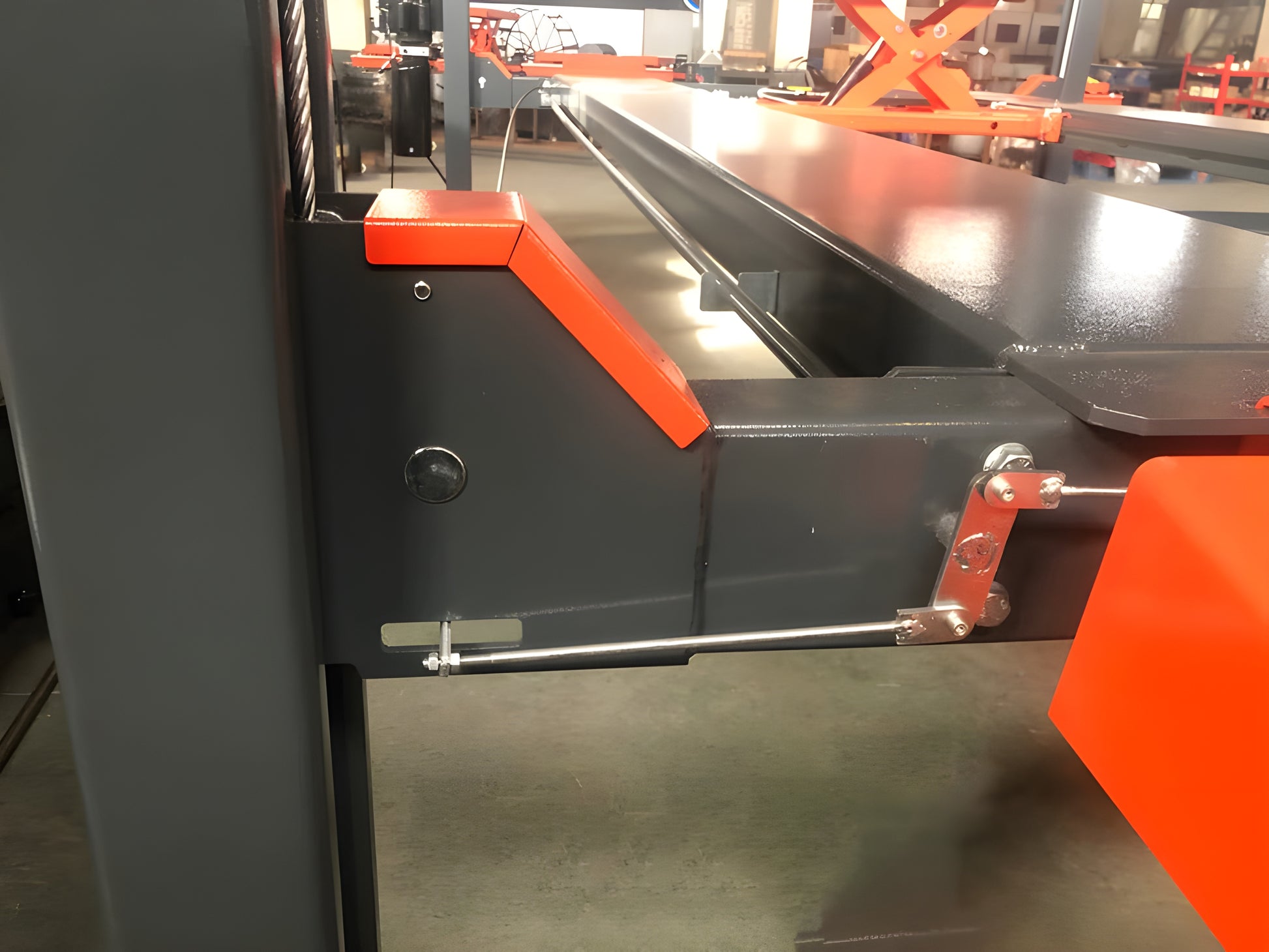

Easy-Release Safety System: Single-point release with secure primary & secondary mechanical locks.
-
Adjustable Platforms & Ladders: Accommodates various vehicle sizes for comfortable working positions.
-
Flexible Power Options: 110V or 220V operation for a wider range of use.
-

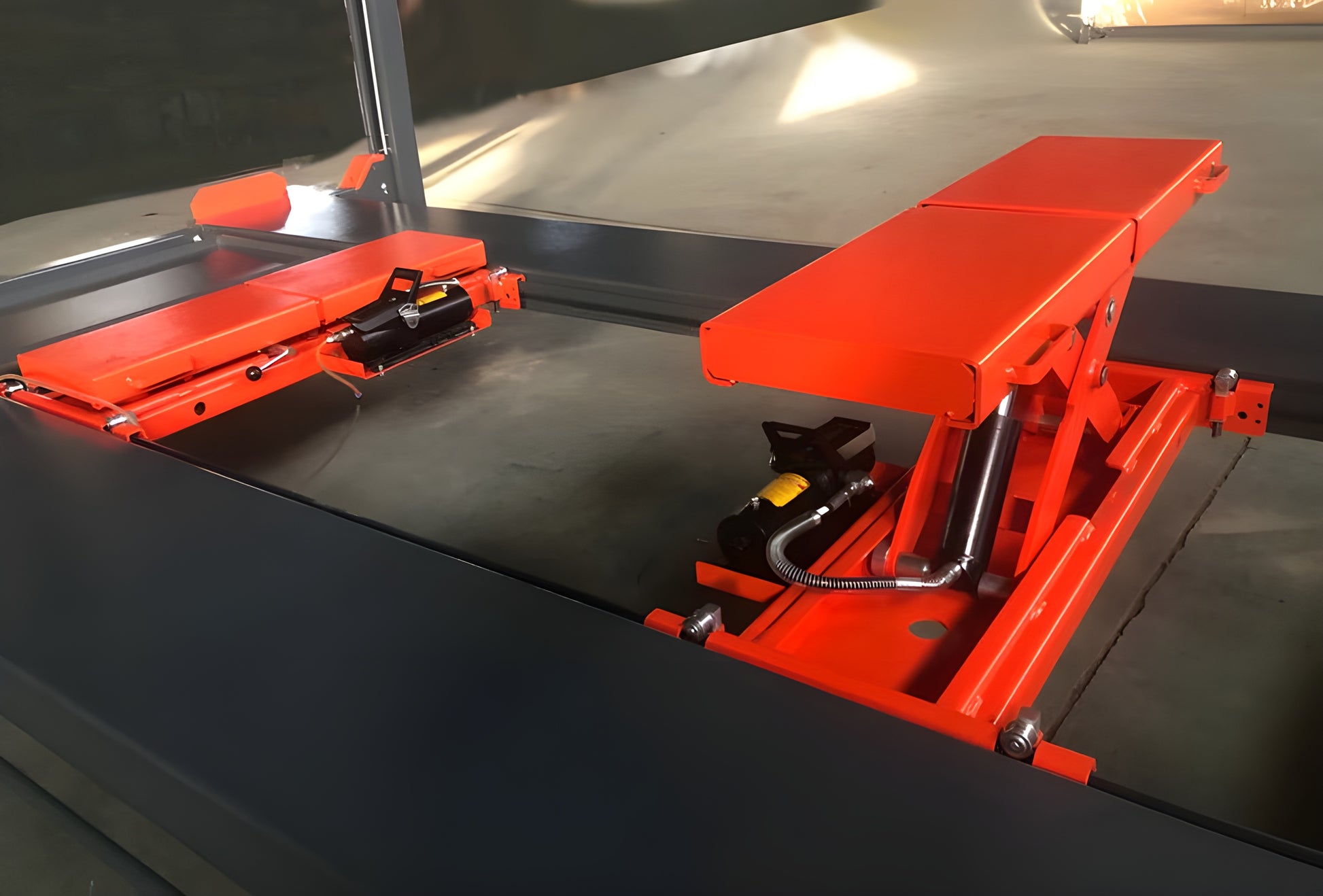

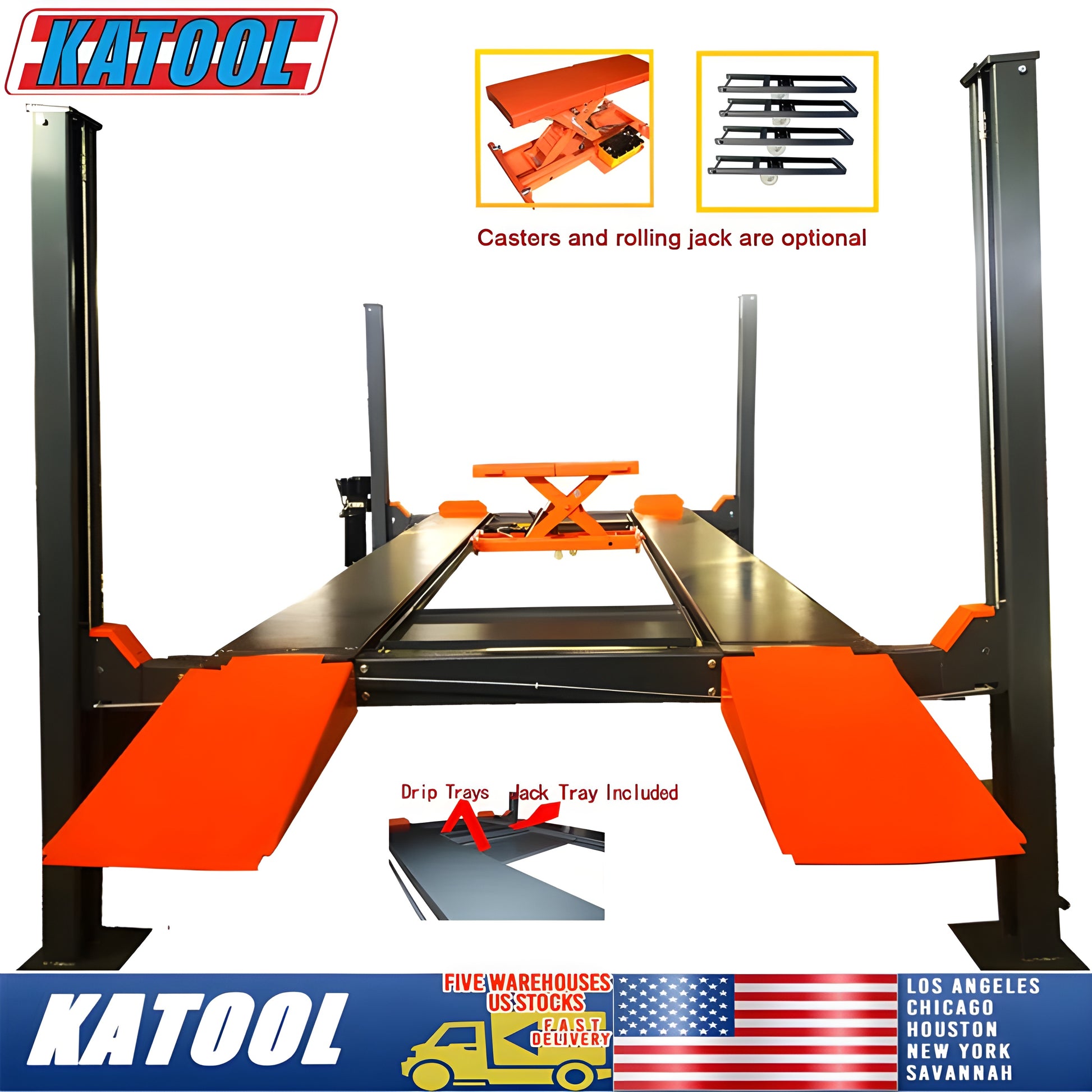

Optional Features: Add casters for mobility and rolling jacks for additional lifting functionality (sold separately).
-
Includes: Two drip trays and a jack tray for convenient workspace organization.
Specifications
-
Lifting Capacity: 11,000 lbs (4,990 kg)
-
Max Lifting Height: 84.25 in (2,140 mm)
-
Lifting Time: Up: 83 seconds, Down: 40 seconds
-
Height of Posts: 94.88 in (2,410 mm)
-
Overall Width: 126 in (3,200 mm)
-
Overall Length (with Ramps): 229.73 in (5,835 mm)
-
Inside Columns: 112.81 in (2,865 mm)
-
Min Runway Height: 6.2 in (157 mm)
-
Motor: 110VAC/60HZ/1PH
-
Net Weight: 2,116 lbs (960 kg)
Product Manual
User Manual
Video
What Our Experts Think
-
11,000 lbs lifting capacity handles cars, SUVs, and light trucks
-
Four-post design provides stability and secure lifting
-
Ideal for wheel alignment, vehicle storage, and general service
-
Durable steel construction ensures long-term reliability
-
Great for professional workshops and garages needing extra capacity
Q&A
Q: What is the lifting capacity of the KT-4H110?
A: 11,000 lbs, suitable for most passenger vehicles and light trucks.
Q: Is it only for lifting, or can it be used for alignment?
A: It’s designed for both lifting and wheel alignment tasks.
Q: Does the four-post design offer better stability?
A: Yes, the four-post setup provides maximum safety and balance.
Q: What power supply is required?
A: Standard 220V single phase.
Maintenance Tips
-
Inspect hydraulic fluid levels regularly and refill as needed
-
Lubricate moving parts and safety locks for smooth operation
-

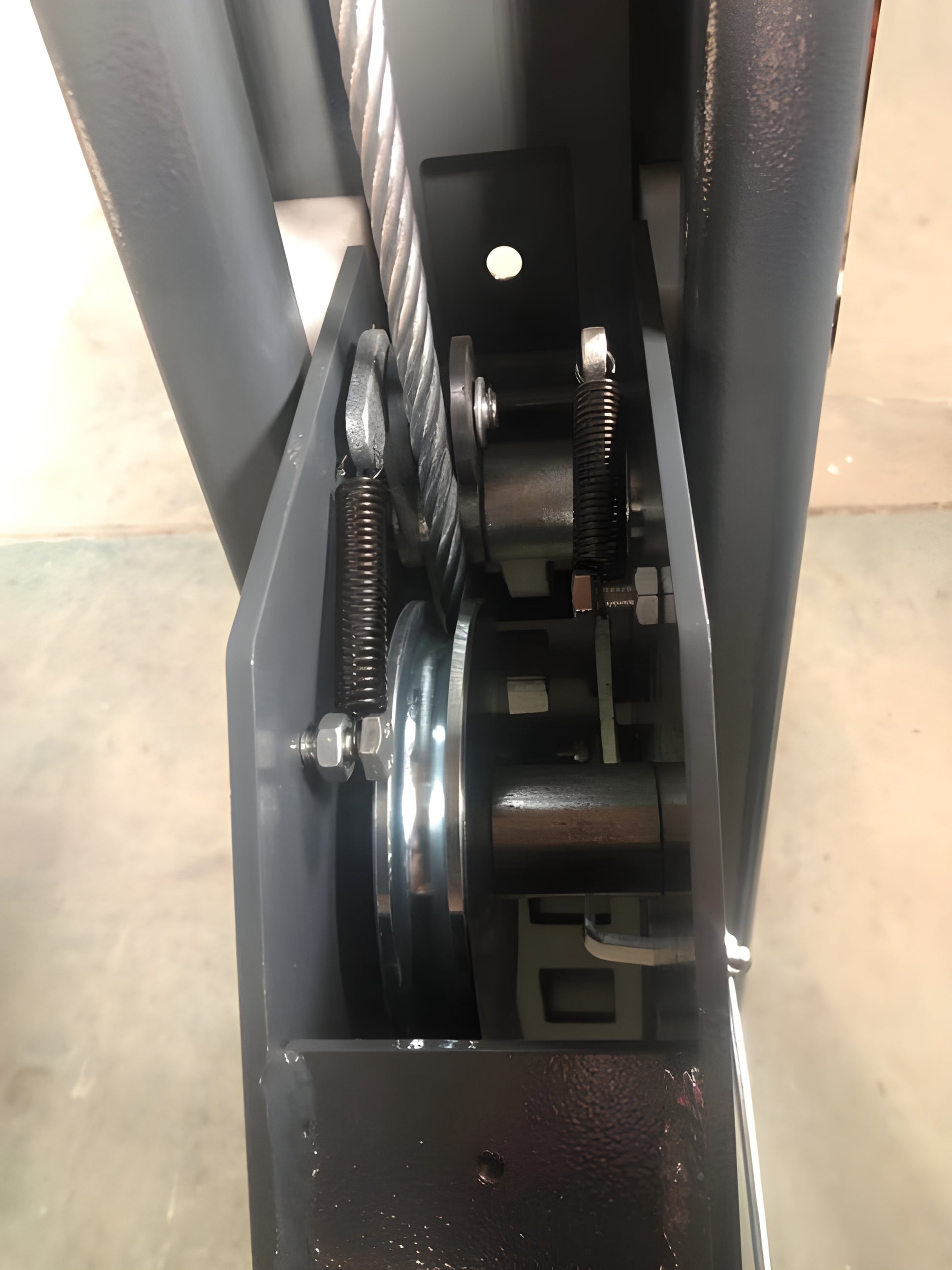

Check cables, pulleys, and bolts for wear or looseness
-
Keep runways and posts clean from dust and debris
-
Follow the manufacturer’s service schedule for extended life
