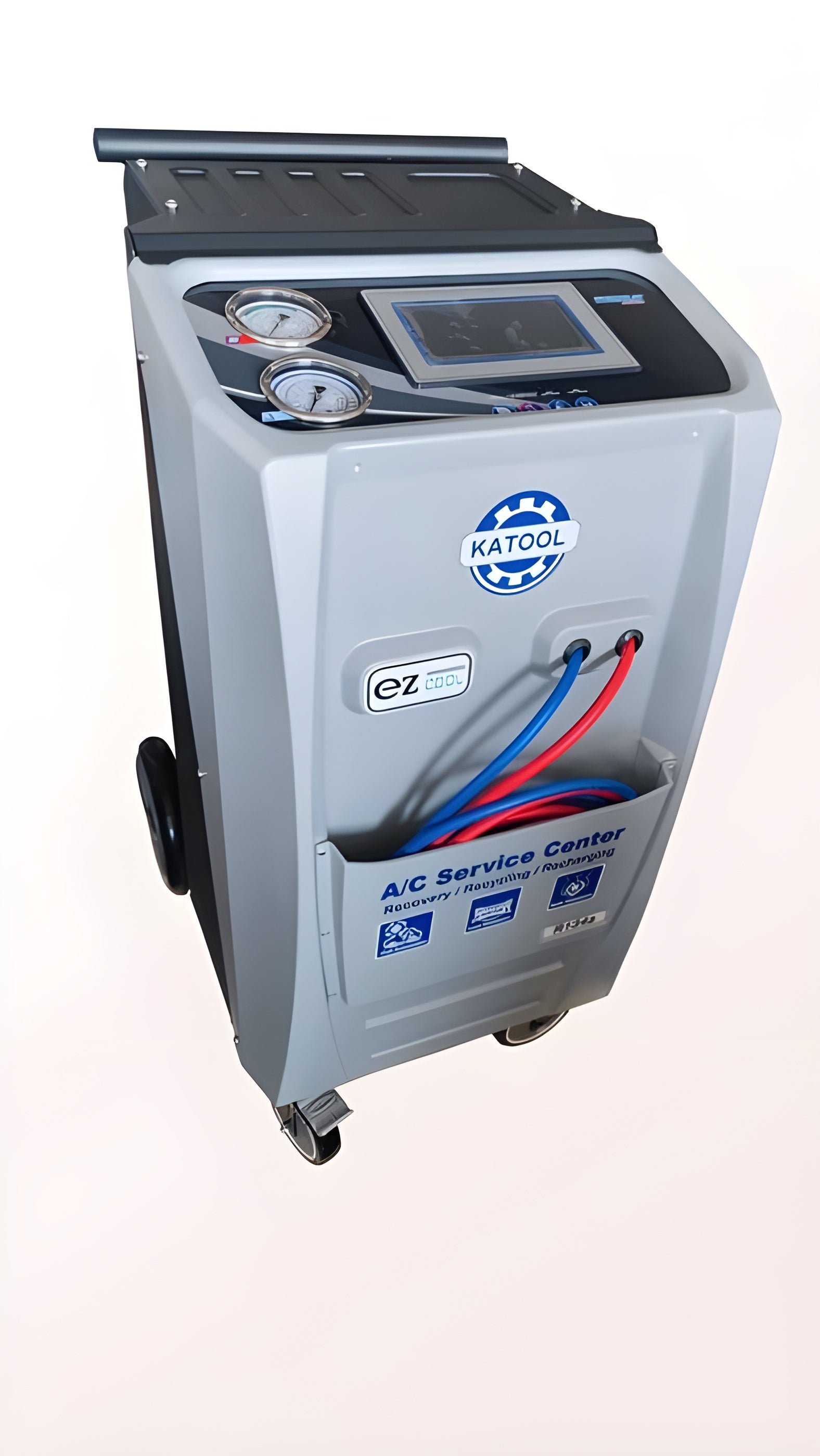

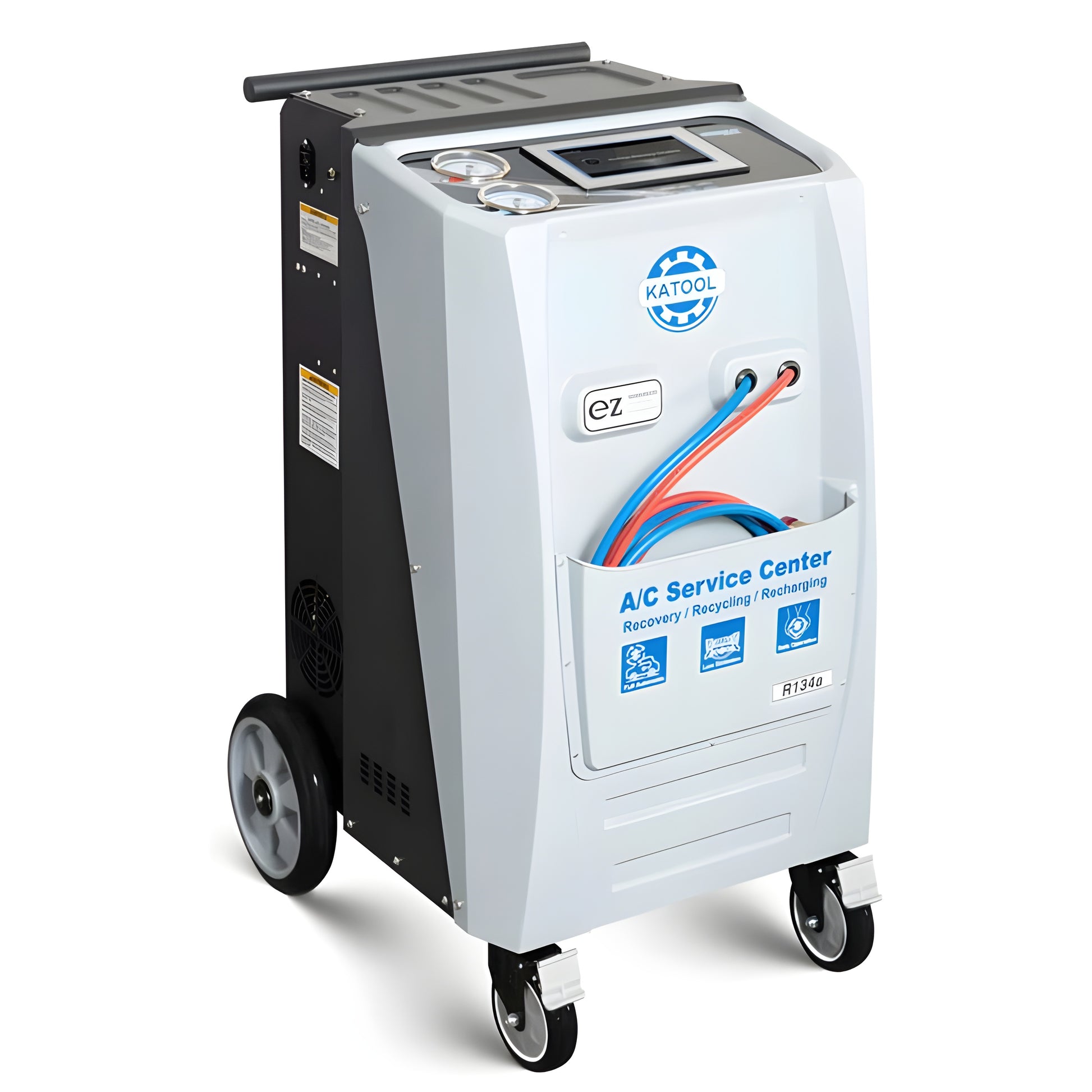

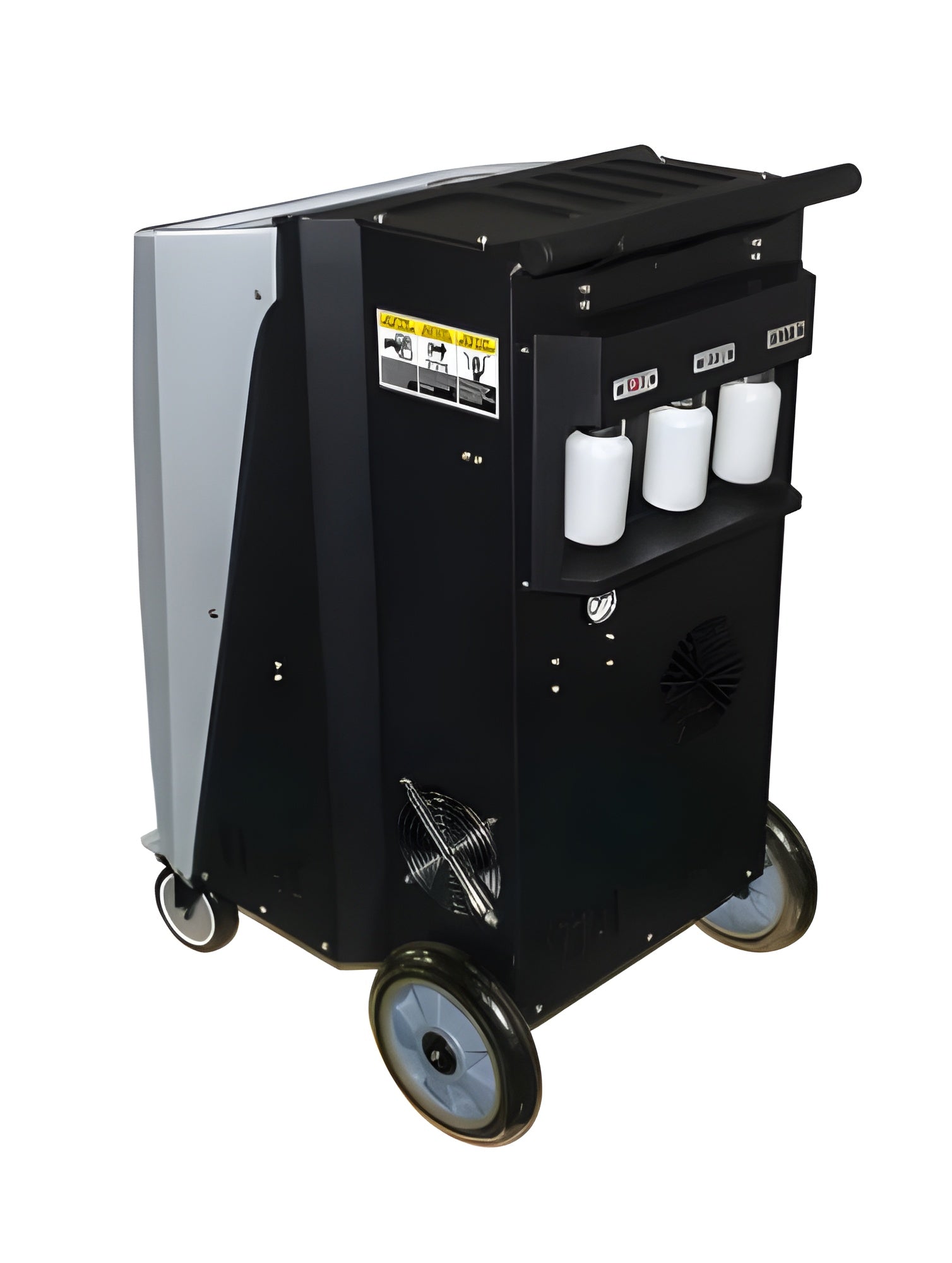

Katool Fully Automatic Recovery, Recycle & Recharge DUAL AC1800 Machine - R-134A
The Katool R-134A AC1800 Machine is an advanced, fully automatic refrigerant recovery, recycling, and recharging system designed to simplify your auto AC servicing. With exceptional efficiency and versatility, it's the ideal choice for high-demand shops.
-
Fast & Efficient: Recover refrigerant in under 30 minutes with a minimum 95% recovery rate, reducing downtime.
-
Broad Vehicle Compatibility: Service a wide range of vehicles, including domestic, foreign, electric, and hybrid models.
-
Precise Charging: Achieve ±0.5 oz (15 g) accuracy for optimal system performance, thanks to cutting-edge load cell technology.
-
User-Friendly Operation: Easily navigate tasks with the intuitive 7-inch touchscreen display.
-
Comprehensive Functionality: Includes a built-in printer, optional heating belt, SD database support, vacuum testing, and a powerful fan and condenser system for a complete service experience.
Features
-
Ultra-Fast Refrigerant Recovery: Recover refrigerant in under 30 minutes with a minimum 95% recovery rate, maximizing shop efficiency.
-
Universal Vehicle Support: Service a wide variety of vehicles, including domestic, foreign, electric, and hybrid models, for comprehensive AC system care.
-
High-Precision Charging: Achieve ±0.5 oz (15 g) accuracy for optimal system performance, ensured by advanced load cell technology for precise refrigerant and oil measurements.
-

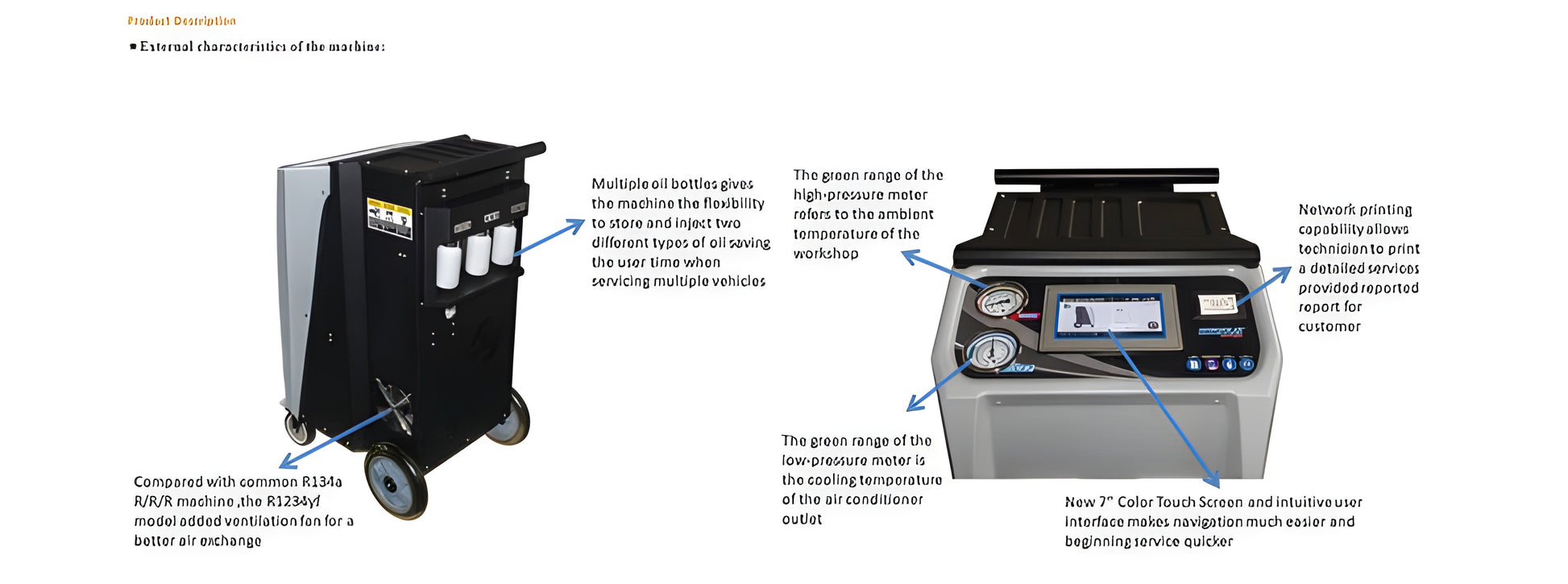

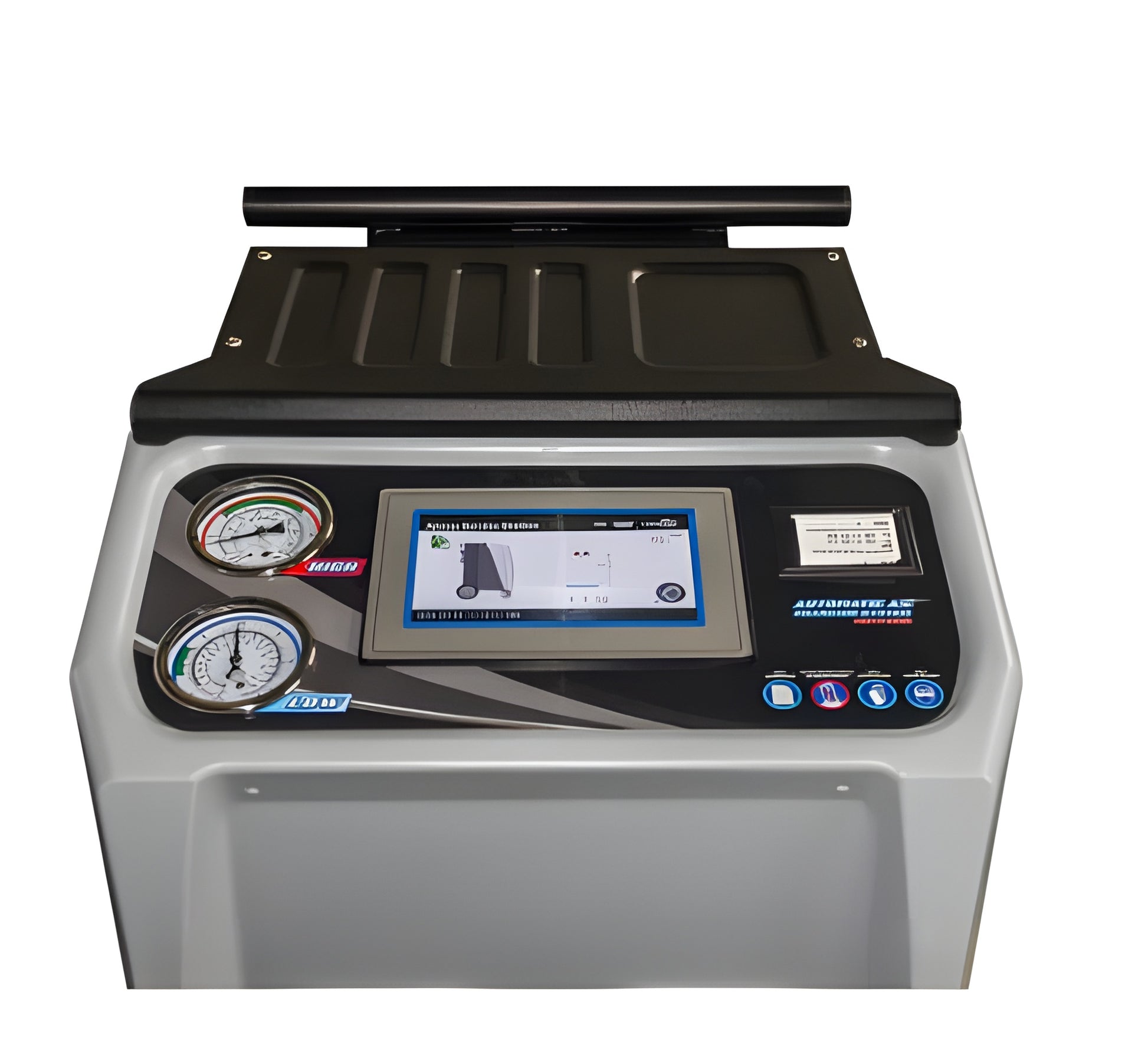

Intuitive Touchscreen Control: Navigate tasks effortlessly with a large 7-inch high-quality touchscreen display for a user-friendly experience.
-

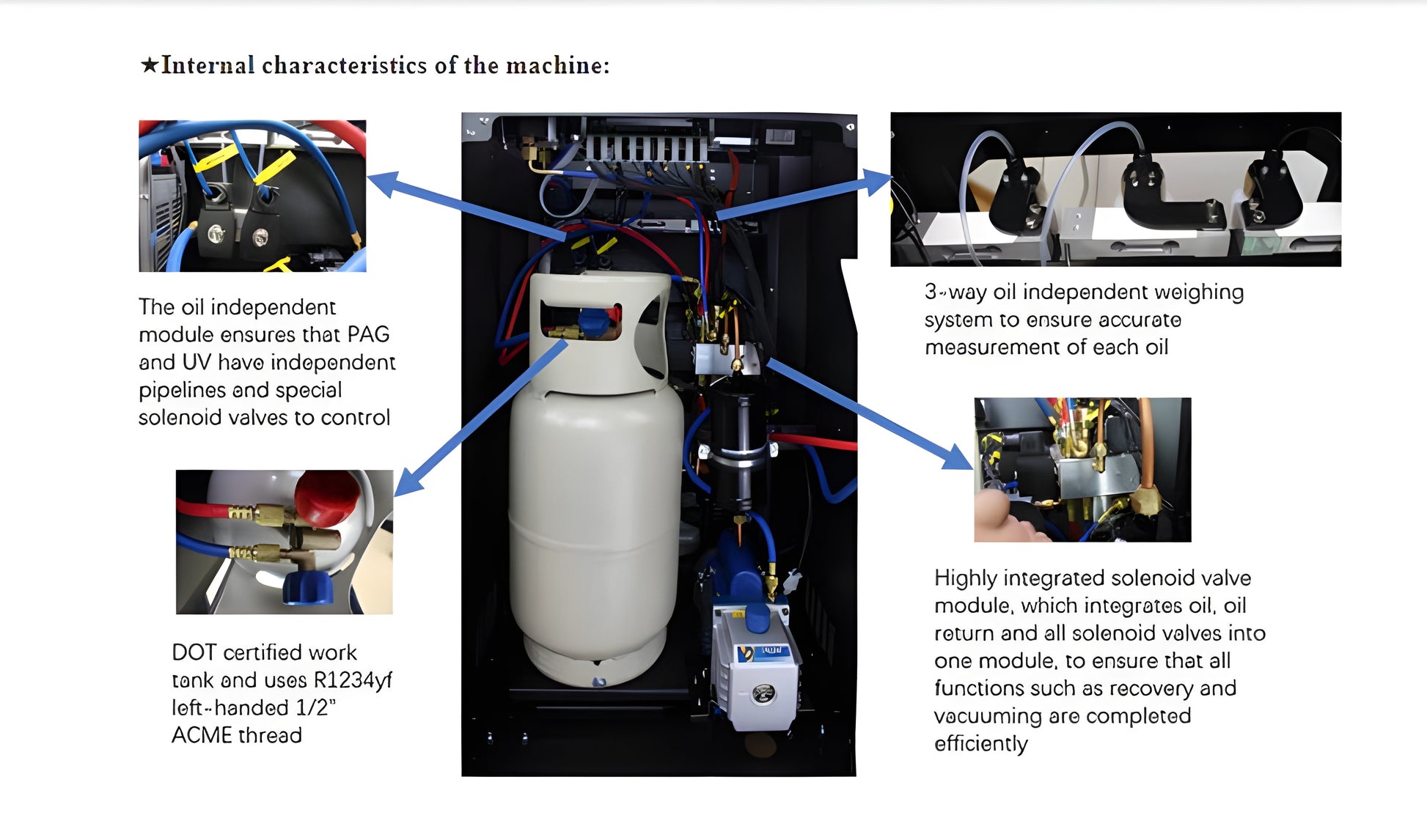

Enhanced Service Features: Includes a built-in printer for detailed service reports, an optional heating belt for faster system evacuation, SD database support for convenient service information access, vacuum testing for system leak detection, and a robust fan and condenser system for optimal machine performance.
Specification
-
Applicable Refrigerant: R134a
-
Voltage: 110V AC, 60 Hz
-
Recovery Performance: Min. 95% in less than 30 minutes (at 70-75°F)
-
Charge Performance: ±0.5 oz (15 g) (at 70-75°F)
-
Operating Temperature Range: 41-122°F (5-50°C)
-
Maximum Pressure: 18 bar
-
Filter-Drier Capacity: 175 lbs (80kg), spin-on type
-
Load Cell Accuracy (Gas & Oil): 0.04 oz / 66 lbs (1 g / 30 kg)
-
Vacuum Transducer Accuracy: 1 mBar / 1000 mBar
-
Recovery Speed: 39.7 lbs/h (18 kg/h)
-
Charge Speed: 2.2 lbs/min (1 kg/min)
-
Hose Length: 9.8 ft (3 m), SAE J2788
-
Compressor: 1/3 hp (246 W), thermally protected, oiled, hermetically sealed
-
Vacuum Pump: 3.6 CFM (120 L/min), dual-stage
-
Display: 7-inch touchscreen HQ
-
Tank Capacity: 0.5 cubic feet (14.3 L)
-
Oil Bottle Capacity: 15 cubic inches (250 mL)
-
Additional Information:
-
Printer: YES
-
Heating Belt: Optional
-
SD Database: YES
-
Vacuum Test: YES
-
Fan & Condenser: YES
What Our Experts Think
-
Fully automatic A/C service machine for R-134A systems
-
Performs recovery, recycling, and recharging in one unit
-
Dual function design improves speed and efficiency in busy shops
-
Simple interface for hassle-free operation
-
Durable construction built for professional auto service centers
Q&A
Q: What refrigerant does the AC1800 use?
A: It is designed for vehicles with R-134A refrigerant systems.
Q: What functions does this machine perform?
A: It automatically recovers, recycles, and recharges refrigerant.
Q: Is it suitable for high-volume workshops?
A: Yes, it’s built for continuous use with reliable performance.
Q: Does it require manual operation?
A: No, it’s fully automatic, making it user-friendly and efficient.
Maintenance Tips
-
Replace filters on schedule for maximum efficiency
-
Inspect hoses and fittings regularly for leaks
-
Keep the machine clean and dust-free
-
Ensure refrigerant tanks are serviced properly
-
Follow manufacturer’s maintenance guidelines for long-term accuracy
