Katool Fully Automatic Recovery, Recycle & Recharge DUAL AC2100 Machine R-1234YF - R-1234YF
Effortless & Efficient A/C Care:

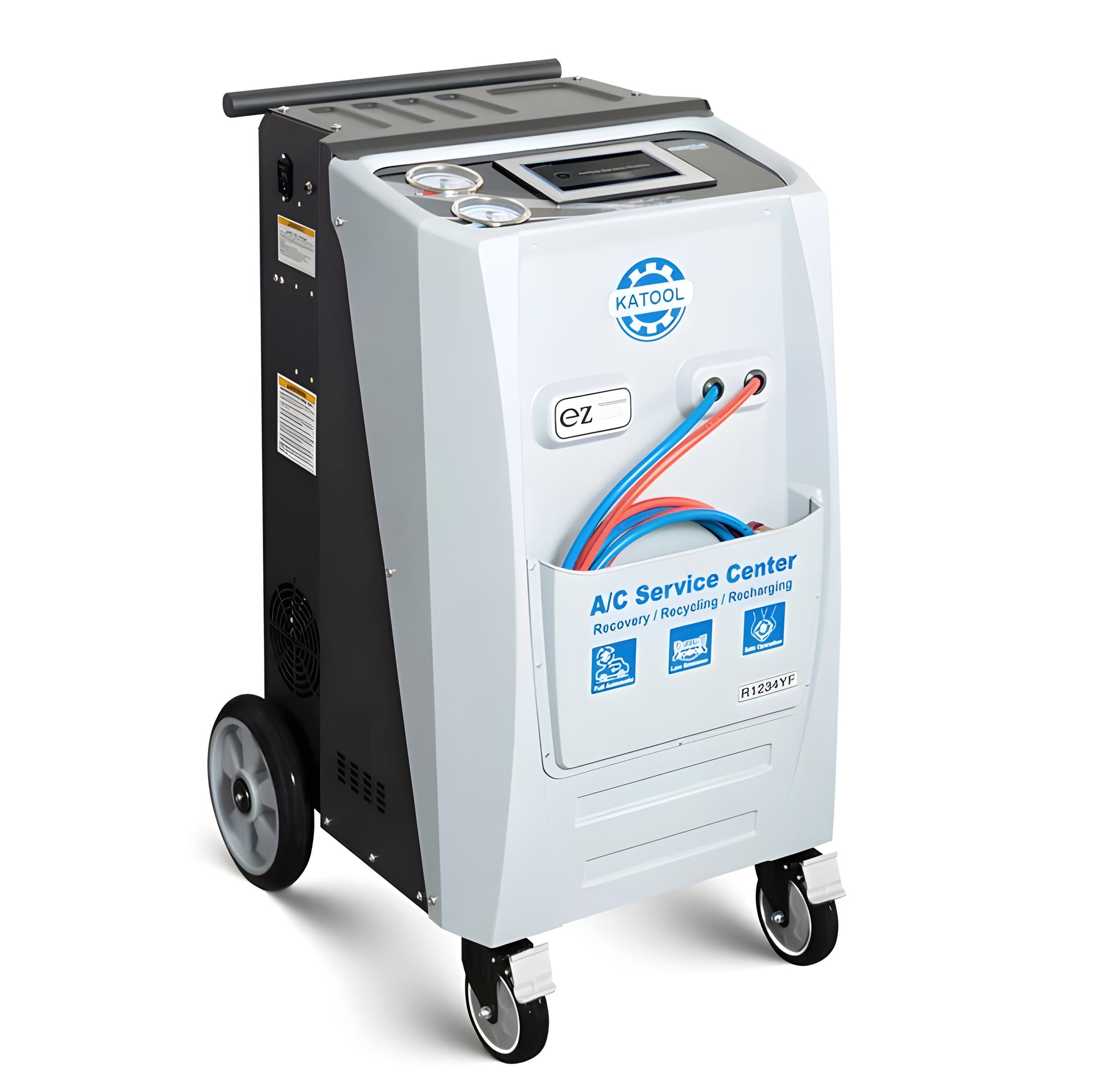

Katool R-1234YF Recovery & Recharge Machine (AC2100)
Efficient. Accurate. Technician-Friendly.
The Katool AC2100 is the ideal A/C service solution for modern auto repair shops and environmentally conscious technicians. Designed for performance and ease of use, it delivers fast, precise recovery and recharging across all vehicle types.
Key Features
-
Rapid & Efficient Recovery: Achieves up to 95% refrigerant recovery in under 30 minutes, reducing service downtime.
-
Universal Compatibility: Works with domestic, import, hybrid, and electric vehicles, making it a versatile shop asset.
-
High-Precision Recharging: ±0.5 oz accuracy ensures optimal A/C system performance and reliability.
-

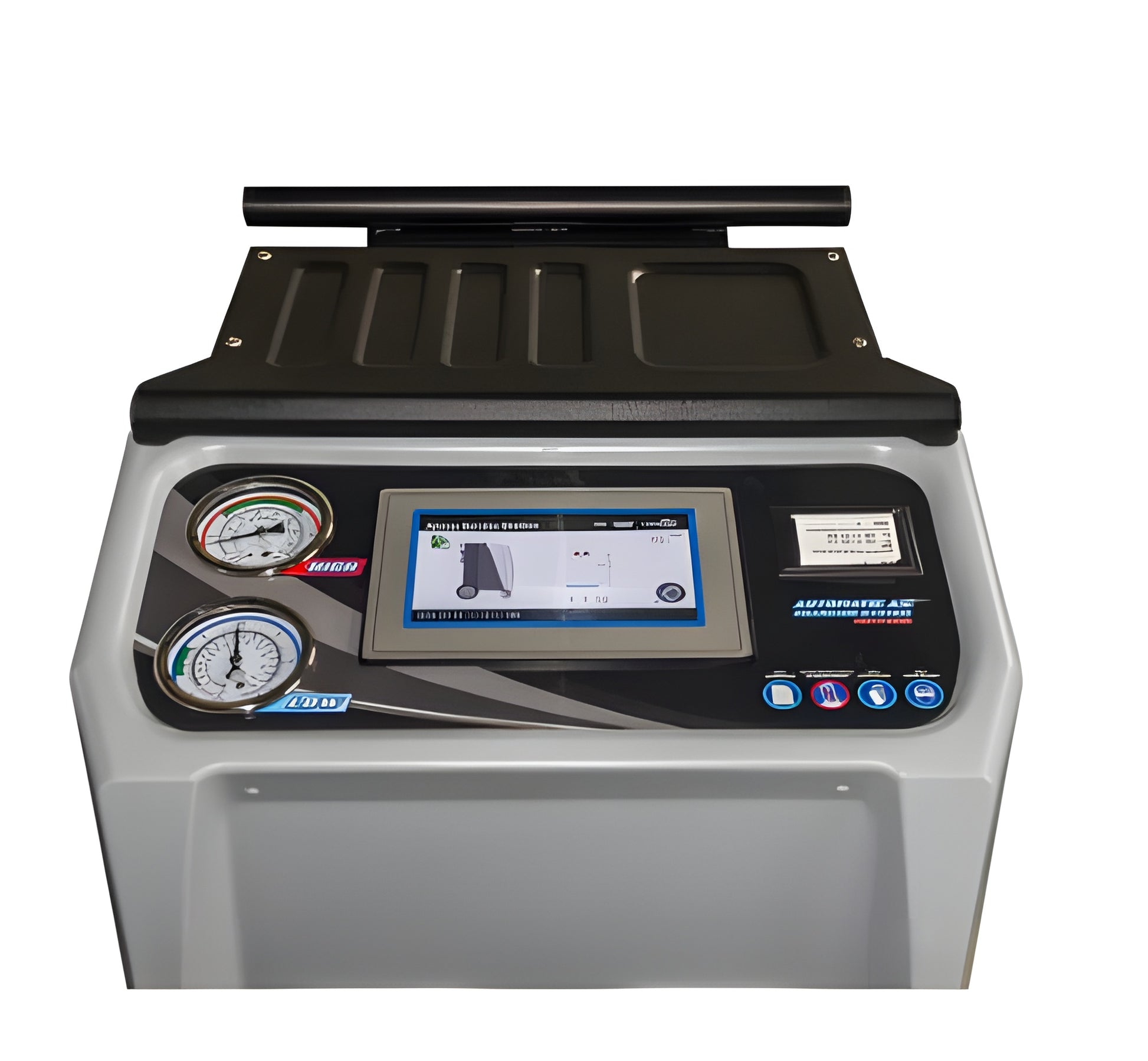

Intuitive Touchscreen Interface: A 7-inch color display offers simple, streamlined navigation and control.
-
Enhanced Functionality: Includes a built-in printer, optional heating belt, and additional advanced features (see specifications for details)
-
Ultra-Fast Recovery: Recover 95% of refrigerant in less than 30 minutes.
-
Broad Vehicle Compatibility: Service any car, including electric and hybrid models.
-
Exceptional Accuracy: Charge refrigerant with ±0.5 oz precision using advanced loadcell technology.
-
Intuitive Touchscreen: Navigate machine functions easily with a 7" high-quality touch display.
-
Optional Features: Enhance your service with a built-in printer, heating belt, SD database support, and more (sold separately).
Specifications
-
Refrigerant: R1234YF
-
Voltage: 110V AC, 60 Hz
-
Recovery Performance: Min. 95% in under 30 minutes (70-75°F)
-
Charge Performance: ±0.5 oz (15 g) (70-75°F)
-
Operating Temperature: 41-122°F (5-50°C)
-
Maximum Pressure: 18 bar
-
Filter-Drier Capacity: 175 lbs (80kg)
-
Loadcell Accuracy (Gas & Oil): 0.04 oz / 66 lbs (1 g / 30 kg)
-
Vacuum Gauge Accuracy: 1 mBar / 1000 mBar
-
Recovery Speed: 39.7 lbs/hour (18 kg/h)
-
Charge Speed: 2.2 lbs/minute (1 kg/min)
-

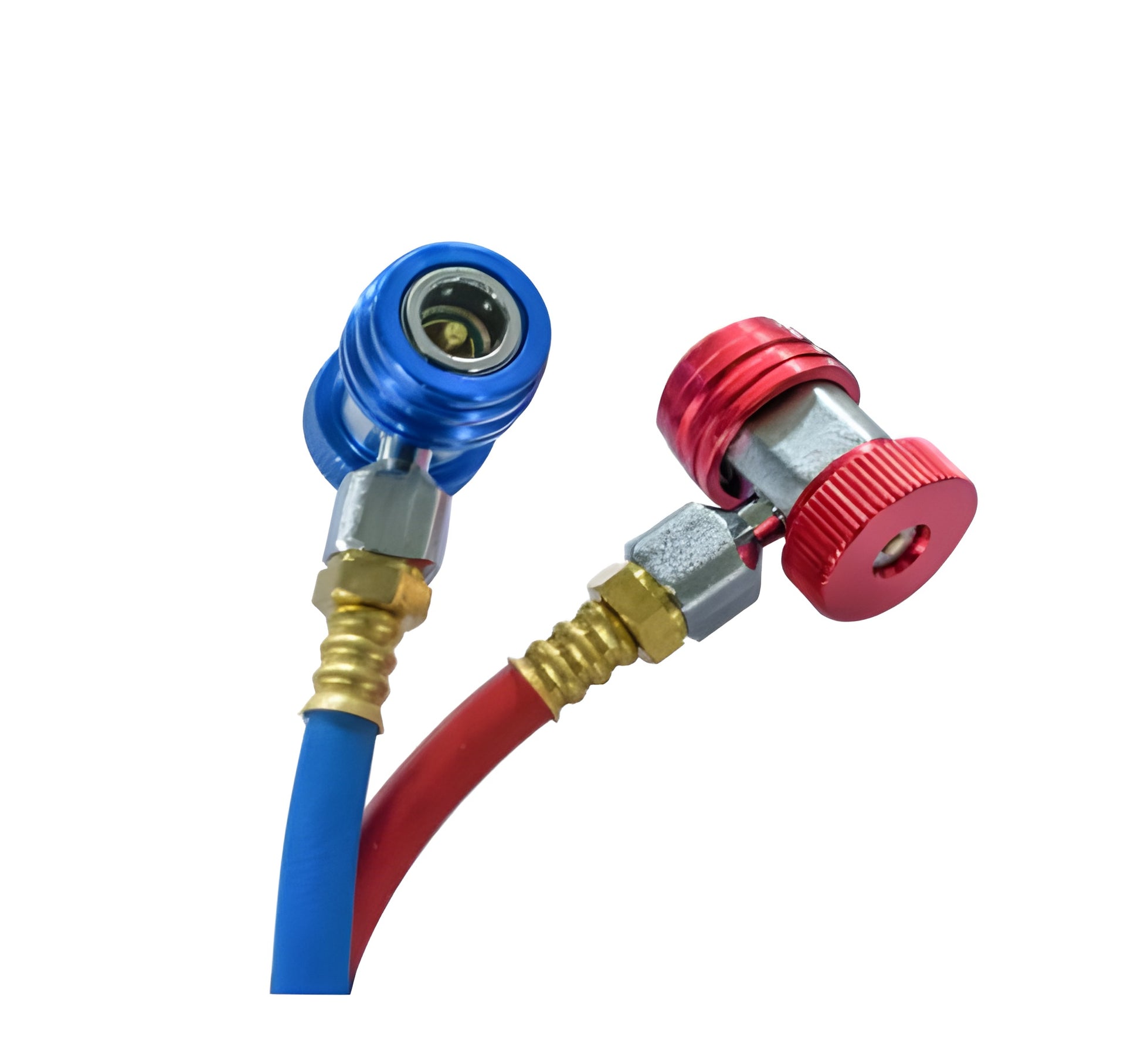

Hose Length: 9.8 ft (3 m) SAE J2788
-
Compressor: 1/3 hp (246W), thermally protected, oiled, hermetically sealed
-
Vacuum Pump: 3.6 CFM (120 L/min), dual-stage
-
Display: 7" Touch HQ
-
Tank Capacity: 0.5 cubic feet (14.3 L)
-

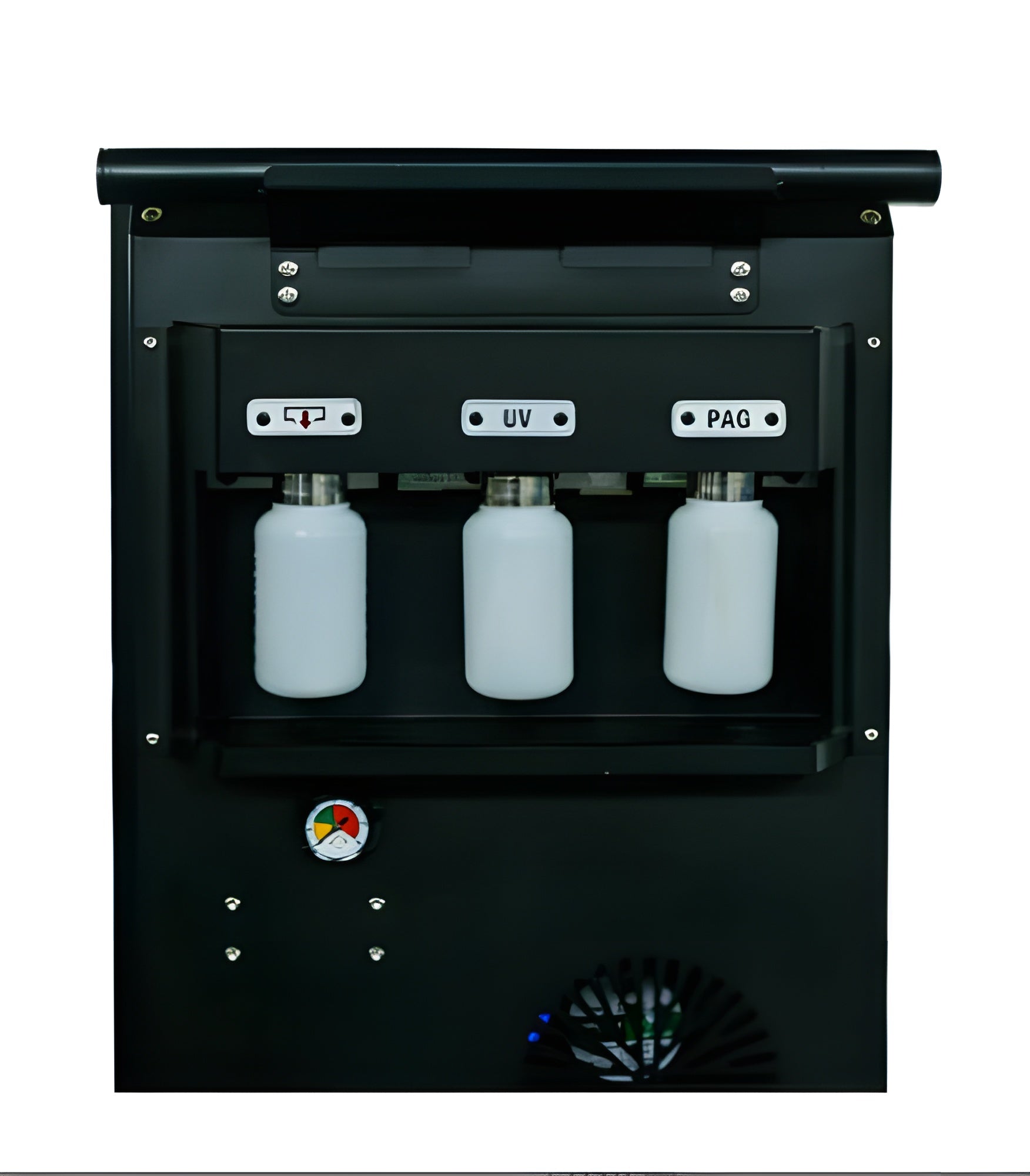

Oil Bottle Capacity: 15 cubic inches (250 mL)
-
Additional Features: Built-in printer (optional), heating belt (optional), SD database support, vacuum test, fan & condenser system
-
Packing Size: 22" x 28" x 41" (550 x 700 x 1050 mm)
-
Gross Weight: 240 lbs (110 kg)
What Our Experts Think
-
Fully automatic A/C service machine for R-1234YF systems
-
Handles recovery, recycling, and recharging in one unit
-
Dual function design improves efficiency in busy workshops
-
Easy-to-use controls with accurate performance
-
Built for professional auto A/C service and long-term reliability
Q&A
Q: What refrigerant does this machine support?
A: It is designed for R-1234YF refrigerant systems.
Q: What functions does the AC2100 perform?
A: It recovers, recycles, and recharges refrigerant automatically.
Q: Is it suitable for professional auto shops?
A: Yes, it’s ideal for high-volume A/C servicing with reliable operation.
Q: Does it require manual operation?
A: No, it is fully automatic for user convenience.
Maintenance Tips
-
Regularly check and replace filters for optimal performance
-
Inspect hoses and connections for leaks or wear
-
Keep the machine clean and dust-free
-
Ensure refrigerant tanks are serviced and maintained properly
-
Follow the manufacturer’s maintenance schedule for accuracy and longevity
