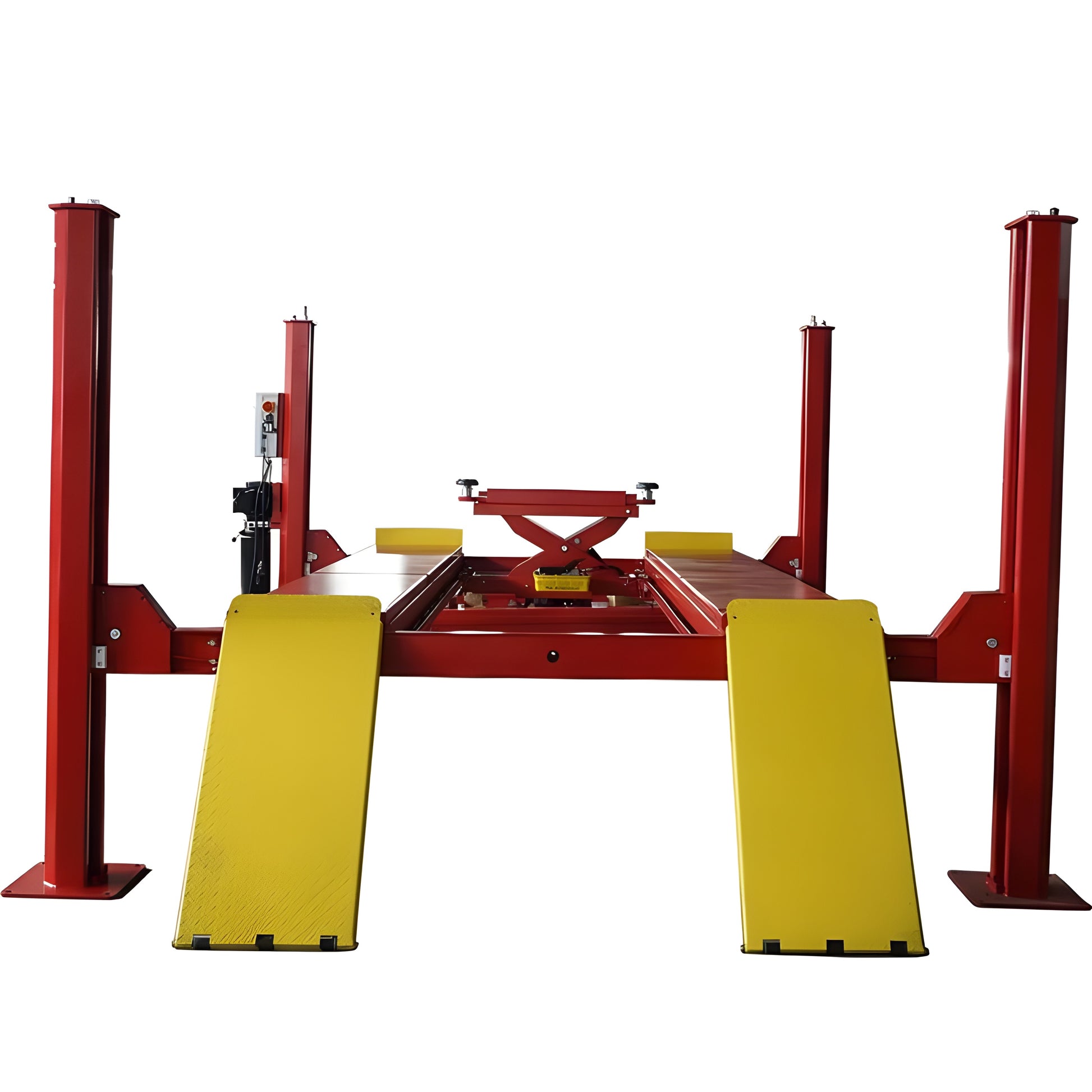

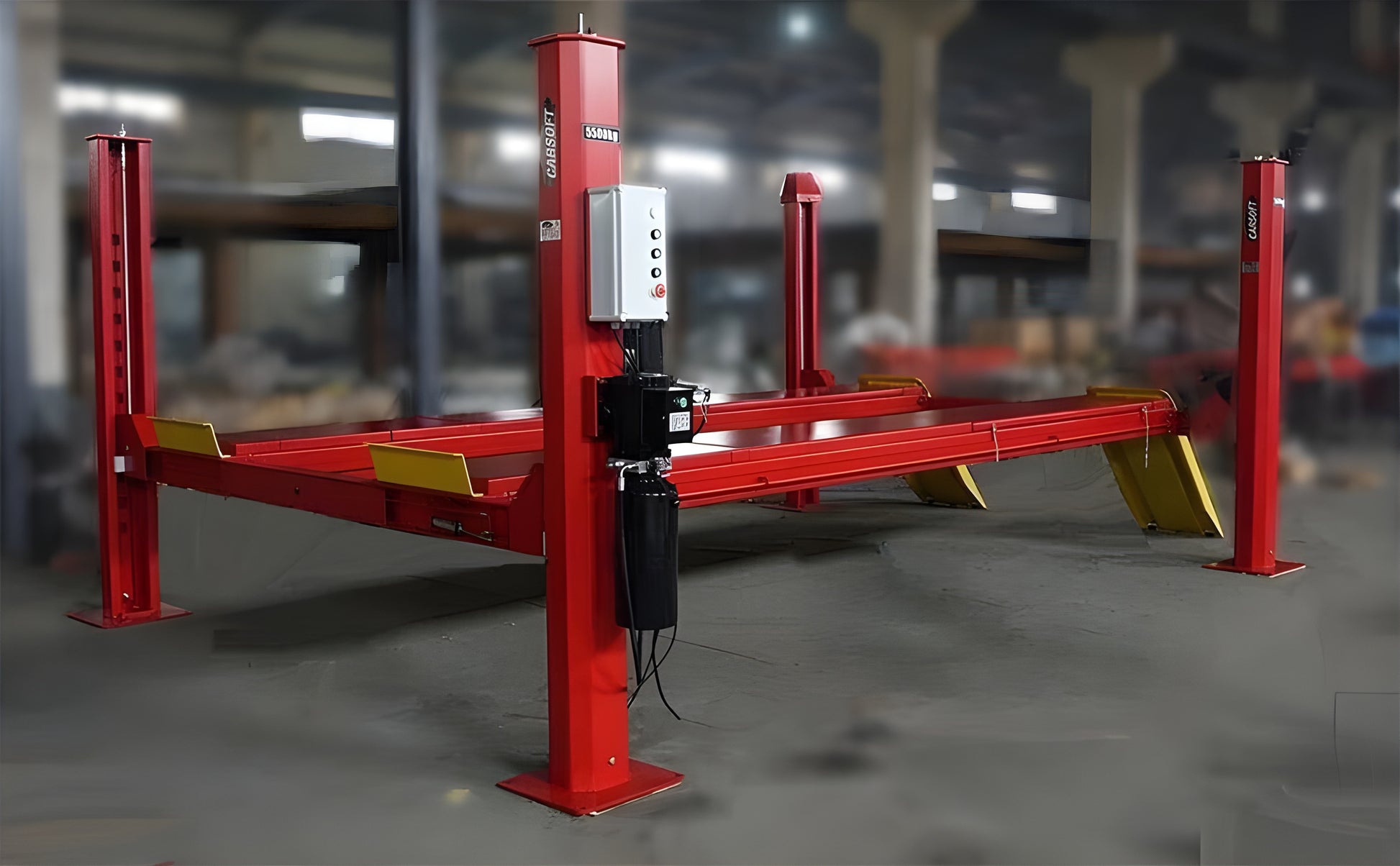

Katool Heavy Duty 4-Post Alignment Lift 15,000lbs (Rolling Jack Included) - KT-4H150
Safe & Secure Vehicle Lifting:
-
5,000 lb Lifting Capacity: Effortlessly accommodates trucks, vans, and heavy-duty vehicles.
-
CE Certified & Safety-Compliant: Exceeds safety standards with 115% dynamic and 150% static load capacity for added peace of mind.
-

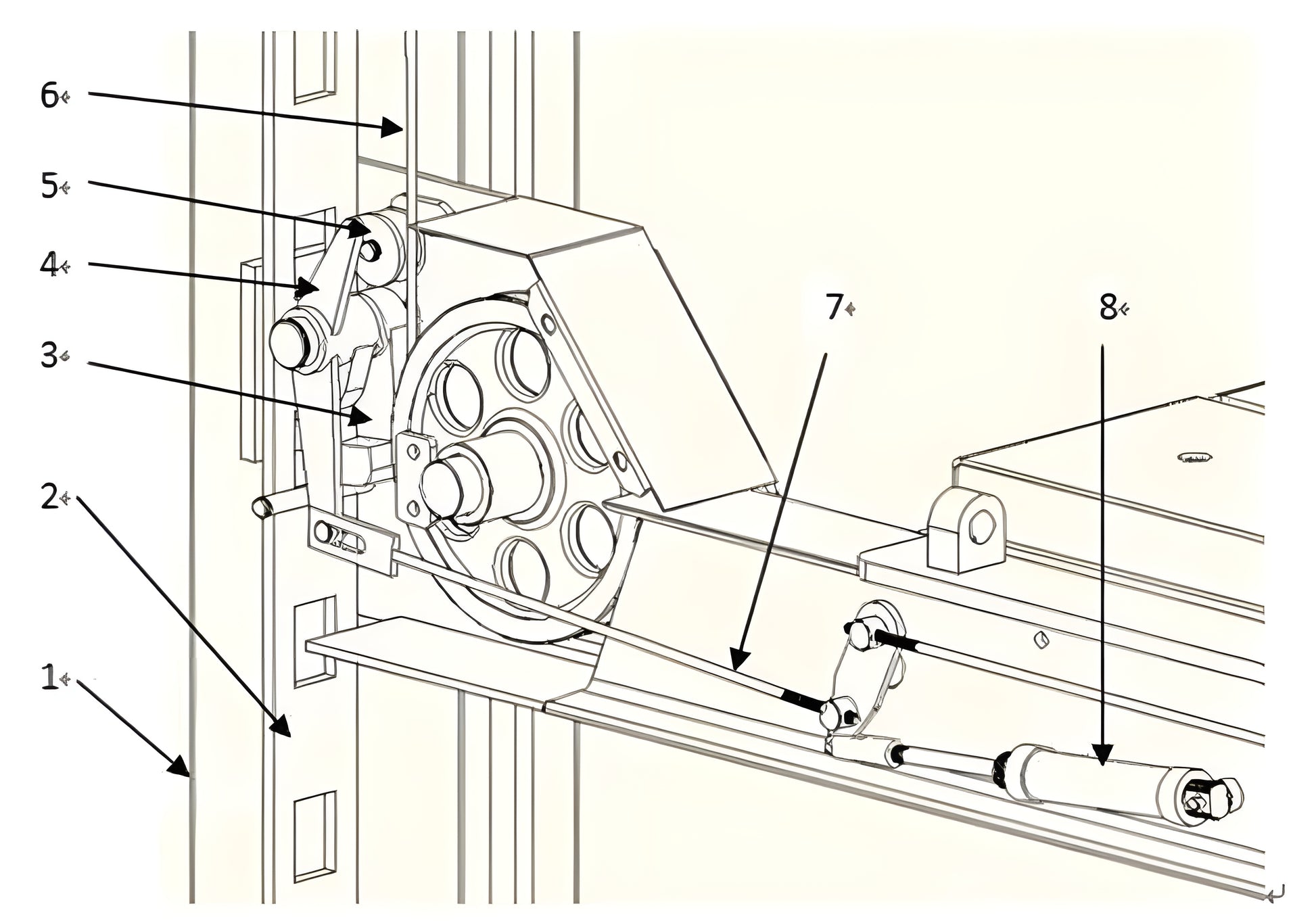

Reliable Safety Lock System: Features a single-point release with both primary and secondary mechanical locks for enhanced security.
-
Adjustable Platforms & Ramps: Offers flexible positioning to suit a wide range of vehicle sizes and types.
-
Advanced Versatility: Equipped with wheel alignment turntables and a 6,000 lb rolling jack for expanded service capabilities.
Features
-
15,000 lb Lifting Capacity: Ideal for heavy-duty vehicles, trucks & vans.
-
CE Certified & Exceeds Standards: Meets 115% dynamic and 150% static load capacity for superior safety.
-

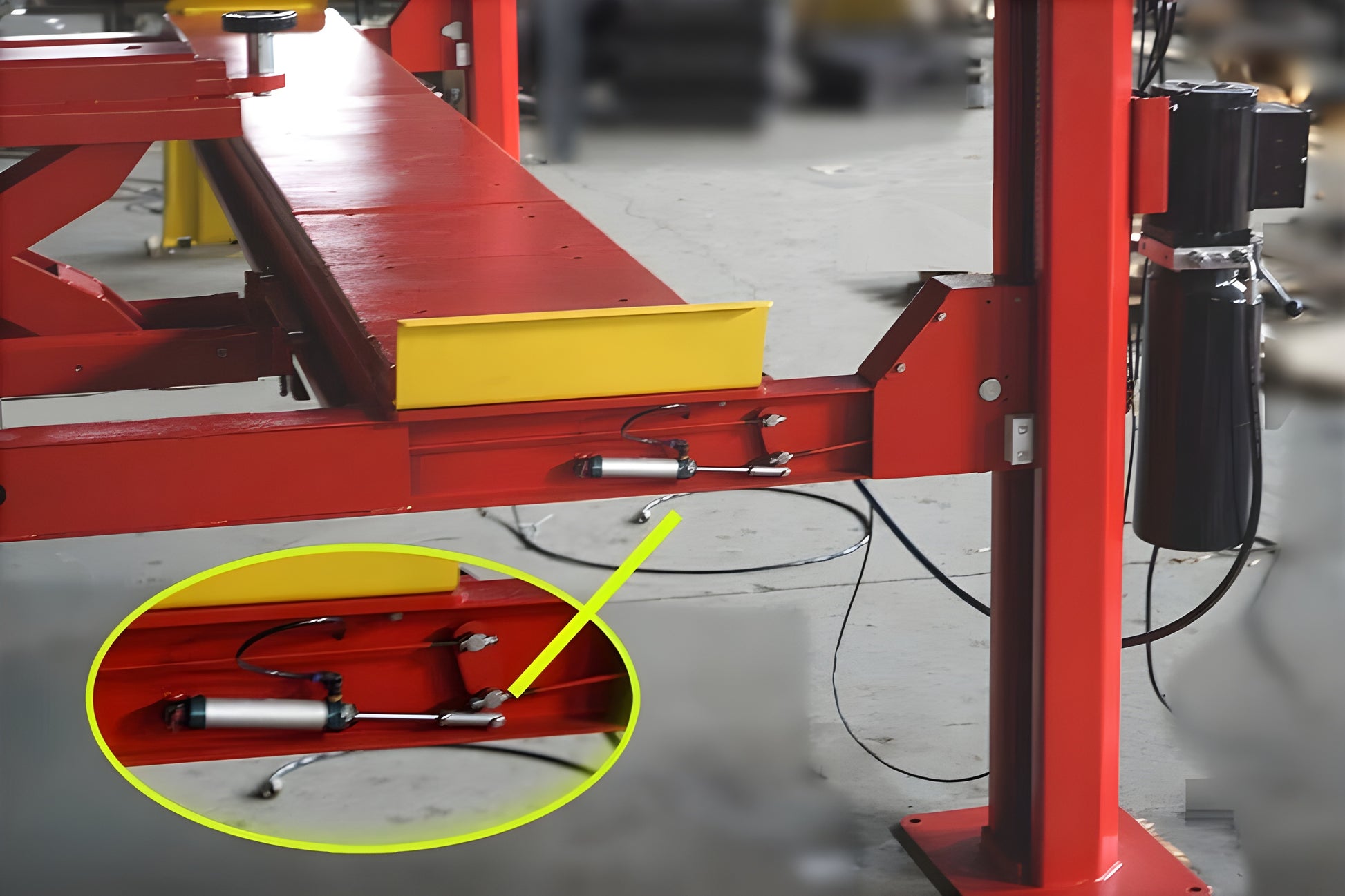

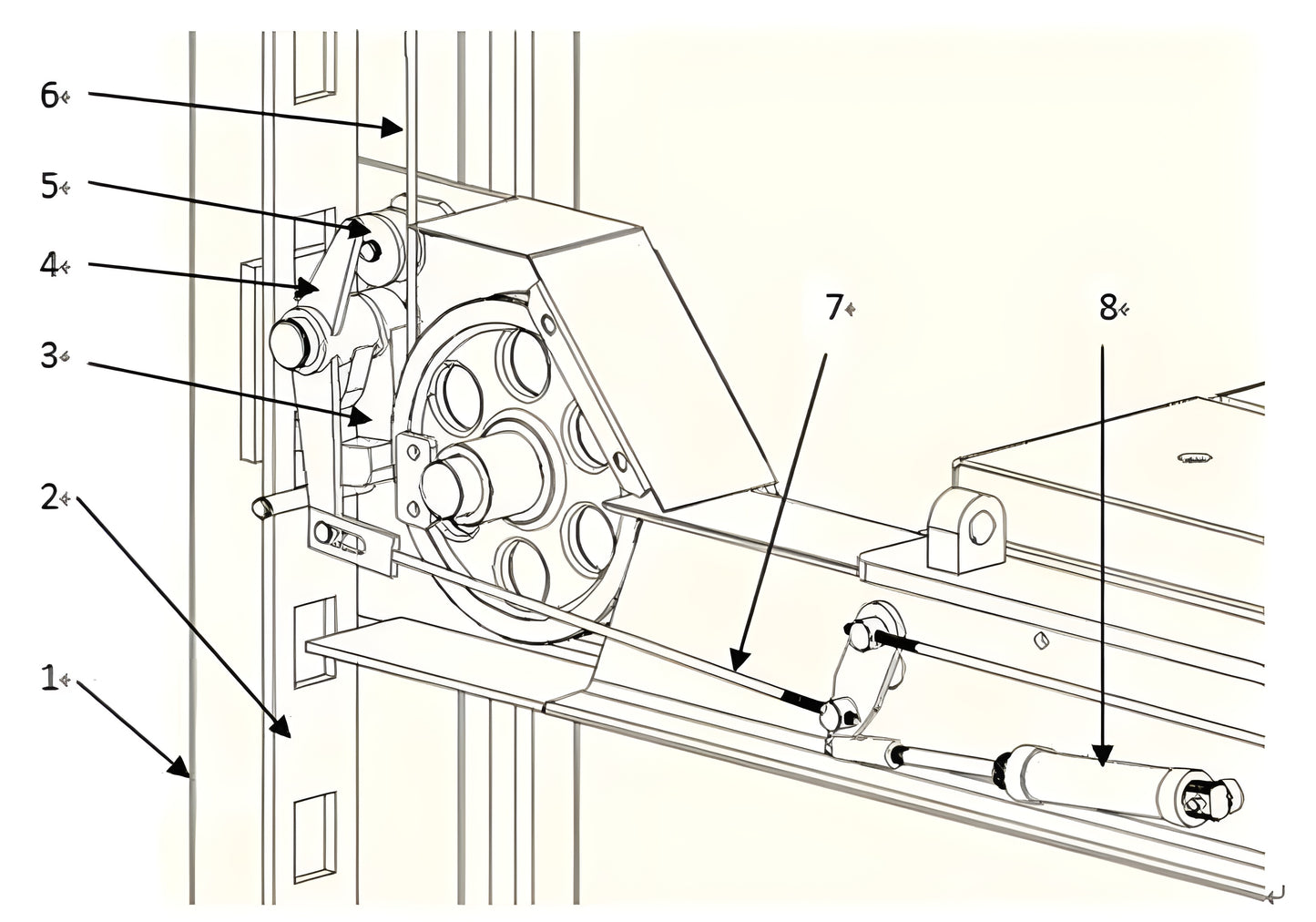

Easy-Release Safety System: Single-point release with secure primary & secondary mechanical locks.
-
Adjustable Platforms & Ladders: Accommodates various vehicle sizes for comfortable working positions.
-

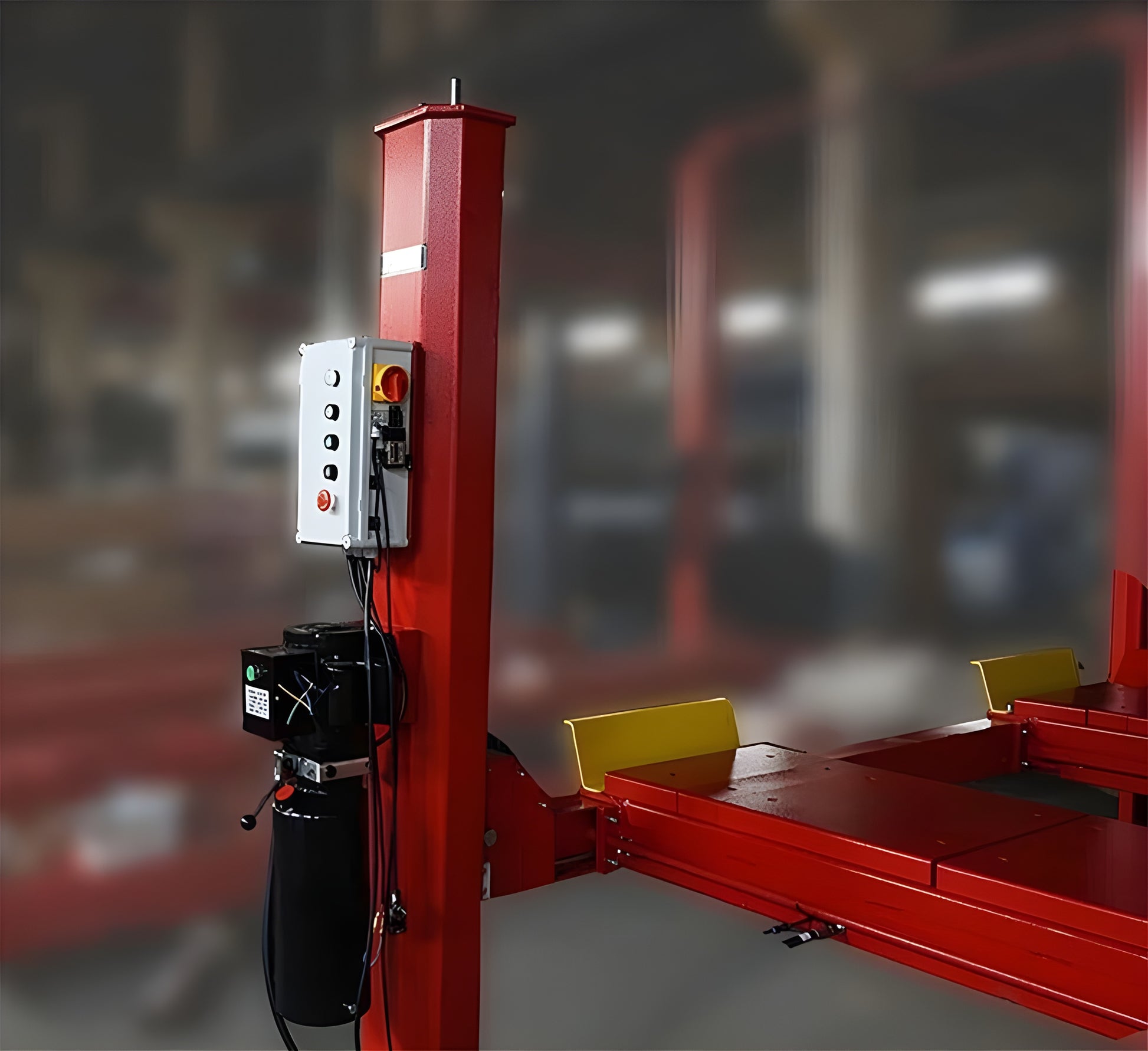

Flexible Power Options: 220V or 110V operation (optional) for a wider range of use.
-
Versatile Functionality: Includes wheel alignment turntables & a 6,000 lb rolling jack for added convenience.

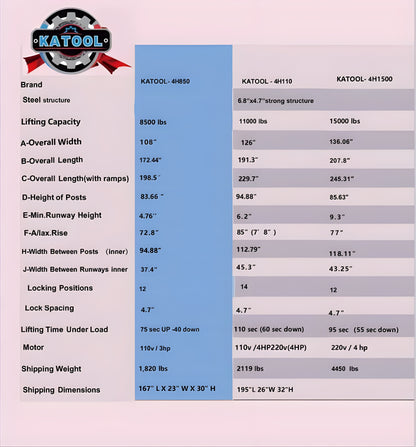

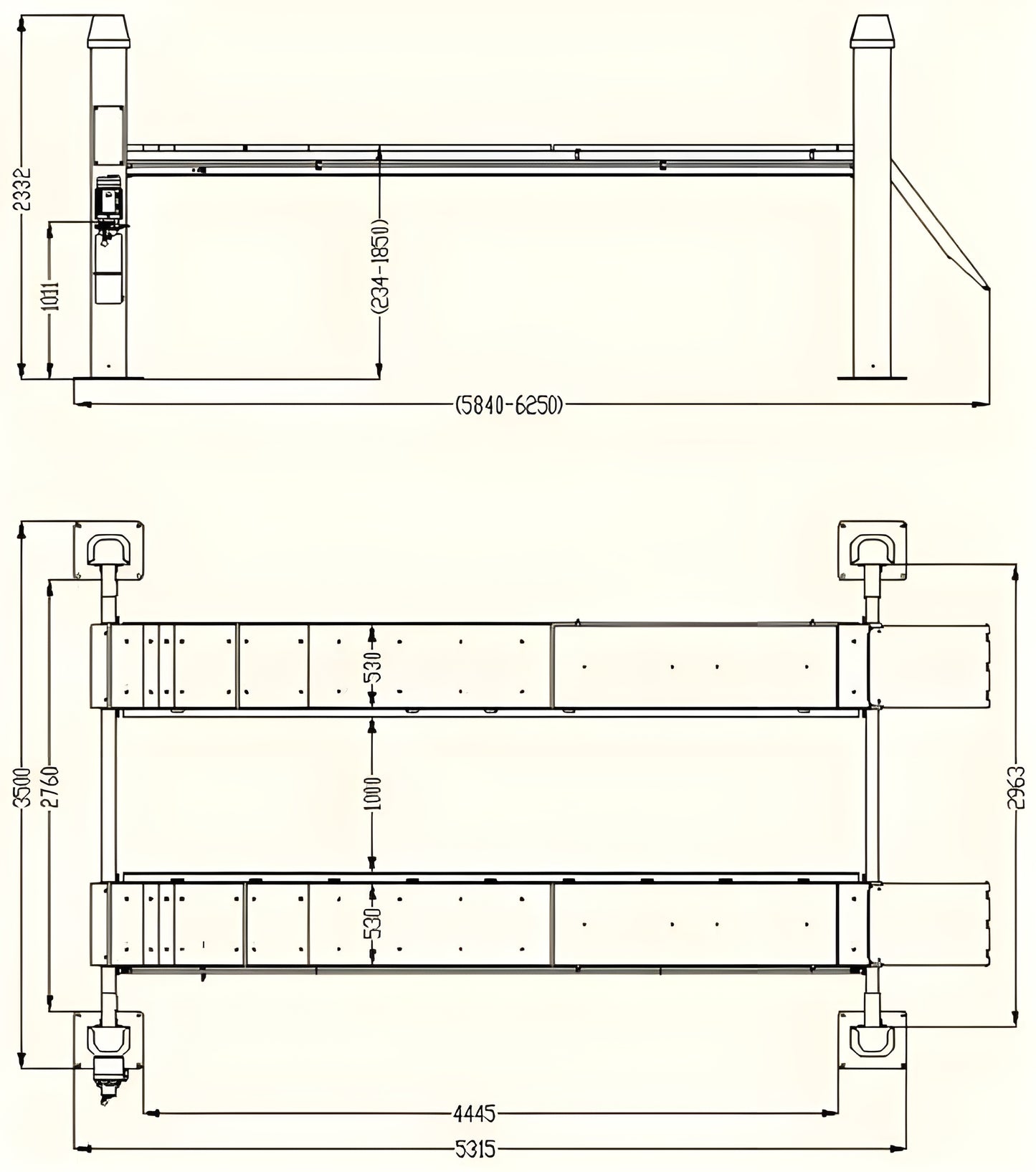

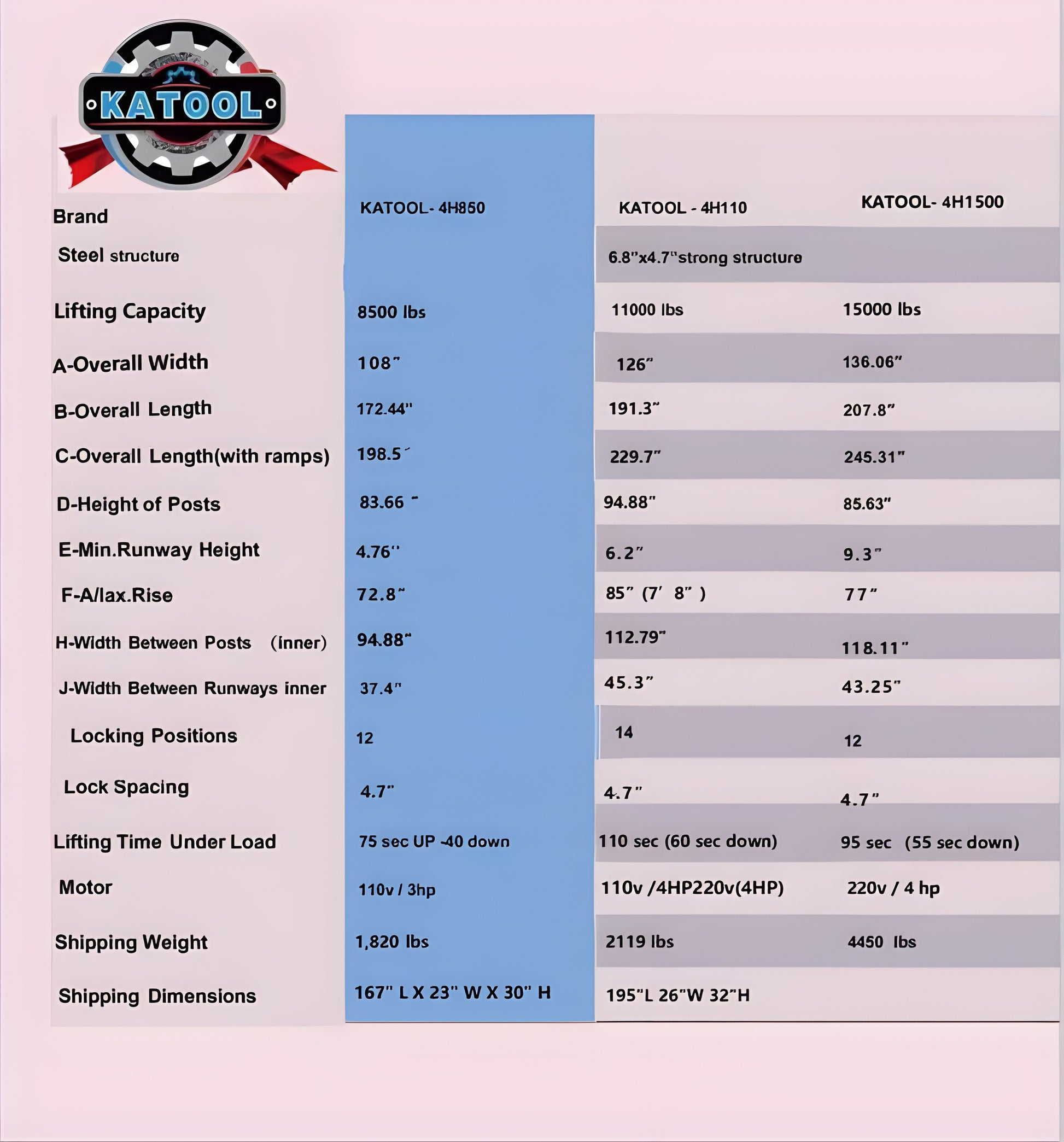

Specifications
-
Lifting Capacity: 15,000 lbs (4,990 kg)
-
Max Lifting Height: 92.52 in (2,350 mm)
-
Lifting Time: Up: 95 seconds, Down: 55 seconds
-
Height of Posts: 85.63 in (2,175 mm)
-
Overall Width: 136.06 in (3,456 mm)
-
Overall Length (with Ramps): 245.31 in (6,231 mm)
-
Inside Columns: 118.11 in (3,000 mm)
-
Min Runway Height: 9.3 in (236 mm)
-
Motor: 220VAC/60HZ/1PH
-
Net Weight: 4,850 lbs (2,200 kg)
What Our Experts Think
-
Heavy-duty 4-post alignment lift with 15,000 lbs capacity, built for large vehicles and trucks
-
Precision alignment design ensures accurate suspension and wheel service
-

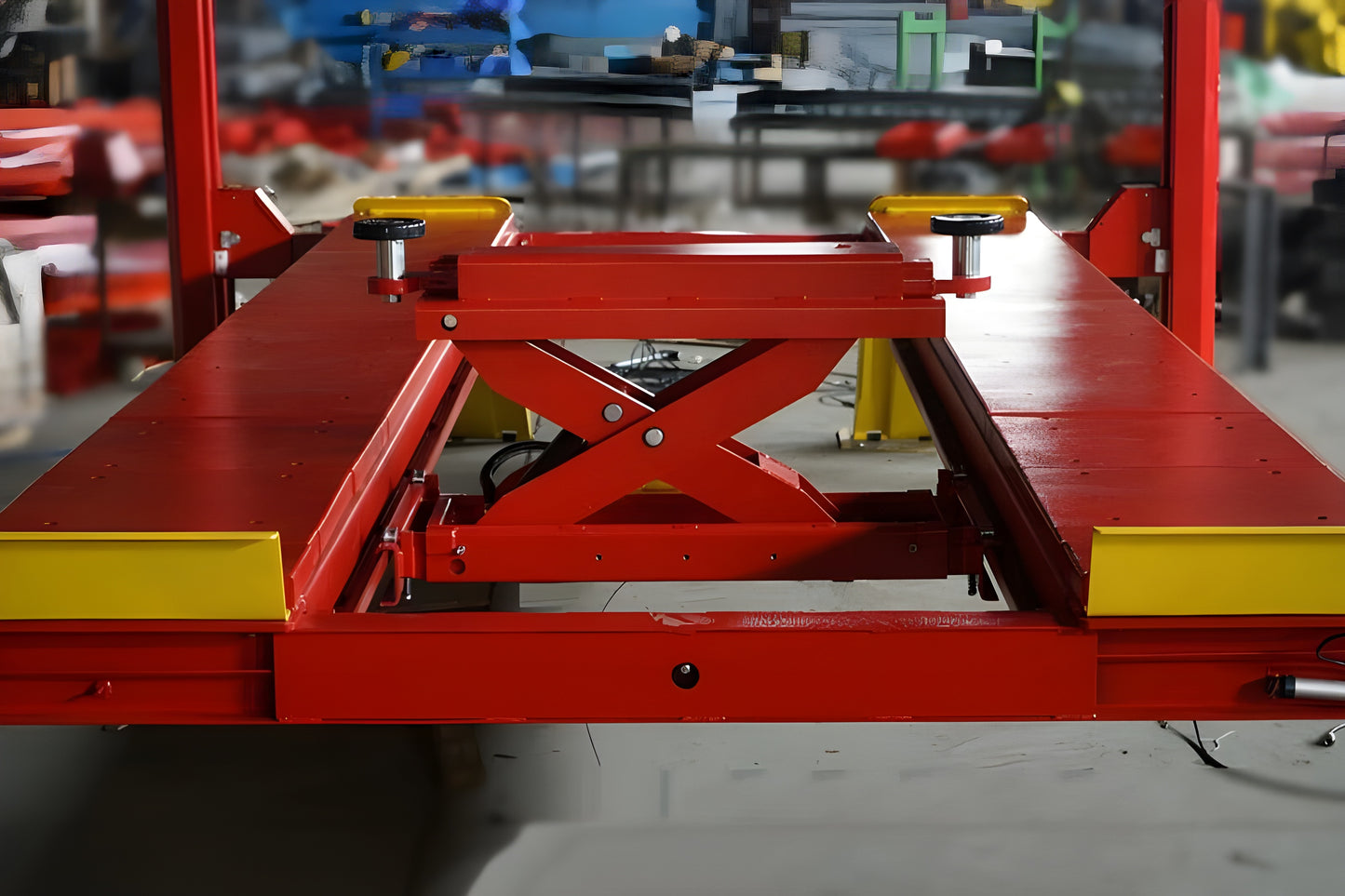

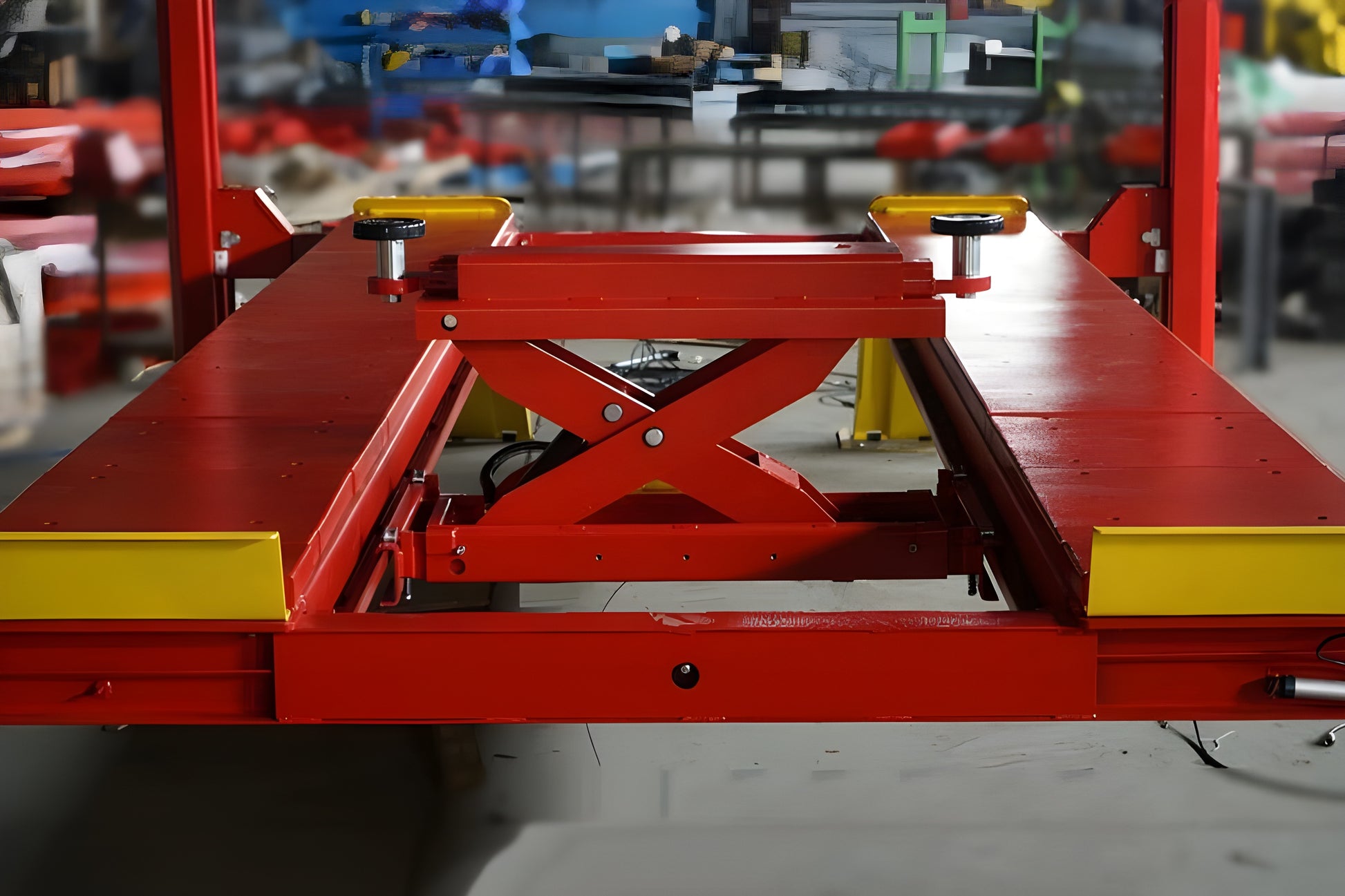

Includes rolling jack for easy wheel lifting during alignment or repair
-
Wide drive-through design provides smooth loading and unloading
-
Built with industrial-grade steel for durability in professional workshops
Q&A
Q: What is the lifting capacity of the KT-4H150?
A: 15,000 lbs, suitable for heavy-duty vehicles and trucks.
Q: Does this lift include a rolling jack?
A: Yes, it comes with a rolling jack for added convenience during alignment work.
Q: Can it be used for wheel alignment services?
A: Yes, it’s designed for precision alignment and suspension service.
Q: Is it suitable for professional shops?
A: Absolutely, it’s ideal for high-volume commercial and heavy-duty workshops.
Maintenance Tips
-
Inspect lift cables, pulleys, and hydraulic systems regularly
-
Keep rolling jack clean and lubricated for smooth operation
-
Check alignment turntables and slip plates for wear or dirt buildup
-
Tighten bolts and anchors periodically to maintain stability
-
Follow the manufacturer’s service schedule for long-term reliability
