Katool KT-WL70 Rim Straightening Machine - KT-WL70

Katool KT-WL70 Rim Straightening Machine - KT-WL70

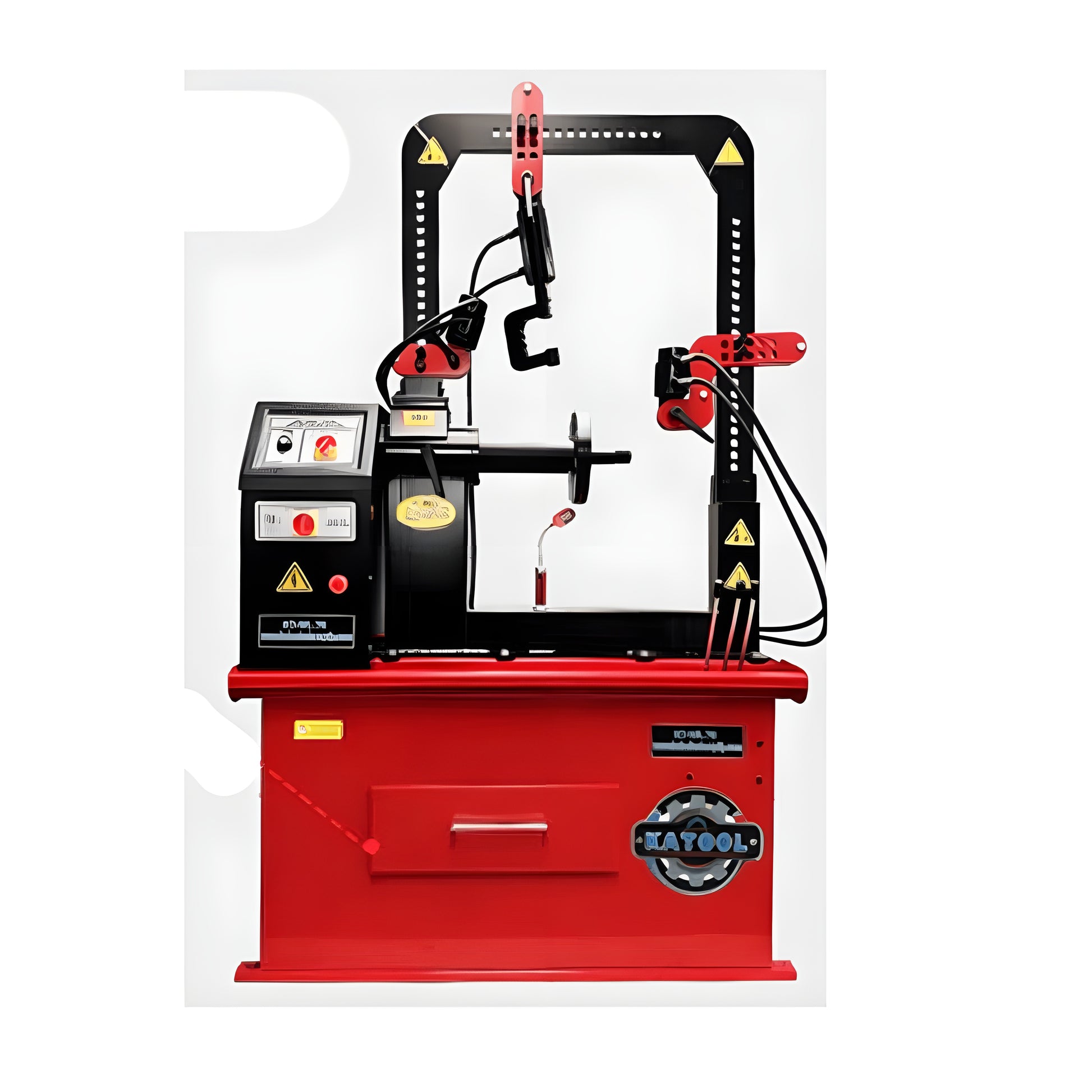

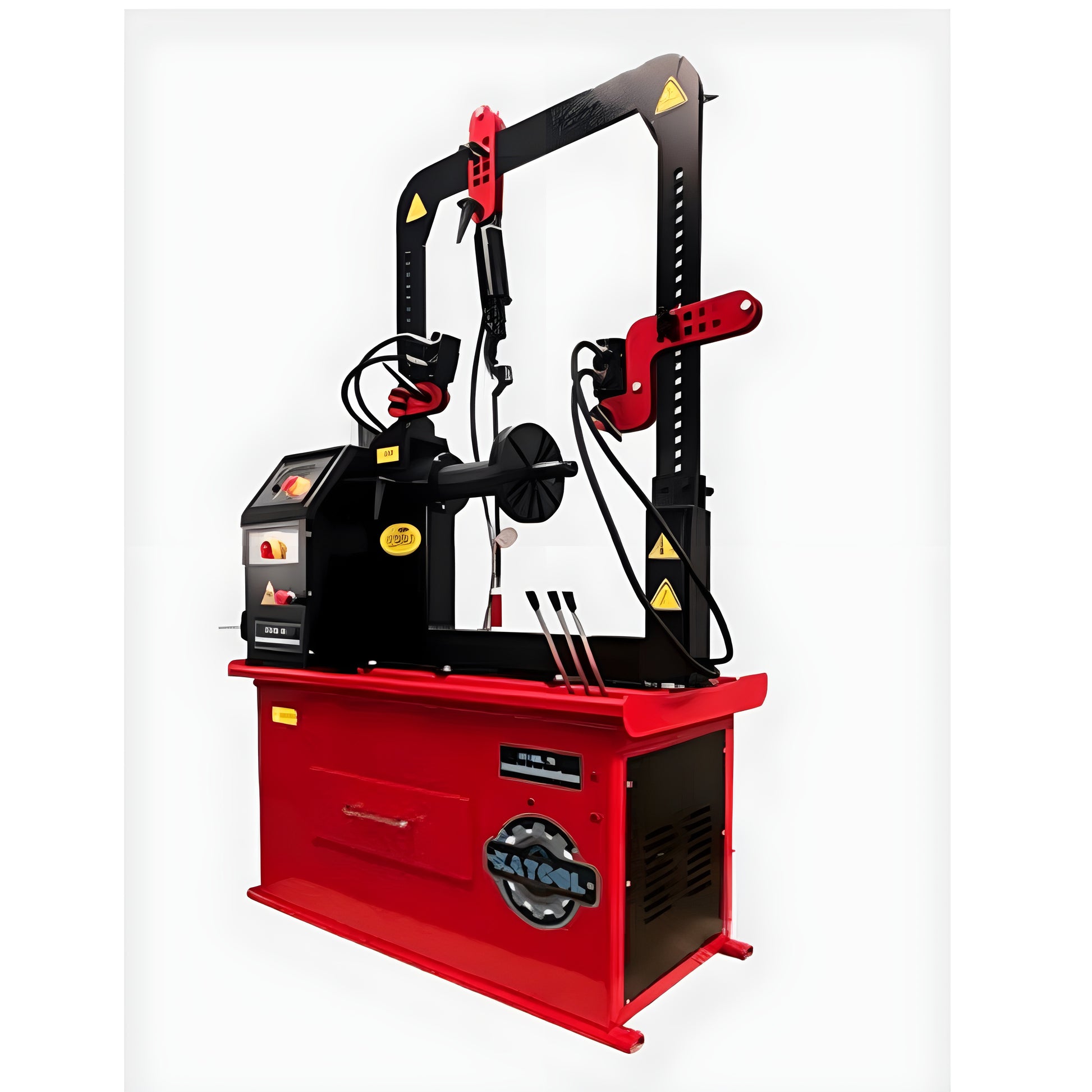

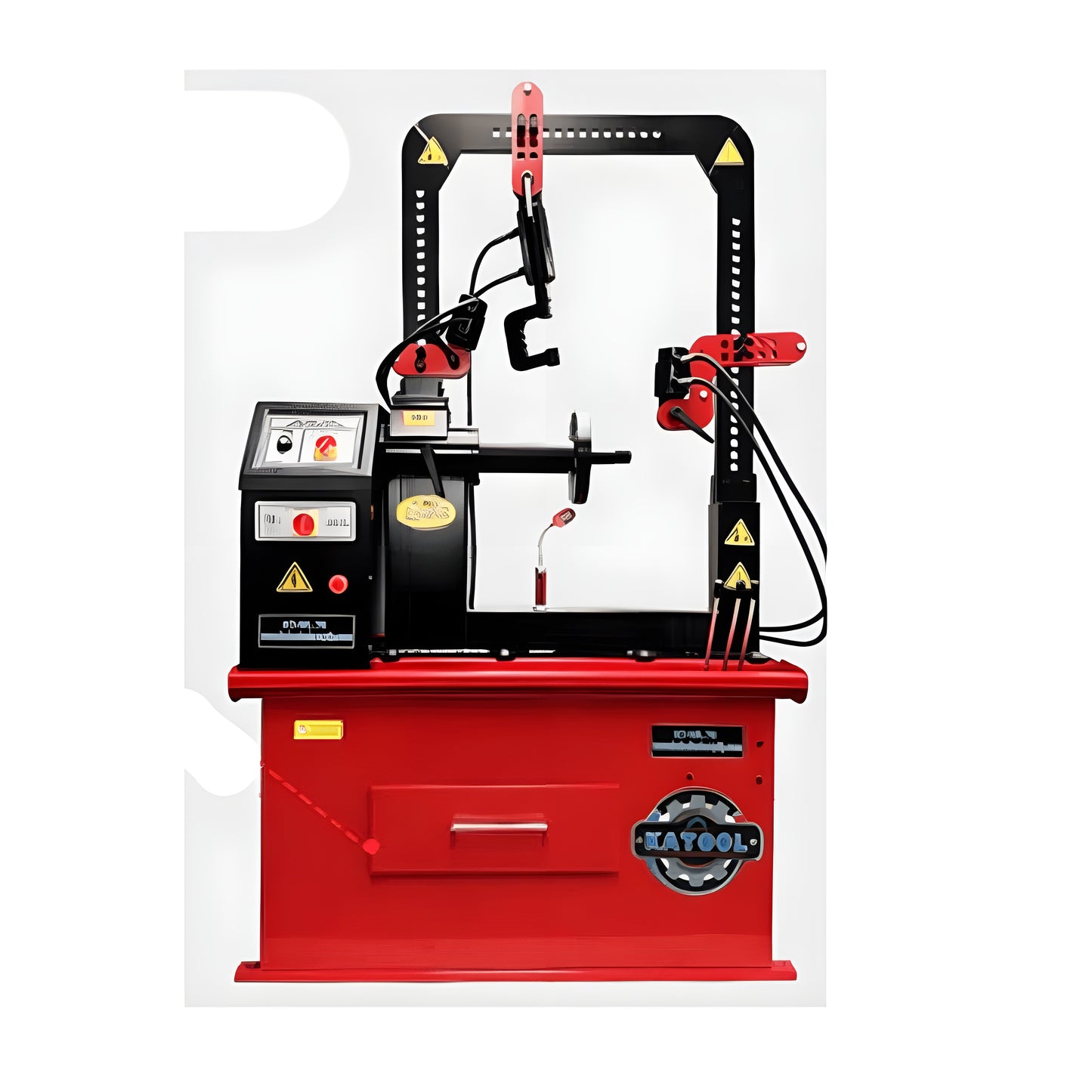

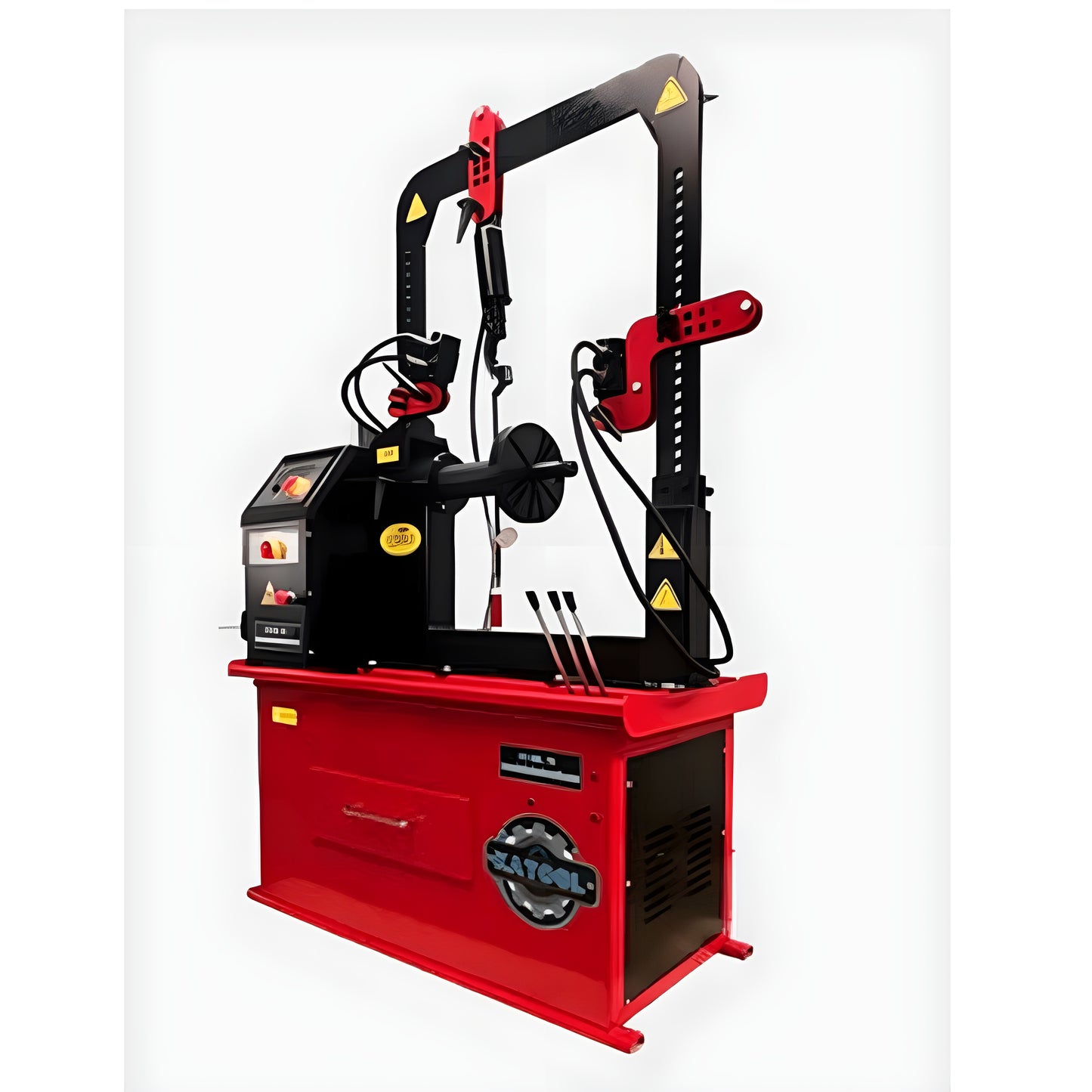

The Katool KT-WL70 Rim Straightening Machine is a high-performance, professional-grade tool designed to accurately restore bent or damaged wheels to their original shape. Perfect for automotive workshops and wheel repair experts, this machine handles a variety of wheel sizes and delivers exceptional, reliable results.

Key Features

• Versatile Wheel Compatibility: Handles rims with a working limit diameter of up to 26 inches, a maximum wheel diameter of 30 inches, and a maximum wheel width of 21.6 inches, making it suitable for various vehicle types.

• Powerful Performance: Equipped with a 15KW motor and operating at a working pressure of 15MPA, the KT-WL70 delivers robust performance for efficient wheel straightening.

• Durable Construction: Weighing 573.2 lbs (260 kg), this machine is built with high-quality materials to ensure longevity and reliable operation under frequent use.

• Quiet Operation: Designed to operate at noise levels below 79 dB, providing a comfortable working environment.

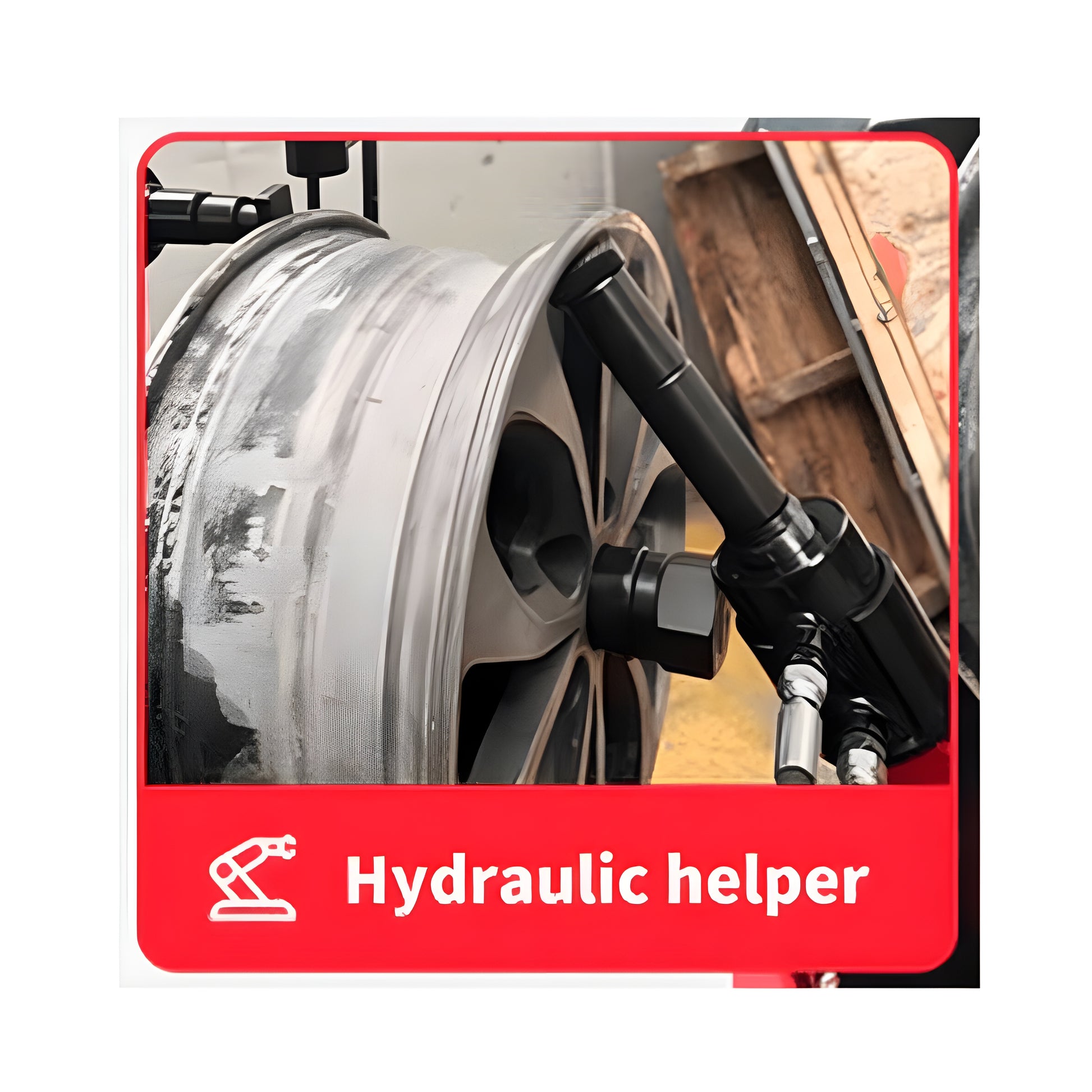

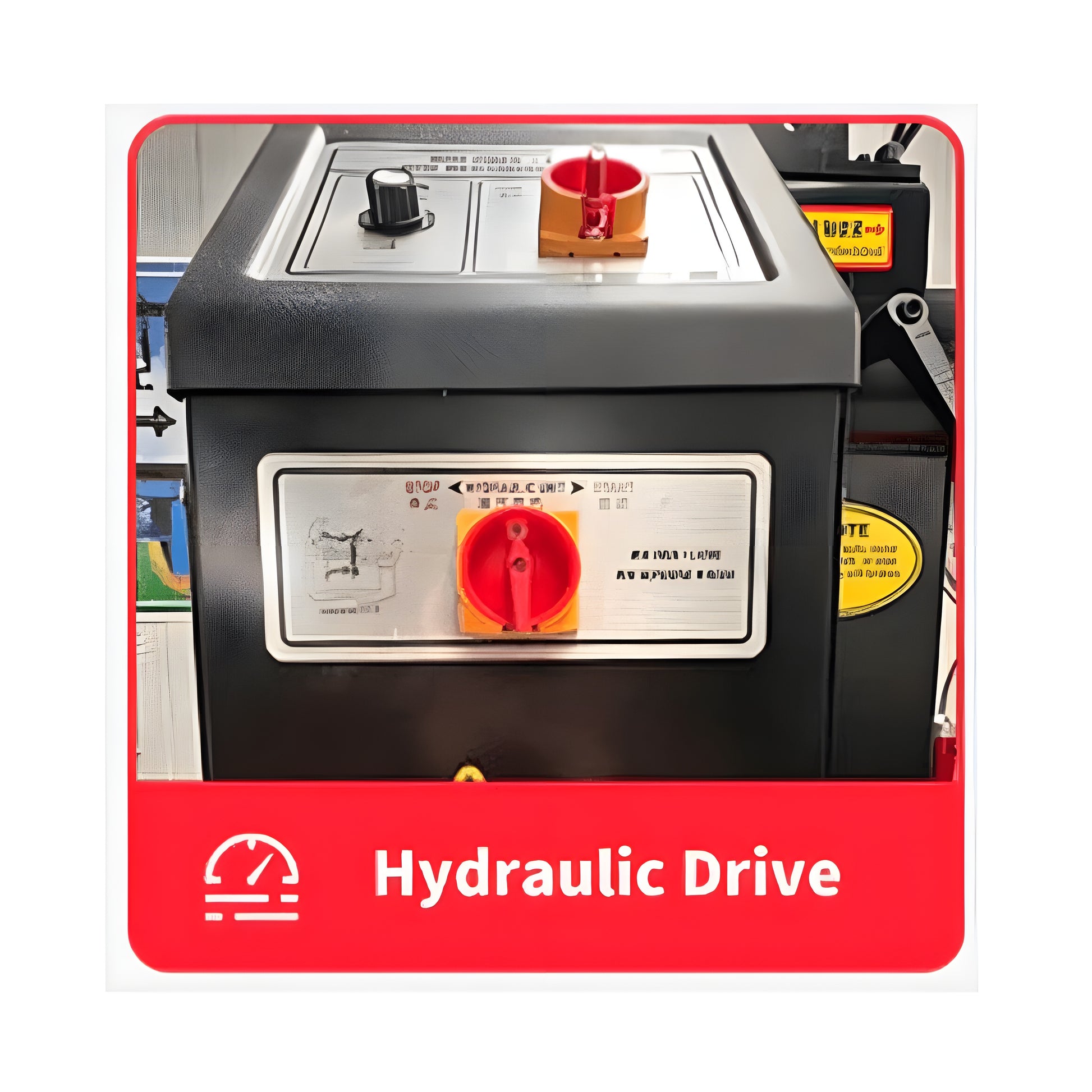

• Hydraulic Drive System: Features an automatic hydraulic drive for smooth and controlled operation during the straightening process.

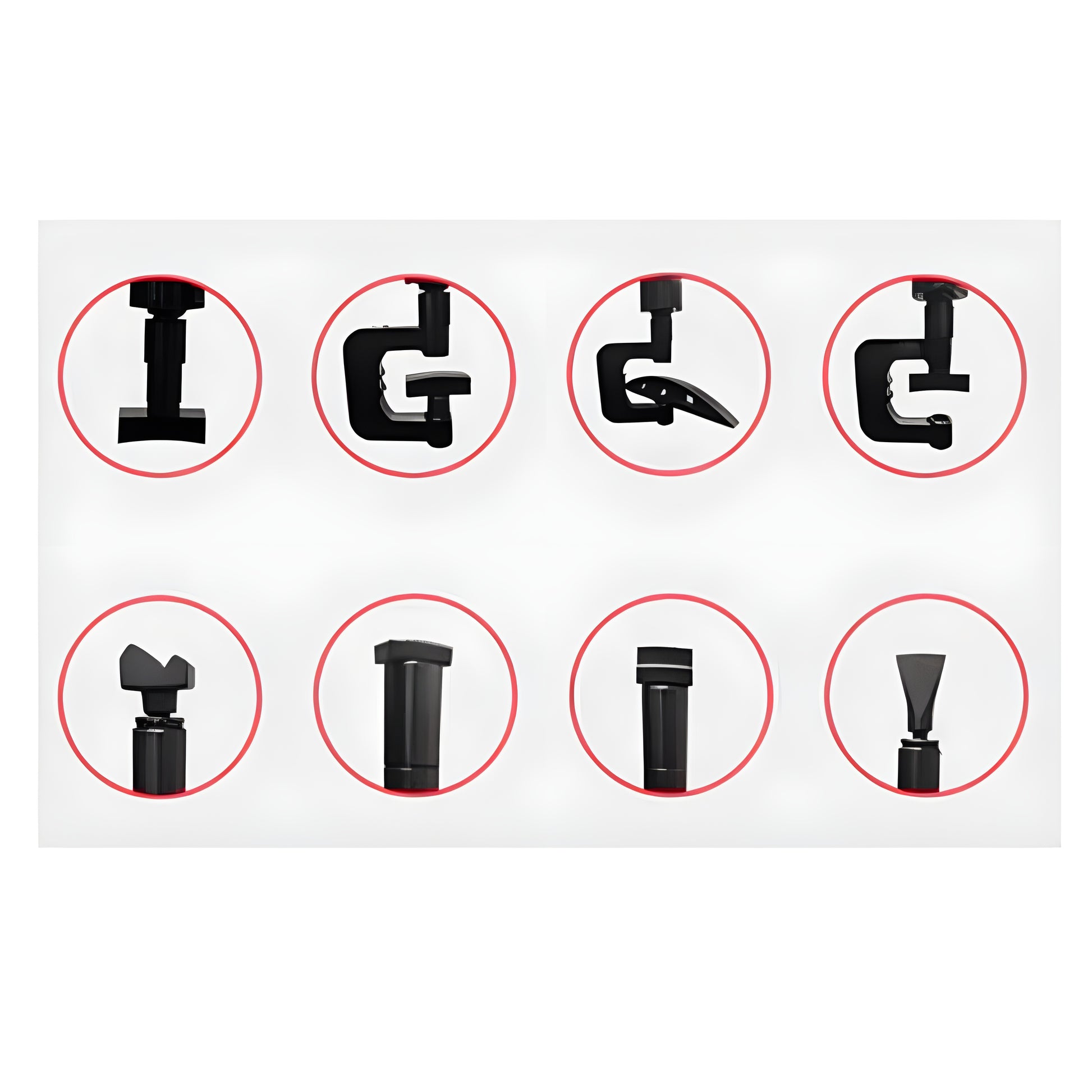

• User-Friendly Design: Incorporates easy controls and adjustable assist arms and fixtures, allowing for quick and precise adjustments, enhancing overall usability.

Specifications

• Working Limit Diameter: 26"
• Max Wheel Diameter:  30"
• Max Wheel Width: 21.6"
• Work Pressure: 15MPA
• Power: 15KW
• Power Supply: 220V/380V
• Weight: 260KG/573.2LBS
• Noises: <79DB
• Package Size: 40"x19.5" x 55"
• Oil: AW-46 or AW-32 (colder climates)

What Our Experts Think

• Heavy-duty rim straightening machine for alloy and steel wheels

• Repairs bends, flat spots, and distortions with precision

• Strong hydraulic system ensures accurate and stable results

• Essential equipment for wheel repair and auto service shops

• Durable construction designed for long-term professional use

Q&A

Q: What types of wheels can the KT-WL70 repair?
A: It can straighten both alloy and steel rims effectively.

Q: What is the primary function of this machine?
A: To restore bent or damaged rims back to factory shape.

Q: Is it suitable for professional workshops?
A: Yes, it’s built for heavy-duty and continuous shop use.

Q: Does it require advanced training to use?
A: Basic training is recommended, but the controls are user-friendly.

Maintenance Tips

• Check hydraulic oil levels and refill as needed

• Lubricate rollers, clamps, and moving parts regularly

• Inspect attachments and connections for wear or looseness

• Keep the machine clean and free of metal shavings or debris

• Follow manufacturer’s service schedule to extend lifespan
