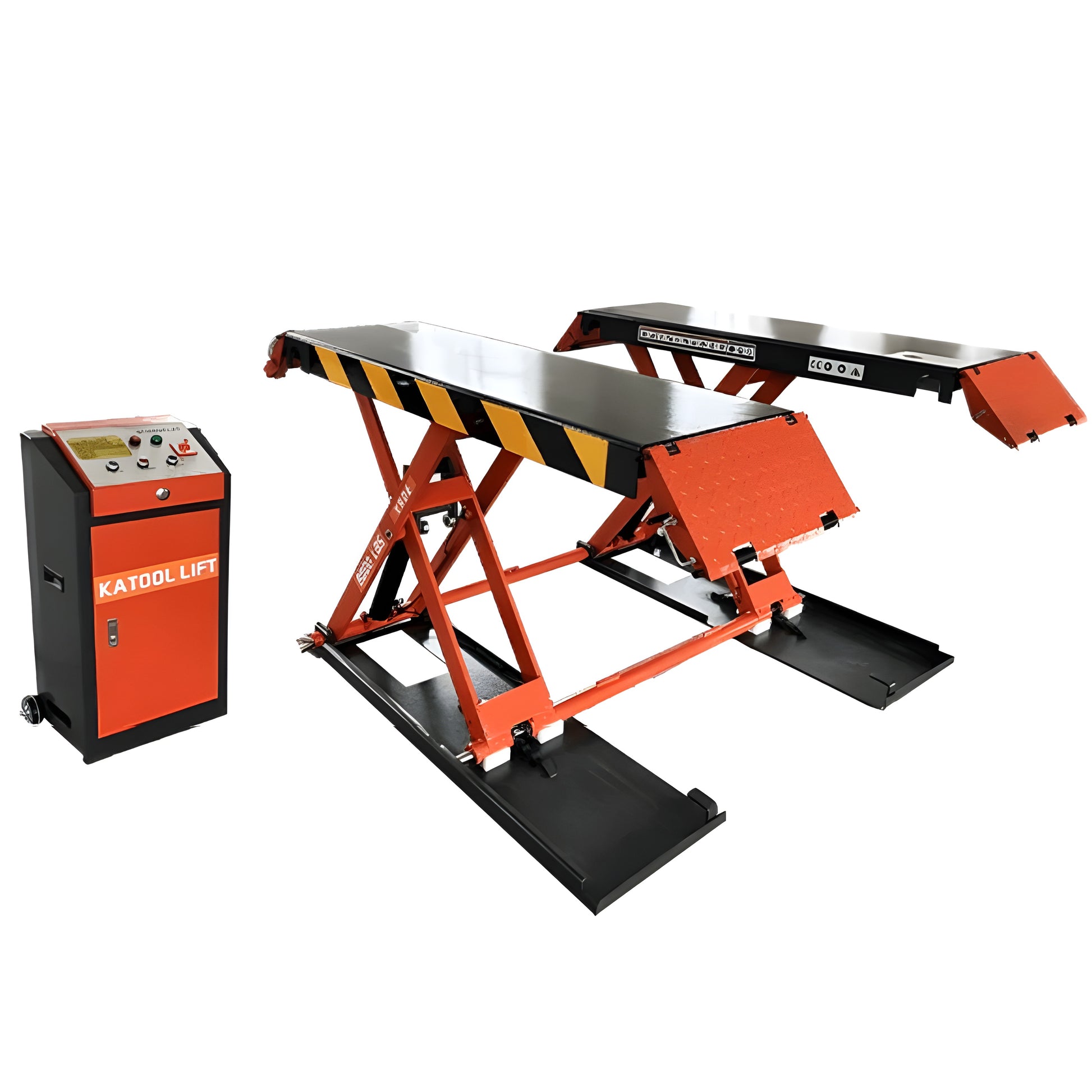

Katool KT-X90E 8,000 lb Mid Rise Scissor Lift - Electric Lock - KT-X90E-110
Your current scissor lift may be holding you back—it lacks the power, safety features, and flexibility required for high-demand tasks. With limited lifting capacity, potential safety risks, and compatibility issues across different power sources, it can disrupt workflow and reduce overall efficiency in your shop. That’s not the kind of challenge you need.
The Katool KT-X90E Lift eliminates these frustrations. Bragging an impressive 8,000-lb lifting capacity, this lift tackles even heavy-duty vehicles with ease with a max lift height of 47 inches. A focus on secure operation through features like a height limit switch and composite rubber lifting blocks. Versatility is built-in with a choice of 110v or 220v power options and a self-lubricating system for maintenance-free operation. The drive-up ramps accommodate a wider range of vehicles, and the top-level hydraulic system with an aluminum motor ensures reliable performance, even during prolonged use. Effortlessly handle all your lifting needs with the Katool KT-X90E!
Specifications
- Max. Lifting Capacity: 8000 lbs
- Max. Lifting Height: 47"
- Min. Lifting Height: 4.3"
- Lifting Time: 30 seconds
- Platform Length: 81.5"
- Platform Width: 20.1"
- Width between Platforms: 32.2"
- Rated Oil Pressure: 20 MPa
- Power: 110v (30amp) or 220v
- Oil: AW-46 or AW-32 (colder climates)
-
Pallet Dimensions:
- (1) 78" x 67" x 9" - 1,179lbs
- (1) 37" x 16" x 16" - 110lbs
-
Optional: Support Bars
- Overall Length: 73"
- Pin Distance: 48" to 59" Wide
-
Adapter Height: 6.2" to 8" Tall
Features

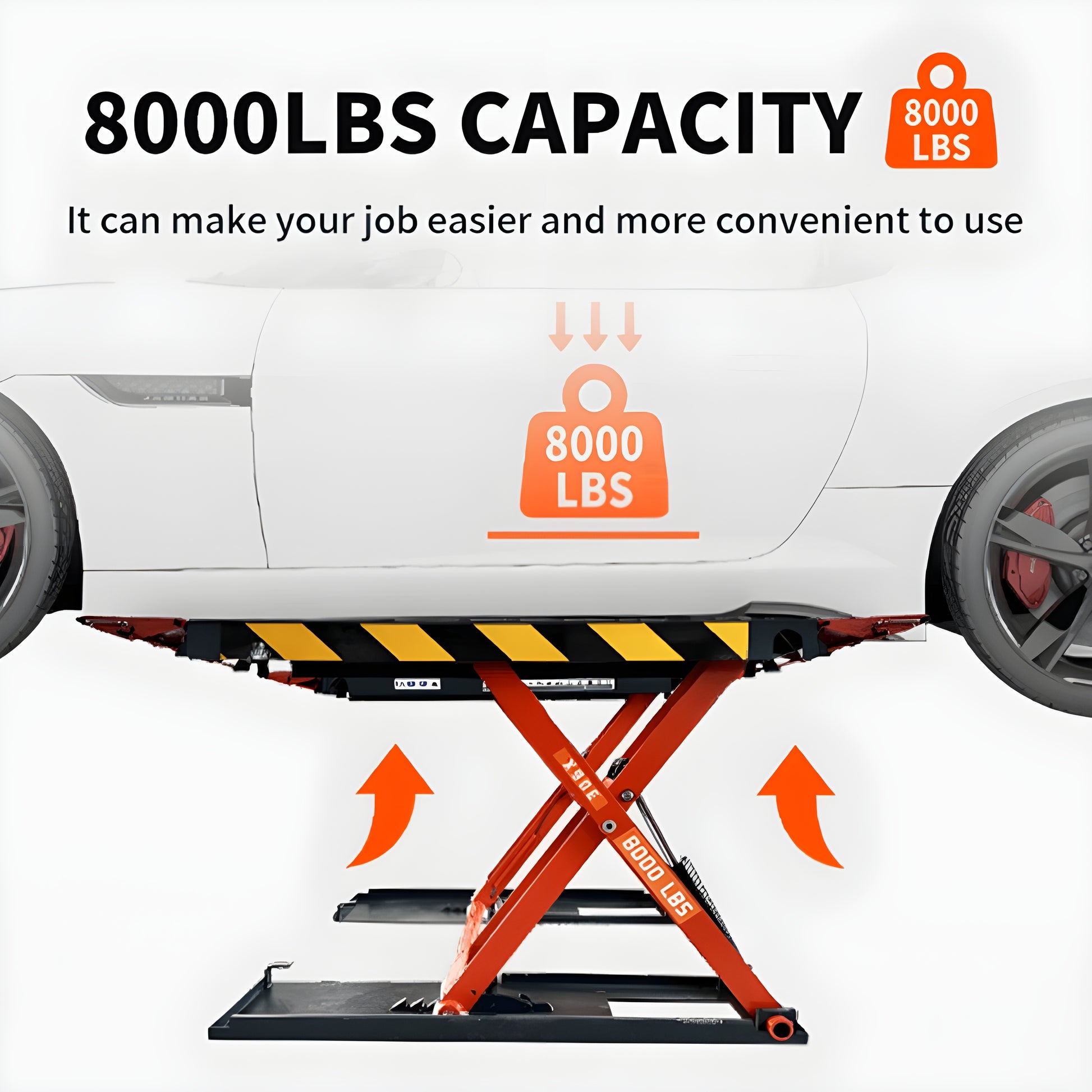

- 8000lbs(3500KG) lifting capacity
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested
- Flush mount design
- Starting-up system design
- 24V safe control system
- Height limit switch

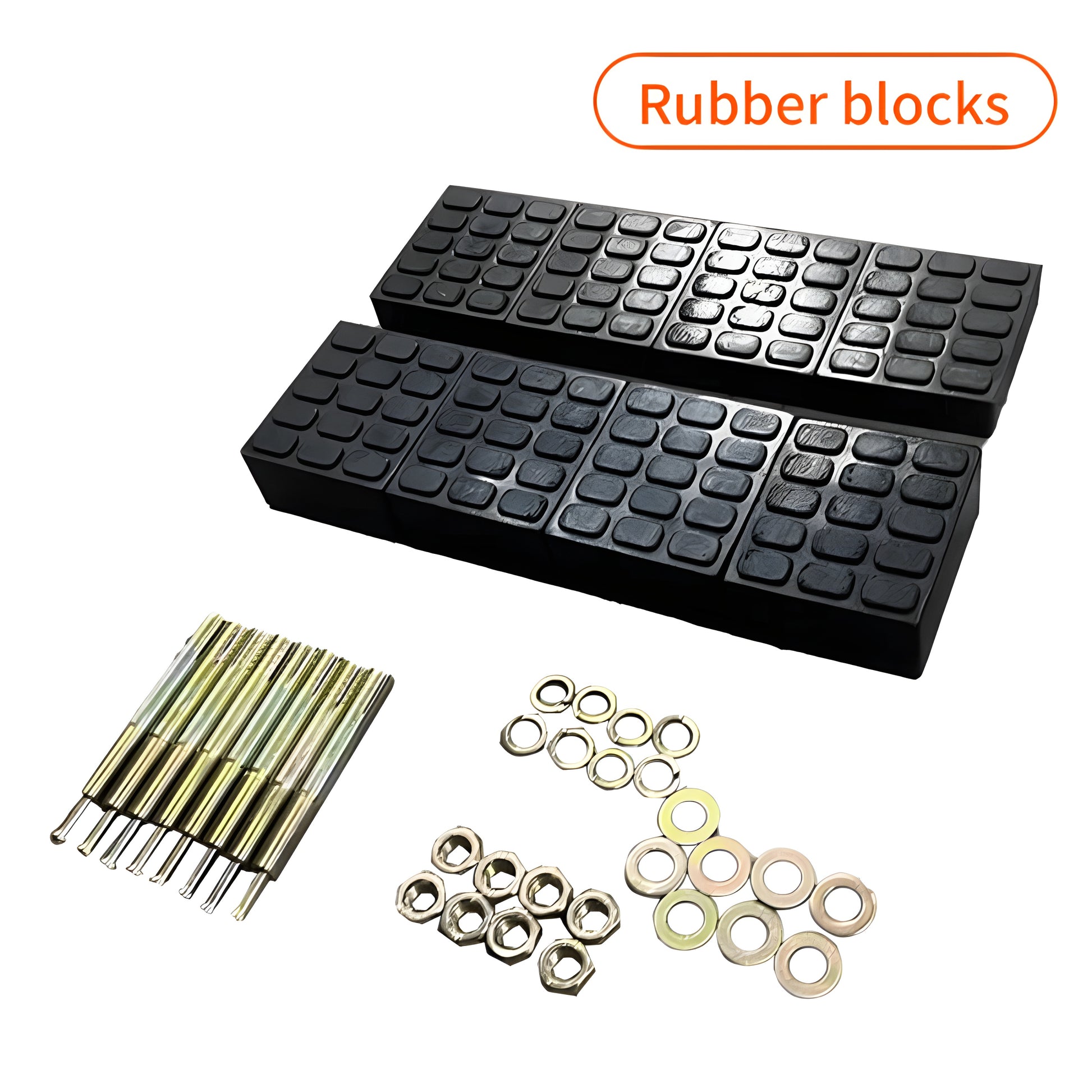

- Composite rubber lifting blocks included
- Comes with self-lubricated bushing and bearing
- Drive-up ramps lock design as platform extension for long vehicles

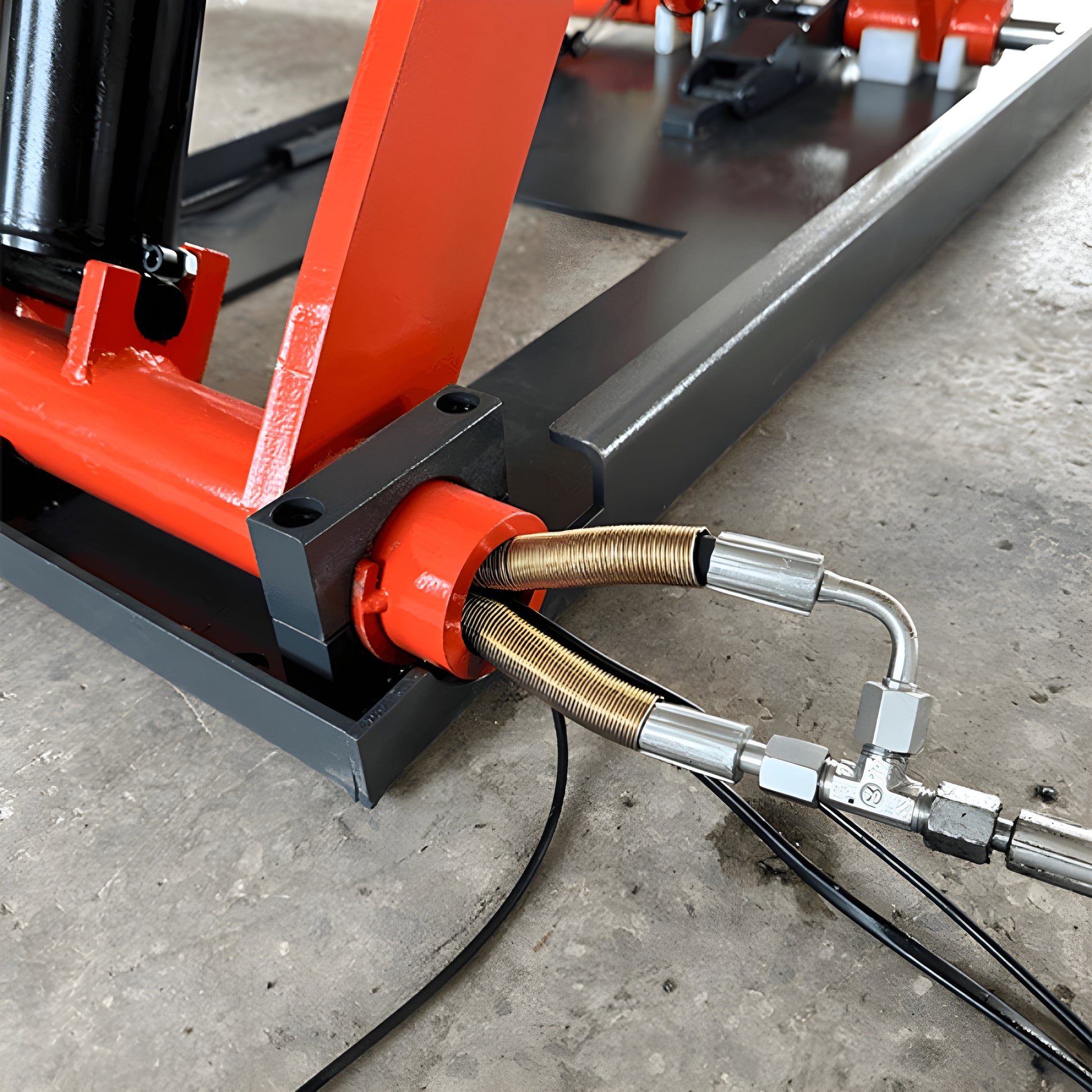

- Top-level hydraulic system and aluminum motor with the fan on top to avoid overheating caused by long time working
- Power: 110v/220v/60Hz, single phase

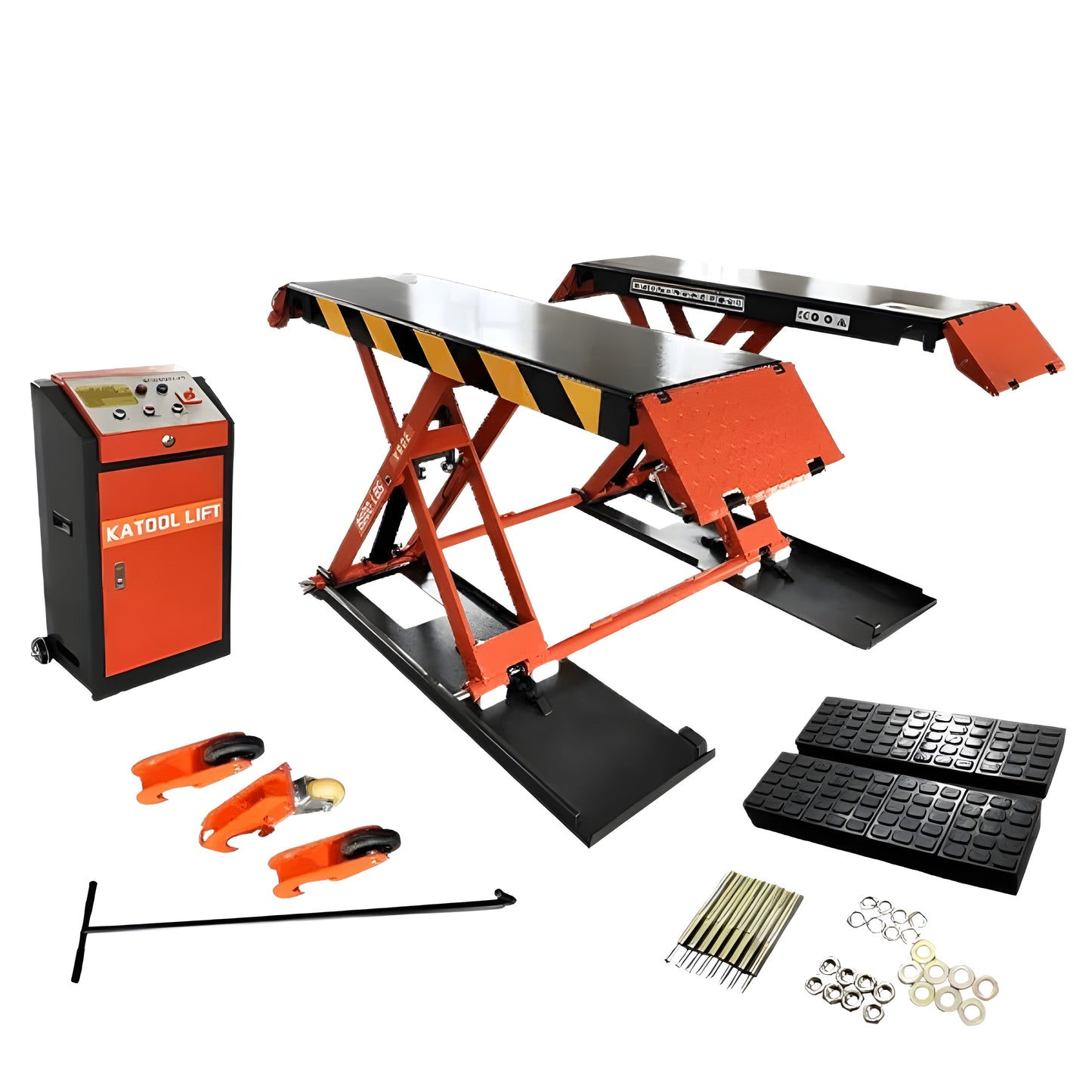

- Includes: Caster Kit for Mobility
- Katool Warranty:
- One-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment.
- Vehicle lifts will include an additional three-year (36 months) warranty on all lift structural components only.
- Optional: Support Bars - Sold Separately
- Support Bars spread the weight out evenly and have more adjustment for lifting SUVs and full frame vehicles.
Documentation
Katool KT-X90E Scissor Lift Product Manual
- City of Industry, CA 91789
- Brookshire, TX 77423
- Houston, TX 77064
- Kalamazoo, MI 49048
- Pooler, GA 31322Jersey City, NJ 07305
- Bolingbrook, IL 60440
What Our Experts Think
-
Mid-rise scissor lift with 8,000 lbs capacity for cars, SUVs, and light trucks
-
Electric lock system ensures safe and stable lifting at any height
-
Compact, space-saving design perfect for small to medium workshops
-
Provides full under-vehicle access for tire, brake, and suspension work
-
Heavy-duty steel construction built for professional daily use
Q&A
Q: What is the lifting capacity of the KT-X90E-110?
A: 8,000 lbs, suitable for most passenger vehicles and light-duty trucks.
Q: How does the electric lock work?
A: It locks the lift securely at the desired height for safety and stability.
Q: Is this lift suitable for small garages?
A: Yes, its compact mid-rise design saves floor space without compromising access.
Q: What type of work is it best for?
A: Ideal for tire, brake, suspension, and underbody service.
Maintenance Tips
-
Inspect and lubricate pivot points and scissor arms regularly
-
Check electrical connections and safety locks for proper function
-
Keep platforms and surrounding areas clean from debris
-
Monitor hydraulic fluid levels as recommended
-
Follow manufacturer’s service schedule for safe long-term operation
