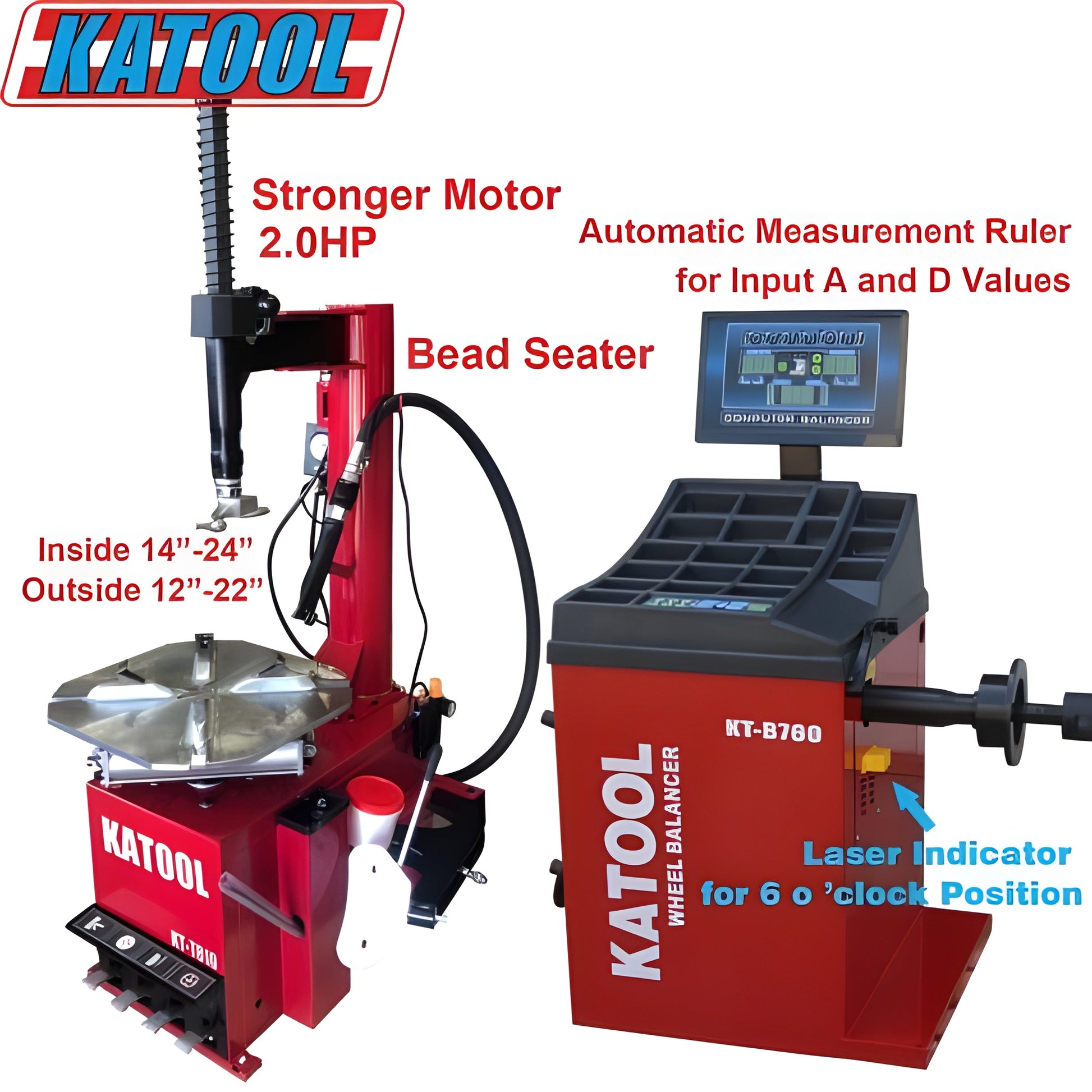

Boost Your Productivity with the Katool KT810 & KT-B760 Tire Service Combo!
This high-performance combo is designed to handle tire changes and wheel balancing with outstanding efficiency. The KT-T810 Tire Changer offers a rugged build and intuitive controls for smooth operation, while the KT-B760 Wheel Balancer ensures accurate and reliable results every time.
-
Smooth Tire Changes: Features robust alloy steel jaws for durability, a stainless steel mounting head to protect rims, and an ergonomic pull-type pedal system for easy operation.
-
Accurate Wheel Balancing: Offers automatic measurements, multiple balancing modes, and built-in fault diagnostics for precise and reliable results.
-
Built to Last: Constructed with a heavy-duty 3mm steel body on the balancer and equipped with premium motors using pure copper windings for long-term performance.
-
Designed for North America: Equipped with a 120V/1PH/2.0HP motor tailored to meet regional power standards.
-
Reliable Performance: High-efficiency motors provide fast heat dissipation, ensuring smooth operation and extended service life.
-
Upgradeable Options: Compatible with optional accessories like a wheel guard and extended shaft for added versatility (sold separately).
Features

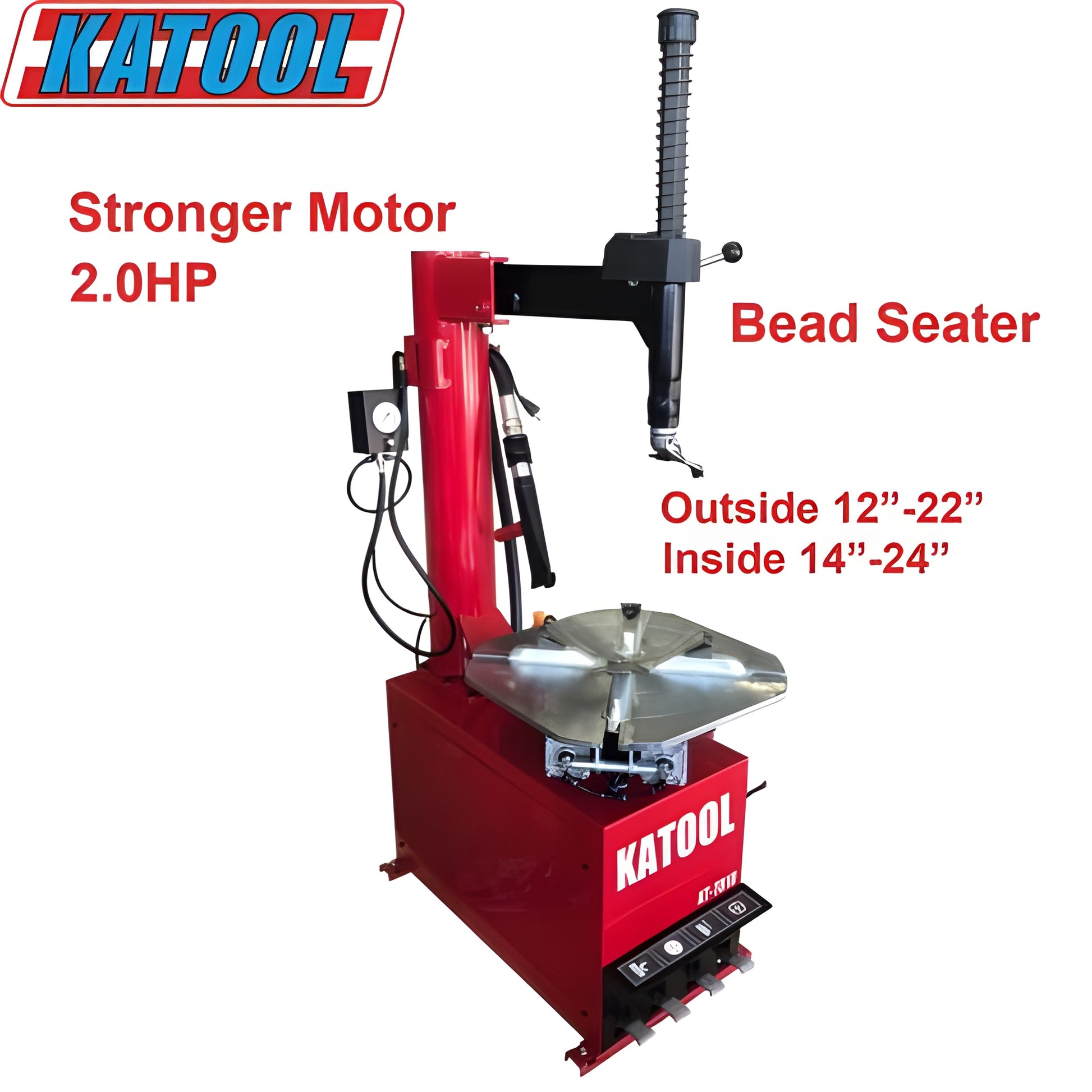

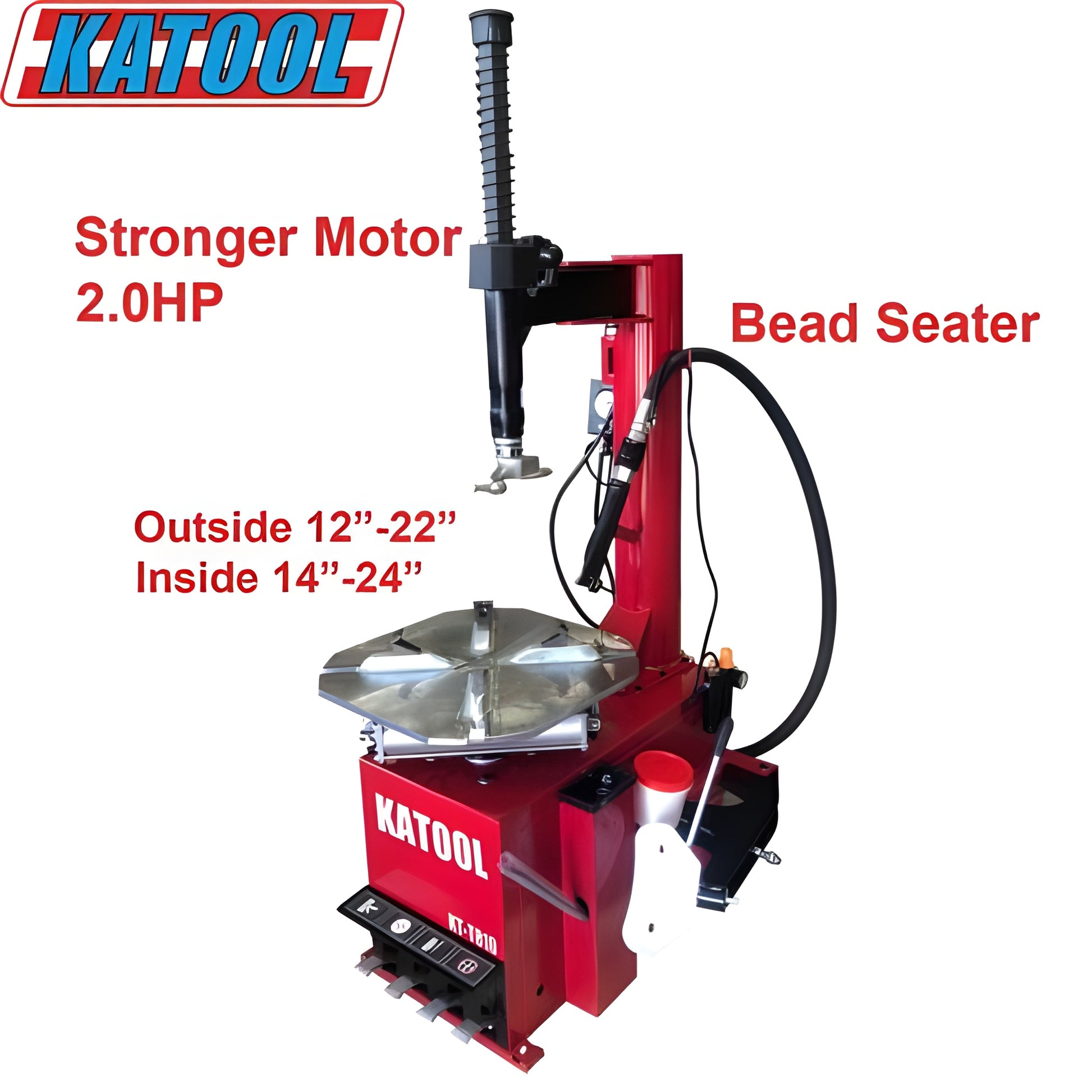

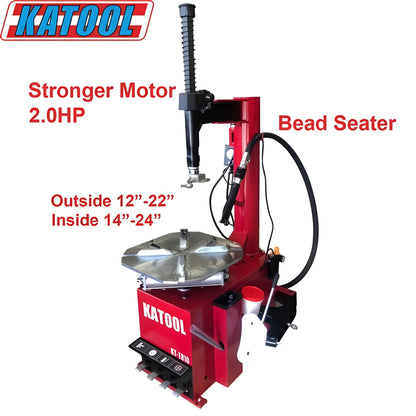

KT-T810 Tire Changer:
-
Enhanced Durability: Alloy steel jaws with carburization treatment for strength, stainless steel mounting head, and a closed body design for internal component protection.
-
User-Friendly Design: Pull-type pedal control system for convenient tire changes.
-
North American Power: 120V/1ph/2.0HP motor specifically designed for the region.
-
Efficient Performance: Top-level motor with pure copper windings ensures fast operation and long life.
-
Versatile Functionality: Handles various tire sizes with a maximum diameter of 41" and width of 15".

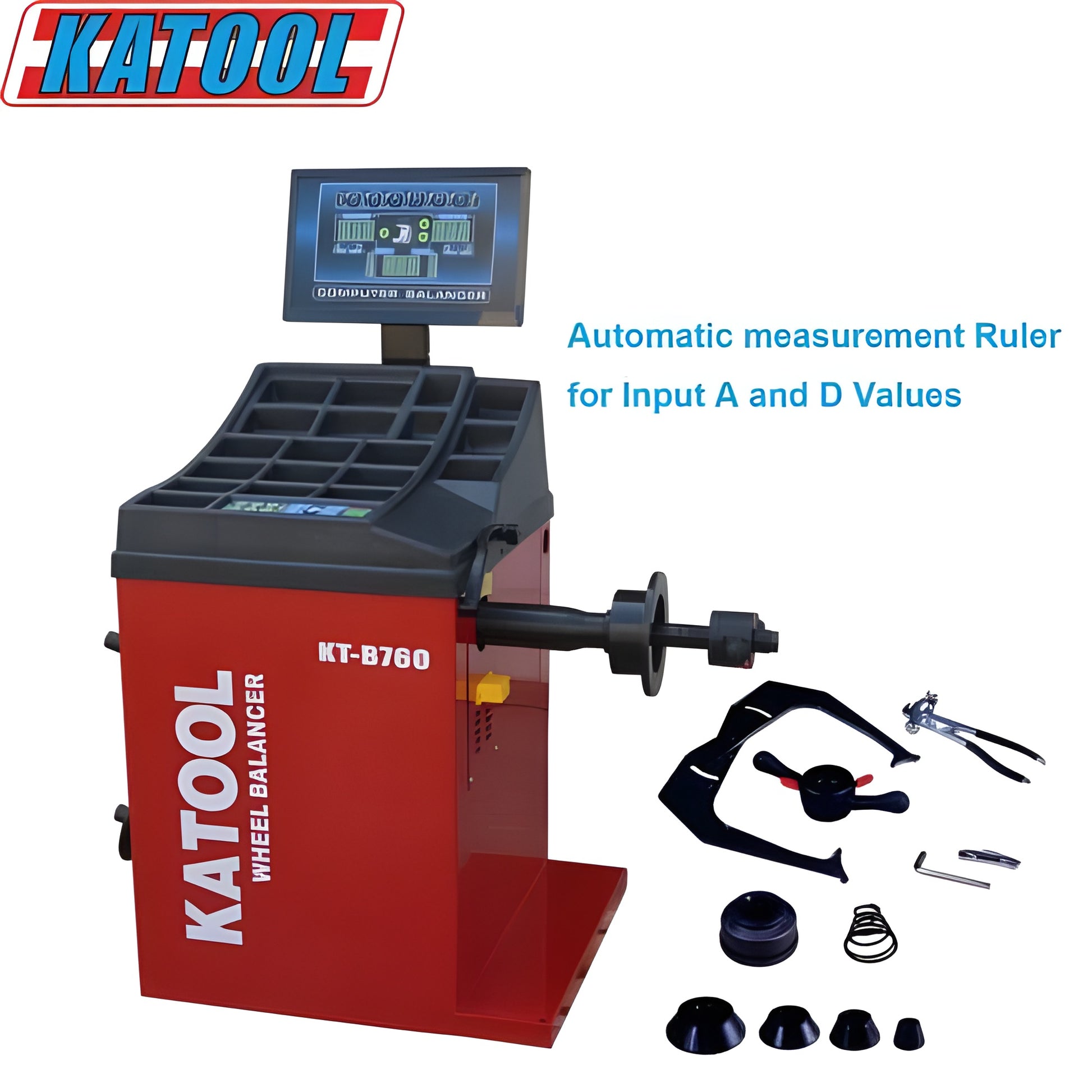

KT-B760 Wheel Balancer:
-
Precise Balancing: Automatic measurement, various balance modes, built-in fault diagnosis system, and self-calibration program for accurate results.
-
Durable Construction: 3mm thick steel body and top-level motor with pure copper windings for long-lasting use.
-
Advanced Features: All-in-one pressure sensor design, 36mm shaft thread, and unit selection (ounce/gram, mm/inch).
-
Optional Features: Enhance functionality with a wheel guard and longer shaft (sold separately).
Specification

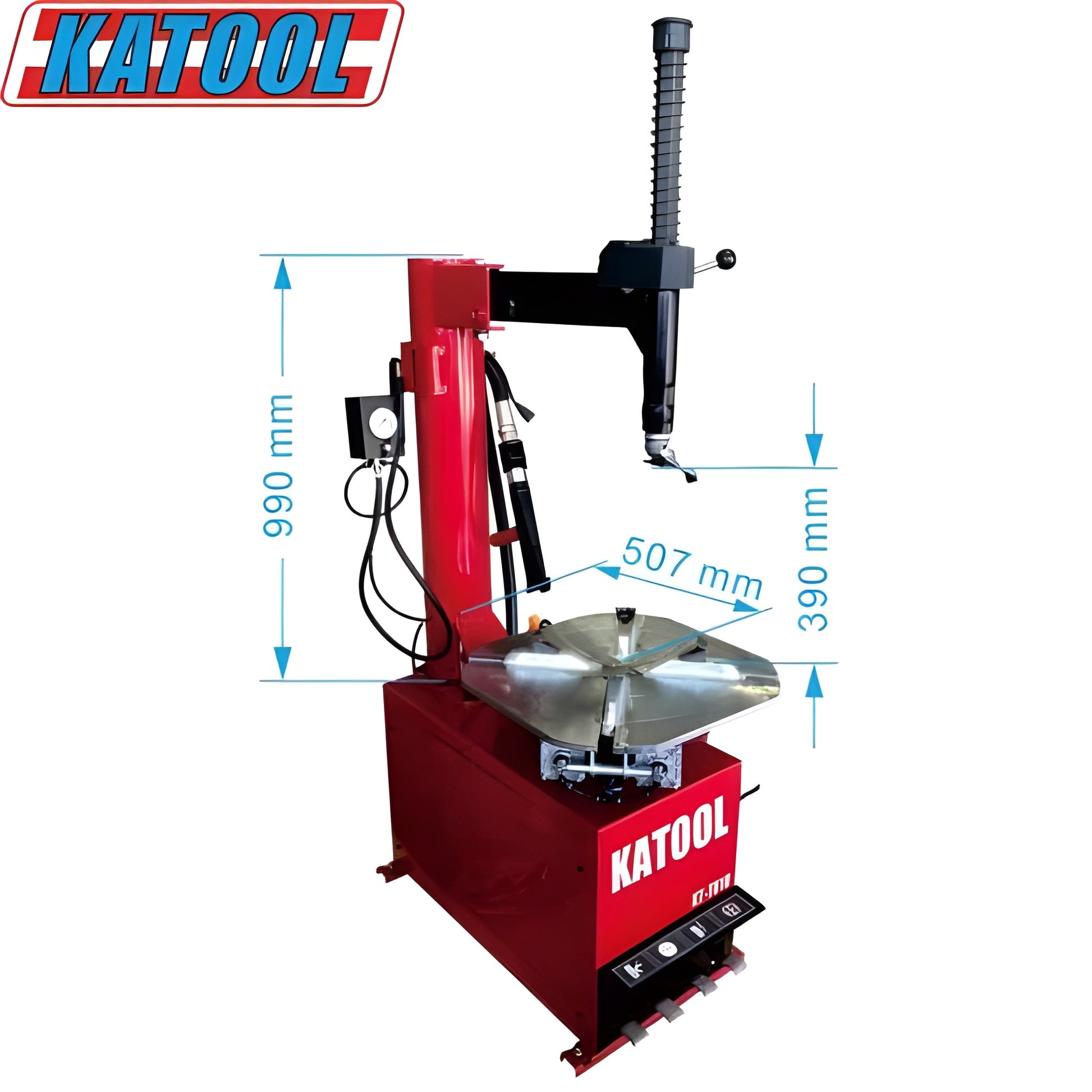

Tire Changer (KT-T810):
-
Max Wheel Diameter: 41" (1040mm)
-
Max Wheel Width: 15" (380mm)
-
Outside Clamp: 12"-22"
-
Inside Clamp: 14"-24"
-
Power Supply: 120V 1PH
-
Motor Power: 2.0HP/1.5KW
-
Rotation Speed: 6.8rpm
-
Air Pressure: 0.8-1.0Mpa (116-145psi)
-
Net Weight: 410 lbs (186kg)
Wheel Balancer (KT-B760):
-
Rim Diameter: Up to 30" (880mm)
-
Wheel Width: 3"-12"
-
Balancing Speed: 180rpm
-
Power Supply: 120V 1PH
-
Motor Power: 0.25KW
-
Rim Center Hole Dia.: Up to 135mm
-
Wheel Weight: Up to 65kg
-
Balancing Accuracy: ±1g
-
Measuring Time: 7 seconds
What Our Experts Think
-
Professional tire service combo with KT810 tire changer and B760 wheel balancer
-
KT810 offers strong clamping, powerful bead breaker, and user-friendly operation
-
B760 delivers precise wheel balancing for improved ride quality and safety
-
Designed for efficiency in busy auto shops and service centers
-
Heavy-duty build ensures long-lasting performance and reliability
Q&A
Q: What rim sizes can the KT810 handle?
A: It accommodates a wide range of passenger car and light truck wheels.
Q: How accurate is the B760 wheel balancer?
A: It provides high-precision balancing for smooth and safe driving.
Q: Is this package suitable for professional garages?
A: Yes, it’s built for daily, heavy-duty use in workshops.
Q: What power supply is needed?
A: Standard 110V single phase.
Maintenance Tips
-
Lubricate clamps, turntable, and moving parts regularly
-
Inspect pneumatic and electrical components for wear or leaks
-
Calibrate the balancer periodically to maintain accuracy
-
Keep work surfaces clean from dirt, dust, and tire debris
-
Follow manufacturer’s maintenance schedule for long-term durability
