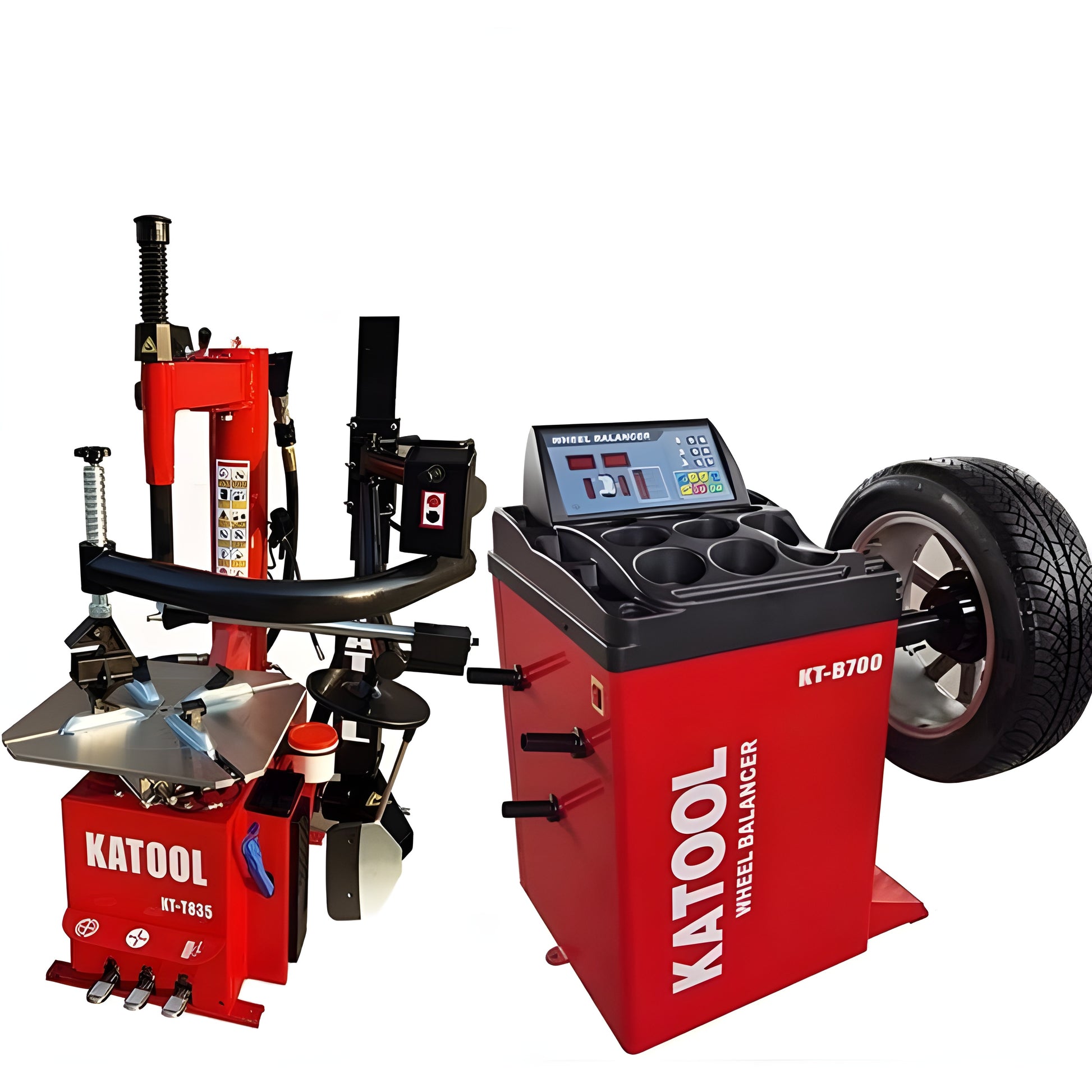

Katool Tire Changer T835 & Wheel Balancer B700 - T835+B700

Katool Tire Changer T835 & Wheel Balancer B700 - T835+B700

This high-performance combo delivers outstanding efficiency for both tire changing and wheel balancing. The KT-T835 Tire Changer combines a rugged build with user-friendly features for smooth operation, while the KT-B700 Wheel Balancer ensures precise, accurate balancing every time.

• Effortless Tire Handling: Features durable alloy steel jaws, a stainless steel mounting head for rim protection, and a double-sided assist arm for enhanced control and maneuverability.

• Precision Balancing: Equipped with automatic measurement, multiple balance modes, and self-calibration to ensure accurate and consistent results.

• Built to Last: Constructed with a heavy-duty 3mm thick steel body and high-performance motors with pure copper windings for long-term durability.

• Designed for North America: Powered by a 110V/1PH/2.0HP motor engineered to meet North American electrical standards.

• Optimized Efficiency: Premium motors provide rapid heat dissipation and extended operational lifespan.

• User-Friendly Features: Includes a pedal-controlled inflation gauge, ergonomic pull-type pedal system, and compatibility with optional upgrades like a wheel guard and extended shaft (sold separately).

Features

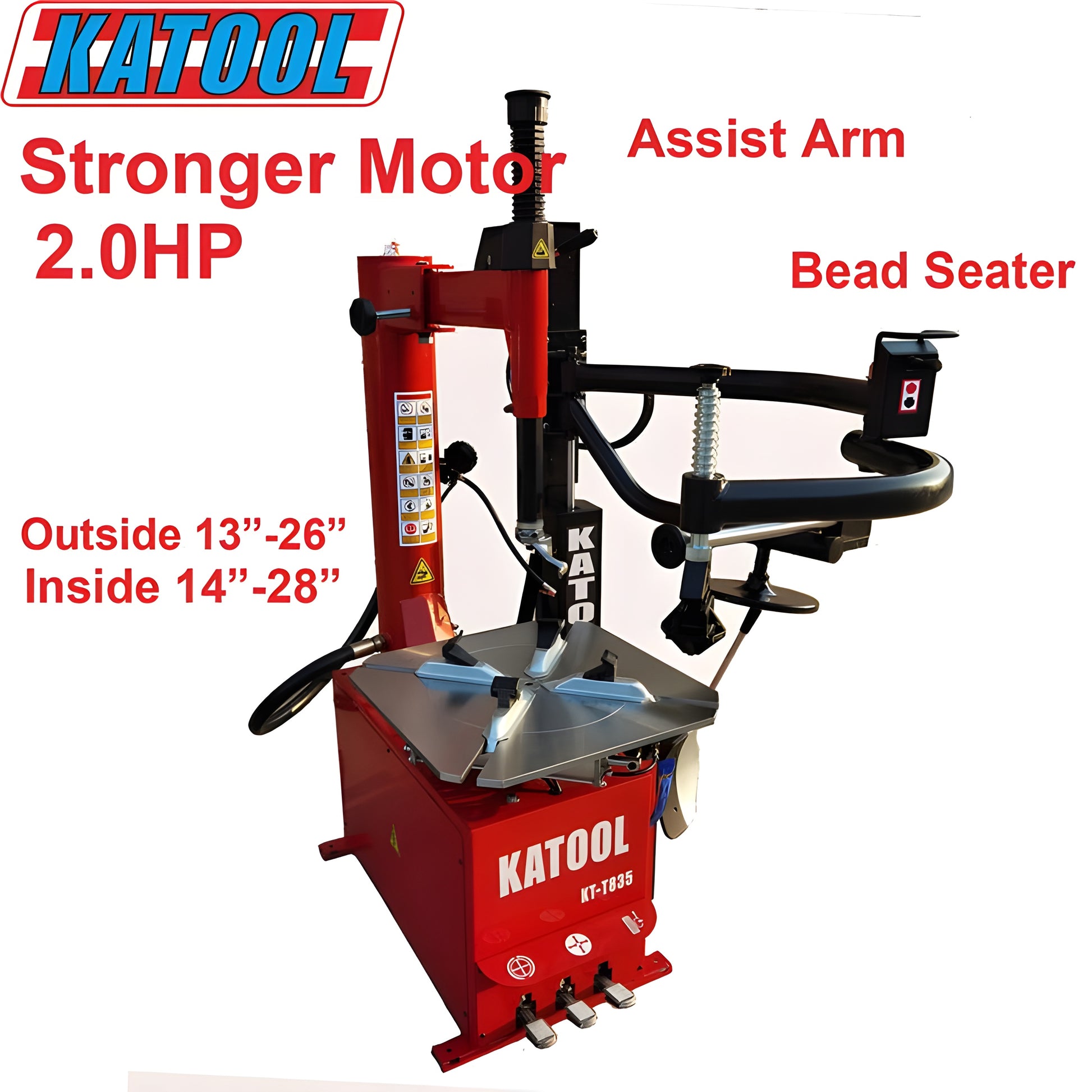

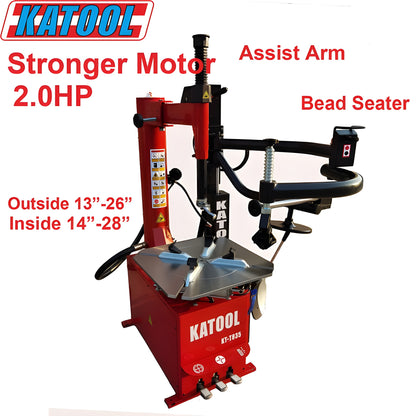

KT-T835 Tire Changer:

• Enhanced Durability: Alloy steel jaws with carburization treatment for strength, stainless steel mounting head, and closed body design for internal component protection.
• User-Friendly Design: Inflation gauge with pedal control, ergonomic design, and pull-type pedal control system for convenient tire changes.
• North American Power: 110V/1ph/2.0HP motor specifically designed for the region.
• Efficient Performance: Top-level motor with pure copper windings ensures fast operation and long life.

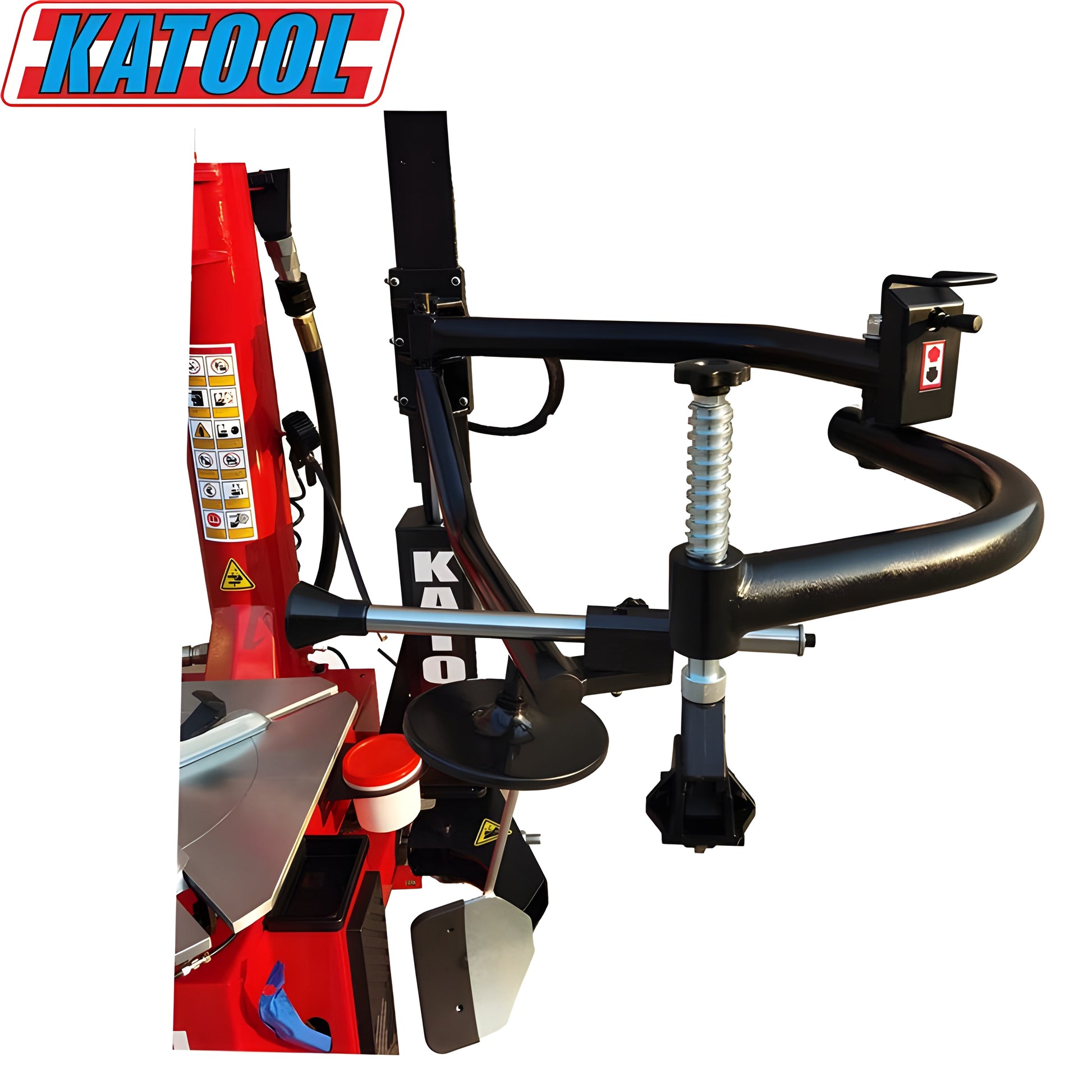

• Versatile Functionality: Double-sided assist arm, bead blast seater head, and large φ186mm stainless steel bead breaker cylinder handle various tire sizes.

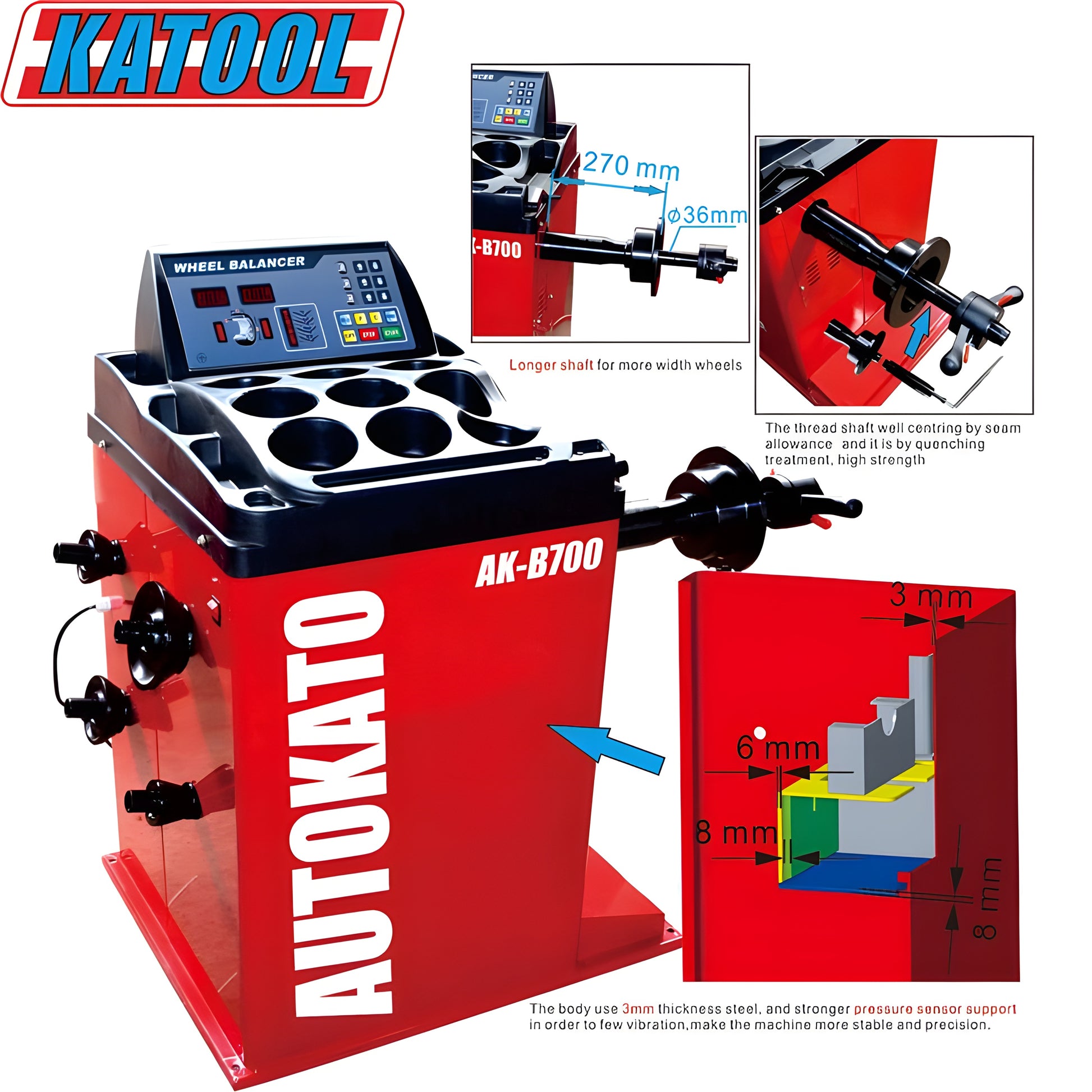

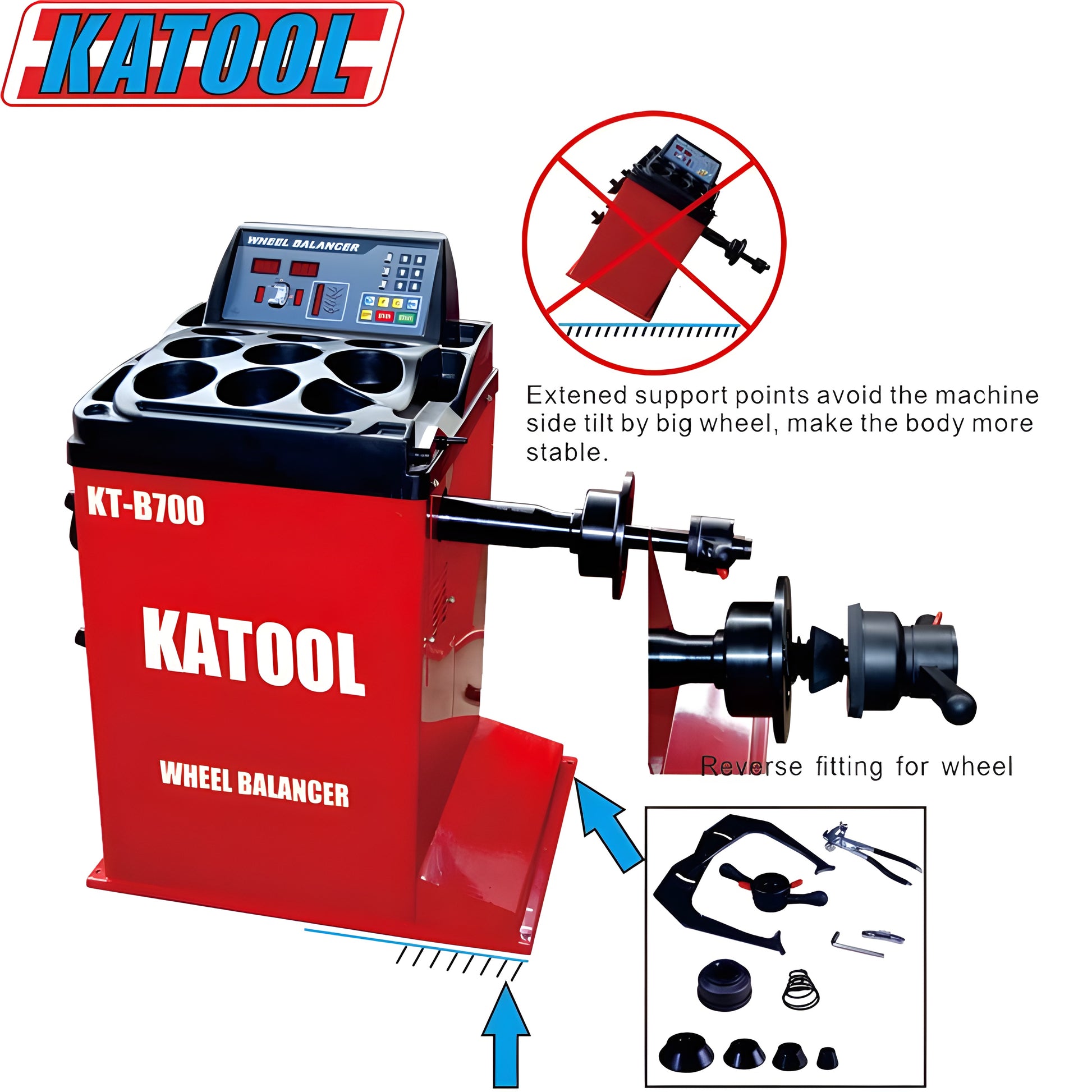

KT-B700 Wheel Balancer:

• Precise Balancing: Automatic measurement, various balance modes, built-in fault diagnosis, self-calibration program, and high-precision sensor for accurate results.
• Durable Construction: 3mm thick steel body and top-level motor with pure copper windings for long-lasting use.

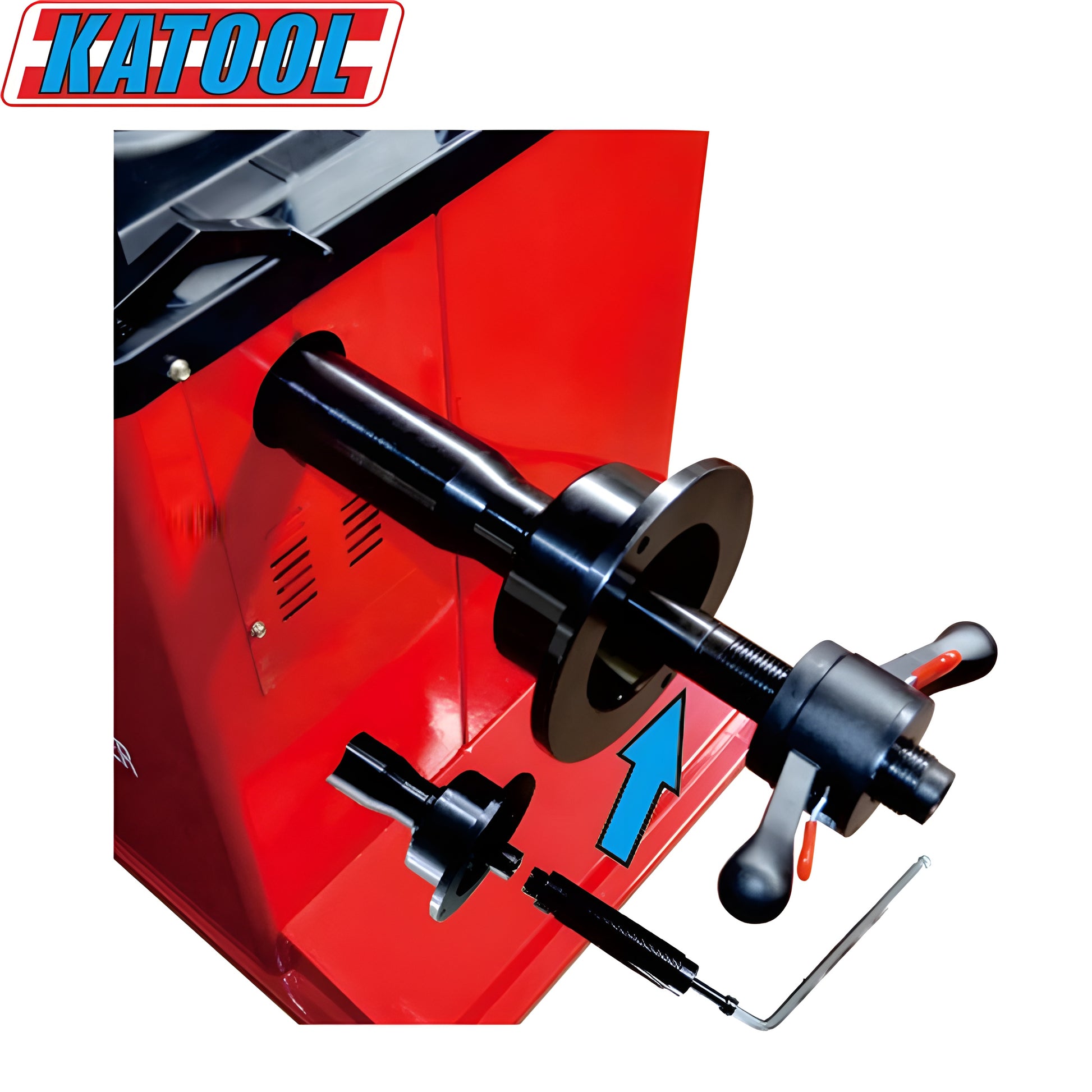

• Advanced Features: All-in-one pressure sensor design, 36mm shaft thread, and unit selection (ounce/gram, mm/inch).
• Optional Features: Enhance functionality with a wheel guard and longer shaft (sold separately).

Specification

Tire Changer (KT-T835):

• Max Wheel Diameter: 41" (1040mm)

• Max Wheel Width: 15" (350mm)

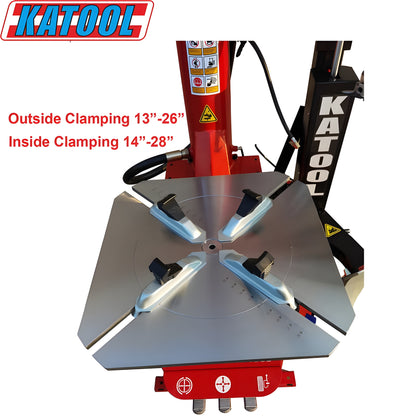

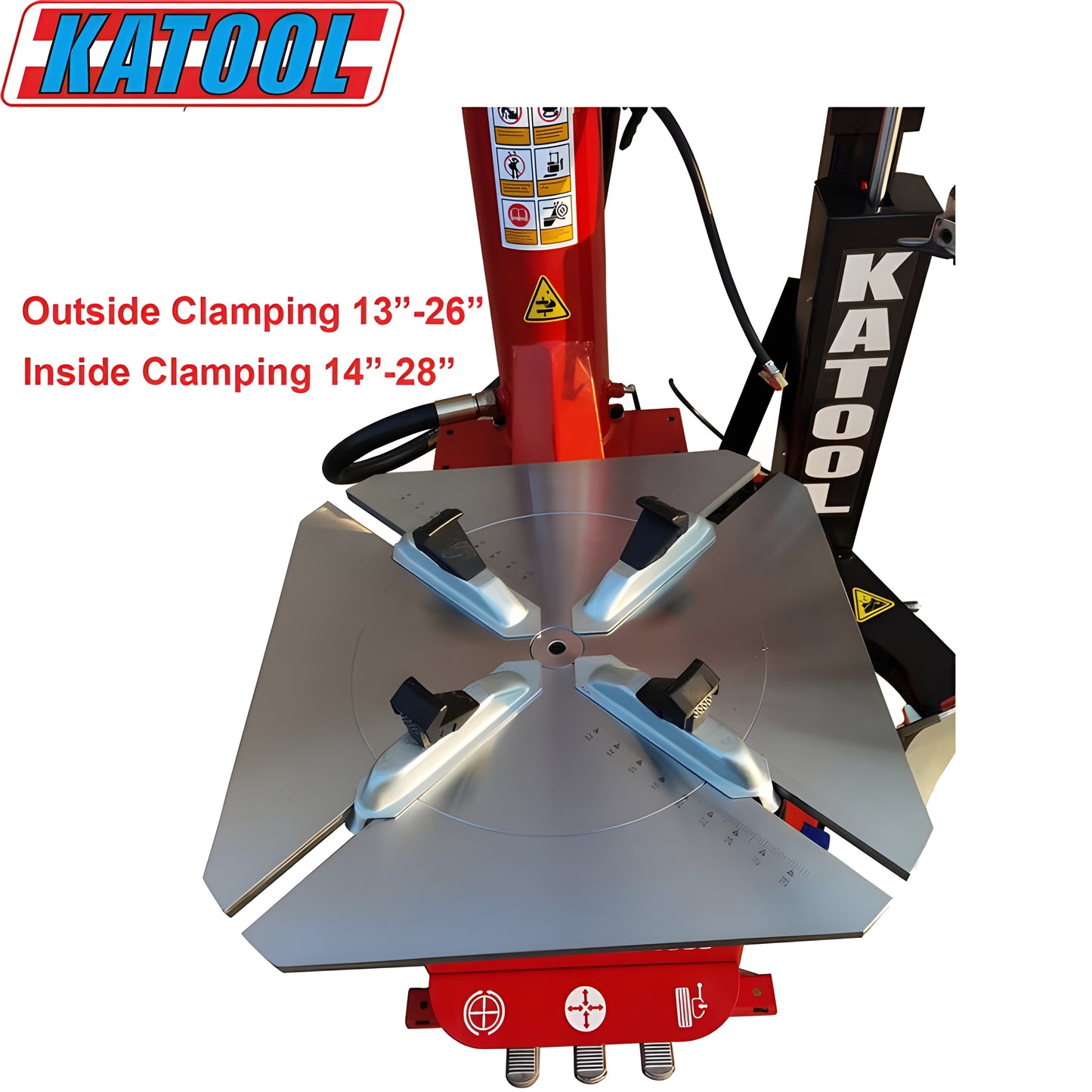

• Outside Clamp: 13"-26"

• Inside Clamp: 14"-28"

• Power Supply: 110V 1PH/60HZ

• Motor Power: 2.0HP/1.5KW

• Rotation Speed: 6.1rpm
• Air Pressure: 0.8-1.0Mpa (116-145psi)
• Net Weight: 582lbs

Wheel Balancer (KT-B700):

• Rim Diameter: Up to 30" (880mm)
• Wheel Width: 3"-12"
• Balancing Speed: 180rpm
• Power Supply: 120V 1PH
• Motor Power: 0.25KW
• Rim Center Hole Dia.: Up to 135mm
• Wheel Weight: Up to 65kg
• Balancing Accuracy: ±1g
• Measuring Time: 7 seconds

What Our Experts Think

• Complete tire service solution with T835 tire changer and B700 wheel balancer

• T835 handles rims up to 26–28 inches with strong bead breaker and secure clamping

• B700 ensures accurate wheel balancing for smoother rides

• Ideal combo for small to medium-sized auto shops and service stations

• Durable, professional-grade build designed for long-term reliability

Q&A

Q: What rim sizes can the T835 handle?
A: Up to 26–28 inches, suitable for most passenger cars and light trucks.

Q: How precise is the B700 wheel balancer?
A: It provides accurate balancing to improve driving comfort and safety.

Q: Is this package suitable for professional shops?
A: Yes, it’s designed for daily use in busy garages and workshops.

Q: What power supply is required?
A: Standard 110V single phase.

Maintenance Tips

• Lubricate clamps, turntable, and bead breaker regularly

• Inspect pneumatic and electrical connections for wear or leaks

• Calibrate the balancer periodically for accurate results

• Clean machines after each use to prevent dust and debris buildup

• Follow manufacturer’s maintenance schedule for long service life
