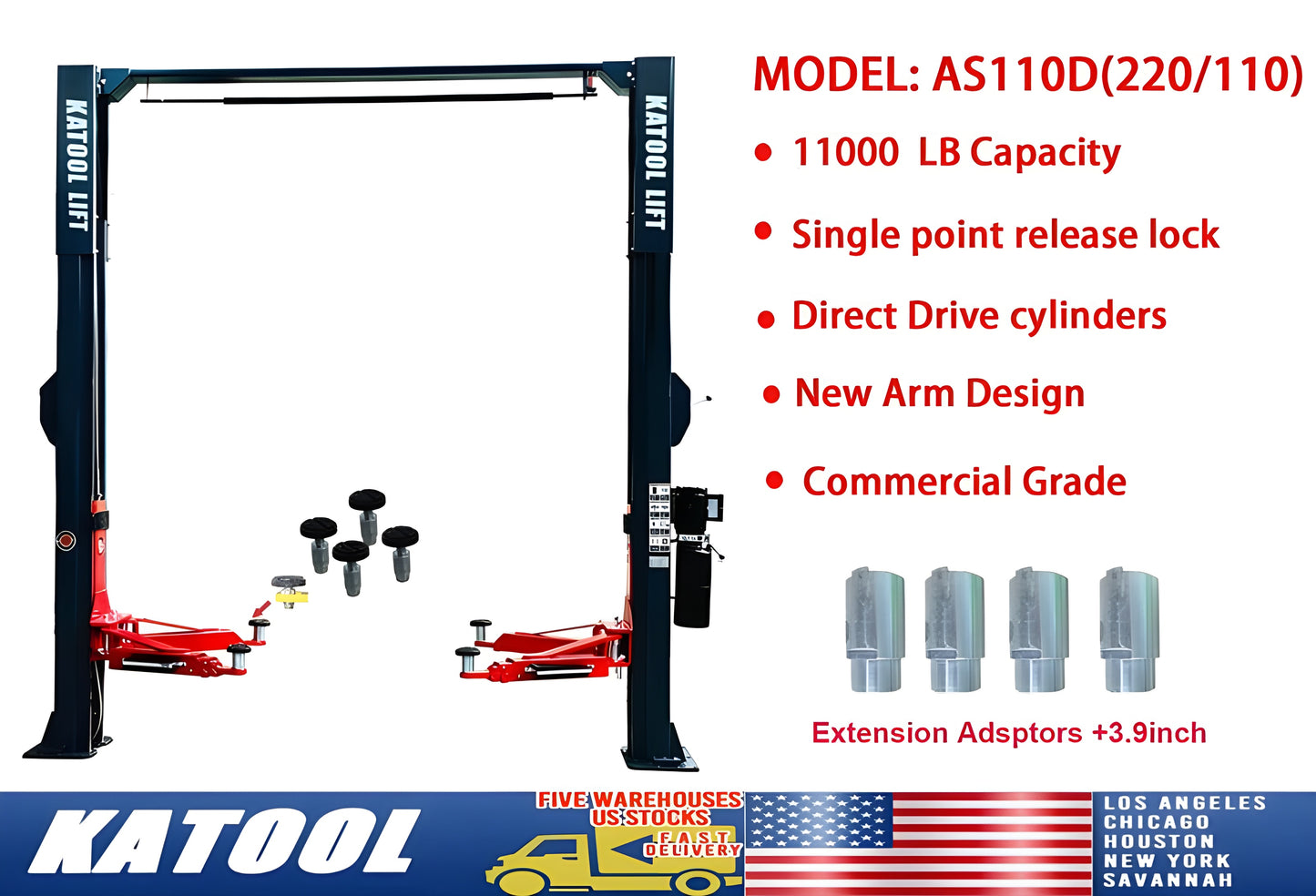

Katool Two Post Asymmetrical Vehicle Lift 11,000lbs Single Point Lock Release - KT-AS110D
The Katool KT-AS110D provides a robust and versatile lifting solution for your workshop. With a remarkable 11,000 lbs capacity and CE certification, this lift surpasses industry standards for safety and dependability.
Features
-
11,000 lbs Capacity: Easily handle most cars, SUVs, and light trucks.
-
CE Certified & Exceeds Standards: Meets 115% dynamic and 150% static load capacity for peace of mind.
-
Single-Point Release: Convenient operation with a secure locking system.
-

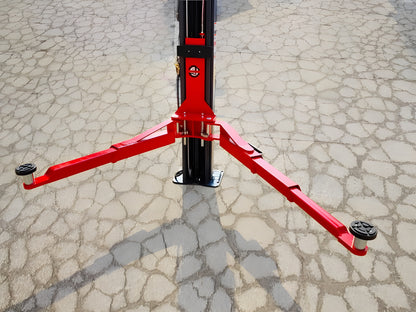

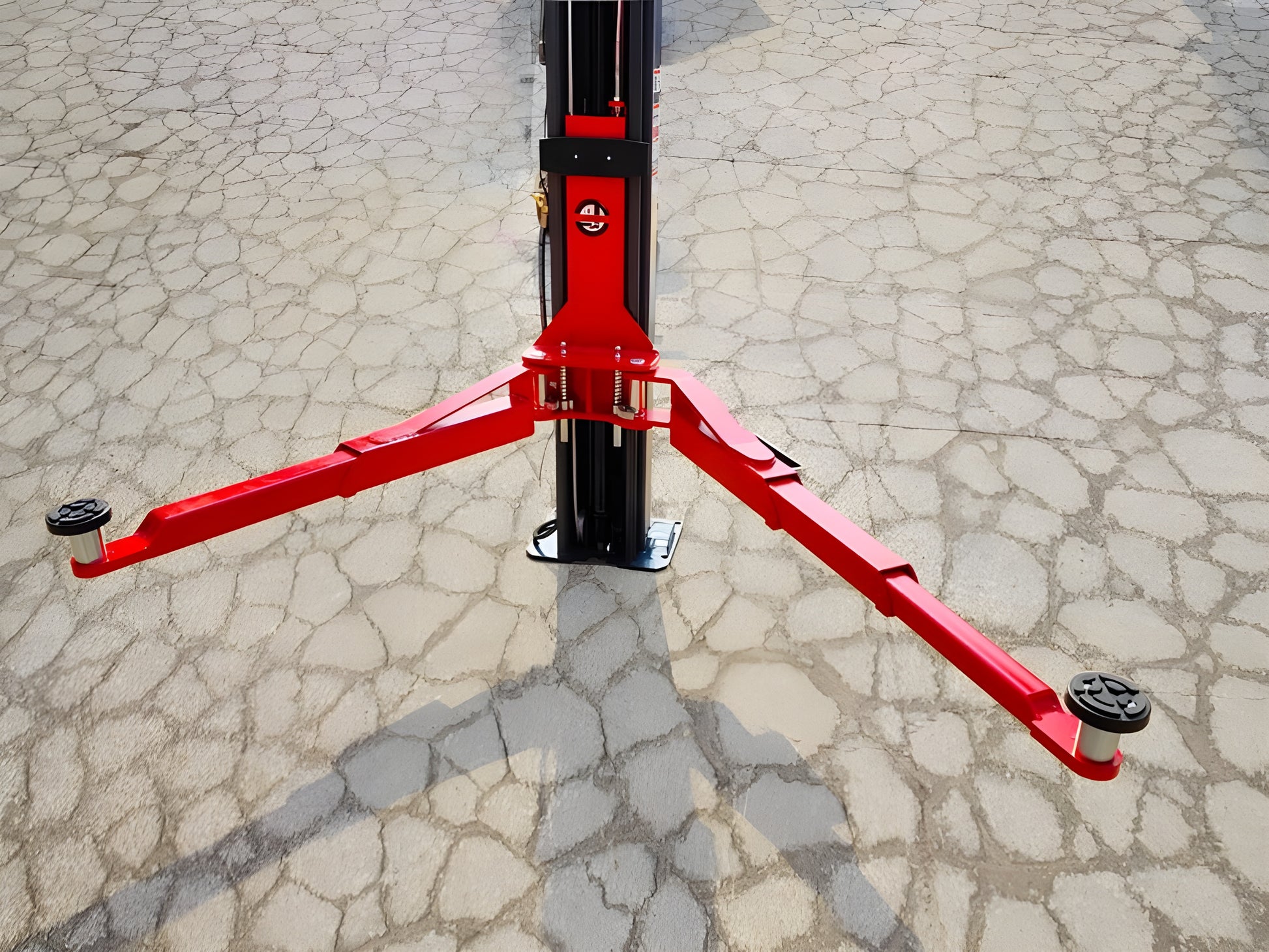

Asymmetric Arms & Direct Drive Cylinders: Provide efficient lifting and maneuverability for various vehicles.
-
Door Entry Protection: Rubber pads safeguard your vehicle during entry/exit.
-
Adjustable Arm Extensions: Accommodate a wider range of wheelbases.
-
Overhead Safety Shutoff Bar: Stops operation instantly in case of contact.
-
Safety Guardrails with Toolbox: Maximize workspace safety and organization.
-
High-Quality Hydraulics: Choose between 110V or 220V operation for flexible power options.
The Katool KT-AS110D is ideal for professional mechanics and serious car enthusiasts who demand a reliable and versatile lifting solution.
Please note: Requires proper concrete installation (consult a professional).

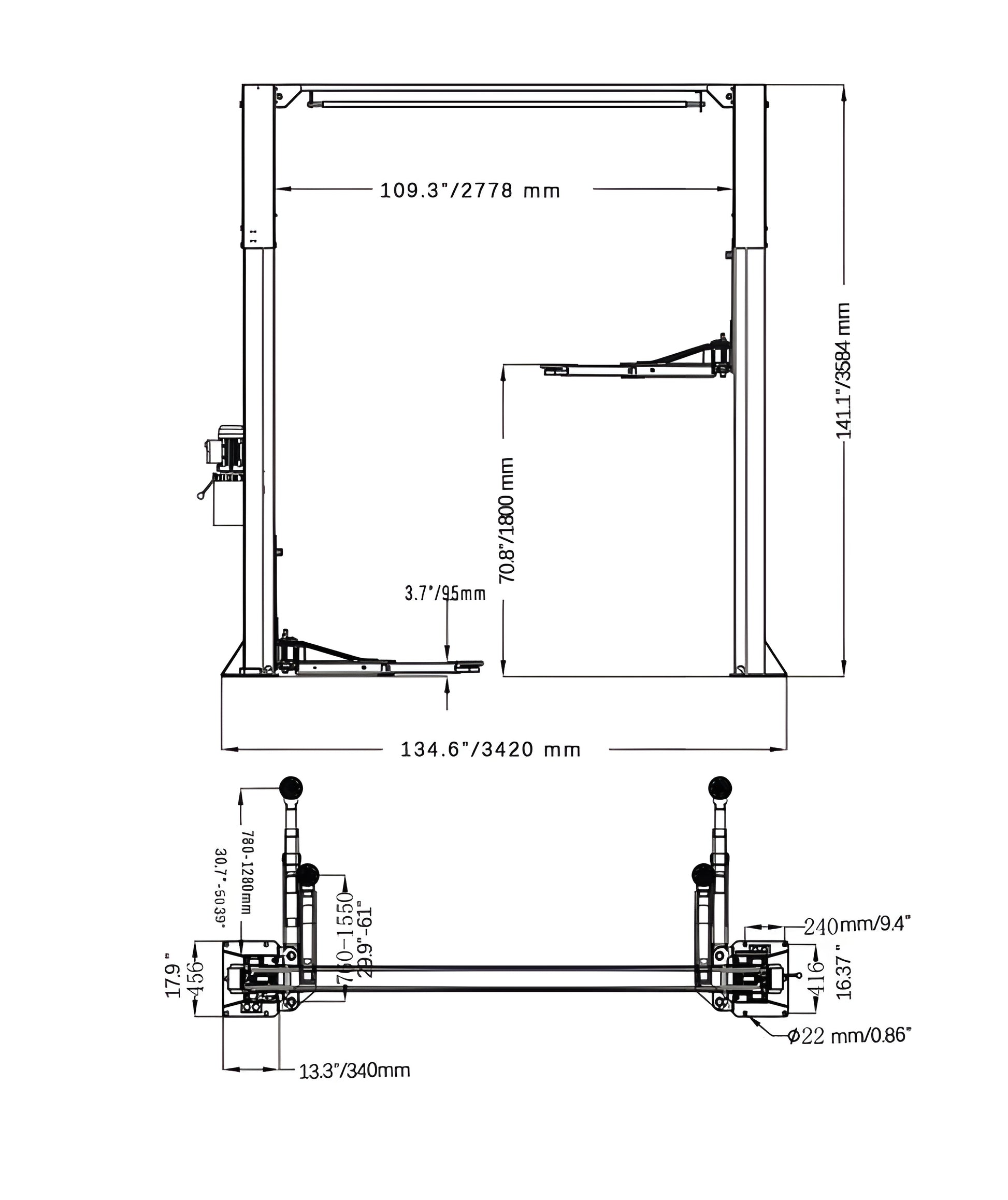

Specification
-
Lifting Capacity: 11,000 lbs (4,990 kg)
-
Max Lifting Height: 70.75 in (1,800 mm)
-
Min Lifting Height: 3.74 in (95 mm)
-
Overall Height: 141.25 in (3,587 mm)
-
Overall Width: 134.65 in (3,420 mm)
-
Outside Column Height: 120.4 in (3,058 mm)
-
Inside Column Height: 109.37 in (2,778 mm)
-

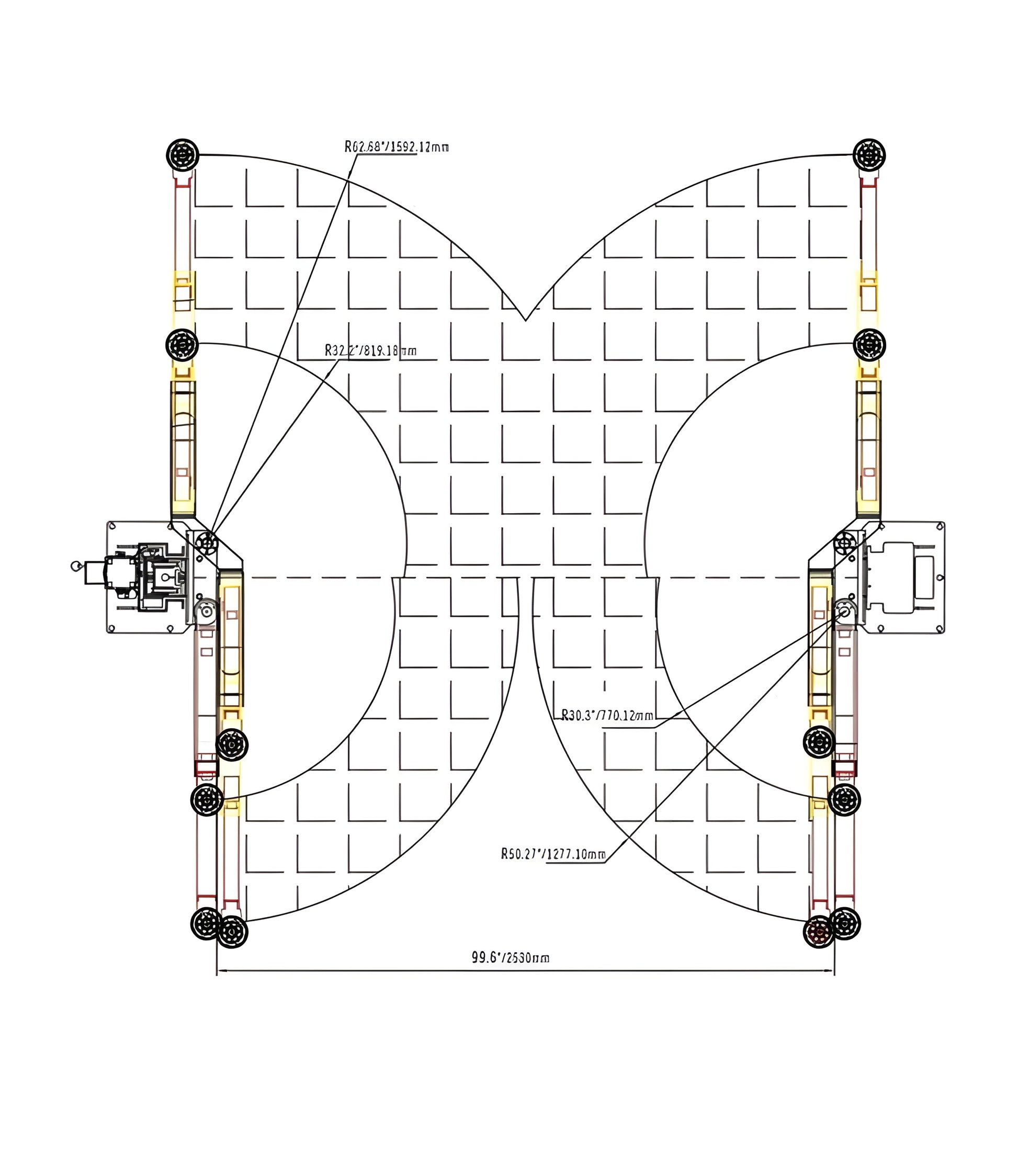

Drive-Thru Clearance: 99.61 in (2,530 mm)
-
Motor: 220V/60HZ/1PH (Optional: 110V/60HZ/1PH)
-
Net Weight: 1,323 lbs (600 kg)
What Our Experts Think
-
2-post asymmetrical lift with 11,000 lbs capacity for cars, SUVs, and light trucks
-
Single point lock release system for safe and precise lowering
-
Asymmetrical arm design improves door clearance and access to vehicle undercarriage
-
Durable steel construction built for professional workshops
-
Ideal for high-volume garages requiring reliable, long-lasting performance
Q&A
Q: What is the lifting capacity of the KT-AS110D?
A: 11,000 lbs, suitable for most passenger vehicles and light trucks.
Q: What does single point lock release mean?
A: It allows secure, controlled lowering using a single lever for safety and convenience.
Q: How does the asymmetrical design help?
A: Provides extra door clearance and easier access to the vehicle’s undercarriage.
Q: What power supply is required?
A: Standard 220V single phase (check local compatibility).
Maintenance Tips
-
Regularly check hydraulic fluid levels and refill as needed
-
Lubricate arms, locks, and moving parts for smooth operation
-
Inspect cables, bolts, and anchors for wear or looseness
-
Keep the lift and surrounding area clean from dust and debris
-
Follow the manufacturer’s maintenance schedule for long-term reliability
