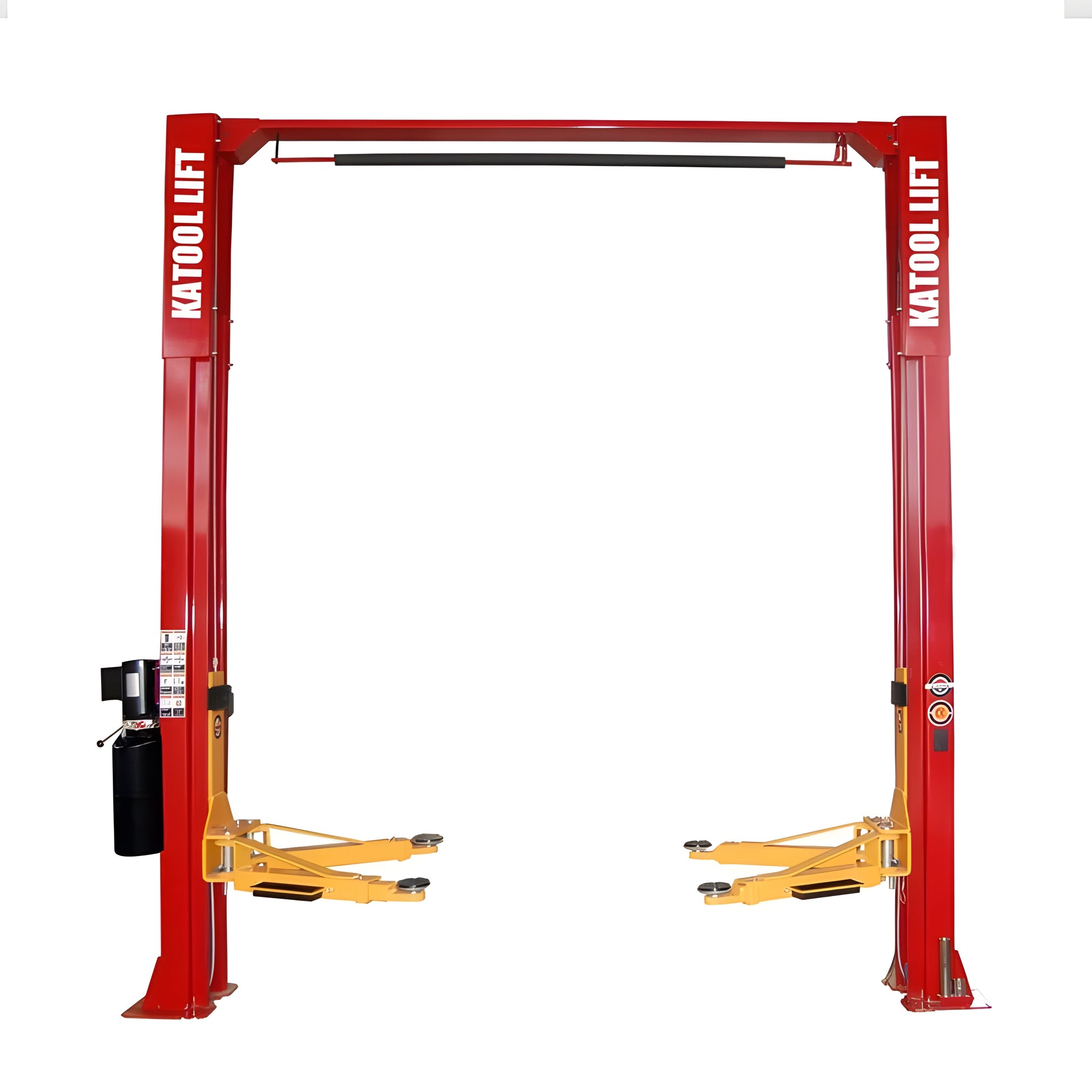

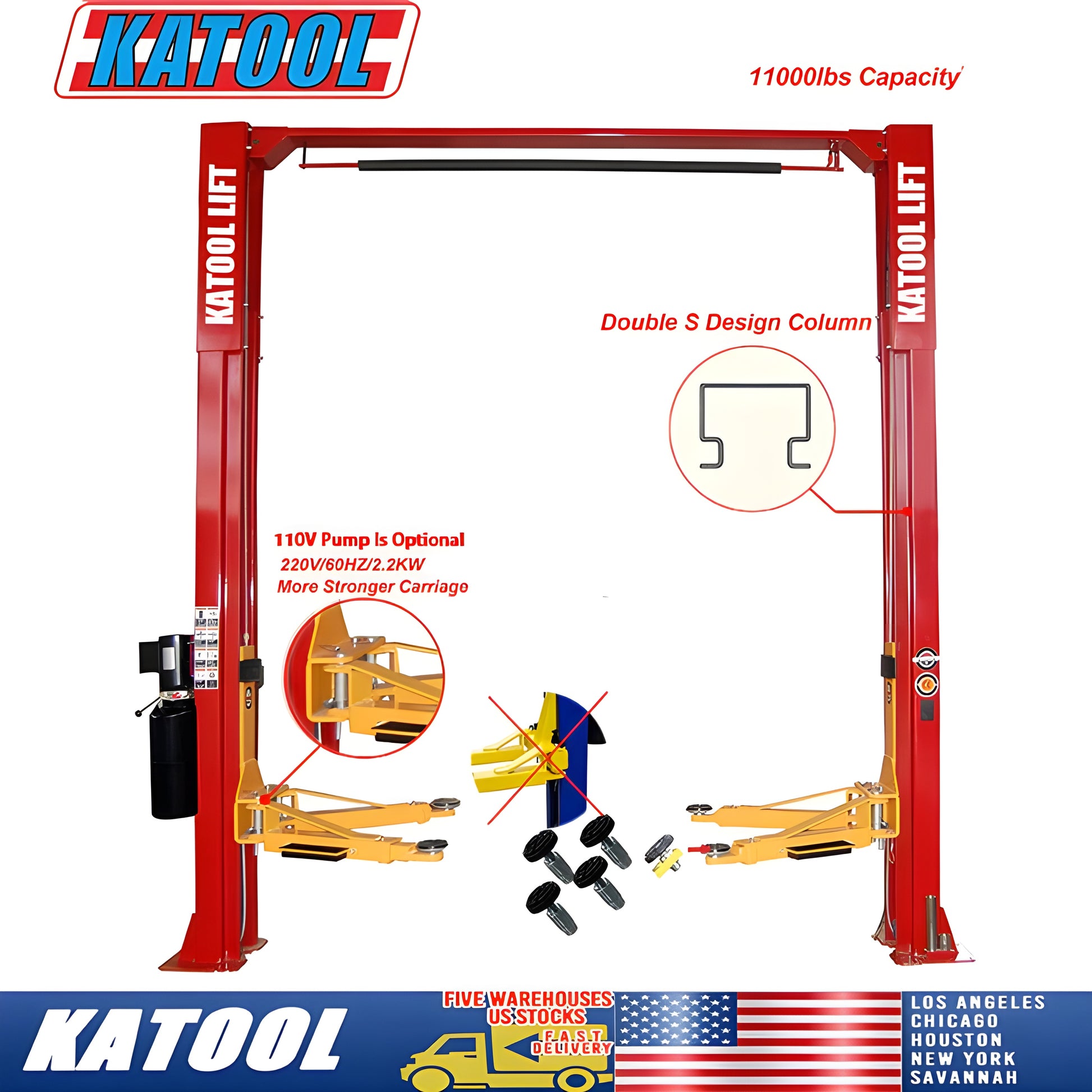

Katool Two Post Clear-floor Vehicle Lift 11,000lbs M110 - KT-M110
-
11,000 lb Capacity: Handles most vehicles with ease.
-
Clear Floor Design: Provides easy access from all sides.
-

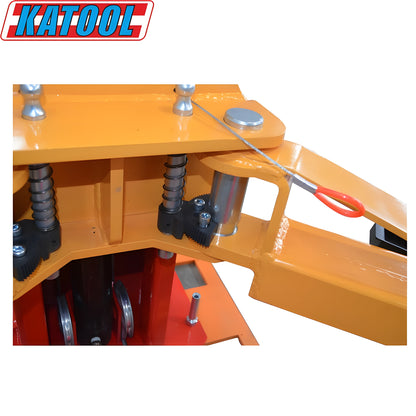

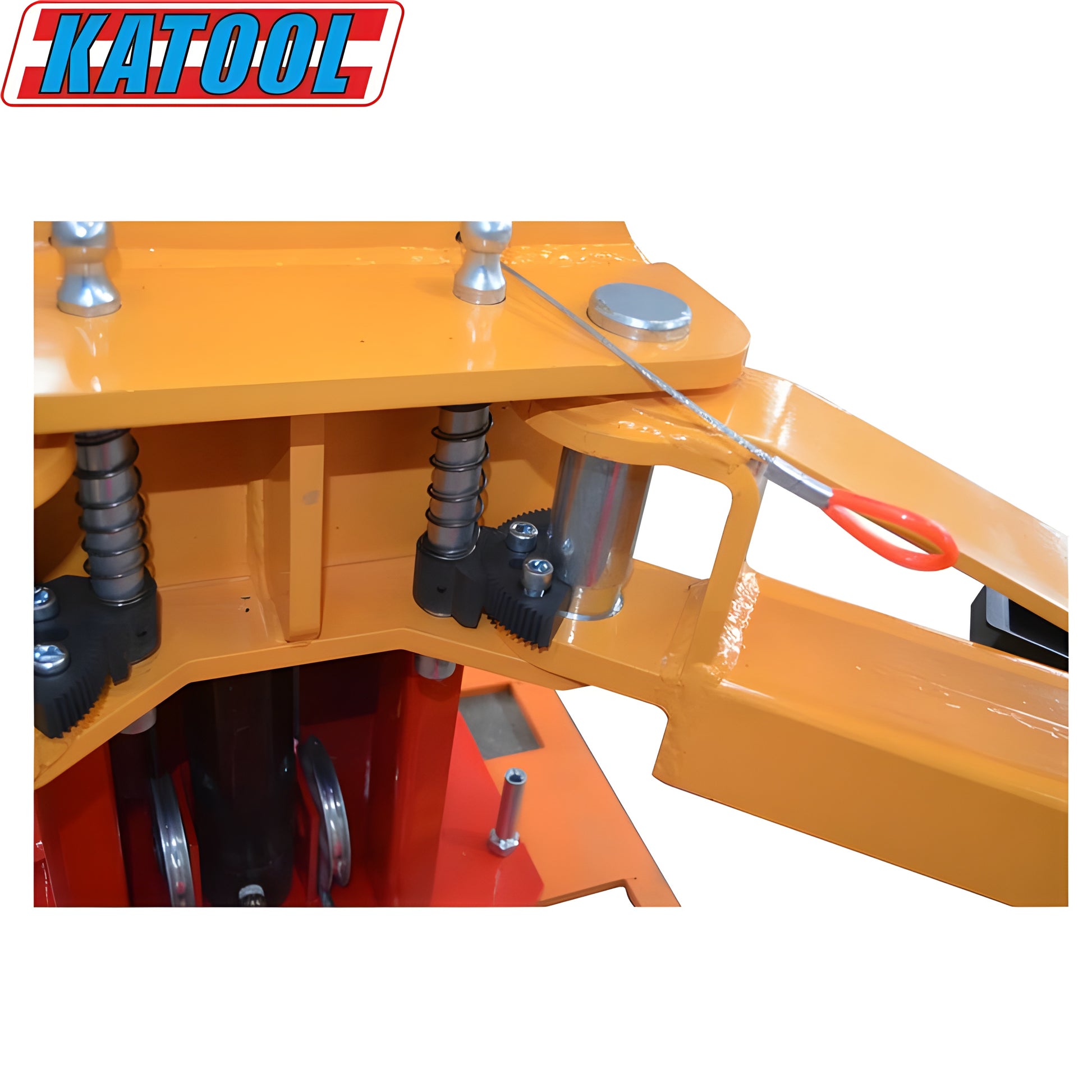

Dual Release & Secure Arms: Ensures controlled lifting from both sides.
-
Double Hydraulic Power: Delivers efficient operation.
Enhanced Safety & Versatility:
-
Rubber Pad Protection: Guards doors from damage during lifting.
-
Adjustable Arm Extensions: Accommodates various vehicle widths (+30mm & +120mm).
-
Overhead Safety Shutoff: Provides an extra layer of protection.
-
Foot Guards with Toolbox: Integrates safety with convenient storage space.
-
Flexible Power Options: 220V or 110V operation (optional).
Features
-
11,000 lbs Lifting Capacity: Handles cars, SUVs, and most light trucks.
-
Symmetric Clear-Floor Design: Offers easy vehicle entry/exit from any side.
-
Manual Safety Release from Two Sides: Allows for easy operation and control from either side.
-

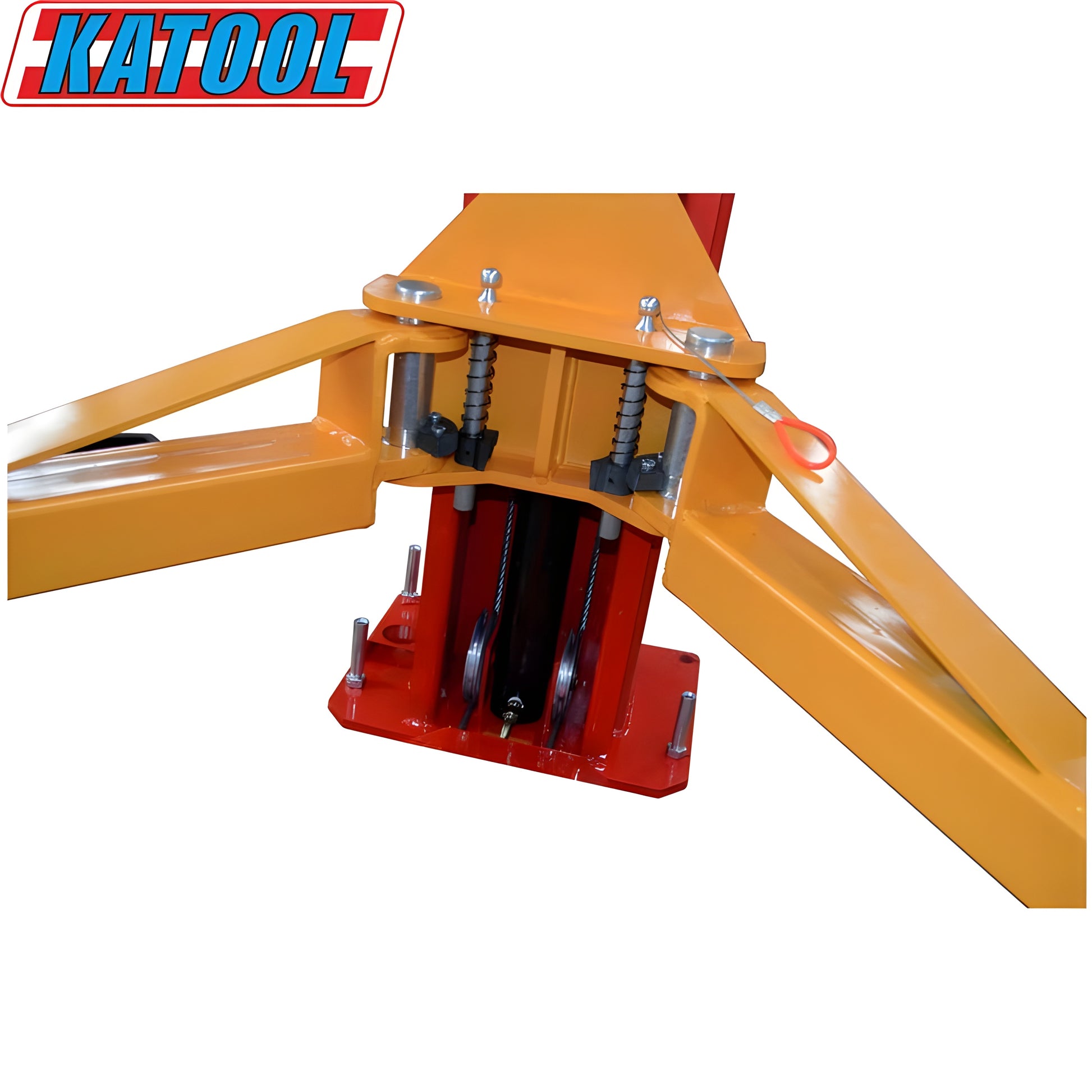

Symmetric Arms: Ensures balanced and secure lifting.
-
Dual Hydraulic Chain-Drive Cylinders: Provides powerful and efficient lifting performance.
-
Rubber Pad Door Opening Protection: Prevents damage to doors during vehicle entry/exit.
-

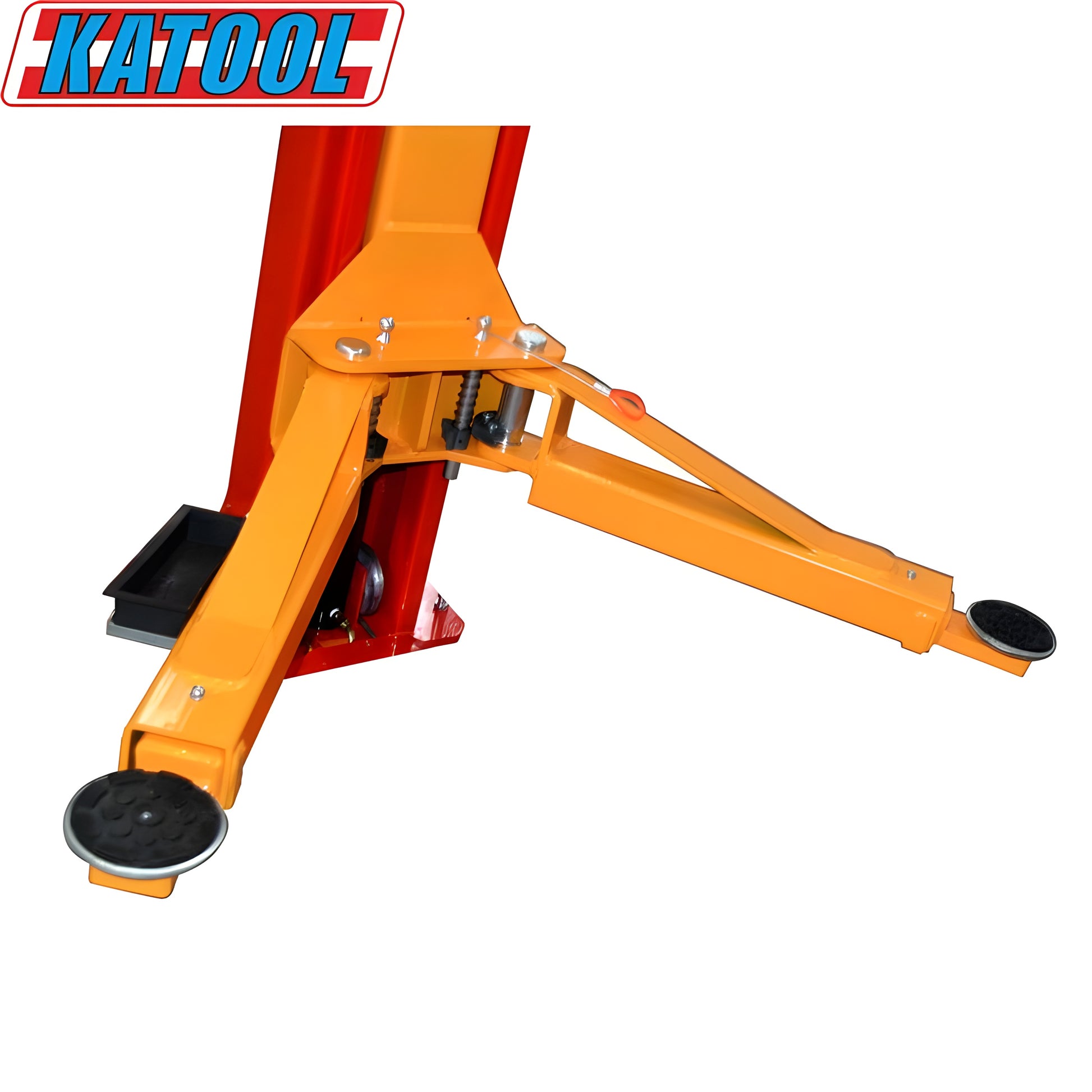

Extended Support Adaptor Sets (+30mm & +120mm): Offers versatility for vehicles of varying widths.
-
Added Overhead Safety Shutoff Bar: Stops operation upon accidental contact.
-
Feet-Protection Safety Guardrails with Tools Box: Integrates safety with convenient storage space.
-
Top-Level Hydraulic System (220V or 110V): Delivers reliable power with optional voltage configurations.

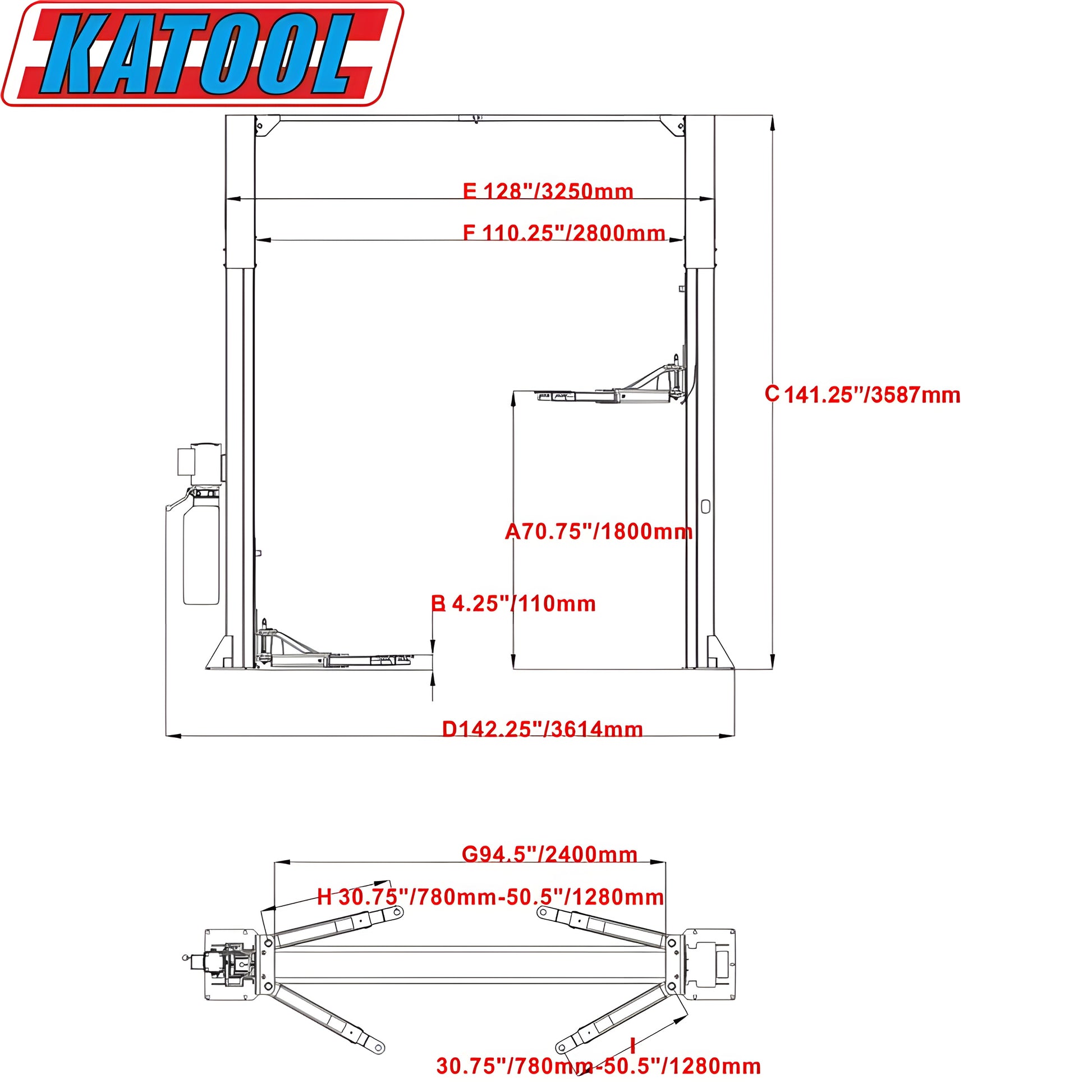

Specifications
-
Lifting Capacity: 11,000 lbs (5,000 kg)
-
Maximum Lifting Height: 70.75 in (1,800 mm)
-
Minimum Height: 4.25 in (110 mm)
-
Overall Height: 141.25 in (3,587 mm)
-
Overall Width: 142.25 in (3,614 mm)
-
Outside Column Measurement: 128 in (3,250 mm)
-
Inside Column Measurement: 110.25 in (2,800 mm)
-
Drive-Through Clearance: 94.5 in (2,400 mm)
-
Front Arm Reach (Min/Max): 30.75 in/50.5 in (780 mm/1,280 mm) – 2 stages
-
Rear Arm Reach (Min/Max): 30.75 in/50.5 in (780 mm/1,280 mm) – 2 stages
-
Motor: 220VAC/60HZ/1PH/2.2KW
-
Net Weight: 1,367 lbs (620 kg)
What Our Experts Think
-
Heavy-duty two-post clear-floor vehicle lift with 11,000 lbs lifting capacity
-
Ideal for professional auto repair shops and garages handling SUVs, trucks, and passenger cars
-
Clear-floor design allows unobstructed workspace for mechanics
-
Durable steel construction ensures stability and long service life
-
Equipped with safety locks and reliable hydraulic system for secure lifting
-
Symmetrical arm design for balanced weight distribution
Q&A
Q: What is the lifting capacity of the KT-M110?
A: It can lift up to 11,000 lbs, making it suitable for cars, trucks, and SUVs
Q: What type of design does it use?
A: It features a clear-floor design, providing mechanics with better access and freedom of movement
Q: Is it safe for heavy-duty use?
A: Yes, it comes with multiple safety locks and a high-performance hydraulic system
Q: Can it be used in professional garages?
A: Absolutely, it’s designed for commercial automotive workshops
Q: Does it require professional installation?
A: Yes, proper installation and anchoring are essential for safe operation
Maintenance Tips
-
Inspect hydraulic fluid levels regularly and top up as needed
-
Lubricate moving parts and arm joints to prevent wear
-
Check safety locks and cables periodically for proper engagement
-
Keep the lift posts and arms clean from dirt and grease buildup
-
Perform scheduled professional inspections for maximum safety
