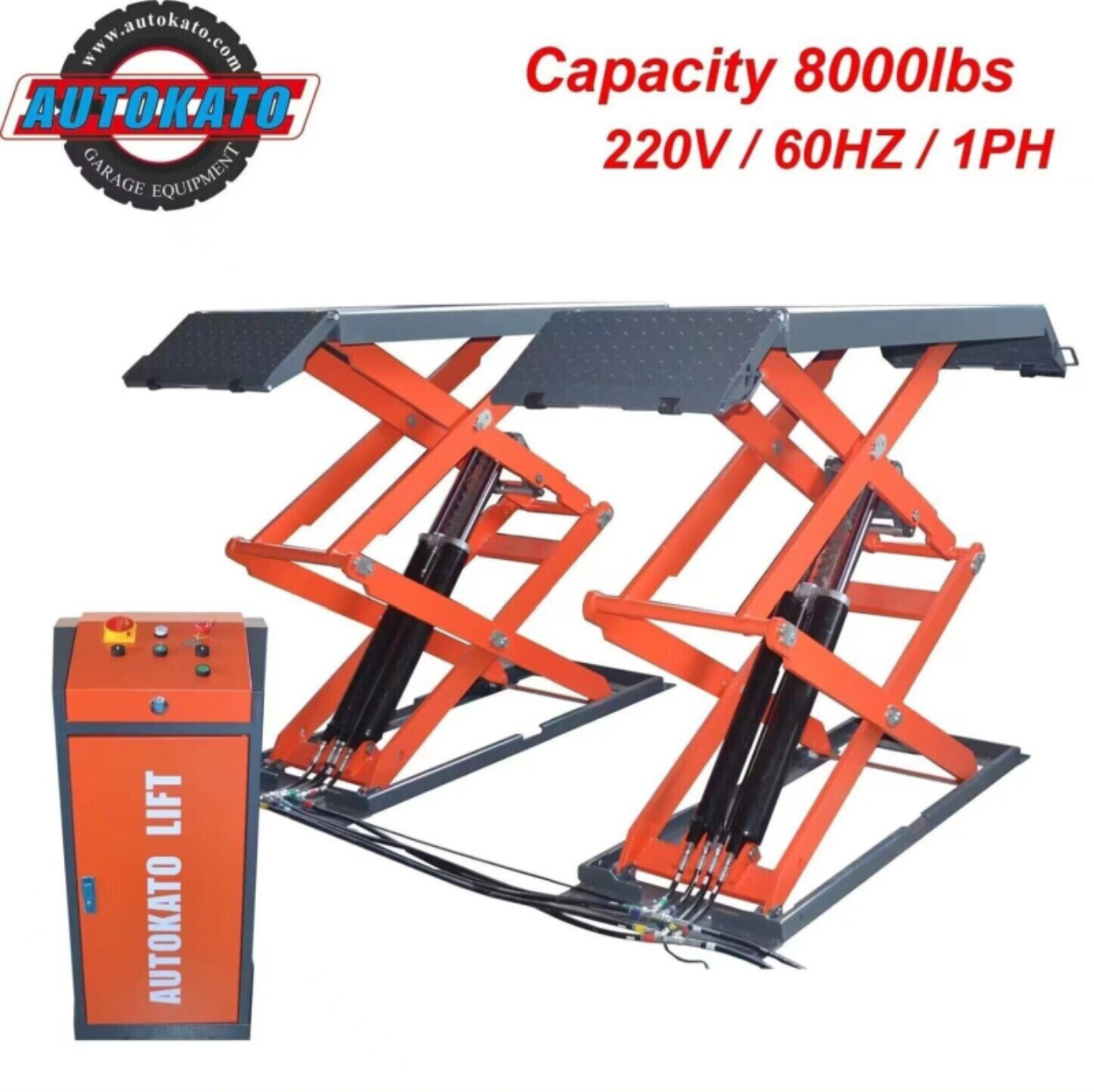

Katool KT-X95 8,000lb Full Rise Scissor Lift - Pneumatic Lock - KT-X95
The KT-X95 is a true powerhouse designed to elevate your lifting game—literally. This advanced hydraulic lift isn’t just for mechanics or gearheads; it’s built for anyone who needs reliable lifting performance. With a robust 8,000-lb capacity and a maximum lift height of 72 inches, the KT-X95 handles a wide variety of tasks with ease, turning your workspace into a hub of efficiency. Its rapid 50-second lift time boosts productivity, while the generously sized 58.9-inch by 24.4-inch platform easily accommodates everything from motorcycles and lawn equipment to bulky furniture or construction materials—whatever the job demands.
The KT-X95’s 2.2kw motor and 20MP rated oil pressure ensure effortless handling of even the most demanding jobs. Meanwhile, self-lubricated parts reduce maintenance, while the flush mount design seamlessly integrates into your workspace. And for continuous operation without overheating, the top-level hydraulic system features a fan-cooled aluminum motor. From automotive enthusiasts looking to stack their car collection to professional mechanics, contractors, and DIYers, the KT-X95 is the ultimate lifting solution.
Specifications:
- Max. lifting capacity: 8000lbs
- Lifting height: 72.3 inch
- Lifting time: 50S
- Platform length: 58.9 inch
- Platform width: 24.4 inch
- Motor power: 2.2kw
- Rated oil pressure: 20MP
- Air pressure: 6-8kgf/c
- Oil: AW-46 or AW-32 (colder climates)
-
Optional: Support Bars
- Overall Length: 73"
- Pin Distance: 48" to 59" Wide
-
Adapter Height: 6.2" to 8" Tall
Features:
- 8000lbs lifting capacity
- Lock Style: Pneumatic
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested
- Flush mount design
- Starting-up system design
- 24V safe control system
- Height limit switch
- Composite rubber lifting blocks included
- Comes with self-lubricated bushing and bearing
- Drive-up ramps lock design as platform extension for long vehicles
- Top-level hydraulic system and aluminum motor with the fan on top to avoid overheating caused by long time working
- The unit needs to be connected to a compressed air source.
- Includes: Caster Kit for Mobility
- Power: 220V/60Hz, single phase
- Katool Warranty:
- One-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment.
- Vehicle lifts will include an additional three-year (36 months) warranty on all lift structural components only.

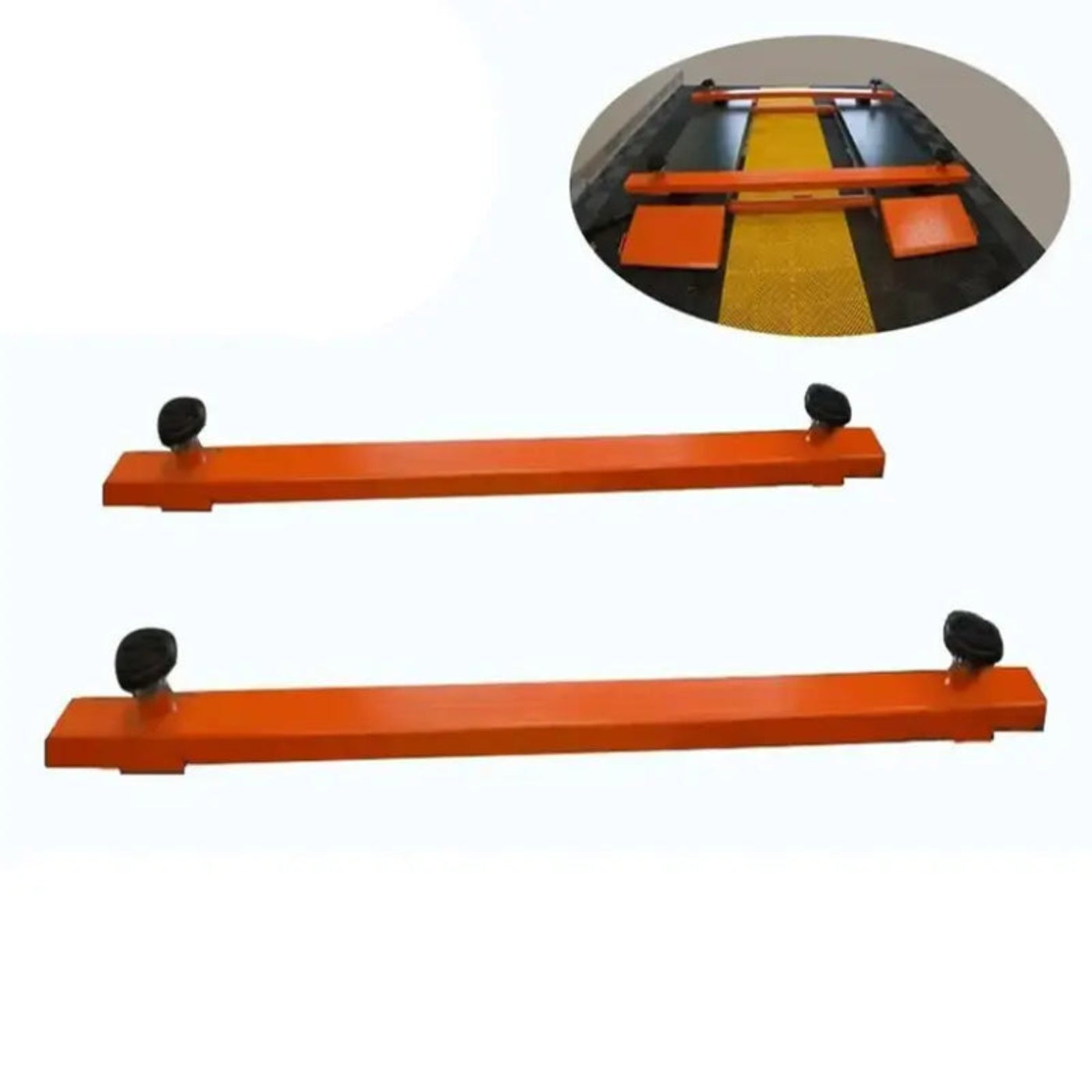

- Optional: Support Bars - Sold Separately
- Support Bars spread the weight out evenly and have more adjustment for lifting SUVs and full frame vehicles.
*This model should be securely anchored to concrete before operation. Concrete thickness must be at least 5.9" with a 3000 PSI rating. Failure to install this lift on the proper concrete, could result in serious injury or death! It is the customer's responsibility to verify concrete thickness and strength before purchase and installation.
What Our Experts Think
-
Full-rise scissor lift with 8,000 lbs lifting capacity for cars, SUVs, and light trucks
-
Pneumatic lock system ensures safe and secure vehicle lifting
-
Provides full under-vehicle access for tire, brake, and suspension work
-
Durable steel construction built for professional daily use
-
Ideal for workshops needing reliable, space-efficient lifting solutions
Q&A
Q: What is the lifting capacity of the KT-X95?
A: 8,000 lbs, suitable for most passenger vehicles and light-duty trucks.
Q: How does the pneumatic lock system work?
A: It securely locks the lift at the desired height for safety and stability.
Q: Is it suitable for small garages?
A: Yes, its compact design saves floor space without compromising access.
Q: What type of work is it best for?
A: Ideal for tire, brake, suspension, and underbody service.
Maintenance Tips
-
Inspect and lubricate pivot points and scissor arms regularly
-
Check pneumatic locks and components for proper function
-
Keep platforms and surrounding areas clean and free of debris
-
Monitor hydraulic and pneumatic systems as recommended
-
Follow manufacturer’s maintenance schedule for safe long-term operation
