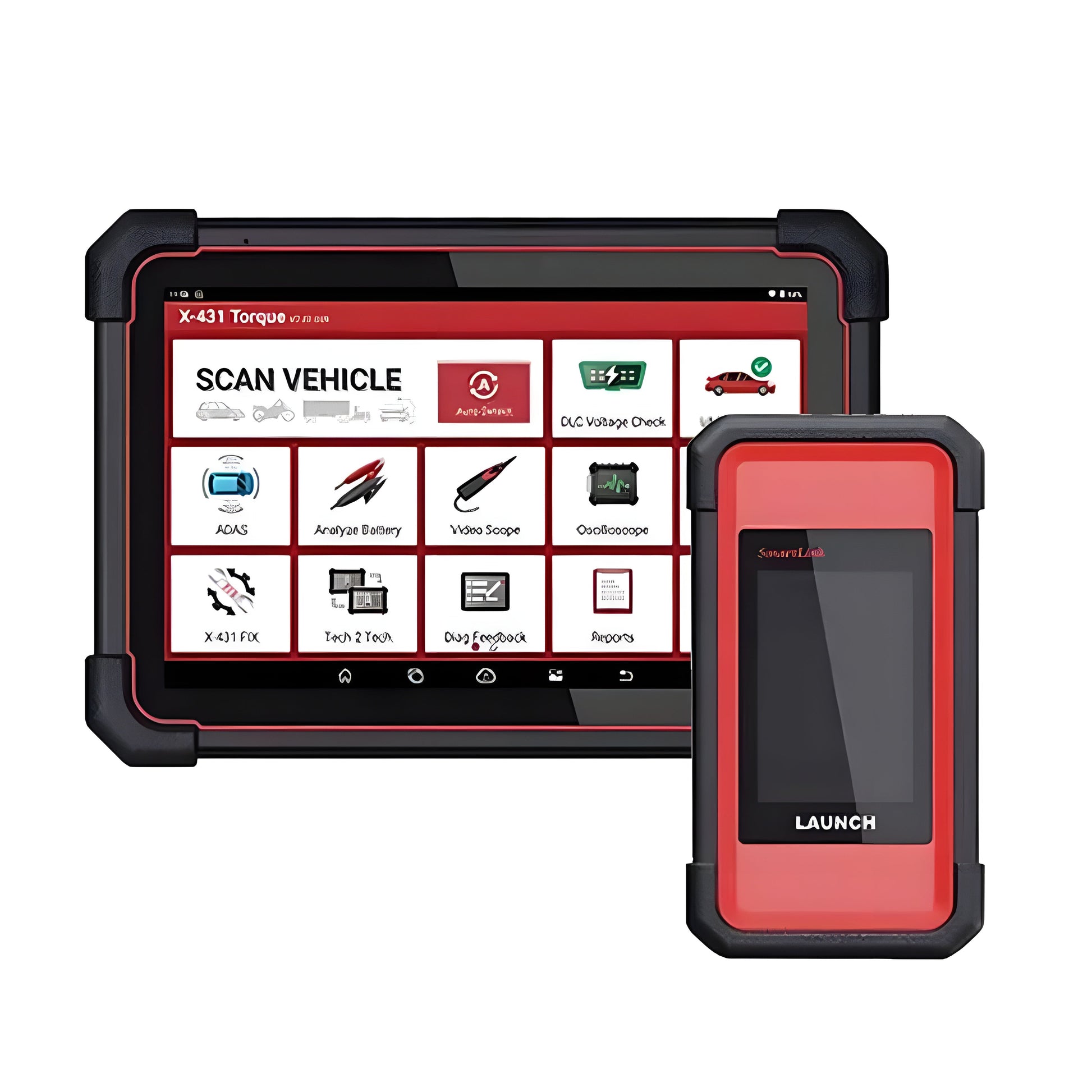

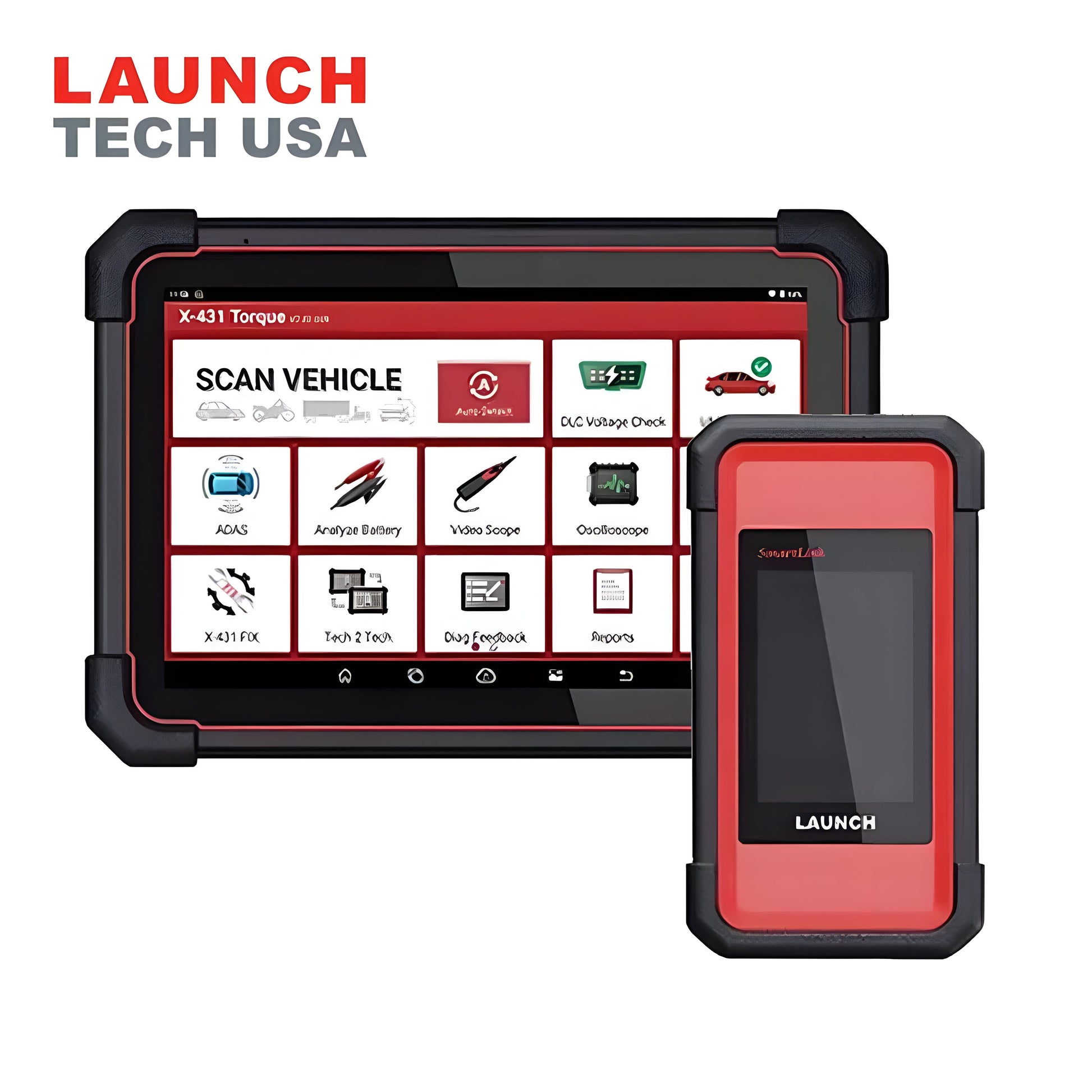

Launch Tech USA Torque AutoHD PRO Automative and Heavy-Duty Diagnostic Tool - LNCH-X431-TORQUE-AUTOHD-PRO
The X-431 Torque AUTOHD PRO is a diagnostic solution that supports Auto and commercial Heavy Duty Truck Diagnostics. The featured service and calibration functions allow for growing the HD truck segment.
Features
- Integrated with new powerful hardware X-431 Torque Auto HD Pro tablet, and Smartlink VCI,maximum the ability to faster diagnosis
- OE-level U.S. vehicle coverage as well as Asian, European coverage from 1996 and newer
- Read and erase DTCs of light, medium and heavy-duty vehicles ((Class 4 through 8)
- Wireless and wired communicates via Bluetooth and USB
- Works on various systems, including Engine, Transmissions, ABS, and Auxiliary from manufacturers such as Wabco, Bendex, and Allison
- Support Cummins, Detroit, Freightliner, Fuso, Hino, International, Isuzu, KW, Peterbilt, Sterling, and Volvo
- Multilingual menu and data display: English, Spanish, French
- Optional ADAS calibration application to calibrate LOW, RCW,AVM, NV,BSD and ACC system accurately.
- Guided VW .& AUDI functions/OE vehicle approved Security Gateway access by FCA ce (NEW)
- Code Assist by IDENTIFIX, access most common fixes and repair solutions with corresponding DTC's. (NEW)
- Monitor the vehicle's voltage in real lime during live dia (NEW)
Functions (Heavy-Duty Only)
- Dpf Regeneration
- Injection Quantity Adjustment
- Bleeding The Adblue Circuit
- Parked Scr Efficiency Test
- Injector Coding
- Reset Service (Mil)
- Maintenance Confirmation
- Reset Pressure Limiting Valve And Calibration
- Participate Filter Replacement Reset
- Trip Reset
- Dpf Ash Accumulator Reset
- Reset Pressure Differential Sensor
- Vgt Electronic Actuator Installation
- Parked Scr Efficiency Test
Calibration (Heavy-Duty Only)
- Idle Speed Adjustment
- Speed Limit
- Cruise Control
- Idle-Stop System
- PTO
- Coolant Level Switch
- Exhaust Brake Valve
- Intake Air Preheating
- Vehicle Speed Controller
- Air Conditioner
- Oil Pressure Sensor
- Electronic Fan
- ABS
- Automatic Transmission
Torque AutoHD PRO Specifications
- CPU 2.0GHz 4-core
- Display: 10.1 inch touch screen
- Memory: 4GB
- Storage: 128GB
- Android 10.0
- Camera: Rear 8MP, Front 5MP
- Battery: 47.88Wh (7.6V, 6300mAh)
- Dimension: 200*110*47 (mm)
SmartLink C Heavy-Duty Module Specifications
- Display: 3.95", 320*480
- Wi-Fi: 2.4ghz/5ghz
- Communication: Wi-Fi & Bluetooth & Ethernet
- Ram: 256gb
- Storage: 8gb
- Working Voltage: 9v Dc-36v Dc
- Dimension: |200*110*47 (Mm)
What Our Experts Think
The Launch Tech USA Torque AutoHD PRO Automotive and Heavy-Duty Diagnostic Tool (LNCH-X431-TORQUE-AUTOHD-PRO) is an all-in-one solution for both passenger and commercial vehicles. Here's why it stands out:
-
Dual Vehicle Support: Provides diagnostic coverage for both automotive and heavy-duty vehicles, including trucks and buses.
-
Advanced Diagnostics: Supports full-system diagnostics, ECU programming, and real-time data for precise vehicle analysis.
-
Comprehensive Coverage: Diagnoses key systems like engine, transmission, ABS, airbag, and more, across a wide range of makes and models.
-
User-Friendly Interface: Features an intuitive touchscreen with easy navigation for quick and efficient troubleshooting.
-
Durable and Reliable: Built to withstand tough shop environments, offering long-lasting performance for heavy-duty use.
Q&A
Q: What is the Launch Tech USA Torque AutoHD PRO Automotive and Heavy-Duty Diagnostic Tool (LNCH-X431-TORQUE-AUTOHD-PRO)?
A: The Torque AutoHD PRO is a high-performance diagnostic tool designed for both automotive and heavy-duty vehicle diagnostics. It offers comprehensive features for diagnosing cars, trucks, buses, and other commercial vehicles.
Q: What are the key features of the LNCH-X431-TORQUE-AUTOHD-PRO?
A: Provides OBD-II diagnostics for both light-duty and heavy-duty vehicles, ECU programming, real-time data monitoring, active testing, system resets, and bi-directional control for engines, transmissions, ABS, and more.
Q: Why is the LNCH-X431-TORQUE-AUTOHD-PRO important for professionals?
A: It combines the power to service both standard vehicles and heavy-duty trucks and buses, offering versatility for fleet maintenance, repair shops, and independent technicians handling a wide range of vehicles.
Q: Is the LNCH-X431-TORQUE-AUTOHD-PRO compatible with all vehicles?
A: Yes, it supports most light-duty vehicles (cars, SUVs) and heavy-duty vehicles (trucks, buses, construction machinery), making it an all-in-one diagnostic solution.
Q: Where can I buy the LNCH-X431-TORQUE-AUTOHD-PRO?
A: Available through authorized Launch Tech USA dealers and online platforms.
Maintenance Tips
-
Firmware Updates: Regularly update the tool’s software to ensure compatibility with new vehicle models and diagnostic features.
-
Connector Check: Inspect OBD-II connectors, cables, and pins for wear, corrosion, or damage to maintain reliable communication.
-
Battery Management: Fully charge the device before use and avoid overcharging to preserve battery life.
-
Clean Handling: Clean the tool with a dry, soft cloth, especially around the ports, to keep it free from dust and moisture.
-
Safe Storage: Store in a shockproof, dry, and dust-free case to protect the tool from damage and environmental factors.
