Mares Dual ADJ 62X Scuba Dive Regulator - DIN - 221328

Mares Dual ADJ 62X Scuba Dive Regulator - DIN - 221328

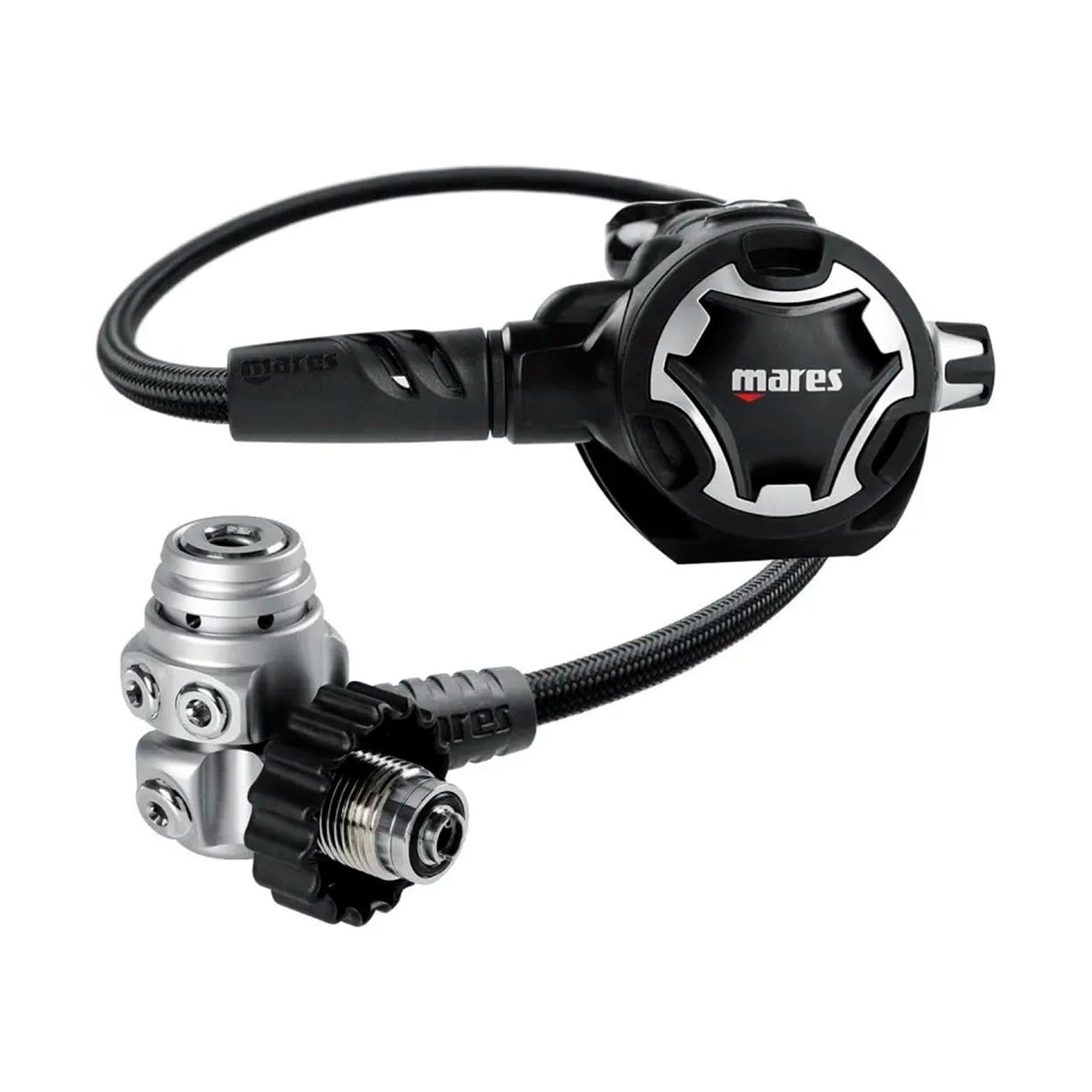

The Dual ADJ 62X scuba diving regulator is light weight in design and features a Vortex Assisted Design (VAD) with a “curved” bypass to provide comfortable and effortless breathing in every situation.

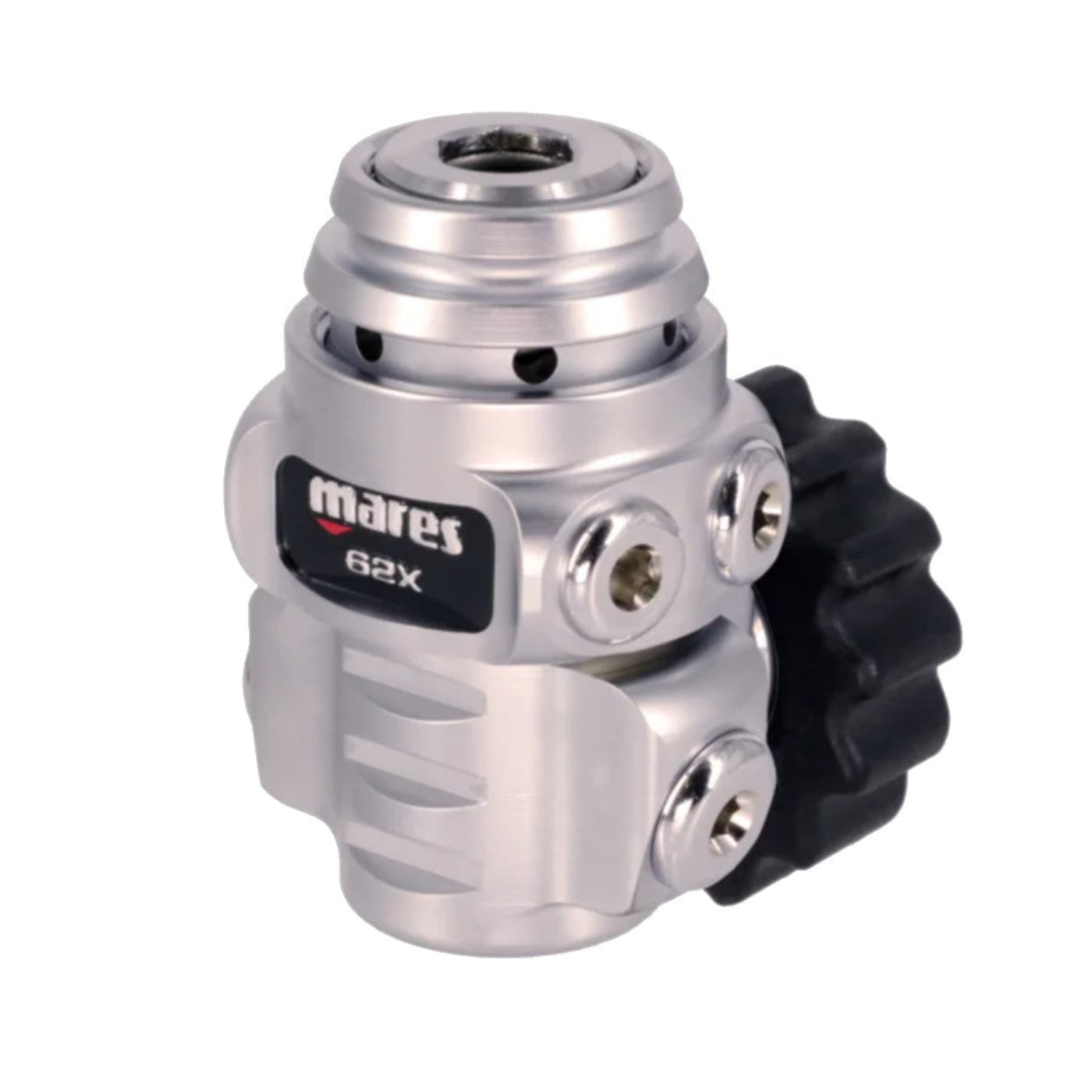

The 62X first stage is made with a chrome "pearl" finish. This makes it highly resistant to abrasion, while offering a unique, elegant appearance. Comes standard with Mares Auto-Sealing Technology (AST). The AST system is automatically activated by air flow without any mechanical solution for maximum reliability, creating anti-flooding protection that keeps the first stage dry in all conditions.

The 62X first stage features pre-oriented low pressure (LP) and high pressure (HP) ports. All low pressure (LP) ports offer Mares' patented Dynamic Flow Control (DFC) for high, consistent airflow at all depths.

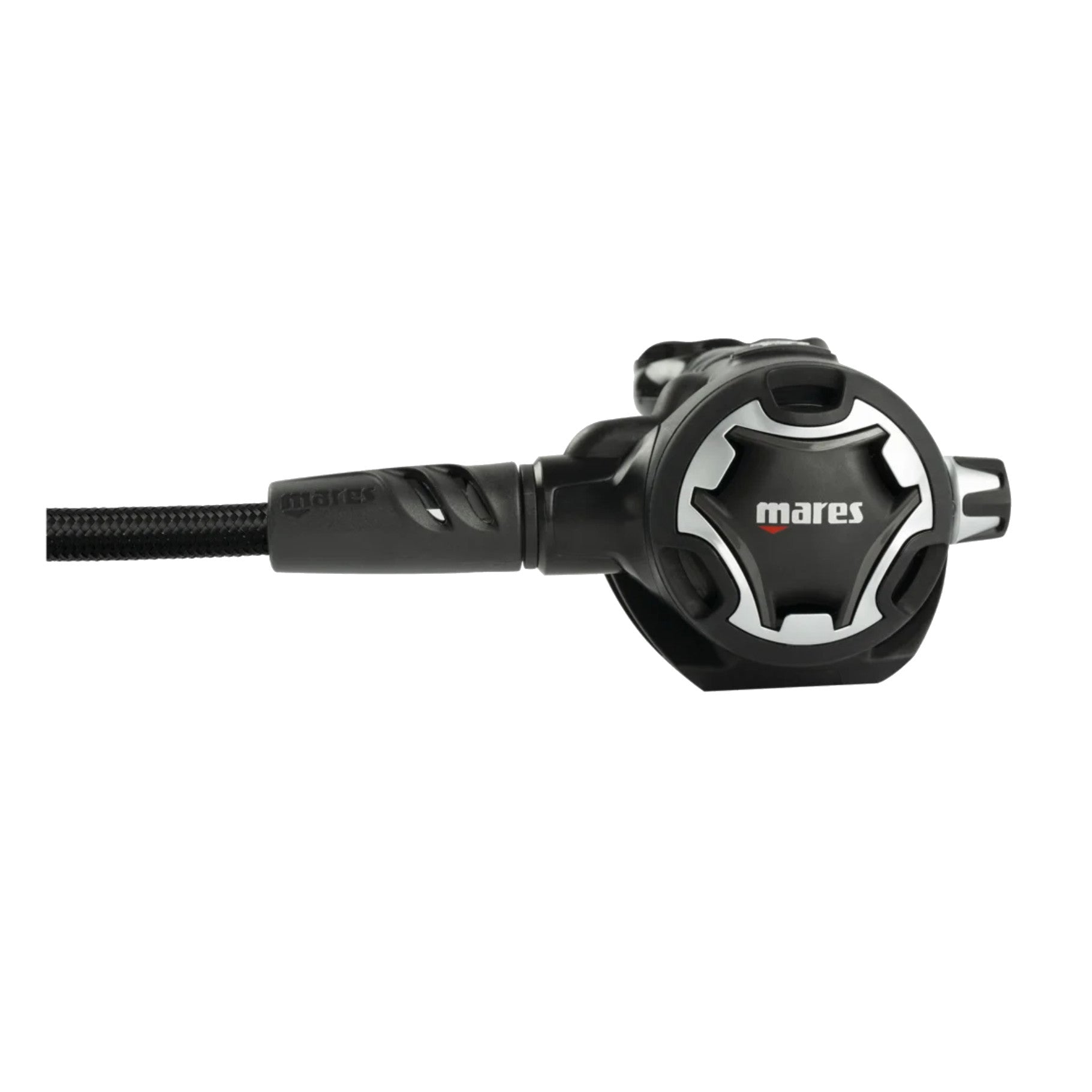

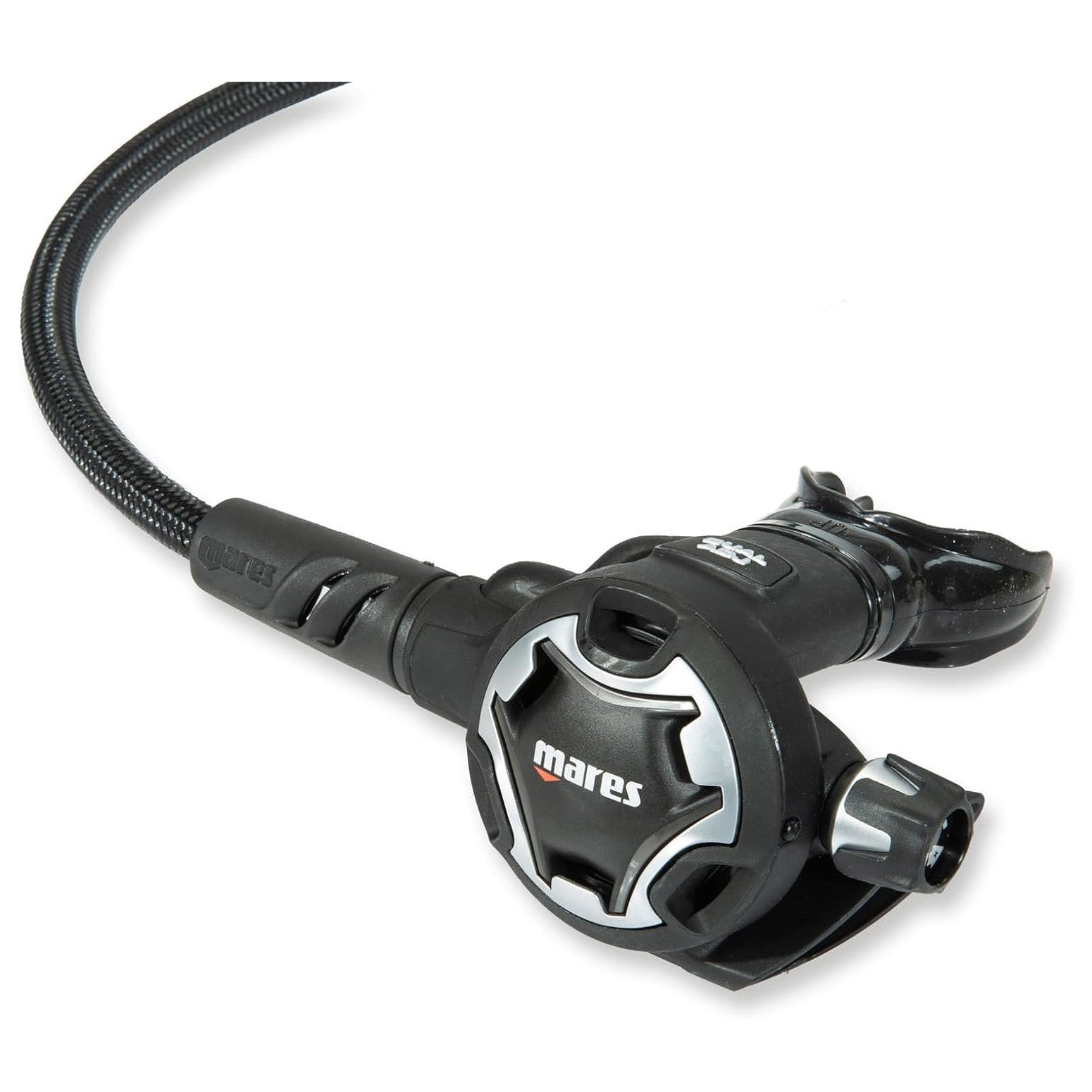

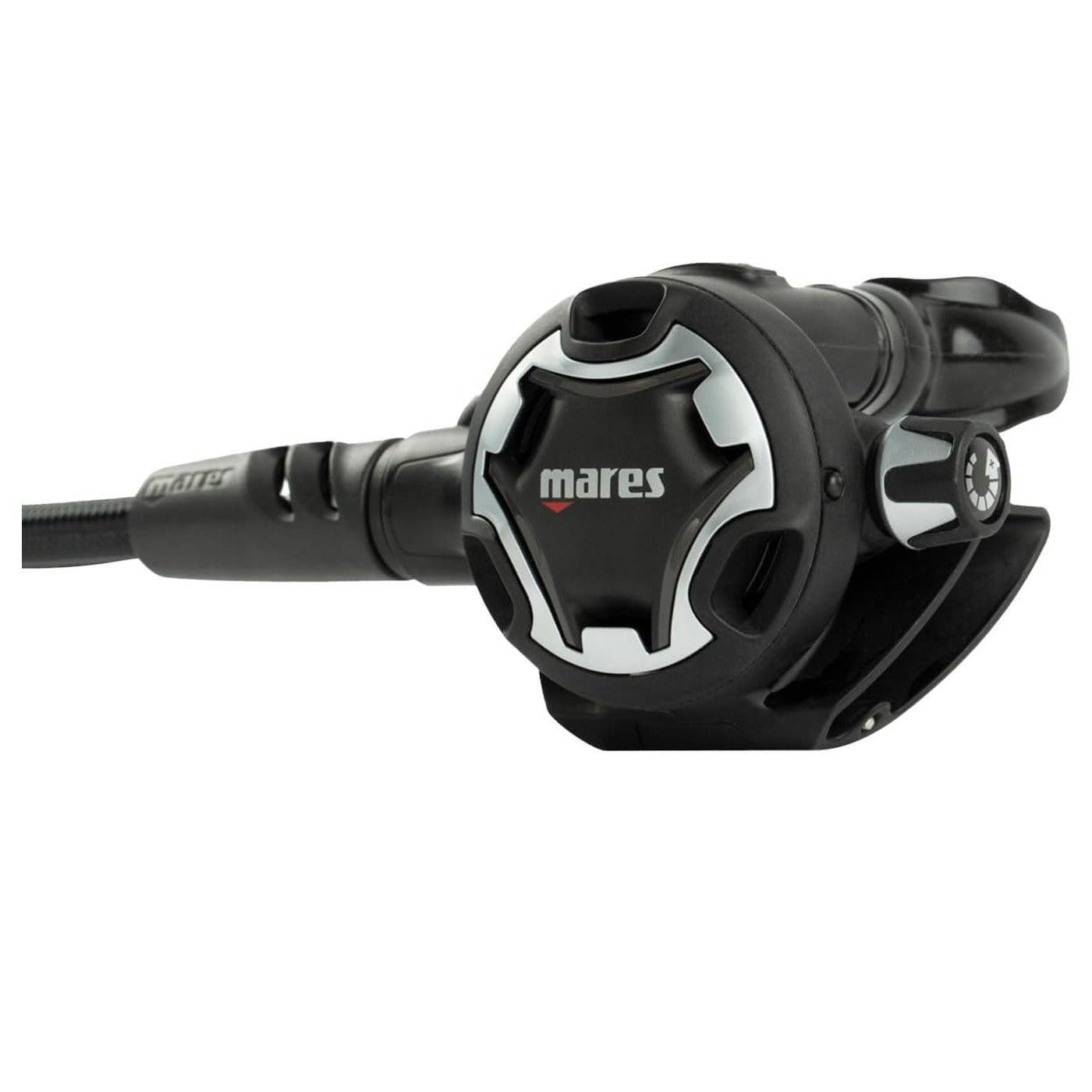

The Dual ADJ second stage is made from ultra-lightweight and ultra-strong technopolymer. This second stage features a Vortex Assisted Design (VAD) and a “curved” bypass which allows for unobstructed airflow and consistent natural breathing at any depth. Also, it features a side adjustment knob that allows the diver to control breathing effort based on your needs. This second stage features a large, user-friendly purge button for easy use, even while wearing thick gloves.

Specifications

Material:   Ultralight Technopolymer

Finish:   Pearl Chrome

First stage:   Balanced Diaphragm

First stage weight INT:   742 g / 26.2 oz

First stage weight DIN:   525 g / 18.5 oz

Second stage weight:   185 g / 6.7 oz

Total weight (g) INT:   1057 g / 37.3 oz

Total weight DIN:   840 g / 29.6 oz

High pressure ports:   2 HP 7/16" UNF Ports

Low pressure ports:   4 LP 3/8" UNF Ports

Hose type:   Superflex Hose

Hose length:   75 cm

Technologies

Ultralight Technopolymer

Abrasion resistant and affordable, ideal for diving in warm and moderate water temperatures.

Superflex Hose

Extreme light weight and exceptional softness guarantee the maximum freedom of movement.

VAD - Vortex Assisted Design

The air bypass tube delivers air to the mouthpiece creating a swirling vortex with a low pressure area in the center that keeps the diaphragm down during inhalation, for very sensitive and easy breathing at all depths.

DFC - Dynamic Flow Control

Minimizes intermediate pressure drop during inhalation thus maximizing gas delivery, especially under extreme conditions.

What Our Experts Think

• Rinse After Each Dive – Rinse the regulator with fresh water to remove salt, sand, or other debris after each dive.
• Inspect for Leaks – Check the regulator hoses and connections regularly for any leaks or damage.
• Lubricate O-Rings – Apply a thin layer of lubricant to the O-rings to maintain proper sealing and reduce wear.
• Dry Thoroughly – Ensure the regulator is fully dry before storing it to avoid moisture buildup and corrosion.
• Store Correctly – Store the regulator in a cool, dry place, away from extreme temperatures, direct sunlight, and sharp objects.

Q&A

Q: What is the Mares Dual ADJ 62X Scuba Dive Regulator designed for?
A: The Mares Dual ADJ 62X is a high-performance scuba dive regulator designed for experienced divers, offering exceptional air delivery and breathing comfort at various depths with a DIN connection for secure tank attachment.

Q: What does "Dual ADJ" mean?
A: "Dual ADJ" refers to the dual adjustment system, allowing divers to easily customize both the breathing effort and venturi effect, offering enhanced control and performance underwater.

Q: How does the DIN connection work?
A: The DIN connection ensures a secure and leak-proof attachment between the regulator and the tank, making it ideal for technical and deep-sea divers.

Q: Is this regulator suitable for cold water diving?
A: Yes, the Mares Dual ADJ 62X is designed to perform reliably in both cold and warm water conditions, ensuring smooth air flow even in challenging environments.

Q: What makes the Mares Dual ADJ 62X a high-performance regulator?
A: It features a balanced diaphragm first stage for stable air delivery at any depth, combined with the ergonomic and lightweight second stage for reduced jaw fatigue during long dives.

Q: How does the dual adjustment system improve comfort?
A: The dual adjustment system allows you to fine-tune your regulator to your exact needs, optimizing comfort and minimizing breathing effort, making it ideal for longer dives.

Q: Is the Mares Dual ADJ 62X easy to maintain?
A: Yes, the regulator is designed with durable materials and easy servicing options, ensuring long-lasting performance and reliability.

Maintenance Tips

• Dual Adjustable Second Stage – Offers precise breathing control with two adjustment features for optimal airflow at any depth.
• DIN Connection – Provides a secure and leak-free connection, perfect for technical diving and high-pressure situations.
• Lightweight & Ergonomic Design – Designed for comfort, reducing jaw fatigue and ensuring ease of use throughout long dives.
• Durable & Reliable – Built with corrosion-resistant materials to perform in harsh underwater environments.
• Cold Water Ready – Engineered to perform smoothly even in colder water temperatures.
