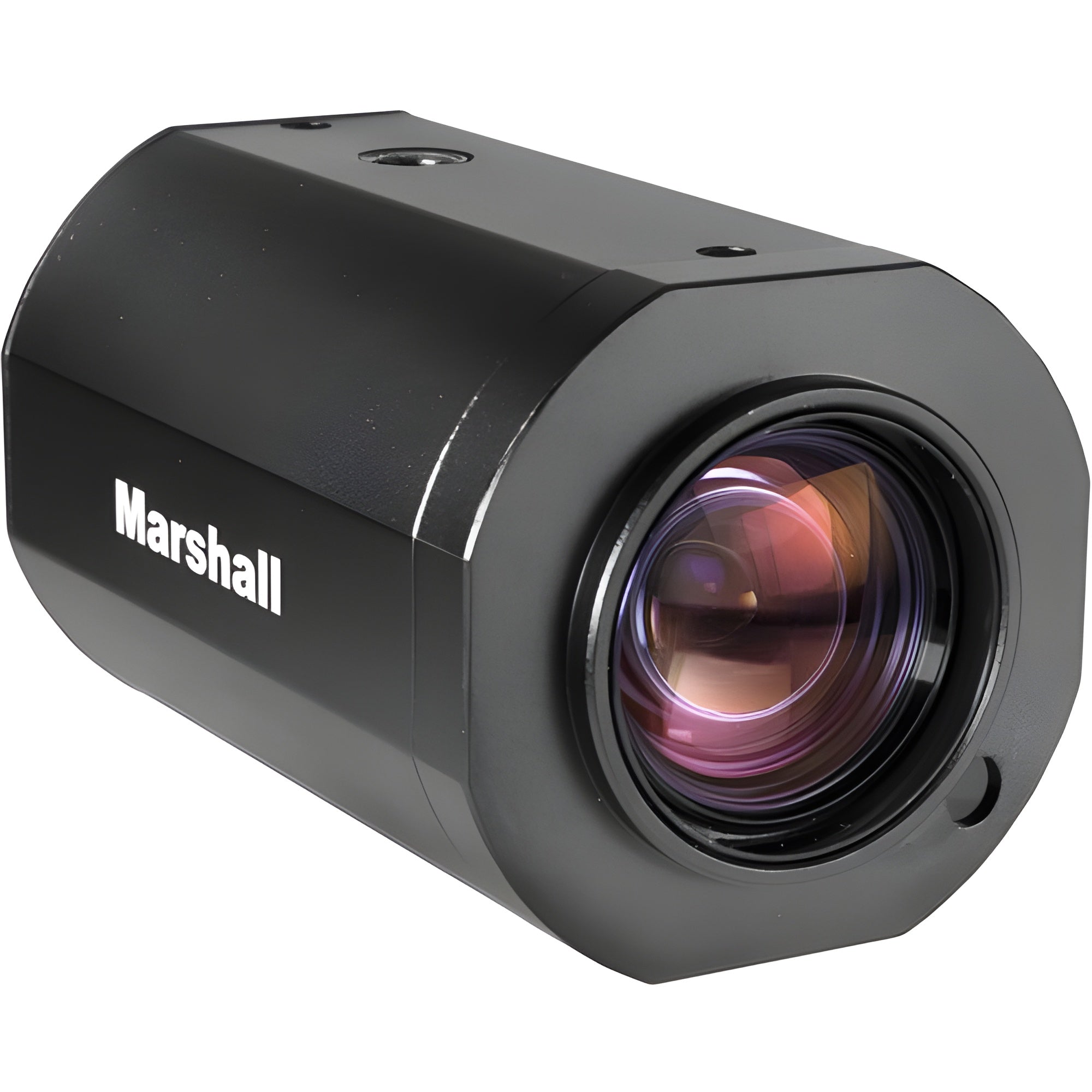

Marshall CV350-10X Compact 10X Camera (Full-HD) - CV35010X

Marshall CV350-10X Compact 10X Camera (Full-HD) - CV35010X

Marshall's next generation Compact 10x Zoom Camera promises twice the zoom range as previous version at 10x optical (4.7~47mm), easily controllable & adjustable from long runs, and versatile HDMI & 3G/HD-SDI outputs to service a wide variety of applications. Delivering vibrant Broadcast quality HD images up to 1920x1080p @ 60/59.94/50fps (3G) makes this camera capable of handling almost any application requiring clear, crisp images. HDMI expands use case scenarios into ProAV with ability to convert to HDBaseT, true ONE-CABLE-to-CAMERA, when used with the Marshall pn: VAC-HT12-KIT enabling one Cat6 cable to carry uncompressed HD/3G video, power to remote camera location (PoC), and RS485 control for zoom/focus/brightness/etc.

Features

• 1/3" CMOS Sensor

• 1920 x 1080 Resolution

• 3g-sdi, HD-SDI,HDMi

• 2.5 Megapixel 1/3-inch HD High Performing Sensor

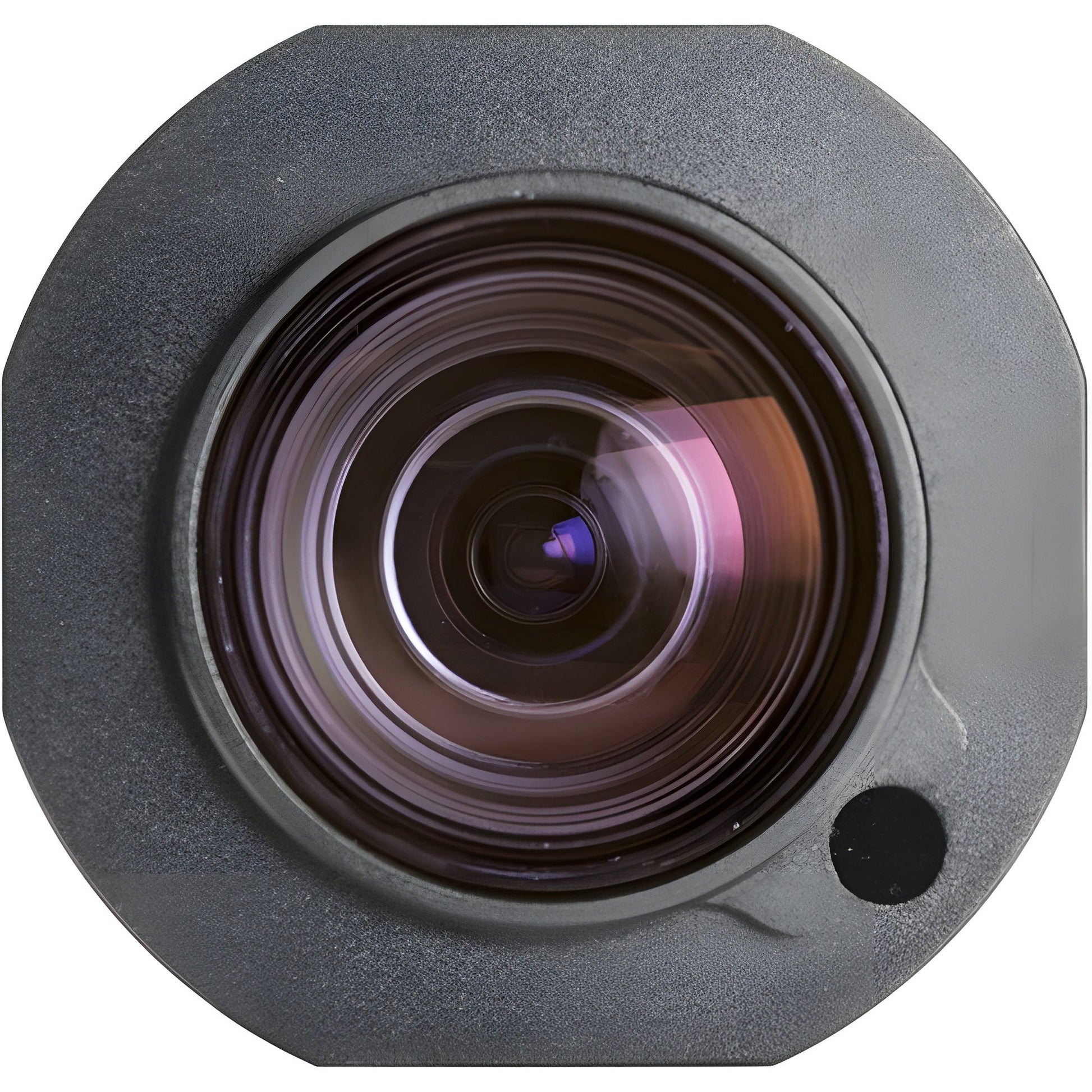

• 10x Optical Zoom (4.7~47mm Focal Range), F1.6~F3.0

• 12x Digital Zoom (Total Zoom Range of 120x)

• HDMI Type-A, 3G/HD-SDI (SMPTE 424M/292) outputs

• Smooth Zoom control with precision Focus Features (Auto or Manual

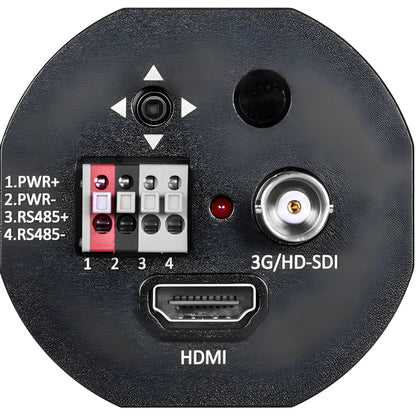

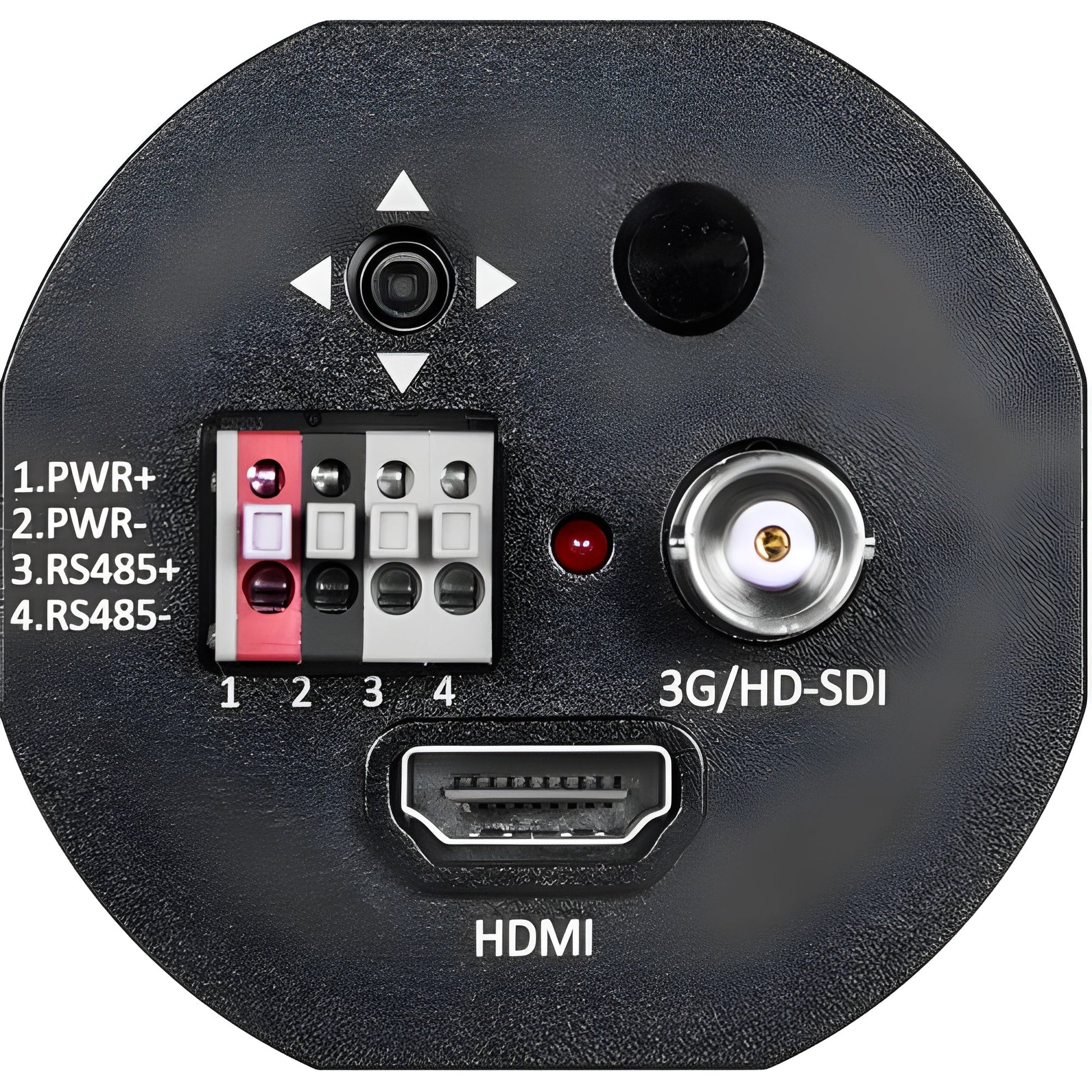

• OSD Joystick on rear panel, IR Remote included in box & RS485 (VISCA)controllable

• Remote adjustable Iris, Zoom, Focus, Brightness, Exposure, Sharpness, Saturation, Contrast, Gamma, Gain (Red/Blue), White Balance, and more

• Compatible with CV-RCP-V2 Touchscreen RCP Control unit

• Includes 12V power supply in box

What Our Experts Think

• Full HD 1080p Resolution – Captures crisp, high-quality video at up to 60fps.
• 10x Optical Zoom – Provides sharp, detailed close-ups with smooth zoom transitions.
• 3G/HD-SDI & HDMI Outputs – Ensures seamless integration with broadcast and AV workflows.
• Compact & Versatile Design – Ideal for tight spaces, POV shots, and discreet installations.
• Low-Light Performance – Advanced noise reduction and wide dynamic range for clear images in any lighting.
• Durable & Reliable Build – Designed for professional broadcast, sports, live events, and surveillance.
• Remote Adjustments – Allows precise control over exposure, white balance, and focus settings.

Q&A

Q: What is the Marshall CV350-10X Compact Camera?
A: The Marshall CV350-10X is a Full-HD compact camera with a 10X optical zoom lens, designed for broadcast, live production, surveillance, and professional AV applications.

Q: What is this camera used for?
A: It is ideal for broadcast studios, live events, houses of worship, sports, and security applications, offering high-quality video in a compact form factor.

Q: What resolution does this camera support?
A: The CV350-10X captures Full HD 1080p video at up to 60fps, ensuring sharp and smooth image quality.

Q: What are the connectivity options?
A: It features 3G/HD-SDI and HDMI outputs, providing flexible integration with professional video systems.

Q: Does this camera have remote control capabilities?
A: Yes, it supports RS-485 and OSD menu control, allowing for adjustments to exposure, white balance, and other image settings.

Q: What are the key benefits of this camera?
A: The CV350-10X offers high-quality Full HD imaging, 10X optical zoom, versatile output options, and remote control functionality, making it a powerful choice for professional video applications.

Maintenance Tips

• Keep the Lens Clean – Use a microfiber cloth and lens-safe cleaner to remove dust and smudges.
• Check Cable Connections – Ensure SDI, HDMI, and power cables are securely connected to avoid signal loss.
• Update Firmware – Regularly install firmware updates to enhance performance and compatibility.
• Avoid Overheating – Ensure proper ventilation and avoid placing the camera near heat sources.
• Protect from Dust & Moisture – Use protective housing when operating in challenging environments.
• Use a Surge Protector – Prevent power surges from damaging the camera.
• Test Zoom & Focus – Periodically check the 10X zoom and focus for smooth operation.
• Secure Mounting – Ensure the camera is properly mounted and stable to prevent misalignment.
