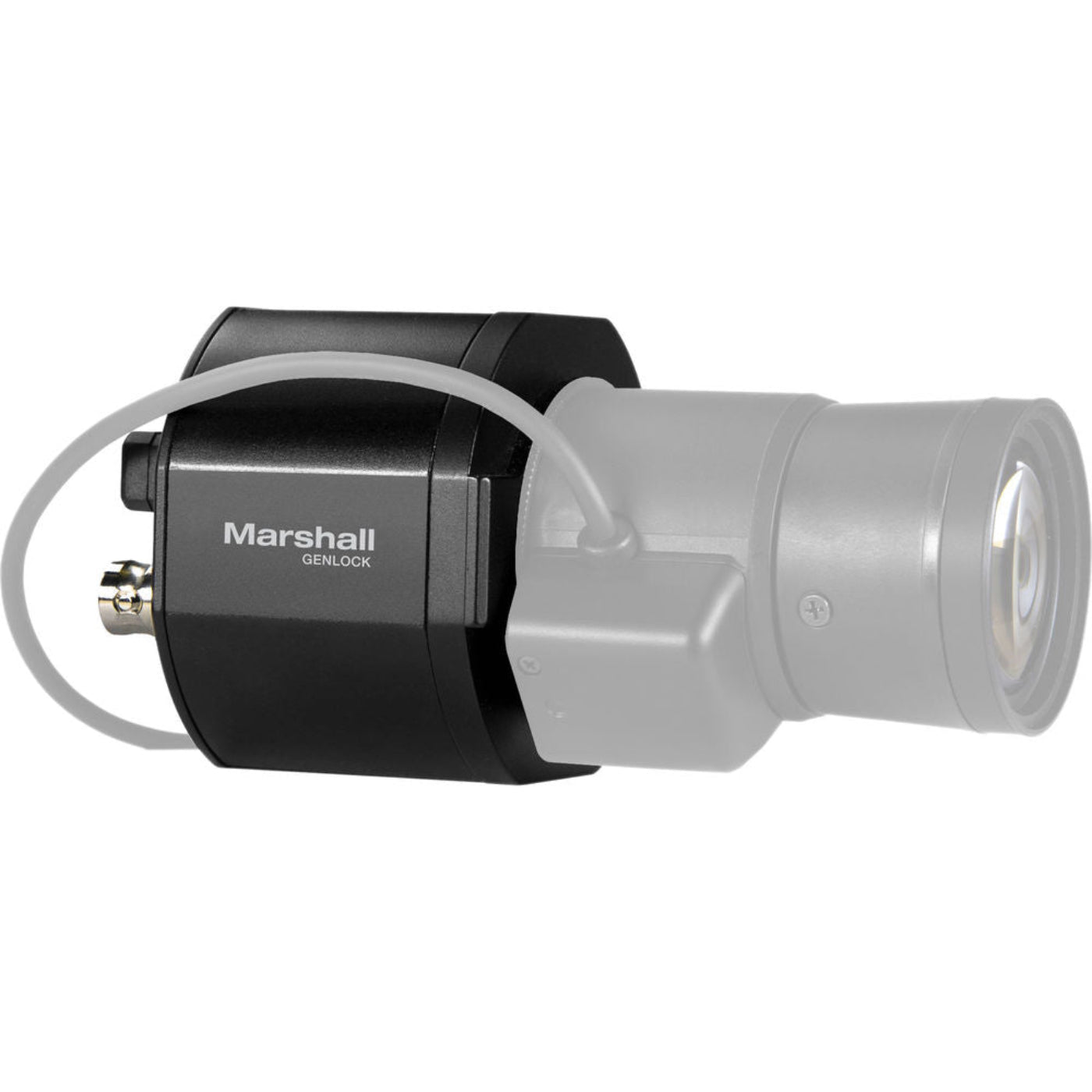

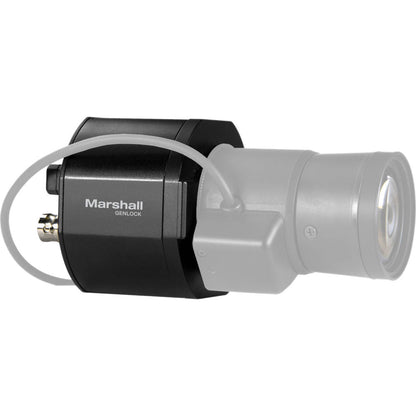

Marshall CV365-CGB Full-HD (3G/HD-SDI & HDMI) 2.5MP Compact GENLOCK Camera with AUDIO + HDMI - CV365CGB

Marshall CV365-CGB Full-HD (3G/HD-SDI & HDMI) 2.5MP Compact GENLOCK Camera with AUDIO + HDMI -  CV365CGB

Supporting broadcast-quality Full HD video in a versatile, small form factor package, the Marshall CV365-CGB 2.5MP Compact Genlock 3G-SDI / HDMI Camera is suitable for a wide range of applications including reality TV, sports, racing, houses of worship, and surveillance/security. The camera features a 2.5MP 1/3" CMOS sensor that supports 1080p, 1080i, and 720p video up to 60 fps over 3G/HD-SDI and HDMI outputs. A CS/C mount lens mount gives you field of view flexibility with support for DC-Auto Iris control on compatible lenses. A LEMO-style I/O port and included breakout cable provides additional connectivity, including RS-485, mic input, power input, and a tri-level genlock sync input and output for multi-camera shoots. The camera can be setup to automatically adjust to the resolution and frame rate of sync source, so long as it is supported by the camera.
With a minimum illumination of 0.2 lux in color or 0.1 lux in B&W mode, the camera can function as a security camera, or be used in teleconferencing in low light situations. Its surveillance chops are further bolstered by the presence of features such as back light compensation, motion detection, and privacy masking. Menu settings are available via an OSD that is actuated by a button on the back of the camera. The breakout cable includes an integrated joystick that allows you to navigate the OSD, with navigation buttons also on present on the back of the camera.

Features

• 2.5 MP 1/3" CMOS

• 1920 x 1080 Resolution

• 3G/HD-SDI,HDMI Video Output

• 2.5 Megapixel 1/3-inch CMOS Sensor
• CS/C Lens Mount with DC-Auto Iris (lens sold separately)

• GENLOCK Tri-Level Sync at camera level to ensure clean switching between cameras

• Sync in 3GSDI (1080p59.94/50/60fps) as well as HDSDI

• (1080i59.94/50/60fps and 1280x720p59.94/50/60fps)

• Supports resolutions of 1920x1080p, 1920x1080i, and 1280x720p

• Supports frame rates of 59.94, 50, 60, 29.97, 25, 30fps

• Camera will adjust to Resolution & Framerate of Sync source

• 3G/HD-SDI (BNC) & HDMI (full size v1.3) built into rear panel

• Hirose-style (I/O) connector contains: Sync-IN, Sync-OUT, RS485 connect,

• Audio Mic/Line-Level TRS input with 2.5V power, and 12V power connector

• Captures sharp & vivid color images at 0.2lux (low light sensitive)

• New WDR function adjusts automatically to bright and dark areas in FOV

• Mic-Level or Line-Level select (TRS) embed with 2.5V phantom power

• OSD Menu Joystick on cable and RS-485 connectable (Visca/Pelco)

• Free downloadable software to control camera settings via RS485

• (requires USB to RS485 converter)

• Stepped (Red/Blue) Gain Control, Gamma, Shutter, Brightness

• Compatible with Marshall RCP Control Unit, p/n: CV-RCP-V2

• Includes 12V power supply in box

What Our Experts Think

• Full HD 1080p Resolution – Captures crisp, high-quality video at up to 60fps.
• GENLOCK Synchronization – Ensures seamless multi-camera sync for broadcast and live production.
• 3G/HD-SDI & HDMI Outputs – Provides flexible connectivity for professional workflows.
• Built-in Audio Support – Includes audio input for direct embedding into video feeds.
• Compact & Versatile Design – Ideal for tight spaces, POV shots, and discreet installations.
• Low-Light Optimization – Features advanced noise reduction and wide dynamic range.
• Perfect for Broadcast & Live Events – Great for sports, reality TV, concerts, and industrial applications.

Q&A

Q: What is the Marshall CV365-CGB Compact GENLOCK Camera?
A: The Marshall CV365-CGB is a Full-HD 2.5MP compact camera with GENLOCK synchronization, featuring 3G/HD-SDI, HDMI, and audio input, designed for broadcast, live production, and professional AV applications.

Q: What is this camera used for?
A: It is ideal for broadcast studios, live events, sports production, and multi-camera setups, ensuring synchronized video feeds with GENLOCK capability.

Q: What resolution does this camera support?
A: The CV365-CGB captures Full HD 1080p at up to 60fps, delivering sharp and smooth image quality with minimal latency.

Q: What are the connectivity options?
A: It offers 3G/HD-SDI and HDMI outputs, along with an audio input for embedded audio support, making it a versatile choice for professional video production.

Q: What is GENLOCK, and why is it important?
A: GENLOCK synchronization ensures that multiple cameras are frame-accurate, preventing video drift and improving multi-camera production workflows.

Q: Does this camera support remote control?
A: Yes, it features RS-485 control and an On-Screen Display (OSD) menu, allowing for adjustments to exposure, white balance, and other image settings.

Q: What are the key benefits of this camera?
A: The CV365-CGB offers GENLOCK for seamless synchronization, high-quality Full-HD imaging, multiple output options, and an integrated audio input, making it ideal for professional broadcast and live production setups.

Maintenance Tips

• Keep the Lens Clean – Use a microfiber cloth and lens-safe cleaner to remove dust and smudges.
• Inspect Cables & Connections – Ensure all SDI, HDMI, and audio cables are securely connected and undamaged.
• Avoid Overheating – Ensure proper ventilation and avoid placing the camera in direct sunlight for extended periods.
• Check Genlock Sync – Regularly verify Genlock synchronization for stable multi-camera setups.
• Protect from Moisture & Dust – If used in harsh environments, consider additional enclosures or covers.
• Firmware Updates – Check for manufacturer firmware updates to maintain optimal performance.
• Secure Mounting – Make sure the camera is firmly attached to avoid vibrations and misalignment.
• Test Audio Input – If using the built-in audio, ensure proper levels and clarity.
