Marshall CV380-CS True 4K30 Compact Camera - CV380CS

Marshall CV380-CS True 4K30 Compact Camera - CV380CS

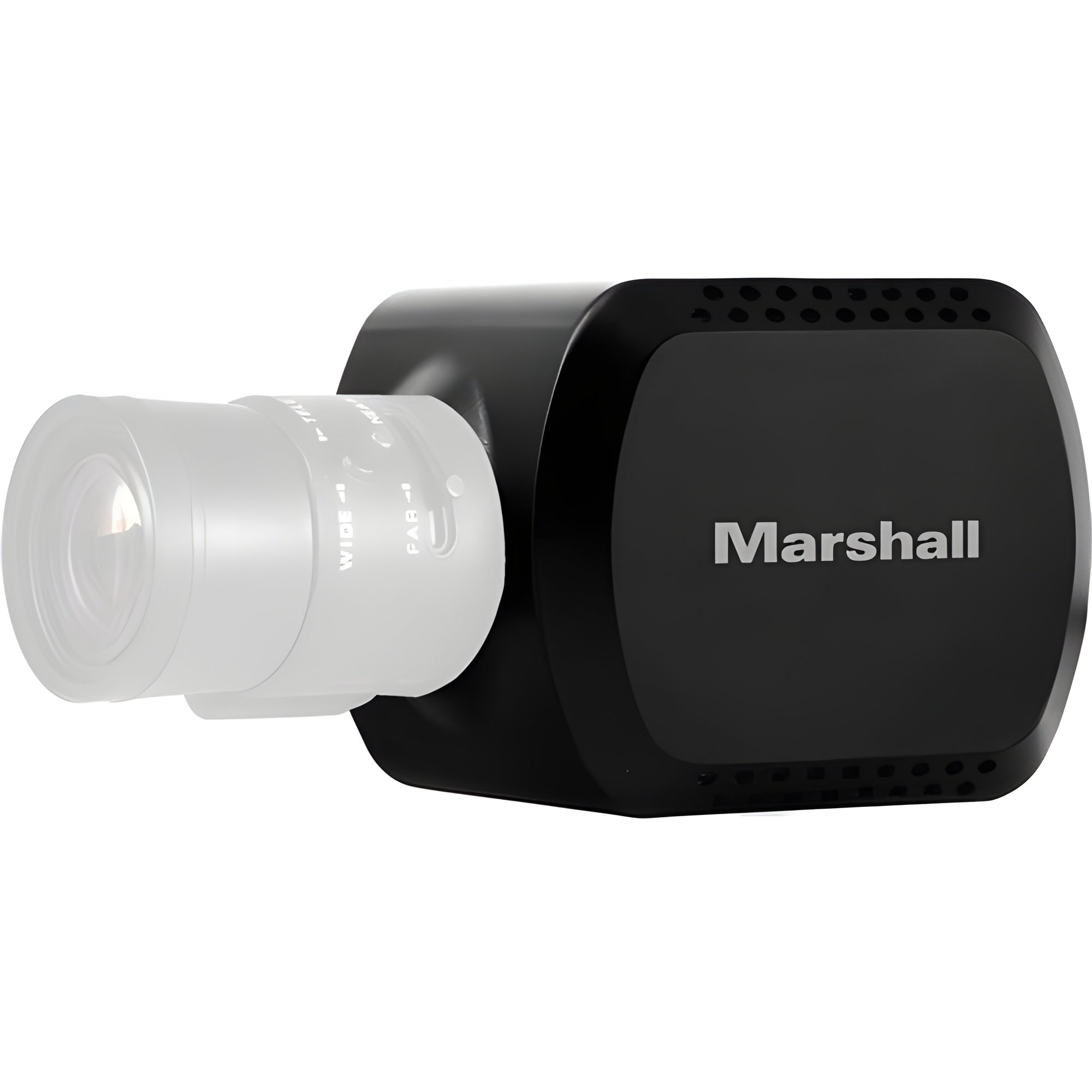

The Marshall CV380-CS is a compact, true 4K camera built around an 8.5-Megapixel, 1/2.5-inch sensor that delivers ultra-crisp, clear true 4K resolution in 4096x2160p. The CV380-CS contains a single 6G (BNC) output with 6G/3G/HD-SDI capability and a simultaneous HDMI output. The flexible CS/C lens mount offers a wide variety of lens options with DC Auto-Iris plug-in ability.
The CV380-CS is a versatile and powerful camera solution in an easy-to-understand design. Remote adjust and match control is delivered via RS485 (Visca) or OSD menu joystick on breakout-cable. A wide range of picture adjustment settings are available such as paint (red/blue), white balance, gain control, pedestal (blacks), exposure, gamma, and more. The CV380-CS delivers ultra-clear 4K or UHD video while maintaining a discrete presence. Use it to capture wide 4096x2160 (4K) video and pull HD frames in post, or as a flexibility spill-over shot, or for unique points-of-view and more.

CV380-CS Applications

Broadcast Sports, Broadcast Television, Broadcast News, House of Worship, Courtroom, Government Assembly, Live Music & Events, Studio Production, Remote Learning, Pro Video, Broadcast Production, Cinematic Production

Features

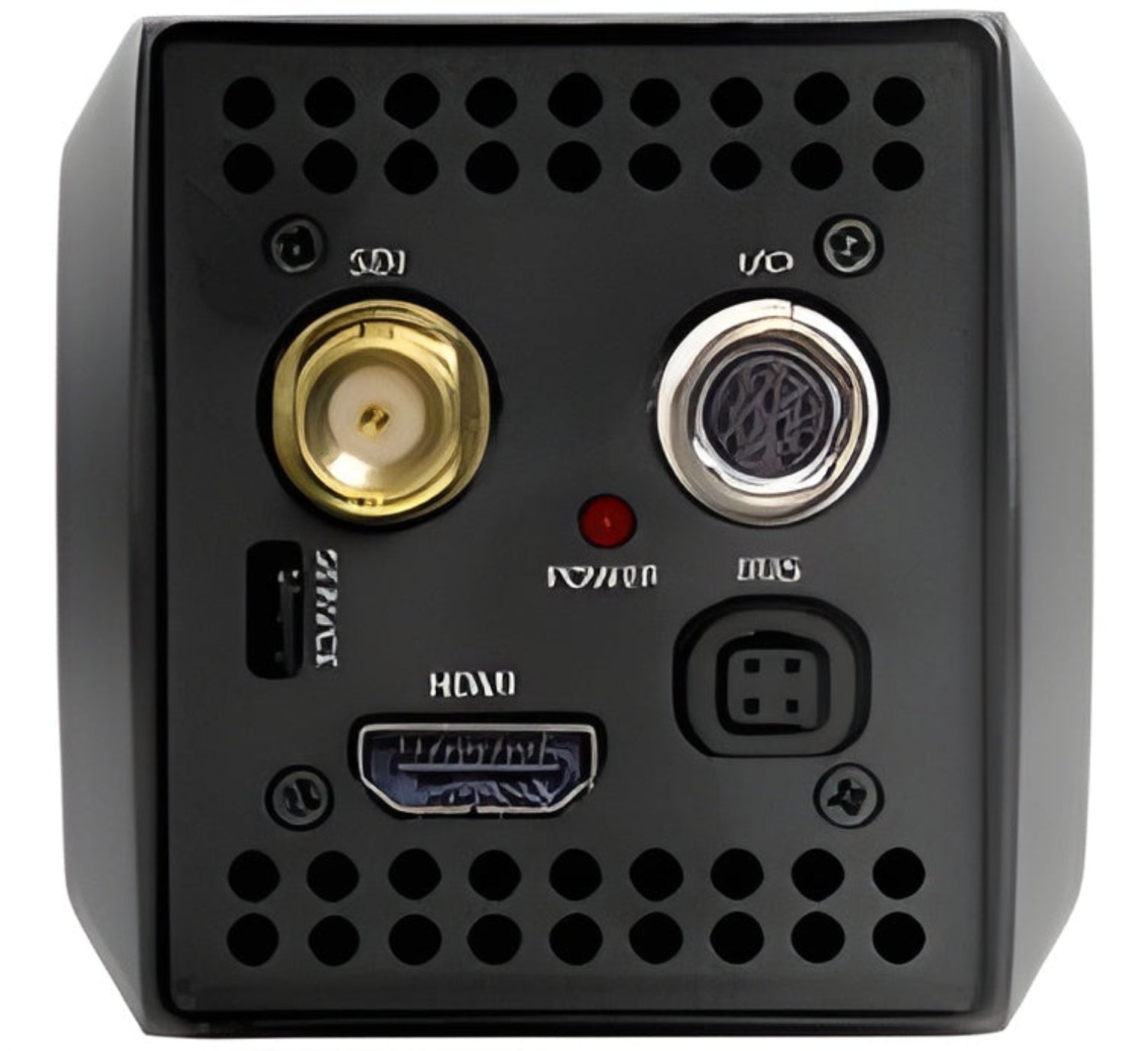

• 6G-SDI (single BNC) & HDMI 1.4 outputs

• CS/C-mount for Varifocal or Fixed lenses

• True-4K: 4096 x 2160p

• RS485 (Visca) or OSD menu joystick Control

• 6G-SDI (single BNC) & HDMI 1.4 outputs

• 8.5 Megapixel (1/2.5") sensor (4:2:2)

• CS/C-mount for Varifocal or Fixed lenses

• True-4K: 4096 x 2160p @ 30, 29.97, 25, 24, 23.98 fps

• Ultra-HD: 3840 x 2160p @ 30, 29.97, 25, 24, 23.98 fps

• HD (Progressive): 1080p / 720p @ 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps

• HD (Interlaced): 1920 x 1080i @ 60, 59.94, 50 fps

• TRS stereo audio inputs (mic & line level)

• Remote adjust and match through RS485 (Visca) or OSD menu joystick

• Wide range of broadcast picture adjustment settings

• Includes 12V power supply in box

What Our Experts Think

• True 4K UHD Resolution – Captures detailed, high-quality 4K video at up to 30fps.
• Compact & Versatile Design – Ideal for tight spaces, POV shots, and discreet installations.
• Interchangeable CS-Mount Lenses – Provides flexibility to choose the perfect lens for any shot.
• 3G/HD-SDI & HDMI Outputs – Ensures seamless connectivity with broadcast and AV systems.
• Wide Dynamic Range (WDR) – Enhances image clarity in challenging lighting conditions.
• Low-Light Performance – Advanced noise reduction and high sensitivity for dim environments.
• Perfect for Broadcast & Live Production – Ideal for sports, reality TV, surveillance, and cinematic applications.

Q&A

Q: What is the Marshall CV620-BK3 PTZ HD Camera?
A: The Marshall CV620-BK3 is a professional PTZ camera with 3G/HD-SDI and HDMI outputs, delivering smooth pan, tilt, and zoom functionality for broadcast, live streaming, and video conferencing.

Q: What is this camera used for?
A: It is ideal for broadcast studios, live events, houses of worship, corporate meetings, and education, providing high-quality Full HD video with remote control capabilities.

Q: What resolution does this camera support?
A: The CV620-BK3 captures Full HD 1080p at 60fps, ensuring sharp, detailed video for professional applications.

Q: What are the connectivity options?
A: It features 3G/HD-SDI and HDMI outputs, making it compatible with a wide range of video production and streaming setups.

Q: Can this camera be controlled remotely?
A: Yes, it supports RS-232 and RS-422 serial control protocols, allowing seamless integration with PTZ controllers and remote operation systems.

Q: What are the key benefits of this camera?
A: It offers smooth pan, tilt, and zoom movements, high-quality Full HD video, multiple output options, and flexible remote control capabilities, making it a versatile solution for professional video production.

Maintenance Tips

• Keep the Lens Clean – Use a microfiber cloth and lens-safe cleaner to prevent dust and smudges.
• Check and Secure Cables – Ensure HDMI, SDI, and power cables are properly connected to avoid signal loss.
• Update Firmware – Regularly check for firmware updates to enhance performance and compatibility.
• Avoid Overheating – Ensure proper ventilation and keep the camera away from heat sources.
• Protect from Moisture and Dust – Store in a dry, dust-free environment when not in use.
• Use a Surge Protector – Prevent electrical damage by using a stable power source or surge protector.
• Inspect Mounting Setup – Securely mount the camera and check brackets periodically for stability.
• Test and Calibrate Settings – Adjust exposure, white balance, and focus settings for optimal image quality.
