Marshall CV565-MGB 2.5MP 3G/HD-SDI/HDSDI/HDMI Full-HD Miniature GENLOCK POV Camera - CV565MGB

Marshall CV565-MGB 2.5MP 3G/HD-SDI/HDSDI/HDMI Full-HD Miniature GENLOCK POV Camera - CV565MGB

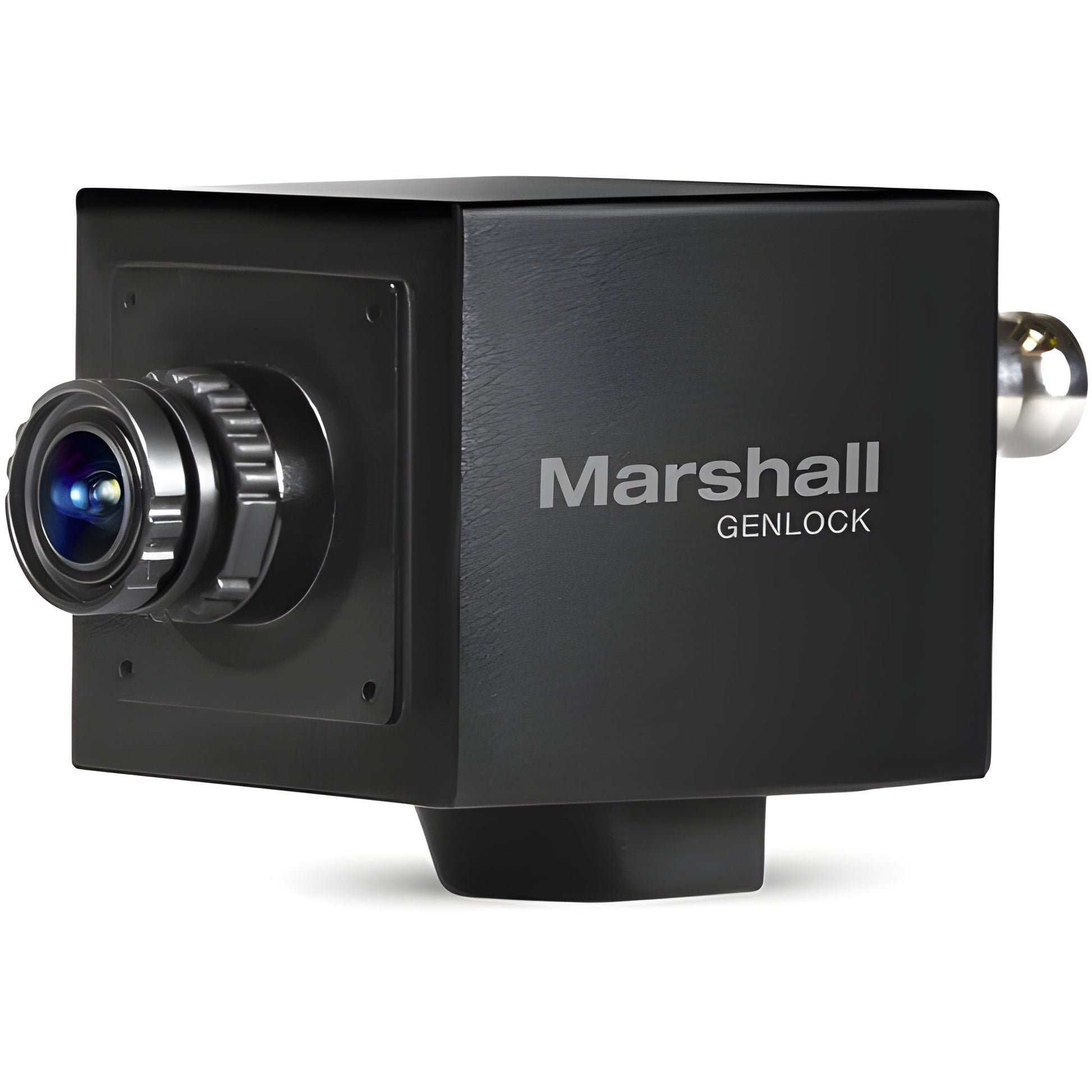

Marshall Electronics next generation Miniature GENLOCK CV565-MGB PRO-Series Camera adds the convenience of Signal Sync at camera level to ensure seamless switch transitions between cameras on location.
Using Tri-Level Sync the CV565-MGB locks 3G/HD video signals (genlock) up to 1920x1080p @ 59.94/50/60 frames per second, as well as 1920x1080i @ 59.94/50/60fps and 1280x720p @ 59.94/50/60fps. Also featuring a 3.5mmTRS Mic/Line level (selectable) input with 2.5V power and broadcast convenient HDSDI/3GSDI (BNC) & HDMI (v1.3) simultaneous outputs. Built around next generation chip sets and a state-of-the-art 1/3" megapixel sensor improves every aspect of previous models. Capturing broadcast quality HD video from 2,476,296 pixels (2.5MP) of clear, crisp video at full-HD resolutions of 1920x1080i, 1920x1080p, 1280x720p & frame-rates of 60/59.94/50/30/29.9 7/25fps.

New proprietary pixel technology offers the lowest noise ratio on the market today capturing sharp, vivid color images in very low light conditions. Industry leading low power consumption draws very low power in full-HD resolutions. CV565-MB/M Pro-Series POV Cameras continue to offer Field-of-View flexibility with interchangeable lenses. Expanded RS-485 protocols offer remote camera control (RCP) communication via VISCA and PELCO where commands can be sent without OSD Menu. Marshall Pro-Series Cameras continue to establish a broadcast standard for POV cameras with ease of use and broadcast centric feature sets.

Features

• 1/3" CMOS Sensor (Approximately 2.5 MP)

• Lens 3.7mm

• 3G-SDI, HD-SDI, HDMI Video Output

• 2.5 Megapixel 1/3-inch CMOS Sensor

• 3.7mm Megapixel M12 Prime Lens installed (interchangeable)

• GENLOCK Tri-Level Sync at camera level to ensure clean switching between cameras

• Sync in 3GSDI (1080p59.94/50/60fps) as well as HDSDI (1080i59.94/50/60fps and 1280x720p59.94/50/60fps)

• Supports resolutions of 1920x1080p, 1920x1080i, and 1280x720p

• Supports frame rates of 59.94, 50, 60, 29.97, 25, 30fps

• Camera will adjust to Resolution & Framerate of Sync source

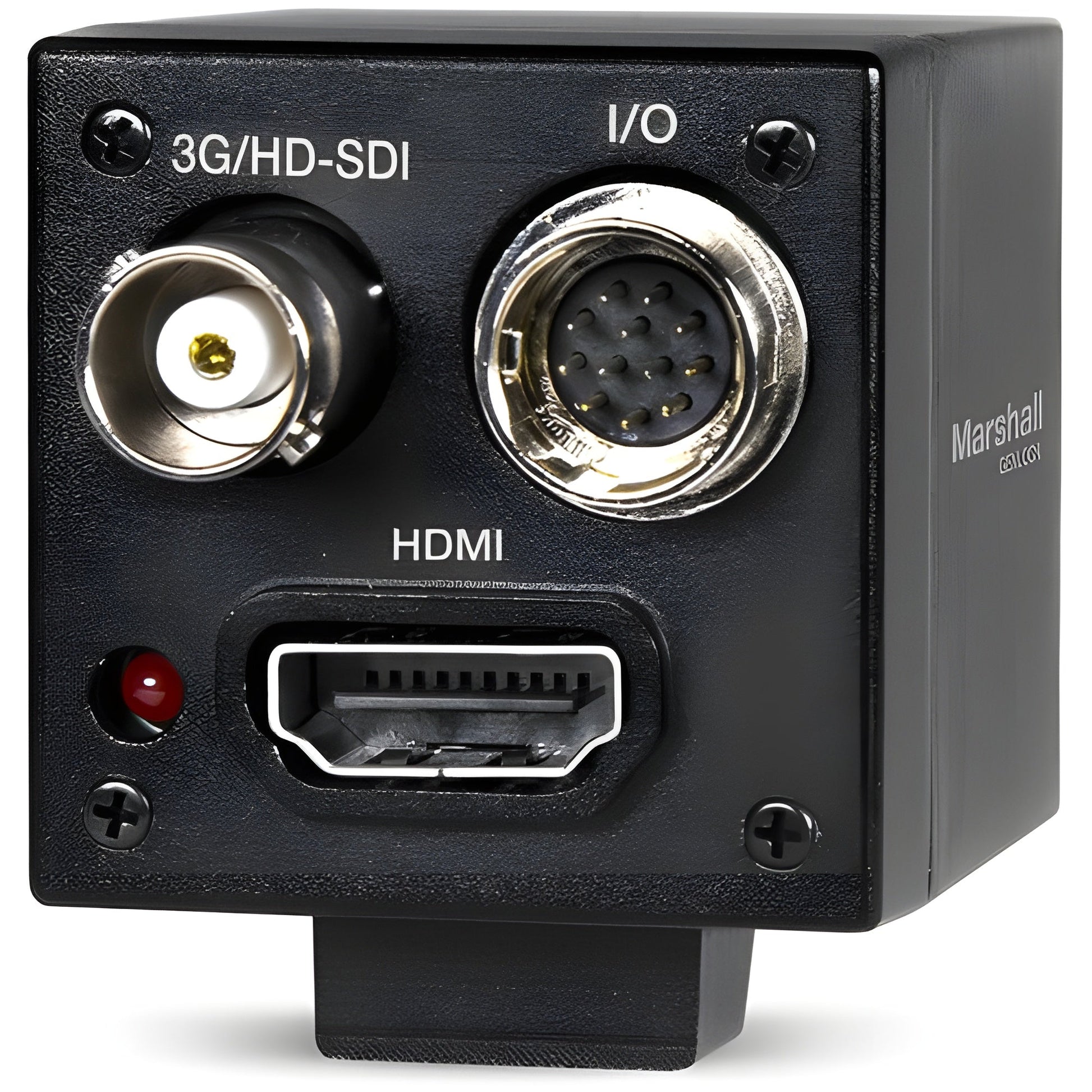

• 3G/HD-SDI (BNC) & HDMI (full size v1.3) built into rear panel

• Hirose-style (I/O) connector contains: Sync-IN, Sync-OUT, RS-485 connect, 12V power connector & TRS Mic/Line level (selectable) input with 2.5V power

• Captures sharp & vivid color images at 0.2lux (low light sensitive)

• New WDR function adjusts automatically to bright and dark areas in FOV

• Audio Mic/Line level audio embedding w/ 2.5V power supplied

• OSD Menu Joystick on cable and RS-485 connectable (Visca/Pelco)

• Free downloadable software to control camera settings via RS485 (requires USB to RS485 converter)

• Stepped (Red/Blue) Gain Control, Gamma, Shutter, Brightness

• Compatible with Marshall RCP Control Unit, p/n: CV-RCP-V2

• Includes 12V power supply in box

What Our Experts Think

• 2.5MP Full HD Sensor – Captures sharp, high-quality 1080p video at up to 60fps.
• GENLOCK Synchronization – Ensures seamless multi-camera sync for broadcast and live production.
• 3G/HD-SDI & HDMI Outputs – Provides flexible connectivity for professional workflows.
• Miniature & Durable Design – Perfect for POV shots, tight spaces, and discreet installations.
• Low-Light Optimization – Features advanced noise reduction and excellent dynamic range.
• Interchangeable M12 Lenses – Allows customized field of view for different shooting needs.
• Ideal for Broadcast & Live Events – Great for sports, reality TV, concerts, and cinematic applications.

Q&A

Q: What is the Marshall CV565-MGB Miniature GENLOCK POV Camera?
A: The Marshall CV565-MGB is a compact Full-HD POV camera with GENLOCK synchronization, featuring 3G/HD-SDI and HDMI outputs, designed for broadcast, live production, and professional AV applications.

Q: What is this camera used for?
A: It is ideal for broadcast studios, sports, reality TV, live events, and cinematic applications, providing high-quality Full-HD video with minimal latency.

Q: What resolution does this camera support?
A: The CV565-MGB captures Full HD 1080p at up to 60fps, delivering crisp, high-quality video with low noise performance.

Q: What are the connectivity options?
A: It offers 3G/HD-SDI and HDMI outputs, ensuring compatibility with professional video production workflows.

Q: What is GENLOCK, and why is it important?
A: GENLOCK synchronization allows the camera to sync with other video sources, ensuring frame accuracy in multi-camera productions for seamless switching.

Q: What are the key benefits of this camera?
A: It provides high-quality Full HD imaging, professional GENLOCK synchronization, multiple output options, and a compact design, making it ideal for discreet yet high-performance video capture.

Maintenance Tips

• Keep the Lens Clean – Use a microfiber cloth and lens-safe cleaner to remove dust and smudges.
• Check Cable Connections – Ensure 3G/HD-SDI, HDMI, and power cables are securely connected to prevent signal loss.
• Update Firmware – Regularly check for firmware updates to maintain optimal performance.
• Avoid Overheating – Place the camera in a well-ventilated area to prevent overheating.
• Protect from Moisture & Dust – Use protective housing if installed in challenging environments.
• Use a Surge Protector – Prevent power-related damage by using a reliable surge protector.
• Test GENLOCK Function – Ensure synchronization with other cameras for seamless video integration.
• Secure Mounting – Check that the camera is properly mounted and stable to avoid misalignment.
