Marshall Electronics CV-PT-HEAD Motorized Micro PT Pan/Tilt Head - CVPTHEAD

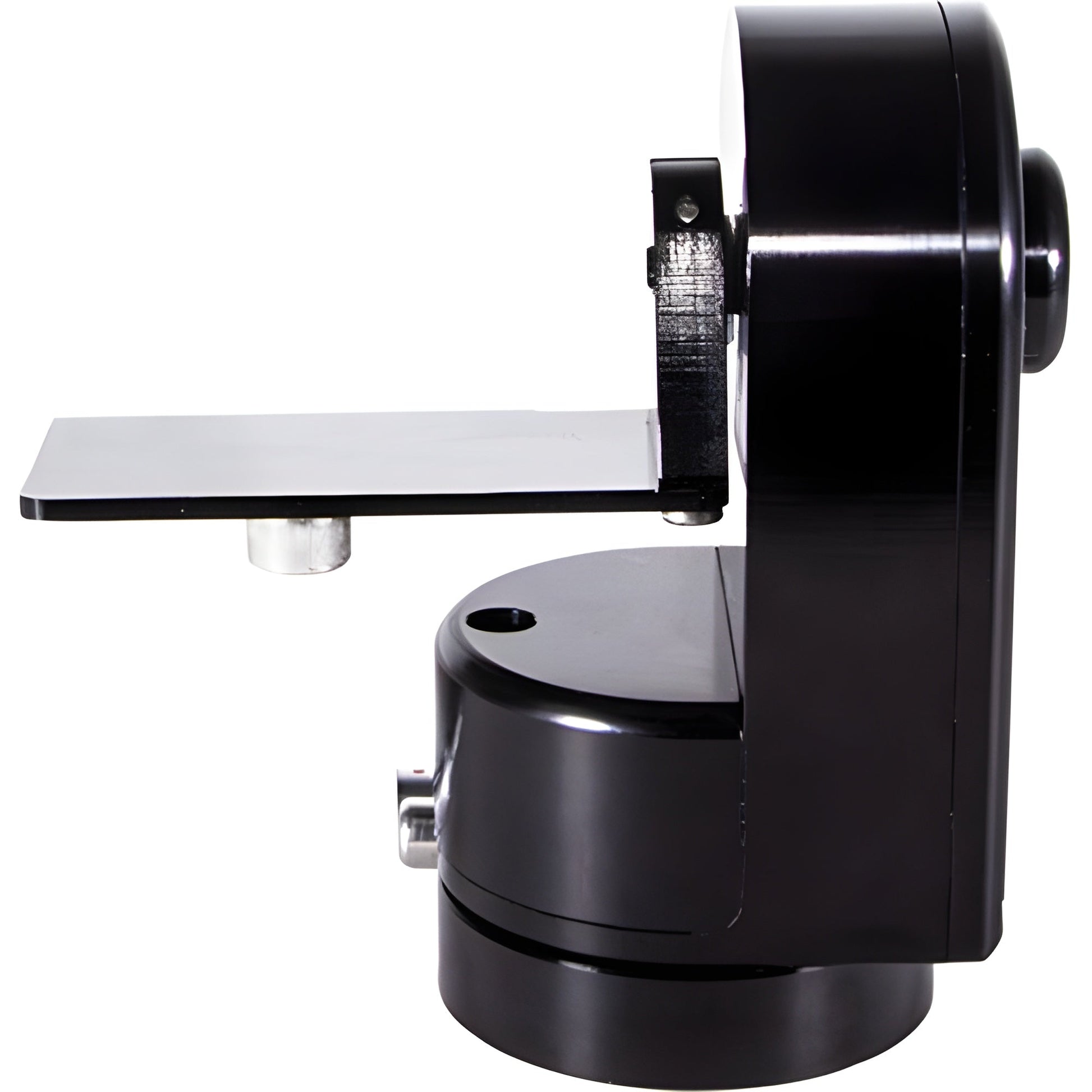

Mount and control the pan and tilt movements of your CV503 (all models), CV506 (all models), CV344, CV346, CV355-10X, or CV380-CS series camera remotely with the Motorized Micro PT Pan/Tilt Head from Marshall Electronics. It can be mounted onto a tripod, wall, or ceiling using its 1/4"-20 and M3 threads, allowing you to maneuver your camera in different positions using its 10 gears. The pan/tilt mount is made with a durable aluminum housing, and it is IP65 weatherproof.

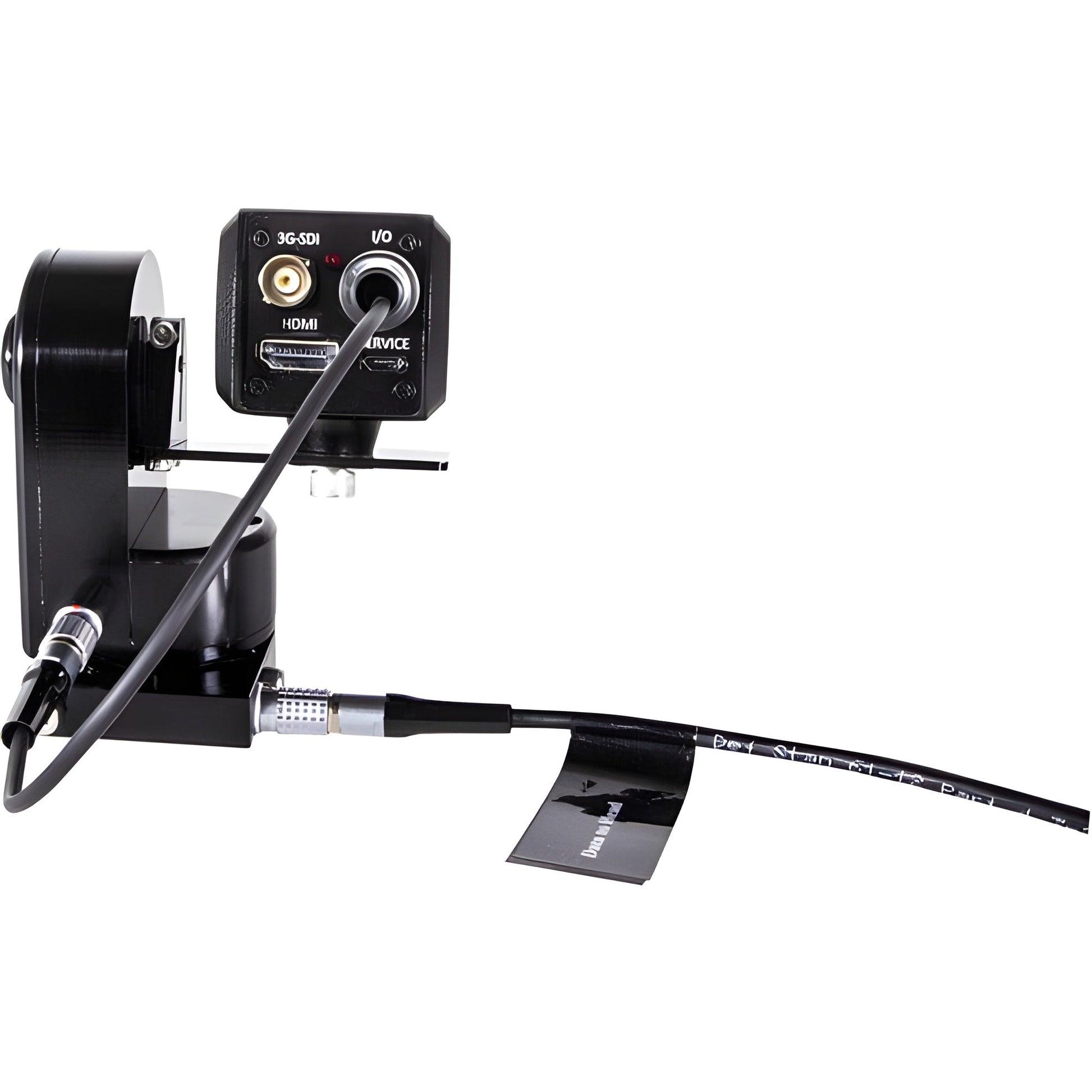

The head pans up to 350° and tilts 360°, and it can be controlled using a remote such as the separately available Marshall CV Micro joystick remote or another serial controller. It features up to 64 presets that can be performed with an external controller. The included 7- to 4-pin patch cable supplies control and power to the attached camera via a 12 VDC, 1A input, and it can be operated via the included remote control. A camera plate and drop spacer for larger cameras are also included.
Features
- Tripod, Wall, and Ceiling Mountable
- For Select Marshall CV Series Cameras
- Control Pan/Tilt Motors via Serial
- IP65 Weatherproof, Aluminum Housing
- Works with CV Micro Remote Joystick
- 350° Pan, 360° Tilt, 64 Presets
- 4-Pin to 7-Pin Power/Control Cable
- 1/4"-20 and M3 Mounting Threads
What Our Experts Think
-
Precision Pan & Tilt Control – Enables smooth, remote camera movement for dynamic shots.
-
Compact & Lightweight Design – Ideal for small cameras, POV setups, and tight shooting spaces.
-
Seamless Integration – Compatible with Marshall mini cameras and other compact camera systems.
-
Quiet & Fluid Motion – Ensures professional-grade operation for broadcast and live productions.
-
Multiple Control Options – Supports serial, IP, and remote controller operation for flexible setups.
-
Durable & Weather-Resistant Build – Suitable for indoor and outdoor applications.
-
Perfect for Live Streaming & Broadcast – Great for sports, concerts, houses of worship, and remote production.
Q&A
Q: What is the Marshall Electronics CV-PT-HEAD Motorized Micro PT Pan/Tilt Head?
A: The Marshall CV-PT-HEAD is a compact motorized pan/tilt head designed for remote positioning of small cameras, offering smooth and precise movement for professional video applications.
Q: What is this pan/tilt head used for?
A: It is ideal for broadcast, live streaming, surveillance, sports, and production environments, allowing operators to remotely adjust camera angles with precision.
Q: What types of cameras are compatible?
A: The CV-PT-HEAD is designed to support Marshall Miniature and Compact cameras, as well as other small-format cameras with 1/4"-20 mounting.
Q: How is it controlled?
A: The unit can be controlled via RS-485/232 serial protocols or optional joystick controllers, enabling smooth, remote operation.
Q: What are the key benefits?
A: It provides quiet and smooth movement, precise pan/tilt control, and remote adjustability, making it an excellent choice for fixed installations and multi-camera productions.
Maintenance Tips
-
Keep Moving Parts Clean – Regularly remove dust and debris from the pan/tilt mechanism to ensure smooth movement.
-
Avoid Overloading – Do not exceed the recommended camera weight to prevent strain on motors.
-
Check Cables & Connections – Secure power and control cables to avoid signal interruptions or mechanical issues.
-
Update Firmware – If applicable, keep the system firmware up to date for optimal performance.
-
Ensure Proper Mounting – Secure the pan/tilt head to a stable surface to prevent unwanted vibrations.
-
Operate Within Safe Temperatures – Avoid extreme heat or cold, which can affect motor performance.
-
Use Smooth Controls – Avoid abrupt or excessive manual force on the unit to prevent motor damage.
