The CV605-WH 5X optical zoom 3GSDI camera makes use of a professional grade 2 Megapixel sensor to obtain crisp HD video beginning at a wide-angle 85° and up to 1920x1080p resolution at 60fps. Numerous available outputs consist of 3GSDI and IP (H.265/H.264). Marshall's simplistic design and east to use makes this camera an affordable camera for a wide array of broadcast and professional A/V applications. CV605-WH can be installed through the one-cable to camera setup which uses one Ethernet (CAT) cable to carry power, video, audio, and control over IP.

Ultra-Wide 85° with 5x Optical Zoom Range

The wide-angle optical zoom lens offers an impressive 85-degree angle-of-view through 20-degree (15mm) with smooth transition and an additional 10x digital zoom range.

3GSDI + IP (Ethernet) Workflow Flexibility

CV605-WH offers low latency 3GSDI (BNC) output as well as IP interface with multiple protocol supported. An IP interface provides easy one-cable setup with ethernet (Cat) cable handling video, audio, control and PoE (power).

Low-light Sensitivity

The CV605-WH PTZ camera operates with exceptional low-light sensitivity, ensuring a clear picture in variable and challenging lighting conditions, including live events, houses of worship, indoor or outdoor sporting events, and other dynamic lighting environments.

One Cable to Camera

One cable to camera provides up to HD video, audio, control, and power (PoE) over one cable with IP (H.265/H.264) and 3GSDI simultaneous outputs with audio embedding.

• 1920x1080p at 60/59.94/50/30/29.97/25fps

  1920x1080i at 60/59.94/50fps

  1280x720p at 60/59.94/50/30/29.97/25fps

Features

• Capture and Stream up to 1080p60 Video

• 5x Optical Zoom, 10x Digital Zoom

• 85° Angle of View

• 3G/HD-SDI and IP Video Output

• RS-232/VISCA Serial Control

• 2 Megapixel (HD) sensor

• 5X Optical Zoom (3~15mm) - starting at 85° AOV

• HD Resolution: 1920x1080p, 1920x1080i & 1280x720p

• Low Illumination capability at 0.5Lux (F1.8) for challenging environments

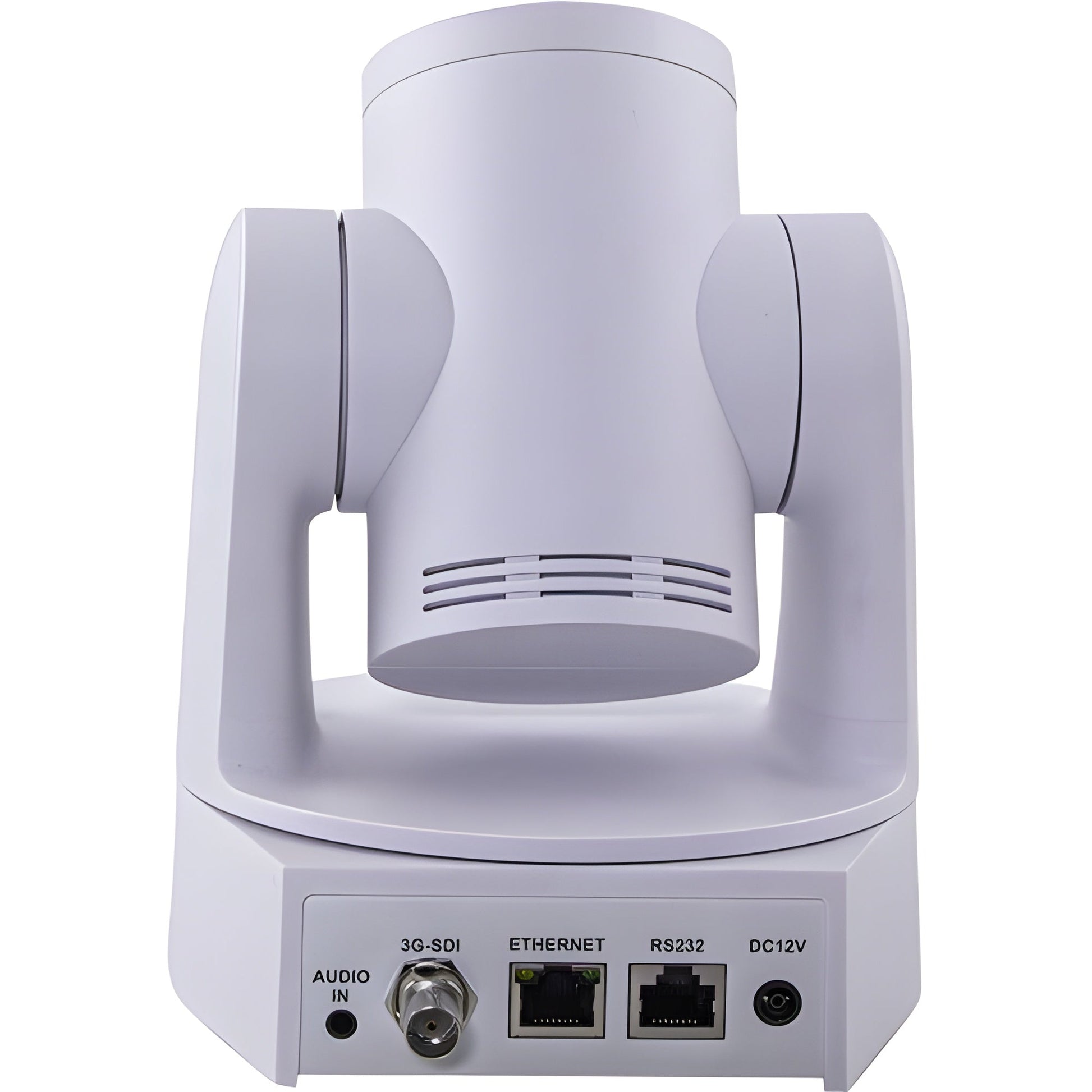

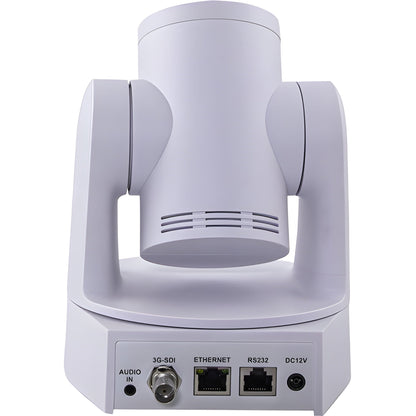

• 3G-SDI (BNC) and IP (H.265/H.264) with RS232 via RJ45

• Ethernet IP supports video, audio, control, and PoE (IEEE802.3af) over one Cat cable

• Control Options: IR remote, GUI, VS-PTC-200 (RS232/RS422), VS-PTC-IP (IP/RS232/RS422) or Custom

• 3.5mm audio (Line or Mic level) input (AAC, MP3, G.711A compression)

What Our Experts Think

• High-Quality Video: Delivers clear, professional-grade video with 3G-SDI and IP output options for flexible connectivity.
• 5x Optical Zoom: Provides excellent zoom capabilities for detailed shots without compromising image quality.
• Compact Design: Small form factor makes it perfect for tight spaces and versatile setups in production environments.
• PTZ Functionality: Smooth pan, tilt, and zoom controls for dynamic and precise camera movements during live events or broadcasts.
• Reliable Performance: Built for consistent, high-performance operation in demanding environments like studios, events, and surveillance.
• Wide Compatibility: Works seamlessly with various video software, cameras, and production setups.
• Versatile Connectivity: Offers both SDI and IP connectivity for flexible integration into any video production workflow.

Q&A

Q: What is the Marshall CV605-WH?
A: The Marshall CV605-WH is a compact PTZ camera featuring 3G-SDI and IP connectivity, designed for professional video production. It offers 5x optical zoom and is ideal for live streaming, broadcasting, and event coverage.

Q: Who is this camera for?
A: Perfect for videographers, event organizers, live streamers, and broadcast professionals who need a versatile, easy-to-use PTZ camera with excellent video quality for different applications.

Q: What is the optical zoom on the CV605-WH?
A: The CV605-WH features a 5x optical zoom, allowing you to capture clear and sharp images from varying distances without sacrificing image quality.

Q: What are the connectivity options for the CV605-WH?
A: This camera supports both 3G-SDI and IP (network) connections, providing flexible integration options for professional video setups and live streaming.

Q: What makes the CV605-WH stand out?
A: The CV605-WH combines compact design, high-quality video output, and versatile connectivity options, making it ideal for environments where space is limited but performance is critical.

Maintenance Tips

• Lens Cleaning – Regularly clean the lens using a microfiber cloth and lens-safe cleaner to maintain optimal image clarity.
• Firmware Updates – Ensure the camera firmware is updated to take advantage of new features and improvements.
• Cable Management – Check all SDI and IP connections for secure and proper attachment to avoid signal loss or disruptions.
• Proper Ventilation – Place the camera in a well-ventilated area to prevent overheating during long operational periods.
• Surge Protection – Use a surge protector to protect the camera from electrical surges or fluctuations in power.
• Test Functions – Periodically test the pan, tilt, and zoom functions to ensure they are operating smoothly and without delay.
• Gentle Handling – Always handle the camera with care to avoid physical damage to its internal components or lens.
